Maxus MXN10400 User manual

Operating Instructions MXN10400
8
Limited Warranty
1. DURATION: From the date of purchase by the original purchaser as follows: Campbell Hausfeld (Standard Duty and
Unannounced) – One (1) Year, (Serious Duty) – Two (2) Years, (Extreme Duty) – Three (3) Years; IronForce by Campbell
Hausfeld – One (1) Year; Farmhand – Three (3) Years; Maxus – Five (5) Years.
2. WHO GIVES THIS WARRANTY (WARRANTOR): Campbell Hausfeld / Scott Fetzer Company, 100 Production Drive,
Harrison, Ohio, 45030, Telephone: [phone]
3. WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the
Campbell Hausfeld product.
4. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any Campbell Hausfeld nailer, stapler, air tool, spray gun, infla-
tor or air accessory supplied or manufactured by Warrantor.
5. WHAT IS COVERED UNDER THIS WARRANTY: Substantial defects in material and workmanship which occur within the
duration of the warranty period.
6. WHAT IS NOT COVERED UNDER THIS WARRANTY:
A. Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED
FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION. If this product is used for commercial,
industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase. Some States
do not allow limitation on how long an implied warranty lasts, so the above limitations may not apply to you.
B. ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY
DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT. Some States do not allow the exclu-
sion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to
you.
C. Any failure that results from an accident, purchaser’s abuse, neglect or failure to operate products in accordance
with instructions provided in the owner’s manual(s) supplied with product. Accident, purchaser's abuse, neglect or
failure to operate products in accordance with instructions shall also include the removal or alteration of any safety
devices. If such safety devices are removed or altered, this warranty is void.
D. Normal adjustments which are explained in the owner’s manual(s) provided with the product.
E. Items or service that are normally required to maintain the product, i.e. o-rings, springs, bumpers, debris shields,
driver blades, fuses, batteries, gaskets, packings or seals, fluid nozzles, needles, sandblast nozzles, lubricants, mate-
rial hoses, filter elements, motor vanes, abrasives, blades, cut-off wheels, chisels, chisel retainers, cutters, collets,
chucks, rivet jaws, screw driver bits, sanding pads, back-up pads, impact mechanism, or any other expendable part
not specifically listed. These items will only be covered for ninety (90) days from date of original purchase.
Underlined items are warranted for defects in material and workmanship only.
F. Cosmetic defects that do not interfere with the product’s function.
7. RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor’s option, products or com-
ponents which are defective, have malfunctioned and/or failed to conform within duration of the warranty period.
8. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:
A. Provide dated proof of purchase and maintenance records.
B. Deliver or ship the Campbell Hausfeld product or component to the nearest Campbell Hausfeld Authorized Service
Center. Freight costs, if any, must be borne by the purchaser.
C. Use reasonable care in the operation and maintenance of the products as described in the owner’s manual(s).
9. WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be
scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability
of replacement parts.
This Limited Warranty applies in the United States, Canada and Mexico only and gives you specific legal rights. You may
also have other rights which vary from state to state or country to country.
tion equipment such as head, hear-
ing and foot protection equipment.
Serious eye or permanent hearing
loss could result.
• Assuring that the tool is kept in
safe working order as described in
this manual.
• Assuring the proper maintenance
of all tools in employer’s possession.
• Ensuring that tools which require
repair are not further used before
repair. Tags and physical segrega-
tion are recommended means of
control.
Table of Contents
General Safety . . . . . . . . . . . . .1-3
Specifications . . . . . . . . . . . . . . .2
Operating The Tool . . . . . . . . .3-5
Troubleshooting . . . . . . . . . . . . .7
Warranty . . . . . . . . . . . . . . . . . . .8
Description
This tool is designed for decorative
trim, molding, window casings, furni-
ture trim, picture frame assembly, cabi-
netry, casebacks, and crafts. Features
include: convenient top loading maga-
zine which holds up to 100 brads or
staples, adjustable depth control,
adjustable exhaust, quick clear nose.
General Safety
Information
CALIFORNIA PROPOSITION 65
You
can
create dust when you cut,
sand, drill or grind materi-
als such as wood, paint,
metal, concrete, cement, or
other masonry. This dust often contains
chemicals known to cause cancer, birth
defects, or other reproductive harm.
Wear protective gear.
This manual contains safety, opera-
tional and maintenance information.
Contact your Campbell Hausfeld repre-
sentative if you have any questions.
!
DANGER
OPERATOR’S RESPONSIBILITY:
The tool operator is responsible for:
• Reading and understanding tool
labels and manual.
• Selecting an appropriate tool actua-
tion system, taking into considera-
tion the work application for which
the tool is used.
• The safe use of the tool.
• Ensuring that the
tool is used only
when the operator
and all other person-
nel in the work area
are wearing ANSI Z87 eye protec-
tion equipment, and when
required, other appropriate protec-
tion equipment such as head, hear-
ing and foot protection equipment.
Serious eye or permanent hearing
loss could result.
• Assuring that the tool is kept in safe
working order as described in this
manual.
EMPLOYER’S RESPONSIBILITY:
• Selecting an appropriate tool actua-
tion system, taking into considera-
tion the work application for which
the tool is used.
• Ensuring that this manual is avail-
able to operators and personnel
performing maintenance.
• The safe use of the tool.
• Enforcing that the
tool is used only
when the operator
and all other person-
nel in the work area
are wearing ANSI Z87 eye protec-
tion equipment, and when
required, other appropriate protec-
Operating Instructions MXN10400
2-in-1
Nailer/Stapler
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury, death and/or
property damage! Retain instructions for future reference.
Model MXN10400
IN701300AV 11/04
Maxus Nailers meet or exceed Industries’
Standards as set forth by the American
National Standard Institute/International
Staple, Nail and Tool Association in ANSI/ISAN-
TA SNT-101-2002.
© 2004
See Warranty on page 8 for important information about commercial use of this product.
REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.
Locate model and date code on tool
magazine and under nozzle shield,
and record below:
Model No. ________________________
Date Code ________________
Retain these numbers for
future reference.

MXN10400
7
Operating Instructions
Air leaking at trigger valve
Air leaking between hous-
ing and nose
Air leaking between hous-
ing and cap
Tool skips driving fastener
Tool runs slow or has loss
of power
Fasteners are jammed in
tool
O-Rings in trigger valve housing are
damaged
Loose screws in housing
Damaged O-Rings
Damage to bumper
Loose screws
Damaged gasket
Worn bumper
Dirt in nose piece
Dirt or damage prevent fasteners or
pusher from moving freely in magazine
Damaged pusher spring
Inadequate air flow to tool
Worn O-Ring on piston or lack of lubri-
cation
Damaged O-Ring on trigger valve
Air leaks
Cap gasket leaking
Tool not lubricated sufficiently
Broken spring in cylinder cap
Exhaust port in cap is blocked
Guide on driver is worn
Fasteners are not correct size
Fasteners are bent
Magazine or nose screws are loose
Driver is damaged
Replace O-Rings. Check operation of Work Contact
Element (WCE)
Tighten screws
Replace O-Rings
Replace bumper
Tighten screws
Replace gasket
Replace bumper
Clean drive channel
Clean magazine
Replace spring
Check fitting, hose or compressor
Replace and lubricate O-Rings
Replace O-Rings
Tighten screws and fittings
Replace gasket
Lubricate tool
Replace spring
Replace damaged internal parts
Replace guide
Use only recommended fasteners
Replace with undamaged fasteners
Tighten screws
Replace driver
Troubleshooting Guide
Stop using tool immediately if any of the following problems occur. Serious
personal injury could result. Any repairs or replacements must be done by a Qualified Service Person or
Authorized Service Center.
!
WARNING
Problem Cause Solution
2

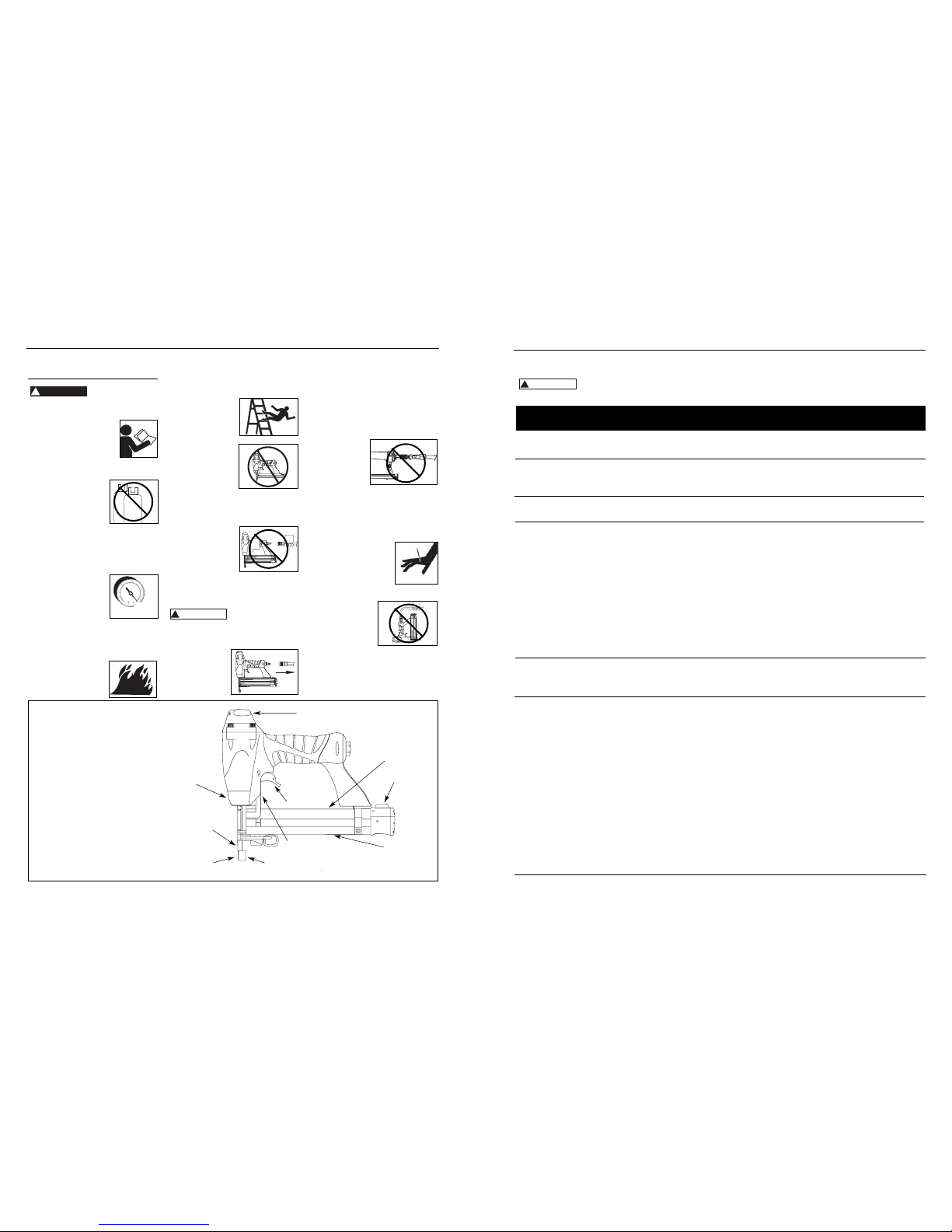

General Safety
Information (Continued)
Danger indicates
an imminently haz-
ardous situation which, if not avoided,
WILL result in death or serious injury.
Read and understand
tool labels and manual.
Failure to follow warn-
ings, dangers, and cau-
tions could result in
DEATH or SERIOUS
INJURY.
Do not use any type
of reactive gases,
including, but not lim-
ited to, oxygen and
combustible gases, as
a power source. Use
filtered, lubricated,
regulated compressed air only. Use
of a reactive gas instead of com-
pressed air may cause the tool to
explode which will cause death or
serious personal injury.
Use only a pressure-
regulated compressed
air source to limit the
air pressure supplied
to the tool. The regu-
lated pressure must
not exceed 100 psi. If the regulator
fails, the pressure delivered to the
tool must not exceed 200 psi. The
tool could explode which will cause
death or serious personal injury.
Never use gasoline
or other flammable
liquids to clean the
tool. Never use the
!
DANGER
tool in the presence of flammable
liquids or gases. Vapors could ignite
by a spark and cause an explosion
which will result in death or serious
personal injury.
Always remain in
a firmly balanced
position when
using or handling
the tool.
Do not remove,
tamper with, or
otherwise cause
the Work Contact
Element (WCE) or
trigger to become
inoperable. Do
not operate any tool which has been
modified in a like fashion. Death or
serious personal injury could result.
Do not touch the
trigger unless dri-
ving fasteners.
Never attach air
line to tool or
carry tool while
touching the trig-
ger. The tool could eject a fastener
which will result in death or serious
personal injury.
Warning indicates
a potentially
hazardous situation which, if not avoid-
ed, COULD result in death or
serious injury.
Always discon-
nect the tool
from the power
source when
unattended,
!
WARNING
performing any maintenance or
repair, clearing a jam, or moving the
tool to a new location. Always
reconnect the air line BEFORE load-
ing any fasteners. Do not load the
tool with fasteners when either the
trigger is depressed or the Work
Contact Element (WCE) is engaged.
The tool could eject a fastener caus-
ing death or serious personal injury.
Always fit tool
with a fitting
or hose cou-
pling on or
near the tool in
such a manner
that all com-
pressed air in the tool is discharged
at the time the fitting or hose cou-
pling is disconnected. Do not use a
check valve or any other fitting which
allows air to remain in the tool. Death
or serious personal injury could occur.
Never place hands or
any other body parts in
the fastener discharge
area of the tool. The
tool might eject a fas-
tener and could result
in death or serious personal injury.
Never carry the
tool by the air
hose or pull the
hose to move the
tool or a compres-
sor. Keep hoses
away from heat,
oil and sharp edges. Replace any
hose that is damaged, weak or
worn. Personal injury or tool dam-
age could occur.
MXN10400
Operating Instructions
• REQUIRES: 0.8 SCFM with 10 fas-
teners per minute @ 90 psi
• AIR INLET: 1/4” NPT
• FASTENER SIZE RANGE: 3/8” to
1 1/4”
• MAGAZINE CAPACITY:
100 fasteners per load, 18 gauge
• STAPLES: 1/4” crown
• WEIGHT: 2 lbs., 15 oz.
• LENGTH: 10 1/2”
• HEIGHT: 9 1/2”
• MAXIMUM PRESSURE: 100 psi
• PRESSURE RANGE: 60 - 100 psi
Tool Components And Specifications Cap exhaust
OCO2
100 psi
MAX.
Warning label
Latch button
Magazine
Fastener discharge area
Work contact element (WCE)
Trigger
Quick clear nose
Adjustable depth control
(not visible)
Nozzle
shield

6
MXN10400
Operating Instructions
Nails - Interchange Information
MXN104 can use 3/8” to 1-1/4” 18 gauge brad nails designed for the following tools:
• Bostitch®BT125SK-2 • Campbell Hausfeld® NB0030
• DeWalt® D51238K • Hitachi® NT32AE
• Paslode® T125-F18 • Porter Cable®BN125
• Senco®Finish Pro™ 15
Staples - Interchange Information
MXN104 can use 3/8” to 1-1/4” 18 gauge, 1/4” crown staples designed for the following tools:
• Campbell Hausfeld® SN258K • Hitachi® N3804AB
• Porter Cable®NS100, NS150 • Senco®SLS15, SLS18, SLS25XP
Fasteners
1
1
MPA
bar
psi 1
1
7
.
.
..
5
9
1
6
8
1
1
3
4
1
3
General Safety
Information (Continued)
Always assume the tool contains
fasteners. Respect the tool as a
working implement; no horseplay.
Always keep others at a safe dis-
tance from the work area in case of
accidental discharge of fasteners.
Do not point the tool toward your-
self or anyone whether it contains
fasteners or not. Accidental trigger-
ing of the tool could result in death
or serious personal injury.
Do not drive a fas-
tener on top of
other fasteners.
The fastener could
glance and cause
death or a serious
puncture wound.
Do not operate
or allow anyone
else to operate
the tool if any
warnings or
warning labels
are not legible. Warnings or warning
labels are located on the tool maga-
zine and body.
Do not drop or throw the tool.
Dropping or throwing the tool can
result in damage that will make the
tool unusable or unsafe. If the tool
has been dropped or thrown, exam-
ine the tool closely for bent, cracked
or broken parts and air leaks. STOP
and repair before using or serious
injury could occur.
Clean and check all air supply hoses
and fittings before connecting the
tool to an air supply. Replace any
damaged or worn hoses or fittings.
Tool performance or durability may
be reduced.
Air compressors providing air to the
tool should follow the requirements
established by the American
National Standards Institute
Standard B19.3-1991; Safety
Standard for Compressors for
Process Industries. Contact your air
compressor manufacturer for
information.

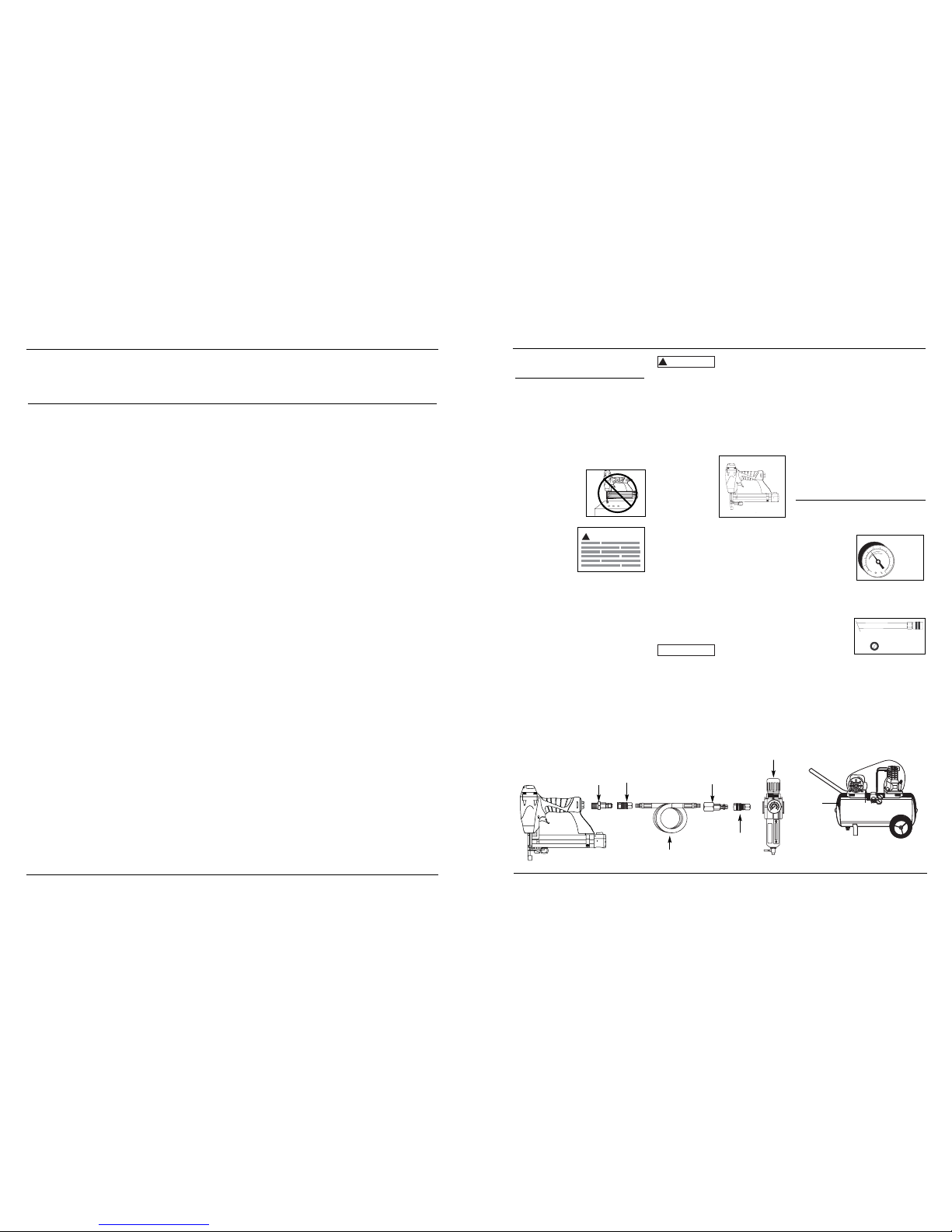

Operating The Tool
RECOMMENDED HOOKUP
The illustration below shows the
recommended hookup for the tool.
1. The air com-
pressor must
be able to
maintain a
minimum of
60 psi when
the tool is being used. An inade-
quate air supply can cause a loss of
power and inconsistent driving.
2. Use 3/8” air
hoses with a
minimum
working pres-
sure of 150
psi. Use 1/2” air hoses for 50’ run or
longer. For better performance,
install a 3/8” quick plug (1/4” NPT
threads) with an inside diameter of
.315" (8mm) on the tool and a 3/8”
quick coupler on the air hose.
Caution indicates
a potentially haz-
ardous situation which, if not avoided,
MAY result in minor or moderate
injury.
Do not make any modifications to the
tool without first obtaining written
approval from Campbell Hausfeld. Do
not use the tool if any shields or
guards are removed or altered. Do
not use the tool as a hammer.
Personal injury or tool
damage may
occur.
Avoid long
extended peri-
ods of work
with the tool.
Stop using the
tool if you feel
pain in hands or arms.
Always check that the Work Contact
Element (WCE) is operating proper-
ly. A fastener could accidentally be
driven if the WCE is not working
properly. Personal injury may occur
(See "Checking the Work Contact
Element" Section).
Disconnect air supply and release
tension from the pusher before
attempting to clear jams because
fasteners can be ejected from the
front of the tool. Personal injury
may occur.
Notice indicates
important infor-
mation, that if not followed, MAY
cause damage to equipment.
Avoid using the tool when the mag-
azine is empty. Accelerated wear on
the tool may occur.
NOTICE
!
CAUTION
MXN10400
Operating Instructions
!WARNING
Recommended Hookup
Quick
Plug
Quick
Coupler
Air
Hose
Quick Plug
(Optional)
Quick
Coupler
(Optional)
Filter - Regulator
60 psi
Min.
100 psi
Max.
150 PSI WP
3/8” I.D.

Operating The Tool
(Continued)
3. For deeper penetration, turn the
wheel (C) to left to the extent
desired.
4. Make sure trigger
and work contact
element (WCE) move
freely up and down
without binding or
sticking after each adjustment.
ADJUSTING THE DIRECTION OF THE
EXHAUST
The MXN104 is
equipped with an
adjustable direc-
tion exhaust
deflector. This is
intended to allow
the user to change the direction of the
exhaust. Simply twist the deflector to
any direction desired.
CLEARING A JAM FROM THE TOOL
1. Disconnect the
air supply from
the tool.
2. Remove all fas-
teners from the
magazine (see
Loading/
Unloading).
Failure to remove
all fasteners will
cause the fasteners to eject from the front
of the tool.
3. Undo hook by
pushing down on
the button on the
side of the maga-
zine. The button
will disengage the hook from the
nose.
!
WARNING
4. The door can now
be rotated, expos-
ing the jammed
fastener.
5. Remove the
jammed fas-
tener, using
pliers or a
screwdriver if
required.
6 Rotate door back
into the closed
position.
7. Push button
down again to lift
thehook. Close
the door and
release the button
to reengage the hook with the
nose.
8. Make sure the trig-
ger and work con-
tact element (WCE)
move freely up and
down without stick-
ing or binding.
Technical Support
Please call our Tool Hotline at
1-888-241-5858 with any questions
regarding the operation or repair of
this tool or for additional copies of this
manual.
Fastener And Replacement
Parts
Use only
18 gauge fasten-
ers (or equivalent - see Fastener
Interchange Information). Tool perfor-
mance, safety and durability could be
reduced if improper fasteners are used.
When ordering replacement parts or
fasteners, specify by part number.
Tool Repair
Only qualified personnel should repair
the tool, and they should use genuine
Campbell Hausfeld replacement parts
and accessories, or parts and acces-
sories which perform equivalently.
Assembly Procedure For
Seals
When repairing a tool, the internal
parts must be cleaned and lubricated.
Parker O-lube or equivalent must be
used on all o-rings. Each o-ring must be
coated with O-lube before assembling.
A small amount of oil must be used on
all moving surfaces and pivots.
!
WARNING
MXN10400
Operating Instructions
5
Rotate
movement
movement
BUILTTOLAST
Operating The Tool
(Continued)
3. Use a pressure
regulator on the
compressor, with
an operating
pressure of 0 -125
psi. A pressure regulator is required
to control the operating pressure of
the tool between 60 and 100 psi.
SINGLE SEQUENTIAL MODE
This mode
requires the trig-
ger to be pulled
each time a fas-
tener is driven.
The tool can be actuated by depressing
the WCE against the work surface fol-
lowed by pulling the trigger.
The trigger must be released to reset
the tool before another fastener can
be driven.
CHECKING THE WORK CONTACT
ELEMENT (WCE)
Check the opera-
tion of the Work
Contact Element (WCE) trip mechanism
before each use. The WCE must move
freely without binding through its
entire travel distance. The WCE spring
must return the WCE to its fully extend-
ed position after being depressed. Do
not operate the tool if the WCE trip
mechanism is not operating properly.
Personal injury may occur.
1. Disconnect the
air supply from
the tool.
2. Remove all fas-
teners from
the magazine
(see Loading/
Unloading).
3. Make sure the trig-
ger and work con-
tact element (WCE)
move freely up and
down without stick-
ing or binding.
!
CAUTION
tion) into the magazine. Make sure
the pointed ends of the fasteners
are resting on the bottom ledge of
the magazine when loading. Make
sure the nails are not dirty or dam-
aged.
3b. For staples, load a clip of staples
with the crowns straddling the mag-
azine rail.
4. Push the maga-
zine cover for-
ward until latch
button pops
up.
5. Always unload all fasteners before
removing tool from service.
Unloading is the reverse of loading,
except that you must disconnect
the air supply before unloading.
ADJUSTING THE FASTENER PENE-
TRATION
The tool is equipped with an adjustable
depth of drive feature. This allows the
user to determine how deep a fastener
will be driven into the work surface.
1. Adjust operating pressure so fasten-
ers are driven consistently. Do not
exceed 100 psi.
2. For shallow penetration, turn the
wheel (C) to right to the extent
desired.
4. Reconnect air
supply to the
tool.
5. Depress the Work
Contact Element
(WCE) against the
work surface with-
out pulling the trig-
ger. The tool MUST NOT OPERATE.
Do not use the tool if it operates
without pulling the trigger.
Personal injury may result.
6. Remove the tool
from the work sur-
face. The Work
Contact Element
(WCE) must return to
its original down
position. The tool MUST NOT
OPERATE. Do not use the tool if it
operates while lifted from the work
surface. Personal injury may result.
7. Pull the trig-
ger and
depress the
work contact
element
(WCE) against the work surface. The
tool MUST NOT OPERATE.
8. Depress the
Work Contact
Element
(WCE) against
the work sur-
face. Pull the trigger. The tool
MUST OPERATE.
An improperly
functioning tool
must not be used. Do not actuate the
tool unless the tool is placed firmly
against the work piece.
LOADING/UNLOADING THE TOOL
1. Always connect the tool to the air
supply before loading fasteners.
2. Push down
on the latch
button. Pull
back on the
magazine
cover.
3a. For nails, insert a
stick of Campbell
Hausfeld nails or
equivalent (see
"Fasteners" sec-
!
WARNING
MXN10400
Operating Instructions
4
movement
12
12
Latch
Button
Magazine rail
(C)
