MAY FILIUS SCHATTELLO ALBATROS User manual

Stand 30-2032 page 1 of 4
FILIUS SCHATTELLO ALBATROS installation
instructions: side sheets
Thank you very much for purchasing a MAY sunshade.
The following instructions include all information necessary for the correct mounting and handling
of your MAY sunshade side sheets. For safety reasons, please read these instructions carefully
and then keep them for later reference.
Non-observation of operating instructions can result in damage
to property.
Please note that if these instructions are not observed, the manufacturer
cannot assume any liability or guarantee.
Always follow the safety regulations.
Should you not understand any part of these mounting instructions,
please contact your MAY dealer.
Mounting the side sheet holder
1. Open the umbrella about halfway.

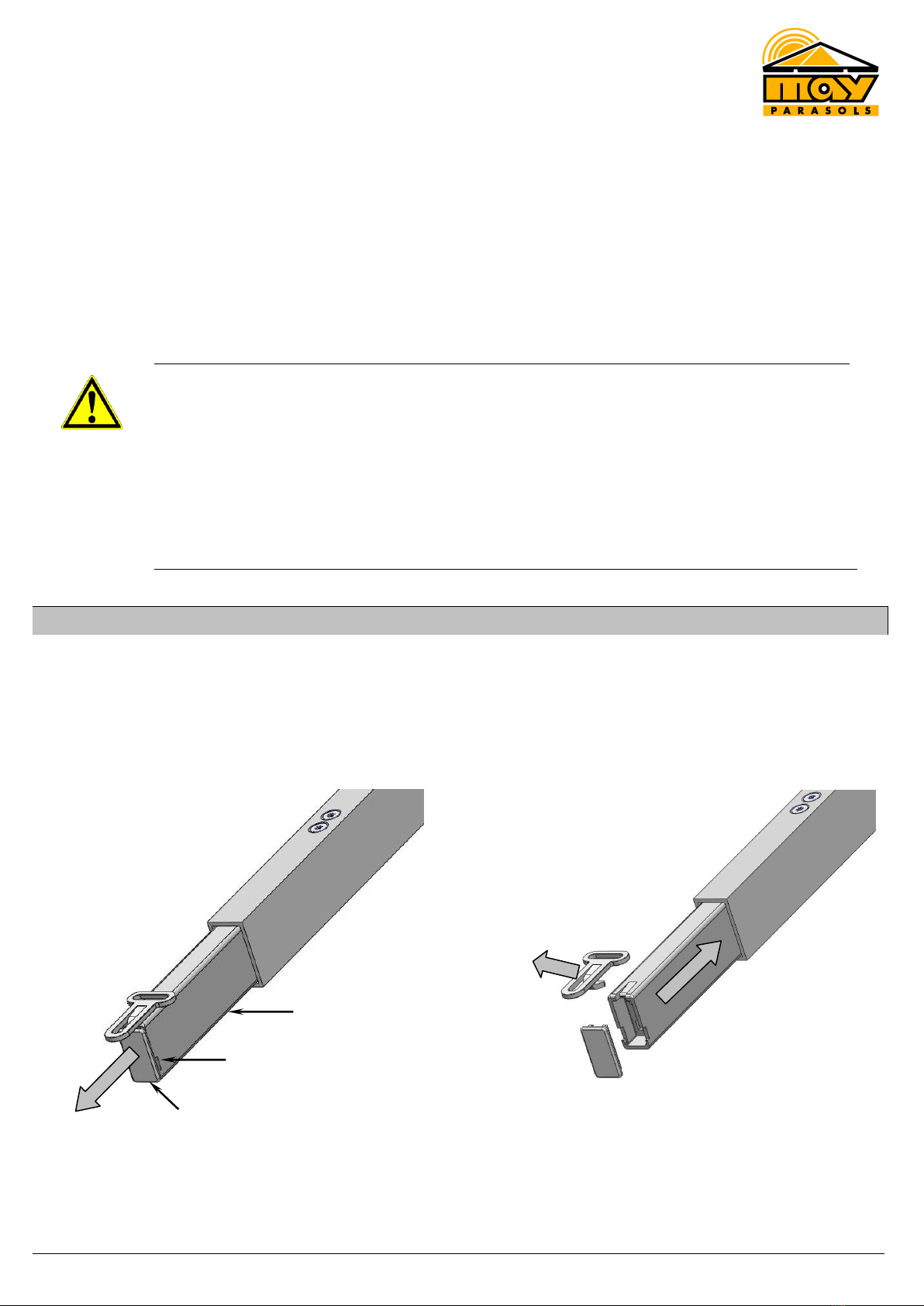

2. Remove the canopy tensioning hook from the telescopic shaft of the spoke. In order to do
so, insert the tip of a screwdriver into the side slot and push off the end cap. Then press
the telescopic shaft toward the centre mast and pull the hook outward.
3. Slide the side sheet holder along the spoke to the required position. Make sure that the
side clamps of the holder are facing downward.
Attention
side slot for
screwdriver
telescopic
shaft
end cap

Stand 30-2032 page 2 of 4
If the side clamps are monted wrong way round, the canopy
fabric can get scoured. No liability.
A wrongly mounted holder will, in the course of time, damage the fabric.
The side clamps of the side sheet holder must face the ground.
4. Turn the eyelet screw clockwise until the holder is clamped tight on the spoke.
5. Tighten the M6 nut clockwise, so that the eyelet screw cannot become loose.
6. Hook the tensioning hook back onto the telescopic shaft and press the cap back on. If the
cap doesn’t fit properly, just turn it the other way round.
Connecting the form rods
1. Extra long rods are fitted into each other as shown below.
side clamps facing
downward
ref. 3
eyelet screw
M6 nut
ref. 4 and 5
side sheet
holder
spoke
Attention

Stand 30-2032 page 3 of 4
Mounting the side sheets
1. Place the side sheet fabric on a clean surface so that it doesn’t get soiled or damaged.
2. Slide the first rod through the top sleeve as far as the first cutout Then insert a snap-hook
strap and slide the rod through the strap, continuing along the sleeve as far as the next
cutout. Repeat this procedure until all the snap-hook straps are in position.
3. Hook all the straps into the eyelet screws of the side sheet holders.
4. Slide the next rod through the bottom sleeve. Then insert a ground anchoring elastic band
and continue sliding the rod as far as the next sleeve. Repeat this procedure until all elastic
bands are in position.
5. Open the umbrella completely.
6. In windy weather the side sheets can be kept in position by fastening the elastic bands
with a ground anchor. However, avoid fastening too tight. Too much tension on the spokes
could make the umbrella unstable.

Stand 30-2032 page 4 of 4
Allocation of the form rods
Group of 6 shades, Side sheets with rain gutters:
Quad, Side sheets with rain gutters.
1
side sheet holder, with 1 eyelet screw
side sheet holder, with 2 eyelet screws
direction of water course
form rod
Side sheet 1
1
2
1
Side sheet 2
Rain gutter 2
Rain gutter 3
Rain gutter 1
Side sheet 3
Side sheet 4
Side sheet 5
Side sheet 6
Side sheet 7
Side sheet 8
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Side sheet 1
Side sheet 2
Side sheet 3
Side sheet 4
Side sheet 5
Side sheet 6
Side sheet 7
Side sheet 8
Side sheet 9
Side sheet 10
Rain gutter 3
Rain gutter 4
Rain gutter 6
Rain gutter 5
Rain gutter 1
Rain gutter 2
Metal-stamped numbers (StNo.) on
side sheets
Side sheet 1 - StNo ____
Side sheet 2 - StNo ____
Side sheet 3 - StNo ____
Side sheet 4 - StNo ____
Side sheet 5 - StNo ____
Side sheet 6 - StNo ____
Side sheet 7 - StNo ____
Side sheet 8 - StNo ____
Side sheet 9 - StNo ____
Side sheet 10 - StNo ____
1
1
2
1
2
2
2
2
2
1
2
1
1
2
2
