MAY SCHATTELLO User manual

page 1 of 20Stand 42-2224 Deutsch / English / Français
SCHATTELLO
SCHATTELLO Mounting Instructions:
Exchanging the canopy
Thank you for purchasing a MAY spare canopy
This instruction manual includes all necessary information on how to attach your MAY spare canopy onto a
MAY parasol frame. Read these instructions carefully to guarantee a save assembly.
Warning
Non-observation of mounting instructions can result in personal injuries or
damage to property.
Please note that if these instructions are not observed, the manufacturer cannot
assume any liability or guarantee.
• Always follow the safety regulations.
• Should you not understand any part of these mounting instructions, please
contact your MAY dealer.

Deutsch / English / FrançaisSeite 2 of 20 Stand 42-2224
Page 03 Cleaning the canopy
Page 04 Repairing the holes
Page 07 Removing the canopy
Page 11 Unpacking the canopy
Page 11 Attaching the canopy
Content

page 3 of 20Stand 42-2224 Deutsch / English / Français

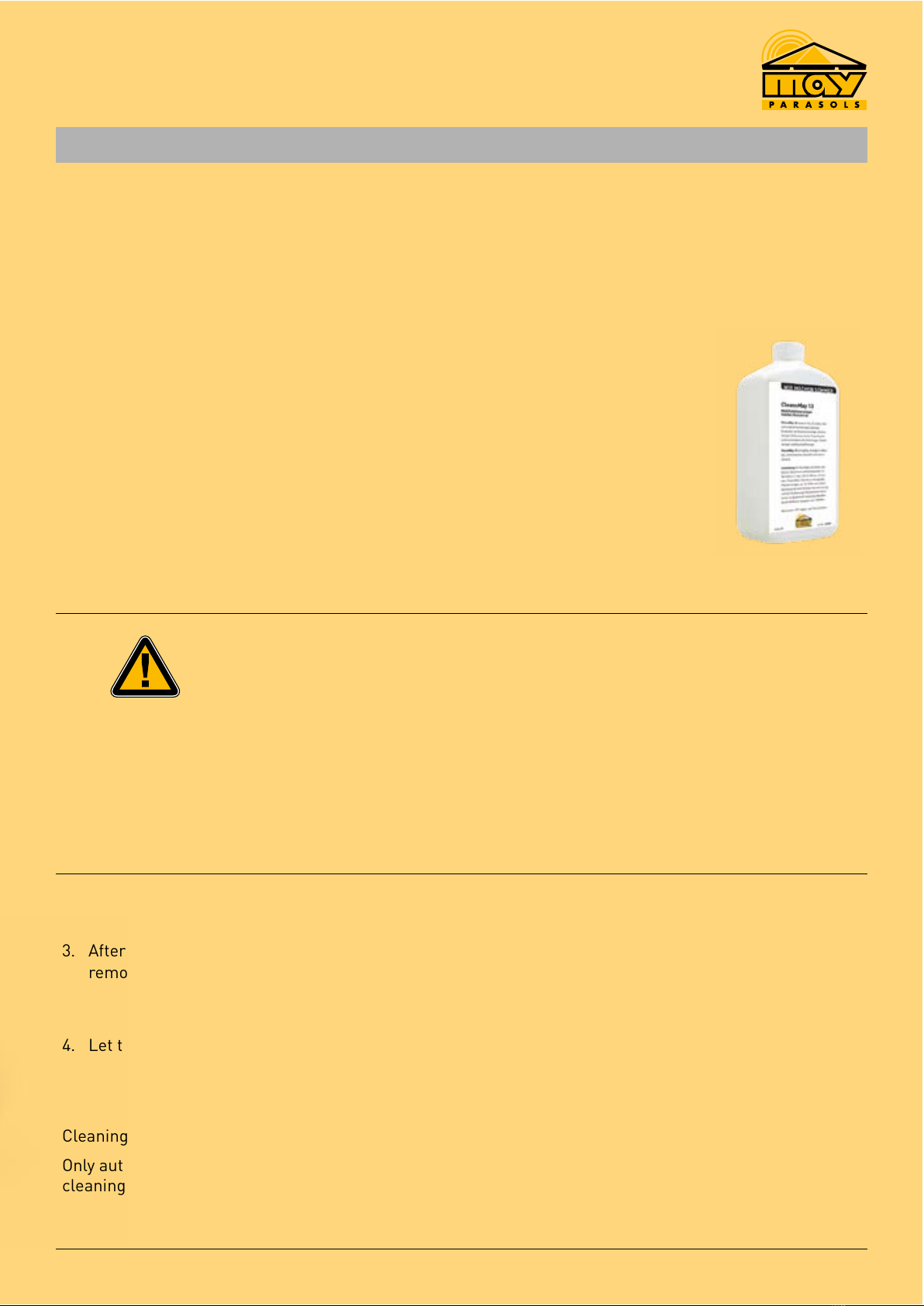

Cleaning the canopy
The MAY company wants to support sustainability. Cleaning and repair save the resources of our planet.
Therefore, before buying a new canopy please check whether cleaning may extend the durability of the
existing one. Additionally, small holes may be repaired, see page 4.
Cleaning by the customer / dealer:
1. Use CleanoMay 13 article no. 350848 to
• Spray onto the surface and soak for approx. 10 minutes or
• mix it into a high-pressure cleaner, follow the instruction on the label,
e.g. for mixing ratio.
2. Carefully clean the canopy with a high-pressure cleaner.
Caution
Cleaning the canopy may damage the canopy
If the set temperature or the pressure at the jet nozzle is too high or the distance
between canopy and jet nozzle is too small, the fabric may get irreparably
damaged.
Specially to protect the waterproofing please consider:
• Temperature maximum 30° Celsius.
• Pressure maximum 30 bar.
• Distance from nozzle to fabric minimum 30 cm.
3. After cleaning set the temperature on “cold” and spray as long there is no visible foam (you may have to
remove the cleanser from the high-pressure cleaner).
4. Let the parasol get dry in open position to avoid crinkling.
Cleaning by a service provider:
Only authorise a service provider if they are experienced in cleaning sun protection fabrics. Inappropriate
cleaning may damage the fabric or threads.

Deutsch / English / FrançaisSeite 4 of 20 Stand 42-2224
Repairing the holes
Repairing damaged spots with patches of original material is reasonable. However, depending on the
amount of daylight or backlight the patches appear as dark shades. Follow the instructions below for a
proper repair:
1. Identify the type of fabric and the colour of the original canopy.
The patches should be of the same material as the original
canopy. Even if the canopy no longer looks like the new origi-
nal material due to abrasion, the original material and colour
will still be the best matching choice. There are several opti-
ons to find out the original material:
• You will find the fabric number in the product description
indicated on the order confirmation or invoice.

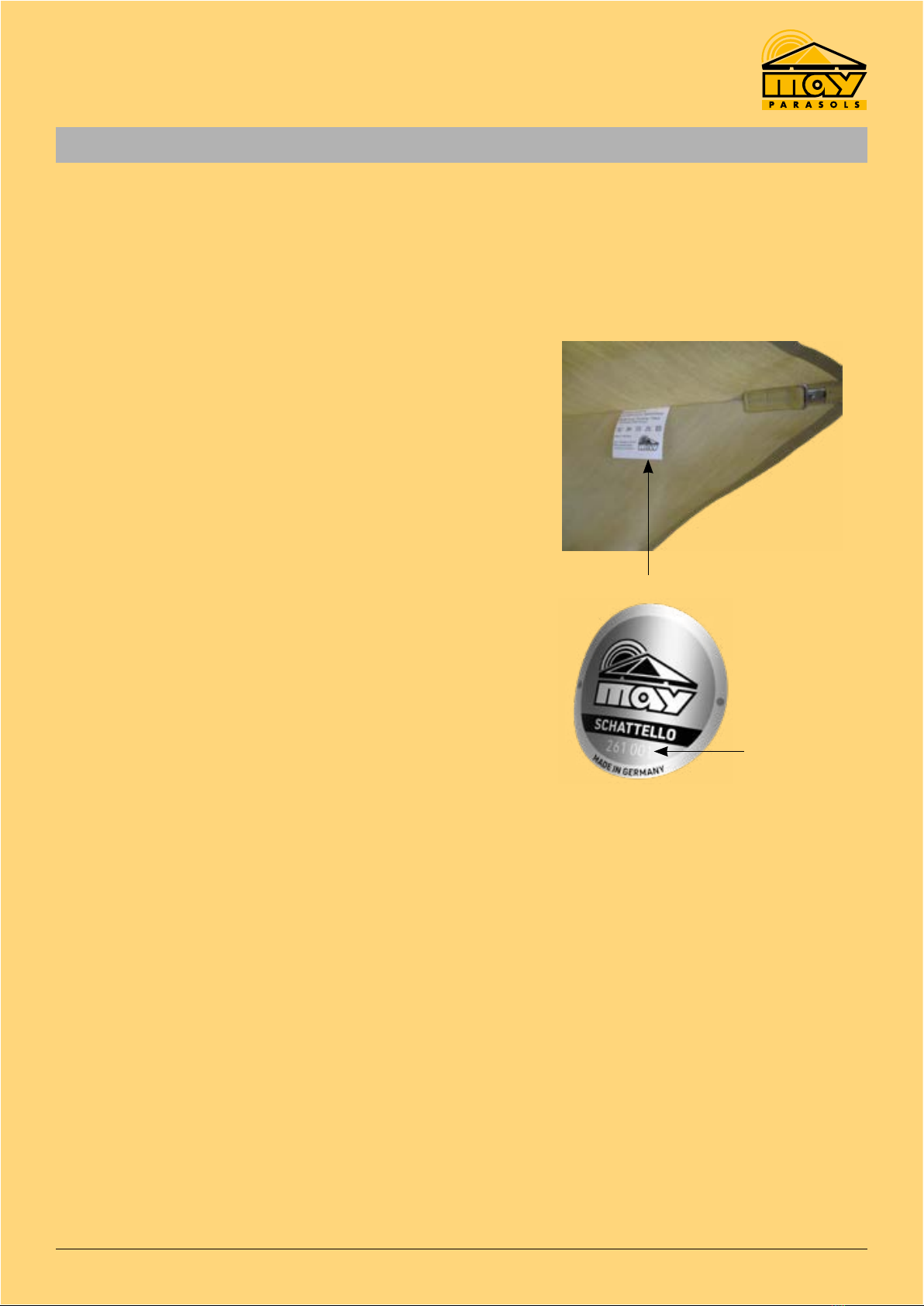

• In case of recent parasols you will find the fabric number
at the sewed-on MAY label. MAY label
• By indicating the serial number (see serial plate at the
centre pole), your MAY consultant can identify the fabric
number accordingly.
• Photos are not true to colour and therefore are not
recommended. Even modern cameras are not save.
Different exposure times or special filters distort the
results. If photos are still used for fabric identification
the MAY company won’t assume any guarantee. There is
no return, change or compensation of additional costs
possible.
Serial number
2. To make sure the fabric glue provides good adhesion a decent area of fabric must be moistened.
Approximately 1 cm around the hole should be glued on.

page 5 of 20Stand 42-2224 Deutsch / English / Français
3. Get patches of the suitable fabric type and colour. You can order
patches in DIN-A4 format at the MAY company.
• MayTex-Acryl, article no. 352867 + indicate colour number
• MayTex-Poly, article no. 352868 + indicate colour number
• MayTex-PVC, article no. 352869 + indicate colour number
4. Get the fabric glue. You can order the suitable textile glue for the original canopies at the MAY
company. A tube contains 30 g and is adequate for several DIN-A4 patches.
• Textile glue article no. 200131
5. Open the MAY parasol completely to avoid crinkles or waves at the patch.
6. Use a free standing-ladder for the repair (double ladder).
Danger
Inappropriate use of a ladder can cause personal injury and material damage.
If a ladder is positioned insecure or laid-out too weak, you may fall off the ladder.
• Use a free-standing ladder (double ladder).
• Make sure the ladder is in good condition.
• Make sure the ladder stands straight on solid ground.
• Follow the instructions of the ladder manufacturer.
7. The patch and the area to be glued on must be clean and dry.
The canopy must be cleaned with soap, the cleanser
CleanoMay 13 article no. 350848 is suitable. The patch may be
glued on both sides of the canopy.
8. Cut the patch to the required size and shape.

Deutsch / English / FrançaisSeite 6 of 20 Stand 42-2224

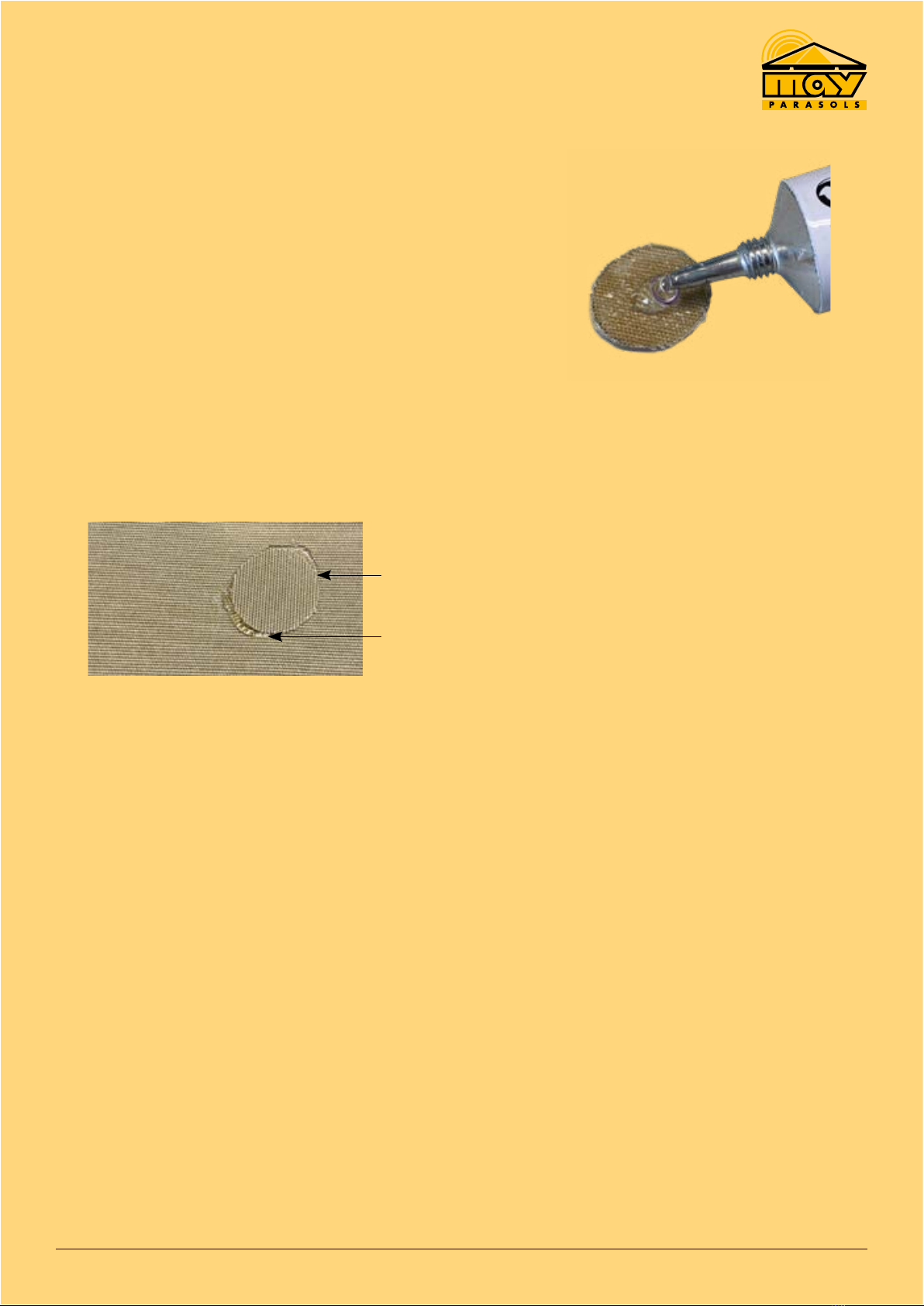

9. Apply thetextileglueevenlyalloverthepatch.Followthespecifi-
cations of the glue manufacturer.
10. Step onto the ladder and glue the patch centered onto the hole or slit. There must not leak any glue from
the patch.
proper: glue is not leaking
improper: glue is leaking

page 7 of 20Stand 42-2224 Deutsch / English / Français
Removing the canopy
Danger
Wind can turn a loose canopy into a sail.
If wind blows into an unsecured canopy, it may fly away with enormous power.
This may cause personal injury or material damage to the frame or surrounding
obstacles.
• Remove the canopy only if there is no wind.
1. The canopy can be removed at the standing parasol.
2. Open the parasol approximately half-way.

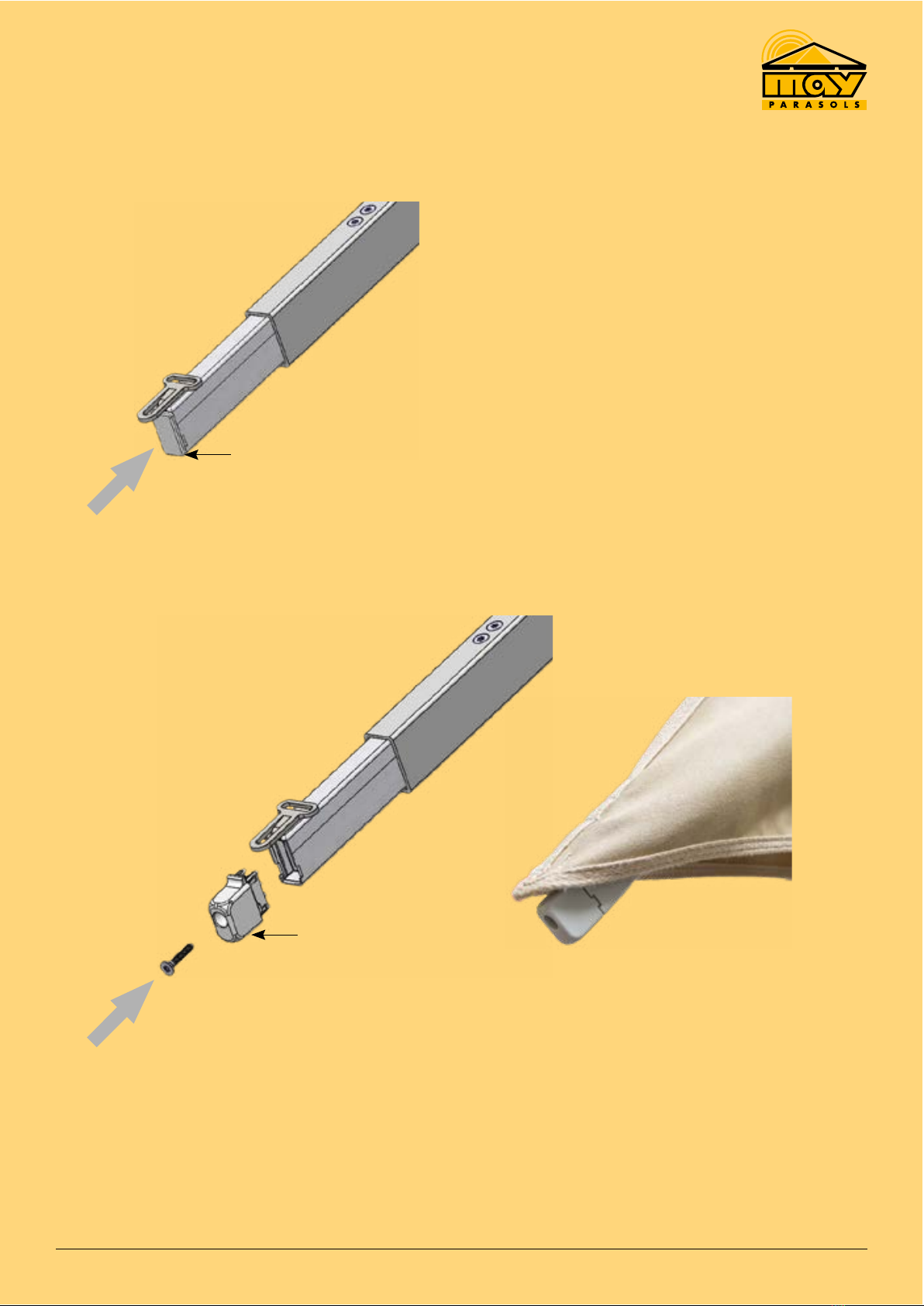

3. Remove the end caps. Until 2017 a connector system was assembled, therefore, the end caps can easily
be pulled off.
End cap
4. As of 2018 the end caps are screwed on. Use a screw driver Torx 15 in adequate length.
End cap

Deutsch / English / FrançaisSeite 8 of 20 Stand 42-2224
5. Push the telescopic tube towards the centre pole. When using the optional assembly aid by MAY the force
is distributed evenly on the palm which facilitates the assembly.
• Assembly aid SCHATTELLO article no. 357816
• Assembly aid ALBATROS article no. 357817
Assembly aid
6. Remove the tensioning hook at the telescopic tube of the spoke by pulling it outwards.
7. In case you have a canopy with hook-and-loop fastener, open these.

page 9 of 20Stand 42-2224 Deutsch / English / Français

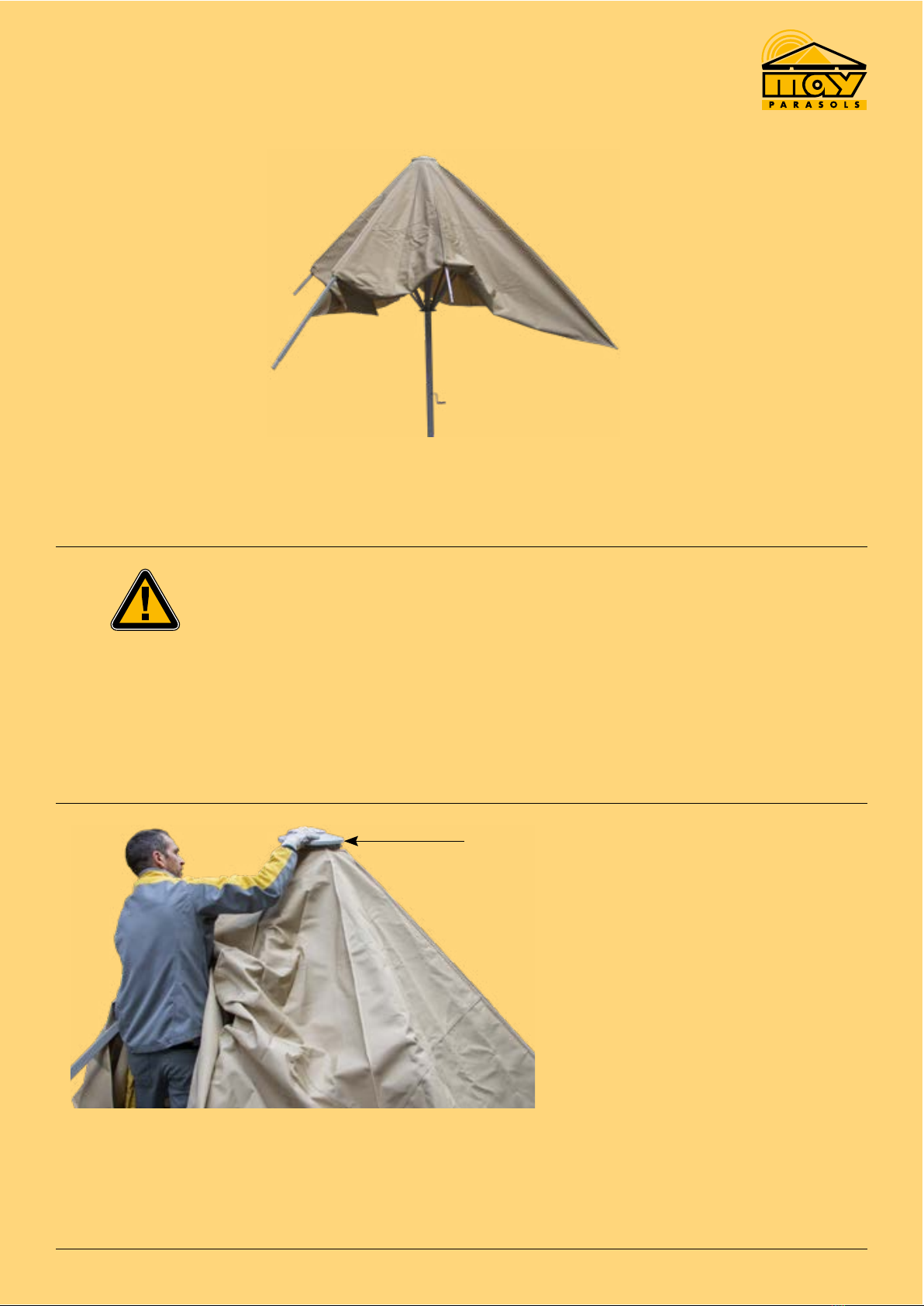

8. Pulloffthecanopyhalf-
way to the top.
9. Reach over the canopy (to the top) and remove the head plate by turning it clockwise.
Danger
Inappropriate use of a ladder can cause personal injury and material damage.
If a ladder is positioned insecure or laid-out too weak, you may fall off the
ladder.
• Use a free-standing ladder (double ladder).
• Make sure the ladder is in good condition.
• Make sure the ladder stands straight on solid ground.
• Follow the instructions of the ladder manufacturer.
Head plate

Deutsch / English / FrançaisSeite 10 of 20 Stand 42-2224
10. Remove the hooks
Hook
11. A parasol frame without canopy can be cleaned optimally. With water and soap
CleanoMay 13 article no. 350848 dirt can easily be washed off the
aluminium profiles. With a bit of time, you will gain a fresh and clean
appearance. Additionally, it prevents the clean spare canopy from getting
dirty.

page 11 of 20Stand 42-2224 Deutsch / English / Français
Unpacking the canopy
1. Open the box.
Caution
Using a knife for opening and removing of the packaging may damage the
canopy.
• Do not use a knife or any sharp object to remove the packaging.
2. Take the canopy out of the box.
Danger
Putting the canopy down to the floor may damage the canopy or it may get dirty.
Also, the own weight may cause cuts or abrasions.
• Put the canopy onto a soft mat (e.g. onto a carpet).
Attaching the canopy
Danger
Wind can turn a loose canopy into a sail.
If wind blows into an unsecured canopy, it may fly away with enormous power.
This may cause personal injury or material damage to the frame or surrounding
obstacles.
• Attach the canopy only if there is no wind.
1. The canopy is attached to the standing parasol.

Deutsch / English / FrançaisSeite 12 of 20 Stand 42-2224
2. Use a free standing-ladder for assembly (double ladder).
Danger
Inappropriate use of a ladder can cause personal injury and material damage.
If a ladder is positioned insecure or laid-out too weak, you may fall off the ladder.
• Use a free-standing ladder (double ladder).
• Make sure the ladder is in good condition.
• Make sure the ladder stands straight on solid ground.
• Follow the instructions of the ladder manufacturer.
3. Clean the parasol frame.
Caution
The new canopy may get dirty.
If the parasol frame is not cleaned before attaching the new canopy, the new
canopy will most likely get dirty. It is very difficult to keep the canopy clean in case
of a dirty frame (not cleaned) or dirty hands. Therefore, a complete cleaning of
the frame is urgently recommended.
• CleanoMay 13 article no. 350848 is suitable for cleaning the frame, even in
case of persistent dust and dirt.
• Step onto the free-standing ladder and check the parasol frame from the top.
Any dirt you see may make the canopy dirty. Make sure to clean these parts
completely.
4. After cleaning the parasol frame, wash your hands and use protective gloves to prevent the canopy from
getting dirty.
5. Open the parasol frame approximately half-way (see fig., below 7.).

page 13 of 20Stand 42-2224 Deutsch / English / Français

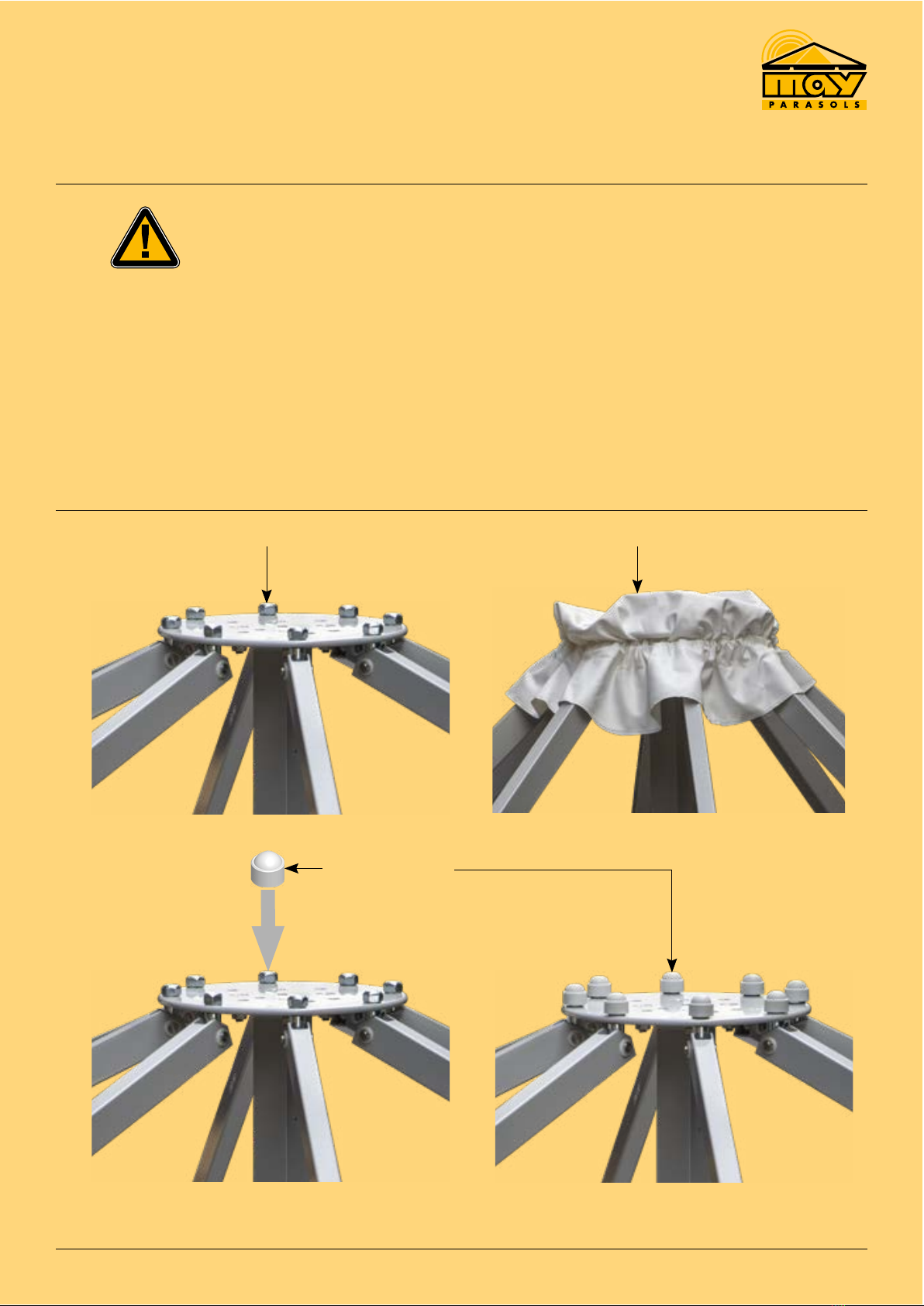

6. Protect the new canopy from possible damage.
Danger
Sharp objects may damage the canopy.
In rare cases, there are sharp edges at the upper part of the parasol frame. If the
new canopy is pulled over these edges without protection, it may cause abrasions
or cuts. Prevent this by taking one of the following precautions:
• Put a “plastic end cap“ onto each nut. You can use regular M10, commercially
available or you order them at the MAY company. See list “spare parts: type
SCHATTELLO“, e.g. in white, article no. 353969.
• Pull the MAY protection cover over the parasol frame; article no. 357905.
• In case you must improvise, create your own protection cover. Several
shopping bags (cotton bags, one upon the other, fixed with sewing thread) may
be functional as well.
Protection cover
plastic end caps
Possibly sharp-edged

Deutsch / English / FrançaisSeite 14 of 20 Stand 42-2224

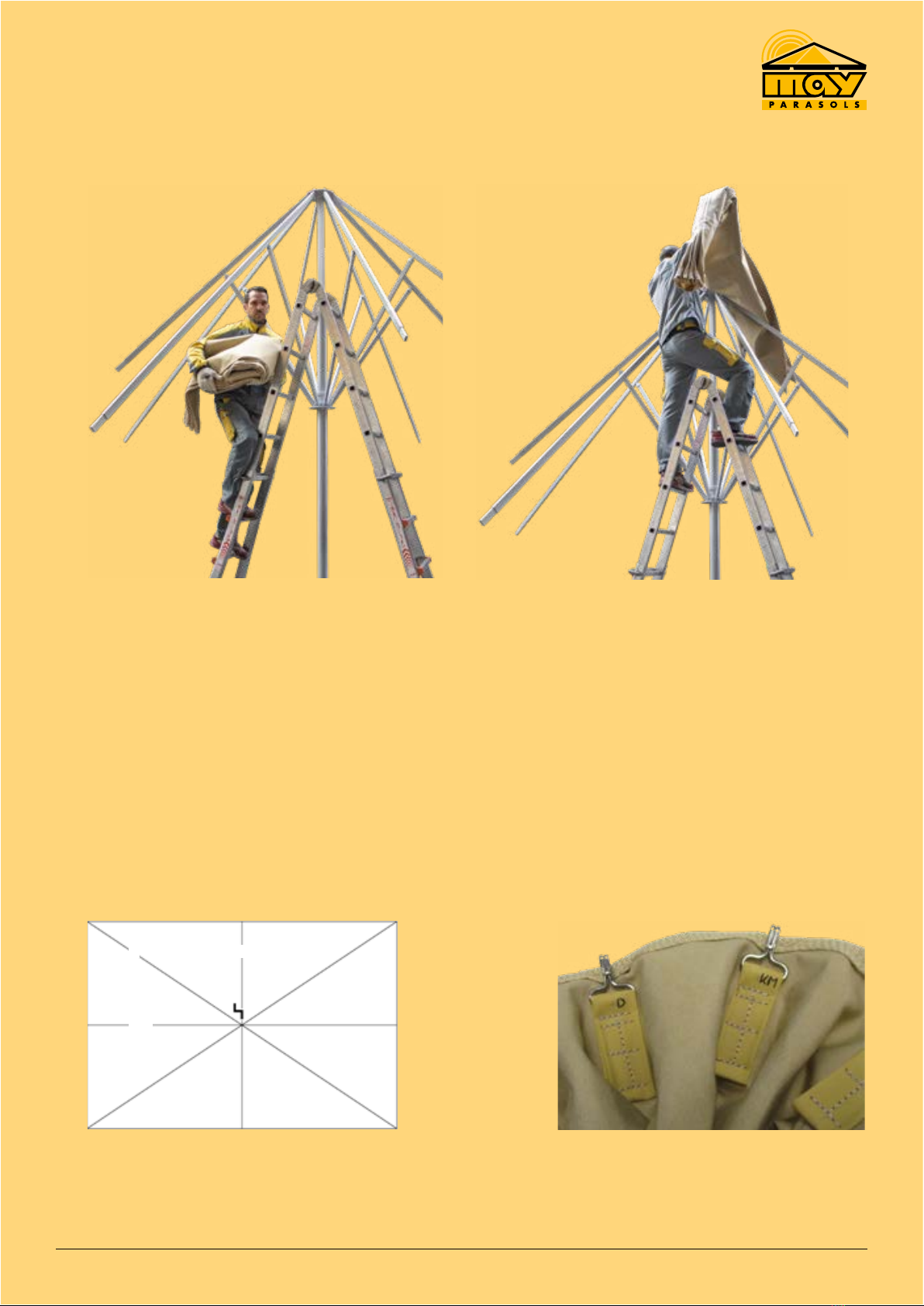

7. Use a free-standing ladder to put the canopy cantered on top of the parasol frame.
8. Spread the canopy. Top and bottom side differ in the hook position. The hooks are sewed to the bottom
part.
9. There is an opening in the centre of the canopy, put it at this point over the parasol frame.
10. Only for square or rectangular parasols, alignment of the spokes:
Make sure to attach the hooks at the suitable spokes. For orientation, there are marks at the canopy.
These must be arranged in accordance to the spokes.
D = diagonal spoke
KM = short centre spoke
LM = long centre spoke
D
LM
KM

page 15 of 20Stand 42-2224 Deutsch / English / Français
11. Only for square and rectangular parasols, position of MAY label: If several parasols are positioned in a
row, it looks better when all labels are positioned equally. Position the label always at the diagonal
spoke (A1) directly besides the crank.
A2
B1B2C1
C2
D1 D2 A1

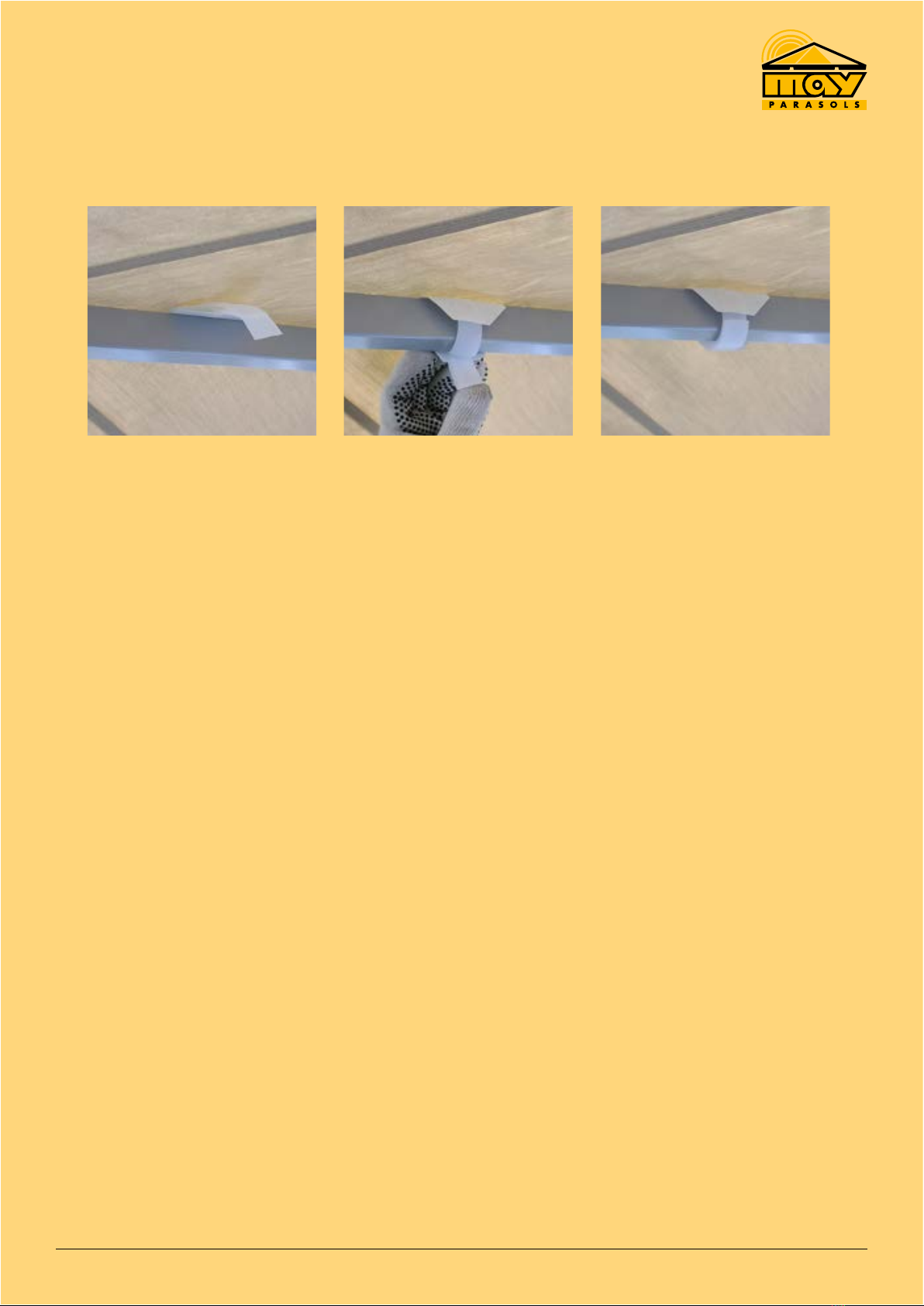

12. Attach the hooks to the spokes.
Hook
13. Screw the head plate onto the centre.
Head plate

Deutsch / English / FrançaisSeite 16 of 20 Stand 42-2224

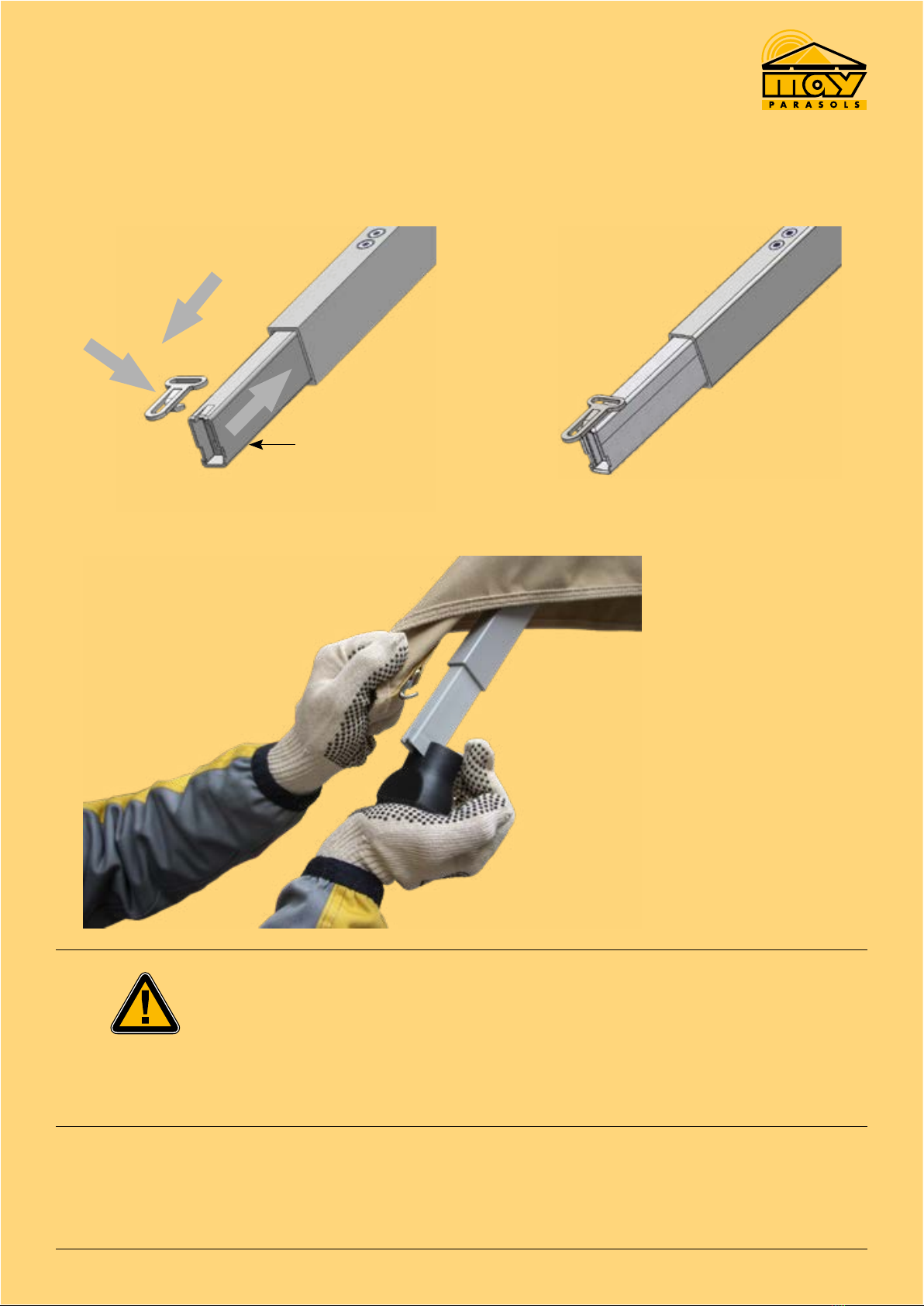

14. Attach the tensioning hook to the telescopic shaft of the spoke: Push the telescopic shaft towards the cen-
tre pole (with assembly aid, optional tool) and pull the hook outwards until it can be hooked in.
Telescopic shaft
Caution
The canopy may get damaged.
Unless each hook is attached, the wind load cannot be absorbed properly. This
leads to premature wear and tear.
• Make sure each hook is attached. Double check this after completing these
instructions.

page 17 of 20Stand 42-2224 Deutsch / English / Français
15. Attach the end cap. Pay attention, the cap fits only in a certain position, you may have to turn it. Until year
2017 a connector system was assembled, these can be impressed with relatively low effort.
End cap
16. As of the year 2018, the end cap has been screwed on, therefore a screwdriver Torx 15 is required.
End cap

Deutsch / English / FrançaisSeite 18 of 20 Stand 42-2224
17. In case you have a canopy with hook and loop fastener, wrap and connect them around the spokes.

page 19 of 20Stand 42-2224 Deutsch / English / Français

Deutsch / English / FrançaisSeite 20 of 20 Stand 42-2224
