CONGRATULATIONS
Congratulations on acquiring your new Mazda Motor Corporation
product. Please take the time to get well acquainted with your vehicle by
reading this handbook. The more you know and understand about your
vehicle the greater the safety and pleasure you will derive from driving
it.
For more information on Mazda Motor Corporation and its products visit
the following website:
•In the United States: www.mazdausa.com
•In Canada: www.mazda.ca
Additional owner information is given in separate publications.
This Owner’s Guide describes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on the Owner’s Guide when reselling the vehicle. It is
an integral part of the vehicle.
WARNING: In the event of an accident the Fuel pump shut-off
switch will automatically cut off the fuel supply to the engine.
The switch can also be activated through sudden vibration (e.g.
collision when parking). To reset the switch, refer to the Fuel
pump shut-off switch in the Roadside emergencies chapter.
Introduction
3

SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of
personal injury and prevent possible
damage to others, your vehicle and
its equipment? In this guide,
answers to such questions are
contained in comments highlighted by a bold WARNING statement.
These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
Always dispose of used automotive fluids in a responsible manner. Follow
your community’s regulations and standards for recycling and disposing
of automotive fluids.
BREAKING-IN YOUR VEHICLE
There are no particular breaking-in rules for your vehicle. During the
first 1,600 km (1,000 miles) of driving, vary speeds frequently. This is
necessary to give the moving parts a chance to break in.
Introduction
4

SPECIAL NOTICES
Event Data Recorder
The computer in your vehicle is capable of recording detailed data
potentially including but not limited to information such as:
•the use of restraint systems including seat belts by the driver and
passengers,
•information about the performance of various systems and modules in
the vehicle, and
•information related to engine, throttle, steering, brake or other system
status potentially including information related to how the driver
operates the vehicle including but not limited to vehicle speed.
This information may be stored during regular operation or in a crash or
near crash event. This stored information may be read out and used by:
•Mazda Motor Company.
•service and repair facilities.
•law enforcement or government agencies.
•others who may assert a right or obtain your consent to know such
information.
Emission warranty
The New Vehicle Limited Warranty includes Bumper to Bumper
Coverage, Safety Restraint Coverage and Corrosion Coverage. In addition,
your vehicle is eligible for Emissions Defect and Emissions Performance
Warranties. For a detailed description of what is covered and what is not
covered, refer to the Warranty Guide that is provided to you along with
your Owner’s Guide.
Using your vehicle as an ambulance
WARNING: Do not use this vehicle as an ambulance.
Do not use your vehicle as an ambulance, as it is not equipped with an
ambulance preparation package.
Introduction
5

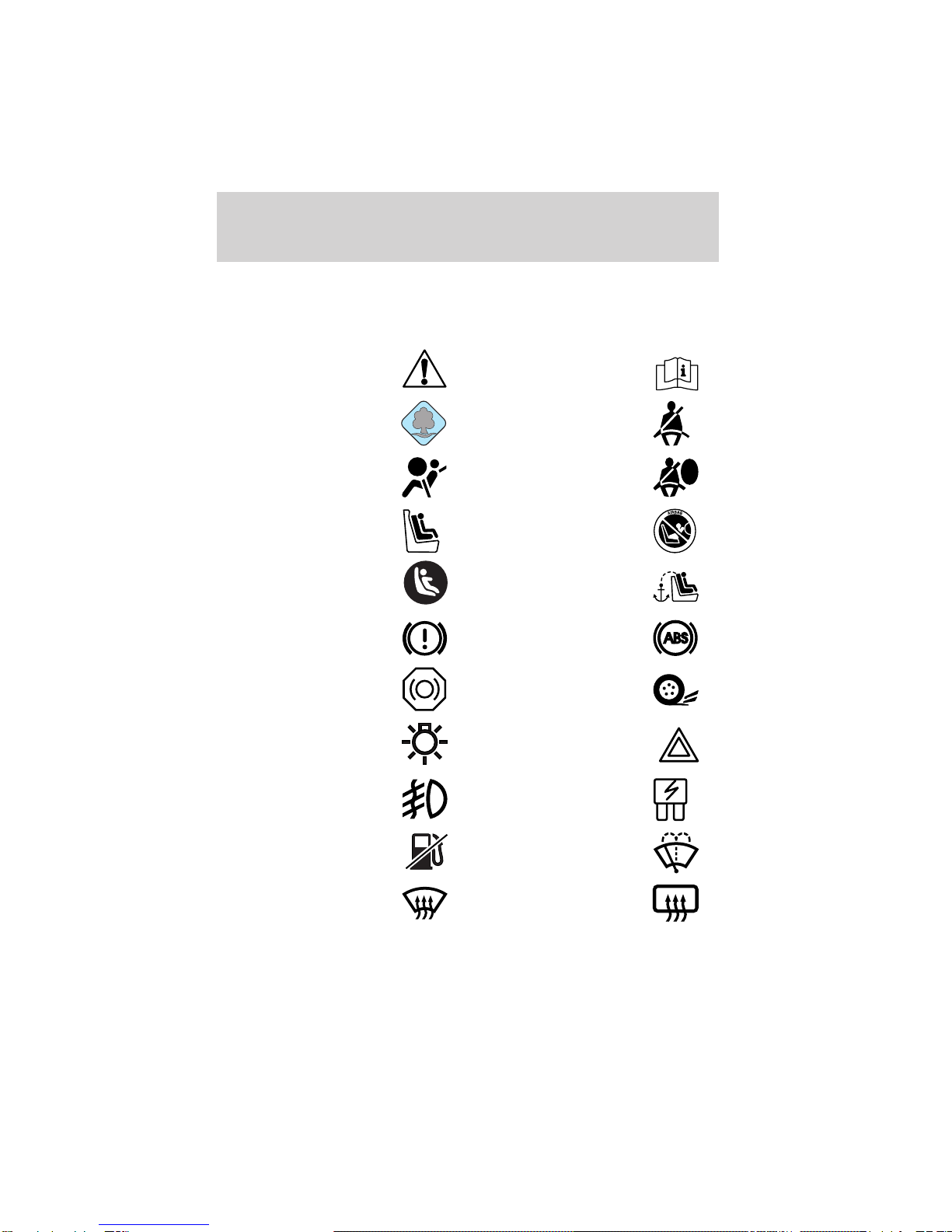

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert See Owner’s Guide
Protecting the
Environment Fasten Safety Belt
Air Bag-Front Air Bag-Side
Child Seat Child Seat Installation
Warning
Child Seat Lower
Anchor
Child Seat Tether
Anchor
Brake System Anti-Lock Brake System
Brake Fluid -
Non-Petroleum Based Traction Control
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
Fuel Pump Reset Windshield Wash/Wipe
Windshield
Defrost/Demist
Rear Window
Defrost/Demist
Introduction
6

Vehicle Symbol Glossary
Power Windows Power Window Lockout
Personal Alarm System
Feature Engine Oil
Engine Coolant Engine Coolant
Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames,
or Sparks Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid Maintain Correct Fluid
Level
MAX
MIN
Emission System Engine Air Filter
Passenger Compartment
Air Filter Jack
Check fuel cap
INFORMATION ABOUT THIS GUIDE
The information found in this guide was accurate at the time of printing.
Mazda may change the contents without notice.
Introduction
7

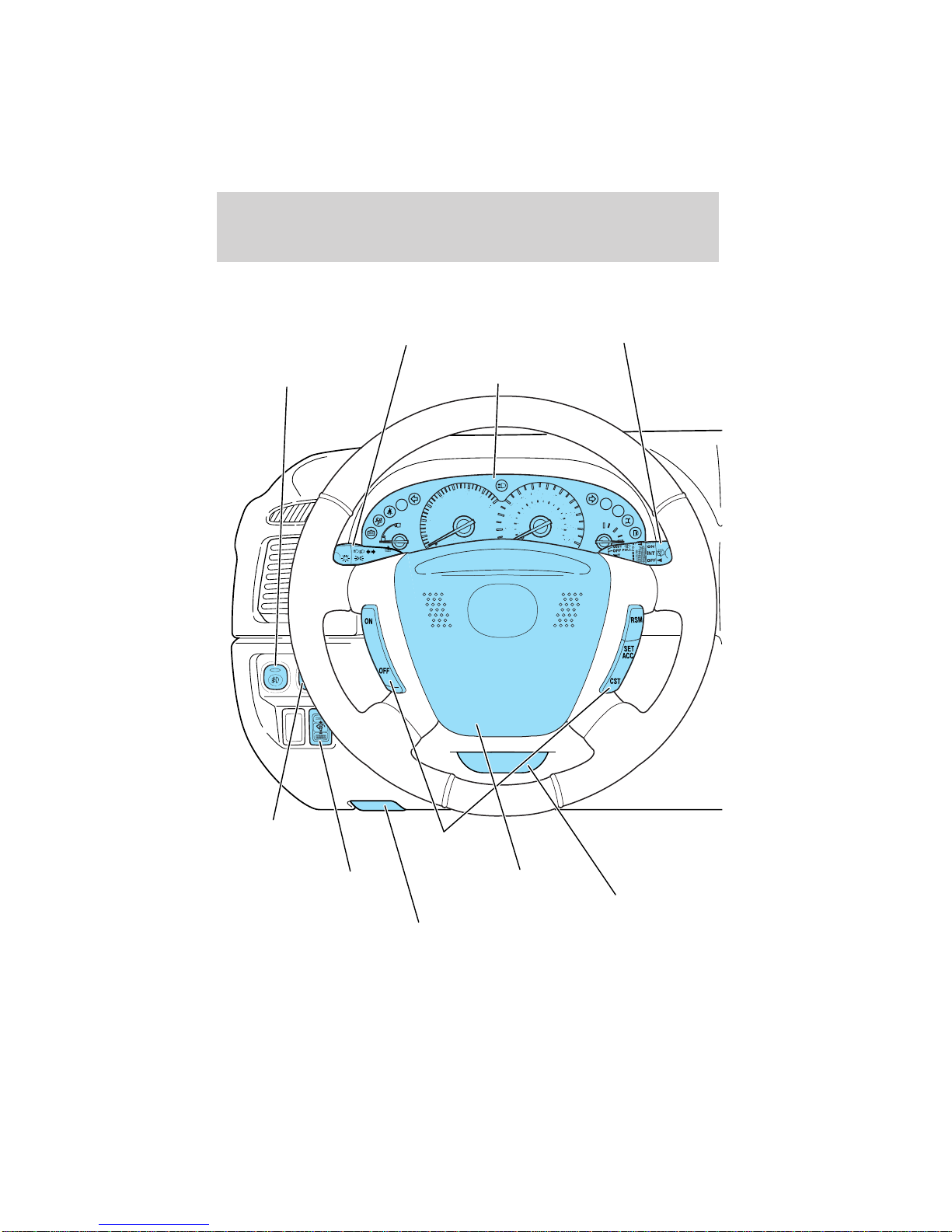

Instrument cluster
(pg. 10)
Windshield wiper/washer
control
(pg. 56)
Driver air bag
(pg. 99)
Speed controls*
(pg. 62)
Instrument panel
dimmer/dome light
control
(pg. 49) Hood release handle
(pg. 198)
Power mirror
control*
(pg. 61)
Fog lamp control*
(pg. 48)
Headlamp and turn
signal control
(pg. 48)
Manual tilt steering
column lever
(pg. 58)
* if equipped
Instrument Cluster
8

Audio system
(pg. 17)
4WD control*
(pg. 137)
Climate controls
(pg. 44) Auxiliary power point
(pg. 59)
Rear window defroster
control
(pg. 47)
Hazard flasher control
(pg. 155)
Cigarette lighter
*if equipped
Instrument Cluster
9

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, have the
respective system inspected immediately.

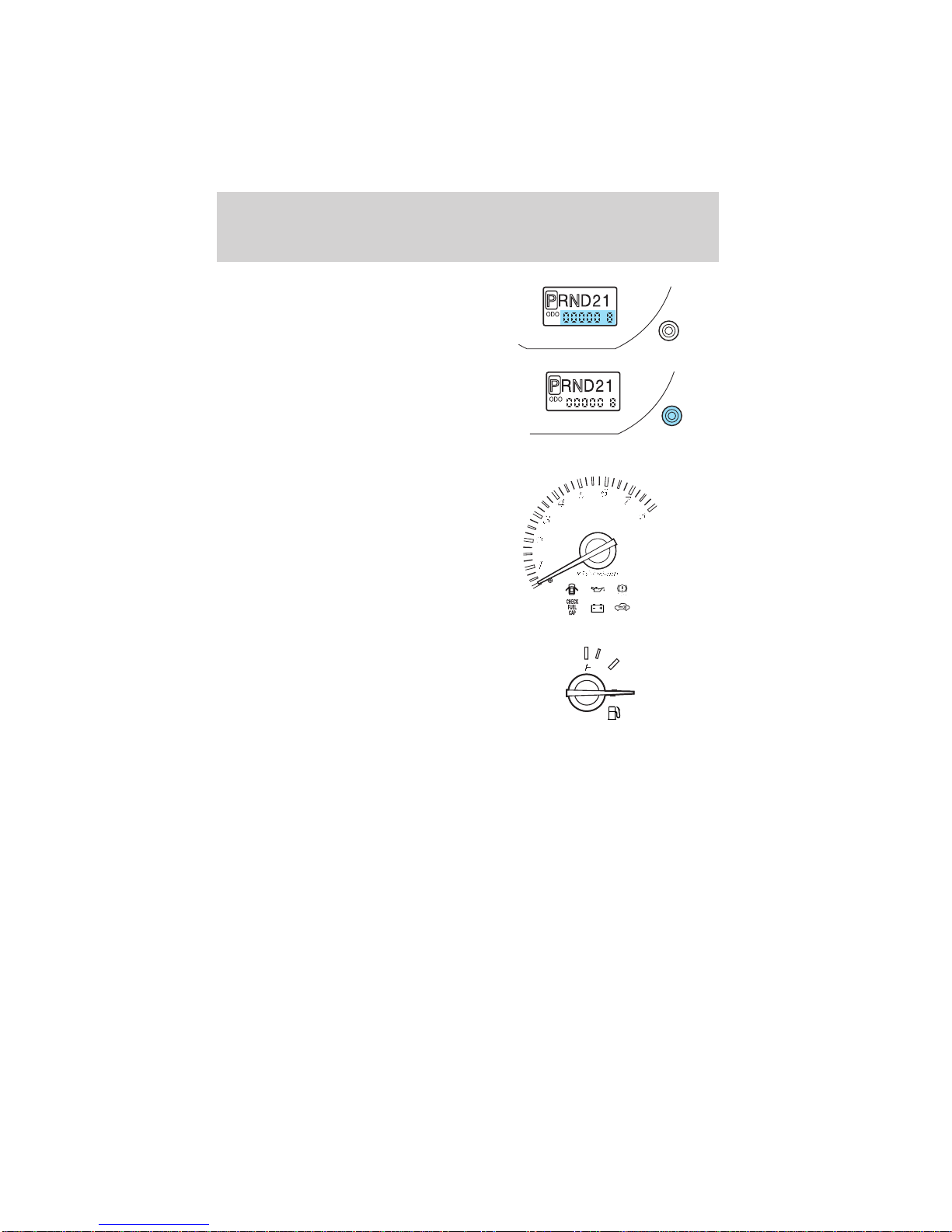

Service engine soon: Your vehicle
is equipped with a computer that
monitors the engine’s emission
control system. This system is
commonly known as the On Board Diagnostics System (OBD II). The
OBD II system protects the environment by ensuring that your vehicle
continues to meet government emission standards. The OBD II system
also assists the service technician in properly servicing your vehicle.
The indicator light illuminates when the ignition is first turned to
the RUN position to check the bulb. If it comes on after the engine is
started, one of the engine’s emission control systems may be
malfunctioning. The light may illuminate without a driveability concern
being noted. The vehicle will usually be drivable and will not require
towing.
What you should do if the light illuminates
Light turns on (without blinking):
This means that the OBD II system has detected a malfunction.
Temporary malfunctions may cause your light to illuminate.
Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
CHECK
FUEL
CAP
Instrument Cluster
10

2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been properly installed and securely
tightened.
These temporary malfunctions can be corrected by filling the fuel tank
with high quality fuel of the recommended octane and/or properly
installing and securely tightening the fuel cap. After three driving cycles
without these or any other temporary malfunctions present, the
light should turn off. (A driving cycle consists of a cold engine startup
followed by mixed city/highway driving.) No additional vehicle service is
required.
If the light remains on, have your vehicle serviced at the first
available opportunity.
Note: The light will illuminate if vehicle refueling is conducted
with the engine running.
WARNING: Never refuel vehicle with the engine running.
Light is blinking:
Engine misfire is occurring which could damage your catalytic converter.
You should drive in a moderate fashion (avoid heavy acceleration and
deceleration) and have your vehicle serviced at the first available
opportunity.
WARNING: Under engine misfire conditions, excessive exhaust
temperatures could damage the catalytic converter, the fuel
system, interior floor coverings or other vehicle components,
possibly causing a fire.
Check fuel cap: Momentarily
illuminates when the ignition is
turned to the ON position to ensure
your bulb is working. When this
light turns on, check the fuel filler
cap. Continuing to operate the vehicle with the check fuel cap light on,
can activate the warning light. When the fuel filler cap is properly
re-installed, the light(s) will turn off after a period of normal driving.
This period will vary depending on driving conditions.
CHECK
FUEL
CAP
Instrument Cluster
11

It may take a long period of time for the system to detect an
improperly installed fuel filler cap.
For more information, refer to Fuel filler cap in the Maintenance and
specifications chapter.
Brake system warning light: To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running, or in a position between ON and START,
or by applying the parking brake when the ignition is turned to the ON
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your dealership. Illumination after
releasing the parking brake indicates low brake fluid level and the brake
system should be inspected immediately by an authorized Mazda dealer.
WARNING: Driving a vehicle with the brake system warning
light on is dangerous. A significant decrease in braking
performance may occur. It will take you longer to stop the
vehicle. Have the vehicle checked by your dealer immediately.
Anti-lock brake system (ABS)
(if equpped): If the ABS light stays
illuminated or continues to flash, a
malfunction has been detected, have
the system serviced immediately.
Normal braking is still functional unless the brake system warning light
also is illuminated.
WARNING: If the light remains on, continues to flash or fails
to illuminate, have the system serviced immediately. With the
ABS light on, the anti-lock brake system is disabled and normal
braking is still effective unless the brake warning light also
remains illuminated with the parking brake released.
!
BRAKE
ABS
Instrument Cluster
12

Air bag readiness: If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately. A chime will also
sound when a malfunction in the supplemental restraint system has been
detected.
Safety belt: Reminds you to fasten
your safety belt. A chime will also
sound to remind you to fasten your
safety belt.
Charging system: Illuminates when
the battery is not charging properly.
Engine oil pressure: Illuminates
when the oil pressure falls below the
normal range, refer to Engine oil in
the Maintenance and
specifications chapter.
Low coolant (if equipped):
Illuminates when the coolant level in
the coolant reservoir is low and
more needs to be added, refer to
Engine coolant in the
Maintenance and specifications chapter.
Low fuel: Illuminates when the fuel
level in the fuel tank is at, or near
empty (refer to Fuel gauge in this
chapter).
Overdrive off: Illuminates when
the overdrive function of the
transmission has been turned off,
refer to the Driving chapter. If the
light flashes steadily, have the system serviced immediately.
O/D
OFF
Instrument Cluster
13

Four wheel drive indicator
(if equipped): Illuminates when
four-wheel drive is engaged, refer to
the Driving chapter.
Note: If the light continues to flash,
have the system serviced.
Anti-theft system: Flashes when
the SecurilockyPassive Anti-theft
System has been activated. Refer to
SecuriLockypassive anti-theft
system in the Locks and Security chapter.
Speed control: Illuminates when
the speed control is activated. Turns
off when the speed control system
is deactivated, refer to the Driver Controls chapter.
Door ajar: Illuminates when the
ignition is in the ON position and
any door, liftgate, or liftgate window
is open.
Turn signals: Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the
high beam headlamps are turned on.
Safety belt warning chime: Sounds to remind you to fasten your
safety belts.
Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the OFF/LOCK or ACC position and the driver’s door is
opened.
Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (and the key is not in the ignition) and
the driver’s door is opened.
CRUISE
Instrument Cluster
14

GAUGES
Speedometer: Indicates the
current vehicle speed.
Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (between “H” and
“C”). If it enters the red section,
the engine is overheating. Stop the vehicle as soon as safely
possible, switch off the engine and let the engine cool. Refer to
Engine coolant in the Maintenance and Specifications chapter.
WARNING: When the engine and radiator are hot, scalding
coolant and steam may shoot out under pressure and cause
serious injury. Do not remove the cooling system cap when the
engine and radiator are hot.
NOTE: This gauge indicates the temperature of the engine coolant, not
the coolant level. If the coolant is not at its proper level the gauge
indication will not be accurate.
CHECK
FUEL
CAP
Instrument Cluster
15

Odometer: Registers the total
kilometers (miles) of the vehicle.
Trip odometer: Registers the
kilometers (miles) of individual
journeys. Press and hold the button
for 1 or more seconds to reset.
Press and release the button in less
than 1 second to toggle between odometer and trip odometer.
Tachometer: Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Fuel gauge: Displays approximately
how much fuel is in the fuel tank.
The fuel gauge may vary slightly
when the vehicle is in motion or on
a grade.
When refueling the vehicle from
empty indication, the amount of fuel that can be added will be less than
the advertised capacity due to the reserve fuel.
Note: The fuel filler door is located on the driver’s side of the vehicle.
Instrument Cluster
16

AM/FM RADIO WITH COMPACT DISC PLAYER
Volume/power control
Ensure that the ignition is either in the ACC or ON position for the audio
system to function.
Press the control to turn the audio
system on or off.
Turn the control to raise or lower
the volume.
NOTE: To prevent the battery from being discharged, do not leave the
audio system on for a long period when the engine is not running.
NOTE: Once the system is turned off, press the VOL control again to
listen to the frequency last tuned to.
Entertainment Systems
17

AM/FM select
Ensure that the ignition is in the
ACC or ON position for the radio to

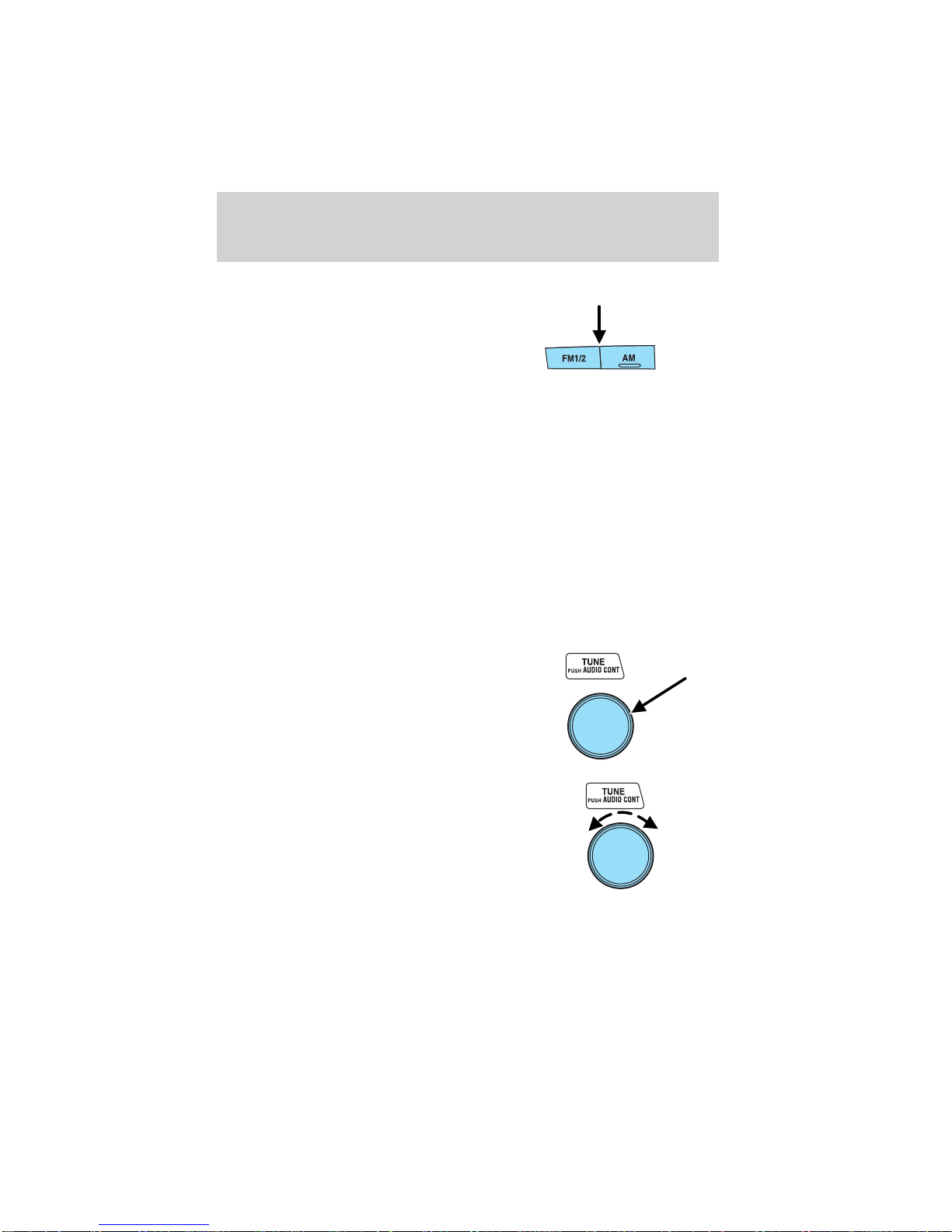

operate. Press the AM or FM1/2
control to enter radio mode.
Band selection
Select AM by pressing the AM button and FM1 or FM2 by pressing the
FM1/2 button.
The selected mode will be indicated. If FM stereo is being received, ST
will be displayed.
Note: If the FM broadcast signal becomes weak, reception automatically
changes form STEREO to MONO for reduced noise and the ST incdicator
will go out.
Tune audio control
The TUNE control is a multi-functional control which works in radio,
tape and CD modes to adjust the levels of bass, treble, balance, fade and
mid-range.
Press the TUNE control to select
the desired function.
Turn the TUNE control to adjust the
desired levels.
Refer to Treble adjust for specific instructions on level adjustments.
The TUNE control will also work in radio mode to manually increase or
decrease the frequency.
Entertainment Systems
18

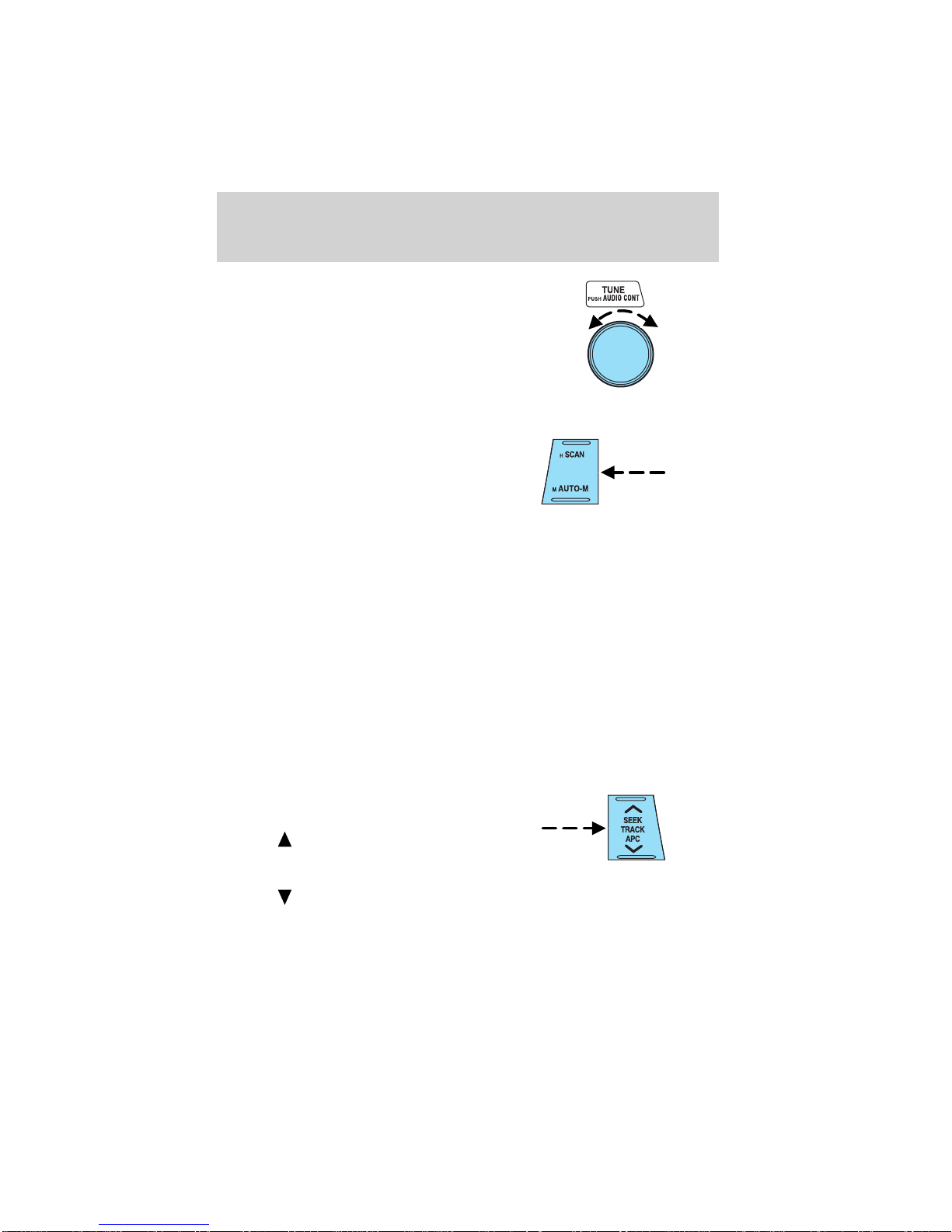

Turn the TUNE control to the left
for a lower frequency.
Turn the TUNE control to the right
for a higher frequency.
Scan function
The scan function works in radio
and CD mode.
Scan function in radio mode
Press the SCAN control to hear a brief sampling of all listenable stations
on the frequency band. Press the SCAN control again to disable scan
mode.
Scan function in CD mode
Press the SCAN control during CD play to hear the first ten seconds of
each track. Press the SCAN control again to stop the scan mode.
NOTE: If the unit is left in scan mode, normal play will resume where
scan was selected.
Seek function
The seek function control works in radio mode.
Seek function in radio mode
Press and momentarily hold the
SEEK control.
•Press to find the next
listenable station up the
frequency band.
•Press to find the next listenable station down the frequency band.
NOTE: If you continue to press and hold the control, the frequency will
continue changing without stopping. Release the control after the beep
sounds.
Entertainment Systems
19

Treble adjust
The treble adjust control allows you to increase or decrease the audio
system’s treble output.

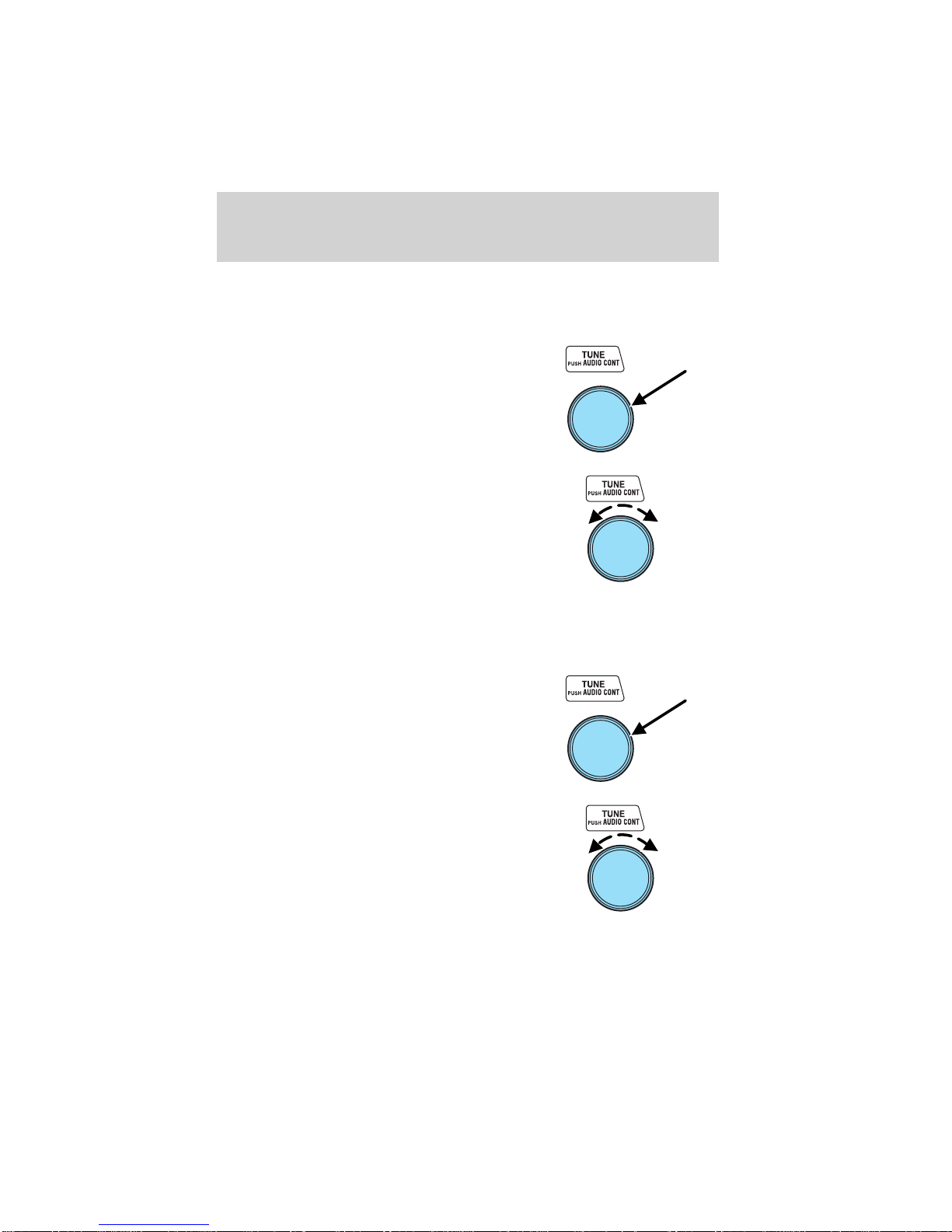

Press the audio control until TREB
is displayed.
Turn the control to increase (right)
or decrease (left) the amount of
treble output.
Bass adjust
The bass adjust control allows you to increase or decrease the audio
system’s bass output.
Press the audio control until BASS
appears.
Turn the control to increase (right)
or decrease (left) the amount of
bass output.
Entertainment Systems
20
