Thank you for choosing a Mazda. We at Mazda design and build vehicles with complete
customer satisfaction in mind.
To help ensure enjoyable and trouble-free operation of your Mazda, read this manual
carefully and follow its recommendations.
An Authorized Mazda Dealer knows your vehicle best. So when maintenance or service is
necessary, that's the place to go.
Our nationwide network of Mazda professionals is dedicated to providing you with the best
possible service.
We assure you that all of us at Mazda have an ongoing interest in your motoring pleasure
and in your full satisfaction with your Mazda product.
Mazda Motor Corporation
HIROSHIMA, JAPAN
Important Notes About This Manual
Keep this manual in the glove box as a handy reference for the safe and enjoyable use of your Mazda. Should you
resell the vehicle, leave this manual with it for the next owner.
All specifications and descriptions are accurate at the time of printing. Because improvement is a constant goal at
Mazda, we reserve the right to make changes in specifications at any time without notice and without obligation.
Event Data Recorder
This vehicle is equipped with an event data recorder. In the event of a crash, this device records data related to
vehicle dynamics and safety systems for a short period of time. These data can help provide a better
understanding of the circumstances in which crashes and injuries occur and lead to the designing of safer
vehicles.
Air Conditioning and the Environment
Your Mazda's genuine air conditioner is filled with HFC134a (R134a), a refrigerant that has been found not to
damage the earth's ozone layer. If the air conditioner does not operate properly, consult an Authorized Mazda
Dealer.
Perchlorate
Certain components of this vehicle such as [air bag modules, seat belt pretensioners, lithium batteries, ...] may
contain Perchlorate Material–Special handling may apply for service or vehicle end of life disposal. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.
Please be aware that this manual applies to all models, equipment and options. As a result, you may find
some explanations for equipment not installed on your vehicle.
©2007 Mazda Motor Corporation
Printed in Japan Sep. 2007(Print1)
A Word to Mazda Owners
Mazda5_8X53-EA-07I_Edition1 Page3
Monday, September 3 2007 10:38 AM
Form No.8X53-EA-07I

Black plate (4,1)
We want to help you get the most driving
pleasure from your vehicle. Your owner's
manual, when read from cover to cover,
can do that in many ways.
Illustrations complement the words of the
manual to best explain how to enjoy your
Mazda. By reading your manual, you can
find out about the features, important
safety information, and driving under
various road conditions.
The symbol below in this manual means
“Do not do this”or “Do not let this
happen”.
Index: A good place to start is the Index,
an alphabetical listing of all information
in your manual.
You'll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
WARNING
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in
which bodily injury or damage to
your vehicle, or both, could result if
the caution is ignored.
NOTE
A NOTE provides information and sometimes
suggests how to make better use of your
vehicle.
The symbol below, located on some parts
of the vehicle, indicates that this manual
contains information related to the part.
Please refer to the manual for a detailed
explanation.
How to Use This Manual
Mazda5_8X53-EA-07I_Edition1 Page4
Monday, September 3 2007 10:38 AM
Form No.8X53-EA-07I

Black plate (5,1)
Mazda5_8X53-EA-07I_Edition1 Page5
Monday, September 3 2007 10:38 AM
Form No.8X53-EA-07I
Table of Contents
Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda. 1
Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
2
Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
3
Before Driving Your Mazda
Important information about driving your Mazda. 4
Driving Your Mazda
Explanation of instruments and controls. 5
Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
6
In Case of an Emergency
Helpful information on what to do in an emergency. 7
Maintenance and Care
How to keep your Mazda in top condition. 8
Customer Information
Important consumer information including warranties and add-on equipment. 9
Specifications
Technical information about your Mazda. 10
Index 11

Black plate (6,1)
Mazda5_8X53-EA-07I_Edition1 Page6
Monday, September 3 2007 10:38 AM
Form No.8X53-EA-07I

Black plate (7,1)
1Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Dashboard and Interior Overview .............................................. 1-2
Exterior Overview ......................................................................... 1-4
1-1
Mazda5_8X53-EA-07I_Edition1 Page7
Monday, September 3 2007 10:38 AM
Form No.8X53-EA-07I

Black plate (8,1)
1-2
Your Vehicle at a Glance
The equipment and installation position varies by vehicle

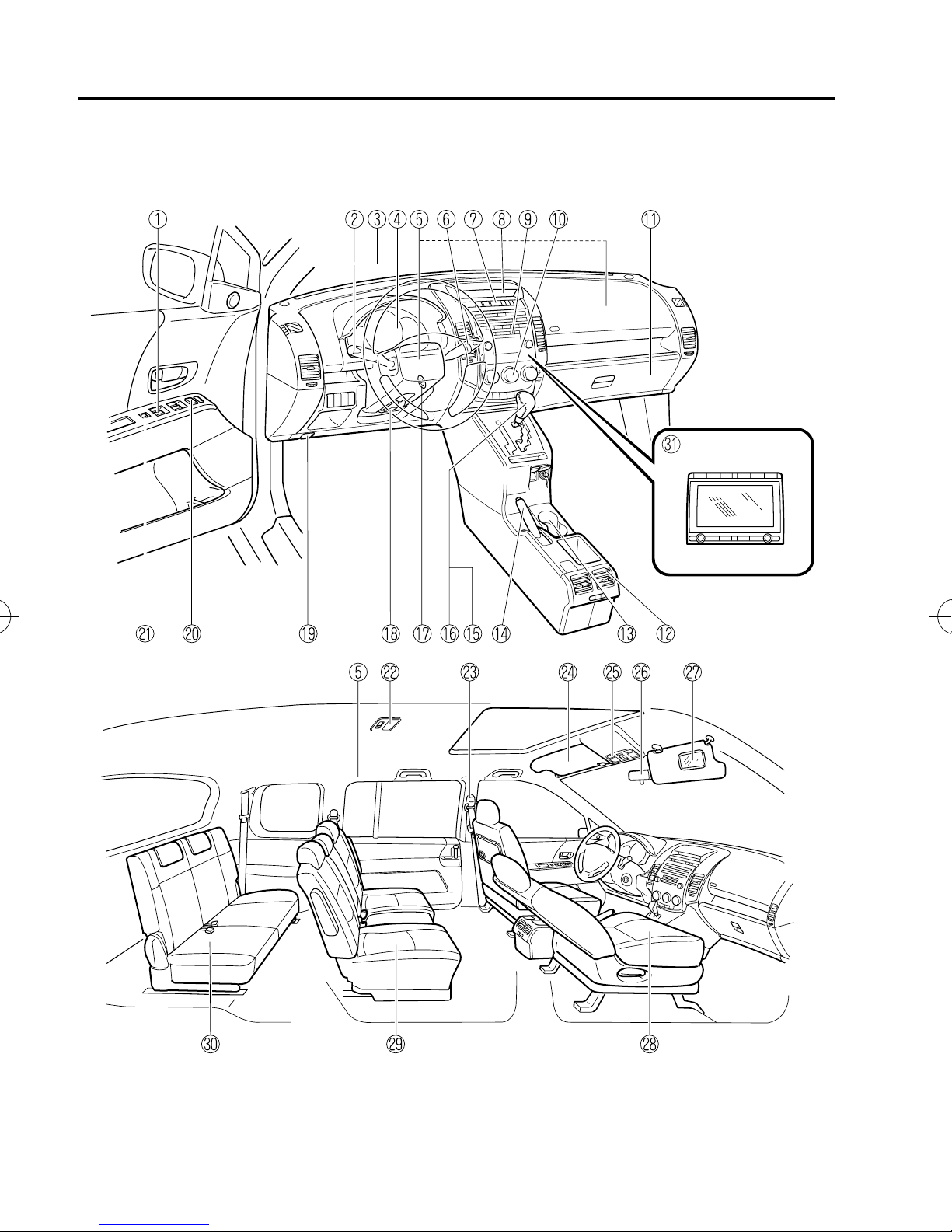

Dashboard and Interior Overview
Mazda5_8X53-EA-07I_Edition1 Page8
Monday, September 3 2007 10:38 AM
Form No.8X53-EA-07I

Black plate (9,1)
Power window switches .................................................................................... page 3-13
Lighting control ................................................................................................. page 5-45
Turn and lane-change signals ............................................................................ page 5-48
Instrument cluster .............................................................................................. page 5-28
Air bags ............................................................................................................. page 2-39
Wiper and washer lever ..................................................................................... page 5-49
Hazard warning flasher switch .......................................................................... page 5-54
Information display ............................................................................................ page 6-64
Audio system ..................................................................................................... page 6-17
Climate control system ........................................................................................ page 6-2
Glove box .......................................................................................................... page 6-69
Rear ventilation system ..................................................................................... page 6-16
Cup holder ......................................................................................................... page 6-67
Parking brake ....................................................................................................... page 5-6
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-11
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-25
Hood release handle .......................................................................................... page 3-17
Outside mirror switch ........................................................................................ page 3-25
Power window lock switch ................................................................................ page 3-15
Interior light ....................................................................................................... page 6-62
Seat belts ............................................................................................................ page 2-14
Sunvisor ............................................................................................................. page 6-62
Map light ........................................................................................................... page 6-63
Rearview mirror ................................................................................................. page 3-26
Vanity mirror ...................................................................................................... page 6-62
Front seats ............................................................................................................ page 2-2
Second-row seat ................................................................................................... page 2-6
Third-row seat .................................................................................................... page 2-11
Navigation system (if equipped) .......................................... Refer to the separate manual
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle
Mazda5_8X53-EA-07I_Edition1 Page9
Monday, September 3 2007 10:38 AM
Form No.8X53-EA-07I

Black plate (10,1)
1-4
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Exterior Overview
Mazda5_8X53-EA-07I_Edition1 Page10
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (11,1)
Rear window defroster ....................................................................................... page 5-53
Rear wiper blade ................................................................................................ page 8-28
Light bulbs ......................................................................................................... page 8-36
Liftgate ............................................................................................................... page 3-11
Antenna ............................................................................................................. page 6-17
Fuel-filler lid ...................................................................................................... page 3-15
Sliding doors ........................................................................................................ page 3-9
Power windows ................................................................................................. page 3-13
Outside mirror .................................................................................................... page 3-25
Child safety locks .............................................................................................. page 3-10
Tires ................................................................................................................... page 8-32
Hood .................................................................................................................. page 3-17
Windshield wiper blades .................................................................................... page 8-26
Moonroof ........................................................................................................... page 3-18
Doors and keys .................................................................................................... page 3-7
Your Vehicle at a Glance
Exterior Overview
1-5The equipment and installation position varies by vehicle
Mazda5_8X53-EA-07I_Edition1 Page11
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (12,1)
1-6
Mazda5_8X53-EA-07I_Edition1 Page12
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats ................................................................................ 2-2
Second-Row Seats .................................................................... 2-6
Third-Row Seat ....................................................................... 2-11
Seat Belt Systems ........................................................................ 2-14
Seat Belt Precautions .............................................................. 2-14
Seat Belt .................................................................................. 2-18
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-20
Seat Belt Extender ................................................................... 2-22
Seat Belt Warning Light/Beep ................................................ 2-24
Child Restraint ............................................................................ 2-26
Child Restraint Precautions ..................................................... 2-26
Installing Child-Restraint Systems .......................................... 2-30
LATCH Child-Restraint Systems ............................................ 2-36
SRS Air Bags ............................................................................... 2-39
Supplemental Restraint Systems (SRS) Precautions ............... 2-39
Supplemental Restraint System Components ......................... 2-43
How the Air Bags Work .......................................................... 2-46
2-1
Mazda5_8X53-EA-07I_Edition1 Page13
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (14,1)
Front Seats
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
2-2
Essential Safety Equipment
Seats
Mazda5_8X53-EA-07I_Edition1 Page14
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (15,1)
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
Essential Safety Equipment
Seats
2-3
Mazda5_8X53-EA-07I_Edition1 Page15
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (16,1)
q Height Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
Down
Up
qLumbar Support Adjustment
(Driver's Seat)
To adjust the lumbar support, pull the
lever forward.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
2-4
Essential Safety Equipment
Seats
Mazda5_8X53-EA-07I_Edition1 Page16
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (17,1)
qSeat Warmer
í
The front seats are electrically heated. The
ignition must be in the ON position.
Press the switch to turn the seat warmer
on or off. When the switch is in the ON
position, the indicator light will come on.
Indicator
OFF ON
WARNING
ØBe careful when using the seat
warmer. The heat from the seat
warmer may be too hot for some
people, as indicated below, and
could cause a low-temperature
burn.
ØInfants, small babies, elderly
people, and physically
challenged people
ØPeople with delicate skin
ØPeople who are excessively
fatigued
ØPeople who have taken sleep-
inducing medicine such as
sleeping pills or cold medicine
ØDo not use the seat warmer with
anything having high moisture-
retention ability such as a blanket
or cushion on the seat. The seat
may be heated excessively and
cause a low-temperature burn.
ØDo not use the seat warmer even
when taking a short nap in the
vehicle. The seat may be heated
excessively and cause a low-
temperature burn.
ØDo not place heavy objects with
sharp projections on the seat, or
insert needles or pins into it. This
could cause the seat to become
excessively heated and result in
injury from a minor burn.
CAUTION
Do not use organic solvents such as
benzene or gasoline to clean the seat.
It may damage the seat surface and
the heater.
Essential Safety Equipment
Seats
2-5
í
Some models.
Mazda5_8X53-EA-07I_Edition1 Page17
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (18,1)
NOTE
Use the seat warmer when the engine is
running, and do not continue to use it for a
long period.
The temperature of the seat warmer cannot be
adjusted because the temperature of the seat is
controlled by the thermostat.
qArmrest
The armrest can be used or placed upright.
WARNING
Never position the shoulder portion of
a front seat belt over the armrest:
Positioning the shoulder portion of a
front seat belt over the armrest is
dangerous as it cannot provide
adequate protection in a collision
and could result in serious injuries.
Second-Row Seats
WARNING
Do not stack cargo higher than the
seatback:
Stacking luggage or other cargo
higher than the seatback is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Adjust the seat only when the vehicle is
stopped:
Adjusting the seat while the vehicle is
moving is dangerous. Sudden
braking or a collision could cause
serious injury.
2-6
Essential Safety Equipment
Seats
Mazda5_8X53-EA-07I_Edition1 Page18
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (19,1)
Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
NOTE
lThe second-row seats cannot be removed.
lWhen returning a second-row seat to its
original position, also replace the seat belt
to its normal position. Verify that the seat
belt pulls out and retracts.
qSeat Slide
To move the seat forward or backward,
raise the lever and slide the seat to the
desired position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-7
Mazda5_8X53-EA-07I_Edition1 Page19
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I

Black plate (20,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from the seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Do not recline a second-row seatback
when the third row seat is occupied:
Reclining the second-row seatback
when the third-row seat is occupied
is dangerous.Because the clearance
in the third-row seat is limited,
occupants in the third-row seat could
be hurt seriously on a reclined
second-row seatback.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHead Restraint
WARNING
Always drive with the head restraints
set up when seats are being used and
make sure they are properly set up:
Driving with the head restraints not
set up is dangerous. With no support
behind your head, your neck could be
seriously injured in a collision.
To use a head restraint, pull it up to the
locked position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
2-8
Essential Safety Equipment
Seats
Mazda5_8X53-EA-07I_Edition1 Page20
Monday, September 3 2007 10:39 AM
Form No.8X53-EA-07I
