Mazda CQ-JM8080A User manual

General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Current Consumption Less than 3.0A (at 0.5W)
Power Output 25W×4
Output Impedance 4Ω
AM Radio
Frequency Range 530 - 1,710kHz
Usable Sensitivity 24dB/µV (S/N 20dB)
FM Stereo Radio
Frequency Range 87.75 - 107.9MHz
Usable Sensitivity 7dB/µV (S/N 30dB)
MAZDA
CQ-JM8080A
AM/FM MPX ELECTRONIC TUNING
RADIO with CD Player
MAZDA PART No. : CB75 66 9R0
VEHICLE : MPV
DESTINATION :
Australia, New Zealand, China
PRODUCED AFTER : Nov., 2000
CD Player
Signal to Noise Ratio More than 70dB (IHF-A)
Channel Separation More than 65dB (IHF-A)
Dimensions** (W×H×D) 178×110×160mm
Weight** 2.2kg
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
AUTOMOTIVE ELECTRONICS
Specification*
ORDER No.1096

1 FEATUERS 2
2 LASER PRODUCTS 2
3 REAR VIEW 2
4 FRONT VIEW AND FUNCTIONS 3
5 WIRING CONNECTION 4
6 BLOCK DIAGRAM (Main Block) 5
7 BLOCK DIAGRAM (CD Servo Block) 6
8 TERMINALS DESCRIPTION 7
1 FEATUERS
∙ PLL (Phase Locked Loop) synthesized tuning.
∙ 18-station preset (12-FM, 6-AM).
∙ Auto-Memory.
∙ CD changer control.
∙ Electronic control of power and sound.
∙ Anti-Theft System.
2 LASER PRODUCTS
9 PACKAGE AND IC BLOCK DIAGRAM 9
10 REPLACEMENT PARTS LIST 11
11 EXPLODED VIEW (Unit) 17
12 CD PLAYER PARTS 18
13 EXPLODED VIEW (CD Deck) 19
14 WIRING DIAGRAM 20
15 SCHEMATIC DIAGRAM 27
3 REAR VIEW
CONTENTS
Page Page
2
MAZDA / CQ-JM8080A

4 FRONT VIEW AND FUNCTIONS
3
MAZDA / CQ-JM8080A

5 WIRING CONNECTION
4
MAZDA / CQ-JM8080A

6 BLOCK DIAGRAM (Main Block)
5
MAZDA / CQ-JM8080A

7 BLOCK DIAGRAM (CD Servo Block)
6
MAZDA / CQ-JM8080A

8.1. Main Block
IC601 : C2BBGF000254
Pin
No. Port Description I/O (V)
1 ST-SW Stearing SW I 4.6
2 VCONT Phase diff. Level detection I 0.3
3 P.CONT System power control O 5.0
4 LCD.CONT Panel illumi. control O 4.9
5 AMP. +B Ext. amp power control O 4.9
6 ANT.CONT Not used - -
7 TEL.IN Telephone mute input I 4.4
8 ST-SW2 Stearing SW I 0
9 TP (+5V pull up) - 4.8
10 AUX.CNT-IN AUX control signal I 4.8
11 CD.ON (Ground pull down) - 0
12 CD-SOM CD serial data I 2.5
13 CD-SIM CD serial data O 1.5
14 CD-SCKM CD clock O 4.9
15 NC No connection - -
16 RD.CONT Radio power control O 0
17 FM.CONT FM radio power control O 0
18 AMP.C Power amp. stand-by O 0
19 MUTE Mute output O 0
20 NC No connection - -
21 GND Ground - 0
22 VDD +5V power supply - 5.0
23 AUX.CNT-
OUT CD-CH control signal O 0
24 COMBI.CNT COMBI.control signal O 5.0
25 VOL.DATA Data for Electronic volume O 0
26 VOL.CLK Clock for Electronic volume O 0
27 NC No connection - -
28 AM.IF AM IF counter O 0
29 FM.IF FM IF counter O 0
30 PLL.VD PLL +5V power supply - 5.0
31 FM.OSC FM local OSC I 1.9
32 AM.OSC AM local OSC I 1.3
33 GND Ground - 0
34 EO0 PLL error O 1.5
35 EO1 Not used - -
36 IC (Connecting to ground) - 0
37 SD B/S detection I 0
38 FM.ST FM stereo detetion O 0.3
39 SSC Search stop clear O 0
40 DX/LOC DX/LOC selection O 0
41 NC (Cinnecting to ground) - 0
42 NC (Cinnecting to ground) - 0
43 NC (Cinnecting to ground) - 0
44 NC (Cinnecting to ground) - 0
45 NC (Cinnecting to ground) - 0
46 NC (Cinnecting to ground) - 0
47 NC (Cinnecting to ground) - 0
48 NC (Cinnecting to ground) - 0
49 NC (Cinnecting to ground) - 0
50 EN-B Rotary encoder data I 4.8
51 EN-A Rotary encoder data I 0
52 E2P.STB Strobe for security ROM O 0
53 E2P.DIN Security ROM data I 0
54 E2P/LCD.DO Security / LCD data I/O 0
55 E2P/LCD.CK Security / LCD clock O 0
56 LCD.DI LCD data O 5.0
57 LCD.CE LCD chip enable O 0
58 NC No connection - -
59 BEEP Beep output O 5.0
60 NC No connection - -
61 DIST (Ground pull-down) - 0
62 SIYOU (Ground pull-down) - 0
63 CD-ON CD controller enable O 4.9
64 CD-RESET CD reset O 4.9
65 CD-SW1 Disc-in SW I 4.6
66 CD-SW3 Disc-out SW I 4.5
67 BATT-DET Battery level detection I 4.5
68 ACC-DET ACC level detection I 4.7
69 ILL-DET Illumi.-on detection I 0
70 TAPE.EJ Tape eject switch I 1.2
71 CD.EJ CD eject switch I 4.7
72 CD-CH.IN CD/MD changer disc-in I 4.5
73 CD-CH.OUT CD/MD changer data I 0
74 REG CPU Coupling capacitor terminal - 3.6
75 GND Ground - 0
76 X2 Crystal osillator - 1.6
77 X1 Crystal osillator - 1.1
78 REG OSC Coupling capacitor terminal - 4.9
79 VDD +5V power supply - 4.9
80 RESET Reset input I 4.6
Note :
Voltage measuerments are with respect to ground, with a
voltmeter (Internal resistance : 10M ohms.)
8.2. Display Block
IC600 : YEAMLC75852C
Pin
No. Port Description I/O (V)
1-43 S1-S43 LCD segment data O 2.5
44,45 COM1,2 LCD common output O 2.5
46-50 KS1-KS5 Key scan signal O 5.0
51 KS6 Not used - -
52-55 KI1-KI4 Key data I 0
56 KI5 (Connecting to ground) - 0
57 OSC CR osillator terminal - 4.0
58 Vss Ground - 0
59 RESET Reset I 0
60 VDD +5V power supply - 5.0
61 DATA OUT LCD data O 5.0
62 CE LCD driver chip enable I 0
63 CLK Clock for LCD I 0
64 DATA IN LCD data I 0
8 TERMINALS DESCRIPTION
7
MAZDA / CQ-JM8080A

8.3. CD Servo Block
IC201 : MN662748RPMF
Pin
No. Port Description I/O (V)
1 BCLK Not used - -
2 LRCK Not used - -
3 SRDATA Not used - -
4 DVDD +5V digital power supply - 5.0
5 DVSS1 Digital ground - 0
6TX Not used - -
7 MCLK MPU command clock I 0
8 MDATA MPU command data I 0
9 MLD MPU command load I 0
10 SENSE Sense signal O 0
11 /FLOCK Focus servo lock O 0
12 /TLOCK Tracking servo lock O 4.9
13 BLKCK Not used - -
14 SQCK Q code external clock I 4.9
15 SUBQ Q code output O 2.5
16 DMUTE DSP mute I 0
17 STAT DSP Status output O 3.1
18 /RST Reset input I 4.9
19,20 Not used - -
21 TRV Forced traverse output O 2.5
22 TVD Traverse drive output O 2.5
23 PC Spindle motor control O 0
24 ECM Spindle motor drive O 2.5
25 ECS Spindle motor drive O 2.5
26 KICK Kick pulse output O 2.5
27 TRD Tracking motor drive O 2.5
28 FOD Focus motor drive O 2.5
29 VREF D/A reference voltage I 2.5
30 FBAL Focus balance adjust O 2.5
31 TBAL Tracking balance adjust O 2.5
32 FE Focus error signal I 2.5
33 TE Tracking error signal I 2.5
34 RFENV RF envelope signal I 2.5
35 VDET Vibration detection I 0
36 OFTR Off track signal I 0
37 TRCRS Track closs signal I 2.1
38 /RFDET RF detection signal I 0
39 BDO Drop out signal I 0
40 LDON Laser on/off control O 4.5
41 PLLF2 Not used - -
42 TOFS TE offset O 2.5
43 WVEL Not used - -
44 ARE RF signal I 1.7
45 IREF Reference current input I 1.6
46 DRF DSL bias I 0
47 DSLF DSL loop filter I/O 2.4
48 PLLF PLL loop filter I/O 1.8
49 VCOF Not used - -
50 AVDD2 +5V analog power supply - 5.0
51 AFSS2 Analog ground - 0
52 EFM Not used - -
53 PCK/DSLB DSL bias I 2.4
54 VCOF2 Tracking offset O 2.5
55 SUBC Not used - -
56 SBCK (Connecting to ground) - -
57 VSS Ground - 0
58 X1 Crystal oscillator I 1.7
59 X2 Crystal oscillator O 2.3
60 VDD +5V power supply - 5.0
61,62 - Not used - -
63 FCLK Not used - -
64 IPFLAG Not used - -
65 FLAG Not used - -
66-69 - Not used - -
70 IOSEL (Connecting to ground) I 0
71 /TEST (Connecting to ground) I 0
72 AVDD1 +5V analog power supply - 4.9
73 OUTL Audio Lch output O 4.9
74 AVSS1 Analog ground - 0
75 OUTR Audio Rch output O 4.9
76 RSEL (Connecting to ground) - 0
77 CSEL (Connecting to ground) - 0
78 PSEL (Connecting to ground) - 0
79 MSEL (Connecting to ground) - 0
80 SSEL mode select I 5.0
IC401 : MN101C117AF
Pin
No. Port Description I/O (V)
1 MASHON Servo IC OSC control O 5.0
2 P82 No connection - -
3 P81 No connection - -
4 P80 (Connection to ground) - 0
5 Q1 Photo sensor signal (DISC IN) I 4.5
6 Q3 Photo sensor signal (DISC OUT) I 4.2
7 Q6 Photo sensor signal (Option) I 5.0
8SW4 Clamp SW signal I 0
9SW5 Inner SW signal I 5.0
10 SW2 Feeder arm SW I 5.0
11 PA6 (Connection to ground) - 0
12 PA7/IFR (Connecting to ground) I 0
13 VDD +5V power supply - 5.0
14 OSC2 Crystal oscillator - 5.0
15 OSC1 Crystal oscillator - 3.3
16 VSS Ground - 0
17 NC No connection - -
18 SOMI CD control data O 3.2
19 SIMO CD control data I 3.8
20 SCLM Data shift clock I 5.0
21 P06 Not used - -
22 BD0 Drop out signal I 0
23 PC1 Loading motor driver control O 5.0
24 PS2 Focus/Tracking driver control O 0
25 VDET Vibration detecting signal I 0
26 P14 No connection - -
27 CDON CD on signal I 5.0
28 IRQ1.SENS
E(Connecting to groung) - 0
29 IRQ2 (Connecting to ground) - 0
30 LOD Loading motor control - 2.6
31 TRV Traverse motor control - 2.5
32 /PRST Servo IC reset O 5.0
33 STAT Status signal I 4.0
34 DMUTE DSP mute O 0
35 SUBQ Sub code Q data I 2.6
36 SQCK Sub code Q clock O 5.0
37 /TLOCK Tracking servo lock I 0
38 /FLOCK Focus servo lock I 0
39 NRST reset input I 5.0
40 MMOD (Connecting to ground) - 0
41 SENSE Sense signal I 0
42 MLD Command load O 5.0
43 MDATA Command data O 0.9
44 MCLK Command clock O 4.6
8
MAZDA / CQ-JM8080A

IC690 : C3EBCC000037
IC201 : C1BB00000284

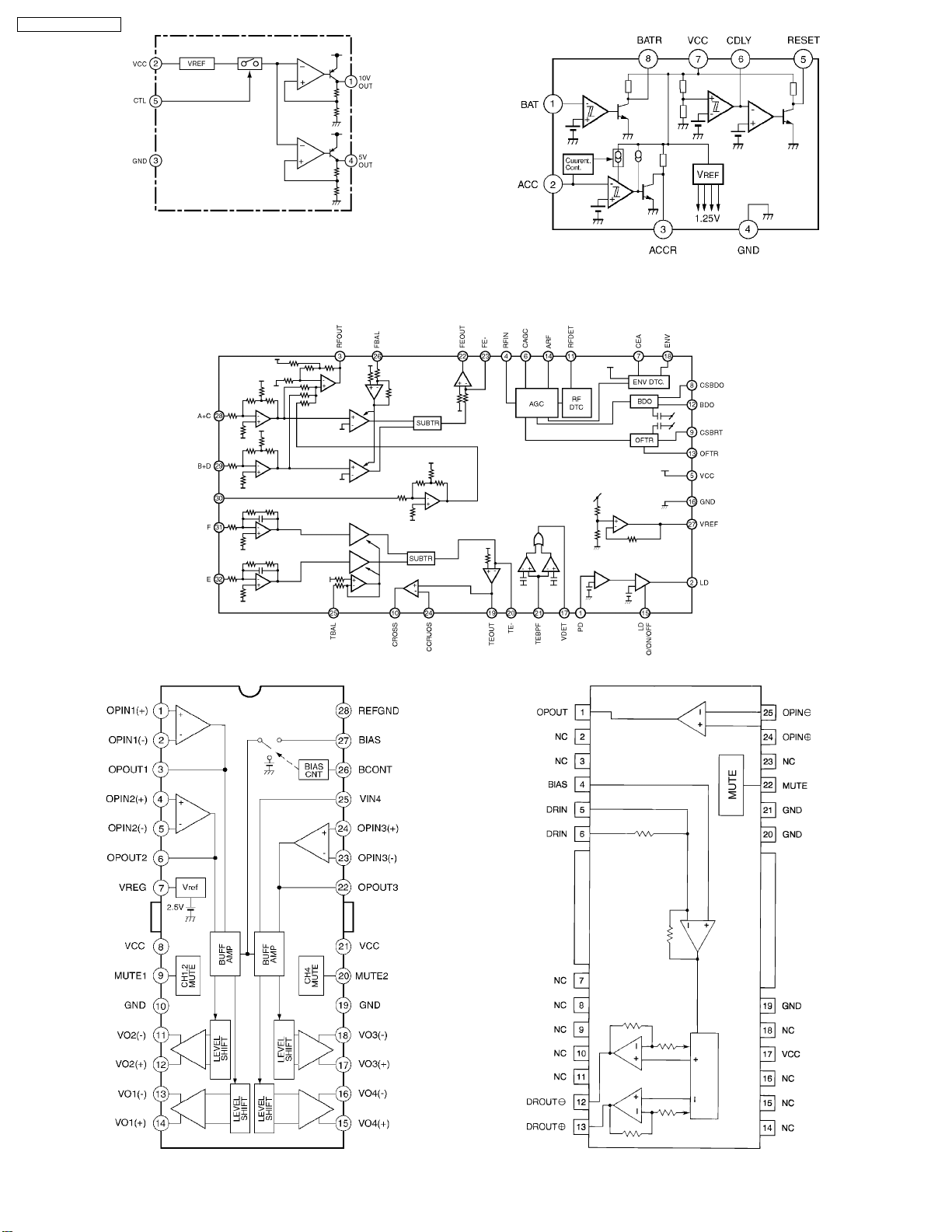

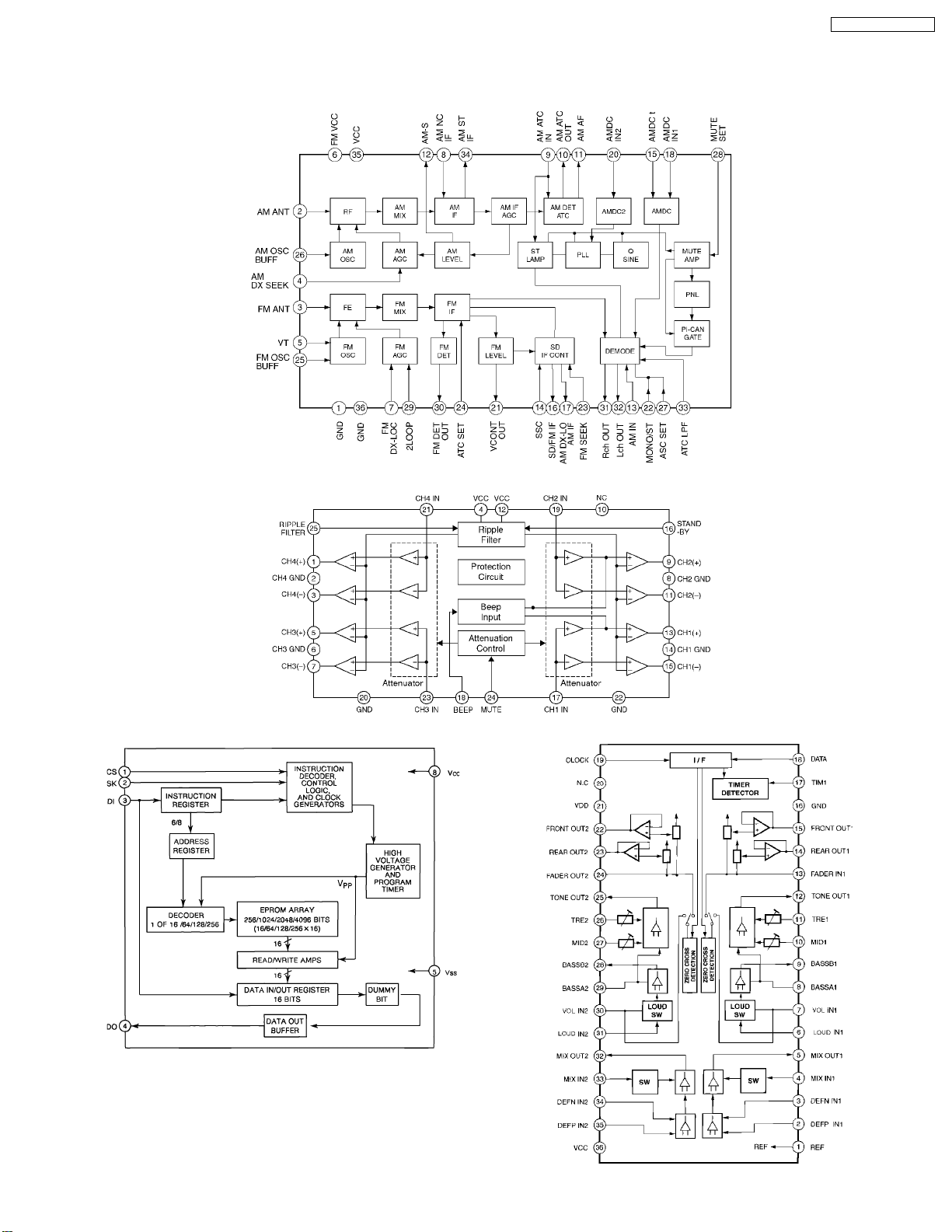

9 PACKAGE AND IC BLOCK DIAGRAM
9.1. Main Block
PA101 : YEP0PTA513B0
IC231 : AN7555ZA-WLB
9
MAZDA / CQ-JM8080A

IC700 : YEAMA61W12ST
IC601 : C0GBY0000004
IC741 : AN8065SE1
IC901 : C0GBY0000003
9.2. CD Servo Block
IC101 : C1BB00000173
10
MAZDA / CQ-JM8080A

10 REPLACEMENT PARTS
LIST
Notes :
1.Be sure to make your orders of replacement parts
according to this list.
2.Important safety notice: Components, identified by mark
have special characteristics important for safety. When
replacing any of these components, use only
manufacturer´s specified parts.
3.Location keys in the remarks column indicates the general
location of the parts shown in the exploded drawing, as in a
road map.
4.The marking (RTL) indicates that Retention Time is limited
for this item. After the discontinuation of assembly in
production, the item will continue to be available for a
specific period of time. The retention period of availability is
dependent on the type of assembly, and in accordance with
the laws governing part and product retention. After the end
of this period, the assembly will no longer be available.
5. "MCC" marks in remarks column are indicated supply parts
of Matsushita Communication Industrial Corp. of America
(MCC).
10.1. Main Block [E6748A]
IC´s and TRANSISTORs
Ref.
No. Part No. Part Name & Description Remarks
IC201 C1BB00000284 IC
IC231 AN7555ZA-WLB IC
IC251 YEAMPC4570T1 IC
IC601 C2BBGF000254 IC
IC690 C3EBCG000037 IC
IC700 YEAMA61W12ST IC
IC741 AN8065SE1 IC
PA101 YEP0PTA513B0 Tuner IC
Q151 B1GBCFNN0005 Transistor
Q152 YEANBP1F3PT Transistor
Q153 YEANBP1F3PT Transistor
Q451 YEAN2SK536TB Transistor
Q702 2SB1321TA Transistor
Q703 B1GBCFJN0005 Transistor
Q704 B1AAEC000002 Transistor
Q705 YEAND1862T Transistor
Q708 YEANC3661TA Transistor
Q709 YEANC3661TA Transistor
Q750 YEAN2SD1856 Transistor
Q751 YEANFP1F3PT1 Transistor
Q752 B1GBCFJN0005 Transistor
Q753 YEANC114WKTX Transistor
Q754 YEAN2SD1856 Transistor
Q755 B1GBCFJN0005 Transistor
Q756 YEANC114WKTX Transistor
Q791 YEANA144EKTX Transistor
Q801 B1ABCF000044 Transistor
Q802 B1ABCF000044 Transistor
Q803 YEANA1037KTX Transistor
Q804 B1ABCF000044 Transistor
Q805 B1ABCF000044 Transistor
Q806 B1GBCFNN0005 Transistor
DIODEs
Ref.
No. Part No. Part Name & Description Remarks
D151 MA151WKTX Diode
D273 YEAD1SS355T1 Diode
D275 YEAD1SS355T1 Diode
D601 MA165TA Diode
Ref.
No. Part No. Part Name & Description Remarks
D602 MA165TA Diode
D701 YEADDSA3A2B Diode
D702 YEADRD62M2T1 Diode
D703 MA165TA Diode
D705 B0EANM000002 Diode
D706 MAZ40910GF Diode
D707 YEADRD39M2T2 Diode
D708 MA151KTX Diode
D731 MA4056MHTA Diode
D732 YEAD1SS355T1 Diode
D750 MAZ40820MF Diode
D751 MA159TX Diode
D753 MAZ40820MF Diode
D754 MA165TA Diode
D791 YEAD1SS355T1 Diode
D801 MA153TX Diode
CAPACITORs
Ref.
No. Part No. Part Name & Description Remarks
C51 YECUS1H102KX Ceramic, 0.001µF 50WV
C52 YECUS1H102KX Ceramic, 0.001µF 50WV
C53 F1J1H120A034 Ceramic, 12PF 50WV
C101 YECUS1C154KX Ceramic, 0.15µF 16WV
C102 YECUS1H103KX Ceramic, 0.01µF 50WV
C103 YECUS1H473KX Ceramic, 0.047µF 50WV
C104 YECUS1H473KX Ceramic, 0.047µF 50WV
C121 YECUS1H103KX Ceramic, 0.01µF 50WV
C122 YECUS1H272KX Ceramic, 0.0027µF 50WV
C124 YECUS1H123KX Ceramic, 0.012µF 50WV
C126 YECUS1C104KX Ceramic, 0.1µF 16WV
C131 YECUS1H103KX Ceramic, 0.01µF 50WV
C134 YECUS1H123KX Ceramic, 0.012µF 50WV
C136 YECUS1C104KX Ceramic, 0.1µF 16WV
C151 ECEA1CKA100I Electrolytic, 10µF 16WV
C152 YECUS1H151JM Ceramic, 150PF 50WV
C153 YECUS1H471JM Ceramic, 470PF 50WV
C154 YECUS1E223KX Ceramic, 0.022µF 25WV
C156 YECUS1E223KX Ceramic, 0.022µF 25WV
C161 YECUS1E223KX Ceramic, 0.022µF 25WV
C162 ECA1AM221I Electrolytic, 220µF 10WV
C163 YECUS1E223KX Ceramic, 0.022µF 25WV
C164 YECUS1E223KX Ceramic, 0.022µF 25WV
C165 ECA1AM221I Electrolytic, 220µF 10WV
C201 YECUS1C224KX Ceramic, 0.22µF 16WV
C202 YECUS1C104KX Ceramic, 0.1µF 16WV
C203 YECUS1C104KX Ceramic, 0.1µF 16WV
C204 YECUS1H682KX Ceramic, 0.0068µF 50WV
C205 ECEA1HKN2R2I Electrolytic, 2.2µF 50WV
C206 YECUS1E223KX Ceramic, 0.022µF 25WV
C207 YECQP2A681J Plastic Film, 680PF 100WV
C208 ECEA1HSNR22I Electrolytic, 0.22µF 50WV
C209 YECUS1H472KX Ceramic, 0.0047µF 50WV
C210 YECUS1H472KX Ceramic, 0.0047µF 50WV
C223 ECEA1CPK100I Electrolytic, 10µF 16WV
C224 ECEA1CPK100I Electrolytic, 10µF 16WV
C241 ECA1CM330I Electrolytic, 33µF 16WV
C242 ECEA1HKA010I Electrolytic, 1µF 50WV
C251 YECUS1H102KX Ceramic, 0.001µF 50WV
C252 ECEA1HPD3R3I Electrolytic, 3.3µF 50WV
C253 YECUS1H102KX Ceramic, 0.001µF 50WV
C254 ECEA1HPD3R3I Electrolytic, 3.3µF 50WV
C261 ECEA1APU101 Electrolytic, 100µF 10WV
C262 YECUS1H103KX Ceramic, 0.01µF 50WV
C263 YECUS1H103KX Ceramic, 0.01µF 50WV
C264 ECEA1AKA470I Electrolytic, 47µF 10WV
C301 YECUS1C224KX Ceramic, 0.22µF 16WV
C302 YECUS1C104KX Ceramic, 0.1µF 16WV
C303 YECUS1C104KX Ceramic, 0.1µF 16WV
C304 YECUS1H682KX Ceramic, 0.0068µF 50WV
C305 ECEA1HKN2R2I Electrolytic, 2.2µF 50WV
C307 YECQP2A681J Plastic Film, 680PF 100WV
C308 ECEA1HSNR22I Electrolytic, 0.22µF 50WV
C309 YECUS1H472KX Ceramic, 0.0047µF 50WV
11
MAZDA / CQ-JM8080A

Ref.
No. Part No. Part Name & Description Remarks
C310 YECUS1H472KX Ceramic, 0.0047µF 50WV
C323 ECEA1CPK100I Electrolytic, 10µF 16WV
C324 ECEA1CPK100I Electrolytic, 10µF 16WV
C351 YECUS1H102KX Ceramic, 0.001µF 50WV
C352 ECEA1HPD3R3I Electrolytic, 3.3µF 50WV
C353 YECUS1H102KX Ceramic, 0.001µF 50WV
C354 ECEA1HPD3R3I Electrolytic, 3.3µF 50WV
C371 ECEA1CPK100I Electrolytic, 10µF 16WV
C372 YECUS1H103KX Ceramic, 0.01µF 50WV
C373 ECEA0JPK470B Electrolytic, 47µF 6.3WV
C451 ECEA1CKA100I Electrolytic, 10µF 16WV
C453 YECUS1H103KX Ceramic, 0.01µF 50WV
C454 YECUS1H103KX Ceramic, 0.01µF 50WV
C501 YECUS1H561JM Ceramic, 560PF 50WV
C502 YECUS1H391JM Ceramic, 390PF 50WV
C504 YECUS1H561JM Ceramic, 560PF 50WV
C505 YECUS1H391JM Ceramic, 390PF 50WV
C507 ECEA1EPD4R7I Electrolytic, 47µF 25WV
C508 ECEA1EPD4R7I Electrolytic, 47µF 25WV
C600 YECUS1H103KX Ceramic, 0.01µF 50WV
C601 ECA0JM331I Electrolytic, 330MFD 6.3WV
C602 YECUS1H103KX Ceramic, 0.01µF 50WV
C603 YECUS1C104KX Ceramic, 0.1µF 16WV
C604 YECUS1H220JM Ceramic, 22PF 50WV
C605 YECUS1H220JM Ceramic, 22PF 50WV
C606 YECUS1C104KX Ceramic, 0.1µF 16WV
C607 YECUS1C104KX Ceramic, 0.1µF 16WV
C610 YECUS1H101JM Ceramic, 100PF 50WV
C611 YECUS1H101JM Ceramic, 100PF 50WV
C614 YECUV2A103KX Ceramic, 0.01µF 100WV
C615 YECUS1H103KX Ceramic, 0.01µF 50WV
C616 YECUV2A103KX Ceramic, 0.01µF 100WV
C620 YECUV2A222KX Ceramic, 0.0022µF 100WV
C621 YECUS1H222KX Ceramic, 0.0022µF 50WV
C690 YECUS1H103KX Ceramic, 0.01µF 50WV
C700 ECQV1H104B46 Plastic Film, 0.1µF 50WV
C701 ECQV1H104B46 Plastic Film, 0.1µF 50WV
C702 YECUS1H103KX Ceramic, 0.01µF 50WV
C703 ECA1CDT472Y Electrolytic, 4700µF 16WV
C704 ECEA1CKA100I Electrolytic, 10µF 16WV
C705 YECUS1H103KX Ceramic, 0.01µF 50WV
C706 ECA0JM331I Electrolytic, 330MFD 6.3WV
C707 YECUS1H103KX Ceramic, 0.01µF 50WV
C708 EEAFC1A820H Electrolytic, 82µF 10WV
C709 ECA1CM102B Electrolytic, 1000µF 16WV
C710 EEAFC1A820H Electrolytic, 82µF 10WV
C711 YECUS1H103KX Ceramic, 0.01µF 50WV
C712 ECA1AM101I Electrolytic, 100µF 10WV
C713 ECA1CM101I Electrolytic, 100µF 16WV
C714 YECUS1H103KX Ceramic, 0.01µF 50WV
C715 YECUV1C104KX Ceramic, 0.1µF 16WV
C717 ECA1CM221I Electrolytic, 220µF 16WV
C718 EEUFA1C471LB Electrolytic, 470µF 16WV
C730 YECUS1C104KX Ceramic, 0.1µF 16WV
C732 YECUS1H102KX Ceramic, 0.001µF 50WV
C741 YECUS1C104KX Ceramic, 0.1µF 16WV
C750 ECA1AM101I Electrolytic, 100µF 10WV
C751 YECUS1H103KX Ceramic, 0.01µF 50WV
C752 ECEA1HKA2R2I Electrolytic, 2.2µF 50WV
C753 YECUS1H473KX Ceramic, 0.047µF 50WV
C754 ECA1AM101I Electrolytic, 100µF 10WV
C755 YECUS1H103KX Ceramic, 0.01µF 50WV
C756 YECUS1H102KX Ceramic, 0.001µF 50WV
C757 YECUS1H102KX Ceramic, 0.001µF 50WV
C758 YECUS1H473KX Ceramic, 0.047µF 50WV
C771 YECUS1H103KX Ceramic, 0.01µF 50WV
C772 YECUS1H103KX Ceramic, 0.01µF 50WV
C773 YECUS1H103KX Ceramic, 0.01µF 50WV
C775 YECUS1H103KX Ceramic, 0.01µF 50WV
C776 YECUS1H103KX Ceramic, 0.01µF 50WV
C777 YECUS1H103KX Ceramic, 0.01µF 50WV
C778 YECUS1E333KX Ceramic, 0.033µF 25WV
C789 YECUS1H103KX Ceramic, 0.01µF 50WV
Ref.
No. Part No. Part Name & Description Remarks
C801 YECUS1H102KX Ceramic, 0.001µF 50WV
C802 YECUS1H471JM Ceramic, 470PF 50WV
C803 YECUS1H330JM Ceramic, 33PF 50WV
C804 YECUS1H103KX Ceramic, 0.01µF 50WV
C851 ECA0JM101I Electrolytic, 100µF 6.3WV
C852 YECUS1H103KX Ceramic, 0.01µF 50WV
C900 YECUV2A103KX Ceramic, 0.01µF 100WV
J563 YECUV1C105KX Ceramic, 1µF 16WV
J564 YECUV1C105KX Ceramic, 1µF 16WV
J566 YECUX1C334KX Ceramic, 0.33µF 16WV
J567 YECUX1C334KX Ceramic, 0.33µF 16WV
RESISTORs
Ref.
No. Part No. Part Name & Description Remarks
C612 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
C613 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J1 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J2 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J3 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J4 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J5 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J6 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J7 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J8 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
J501 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J502 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J503 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J504 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J505 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J506 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J507 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J508 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J509 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J510 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J511 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J512 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J513 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J514 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J515 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J516 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J517 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J518 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J519 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J520 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J521 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J522 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J523 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J524 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J525 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J526 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J527 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J528 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J529 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J530 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J531 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J532 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J533 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J534 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J535 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J536 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J539 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J540 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J541 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J543 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J544 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J545 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J546 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J547 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J548 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J549 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J550 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J551 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J554 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
12
MAZDA / CQ-JM8080A

Ref.
No. Part No. Part Name & Description Remarks
J555 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J556 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J557 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J558 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J559 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J560 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J562 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J565 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J568 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J569 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J570 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J571 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J572 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J573 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J574 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J575 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J576 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J577 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R101 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R102 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R103 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R104 ERJ6GEYJ392 Chip, 3.9kΩ
ΩΩ
Ω1/10W
R105 ERJ6GEYJ153 Chip, 15kΩ
ΩΩ
Ω1/10W
R106 ERJ6GEYJ221 Chip, 220Ω
ΩΩ
Ω1/10W
R107 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R121 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R123 ERJ6GEYJ223 Chip, 22kΩ
ΩΩ
Ω1/10W
R131 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R133 ERJ6GEYJ223 Chip, 22kΩ
ΩΩ
Ω1/10W
R151 ERJ6GEYJ334 Chip, 330kΩ
ΩΩ
Ω1/10W
R152 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R153 ERJ6GEYJ563 Chip, 56kΩ
ΩΩ
Ω1/10W
R154 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R155 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R156 ERJ6GEYJ273 Chip, 27kΩ
ΩΩ
Ω1/10W
R157 ERJ6GEYJ101 Chip, 100Ω
ΩΩ
Ω1/10W
R158 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R159 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R160 ERJ6GEYJ153 Chip, 15kΩ
ΩΩ
Ω1/10W
R161 ERJ6GEYJ821 Chip, 820Ω
ΩΩ
Ω1/10W
R162 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R201 ERJ6GEYJ562 Chip, 5.6kΩ
ΩΩ
Ω1/10W
R203 ERJ6GEYJ393 Chip, 39kΩ
ΩΩ
Ω1/10W
R204 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R205 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R206 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R207 ERJ6GEYJ223 Chip, 22kΩ
ΩΩ
Ω1/10W
R209 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R210 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R234 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R235 ERJ8GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/8W
R236 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R251 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R252 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R292 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R301 ERJ6GEYJ562 Chip, 5.6kΩ
ΩΩ
Ω1/10W
R303 ERJ6GEYJ393 Chip, 39kΩ
ΩΩ
Ω1/10W
R304 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R305 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R306 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R307 ERJ8GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/8W
R309 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R310 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R351 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R352 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R371 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R372 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
R451 ERJ6GEYJ152 Chip, 1.5kΩ
ΩΩ
Ω1/10W
R452 ERJ6GEYJ561 Chip, 560Ω
ΩΩ
Ω1/10W
R453 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R454 ERJ6GEYJ331 Chip, 330Ω
ΩΩ
Ω1/10W
R455 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R501 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
Ref.
No. Part No. Part Name & Description Remarks
R502 ERJ6GEYJ682 Chip, 6.8kΩ
ΩΩ
Ω1/10W
R504 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R505 ERJ6GEYJ682 Chip, 6.8kΩ
ΩΩ
Ω1/10W
R507 ERD25TJ393 Carbon, 39kΩ
ΩΩ
Ω1/4W
R508 ERD25TJ393 Carbon, 39kΩ
ΩΩ
Ω1/4W
R601 ERJ8GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/8W
R602 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R604 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R605 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R606 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R608 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R609 ERJ8GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/8W
R610 ERDS2TJ473 Carbon, 47kΩ
ΩΩ
Ω1/4W
R611 ERJ6GEYJ392 Chip, 3.9kΩ
ΩΩ
Ω1/10W
R612 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R613 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R614 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R615 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R618 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R619 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R623 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R624 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R625 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R626 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R627 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R628 ERDS2TJ473 Carbon, 47kΩ
ΩΩ
Ω1/4W
R630 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R631 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R637 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R638 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R639 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R640 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R646 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R647 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R648 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R649 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R650 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R651 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R652 ERD25TJ564 Carbon, 560kΩ
ΩΩ
Ω1/4W
R653 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R656 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R658 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R659 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R660 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R661 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R662 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R663 ERD25TJ561 Carbon, 560Ω
ΩΩ
Ω1/4W
R671 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R672 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R673 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R676 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R680 ERDS2TJ471 Carbon, 470Ω
ΩΩ
Ω1/4W
R691 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R692 ERJ8GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/8W
R693 ERJ8GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/8W
R694 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R701 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R704 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R705 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R706 ERDS2FJ1R0T Carbon, 1.0Ω
ΩΩ
Ω1/4W
R707 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R709 ERJ6GEYJ271 Chip, 270Ω
ΩΩ
Ω1/10W
R710 ERDS1FJ271 Carbon, 270Ω
ΩΩ
Ω1/2W
R712 ERJ6GEYJ471 Chip, 470Ω
ΩΩ
Ω1/10W
R713 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R716 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R717 ERJ6GEYJ332 Chip, 3.3kΩ
ΩΩ
Ω1/10W
R718 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R719 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R720 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R721 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R722 ERJ8GEYJ181V Chip, 180Ω
ΩΩ
Ω1/8W
R731 ERJ6GEYJ222 Chip, 2.2kΩ
ΩΩ
Ω1/10W
13
MAZDA / CQ-JM8080A

Ref.
No. Part No. Part Name & Description Remarks
R741 ERJ6GEYJ273 Chip, 27kΩ
ΩΩ
Ω1/10W
R742 ERJ6RED274V Chip, 270kΩ
ΩΩ
Ω1/10W
R743 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R744 ERJ6RBD433V Chip, 43kΩ
ΩΩ
Ω1/10W
R750 ERDS2TJ471 Carbon, 470Ω
ΩΩ
Ω1/4W
R751 ERDS2TJ821 Chip, 820Ω
ΩΩ
Ω1/10W
R752 ERJ6GEYJ151 Chip, 150Ω
ΩΩ
Ω1/10W
R753 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R755 ERDS2TJ271 Carbon, 270Ω
ΩΩ
Ω1/4W
R756 ERJ6GEYJ151 Chip, 150Ω
ΩΩ
Ω1/10W
R757 ERJ6GEYJ272 Chip, 2.7kΩ
ΩΩ
Ω1/10W
R758 ERJ6GEYJ821 Chip, 820Ω
ΩΩ
Ω1/10W
R759 ERDS2FJ3R3T Carbon, 3.3Ω
ΩΩ
Ω1/4W
R801 ERD25TJ102 Carbon, 1kΩ
ΩΩ
Ω1/4W
R802 ERJ6GEYJ223 Chip, 22kΩ
ΩΩ
Ω1/10W
R803 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R804 ERJ6GEYJ183 Chip, 18kΩ
ΩΩ
Ω1/10W
R805 ERJ6GEYJ223 Chip, 22kΩ
ΩΩ
Ω1/10W
R806 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R807 ERJ6GEYJ104 Chip, 100kΩ
ΩΩ
Ω1/10W
R808 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R809 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R810 ERJ6GEYJ561 Chip, 560Ω
ΩΩ
Ω1/10W
R811 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R812 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R813 ERJ6GEYJ561 Chip, 560Ω
ΩΩ
Ω1/10W
R814 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R815 ERJ6GEYJ393 Chip, 39kΩ
ΩΩ
Ω1/10W
R851 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R852 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R853 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R985 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R986 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R988 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R991 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R992 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R993 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R994 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R996 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
CONNECTORs
Ref.
No. Part No. Part Name & Description Remarks
CN601 K1KA14B00082 Connector, 14P
CN701 YEAE012672 Connector, 12P/8P
CN702 YEAE012673 Connector, 16P
CN851 YEAEK623214S Connector, 14P
CNP3 K9ZZ00000331 Connector, 14P FFC
COILs
Ref.
No. Part No. Part Name & Description Remarks
L51 YELT03N1R8JT Coil
L102 G1C1R0J00003 Coil
L601 YELTBLM21B10 Coil
L602 YELTBLM21B10 Coil
L603 YELTBLM21B10 Coil
L604 YELTBLM21B10 Coil
L701 YETQ026F116 Coil
L731 YELT03N470JT Coil
CRYSTAL
Ref.
No. Part No. Part Name & Description Remarks
XL601 YEXL49U0450T Crystal
LAMP
Ref.
No. Part No. Part Name & Description Remarks
Z51 J0LE00000002 ZNR
10.2. Display Block [E8677B]
IC
Ref.
No. Part No. Part Name & Description Remarks
IC600 YEAMLC75852C IC
DIODEs
Ref.
No. Part No. Part Name & Description Remarks
D650 MA151KTX Diode
D651 B3AAA0000350 Diode
D652 YEADRD68M1T1 Diode
CAPACITORs
Ref.
No. Part No. Part Name & Description Remarks
C650 YECUS1C224KX Ceramic, 0.22µF 16WV
C651 YECUS1C224KX Ceramic, 0.22µF 16WV
C652 YECUS1C224KX Ceramic, 0.22µF 16WV
C653 YECUS1H681JM Ceramic, 680PF 50WV
C654 YECUS1C334KX Ceramic, 0.33µF 16WV
C655 YECUS1H103KX Ceramic, 0.01µF 50WV
C656 YECUS1H103KX Ceramic, 0.01µF 50WV
C658 YECUS1H103KX Ceramic, 0.01µF 50WV
C659 YECUS1C334KX Ceramic, 0.33µF 16WV
C660 YECUS1H181JM Ceramic, 180PF 50WV
C661 YECUS1H181JM Ceramic, 180PF 50WV
C662 YECUS1H181JM Ceramic, 180PF 50WV
C663 YECUS1H181JM Ceramic, 180PF 50WV
C664 YECUS1H103KX Ceramic, 0.01µF 50WV
RESISTORs
Ref.
No. Part No. Part Name & Description Remarks
J20 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J21 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J22 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J23 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J24 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J25 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J26 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J27 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J28 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J29 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J30 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J31 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J32 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J33 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J34 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J35 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J36 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J37 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J38 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J39 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J40 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J41 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J42 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J43 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J44 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J45 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J46 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J47 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J48 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J49 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J50 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J51 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J52 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J53 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J54 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J55 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J56 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J57 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J58 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J59 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J60 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J61 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
14
MAZDA / CQ-JM8080A

Ref.
No. Part No. Part Name & Description Remarks
J62 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J63 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J64 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
R600 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
R688 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R689 ERJ8GX0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R697 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R698 ERJ6GEYJ184 Chip, 180kΩ
ΩΩ
Ω1/10W
R699 ERJ6GEY0R00 Chip, 0Ω
ΩΩ
Ω1/10W
CONNECTOR
Ref.
No. Part No. Part Name & Description Remarks
CN602 K1MQ14A00002 Connector, 14P
SWITCHEs
Ref.
No. Part No. Part Name & Description Remarks
SW601 EVQ11T04M Switch
SW603 EVQ11T04M Switch
SW605 EVQ11T04M Switch
SW606 EVQ11T04M Switch
SW607 EVQ11T04M Switch
SW608 EVQ11T04M Switch
SW609 EVQ11T04M Switch
SW610 EVQ11T04M Switch
SW611 EVQ11T04M Switch
SW612 EVQ11T04M Switch
SW613 EVQ11T04M Switch
SW615 EVQ11T04M Switch
SW616 EVQ11T04M Switch
SW619 EVQ11T04M Switch
SW620 EVQ11T04M Switch
SW622 EVQ11T04M Switch
LCD
Ref.
No. Part No. Part Name & Description Remarks
LCD601 L5AAAMC00007 LCD
LAMPs
Ref.
No. Part No. Part Name & Description Remarks
PL601 YEALHSLG005 Pilot Lamp
PL602 YEALHSLG005 Pilot Lamp
PL603 YEALHSLG005 Pilot Lamp
PL604 YEALHSLG005 Pilot Lamp
PL605 YEALHSLG005 Pilot Lamp
PL606 YEALHSLG005 Pilot Lamp
PL607 YEALSTGG011A Pilot Lamp
PL608 YEALSTGG011A Pilot Lamp
PL609 YEALSTGG011A Pilot Lamp
PL610 YEALSTGG011A Pilot Lamp
VARIABLE RESISTOR
Ref.
No. Part No. Part Name & Description Remarks
VR601 K9AA015B0005 Variablr Resistor
10.3. CD Servo Block [E8746C]
IC´s and TRANSISTORs
Ref.
No. Part No. Part Name & Description Remarks
IC101 C1BB00000173 IC
IC201 MN662748RPMF IC
IC401 MN101C117AF IC
IC601 C0GBY0000004 IC
IC901 C0GBY0000003 IC
Q1 YEADPS1101W Transistor
Q3 YEADPS1101W Transistor
Q6 YEADPS1101W Transistor
Q101 2SB766ATX Transistor
Q451 YEANC113ZKTX Transistor
DIODEs
Ref.
No. Part No. Part Name & Description Remarks
D1 YEADAN1102W Diode
D3 YEADAN1102W Diode
D6 YEADAN1102W Diode
D201 YEAD1SS355T1 Diode
D401 MA151WKTX Diode
D601 YEAD1SS355T1 Diode
CAPACITORs
Ref.
No. Part No. Part Name & Description Remarks
C101 YECUZ1C104KX Ceramic, 0.1µF 16WV
C102 YECUZ1C104KX Ceramic, 0.1µF 16WV
C103 F3H0J107A001 Ceramic, 100µF 6.3WV
C104 YECUZ1C104KX Ceramic, 0.1µF 16WV
C105 ECSH0JY475CR Tantalum, 4.7µF 6.3WV
C106 F1H1E273A011 Ceramic, 0.027µF 25WV
C107 F1H1H152A201 Ceramic, 0.0015µF 50WV
C108 YECUZ1H472KX Ceramic, 0.0047µF 50WV
C109 YECUZ1H102KX Ceramic, 0.001µF 50WV
C110 YECUZ1H102KX Ceramic, 0.001µF 50WV
C111 YECSW1A106MA Tantalum, 10µF 10WV
C112 YECUZ1C104KX Ceramic, 0.1µF 16WV
C113 YECUZ1C104KX Ceramic, 0.1µF 16WV
C115 YECUZ1H102KX Ceramic, 0.001µF 50WV
C116 YECUZ1H102KX Ceramic, 0.001µF 50WV
C117 YECUS1A105KX Ceramic, 1µF 10WV
C118 F1H1H681A201 Ceramic, 680PF 50WV
C119 YECUZ1C104KX Ceramic, 0.1µF 16WV
C120 YECUZ1H561KX Ceramic, 560PF 50WV
C121 YECUZ1E123KX Ceramic, 0.012µF 25WV
C122 YECUZ1C104KX Ceramic, 0.1µF 16WV
C133 YECUZ1C104KX Ceramic, 0.1µF 16WV
C145 YECUZ1A124KX Ceramic, 0.12µF 10WV
C201 YECUZ1E123KX Ceramic, 0.012µF 25WV
C203 YECUS1C334KX Ceramic, 0.33µF 16WV
C204 YECUZ1C104KX Ceramic, 0.1µF 16WV
C205 YECSW1A106MA Tantalum, 10µF 10WV
C206 F1H1A4740004 Ceramic, 0.47µF 10WV
C208 YECUZ1C104KX Ceramic, 0.1µF 16WV
C209 YECUZ1C104KX Ceramic, 0.1µF 16WV
C210 YECSW1A106MA Tantalum, 10µF 10WV
C214 YECUS1C334KX Ceramic, 0.33µF 16WV
C451 F1H1A4740004 Ceramic, 0.47µF 50WV
C453 YECUZ1H103KX Ceramic, 0.01µF 50WV
C601 YECUS1C334KX Ceramic, 0.33µF 16WV
C602 ECEV1CA470SP Electrolytic, 47µF 16WV
C603 YECUZ1C104KX Ceramic, 0.1µF 16WV
C605 YECUS1A105KX Ceramic, 1µF 10WV
C606 YECUZ1H272KX Ceramic, 0.0027µF 50WV
C901 YECUS1C334KX Ceramic, 0.33µF 16WV
C903 YECUZ1C333KX Ceramic, 0.033µF 16WV
RESISTORs
Ref.
No. Part No. Part Name & Description Remarks
J403 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
J423 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
R101 ERJ3GEYJ101V Chip, 100Ω
ΩΩ
Ω1/16W
R102 ERJ14YJ330H Chip, 33Ω
ΩΩ
Ω1/4W
R103 ERJ3GEYJ683V Chip, 68kΩ
ΩΩ
Ω1/16W
R104 ERJ3GEYJ683V Chip, 68kΩ
ΩΩ
Ω1/16W
R105 ERJ3GEYJ333V Chip, 33kΩ
ΩΩ
Ω1/16W
R106 ERJ3GEYJ184V Chip, 180kΩ
ΩΩ
Ω1/16W
R107 ERJ3GEYJ184V Chip, 180kΩ
ΩΩ
Ω1/16W
R108 ERJ3GEYJ823V Chip, 82kΩ
ΩΩ
Ω1/16W
R109 ERJ3GEYJ334V Chip, 330kΩ
ΩΩ
Ω1/16W
R110 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R111 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R112 ERJ3GEYJ393V Chip, 39kΩ
ΩΩ
Ω1/16W
R113 ERJ3GEYJ333V Chip, 33kΩ
ΩΩ
Ω1/16W
R114 ERJ3GEYJ153V Chip, 15kΩ
ΩΩ
Ω1/16W
R119 ERJ3GEYJ184V Chip, 180kΩ
ΩΩ
Ω1/16W
R120 ERJ3GEYJ333V Chip, 33kΩ
ΩΩ
Ω1/16W
15
MAZDA / CQ-JM8080A

Ref.
No. Part No. Part Name & Description Remarks
R147 ERJ3GEYJ153V Chip, 15kΩ
ΩΩ
Ω1/16W
R207 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R208 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R209 ERJ3GEYJ391V Chip, 390Ω
ΩΩ
Ω1/16W
R210 ERJ3GEYJ334V Chip, 330kΩ
ΩΩ
Ω1/16W
R211 ERJ3GEYJ124V Chip, 120kΩ
ΩΩ
Ω1/16W
R213 ERJ3GEYJ470V Chip, 47Ω
ΩΩ
Ω1/16W
R214 ERJ3GEYJ272V Chip, 2.7kΩ
ΩΩ
Ω1/16W
R215 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R401 ERJ3GEYJ563V Chip, 56kΩ
ΩΩ
Ω1/16W
R402 ERJ3GEYJ563V Chip, 56kΩ
ΩΩ
Ω1/16W
R404 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R411 ERJ3GEYJ334V Chip, 330kΩ
ΩΩ
Ω1/16W
R454 ERJ6GEYJ271 Chip, 270Ω
ΩΩ
Ω1/10W
R456 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R461 ERJ3GEYJ823V Chip, 82kΩ
ΩΩ
Ω1/16W
R463 ERJ3GEYJ823V Chip, 82kΩ
ΩΩ
Ω1/16W
R466 ERJ3GEYJ823V Chip, 82kΩ
ΩΩ
Ω1/16W
R471 ERJ8GEYJ121V Chip, 120Ω
ΩΩ
Ω1/8W
R473 ERJ8GEYJ121V Chip, 120Ω
ΩΩ
Ω1/8W
R476 ERJ8GEYJ121V Chip, 120Ω
ΩΩ
Ω1/8W
R477 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R481 ERJ3GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/16W
R601 ERJ3GEYJ123V Chip, 12kΩ
ΩΩ
Ω1/16W
R602 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R603 ERJ3GEYJ273V Chip, 27kΩ
ΩΩ
Ω1/16W
R604 ERJ3GEYJ124V Chip, 120kΩ
ΩΩ
Ω1/16W
R605 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R606 ERJ3GEYJ822V Chip, 8.2kΩ
ΩΩ
Ω1/16W
R607 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R608 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R609 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R610 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R613 ERJ3GEYJ122V Chip, 1.2kΩ
ΩΩ
Ω1/16W
R901 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R902 ERJ3GEYJ333V Chip, 33kΩ
ΩΩ
Ω1/16W
R903 ERJ3GEYJ122V Chip, 1.2kΩ
ΩΩ
Ω1/16W
R924 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
R934 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
CONNECTORs
Ref.
No. Part No. Part Name & Description Remarks
CN101 YEAESFW15R2E Connector, 15P
CN402 K1MN14B00028 Connector, 14P
CN901 K1MN05B00010 Connector, 5P
CN902 K1MN05B00009 Connector, 5P
SWITCHEs
Ref.
No. Part No. Part Name & Description Remarks
SW2 ESE102MH2 Switch
SW4 YEAS09275 Switch
COIL
Ref.
No. Part No. Part Name & Description Remarks
L451 YELTBLM21A10 Coil
CRYSTALs
Ref.
No. Part No. Part Name & Description Remarks
XL201 H2D169500005 Crystal
XL451 YEXLSTCC419T Crystal
10.4. Mechanical Parts
MISCELLANEOUS
Ref.
No. Part No. Part Name & Description Remarks
ANT1 YEAA10060 Antenna Receplacle
AJ1 YEAJ071287 Cord w/Plug
AJ2 YEAJ071285 Cord w/Plug
AP2 YEAP2711 FPC
AT1 YEAT05014 Terminal
1YEFA031688 Upper Cover (4-B)
2YEFA05734 Bottom Cover (1-A)
3YEFA07477A Front Plate (2-C)
4YEFA09631 Side Plate (L) (3-B)
5YEFA09632 Side Plate (R) (2-C)
6YEFA131396 Cover, LCD (2-A)
7YEFC027102 Escucheon Ass´y (1-A)
8YEFE02331A Knob, VOL. (1-A)
9YEFE136548 Button, EJECT (1-B)
10 YEFF01965 Heat Sink (2-C)
11 YEFK04404 Holder, Pilot Lamp (2-B)
12 YEFK06842 Holder, LCD (3-A)
14 YEFS01936A Pad (2-B)
15 YEFS04660A Rubber Packing (3-C)
16 YEFV021603 Optical Shade (2-A)
17 YEFV021646 Optical Shade (2-B)
18 YEFV021647 Optical Shade (2-A)
19 YEFV021648 Optical Shade (2-A)
20 YEFX0011915B Transparent Plate (2-A)
21 YEFX0011916 Transparent Plate (1-B)
22 YEFX0011920A Transparent Plate (2-A)
23 YEFX0213053A Bracket (2-B)
24 YEFX0213797 Bracket, GND (1-B)
25 YEFX0214244 Bracket, PCB (1-C)
26 YEFX0214500 Bracket, IC (1-C)
27 YEFX0214655 Bracket, Deck (4-C)
28 YEFX0214661 Bracket (1-C)
29 YEFX0214677 Bracket, IC (1-B)
30 YEFX9991346 Spring, GND (2-B)
32 YEP0PT6784D0 PCB w/Component RTL
33 YEP0PT8746B0 PCB w/Component RTL
34 YEP0PT8677D0 PCB w/Component RTL
40 YEJV01104 Bolt
41 YEJT03038 Screw,
42 YEJT03131 Tapping Screw,
45 YEJT03263 Tapping Screw,
46 XTV26+5GFN Tapping Screw, M2.6x5mm
47 XTB2+6GFX Tapping Screw, M2x6mm
48 XTB3+6FFX Tapping Screw, M3x6mm
49 XYN2+J4FX Screw, M2x4mm
16
MAZDA / CQ-JM8080A

11 EXPLODED VIEW (Unit)
17
MAZDA / CQ-JM8080A

12 CD PLAYER PARTS
MISCELLANEOUS
Ref.
No. Part No. Part Name & Description Remarks
1YGFA011781 Upper Chassis (4-A)
2YGFX236153 Disk Guide (4-A)
3YGFX0462017 Link Lever (4-A)
4YGFX0462018 Detection Lever (2) (4-B)
5YGFX0052357 Detection Lever (2) Spring (4-B)
6YEJT03131 Tapping Screw, 2.6 mm* 5mm (2-C)
(2-B)
7YGFX249461 Clamp Arm (3-A)
8YGFX007640 Clamper (3-A)
9YGFX0052363 Clamper Spring Plate (3-A)
10 YEFX999957 Ball Bearing (3-A)
11 YGFX0462013 Detection Lever (1) (3-A)
12 YGFX0052352 Detection Lever (1) Spring (3-A)
13 YGFA011795 Suspension Chassis Ass´y (3-A)
14 YEP0FX3100 Optical Pick-up Ass´y (3-B)
15 YEFW04150 Feed Screw Housing A (2-B)
16 YEFW04137A Feed Screw Housing B (2-B)
17 YGFX0052386 Thrust Adjusting Spring (2-B)
18 YEFX236144B Traverse Guide (3-A)
19 YGFX9992027 Feed Screw Carrier (3-B)
20 YEFX9991458A FPC Holder (2-A)
21 YGJT03240 Traverse Gear Ass´y (2-B)
22 YEJS02037 Screw, (Pick-up) (3-A)
(3-B)
23 XYN2+C5FX Screw, (FPC) 2mm * 5mm (2-A)
24 XYN2+J10FX Screw, (Housing) 2mm * 10m (2-B)
25 YEFX0051590 Spring Washer (3-A)
26 XUC15V Retaining Ring, 1.5mm (3-A)
27 YEFX9991806A Sealed Plate (3-B)
28 YGP0FX3503 Traverse Motor Ass´y (2-B)
29 YEAS23151A Inner Switch (2-B)
30 YEFR03080 Rubber Belt (2-B)
31 YEFX026124A Idler Pulley (2-B)
32 YGFX018611 Motor Bracket Ass´y (2-B)
33 YEJS02018FZ Screw, (SW) (2-B)
34 XQN2+A25FX Screw, 2mm * 25mm (2-B)
35 YGP0FX3529 Spindle Motor Ass´y (2-A)
36 YEFX0051991C Spring (Motor) (2-A)
37 YGFX0052353 Clamper Spring (2-A)
38 YGAJ071286 Motor Cable (2-A)
39 XQN17+A25FX Screw, 1.7mm * 25mm (3-A)
40 YGFX0462019 Feeder Arm Ass´y (1-A)
41 YGP0FX3507 Roller Gear Ass´y (2-B)
42 YEFW04144 Roller Shaft Collar (1) (2-A)
43 YEFW04138 Roller Shaft Collar (2) (2-A)
44 YEFX218282 Rubber Roller (2-A)
45 YEJW04128 Washer (2-A)
46 YGFX0052362 Spring (Feeder Arm) (1-A)
47 YGFX0462015 Suspension Lock Plate (L) (1-A)
48 YGP0FX3504 Suspension Lock Plate (R)
Ass´y (1-B)
49 YGFX0052355 Spring (Rack Gear) (1-A)
50 YGFX0052356 Spring (Rack Lock Lever) (1-B)
51 YGFX0052360 Spring (Suspension Lock Plate
L) (1-A)
52 YGFX0052361 Spring (Lock Plate) (3-C)
53 YGFA011779 Bottom Chassis Ass´y (3-C)
54 YGFX003940 Driving Gear (1) (3-C)
55 YGFX003941 Driving Gear (2) (3-C)
56 YGP0FX3506 Loding Motor Ass´y (3-C)
57 YGFX018605 Loding Motor Bracket Ass´y (3-C)
58 XQN2+A25FX Screw, (Motor) 2mm * 25mm (3-C)
59 YEJS06188 Screw (2-C)
60 YEFS04693 Oil Dumper (1-C)
61 YGFX0052358 Suspension Spring (A) (2-C)
62 YGFX0052359 Suspension Spring (B) (2-C)
18
MAZDA / CQ-JM8080A

13 EXPLODED VIEW (CD Deck)
19
MAZDA / CQ-JM8080A

14 WIRING DIAGRAM
14.1. Display Block (Top View)
[E-8677Ba][Top View]
20
MAZDA / CQ-JM8080A
