Mazda CQ-JM8480K User manual

General
Power Supply DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Current Consumption Less than 4.0A (at Illumi. ON)
Power Output 25W×4
Output Impedance 4Ω
AM Radio
Frequency Range 531 - 1,629kHz (9kHz/Step)
Effective Sensitivity 24±6dB(µV)
Signal to Noise Ratio More than 45dB
FM Stereo Radio
Frequency Range 87.5 - 108.0MHz
Maximum Sensitivity Less than 3.0dB/µV (S/N 10dB)
Seek Sensitivity 25±6dB(µV)
MAZDA
CQ-JM8480K
AM/FM/RDS MPX ELECTRONIC
TUNING RADIO with CD Player
PART No. :UM77 66 9R0
VEHICLE :Ranger, Fighter
DESTINATION :Thailand
PRODUCED AFTER : Apr., 2004
CD Player (YGFD15273)
Signal to Noise Ratio More than 65dB
Total Harmonic Distortion Less than 0.4%
Channel Separation More than 60dB
Dimensions** (W×H×D) 178×50×160mm
Weight** 1.4kg
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
AUTOMOTIVE ELECTRONICS
Specifications*
ORDER No.1153

1 FEATUERS 2
2 SYSTEM BLOCK 2
3 FRONT VIEW AND FUNCTIONS 3
4 REAR VIEW AND CONNECTORS 3
5 WIRING CONNECTION 4
6 BLOCK DIAGRAM 5
7 TERMINALS DESCRIPTION 6
• • •
• PLL (Phase Locked Loop) synthesized tuning.
• • •
• 18-station preset (12-FM, 6-AM).
• • •
• Automatic-Memory.
• • •
• Traffic Information.
• • •
• 10.5 Pro Pack.
8 PACKAGE AND IC BLOCK DIAGRAM 8
9 REPLACEMENT PARTS LIST 9
10 EXPLODED VIEW (Unit) 14
11 WIRING DIAGRAM 15
12 SCHEMATIC DIAGRAM -1 18
13 SCHEMATIC DIAGRAM -2 19
• • •
• CD changer control.
• • •
• Electronic control of power and sound.
• • •
• Clock function.
CONTENTS
Page Page
1 FEATUERS

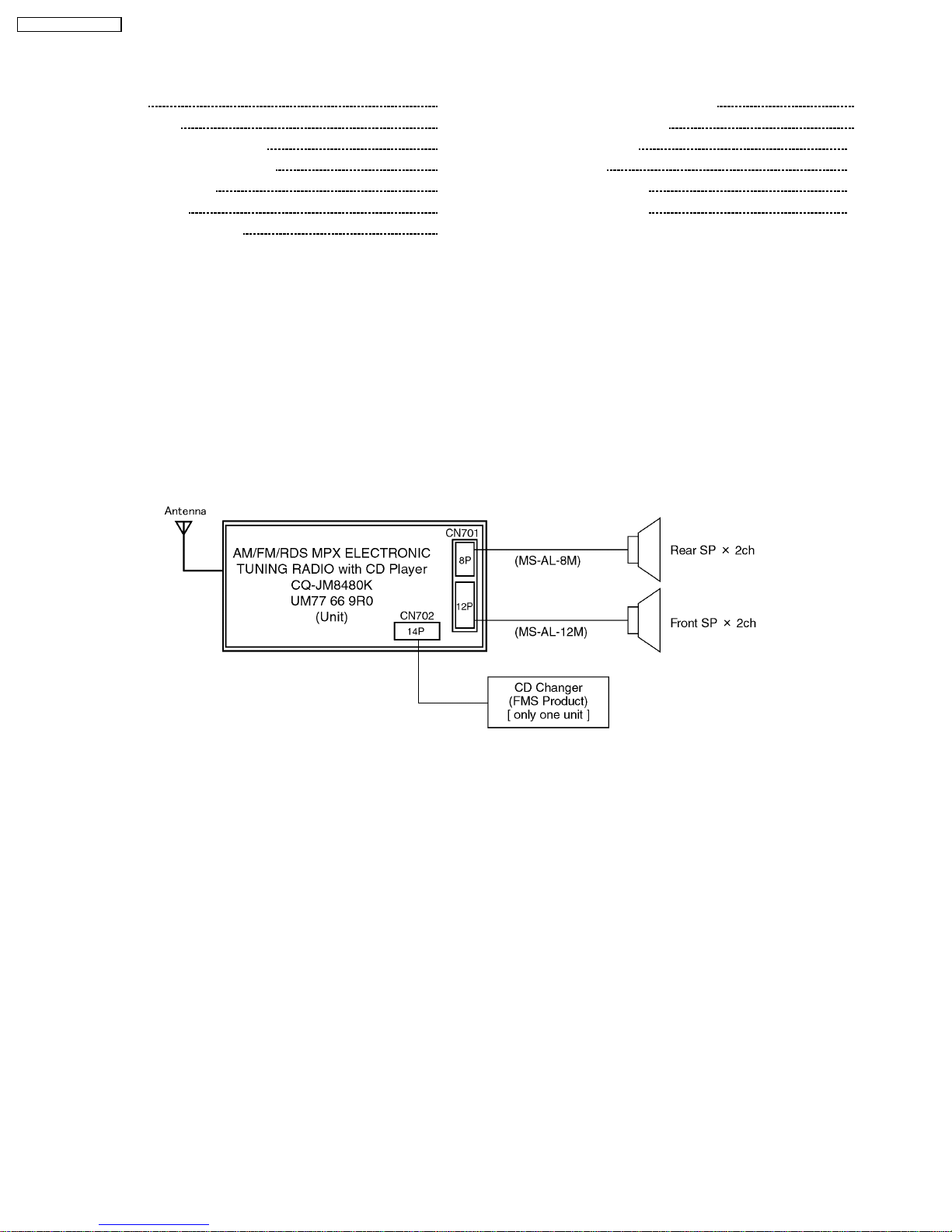

2 SYSTEM BLOCK
2
MAZDA / CQ-JM8480K

3 FRONT VIEW AND FUNCTIONS
4 REAR VIEW AND CONNECTORS
3
MAZDA / CQ-JM8480K

5 WIRING CONNECTION
4
MAZDA / CQ-JM8480K

6 BLOCK DIAGRAM
5
MAZDA / CQ-JM8480K

7.1. Main Block
IC601 : C2CBHG000133
Pin
No. Port Descriptions I/O FM AM CD
1 VOL. ENA Input A of VOL rotary
encoder I 0 0 0
2 NC - - - - -
3 NC - - - - -
4 CD. SW1 NCD-9 SW1 input L: Disk. I 5.1 5.1 0
5 CD. SW3 NCD-9 SW3 input L: Disk. I 5.1 5.1 0
6 CD RESET CD reset signal output
(L:CD reset) O 4.7 4.7 4.7
7 CD ON CD deck power supply
control output H:CD deck
microcomputer
communication.
O 0 0 4.7
8 CD CLK CD deck serial clock
output O 0 0 4.7
9 CD D0 CD deck serial input I 5.1 5.1 3.5
10 CD SIM CD deck serial output O 0 0 1.6
11 RESET Microcomputer reset input
detection L:RESET I 4.7 4.7 4.7
12 NC - - - - -
13 NC (Connecting to ground) - 0 0 0
14 VSS Ground - 0 0 0
15 X2 Crystal oscillator terminal - 1.5 1.5 1.5
16 X1 Crystal oscillator terminal I 1.4 1.4 1.4
17 REG OFF (Connecting to ground) - 0 0 0
18 REGC (Ground pull-down) - 3.5 3.5 3.5
19 VDD +5V power supply - 4.8 4.8 4.8
20 JACK IN AUX pin jack input
detection I 5.0 5.0 5.0
21 JACK
CONT Pin jack input signal control output H: Pin jack
input OFF
O 4.8 4.8 4.8
22 NC - - - - -
23 TP Signal input for inspection I 5.0 5.1 5.0
24 CL LCD clock output O 0 0 0
25 CE LCD strobing output O 0 0 0
26 DATA IN Input for CD-R reading I 0 0 0
27 DATA
CONT Output for CD-R reading O 0 0 0
28 NC - - - - -
29 D2 LCD data input I 5.1 5.1 5.1
30 D1 LCD data output O 0 0 0
31 NC - - - - -
32 NC - - - - -
33 NC - - - - -
34 NC - - - - -
35 P. CONT System power supply
control output H: System
power supply ON
O 4.8 4.8 4.7
36 LCD.
CONT LCD backlight control output H: Back light ON O 4.8 4.8 4.7
37 SIYOU1 Destination setting input
(Thailand: L EX9K:H,
EX5K : H)
I 0 0 0
38 SIYOU2 Destination setting input
(Thailand: L EX9K:L ,
EX5K : H)
I 0 0 0
39 LED. CONT LED lighting output H:LED
ON (LED ON when CD is
inserted)
O 0 0 4.7
40 VSS Ground - 0 0 0
41 VDD +5V power supply - 4.8 4.8 4.8
42 COMBI.
CONT AUX output signal O 0 0 0
Pin
No. Port Descriptions I/O FM AM CD
43 AUX.
CONT_IN AUX input signal I 5.0 5.1 5.0
44 E2P. DIN E2P data input I 4.8 4.8 4.7
45 E2P. DOUT E2P data output O 0 0 0
46 E2P. CLK E2P clock output O 0 0 0
47 E2P. STB E2P strobing output O 0 0 0
48 NC - - - - -
49 TEL MUTE TEL signal input H:MUTE
OFF from vehicle I 4.9 4.9 4.9
50 VOL.. CLK Electron VOL clock output O 0 0 0
51 VOL..
DATA Electron VOL data output O 0 0 0
52 AMP. STBY Power amplifier control
output H: Power amplifier
ON
O 4.8 4.8 4.8
53 NC - - - - -
54 NC - - - - -
55 NC - - - - -
56 MUTE MUTE output H:MUTE ON O 4.8 4.8 4.8
57 BUSOUT M-BUS data output O 0 0 0
58 NC - - - - -
59 NC - - - - -
60 NC - - - - -
61 NC - - - - -
62 NC - - - - -
63 NC - - - - -
64 WP Packing E2PROM write-
protection output signal H:
Write-protection solution
O 0 0 0
65 SDA PLL data I/O signal I/O 5.1 5.1 5.1
66 NC - O - - -
67 NC - O - - -
68 SD SD input H: No radio
station. I 5.0 5.0 2.6
69 SCL PLL data clock output O 4.8 4.8 4.8
70 ST FM stereo input H:MONO
L:ST I 5.1 5.1 2.9
71 NC - - - - -
72 NC - - - - -
73 IC (Ground pull-down) O 0 0 0
74 ST SW Steering wheel SW signal
input I 5.0 5.0 5.0
75 V. CONT Input for radio field
strength judgment I 3.9 4.0 0
76 CLIP DET Power IC offset detection
input I 5.1 5.1 5.1
77 NC - - - - -
78 NC - - - - -
79 NC - - - - -
80 NC - - - - -
81 NC - - - - -
82 AVDD +5V power supply - 4.8 4.8 4.8
83 AVREF Input terminal of reference
voltage of analog to digital
converter
- 5.1 5.1 5.1
84 AVSS Ground - 0 0 0
85 RX Ground - 0 0 0
86 OPEN - - - - -
87 ACC. DET ACC detection input
H:ACC ON from vehicle I 4.7 4.7 4.7
88 NC Ground I 0 0 0
89 ILL DET IN ILL detection input H:ILL
OFF from vehicle I 5.0 5.0 5.0
90 NC (VDD pull-up) I 4.8 4.8 4.8
91 MBUS IN M-BUS data input I 4.8 4.8 4.8
92 CD. EJ CD EJECT key pressing
detection L:Eject key ON I 4.8 4.8 4.8
7 TERMINALS DESCRIPTION
6
MAZDA / CQ-JM8480K

Pin
No. Port Descriptions I/O FM AM CD
93 BATT DET BATT detection input H:+B
ON from vehicle I 4.8 4.7 4.7
94 NC (VDD pull-up) I 4.8 4.8 4.8
95 SIG IN - - - - -
96 SIG OUT - - - - -
97 RADIO. ON Radio power supply control
output H: Radio power
supply ON
O 4.8 4.8 0
98 ANT.
CONT Antenna output H:ANT ON O 4.7 4.7 0
99 BEEP BEEP output 3kHz 100ms O 0 0 0
100 VOL ENB Input B of VOL rotary
encoder I 0 0 0
7.2. Display Block
IC901 : YEAMLC75853
Pin
No. Port Descriptions I/O Vol (V)
1-3 SEG1-3 LCD segment data O 2.5
4, 5 - Not used - -
6-15 SEG13-4 LCD segment data O 2.5
16-26 - Not used - -
27-37 SEG14-24 LCD segment data O 2.5
38-40 - Not used - -
41-43 COM1-3 LCD common output O 2.5
44-47 KS1-4 Key scan signal O 5.0
48 - Not used - -
49 KS6 Key scan signal O 5.0
50-53 KI1-4 Key data input I 0
54 - Not used - -
55 TEST (Connecting to ground) - 0
56 VDD +5V power supply - 5.0
57 VDD1 Ground through capacitor - 3.3
58 VDD2 Ground through capacitor - 1.7
59 VSS Ground - 0
60 OSC CR oscillator - 3.9
61 D2 key data output O 5.0
62 CE Chip enable I 0
63 CLK LCD clock I 0
64 D1 LCD data input I 0
7
MAZDA / CQ-JM8480K

IC201 : C0ABAB000001
IC204, 304 : C0JBAS000051
IC202 : C1BB00000284
IC203 : C1EA00000040
IC701 : C0DBFGD00001
IC710 : AN8065SE1

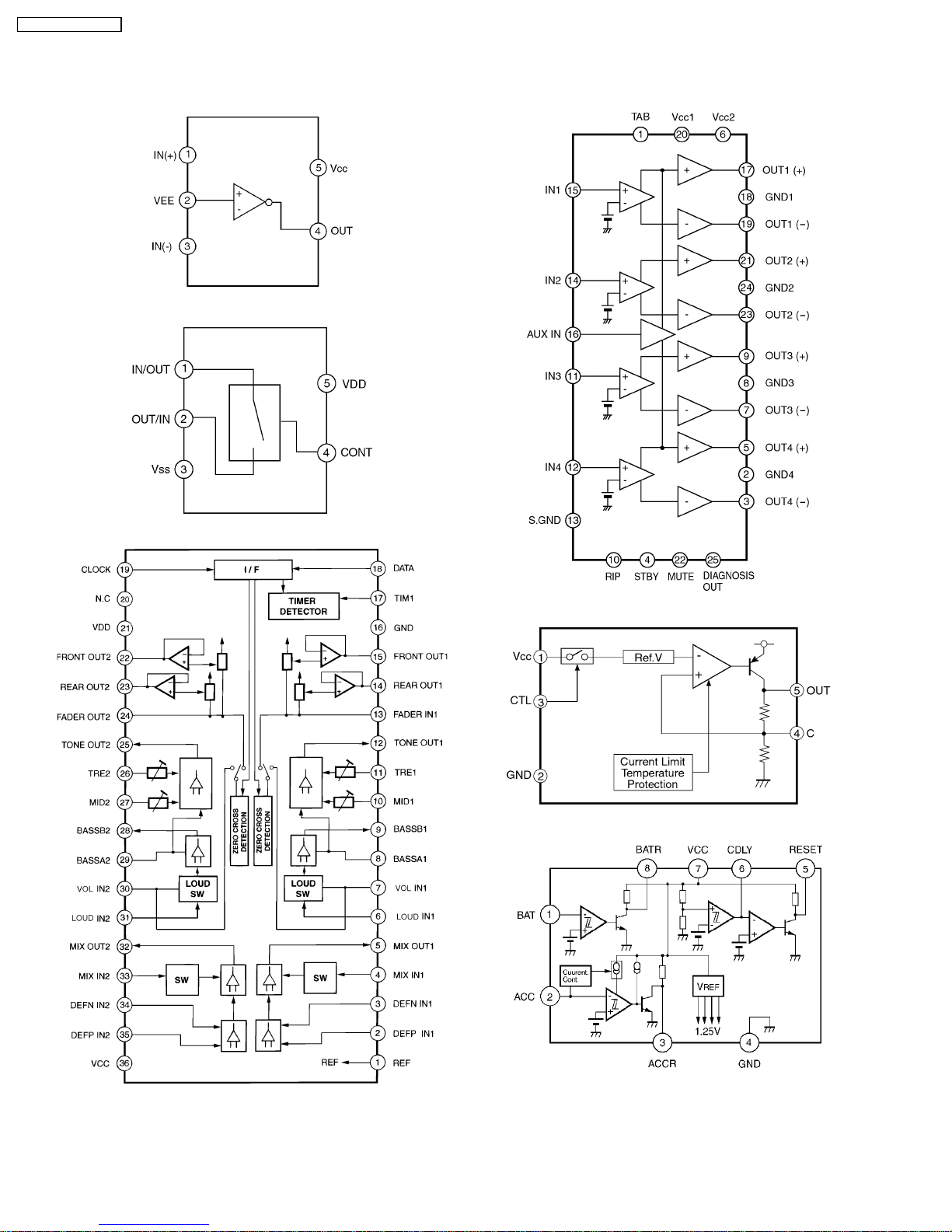

8 PACKAGE AND IC BLOCK DIAGRAM
8.1. Main Block
8
MAZDA / CQ-JM8480K

9 REPLACEMENT PARTS
LIST
Notes :
1.Be sure to make your orders of replacement parts
according to this list.
2.Important safety notice: Components, identified by ;
mark have special characteristics important for safety.
When replacing any of these components, use only
manufacturer´s specified parts.
3.Location keys in the remarks column indicates the general
location of the parts shown in the exploded drawing, as in a
road map.
4.The marking (RTL) indicates that Retention Time is limited
for this item. After the discontinuation of assembly in
production, the item will continue to be available for a
specific period of time. The retention period of availability is
dependent on the type of assembly, and in accordance with
the laws governing part and product retention. After the end
of this period, the assembly will no longer be available.
5. "PasTH" marks in remarks column are indicated supply
parts of Matsushita Communication Industrial Corp. of
Thailand.
Ref.
No. Part No. Part Name & Description Remarks
[E6992B] Main Block
IC´s AND TRANSISTORs
IC201 C0ABAB000001 IC
IC202 C1BB00000284 IC
IC203 C1EA00000040 IC
IC204 C0JBAS000051 IC
IC304 C0JBAS000051 IC
IC601 C2CBHG000133 IC PasTH
IC602 C3EBCG000037 IC
IC701 C0DBFGD00001 IC
IC710 AN8065SE1 IC
IC713 YEAMPC2908HF IC
PA101 YEP0PTB566B0 Electronic Tuner
Q101 YEANBP1F3PT Transistor
Q201 B1ABCF000044 Transistor
Q202 B1ABCF000044 Transistor
Q301 B1ABCF000044 Transistor
Q302 B1ABCF000044 Transistor
Q511 B1ABCF000044 Transistor
Q512 B1ABCF000044 Transistor
Q513 B1GBCFNN0004 Transistor
Q514 YEANA1037KTX Transistor
Q515 B1ABCF000044 Transistor
Q516 B1ABCF000044 Transistor
Q517 B1GDCFNN0002 Transistor
Q518 B1GBHBEA0004 Transistor
Q519 B1GBHBEA0004 Transistor
Q521 YEANC114YKX Transistor
Q530 B1CCBF000002 Transistor
Q531 B1GBCFJJ0002 Transistor
Q532 B1ABCF000044 Transistor
Q701 YEANFP1F3PT1 Transistor
Q702 YEANC114YKX Transistor
Q703 YEANC114YKX Transistor
Q710 2SD2139TA Transistor
Q711 2SB1073TX Transistor
Q712 YEANC114YKX Transistor
Q714 2SD2139TA Transistor
Q715 2SB1073TX Transistor
Q716 YEAN2SD1856 Transistor
Q717 B1ABCF000044 Transistor
Q718 B1ABCF000044 Transistor
Q719 YEANFP1F3PT1 Transistor
Ref.
No. Part No. Part Name & Description Remarks
Q720 YEANC114YKX Transistor
Q722 B1ABCF000044 Transistor
Q723 YEAN2SD1856 Transistor
Q724 B1BBAC000007 Transistor
Q730 B1CEGG000001 Transistor
Q731 B1CEGG000001 Transistor
Q732 B1CEGG000001 Transistor
DIODEs
D101 MA152WKTX Diode
D201 MA152WKTX Diode
D203 YEADRD56M2T1 Diode
D511 MA153TX Diode
D512 MA152WKTX Diode
D513 MA153TX Diode
D514 MA153TX Diode
D708 YEADSR1544TL Diode
D710 YEADRD51M2T1 Diode
D711 YEADSR1544TL Diode
D712 YEADRD56M2T1 Diode
D713 YEADRD91M1T2 Diode
D714 YEADRD51M2T1 Diode
D715 B0BC8R100002 Diode
D718 B0BC8R100002 Diode
D719 B0ACCK000005 Diode
D720 B0ACCK000005 Diode
D721 YEADRD56M2T1 Diode
D726 B0ACCK000005 Diode
D730 YEADDAM3MA47 Diode
D731 YEADDSA3A2B Diode
CAPACITORs
C71 YECUS1E223KX Ceramic, 0.022µF 25WV
C72 ECEA1AKS221I Electrolytic, 220µF 10WV
C73 ECEA1CKS101I Electrolytic, 100µF 16WV
C74 F1J1H103A513 Ceramic, 0.01µF 50WV
C75 YECUS1C104KX Ceramic, 0.1µF 16WV
C76 ECEA1CKS220I Electrolytic, 22µF 16WV
C77 YECUS1C104KX Ceramic, 0.1µF 16WV
C78 ECEA1AKS221I Electrolytic, 220µF 10WV
C101 YECUS1C154KX Ceramic, 0.15µF 16WV
C102 YECUS1H473KX Ceramic, 0.047µF 50WV
C103 F1J1H392A675 Ceramic, 3900PF 50WV
C104 F1J1H393A395 Ceramic, 0.039µF 50WV
C105 F1J1H103A513 Ceramic, 0.01µF 50WV
C106 YECUS1H473KX Ceramic, 0.047µF 50WV
C113 ECEA1CKS220I Electrolytic, 22µF 16WV
C199 F1J1H821A672 Ceramic, 820PF 50WV
C202 YECUS1C104KX Ceramic, 0.1µF 16WV
C203 ECEA1CBD100 Electrolytic, 10µF 16WV
C204 ECEA1CBD100 Electrolytic, 10µF 16WV
C205 F2J1C100A031 Electrolytic, 10µF 16WV PasTH
C206 F1J1H152A675 Ceramic, 1500PF 50WV
C207 F1J1C184A006 Ceramic, 0.18µF 16WV
C208 YECUS1C104KX Ceramic, 0.1µF 16WV
C209 YECUS1C104KX Ceramic, 0.1µF 16WV
C210 F1J1H682A675 Ceramic, 6800PF 50WV
C211 F2J1C100A031 Electrolytic, 10µF 16WV
C212 ECQV1H124B46 Plastic Film, 0.12µF 50WV
C213 ECQV1H124B46 Plastic Film, 0.12µF 50WV
C214 F1J1H103A513 Ceramic, 0.01µF 50WV
C215 F1J1H1020024 Ceramic, 1000PF 50WV
C216 YECUS1C224KX Ceramic, 0.22µF 16WV
C217 YECUS1C224KX Ceramic, 0.22µF 16WV
C218 YECUS1C224KX Ceramic, 0.22µF 16WV
C219 YECUS1C224KX Ceramic, 0.22µF 16WV
C220 F1J1H103A513 Ceramic, 0.01µF 50WV
C221 F1J1H681A672 Ceramic, 680PF 50WV
C222 F1J1H681A672 Ceramic, 680PF 50WV
C223 YECUS1E223KX Ceramic, 0.022µF 25WV
C224 YECUS1C105ZF Ceramic, 1µF 16WV
9
MAZDA / CQ-JM8480K

Ref.
No. Part No. Part Name & Description Remarks
C225 F2A1H2R2A522 Electrolytic, 2.2µF 50WV
C226 ECEA1CKS100I Electrolytic, 10µF 16WV
C227 F2A1H2R2A522 Electrolytic, 2.2µF 50WV
C228 ECEA1CKS100I Electrolytic, 10µF 16WV
C229 F1J1H102A422 Ceramic, 1000PF 50WV
C236 YECUS1H473KX Ceramic, 0.047µF 50WV
C302 YECUS1C104KX Ceramic, 0.1µF 16WV
C303 ECEA1CBD100 Electrolytic, 10µF 16WV
C304 ECEA1CBD100 Electrolytic, 10µF 16WV
C305 F2J1C100A031 Electrolytic, 10µF 16WV PasTH
C306 F1J1H152A675 Ceramic, 1500PF 50WV
C307 F1J1C184A006 Ceramic, 0.18µF 16WV
C308 YECUS1C104KX Ceramic, 0.1µF 16WV
C309 YECUS1C104KX Ceramic, 0.1µF 16WV
C310 F1J1H682A675 Ceramic, 6800PF 50WV
C311 F2J1C100A031 Electrolytic, 10µF 16WV PasTH
C312 ECQV1H124B46 Plastic Film, 0.12µF 50WV
C313 ECQV1H124B46 Plastic Film, 0.12µF 50WV
C314 F1J1H103A513 Ceramic, 0.01µF 50WV
C315 F1J1H1020024 Ceramic, 1000PF 50WV
C316 YECUS1C224KX Ceramic, 0.22µF 16WV
C317 YECUS1C224KX Ceramic, 0.22µF 16WV
C318 YECUS1C224KX Ceramic, 0.22µF 16WV
C319 YECUS1C224KX Ceramic, 0.22µF 16WV
C321 F1J1H681A672 Ceramic, 680PF 50WV
C322 F1J1H681A672 Ceramic, 680PF 50WV
C324 YECUS1C105ZF Ceramic, 1µF 16WV
C325 F2A1H2R2A522 Electrolytic, 2.2µF 50WV
C326 ECEA1CKS100I Electrolytic, 10µF 16WV
C327 F2A1H2R2A522 Electrolytic, 2.2µF 50WV
C336 YECUS1H473KX Ceramic, 0.047µF 50WV
C511 F1J1H103A513 Ceramic, 0.01µF 50WV
C513 F1J1H103A513 Ceramic, 0.01µF 50WV
C514 YECUS1H330JM Ceramic, 33PF 50WV
C515 F1J1H1020024 Ceramic, 1000PF 50WV
C516 F1J1H471A672 Ceramic, 470PF 50WV
C520 ECEA1CKS100I Electrolytic, 10µF 16WV
C521 YECUS1C104KX Ceramic, 0.1µF 16WV
C522 YECUS1C105ZF Ceramic, 1µF 16WV
C601 F1J1H200A025 Ceramic, 20PF 50WV
C602 YECUS1H220JC Ceramic, 22PF 50WV
C603 YECUS1C104KX Ceramic, 0.1µF 16WV
C604 YECUS1C104KX Ceramic, 0.1µF 16WV
C606 F1J1H103A513 Ceramic, 0.01µF 50WV
C607 F1J1H103A513 Ceramic, 0.01µF 50WV
C608 F1J1H103A513 Ceramic, 0.01µF 50WV
C609 F1J1H103A513 Ceramic, 0.01µF 50WV
C611 ECEA1HKS010I Electrolytic, 1µF 50WV
C612 ECEA1HKS010I Electrolytic, 1µF 50WV
C613 YECUS1C104KX Ceramic, 0.1µF 16WV
C614 ECEA0JKS331I Electrolytic, 330µF 6.3WV
C701 F1J1H392A675 Ceramic, 3900PF 50WV
C705 EEUFC1A820H Electrolytic, 82µF 10WV
C707 YECUS1C104KX Ceramic, 0.1µF 16WV
C708 ECEA1AKA101I Electrolytic, 100µF 10WV
C709 YECUS1C104KX Ceramic, 0.1µF 16WV
C710 F1J1H1020024 Ceramic, 1000PF 50WV
C711 F2A1C2210071 Electrolytic, 220µF 16WV PasTH
C712 YECUS1C104KX Ceramic, 0.1µF 16WV
C713 F2A1A1010095 Electrolytic, 100µF 10WV PasTH
C715 ECEA1AKA101I Electrolytic, 100µF 10WV
C716 YECUS1C104KX Ceramic, 0.1µF 16WV
C717 ECEA1AKA101I Electrolytic, 100µF 10WV
C718 ECEA1CKS220I Electrolytic, 22µF 16WV
C719 F1J1H103A513 Ceramic, 0.01µF 50WV
C720 ECEA1CKS100I Electrolytic, 10µF 16WV
C721 F1J1H1020024 Ceramic, 1000PF 50WV
C722 F1J1H1020024 Ceramic, 1000PF 50WV
C726 ECEA1CKS100I Electrolytic, 10µF 16WV
C727 F1J1H103A513 Ceramic, 0.01µF 50WV
C728 YECUS1C104KX Ceramic, 0.1µF 16WV
C729 ECEA1CKS100I Electrolytic, 10µF 16WV
C730 F1J1H103A513 Ceramic, 0.01µF 50WV
Ref.
No. Part No. Part Name & Description Remarks
C731 ECEA0JKS331I Electrolytic, 330µF 6.3WV
C734 ECEA0JKA101I Electrolytic, 100µF 6.3WV
C736 F1J1H103A513 Ceramic, 0.01µF 50WV
C737 F2A1A1010095 Electrolytic, 100µF 10WV PasTH
C738 F1J1H103A513 Ceramic, 0.01µF 50WV
C739 ECEA1CKS470I Electrolytic, 47µF 16WV
C740 F2A1C100A523 Electrolytic, 10µF 16WV
C741 F1J1H103A513 Ceramic, 0.01µF 50WV
C742 F1J1H103A513 Ceramic, 0.01µF 50WV
C743 ECEA1CKS100I Electrolytic, 10µF 16WV
C744 YECUS1C104KX Ceramic, 0.1µF 16WV
C745 EEUFC1A221H Electrolytic, 220µF 10WV
C746 YECUS1C104KX Ceramic, 0.1µF 16WV
C747 EEUFC1A221H Electrolytic, 220µF 10WV
C748 YECUS1C104KX Ceramic, 0.1µF 16WV
C749 ECEA0JKA101I Electrolytic, 100µF 6.3WV
C750 F1J1H103A513 Ceramic, 0.01µF 50WV
C751 F1J1H102A422 Ceramic, 1000PF 50WV
C752 F1J1H102A422 Ceramic, 1000PF 50WV
C762 YECUS1C104KX Ceramic, 0.1µF 16WV
C763 F2A1C2220034 Electrolytic, 2200µF 16WV
C764 F2A1C2220034 Electrolytic, 2200µF 16WV
C765 YECUS1C104KX Ceramic, 0.1µF 16WV
C766 ECEA1CPK101I Electrolytic, 100µF 16WV
C767 ECEA1CPK101I Electrolytic, 100µF 16WV
C780 YECUS1E104ZF Ceramic, 0.1µF 25WV
RESISTORs
C52 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
L101 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
L102 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
L711 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
L714 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
L718 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R51 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R101 ERJ3GEYJ122V Chip, 1.2kΩ
ΩΩ
Ω1/16W
R102 ERJ3GEYJ562V Chip, 5.6kΩ
ΩΩ
Ω1/16W
R103 ERJ3GEYJ392V Chip, 3.9kΩ
ΩΩ
Ω1/16W
R104 ERJ3GEYJ123V Chip, 12kΩ
ΩΩ
Ω1/16W
R111 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R112 ERJ3GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/16W
R113 ERJ3GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/16W
R114 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R115 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R116 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R199 ERJ3GEYJ334V Chip, 330kΩ
ΩΩ
Ω1/16W
R201 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R202 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R203 ERJ3GEYJ822V Chip, 8.2kΩ
ΩΩ
Ω1/16W
R204 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R205 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R206 ERJ3GEYJ153V Chip, 15kΩ
ΩΩ
Ω1/16W
R207 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R208 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R209 ERJ3GEYJ562V Chip, 5.6kΩ
ΩΩ
Ω1/16W
R210 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R211 ERJ3GEYJ333V Chip, 33kΩ
ΩΩ
Ω1/16W
R212 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R213 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R214 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R215 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R216 ERJ3GEYJ683V Chip, 68kΩ
ΩΩ
Ω1/16W
R217 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R218 ERJ3GEYJ272V Chip, 2.7kΩ
ΩΩ
Ω1/16W
R219 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R220 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R301 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R302 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R303 ERJ3GEYJ822V Chip, 8.2kΩ
ΩΩ
Ω1/16W
R304 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R305 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R306 ERJ3GEYJ153V Chip, 15kΩ
ΩΩ
Ω1/16W
10
MAZDA / CQ-JM8480K

Ref.
No. Part No. Part Name & Description Remarks
R307 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R308 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R309 ERJ3GEYJ562V Chip, 5.6kΩ
ΩΩ
Ω1/16W
R310 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R311 ERJ3GEYJ333V Chip, 33kΩ
ΩΩ
Ω1/16W
R312 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R313 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R314 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R315 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R316 ERJ3GEYJ683V Chip, 68kΩ
ΩΩ
Ω1/16W
R317 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R318 ERJ3GEYJ272V Chip, 2.7kΩ
ΩΩ
Ω1/16W
R319 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R330 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R511 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R512 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R513 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R514 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R515 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R516 ERJ3GEYJ561V Chip, 560Ω
ΩΩ
Ω1/16W
R517 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R518 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R519 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
R520 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R521 ERJ3GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/16W
R522 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R523 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R524 ERJ3GEYJ223V Chip, 22kΩ
ΩΩ
Ω1/16W
R525 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R530 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R531 ERJ3GEYJ274V Chip, 270kΩ
ΩΩ
Ω1/16W
R534 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R535 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R536 ERJ3GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/16W
R601 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R602 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R603 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R604 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R605 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R606 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R607 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R608 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R609 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R610 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R611 ERJ3GEYJ332V Chip, 3.3kΩ
ΩΩ
Ω1/16W
R612 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R613 ERJ3GEY0R00V Chip, 0Ω
ΩΩ
Ω1/16W
R614 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R615 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R616 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R617 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R618 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R619 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R620 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R621 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R622 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R623 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R625 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R626 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R628 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R629 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R630 ERJ3GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/16W
R631 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R632 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R633 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R634 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R635 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R636 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R637 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R638 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R639 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R640 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R641 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
Ref.
No. Part No. Part Name & Description Remarks
R642 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R643 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R644 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R645 ERJ3GEYJ104V Chip, 100kΩ
ΩΩ
Ω1/16W
R646 ERJ3GEYJ561V Chip, 560Ω
ΩΩ
Ω1/16W
R647 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R648 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R649 ERJ3GEYJ333V Chip, 33kΩ
ΩΩ
Ω1/16W
R650 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R651 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R652 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R653 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R654 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R655 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R656 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R657 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R658 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R659 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R660 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R661 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R662 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R663 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R664 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R665 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R666 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R667 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R668 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R669 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R671 ERJ3GEYJ272V Chip, 2.7kΩ
ΩΩ
Ω1/16W
R672 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R673 ERJ3GEYJ684V Chip, 680kΩ
ΩΩ
Ω1/16W
R674 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R675 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R676 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R677 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R678 ERJ3GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/16W
R679 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R680 ERJ3GEYJ103V Chip, 10kΩ
ΩΩ
Ω1/16W
R701 ERJ8GEYJ331V Chip, 330Ω
ΩΩ
Ω1/8W
R702 ERJ8GEYJ331V Chip, 330Ω
ΩΩ
Ω1/8W
R705 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R707 ERJ6GEYJ152 Chip, 1.5kΩ
ΩΩ
Ω1/10W
R711 ERJ8GEYJ1R0V Chip, 1Ω
ΩΩ
Ω1/8W
R712 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R713 ERJ8GEYJ152V Chip, 1.5kΩ
ΩΩ
Ω1/8W
R714 ERJ8GEYJ152V Chip, 1.5kΩ
ΩΩ
Ω1/8W
R716 ERJ8GEYJ1R0V Chip, 1Ω
ΩΩ
Ω1/8W
R717 ERJ6GEYJ102 Chip, 1kΩ
ΩΩ
Ω1/10W
R718 ERJ6GEYJ271 Chip, 270Ω
ΩΩ
Ω1/10W
R719 ERJ6GEYJ151 Chip, 150Ω
ΩΩ
Ω1/10W
R721 ERJ6GEYJ473 Chip, 47kΩ
ΩΩ
Ω1/10W
R722 ERJ8GEYJ152V Chip, 1.5kΩ
ΩΩ
Ω1/8W
R723 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R724 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R725 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R726 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R727 ERJ8GEYJ821V Chip, 820Ω
ΩΩ
Ω1/8W
R728 ERJ6GEYJ821 Chip, 820Ω
ΩΩ
Ω1/10W
R729 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R731 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R736 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R737 ERJ6GEYJ472 Chip, 4.7kΩ
ΩΩ
Ω1/10W
R738 ERJ8GEYJ821V Chip, 820Ω
ΩΩ
Ω1/8W
R739 ERJ6GEYJ821 Chip, 820Ω
ΩΩ
Ω1/10W
R740 ERJ8GEYJ3R3V Chip, 3.3Ω
ΩΩ
Ω1/8W
R741 ERJ8GEYJ1R2V Chip, 1.2Ω
ΩΩ
Ω1/8W
R742 ERJ3GEYJ274V Chip, 270kΩ
ΩΩ
Ω1/16W
R743 ERJ3GEYJ273V Chip, 27kΩ
ΩΩ
Ω1/16W
R744 ERJ3GEYJ433V Chip, 43kΩ
ΩΩ
Ω1/16W
R745 ERJ3GEYJ472V Chip, 4.7kΩ
ΩΩ
Ω1/16W
R747 ERJ8GEYJ1R0V Chip, 1Ω
ΩΩ
Ω1/8W
R748 ERJ6GEYJ103 Chip, 10kΩ
ΩΩ
Ω1/10W
R749 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
11
MAZDA / CQ-JM8480K

Ref.
No. Part No. Part Name & Description Remarks
R757 ERJ6GEYJ223 Chip, 22kΩ
ΩΩ
Ω1/10W
R758 ERJ6GEYJ333 Chip, 33kΩ
ΩΩ
Ω1/10W
R759 ERJ3GEYJ473V Chip, 47kΩ
ΩΩ
Ω1/16W
R760 ERJ3GEYJ221V Chip, 220Ω
ΩΩ
Ω1/16W
R761 ERJ3GEYJ222V Chip, 2.2kΩ
ΩΩ
Ω1/16W
R762 ERJ6GEYJ474 Chip, 470kΩ
ΩΩ
Ω1/10W
R763 ERJ6GEYJ562 Chip, 5.6kΩ
ΩΩ
Ω1/10W
R764 ERJ6GEYJ474 Chip, 470kΩ
ΩΩ
Ω1/10W
R765 ERJ6GEYJ562 Chip, 5.6kΩ
ΩΩ
Ω1/10W
R767 ERJ6GEYJ562 Chip, 5.6kΩ
ΩΩ
Ω1/10W
R768 ERJ8GEYJ1R0V Chip, 1Ω
ΩΩ
Ω1/8W
R770 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R780 ERJ8GEYJ102V Chip, 1kΩ
ΩΩ
Ω1/8W
R781 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
R782 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
CONNECTORs
CN201 YEAE02124 Connector
CN202 K1MN14B00118 Connector, 14P
CN701 YEAE012672 Connector, 12P+8P
CN702 YEAE012673 Connector, 16P
CN901 K1KA10B00162 Connector, 10P
CN902 K1KA06B00133 Connector, 6P
COILs
L602 J0JCC0000012 Coil
L603 J0JCC0000012 Coil
L604 J0JCC0000012 Coil
L605 J0JCC0000012 Coil
L606 J0JCC0000012 Coil
L701 J0JCC0000279 Coil
L702 YELTBMHS800T Coil
L710 G0A151J00005 Coil
L712 YELT03M4R7KT Coil
L713 YELT03N470JT Coil
L715 J0JCC0000012 Coil
L716 YELTBMHS800T Coil
L717 YELTBMHS800T Coil
CRYSTALs
XL601 H0D125500005 Crystal Oscillator
FILTERs
Z51 J0LM00000001 Noise Filter
[E9426A] Display Block
IC´s AND TRANSISTORs
IC901 YEAMLC75853 IC
DIODEs
D901 B3CEF0000001 LED
CAPACITORs
C901 YECUS1C474KX Ceramic, 0.47µF 16WV
C904 YECUS1H473KX Ceramic, 0.047µF 50WV
C905 YECUS1H473KX Ceramic, 0.047µF 50WV
C906 F1J1H821A672 Ceramic, 820PF 50WV
C907 F1J1H181A672 Ceramic, 180PF 50WV
C908 F1J1H181A672 Ceramic, 180PF 50WV
C909 F1J1H181A672 Ceramic, 180PF 50WV
C910 F1J1H181A672 Ceramic, 180PF 50WV
C911 F1J1H103A513 Ceramic, 0.01µF 50WV
C912 F1J1H103A513 Ceramic, 0.01µF 50WV
C913 F1J1H103A513 Ceramic, 0.01µF 50WV
Ref.
No. Part No. Part Name & Description Remarks
RESISTORs
J100 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J101 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J102 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J103 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J104 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J105 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J106 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J107 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J108 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J109 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J110 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J111 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J112 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J113 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J114 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J115 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J116 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J117 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J118 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J119 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J120 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J121 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J122 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J123 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J124 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J125 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J127 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J128 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J129 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J130 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J131 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J132 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J133 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J134 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J135 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J136 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J137 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J138 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J139 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J140 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J141 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J142 ERJ8GEY0R00V Chip, 0Ω
ΩΩ
Ω1/8W
J201 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J202 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J203 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J204 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J205 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J206 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J207 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J208 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
J209 ERJ6GEY0R00V Chip, 0Ω
ΩΩ
Ω1/10W
R904 ERJ6GEYJ683 Chip, 68kΩ
ΩΩ
Ω1/10W
CONNECTORs
CN901 K1KB06A00085 Connector, 6P
CN902 K1KB10A00112 Connector, 10P
COILs
L901 YELT03N101JT Coil
SWITCHes
SW901 EVQPVF05K Switch
SW902 EVQPVF05K Switch
SW903 EVQPVF05K Switch
SW904 EVQPVF05K Switch
SW905 EVQPVF05K Switch
SW906 EVQPVF05K Switch
SW907 EVQPVF05K Switch
12
MAZDA / CQ-JM8480K

Ref.
No. Part No. Part Name & Description Remarks
SW908 EVQPVF05K Switch
SW909 EVQPVF05K Switch
SW910 EVQPVF05K Switch
SW911 EVQPVF05K Switch
SW912 EVQPVF05K Switch
SW913 EVQPVF05K Switch
SW914 EVQPVF05K Switch
SW915 EVQPVF05K Switch
SW916 EVQPVF05K Switch
SW917 EVQPVF05K Switch
VR901 K9AA015B0045 Switch
LAMPs
PL901 YEALHSIG003 Lamp
PL902 YEALHSIG003 Lamp
PL903 YEALHSIG003 Lamp
PL904 YEALHSIG003 Lamp
PL905 YEALHSIG003 Lamp
PL906 YEALHSIG003 Lamp
PL907 YEALSTGG011A Lamp
PL908 YEALSTGG011A Lamp
LCD
LCD901 L5AAAHB00036 LCD
Mechanical Parts
MISCELLANEOUS
ANT51 YEAA10066 Receptacle
AP1 YEAP2877 FPC, 14P PasTH
AT1 YEFX0213797 Bracket, GND
AT2 YEFX0213797 Bracket, GND
1YGFA031832 Upper Cover
2YEFS02307 Felt
3YGFA09762 Side Plate (L)
4YEFX0051753A Leaf Spring
6YGFF011094 Heat Sink
7YGFX0216252 Bracket, Deck
8YGFA09763 Side Plate (R)
9YEFS04761 Rubber Packing
10 YGFM031406 Laser Seal
11 YEP0PT9426Z9 Display PCB w/Component RTL,
PasTH
12 YGFC028105B Escucheon Ass´y PasTH
13 YGFE02494 Knob, VOL
14 YGFA131620 Case, LCD
15 YEFV021844 Optical Shade
16 YGFK061037 Holder, LCD
17 YGFA05838 Bottom Cover
20 YEP0PT6992Z9 Main PCB w/Component RTL,
PasTH
21 YGFA07660 Front Plate
22 YEFX0214244 Bracket, CN701
23 YEFX0214243 Bracket, IC203
24 YEFX0214943 Bracket, IC713/Q716
25 YEFX0214285 Bracket, ANT51
30 YEJT03324 Screw
31 YEJS05023 Screw, M3x18mm
32 YEJT03007 Screw, M3x5mm
33 YEJT03131 Screw, M2.6x5mm
34 YEJT03009 Screw, M3x8mm
35 XSS3+5FX Screw, M3x5mm
36 XTB2+6GFX Screw, M2x6mm
37 XTB3+6FFX Screw, M3x6mm
38 XTV26+5GFN Screw, M2.6x5mm
39 YGJV01113 Steel Bolt
13
MAZDA / CQ-JM8480K

10 EXPLODED VIEW (Unit)
14
MAZDA / CQ-JM8480K

11 WIRING DIAGRAM
11.1. Display Block
15
MAZDA / CQ-JM8480K

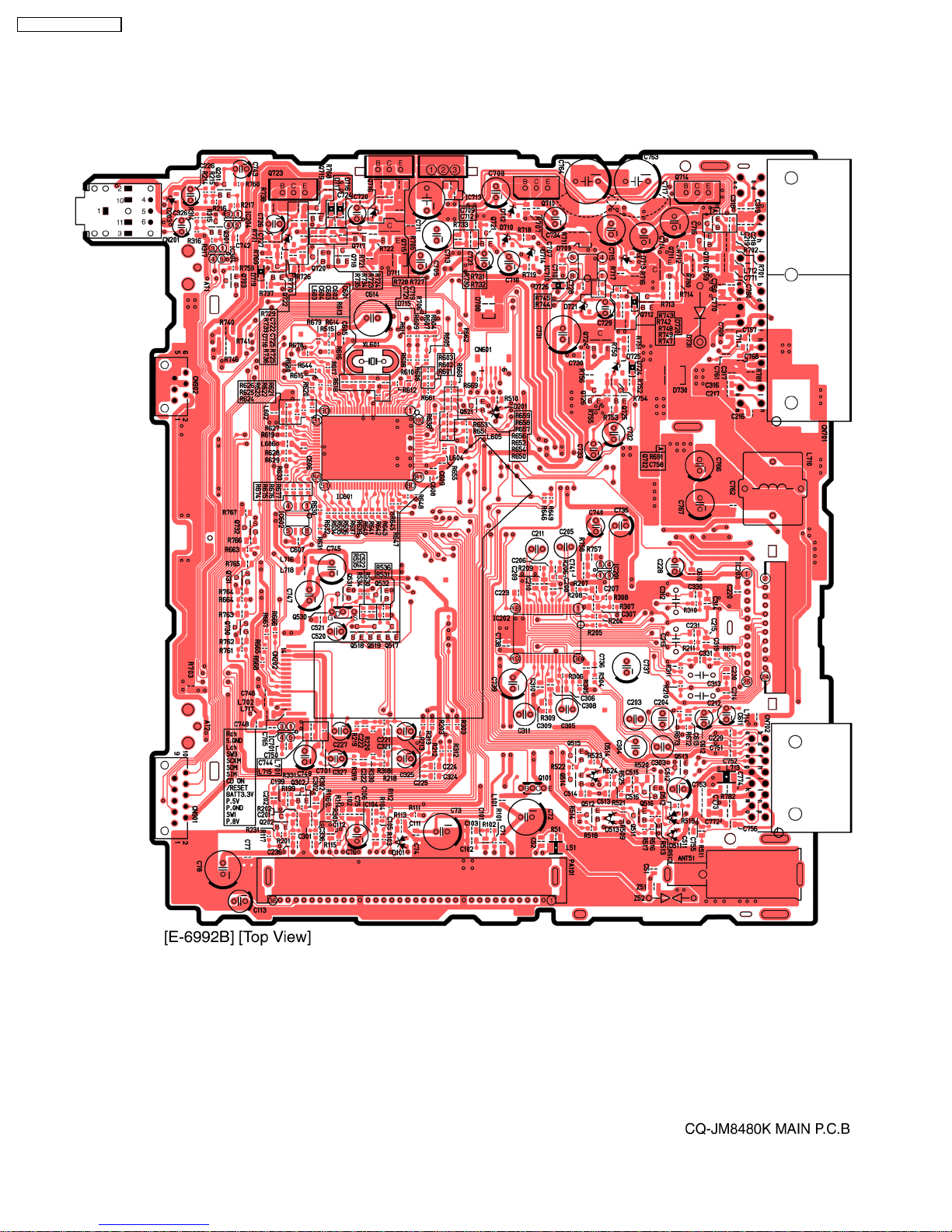

11.2. Main Block (Top View)
16
MAZDA / CQ-JM8480K

11.3. Main Block (Bottom View)
17
MAZDA / CQ-JM8480K

12 SCHEMATIC DIAGRAM -1
12.1. Display Block
18
MAZDA / CQ-JM8480K

13 SCHEMATIC DIAGRAM -2
13.1. Main Block
Printing in Japan (K) 2004 5 (Recycled Paper)
MAZDA / CQ-JM8480K
19
