McGrey BP-215 User manual

McGrey BP-215 Bandpack
User Manual
ArtNr.: 00061293
Version: 07.2020

BP-215
© 2020
This manual is protected by copyright. Any copying or reprint, even in excerpts, is
only allowed with written consent of Musikhaus Kirstein GmbH. The same applies to
reproduction or copying of images, even in altered form.
Content
Important safety instructions:...............................................................................2
Detailed safety instructions:..................................................................................3
Instruction: .............................................................................................................4
Description of the front view:................................................................................5
Description of the rear view: .................................................................................8
Specifications.........................................................................................................9
Maintenance .........................................................................................................10
Cleaning................................................................................................................10
WEEE Declaration (Waste of Electrical and Electronic Equipment)................10

BP-215
2020-07-27 McGrey BP-215 / ArtNr.: 00061293 1
Thank you for purchasing our product. To ensure you will be completely satisfied
with this product, read and understand this manual carefully before use. Keep the
manual in a safe place. The Operating Manual must be passed on to all subsequent
users.
Follow the Operating Manual!
The signal word WARNING identifies hazards, which can result
without precautions in serious injury.
The signal word NOTE indicates general precautions, which should
be observed in handling the product.
Images used in this manual may differ slightly from the actual
product, as long as it has no adverse effect on the properties and
safety of the product.
All personal formulations in these instructions are to be considered
gender neutral.
These operating instructions apply to persons who have been supervised or
instructed in the operation of the device by a person responsible for their safety and
who have proven to be able to handle the device.
Children should be supervised to ensure that they do not playwith
the appliance. Do not leave the children unattended.
All information contained in this Operating Manual is accurate to the best of our
knowledge and belief. Neither the author nor the publisher, however, can be held liable for
damages or losses that arise in connection with the use of this Operating Manual.
Other product, brand or company designations specified in this document are
possibly the trademarks of their respective owners. Compliance with all applicable
copyright laws is the responsibility of the user of this document.

BP-215
2 McGrey BP-215 / ArtNr.: 00061293 2020-07-27
Important safety instructions:
ATTENTION:
Do not open the device to reduce the risk of an electric shock.
The device contains no maintenance parts. Please contact qualified
personnel for service operations.
WARNING:
To reduce the risk of fire or electric shocks, do not expose this unit to rain or
moisture.
oThis symbol indicates a non-isolated, hazardous voltage within the
enclosure voltage sufficient to present a risk of electric shock.
oThis symbol indicates important operating and maintenance
instructions in the manual. Please read the manual.

BP-215
2020-07-27 McGrey BP-215 / ArtNr.: 00061293 3
Detailed safety instructions:
Read the manual.
Keep the manual.
Note all warnings.
Follow all instructions.
Do not use the device near water.
Clean the device with a dry cloth.
Do not block any vents.
Do not place the device near heat sources such as radiators, stoves or other
appliances that generate heat.
Do not pinch or step on the power cords, especially to the plugs, extension
cords and where they leave the device.
Use only accessories recommended by the manufacturer.
Use only trolleys, stands, tripods, brackets or tables which are specified by
the manufacturer. Be careful when moving the carriage/equipment
combination to avoid injury from tripping.
Disconnect this device from storms or when you are not using it for a long
time.
Refer to qualified service personnel for all maintenance. Maintenance is
required if the device has been damaged in any way. For example, if the
power cord or plug is damaged, liquid has been spilled, objects have fallen
into the unit, the device has been exposed to rain or moisture, the device
does not work properly or has been dropped.

BP-215
4 McGrey BP-215 / ArtNr.: 00061293 2020-07-27
Instruction:
The mixer is an 8-channel mixer with a variety of installed functions and is built in a
rugged housing.
Technical specification:
8 Mic / Line-input Channels
USB/SD Player, for playing of WMA and MP3 files
2-Band-EQ allows separate settings for different acoustic adjustment options
Installed digital delay effect that allows users to create a reverberation or
atmosphere to the vocals or connected instrument.
Speaker max power 150W, Mixer amplifier max power 150W
Precautionary measures:
Connect the power cord to main power socket as described in this manual.
Do not bend, twist, pull or heat the power cord.
Do not place heavy objects, including this mixer, on the power cord. A
damaged power cord may cause fire or electric shocks.
Do not let water or liquids flow into the unit. Liquids in this device may cause
fire or electric shocks.
Never open and / or modify the device under any circumstances. Otherwise,
a fire or electric shocks may be caused. There are no parts inside that can
be used for a service by the user.
Consult qualified service personnel for all maintenance work.
Turn off the device and contact your merchant immediately if the device is
damaged or malfunctioning.

BP-215
2020-07-27 McGrey BP-215 / ArtNr.: 00061293 5

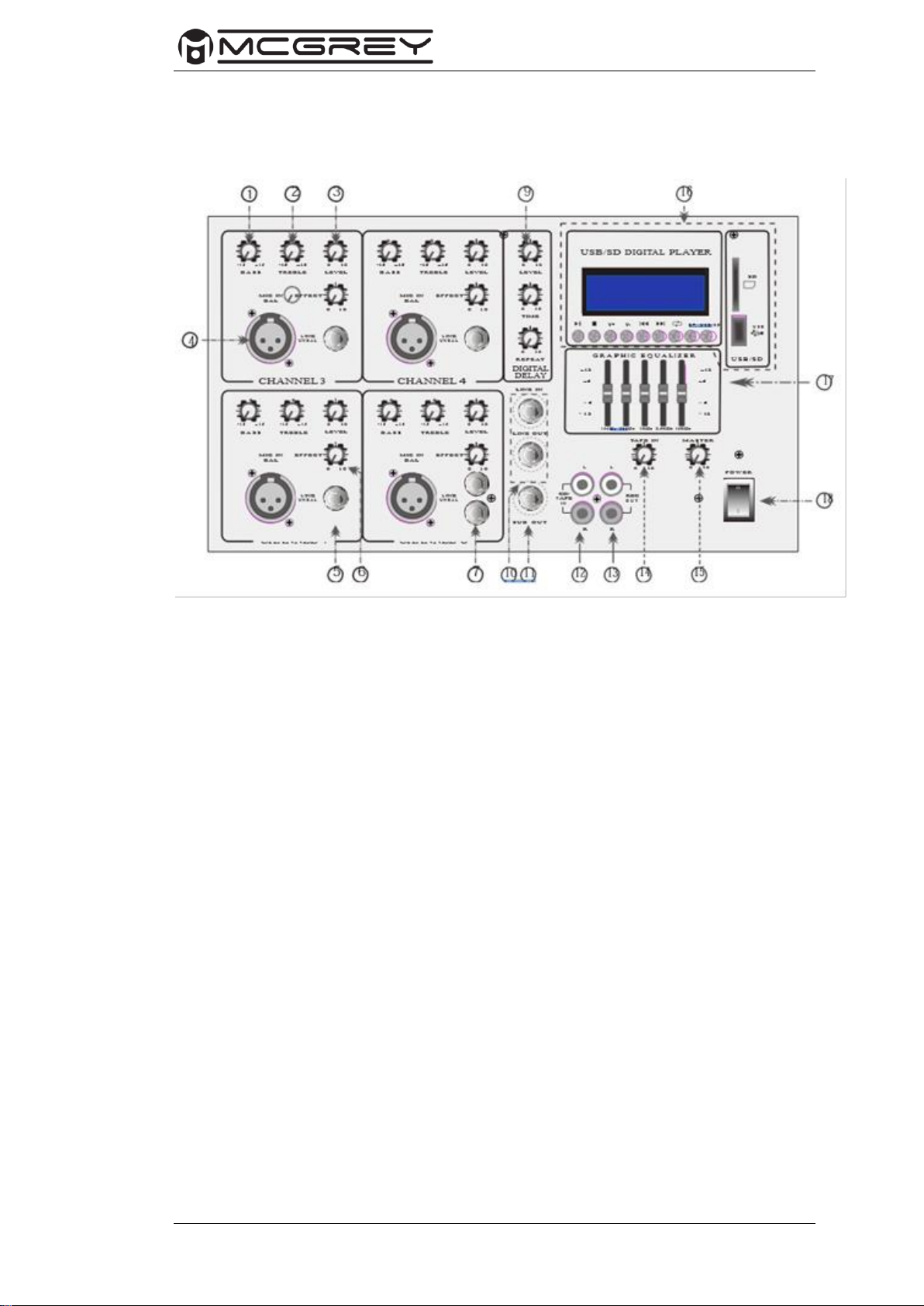

Description of the front view:
1. Bass:
The controller has shelving response giving 15dB of boost or cut at 80Hz.Turning to
the right adds warmth to vocals or extra punch to guitars, drums and synthesizers.
Turn to the left to reduce stage rumble, hun, or to improve mushy sound.
2. Treble:
Turn to the right to boost high frequencies. This adds crispness to percussion from
drum machines, cymbals, and synthesizers. Turn to the left to cut these frequencies.
This reduces sibilance or hiss. The control has a shelving response giving 15dB of
boost or cut at 12 kHz.
3. Volume:
This level controller adjusts the amount of channel signal in the mix and provides a
clear visual indication of the channel level.
4. Microphone Input (symmetric):
The MIC input accepts XLR connectors for low impedance microphones. The input
impedance is 2 kOhm.
5. Line Input Unbalanced:
Inputs can be connected from guitars, synthesizers, drum machines, CD players,
and other line level devices. The input impedance is 10kohm.
6. Effect Control:
This controller adjusts the level sent to the built-in digital delay effect control (effect
portion).
7. Cinch-Line Input:
Channel 5 and 6 accept RCA connectors for stereo line level devices. You can use
either the microphone input or the channel 5 and 6 RCA inputs.

BP-215
6 McGrey BP-215 / ArtNr.: 00061293 2020-07-27
8. 3-Band Equalizer:
These 3 controllers are responsible for controlling the sound from the Master Signal.
TREBLE
This knob controls the high-frequency range of the sound.
MIDDLE
This knob controls the mid-frequency range of the sound.
BASS
This knob controls the low frequency range of the sound.
9. Digital Delay Effect:
The signal from the input channels is processed by the built-in delay effect and sent
to the master output. There are three controls that let you control the effect of the
delay effect.
LEVEL (Volume)
Here you can adjust the volume of the effect component.
TIME
This button sets the time interval of the delays. Turn it to the right to increase the
time interval between two delays.
REPEAT
Increasing of the repetition rate. If you turn this controller to the right, the signal will
be repeated more often. 0 = no repetition, 10 = infinite repetitions.
10. LINE IN/OUT:
These unbalanced 1/4 "phone jacks offer line-in and line-out capabilities. Use these
connectors for a connection to external devices (for example, 31 Band EQ).
11. SUB OUT:
This is used to send a signal under 120Hz to an active subwoofer to amplify the
signal.
12. TAPE IN (CD/TAPE IN):
This is a stereo input (RCA), via which the signal of an external sound source
(laptop, mobile phone, etc.) can be added to the sum signal. Volume is adjustable
via the controller 14.
13. REC OUT (REC):
This is a stereo output (RCA) for connecting an external recording device.
14. CD/TAPE IN Volume Controller:
This controller is used to adjust the volume of the devices which are connected to
input 12.

BP-215
2020-07-27 McGrey BP-215 / ArtNr.: 00061293 7
15. Master Volume Controller:
This control regulates the entire volume.
It controls the main signal that outputs to the speaker.
16. USB/SD Player:
(These buttons are only for the operation of USB and SD playback.
The equalizer also affects only the USB and SD playback).
- Play/Pause
- Stop
- Volume
- Backward
- Forward
- Repeat
- Equalizer EQ
- Selection key between USB / SD
CONNECT BT-DEVICE
1. Set the search function on of the BT device (Handy, Laptop, etc.) you want to play
the music. See the operating instructions for your device.
2. Press the “MODE” button and activate BT-function.
3. Find on your BT-device “BP-215” and make the connection.
Attention: The BT distance is approx. 10 meter without any barrier.

BP-215
8 McGrey BP-215 / ArtNr.: 00061293 2020-07-27
Description of the rear view:
17. Power Connection for socket:
It is used to connect the power supply to the unit via enclosed power cord.
Attention: Make sure that the main voltage matches the voltage of the product
before switching on the device.
18. Fuse socket:
This fuse should protect your device for power overloads.
Attention: If the fuse has been damaged, the device will not work. It must be
replaced by the same type and same specifications. If this does not solve the
problem, have the unit serviced by qualified personnel.
19. Speaker Output:
Two speakers can be connected to these jacks. Connect the two passive speakers
with these outputs. Use 8~16Ω speakers when 4 speakers are used at the same
time. If only one speaker is used, use a 4-8ΩSpeaker.

BP-215
2020-07-27 McGrey BP-215 / ArtNr.: 00061293 9
Specifications:
Input Impedance
Mic: 2K Ohm (Balanced), 1K Ohm (Unbalanced)
Line: 10K Ohm
Tape In: 47K Ohm
Input-Chanel-EQ
High EQ: ± 15dB @ 12KHz
Low EQ: ± 15dB @ 80Hz
Digital Delay Time
Time: 140-342ms
Frequency Response
Mixer amplifier: 20Hz-20KHz + 1dB / -3dB @ 1W Output to 8 Ohm Speaker
Speaker: 60Hz-18kHz
Harmonic Overall Distortion (THD)
<10% at 20Hz-20KHz for an output power of 55W to a 4 ohms speaker
Maximum Power Output
120W @ 4 Ohm
Mixer
Peak power: 2x150W
RMS power: 2x75W
Power consumption:220W
Speaker
Peak power:200W
RMS power:100W
Power Consumption
150W
Power Requirement
AC115V/230V, 50/60Hz

BP-215
10 McGrey BP-215 / ArtNr.: 00061293 2020-07-27
Maintenance
Your appliance does not require any particular maintenance. However, in the event
of a malfunction, contact an Approved Service Center.
Cleaning
Use a slightly damp cloth
WEEE Declaration
(Waste of Electrical and Electronic Equipment)
Your product has been designed and manufactured using quality materials and
components that are recyclable and reusable. The symbol means that your product
must be disposed separately from household waste at the end of its service life.
Dispose of this equipment at your local collection point or recycling center.
Please help to protect the environment in which we all live.
SIMPLIFIED EU DECLARATION OF CONFORMITY
Herewith Musikhaus Kirstein GmbH declares that the radio unit of Model [McGrey
BP 215 Bandpack PA-Anlage mit Powermischer] is in compliance with the EU
directive 2014/53/EU. You can download the full EU declaration of conformity for
this item under download link:
http://www.kirstein.de/docs/Konformitaetserklaerung/CE_Konformitaetserklaerung_0
0061293.pdf
All specifications and appearances are subject to change without notice. All
information was correct at time of printing. Musikhaus Kirstein GmbH does not
guarantee for the accuracy or completeness of any description, photograph or
statement contained in this manual. Printed colors and specifications may vary
slightly from product. Products from Musikhaus Kirstein GmbH are only sold through
authorized dealer. Distributors and dealers are not agents of Musikhaus Kirstein
GmbH and have no authority to bind Musikhaus Kirstein GmbH legally in any way.
Musikhaus Kirstein GmbH
Bernbeurener Str. 11
86956 Schongau –Germany
Telefon/Phone: [phone]
Telefax/Fax: [phone]-19
