MA6300 integrated amplifier
legendary
The MA6300 is the latest integrated amplifier, rich with all the premium technologies that
McIntosh is famous for including Power Assurance System and Silent Electromagnetic
Switching. With 100 watts per channel at 8-Ohms and 160 watts into 4-Ohm loads, the
MA6300 can effortlessly power virtually any speaker from one of seven source selections:
CD1, CD2, Tuner, Phono, Tape, TV and DVD.
Featured in the MA6300 is a dedicated, high performance headphone amplifier boasting
low noise, extended frequency response and featuring ample gain to drive the finest quality
headphones to life-like levels. A robust ¼” front panel jack is easily accessible and provides
for years of personal listening enjoyment.
A pair of distinctive “blue eyes” output meters highlights the Fiber-Optic Illuminated Glass
front panel from which the controls for Balance, Volume, Mute, Standby/On, and the seven
Source Selection Buttons are all readily accessible. A turn on delay prevents annoying pops
or thumps while protecting loudspeakers.
Only McIntosh can combine two basic audio components into a single instrument and still
retain traditional McIntosh performance, quality and reliability. The MA6300 provides all of
this in a more compact, space saving configuration. Those considering a McIntosh system
for the first time will find the MA6300 a very comfortable place to start.
Balanced XLR connection for
the CD1 Input
MM Phono Input
Preamp Out and Power Amp
Input Jacks
Serial Data Output Port for Each
Input Selection
Power Guard®
Turn On Delay
R-Core Transformer
¼Front Panel Headphone Jack
Remote Control
“the latest McIntosh
engineering, applied
to an audiophile
focused design”

To experience the legendary performance of McIntosh, please call on us at 1-800-538-6576
legendary
www.mcintoshlabs.com
35008700 MA6300

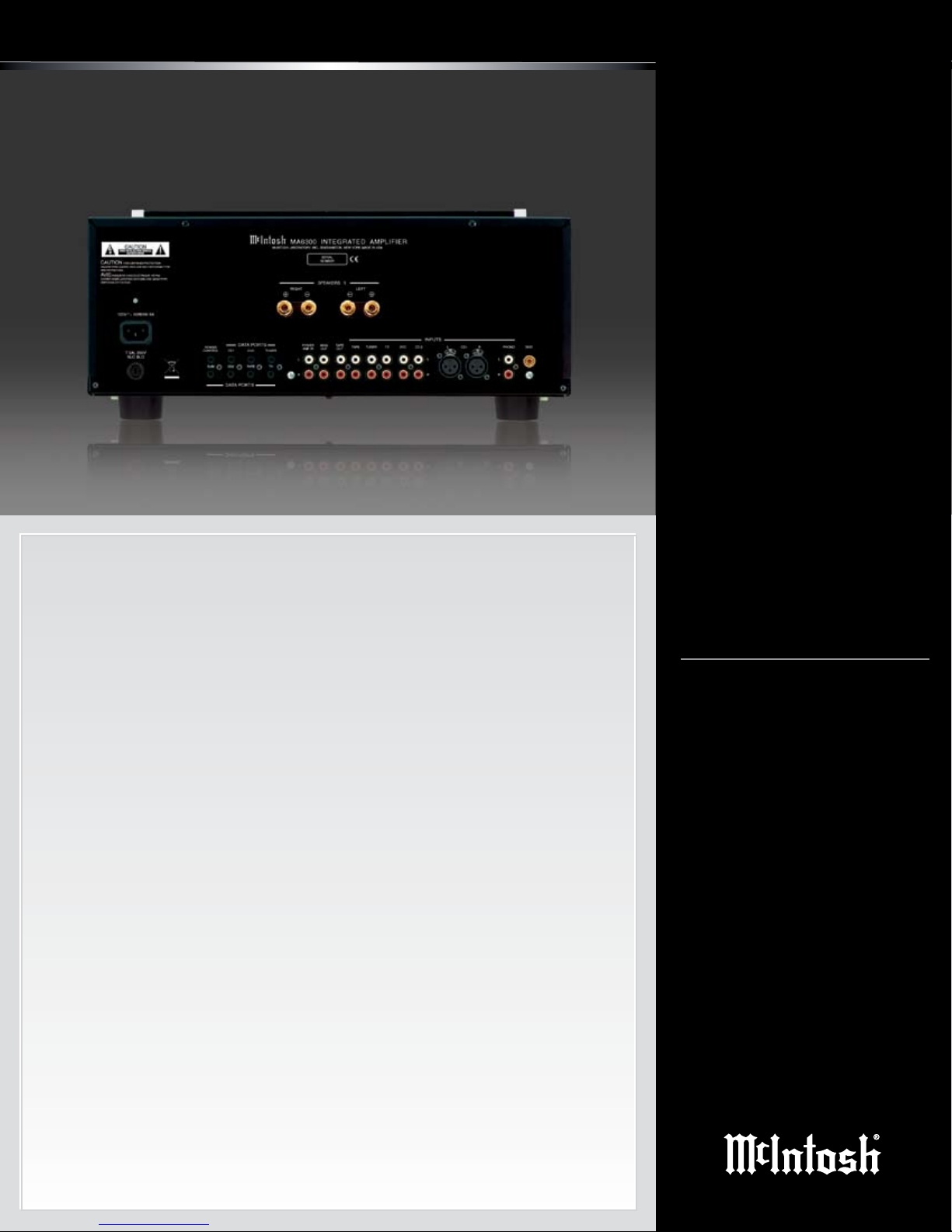

M a6300 integrated amplifier
POWER OUTPUT
100 watts into an 8 Ohm load is the minimum
sine wave continuous average power output.
The output RMS voltage is 28.3V across 8 Ohms.
160 watts into a 4 Ohm load is the minimum sine
wave continuous average power output. The output
RMS voltage is 25.3V across 4 Ohms.
OUTPUT LOAD IMPEDANCE
8 and 4 Ohms
RATED POWER BAND
20Hz to 20kHz
TOTAL HARMONIC DISTORTION
0.005% max harmonic distortion at any power level
from 250 milliwatts to rated power, 20Hz to 20kHz
DYNAMIC HEADROOM 1.4dB
FREQUENCY RESPONSE
+0, -0.5dB from 20Hz to 20kHz
+0, -3dB from 10Hz to 100kHz
PREAMPLIFIER MAIN OUTPUT
1V for rated input (8V maximum)
SENSITIVITY (FOR RATED OUTPUT)
High level: 250mV unbalanced, 500mV Balanced;
Phono: 2.5mV; Power Amp In, 1V
SIGNAL-TO-NOISE RATIO (A-Weighted)
High Level: 97dB below rated output
Phono: 90dB below 10mV input
Power Amplifier: 110 below rated output
INTERMODULATION DISTORTION
0.005% max, if the instantaneous peak power
output is rated power or less per channel with both
channels operating for any combination
of frequencies from 20Hz to 20kHz
WIDE BAND DAMPING FACTOR
200 at 8 Ohms; 100 at 4 Ohms
INPUT IMPEDANCE
High Level: 20K Ohms; Phono: 47K Ohms: 65pF;
Power Amp In: 10K Ohms
MAXIMUM INPUT SIGNAL
High Level: 8V; Phono: 90mV;
Power Amplifier In: 8V
MAIN OUTPUT IMPEDANCE 50 Ohms
POWER GUARD
Less than 2% THD with up to
16dB overdrive at 1000Hz
VOLTAGE GAIN
High Level to Tape Output: 0dB
High Level to Main Output: 12dB
Phono to Main Output: 52dB
POWER REQUIREMENTS
100/110 Volts, 50/60Hz at 3.6 amps
120 Volts, 50/60Hz at 3.2 amps
220/230/240 Volts, 50/60Hz at 1.8 amps
OVERALL DIMENSIONS (HxWxD)
7-5/8” (19.4cm) x 17-1/2” (44.5cm) x 22”
(55.9cm) including front panel and knobs.
WEIGHT
37 lbs. (16.8kg) net, 55 lbs. (24.9kg) boxed
EXCLUSIVE MCINTOSH
POWER ASSURANCE SYSTEM
A collection of technologies that
enhance performance and reliability
while protecting the amplifier and
loudspeakers.
POWER GUARD®
A waveform comparison circuit
continuously monitors both input and
output signals. Power Guard dynamically
adjusts the input level to avoid clipping
while preventing harsh sounding
distortion.
SENTRY MONITOR®
Fuse-less short-circuit protection
circuit disengages the output stage
before current exceeds safe operating
level – resets automatically.
WATTMETER
Swift, accurate response reveals program
peaks so staying within the power limits
of your loudspeakers is easy.
ELECTRONIC INPUT
SWITCHING
Digital Logic integrated circuits drive
electromagnetic switches on all seven
inputs and operating functions for
reliable noiseless distortion free
switching.
FOR THE CONSUMER’S
PROTECTION
In order to ensure the highest level
of customer satisfaction, “new” McIntosh
products may only be purchased over-the-
counter or delivered and installed by an
Authorized McIntosh Dealer.
McIntosh products that are purchased
over the Internet, by phone or mail order
are presumed to be “used” and do not
qualify for any McIntosh Warranty.
McIntosh does not warrant, in any way,
products that are purchased from anyone
who is not an Authorized Dealer or prod-
ucts that have had their serial number
altered or defaced.
