SERVICE MANUAL

Performance Specifications ........................................ 2

Notes ......................................................................... 2

Safety Information..................................................... 2

Rear Panel.................................................................. 3

Section Location ........................................................ 3

Block Diagram ........................................................... 4

Interconnection Diagram ...................................... 5 - 6

Main .......................................................................... 7

Connector Schematic and PCB .................................. 8

A/V Power Supply Schematic and PCB ............... 9 - 14

Display Schematic and PCB .............................. 15 - 18

Parts List............................................................ 19 - 20

ExplodedView and Parts List ............................. 21 - 22

Repacking Instructions ............................................. 23

CONTENTS

DVD/VIDEO CD/CD PLAYER

PERFORMANCE SPECIFICATIONS

VIDEOSPECIFICATIONS

SignalSystem: NTSC

Component Video Y Output Level: 1Vp-p (75 ohm)

Component Video PB Output Level: 0.7Vp-p (75 ohm)

Component Video PR Output Level: 0.7Vp-p (75 ohm)

OutputConnector: RCA Jack (Y: Green, PB: Blue, PR: Red)

S-VideoOutputLevel: 1Vp-p (75 ohm)

S-Video C Output Level: 0.286Vp-p (75 ohm) (NTSC)

OutputConnector: Mini DIN

VideoOutput Level: 1Vp-p (75 ohm)

OutputConnector: RCA Jack

AUDIOSPECIFICATIONS

Number Of Channels: 2

OutputLevel: 2.2Vrms

DVDFrequencyResponse: 4-22kHz (48kHz Sampling, Linear Audio)

4-44kHz (96kHz Sampling, Linear Audio)

CDFrequencyResponse: 4-20kHz

CD Signal To Noise Ratio: Better than 110dB (A-weighted)

DVD Dynamic Range: Better than 100dB (Linear Audio)

CD Dynamic Range: Better than 98dB

HarmonicDistortion: 0.003% (1kHz)

ChannelSeparation: Better than 110dB (1kHz)

DIGITALAUDIOOUTPUT

Optical: -15dbm to -21dbm

OutputConnector: OpticalConnector

Coaxial: 0.5V p-p/75 ohm

OutputConnector: RCA Jack

DigitalSignal Format: 44.1kHz, 48kHz and 96kHz

PICKUP

LaserPower: CLASS II

LaserBeamWavelength: 655nm

GENERALSPECIFICATIONS

PowerRequirements

100 Volts, 50/60Hz at 30 watts

110 Volts, 50/60Hz at 30 watts

120 Volts, 50/60Hz at 30 watts

220 Volts, 50/60Hz at 30 watts

230 Volts, 50/60Hz at 30 watts

240 Volts, 50/60Hz at 30 watts

Note: Refer to the rear panel of the MVP841 for the correct voltage.

Dimensions

Front Panel:17-1/2 inches (44.5cm) wide, 5-3/8 inches (13.7cm)

high, depth behind front mounting panel is 15 inches (38.1cm)

including clearance for connectors. Panel clearance required in front

of mounting panel is 3/4 inch (1.9cm).

Note: When the DVD/CD tray is opened, the panel clearance required in

front of mounting panel is 6-3/4 inches (17.2cm).

1. The heavy notes on the schematic denote the primary

signal path.

2. Unless otherwise noted, all voltages indicated on the

schematics are measured under the following conditions:

a. AC input at 120 volts, 50/60Hz.

b. All voltages are +/-10% with respect to ground. A

high impedance (10 megaohm) voltmeter must be used.

3. Unless otherwise specified:

a. Resistor values are in ohms.

b. Capacitor values are microfarads (uF).

c. Inductor values are in microhenries (uH).

4. On PC board drawings, Square pad indicates:

a. Polarized Capacitors - Positive

b. Diodes - Cathode

c. Others - Pin 1

5. WARNING

Parts marked with the symbol have critical

characteristics. Use only replacement parts recom-

mended by the manufacturer.

SAFETY INFORMATION

NOTES

CAUTION: The use of optical instruments with this

product will increase eye hazard.

Invisible laser radiation is emitted from the optical

pickup lens when the unit is turned on.

1. Do not look directly into the pickup lens.

2. Do not use optical instruments to look at the pickup

lens.

3. Do not adjust the preset variable resistor on the

optical pickup.

4. Do not disassemble the optical pickup unit.

5. Use of controls or adjustment or performance of

procedures other than those specified herein may

result in hazardous radiation exposure.

6. Replace optical pickup only with manufacturers

specified type.

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

VAROITUS! Laitteen kayttaminen muulla kuin tassa

kayttoohjeessa mainitulla tavalla saattaa altistaa

kayttajan turvallisuusluokan 1 ylittavalle

nakymattomalle lasersateiiylle.

VARNING! Om apparaten anvands pa annat satt an i

denna bruksanvisning specificerats, kan anvandaren

utsattas for osynbg laserstraining, som overskrider

gransen for laserklass 1.

Laser output: 0.65mW

Wavelength: 665nm

This product utilizes an embedded class 2 laser (CFR).

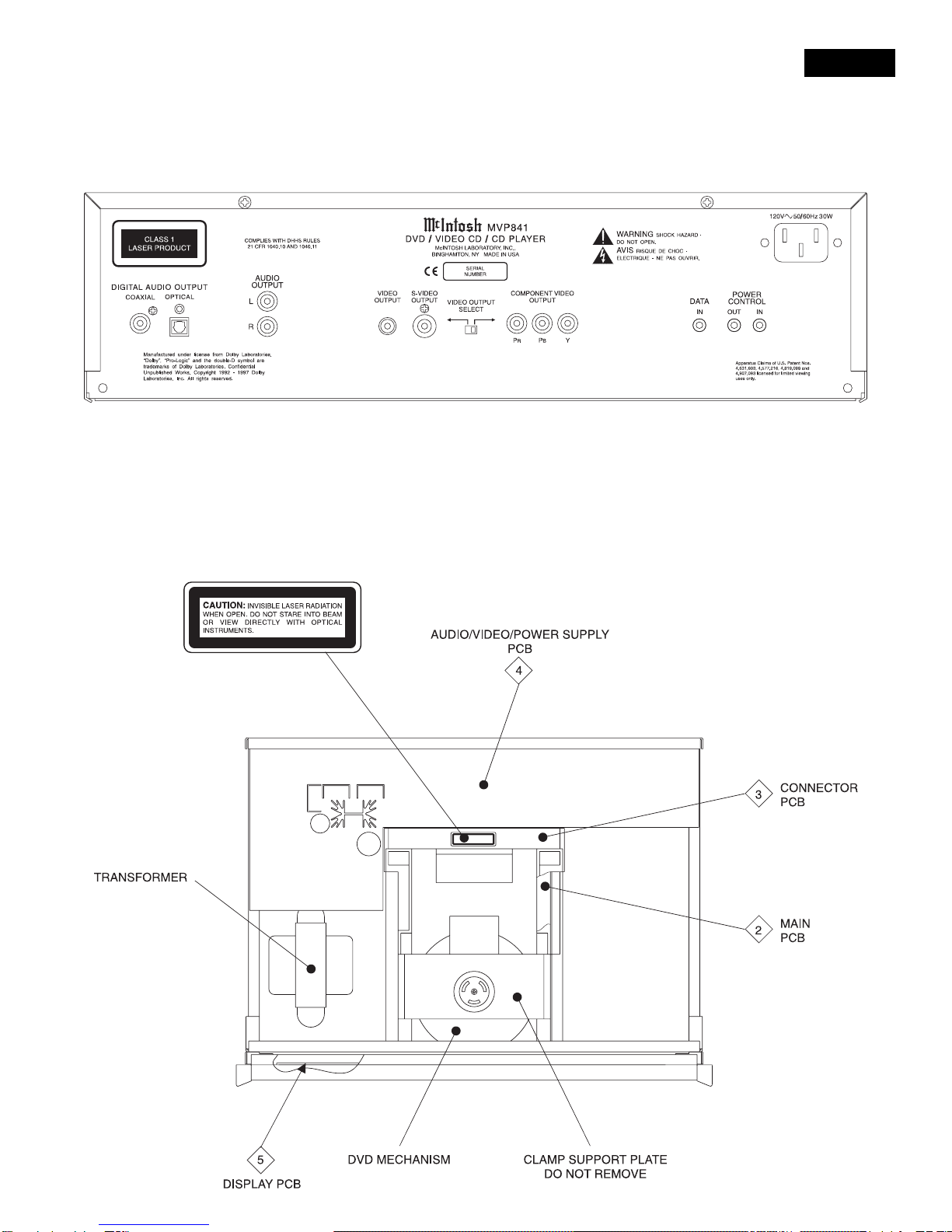

REAR PANEL

SECTION LOCATIONS

TOPVIEW WITH COVER REMOVED

MVP841

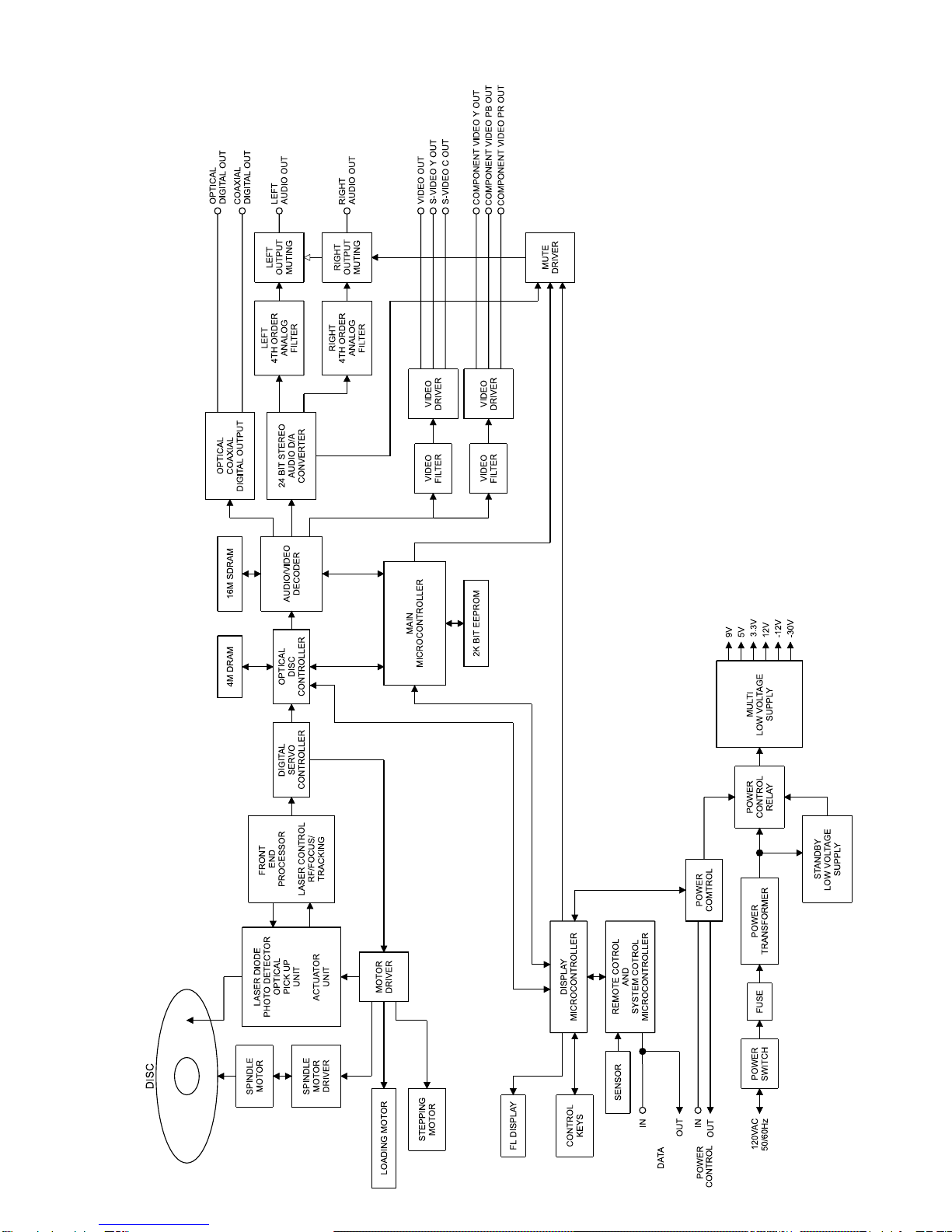

BLOCK DIAGRAM

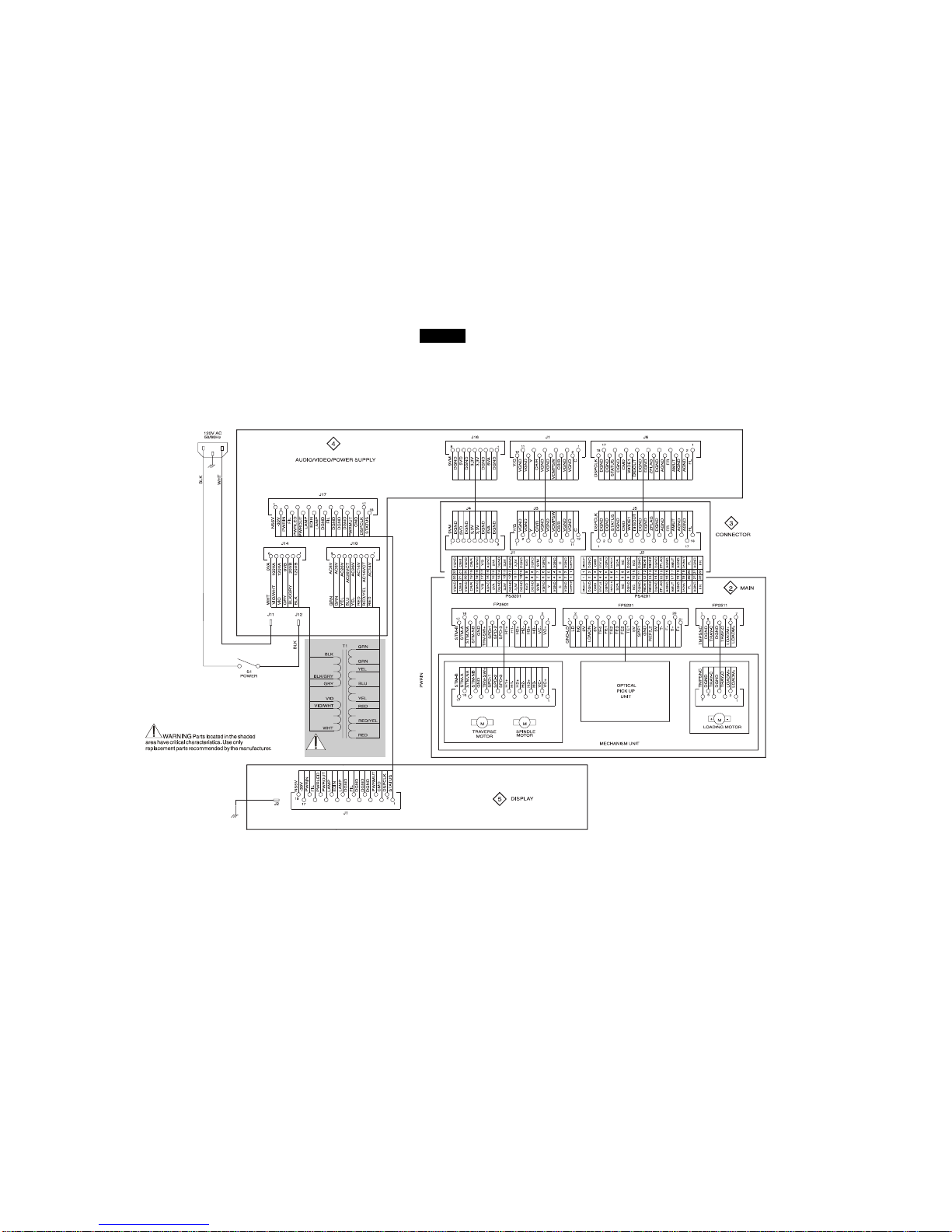

INTERCONNECT

MVP841

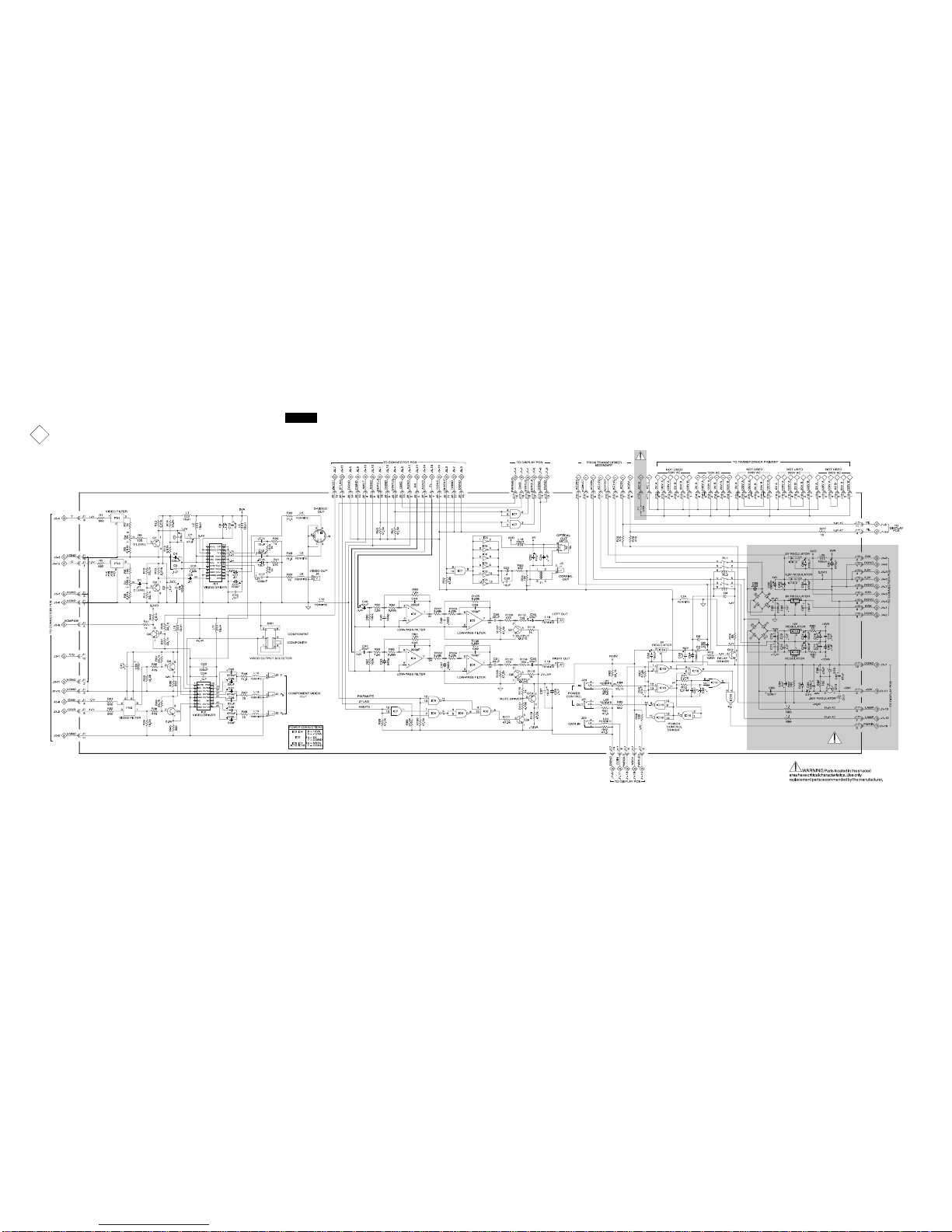

MAIN

320096

CONNECTOR

049413

911

A/V POWER SUPPLY

049415

MVP841

12 14

A/V POWER SUPPLY

049415

15 16

DISPLAY

049414

MVP841

17 18

DISPLAY

049414

19 20

MVP841

PARTS LIST

PART NO. DESCRIPTION REFERENCE NO.

049413 CONNECTOR PCB

117244 FRICTION LK CONN 9POS MALE J4

117720 12PIN FFC CONNECTOR J3

117764 22 PIN CONNECTOR 2MM PITCH J1 J2

117765 FFC CONNECTOR 18PIN J5

049415 AUDIO/VIDEO/POWER SUPPLY PCB

058157 FIBER OPTIC TRANSMITTER OPT1

061300 MONO CAP 100PF 100V 5% NPO T&R C48 C49

061301 MONO CAP 220PF 100V 5% NPO T&R C44 C45

061304 MONO CAP .01UF 50V 5% X 7R T&R C56

061305 MONO CAP .1UF 50V 5% Z50 T&R C2 C5 C9 C13 C21 C24

C34 C38 C53 C63 C66

C72 C73 C79 C80 C84

064297 CAP POLY 560PF 5% 160VDC C42 C43

064304 CAP MPOLY .0022UF 5% 63/400VDC C46 C47

064312 CAP M POLY .01UF 5% 63VDC C1 C8 C11

064325 CAP M POLY .1UF 5% 63VDC C31 C57 C58

064427 CAP MPOLY .033UF 100V 10% C55 C68

066254 CAP ELECT 220UF 50V 20% C83 C85

066445 CAP ELECT 10UF 50V C10 C14 C16 C32 C37

C77 C76

066446 CAP ELECT 47UF 35V C7 C33 C86 C87

066447 CAP ELECT 100UF 16V C4 C6 C12 C22 C23 C52

C67 C74 C75

066460 CAP ELECT 18000UF 16V C62

066506 CAP ELECT 22UF 100V C26 C28 C30 C35 C36

C40 C41 C50 C51

066508 CAP ELECT 470UF 16V C3 C25 C27 C29 C60 C61

C64

066509 CAP ELECT 3300UF 35V C65

066513 CAP ELECT 1000UF 25V C15 C17 C54 C70 C71

070047 DIODE SILICON D4

070085 DIODE ZENER 6.2V 5% 500MW D17

070126 DIODE 200V 3A D5 D6 D7 D8

070131 DIODE RECTIFIER D2 D3 D9 D10 D11 D12

D13 D14

070161 ZENER DIODE 30V 1/2W 5% D16

076019 LEADED FERRITE BEADS L4 L5 L6 L12 L13 L14 L15

L18 L19 L21 L22 L23 L24

087059 RELAY RL1 RL2

089093 FUSE 1/4A 250V SB 5X20 IEC F1

117244 FRICTION LK CONN 9POS MALE J16

117417 MINI DIN CONNECTOR J3

117436 PJ261G PHON JACK, GOLD J7

117451 PH/JACK GL PL BLK M7008 J5

117572 PHONO JACK YELLOW GOLD FLASHED J4

117708 FASTON BLADE W/FEET J11 J12

117717 MTA-156 HEADER 8PIN J10

117719 PCB MOUNT POWER CONNECTOR RED J14

117720 12PIN FFC CONNECTOR J1

117721 RCA JACK 3P RED-BLU-GRN J2

117759 STEREO 1/8 HEAD PHONE JACK J20 J21 J22

117765 FFC CONNECTOR 18PIN J6 J17

122224 CHOKE 18UH 5%-10% L1 L2 L3 L10 L11 L16

122312 POWER INDUCTOR 100UH L25

132171 TRANSISTOR NPN Q12

132172 TRANSISTOR SI PNP MPSA55 Q13

132223 TRANSISTOR NPN MPS4124 2K/REEL Q3 Q4 Q5 Q9

132224 TRANSISTOR PNP Q1 Q2 Q10

132257 TRANSISTOR SI NPN Q7 Q8

133094 IC DUAL OPERATIONAL AMPLIFIER IC3 IC4

133155 IC REGULATOR -12V IC13

133156 IC REGULATOR 12V IC12

133161 74HC00N NAND 2 INPUT X 4 IC6 IC16

133173 MC74HCU04N HEX UNBUF INVERTER IC5

133250 IC REGULATOR 5V IC14

133340 VOLTAGE REGULATOR 9V 1.5A IC11

133365 IC 5V 1.5A REGULATOR LOW DROP IC9

133371 TRIPLE VIDEO DRIVER IC2

133372 QUAD AND GATE IC7

133387 QUAD 2 INPUT EXCLUSIVE OR GATE IC15

133393 IC 3.3V LOW DROPOUT REGULATOR IC10

134388 TRIM POT 2K OHM HORIZ. R4

134396 POT: 500 OHMS,20%,LINEAR R7

137002 RES FP 1.1 OHM 1/4W 5% R83 R84

137025 FLAMEPROOF RES: 10 OHMS 5% 1/4W R77

141208 RES CF 68 5% 1/2W R74

144015 RES MF 33.2K 1% 1/4W R14

144053 RES MF 10K 1% 1/4W R82 R85

144086 RES MF 475 1% 1/4W R21 R35 R36 R75 R76

R109 R110

144090 RES MF 1K 1% 1/4W R3 R18 R19 R20 R41

R113 R115 R116

144096 RES MF 4.02K 1% 1/4W R103 R104

144097 RES MF 4.75K 1% 1/4W R117

144099 RES 6.98K 1% 1/4W R105 R106

144108 RES MF 47.5K 1% 1/4W R50 R51 R52 R67 R98

R99 R100 R107 R108

R111 R118

144113 RES MF 100K 1% 1/4W R90 R91

144157 RES MF 10 1% 1/4W R80 R81

144181 RES MF 18.2K 1% 1/4W R33 R34

144187 RES MF 22.1K 1% 1/4W R10 R11 R26 R27 R37

R38 R63 R64

144196 RES MF 100 1% 1/4W R6 R9 R54 R112 R114

144198 MF RES 3920 OHM 1% 1/4W R73

144210 RES MF 7.5K 1% 1/4W R92 R93 R96 R97

144265 RES MF 2.21M 1/4W R72

144296 RES MF 1.82K 1% 1/4W R16

144297 RES MF 6.81K 1% 1/4W R5 R15 R42

144298 RES MF 2.21K 1% 1/4W R8 R12 R13 R71

144407 METAL FILM RES. 71.5 1/4W 1% R22 R23 R46

144408 MF RES 562 OHM 1% 1/4W R1 R2 R31 R32 R65

144442 RES MF 47.5 1% 1/4W R60 R61 R62

144444 METAL FILM RES 75 1% 1/4W R24 R47 R48

144446 METAL FILM RES 332 OHM 1/4W R39 R40 R53 R68

144448 METAL FILM RES 3.48K OHM 1/4W R101 R102

144449 METAL FILM RES 6.65K OHM 1/4W R94 R95

148059 SLIDE SWITCH SW1

159285 DIGITAL INTERFACE TRANSFORMER T1

310297 VIDEO DRIVER IC1

310299 Y-LOWPASS FILTER FN1

310300 C-BANDPASS FILTER FN2

310303 DUAL VIDEO LOW PASS FILTER FN3

049414 DISPLAY PCB

058153 INCANDESCENT LAMP 14V 100MA DS1 DS2 DS3 DS4

061304 MONO CAP .01UF 50V 5% X 7R T&R C12 C13 C14

061305 MONO CAP .1UF 50V 5% Z50 T&R C1 C3 C7 C9 C15

064312 CAP M POLY .01UF 5% 63VDC C11

066380 CAP ELECT 47UF 16V (6.3X5CASE) C2 C8

066382 CAP ELECT 10UF 16V (4X5 CASE) C4 C6

066437 CAP ELECT 10UF 50V LOW ESR C10

070047 DIODE SILICON D1 D2 D3 D4 D5 D6 D7

070093 LED LAMP RED DS5

117708 FASTON BLADE W/FEET J2

117765 FFC CONNECTOR 18PIN J1

121041 IR RECEIVER SEN1

122224 CHOKE 18UH 5%-10% L1

131022 600V TRIAC DRIVER OPTOCOUPLER Q6

132223 TRANSISTOR NPN MPS4124 2K/REEL Q1

133161 74HC00N NAND 2 INPUT X 4 IC5

133240 PST572E MICROPRCSSR RESET NEG IC3

133241 IC MICROPRCSSR RESET POS IC1

133341 PROGRAMMED VERSION OF 133292 IC2

144053 RES MF 10K 1% 1/4W R9 R11 R30 R31 R32 R34

144086 RES MF 475 1% 1/4W R18

144089 RES MF 806 1% 1/4W R40 R41 R42

144090 RES MF 1K 1% 1/4W R5 R43 R44 R45

144108 RES MF 47.5K 1% 1/4W R6 R7 R20 R28 R29 R33

144128 RES MF 1.5K 1% 1/4W R47

144157 RES MF 10 1% 1/4W R8 R12

144160 RES MF 22.1 1% 1/4W R1 R2 R3 R4

144172 RES MF 221 1% 1/4W R13 R14 R15 R16

144191 RES MF 1.21K 1% 1/4W R17 R46

144250 RES NETWORK 9 X 47K BUS R21

144296 RES MF 1.82K 1% 1/4W R48

144446 METAL FILM RES. 332 OOHM 1/4W R10

144450 RESISTOR NETWORK 100KB R22

150058 TACT SWITCH S1 S2 S3 S4 S5 S6 S7 S8

180039 CERAM RESON 6.0MHZ W/CAP Y1

180049 CERAMIC RESONATOR 8MHZ Y2

310290 DVD CONTROL MCU IC4

EXPLODEDVIEW AND PARTS LIST

1 016422 FRONT PANEL GLASS

2 171264 C/A POWER SWITCH

3 017531 PUSHBUTTON ASSY RED

4 017517 PUSHBUTTON ASSY BLACK

5 017781 FRONT BEZEL

6 078033 O-RING

7 018611 END CAP

8 101042 TS 4-40 X 1/2 SLOT FILLISTER

9 094360 FOAM TAPE 1/2” X 1/2”

10 005090 EXTRUSION BRACKET

11 018588 BOTTOM EXTRUSION

12 100147 MS 6-32 X 3/16 PHIL FLAT U/C

13 018585 TOP EXTRUSION

14 017779 PRINTED CIRCUIT GUIDES

15 017755 PLEXIGLAS/LOGO

16 017807 PLEXIGLAS RIGHT

17 017782 PLEXIGLAS LEFT

18 092419 DISPLAY FILTER

19 049414 DISPLAY PCB ASSY

20 058153 INCANDESCENT LAMP

21 101196 SEMS TS 6–32 X 1/4 PHIL PAN

22 005085 SUBPANEL

23 101054 TS 6-32 X 1/4 PH PAN TAPTITE BLK

24 005089 RIGHT ZEE BRACKET

25 005088 LEFT ZEE BRACKET

26 102003 MACH NUT 6-32 W/LOCK

27 005087 PCB CONNECTOR BRACKET

28 049413 CONNECTOR PCB ASSY

29 320096 DVD PLAYER MECHANISM ASSY

30 017808 DVD DOOR MOLDING

31 100300 SEMS 6-32 X 1” PHIL PAN

32 100299 SEMS 6-32 X 1/2 PHIL PAN

33 005084 CHASSIS

34 019056 SPRING

35 100180 MS 6-32 X 1/8 PHIL PAN ZINC

36 159286 POWER TRANSFORMER

37 112083 STANDOFF 6-32 X 1.250

38 017518 CABLE TIE HOLDER

39 017218 PLASTIC FEET-BLACK

40 104083 WASHER #10 FLAT STEEL PLAT

41 100159 MS 10-32 X 3/4 PH PAN BLK ZINC

42 049415 AV-PWR PCB ASSY

43 005086 REAR PANEL

44 117755 INPUT RECEPTACLE AND LINE FILTER

45 102001 KEP NUT 4-40 CADMIUM PLATE

46 102020 MACH NUT 6-32 SELF-LOCK

47 101197 HI/LO 4-24 X 3/8 PH ROUND BLACK

48 005102 TOP COVER

49 101078 TS 8-32 X 5/16 PHIL PAN BLK

50 094017 FOAM TAPE 1/4” X 1/4”

Part

No. DescriptionRef

No.

REPACKING INSTRUCTIONS

SERVICE MANUAL

The continuous improvement of it’s products is the policy of McIntosh Laboratory Incorporated, who reserve the right to improve design without notice.

Because of the constant upgrading of McIntosh products’ circuitry and components, the Company cannot insure, and does not warrant, the accuracy of the

within schematic material, which is intended for information only.
