SERVICE MANUAL
Performance Specifications ........................................ 2
Notes ......................................................................... 3
Safety Information ..................................................... 4
Rear Panel .................................................................. 5
Section Location ........................................................ 5
BlockDiagram ........................................................... 6
Interconnection Diagram ...................................... 7 - 8
A/V/Power Supply Schematic and PCB ............... 9 - 14
Mechanism....................................................... 15 - 16
Module............................................................. 15 - 16
Display Schematic and PCB .............................. 17 - 20
Parts List ............................................................ 19 - 22
ExplodedView and Parts List ............................. 23 - 24

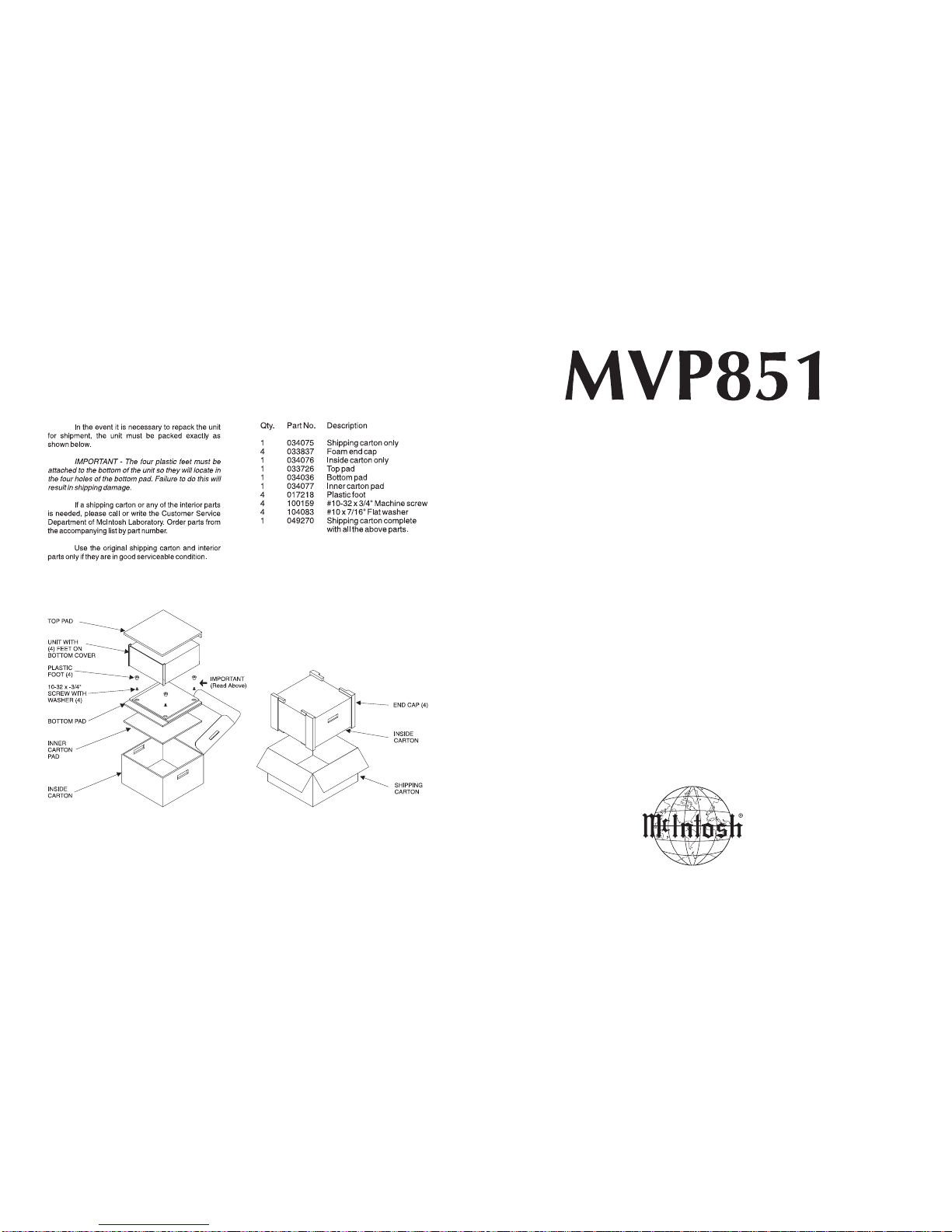

Repacking Instructions ............................................. 25
CONTENTS
DVD AUDIO/VIDEO
PLAYER

PERFORMANCE SPECIFICATIONS
AudioSpecifications
Number of Channels
2 and 5.1
Output Level
2.0Vrms Balanced (2 Channel Output)
2.0Vrms Unbalanced (2 Channel Output and 5.1 Channels)
Output Impedance
600 ohms Balanced (2 Channel Output)
600 ohms Unbalanced (2 Channel Output and 5.1 Channels)
Audio Frequency Response (DVD-Video)
4Hz to 22,000Hz (48kHz Sampling, Linear Audio)
4Hz to 44,000Hz (96kHz Sampling, Linear Audio)
Audio Frequency Response (DVD-Audio)
4Hz to 88,000Hz (192kHz Sampling)
CD Frequency Response
4Hz to 20,000Hz
CD Signal to Noise Ratio
Better than 100dB (A-weighted)
Dynamic Range (DVD)
Better than 100dB (Linear Audio)
Dynamic Range (CD)
Better than 98dB
Harmonic Distortion
0.003% (1,000Hz)
Channel Separation
Better than 110dB (1,000Hz)
VideoSpecifications
Signal System
NTSC
Component Video Output Level
Y Output Level 1.0Vp-p (75 ohm)
PBOutput Level 0.7Vp-p (75 ohm)
PROutput Level 0.7Vp-p (75 ohm)
S-Video Y Output Level
1Vp-p (75 ohm)
S-Video C Output Level
0.286Vp-p (75 ohm) (NTSC)
Video Output Level
1Vp-p (75 ohm)
GeneralSpecifications
Digital Output
Optical: -15dbm to –21dbm
Coaxial: 0.5V p-p/75 ohm
Digital Signal Format
Sampling Frequencies: 44,100Hz, 48,000Hz and 96,000Hz
Transport
Laser Beam Wavelength: 658nm/790nm
Laser Power: CLASS IIa/ CLASS I
Power Requirements
100 Volts, 50/60Hz at 30 watts
110 Volts, 50/60Hz at 30 watts
120 Volts, 50/60Hz at 30 watts
220 Volts, 50/60Hz at 30 watts
230 Volts, 50/60Hz at 30 watts
240 Volts, 50/60Hz at 30 watts
Note: Refer to the rear panel of the MVP851 for the correct voltage.
Overall Dimensions
Front Panel: 17-1/2 inches (44.5cm) wide, 5-3/8 inches (13.7cm)
high. Depth behind front mounting panel is 15 inches (38.1cm)
includingclearanceforconnectors. Panelclearance requiredin
front of mounting panel is 3/4 inch (1.9cm).
Note: When the DVD/CD tray is opened, the panel clearance
required in front of mounting panel is 6-3/4 inches (17.2cm).
Weight
20 pounds (9.1kg) net, 34 pounds (15.4kg) in shipping carton
2

1. The heavy notes on the schematic denote the primary
signal path.
2. Unless otherwise noted, all voltages indicated on the
schematics are measured under the following conditions:
a. ACinputat120volts,50/60Hz.
b. All voltages are +/-10% with respect to ground. A
high impedance (10 megaohm) voltmeter must be used.
3. Unless otherwise specified:
a. Resistor values are in ohms.
b. Capacitorvaluesaremicrofarads(uF).
c. Inductor values are in microhenries (uH).
4. On PC board drawings, Square pad indicates:
a. PolarizedCapacitors-Positive
b. Diodes - Cathode
c. Others - Pin 1
5. WARNING
Parts marked with the symbol have critical
characteristics. Use only replacement parts recom-
mended by the manufacturer.
6. Use McIntosh Remote Control Model HR040 with the
MVP851.
NOTES
SAFETY INFORMATION
CAUTION: The use of optical instruments with this
product will increase eye hazard.
This product utilizes a Class I laser. Invisible laser
radiation is emitted from the optical pickup lens when the
unit is turned on.
1. Do not look directly into the pickup lens.
2. Do not use optical instruments to look at the pickup
lens.
3. Do not adjust the preset variable resistor on the
opticalpickup.
4. Do not disassemble the optical pickup unit.
5. Use of controls or adjustment or performance of
procedures other than those specified herein may
result in hazardous radiation exposure.
6. Replace optical pickup only with manufacturers
specified type.
Laser output: CLASSIIa/CLASSI
Wavelength: 658nm/790nm
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
VAROITUS! Laitteen kayttaminen muulla kuin tassa
kayttoohjeessa mainitulla tavalla saattaa altistaa
kayttajan turvallisuusluokan 1 ylittavalle
nakymattomalle lasersateiiylle.
VARNING! Om apparaten anvands pa annat satt an
i denna bruksanvisning specificerats, kan anvandaren
utsattas for osynbg laserstraining, som overskrider
gransen for laserklass 1.
ThisproductutilizesanembeddedClassIIalaser(IEC825).
3
MVP851

4
NOTES

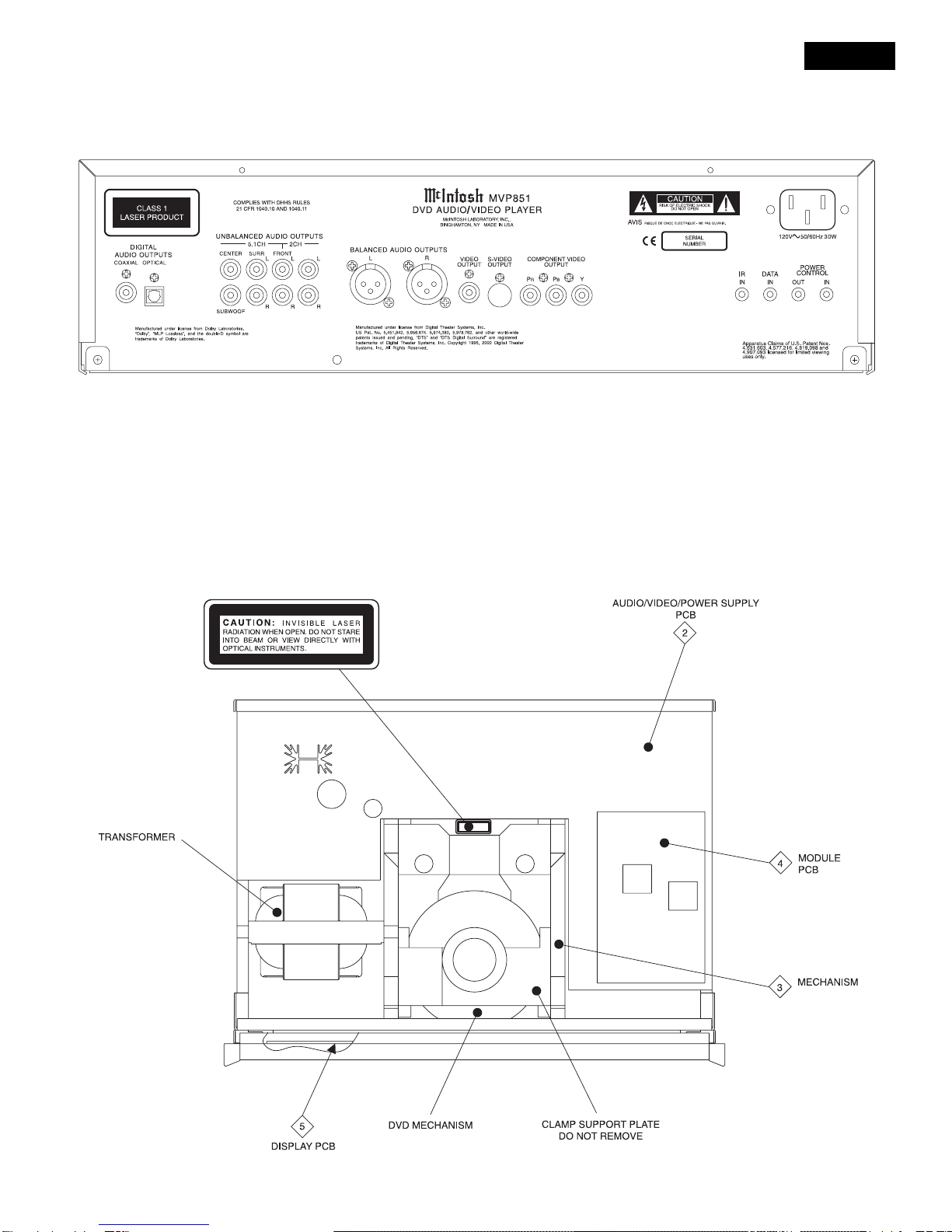

REAR PANEL
SECTION LOCATIONS
TOPVIEW WITH COVER REMOVED
5
MVP851

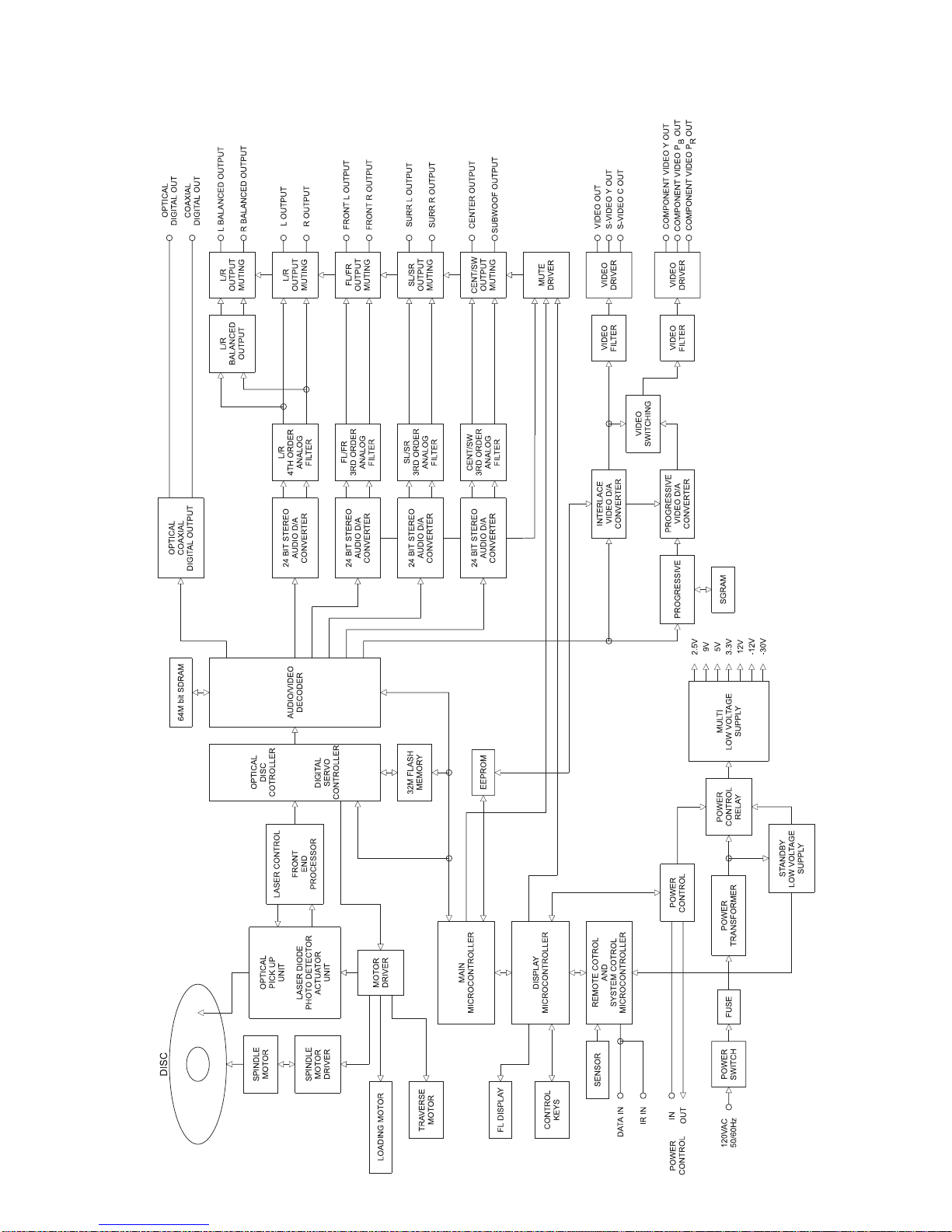

BLOCK DIAGRAM
6

7 8

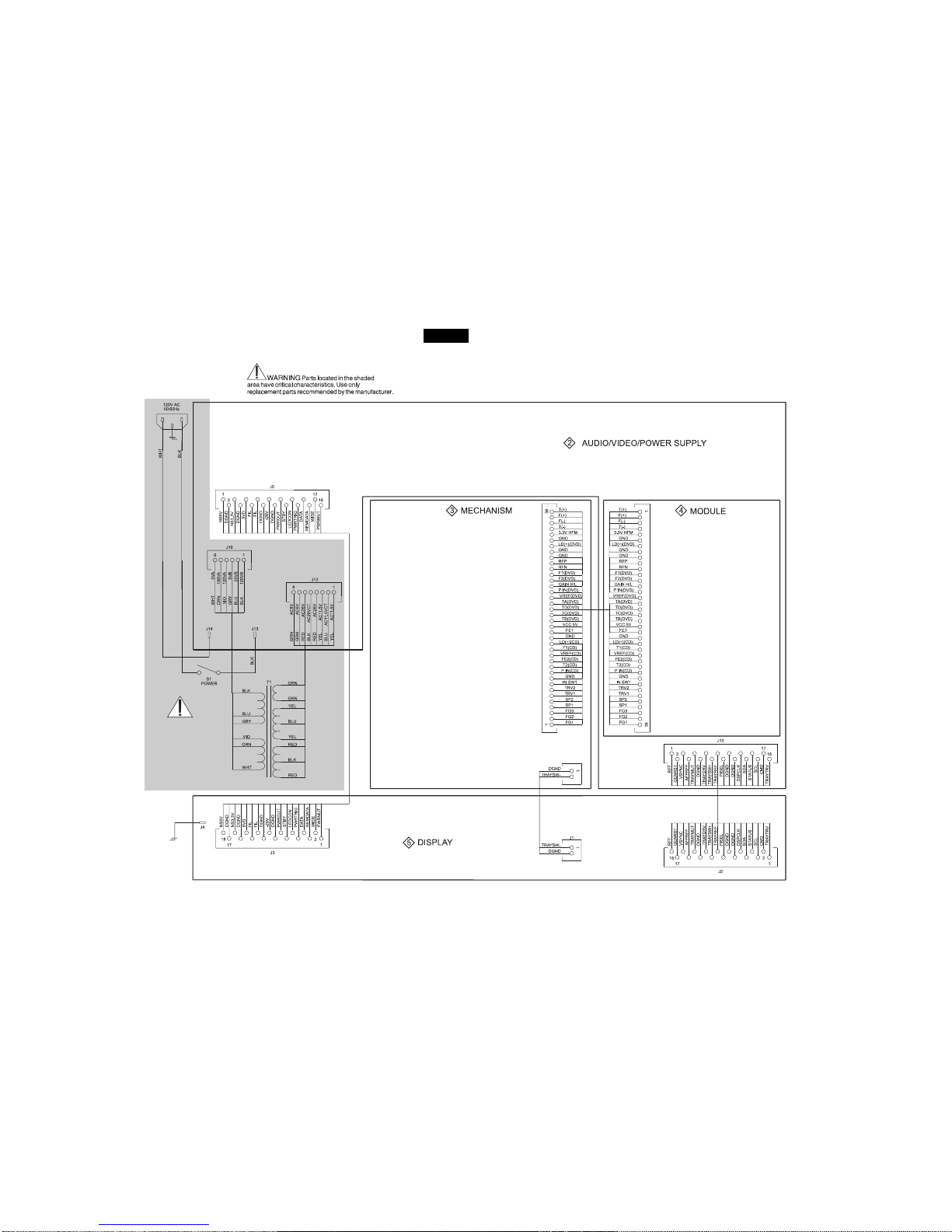

INTERCONNECT
MVP851

910

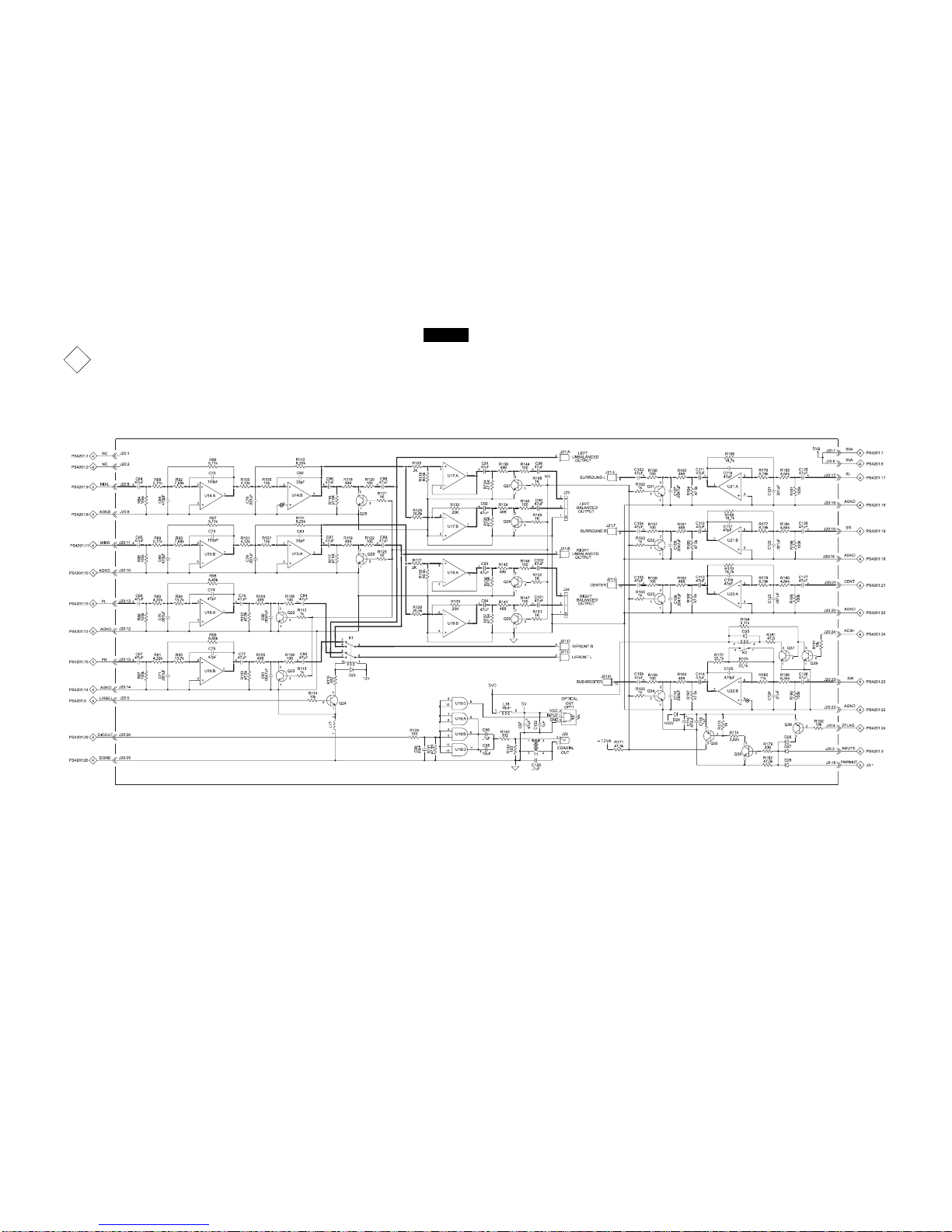

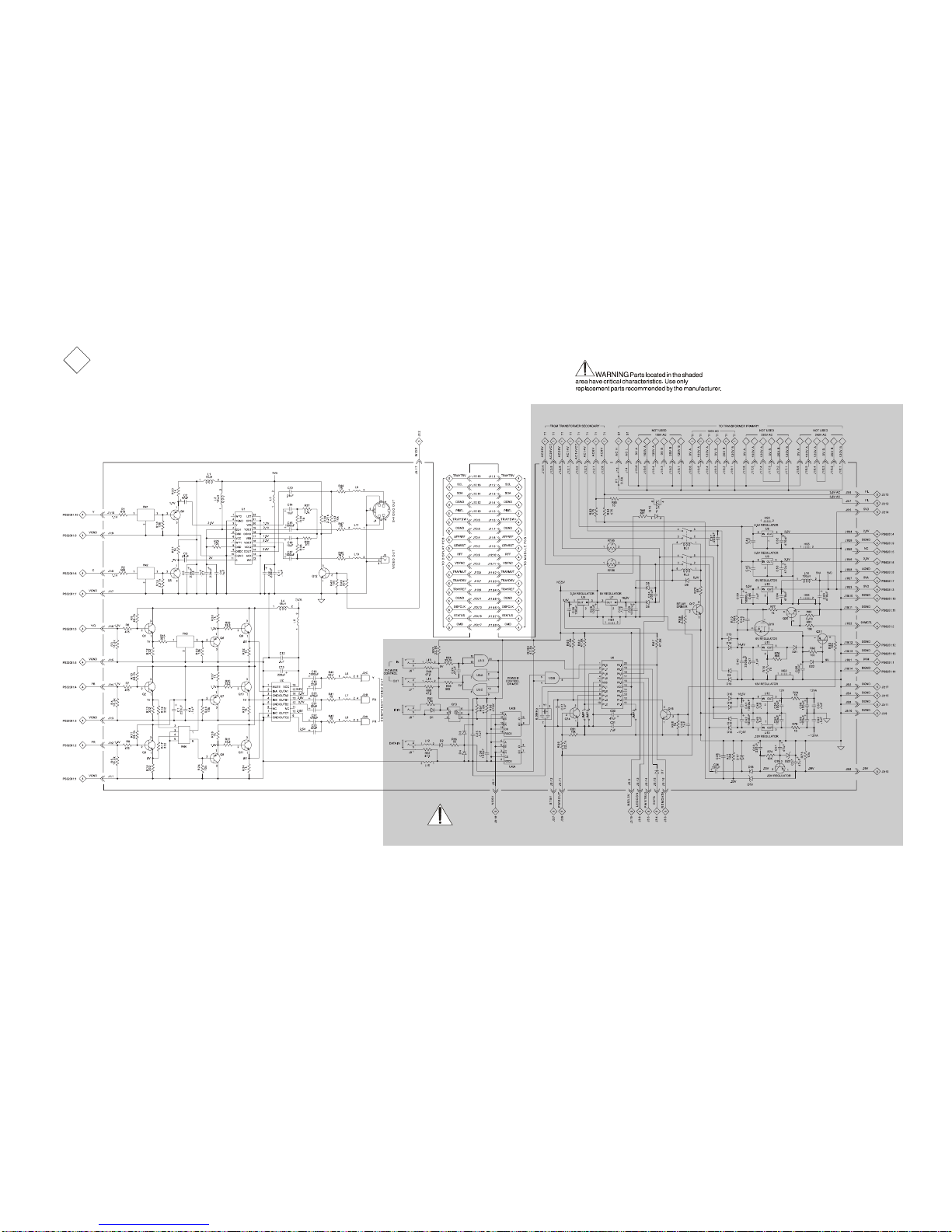

AUDIO/VIDEO/POWER SUPPLY 049773
2

AUDIO/VIDEO POWER SUPPLY 049773
2
MVP851
11 12

AUDIO/VIDEO POWER SUPPLY 049773
2
13 14

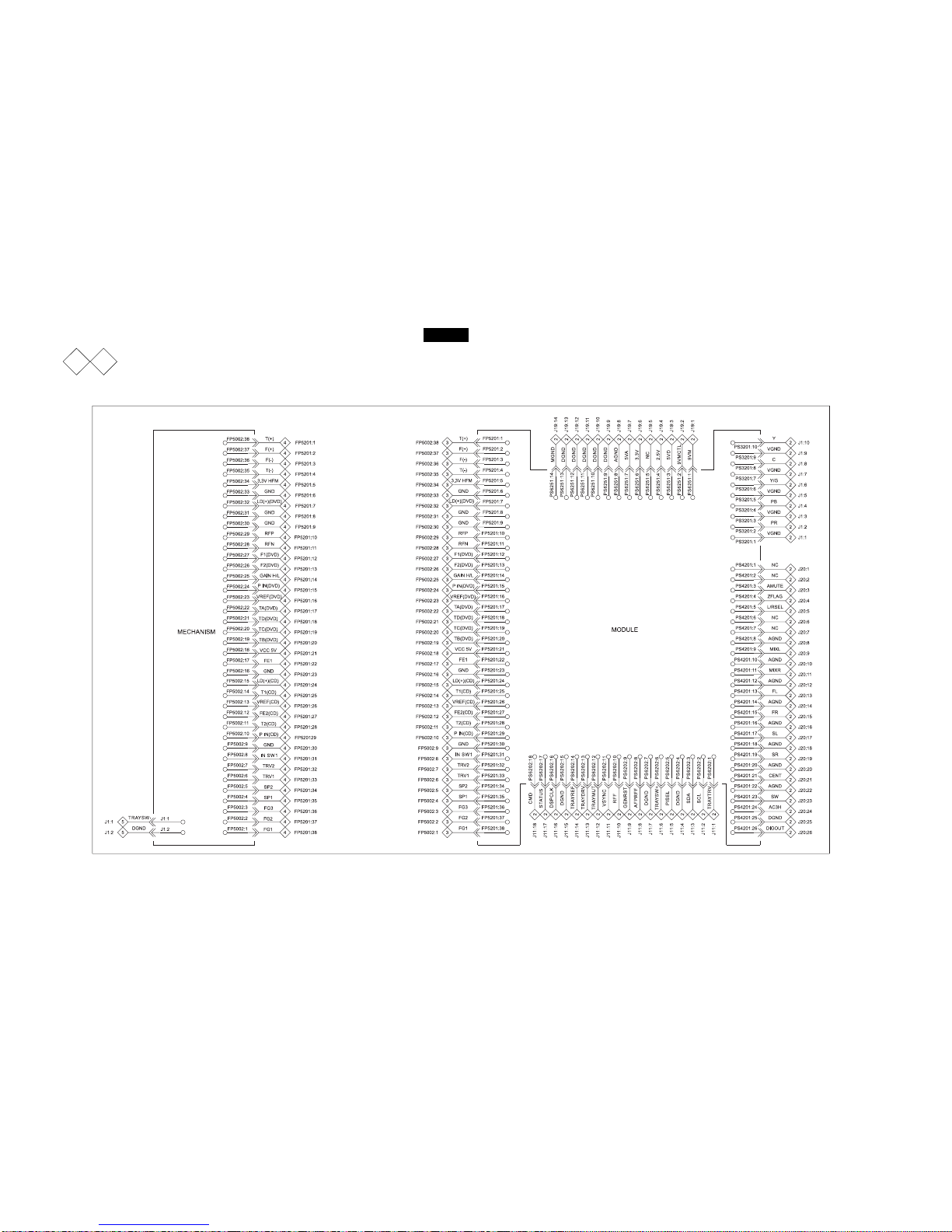

MECHANISM 320119 AND MODULE 320118
3
15 16
4
MVP851

17 18

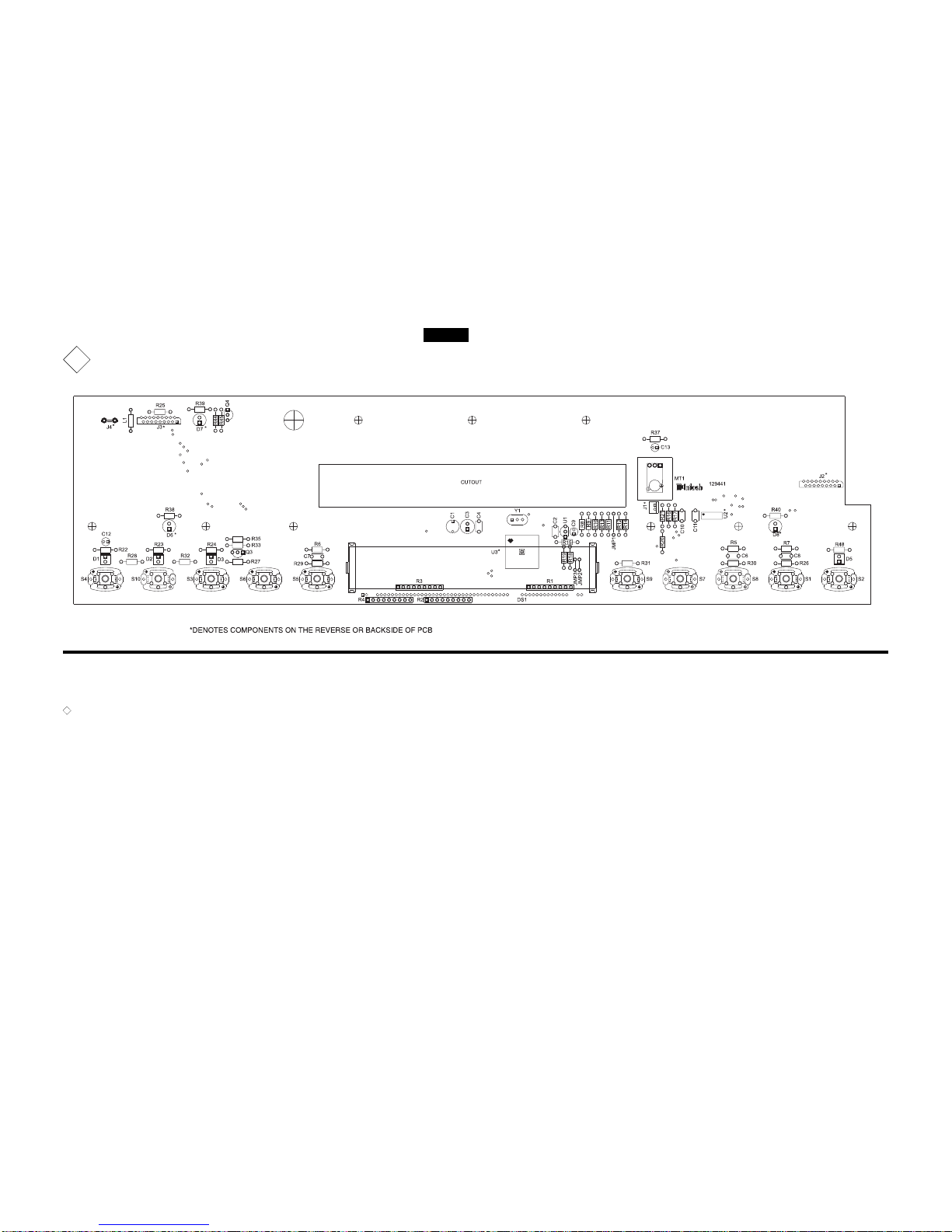

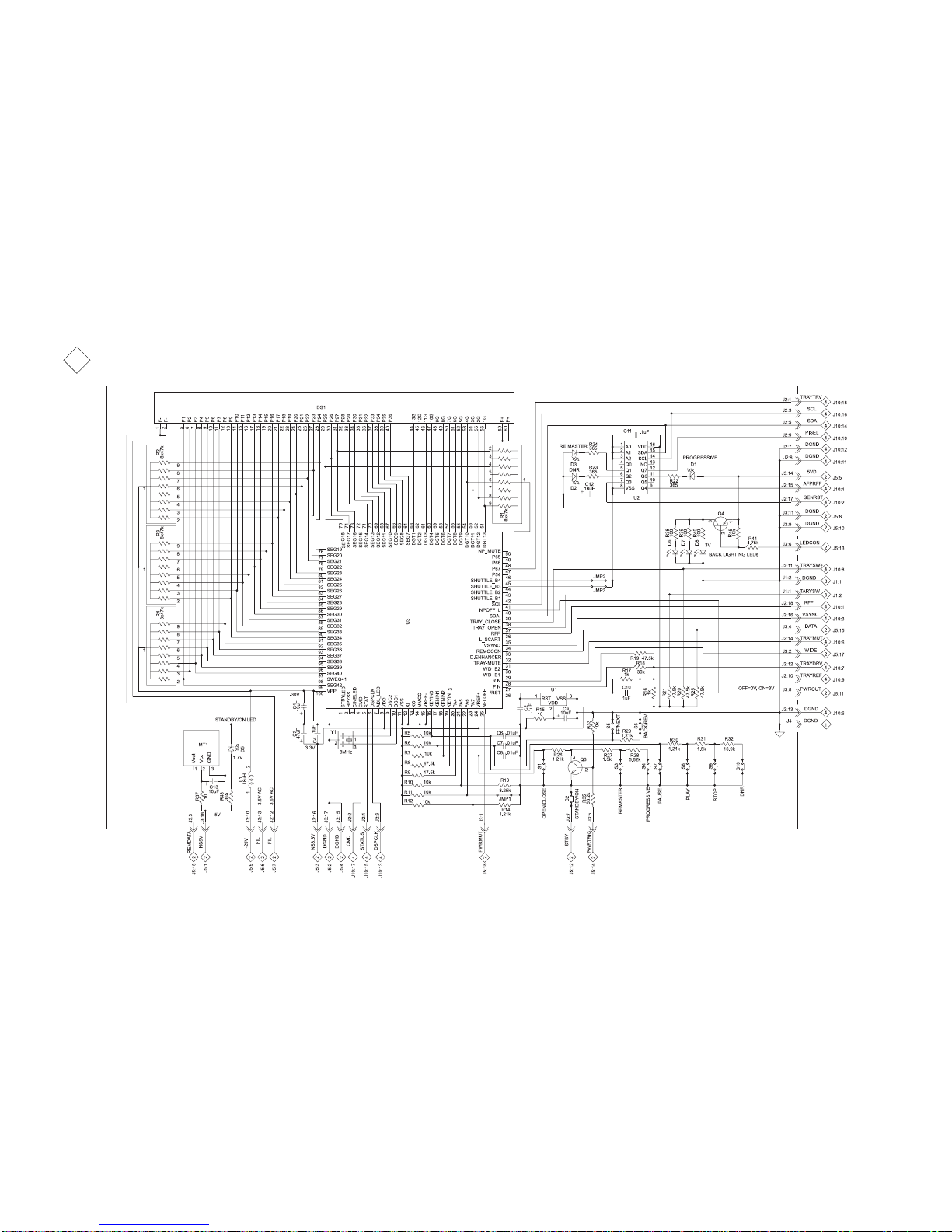

DISPLAY 049774
5

19 20
DISPLAY 049774
5
AUDIO/VIDEO/POWER SUPPLY 049773
C1 C5 C7 C9 C13 CAP ELECT 220UF 25V 06650700
C2 C30 C51 C57 C76 C77 C84 C85 C86 CAP ELECT 47UF 35V 06644600
C3 C10 C124 CAP MPF 0.01UF 5% 63VDC 06431200
C4 C6 C8 C11 C12 C25 C27 C31 C32 C35 CAP MONO .1UF 50V 20% Z5U 06130500
C14 C16 C95 CAP ELECT 10UF 50V 06644500
C15 C17 C18 C33 C41 C42 CAP ELECT 1000UF 25V 06651300
C19 C21 C23 CAP ELECT 22UF 100V 06650600
C20 C22 C52 C53 C54 C63 C115 CAP ELECT 470UF 16V 06650800
C24 CAP MONO .01UF 50V 20% X7R 06130400
C26 CAP MONO 100PF 100V 10% NPO 06130000
C28 C29 C55 C56 C58 C59 C60 CAP ELECT 100UF 16V OR 25V 06644700
C34 C37 CAP MPF 0.033UF 100V 10% 06442700
C36 C50 CAP ELECT 220UF 50V 20% 06625400
C38 C43 C44 C45 C46 C47 C48 C49 C61 CAP MONO .1UF 50V 20% Z5U 06130500
C39 CAP ELECT 18000UF 16V 06646000
C40 CAP ELECT 3300UF 35V 06636000
C62 C102 C116 C129 CAP MONO .1UF 50V 20% Z5U 06130500
C64 C65 C66 C67 C125 C126 C127 C128 CAP ELECT 47UF 16V 6.3X5 CASE 06638000
C68 C69 C120 CAP MONO 470PF 100V 10% NPO 06130200
C70 C71 C78 C79 C121 C122 C123 CAP PF 0.001UF 5% 63VDC 06430000
C72 C73 CAP MONO 150PF 200V 5% 06131000
C74 C75 C117 C118 C119 CAP MONO 47PF 200V 10% NPO 06129900
C80 C81 C107 C108 C109 CAP MPF 0.0047UF 5% 63VDC 06430800
C82 C83 C90 CAP MONO 33PF 200V 5%NPO T&R 06130700
C87 C88 C89 C91 C92 C93 C94 C97 C98 CAP ELECT 47UF 35V 06644600
C96 CAP MPF 0.1UF 5% 63VDC 06432500
C99 C100 C101 C103 C104 C105 C106 CAP ELECT 47UF 35V 06644600
C110 CAP MPF 0.068UF 5% 63VDC 06432300
C111 C112 C113 C114 CAP ELECT 47UF 35V 06644600
D1 D2 D3 D4 D7 D8 D23 D24 D25 D26 DIODESILICON 07004700
D5 D6 D11 D12 D15 D16 D17 D18 D21 D22 DIODE RECTIFIER 07013100
D9 D10 D13 D14 DIODE 200V 3A 07012600
D19 DIODE ZENER 6.2V 5% 500MW 07008500
D20 DIODE ZENER 30V 1/2W 5% 07016100
D27 D28 DIODE SILICON 07004700
F1 FUSE 0.5A SLO-BLO 5X20 IEC 08909200
F1 HOLDER FUSE 5X20MM PCB MOUNT 17815900
FN1 FILTER VIDEO Y 31032600
FN2 FILTER VIDEO C 31032700
FN3 FILTERVIDEO Y/G 31032800
FN4 FILTER VIDEO B/R 31032900
HS1 HS2 HS4 HS5 HEATSINK TO-220 08001600
HS3 HEATSINK TO-220 08001700
J1 HEADER 10 POSITION 11780500
J2 JACK RCA 3 POS R-B-G 11780300
J3 JACK RCA YELLOW 11780200
J4 CONN MINI DIN 11741700
J5 J10 CONN FFC 18PIN 11776500
PARTS LIST
Part No.
Description
Ref No.
2
MVP851

21 22
PARTS LIST con’t
J6 J7 J8 J9 JACK HEADPHONE STEREO 1/8IN 11775900
J11 HEADER 18 POSITION 11780700
J12 HEADER 8 PIN MTA-156 11771700
J13 J14 BLADEFASTONW/FEET 11770800
J16 CONN PCB MOUNT POWER RED 11771900
J19 HEADER 14 POSITION 11780600
J20 CONN 26 PIN 2MM PITCH 11777100
J21 JACK RCA 8 POSITION 11780900
J22 RCA JACK ORANGE WITH GOLD 11779800
J23 J24 RECEPTACLE XLR MALE 11768600
K1 RELAY 9V DPDT 31032400
K2 RELAY REED FORM 1A 5V 500 OHMS 08705000
L1 L2 L4 L18 CHOKE 18UH 5%-10% 12222400
L15 L17 BEADS FERRITE LEADED 07601900
L16 INDUCTOR 100UH POWER 12231200
L3 L5 L6 L7 L8 L9 L10 L11 L12 L13 L14 BEADS FERRITE LEADED 07601900
OPT1 TRANSMITTERFIBEROPTIC 05815700
Q1 Q2 Q3 Q9 Q10 Q11 Q12 Q14 Q16 Q20 TRANSISTOR NPN 2K/REEL 13222300
Q4 Q5 Q6 Q7 Q8 Q21 Q35 Q38 TRANSISTOR PNP 13222400
Q13 COUPLER OPTICAL SCHMITT OUTPUT 13102300
Q15 TRIAC DRIVER OPTOCOUPLER 600V 13102200
Q17 TRANSISTOR NPN SILICON 13217100
Q18 TRANSSTOR P CHANNEL PWR MOSFET 13229300
Q19 TRANSISTOR PNP SILICON 13217200
Q22 Q23 Q25 Q26 Q27 Q28 Q29 Q30 Q31 TRANSISTOR SI NPN 25V 13225700
Q24 Q36 Q37 Q39 TRANSISTOR NPN 2K/REEL 13222300
Q32 Q33 Q34 TRANSISTOR SI NPN 25V 13225700
R1 RES MF 619 1/4W 1% 14448500
R12 R13 R14 R16 R17 R115 R142 RES MF 332 OHM 1% 1/4W 14444600
R15 RES MF 301 1/4W 1% 14448400
R18 R22 R23 R24 R25 R43 R46 R61 R71 RES MF 10K 1% 1/4W 14405300
R19 R39 RES MF 2.21K 1% 1/4W 14429800
R2 R56 RES MF 562 OHM 1% 1/4W 14440800
R3 R4 R5 RES MF 18.2K 1% 1/4W 14418100
R6 R7 R8 R63 R64 RES MF 475 OHM 1% 1/4W 14408600
R9 R10 R11 R53 R54 R59 R172 R175 RES MF 22.1K 1% 1/4W 14418700
R20 R21 R26 R27 R28 R32 R33 R34 R35 RES MF 1K 1% 1/4W 14409000
R29 R30 R31 RES MF 33.2 OHM 1/4W 14444500
R36 R55 R68 R77 R112 R113 R121 R123 RES MF 1K 1% 1/4W 14409000
R37 RES MF 1.1K 1% 1/4W 14409100
R38 RES 511 OHM 1% 1/4W 14412300
R40 RES MF 68.1 OHM 1% 1/4W 14408200
R41 R42 R44 R47 R75 RES MF 75 OHM 1% 1/4W 14444400
R45 RES MF 78.7 OHM 1% 1/4W 14422200
R48 R132 R133 R179 RES MF 20K 1% 1/4W 14410400
R49 R50 R52 R181 RES MF 47.5 OHM 1% 1/4W 14444200
R51 RES MF 1.5K 1% 1/4W 14412800
R57 R60 R62 R67 R102 R103 R116 R117 RES MF 47.5K 1% 1/4W 14410800
R58 RES MF 475K 1% 1/4W 14436400
R65 180046000 OHM 5% 1/4W 13702500
R66 RES MF 681 OHM 1% 1/4W 14419500
R69 RES MF 2.55K 1% 1/4W 14430200
R70 RES CF 68 OHM 5% 1/2W 14120800
R72 R84 R85 R86 R87 R187 R188 R189 RES MF 100K 1% 1/4W 14411300
R73 R74 R81 R83 R106 R107 R114 R191 RES MF 10K 1% 1/4W 14405300
R76 RES MF 866 OHM 1% 1/4W 14402800
R78 R79 RES MF 10 OHM 1% 1/4W 14415700
R80 R88 R89 R96 R97 R194 RES MF 5.11K 1% 1/4W 14408300
R82 R108 R109 R120 R122 R143 R144 RES MF 100 OHM 1% 1/4W 14419600
R90 R91 RES MF 4.22K 1/4W 1% 14447600
R92 R93 RES MF 7.68K 1/4W 1% 14448000
R94 R95 RES MF 13.7K 1% 1/4W 14434200
R98 R99 RES MF 8.45K 1/4W 1% 14448100
R100 R101 RES MF 4.12K 1/4W 1% 14447500
R104 R105 R118 R119 R138 R139 R140 RES MF 499 OHM 1% 1/4W 14408700
R110 R111 RES MF 8.25K 1% 1/4W 14415300
R124 RES MF 150 OHM 1% 1/4W 14412200
R126 R127 RES MF 2K 1% 1/4W 14409400
R126 R128 RES MF 20.5K 1/4W 1% 14448300
R129 R130 RES MF 80.6K 1% 1/4W 14411100
R131 R134 R135 R136 R137 R164 R165 RES MF 47.5K 1% 1/4W 14410800
R141 R160 R161 R162 R163 RES MF 499 OHM 1% 1/4W 14408700
R145 R146 R147 R156 R157 R158 R150 RES MF 100 OHM 1% 1/4W 14419600
R148 R149 R150 R151 R152 R153 R154 RES MF 1K 1% 1/4W 14409000
R155 R173 RES MF 1K 1% 1/4W 14409000
R166 R167 R171 R182 R193 RES MF 47.5K 1% 1/4W 14410800
R168 R169 R170 RES MF 18.7K OHM 1/4W 14438900
R174 RES MF 3920 OHM 1% 1/4W 14419800
R176 R177 R178 RES MF 6.19K 1/4W 1% 14447900
R180 RES MF 11K 1% 1/4W 14410100
R183 R184 R185 RES MF 4.64K 1/4W 1% 14447700
R186 RES MF 6.34K 1% 1/4W 14430600
R190 RES MF 100K 1% 1/4W 14411300
R192 RES MF 10K 1% 1/4W 14405300
R195 R196 RES POLYSWITCH RXE030 14424000
RL1 RL2 RELAY 12VDC DPST 08705900
T1 TRANSFORMER DIGITALINTERFACE 15928500
U1 MODULE VIDEO DRIVER 31029700
U2 IC VIDEO DRIVER TRIPLE 13337100
U3 IC AND 2 INPUT X 4 13317500
U4 IC MONOSTB MULTIVIB X 2 13318200
U5 IC 3.3V LOW DROP REGULATOR 13346400
U6 PROGRAMMED VERSION OF 133336 13346900
U6 SOCKET 20-PIN IC 17812400
U7 IC REGULATOR 5V 13325000
U8 IC 2.5V LOW DROP REGULATOR 13346200
U9 IC REGULATOR 3.3V LOW DROPOUT 13339300
U10 IC REGULATOR 5V 1.5A LOW DROP 13336500
U11 IC VOLTAGE REGULATOR 9V 1.5A 13334000
U12 IC REGULATOR 12V 13315600
U13 IC REGULATOR -12V 13315500
U14 U15 U16 U17 U18 U21 U22 IC DUAL OPERATIONALAMPLIFIER 13326000
U19 IC QUAD AND GATE 13337200
Y1 RESONATOR CERAMIC 6.0MHZ W/CAP 18003900
DISPLAY 049774
C1 CAP ELECT 10UF 50V LOW ESR 06643700
C2 C4 C10 C11 CAP MONO .1UF 50V 20% Z5U 06130500
C3 CAP ELECT 47UF 16V 6.3X5 CASE 06638000
C6 C7 C8 CAP MONO .01UF 50V 20% X7R 06130400
C9 C12 C13 CAP ELECT 10UF 16V 4X5 CASE 06638200
D1 D2 D3 D5 SPACER LED 3/16IN L 01764200
D1 D2 D3 D5 LED SQUARE RED 05810900
D6 D7 D8 LED GRN 5MM HI-INTENSITY 05816500
DS1 DISPLAY VFL DVD 31032300
J1 HEADER 2 POSITION 11780400
J2 J3 CONN FFC 18PIN 11776500
J4 BLADE FASTONW/FEET 11770800
L1 CHOKE 18UH 5%-10% 12222400
MT1 SENSOR IR 38KHZ 12104600
Q3 TRANSISTOR NPN 13222300
Q4 TRANSISTOR PNP 13222400
R1 R2 R3 R4 RES NETWORK 9 X 47K BUS 14425000
R5 R6 R7 R10 R11 R12 R33 R45 RES MF 10K 1% 1/4W 14405300
R8 R9 R19 R20 R21 R25 RES MF 47.5K 1% 1/4W 14410800
R13 RES MF 8.25K 1% 1/4W 14415300
R14 R26 R29 R30 RES MF 1.21K 1% 1/4W 14419100
R15 R37 RES MF 10 OHM 1% 1/4W 14415700
R16 R17 RES MF 1K 1% 1/4W 14409000
R18 RES MF 30.1K 1% 1/4W 14422500
R22 R23 R24 R48 RES MF 365 OHM 1% 1/4W 14407100
R27 R31 RES MF 1.5K 1% 1/4W 14412800
R28 RES MF 5.62K OHM 1% 1/4W 14444700
R32 RES MF 16.9K OHM 1/4W 14438700
R35 RES MF 33.2K 1% 1/4W 14401500
R38 R39 R40 RES MF 100 OHM 1% 1/4W 14419600
R44 RES MF 4.75K 1% 1/4W 14409700
S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 SWITCH TACT 15005800
U1 IC ACTIVE LOW RESET 2.7V 13346300
U2 IC 8 BIT DRIVER 13346100
U2 IC MICROCONTROLLER DVD 31032200
Y1 CERAMIC RESONATOR 8MHZ 18004900
5

2423
Part
No. DescriptionRef No.
EXPLODEDVIEW AND PARTS LIST
1 016482 GLASS
2 017531 PUSHBUTTONASSYRED
3 017517 PUSHBUTTONASSYBLK
4 078033 O-RING
5 148073 SWITCHDPDTROCKER
6 017781 BEZELFRONT
7 092419 FILTERDISPLAY
8 094016 TAPEFOAM 1/4X 1/8
9 098113 CORDDIAL .027BLACK BRAIDSILK
10 018706 EXTRUSIONBOTTOM
11 100147 SCREWMACH 6-32X3/16PHIL
12 018585 EXTRUSIONTOP
13 017906 GUIDEPCB
14 094360 TAPEFOAM 1/2X 1/2
15 094017 TAPEFOAM 1/4X 1/4
16 005090 BRACKETEXTRUSION
17 018611 ENDCAP5”
18 101042 SCREWTS 4-40X1/2 SLOTFILLISTER
19 049774 ASSYPCB DISPLAY
20 017901 LOGOPUSHBUTTONBACKLIGHT
21 017902 SUPPORTPCB LOCKINGADHESIVEBASE
22 005258 SUBPANEL
23 101196 SCREWTAPSEMS 6-32X 1/4PH PN
24 101054 SCREWTAPTITE6-32 X1/4PH PNBLK
25 005261 BRACKETRIGHTZEE
26 005260 BRACKETLEFTZEE
27 102003 NUTMACH 6-32W/LOCK
28 320119 DVDMECHANISM
29 017900 DOORMOLDINGMVP851
30 100271 SCREWMACH 6-32X 1/4PH PN
31 100300 SCREWMACH SEMS6-32 X1 PHPN
32 104005 WASHERFLATSTEEL6X3/8 X.032
33 005257 CHASSIS
34 019056 SPRING
35 100180 SCREWMACH 6-32X 1/8PH PN
36 049773 ASSYPCBAV-PWR
37 320118 ASSYPCBDVD MODULE
38 101222 SCREWTT SEMS6-32 X1/4 PHPN
39 005262 BRACKETCABLE
40 159334 TRANSFORMERR-COREPOWER
41 117800 MTACONNECTOR8 PIN.156
42 112083 STANDOFF6-32X1.250
43 005259 REARPANEL
44 117755 RECEPTACLEINPUT& LINEFILTER
45 102001 NUT KEP 4-40CADMIUM PLATE
46 102020 NUTMACH 6-32SELFLOCK
47 101197 SCREWHI-LO 4-24X3/8 PHRDBLK
48 017218 FOOTPLASTIC BLACK
49 104083 WASHER#10 PLATED 104062
50 100159 SCREWMACH 10-32X 3/4PHPN BLK
51 005102 COVERTOP
52 101078 SCREWTAP8-32 X 5/16PH PNBLK
MVP851

SERVICE MANUAL
The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated, who reserve the right to improve design without
notice. Because of the constant upgrading of McIntosh products’ circuitry and components, the Company cannot insure, and does not warrant, the
accuracy of the within schematic material, which is intended for information only.
McINTOSH LABORATORY, INC., 2 CHAMBERS STREET, BINGHAMTON, NEW YORK 13903 Printed in U.S.A. Part Number 040863
DVD AUDIO/VIDEO PLAYER
REPACKING INSTRUCTIONS
25
