MVP871
SERVICE MANUAL
Performance Specifications..........................................2
Notes...........................................................................2
Rear Panel ...................................................................3
Section Location..........................................................3
Block Diagram ............................................................4
Interconnection Diagram........................................7 - 8
Power Schematic and PCB....................................9 - 12
Primary Schematic and PCB ...............................13 - 14
Display Schematic and PCB................................15 - 18
Audio Schematic and PCB..................................19 - 28
Parts List .............................................................31 - 37
Repacking Instruction ................................................39
CONTENTS
Serial Number XS1001 And Above
SERIAL NO. XS1001 And Above
MVP871
AUDIO VIDEO PLAYER

PERFORMANCE SPECIFICATIONS
2
General Specications
Digital Output
Optical: -15dbm to -21dbm
Coaxial: 0.5V p-p/75 ohm
Digital Signal Format
Sampling Frequencies: 44.1kHz, 48.0kHz, 96.0kHz
Transport
Laser Beam Wavelength: 650nm (DVD) / 790nm (CD)
Laser Power: CLASS IIa/CLASS I
Power Requirements
100 Volts, 50/60Hz at 60 watts
110 Volts, 50/60Hz at 60 watts
120 Volts, 50/60Hz at 60 watts
220 Volts, 50/60Hz at 60 watts
230 Volts, 50/60Hz at 60 watts
240 Volts, 50/60Hz at 60 watts
Note: Refer to the rear panel of the MVP871 for the correct
voltage.
Overall Dimensions
Width is 17-1/2 inches (44.45cm)
Height is 6 inches (15.24cm)
Depth is 15-7/8 inches (40.32cm)
Note: When the Disc Tray is opened, the panel clearance
required in front of mounting panel is 6-3/4 inches (17.2cm).
Weight
27.5 pounds (12.5Kg) net, 43.9 pounds (20.0Kg) in ship-
ping carton
Shipping Carton Dimensions
Width is 26-1/2 inches (67.3cm)
Depth is 24-1/4 inches (62.2cm)
Height is 11-3/4 inches (29.9cm)
Video Specications
Signal System
NTSC/PAL Region Code 1
Component Video Output Level
Y Output Level 1.0Vp-p (75 OHM)
PB/CB Output Level 0.648Vp-p (75 OHM)
PR/CROutput Level 0.7Vp-p (75 OHM)
S-Video Y Output Level
1Vp-p (75 OHM)
Audio Specications
Number of Channels
2 and 5.1
Output Level
4.0Vrms Balanced (2 channel Output)
2.0Vrms Unbalanced (2 channel Output and 5.1 Channels)
Output Impedance
600 ohms Balanced (2 channel Output)
600 ohms Unbalanced (2 channel Output and 5.1 Channels)
Audio Frequency Response (DVD-Video)
4Hz to 22,000Hz (48kHz Sampling, Linear Audio)
4Hz to 44,000Hz (96kHz Sampling, Linear Audio)
Audio Frequency Response (DVD-Audio)
4Hz to 88,000Hz (192kHz Sampling)
SACD Frequency Response
4Hz to 100,000Hz
CD Frequency Response
4Hz to 20,000Hz
Signal to Noise Ratio
115d B
Dynamic Range
110dB
Harmonic Distortion
0.002%
Channel Separation
Better than 110dB (1,000Hz)
S-Video C Output Level
0.286Vp-p (75 OHM) (NTSC)
Composite Video Output Level
1Vp-p (75 OHM)

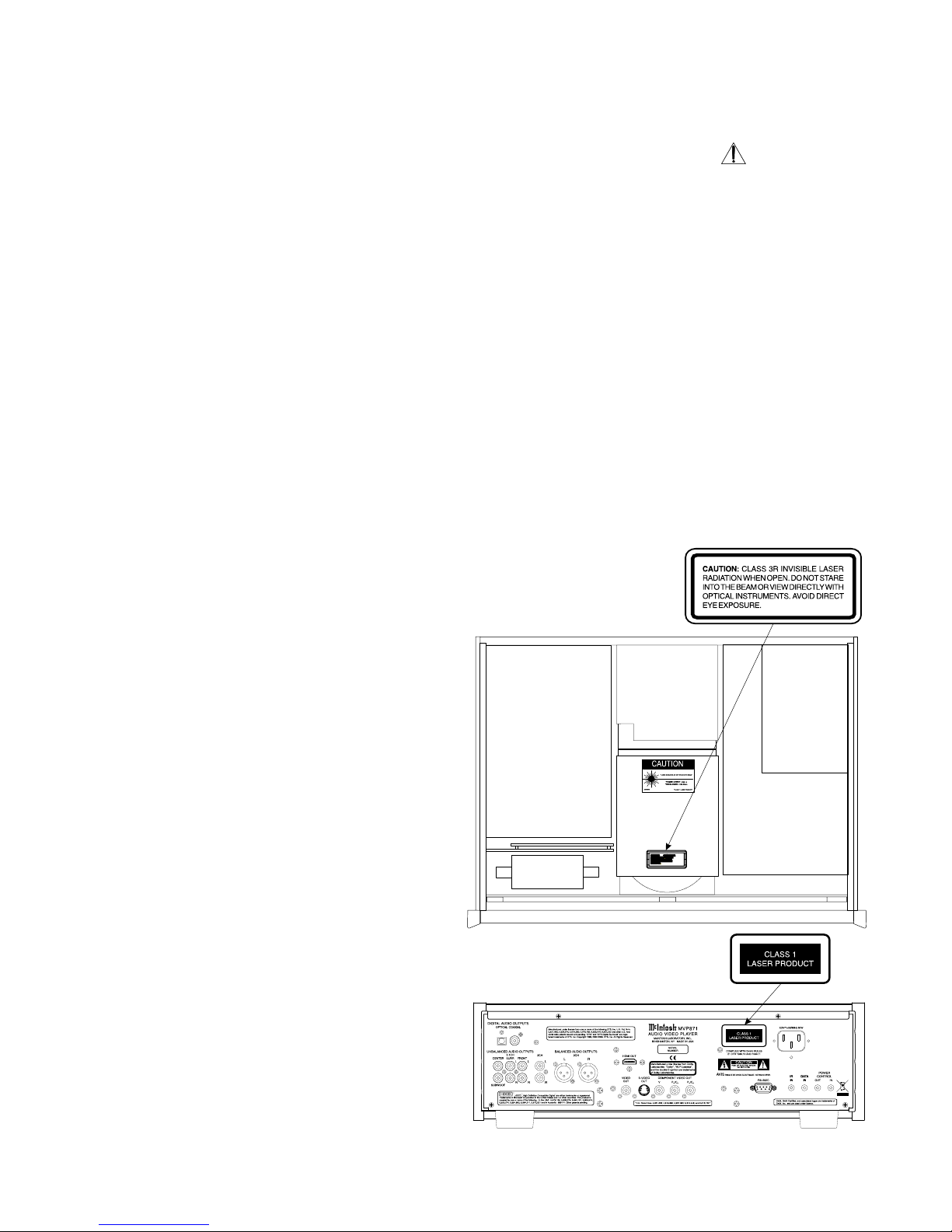

SAFETY INFORMATION
CAUTION: Invisible Laser Radiation when open.
DO NOT stare into the beam or view
directly with optical instruments. Use of
controls or adjustments or performance
 ofproceduresotherthanthosespecied
in the Owners Manual may result in
Hazardous Radiation Exposure.
Servicing of laser mechanism is to be
performed at the service facility at
McIntosh Laboratory Inc.
This product incorporates an embedded
Class 3R Laser (IEC60825-1).
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
VAROITUS! Laitteen kayttaminen muulla kuin
tassa kayttoohjeessa mainitulla
tavalla saattaa altistaa kayttajan
turvallisuusluokan 1 ylittavalle
nakymattomalle lasersateiiylle.
VARNING! Om apparaten anvands pa annat
satt an i denna bruksanvisning
 specicerats,kananvandaren 
utsattas for osynbg laserstraining,
som overskrider gransen for
laserklass 1.
NOTES
CAUTION:
Servicing of laser mechanism is to be performed at the
service facility at McIntosh Laboratory Inc.
3
1. The heavy notes on the schematic denote the primary
signal path.
2. Unless otherwise noted, all voltages indicated on the
schematics are measured under the following conditions:
a. AC input at 120 volts, 50/60Hz.
b. All voltages are +/-10% with respect to ground. A
high impedance (10 megaohm) voltmeter must be used.
3. Unlessotherwisespecied:
a. Resistor values are in ohms.
b. Capacitor values are microfarads (uF).
c. Inductor values are in microhenries (uH).
4. On PC board drawings, Square pad indicates:
a. Polarized Capacitors - Positive
b. Diodes - Cathode
c. Others - Pin 1
5. WARNING
Parts marked with the symbol have critical
characteristics. Use only replacement parts recom-
mended by the manufacturer.
6. Use McIntosh Remote Control Model HR062 with the
MVP871.

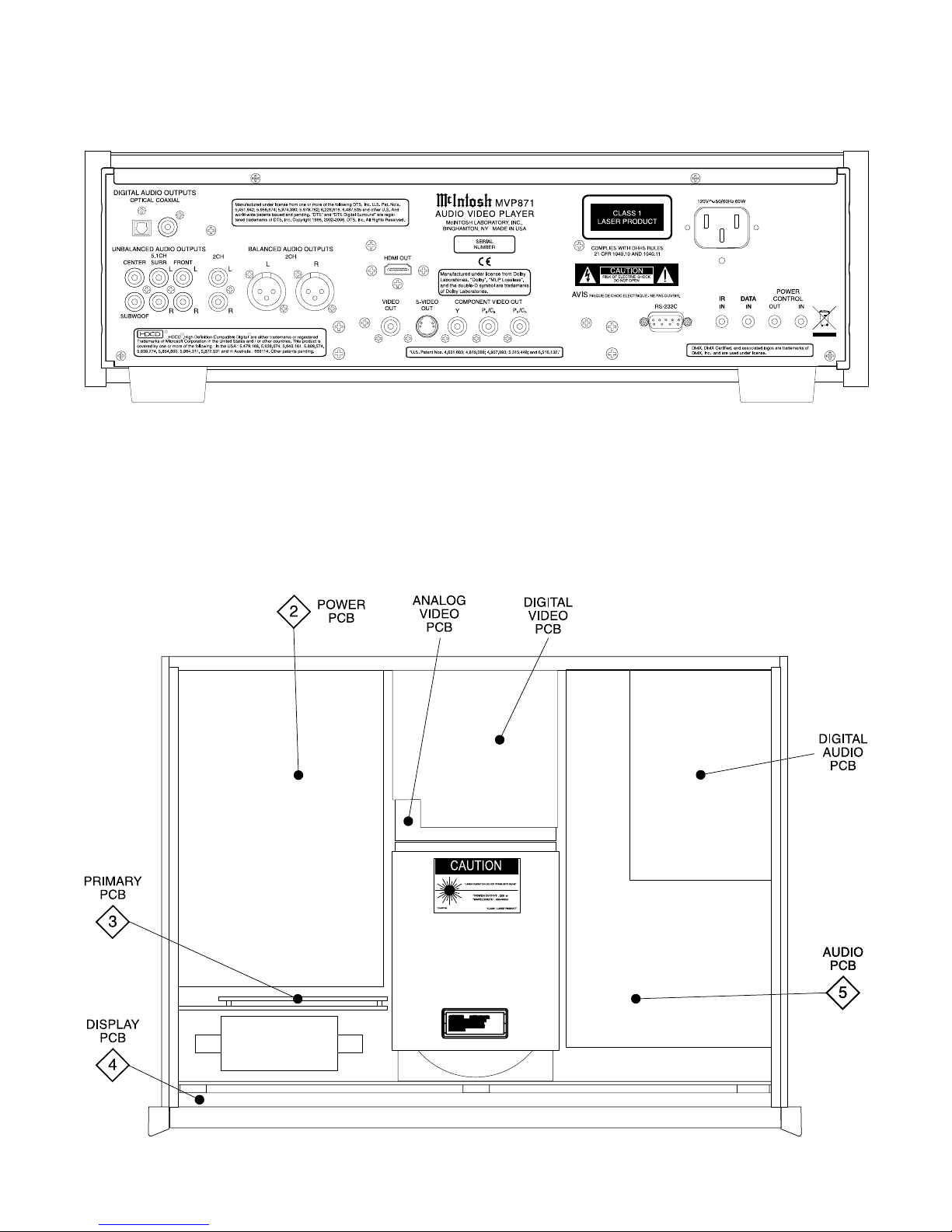

SECTION LOCATION
REAR PANEL
4

MVP871
5
BLOCK DIAGRAM

6
NOTES

MVP871
78

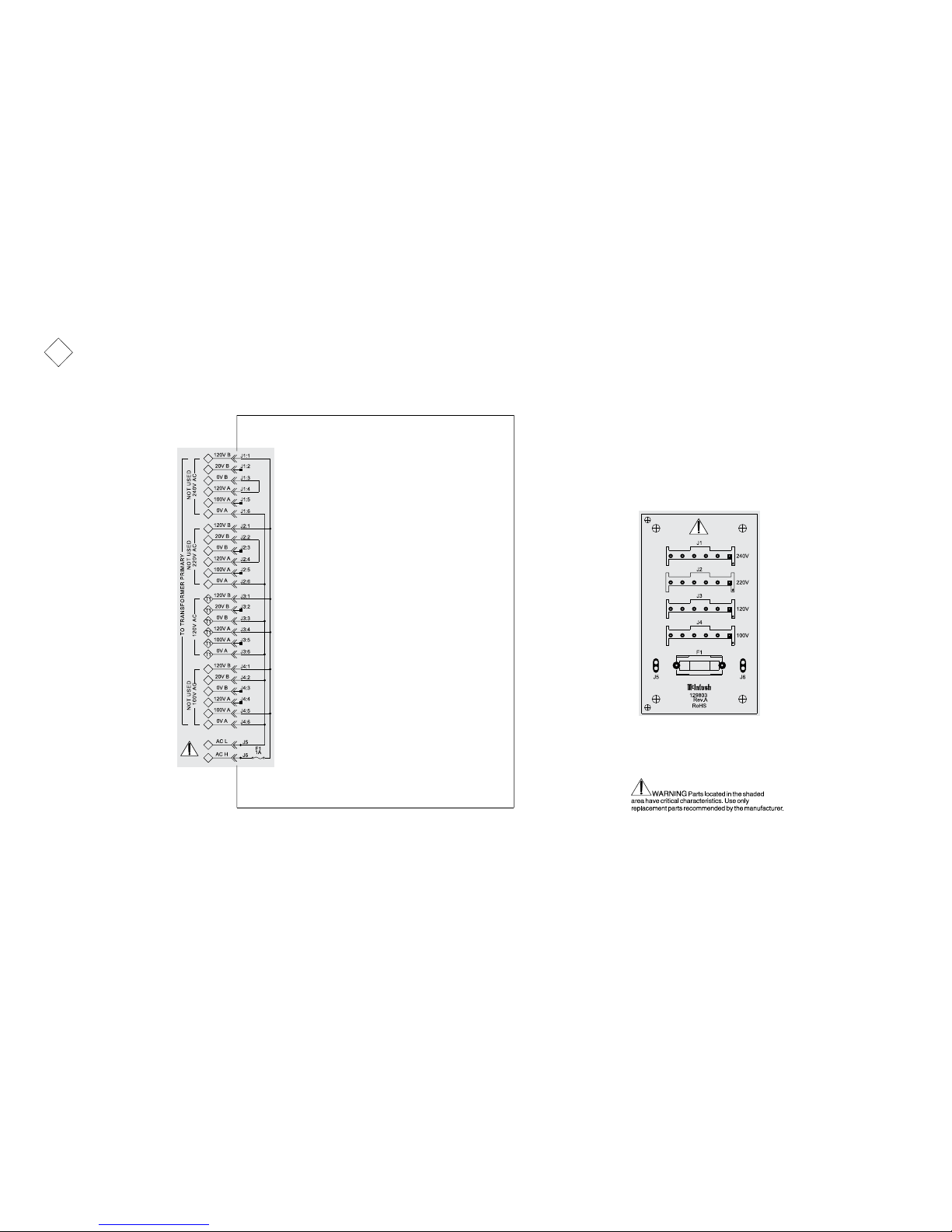

INTERCONNECT
1

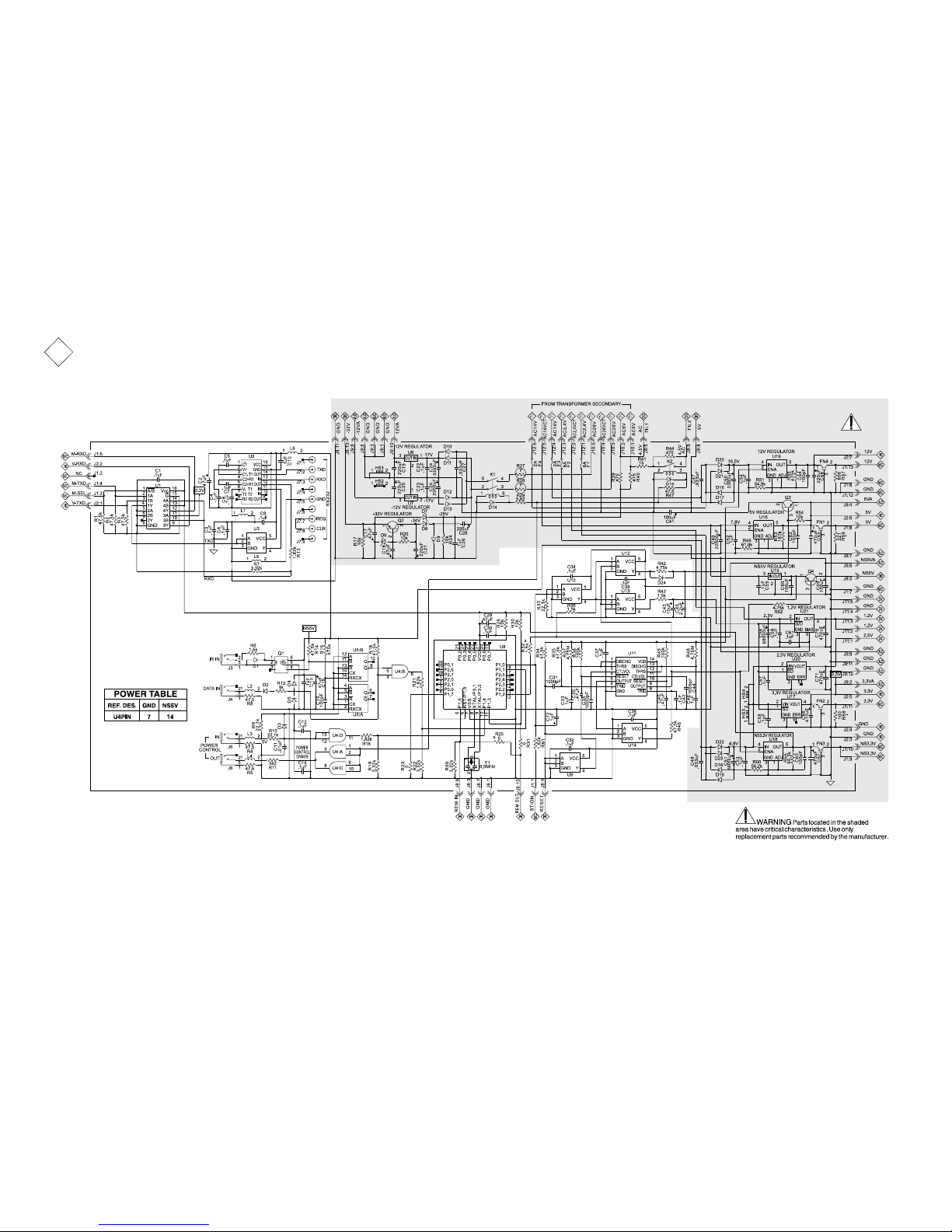

2POWER SCH 750613
9 10

MVP871

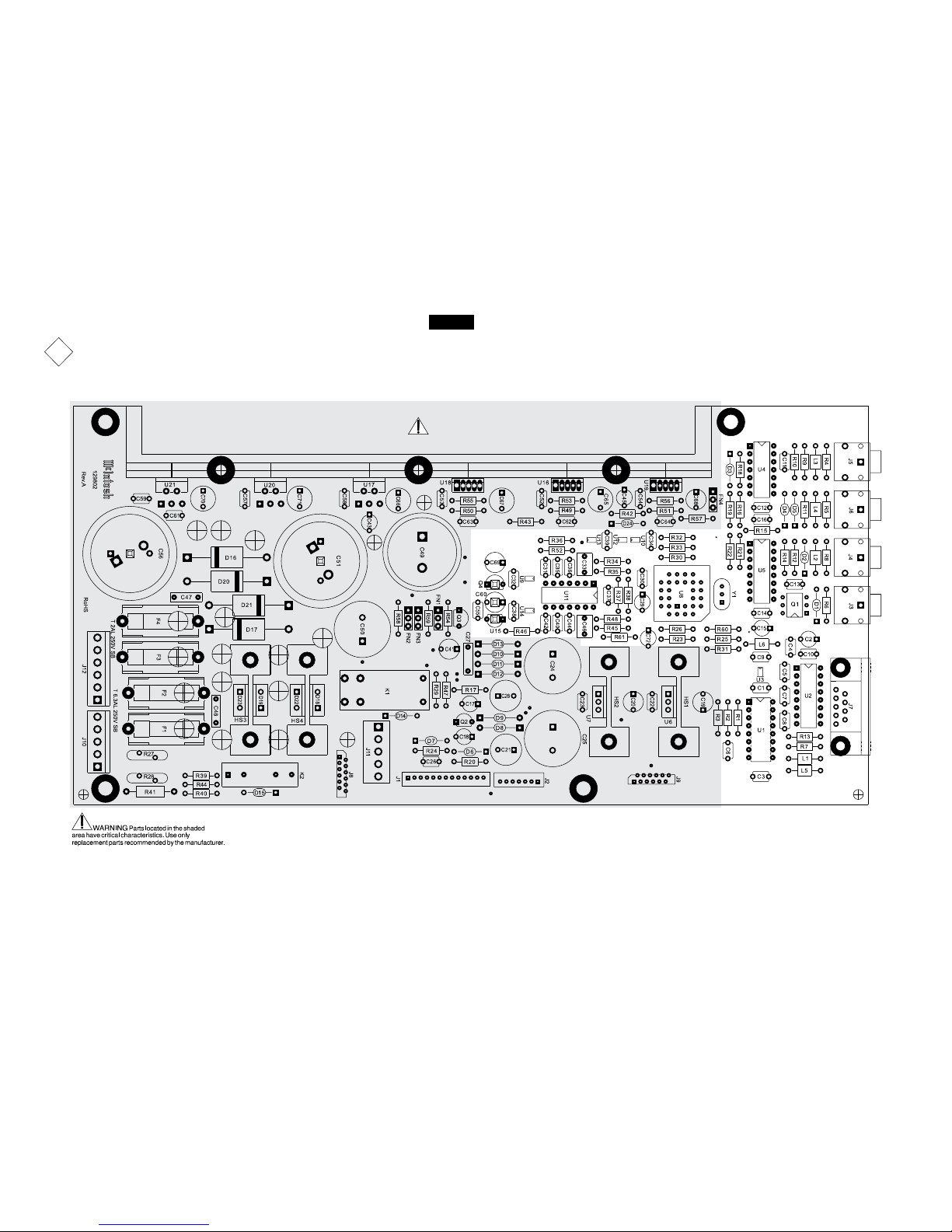

2POWER PCB 750613
11 12

13 14
3PRIMARY SCH and PCB 750614

MVP871

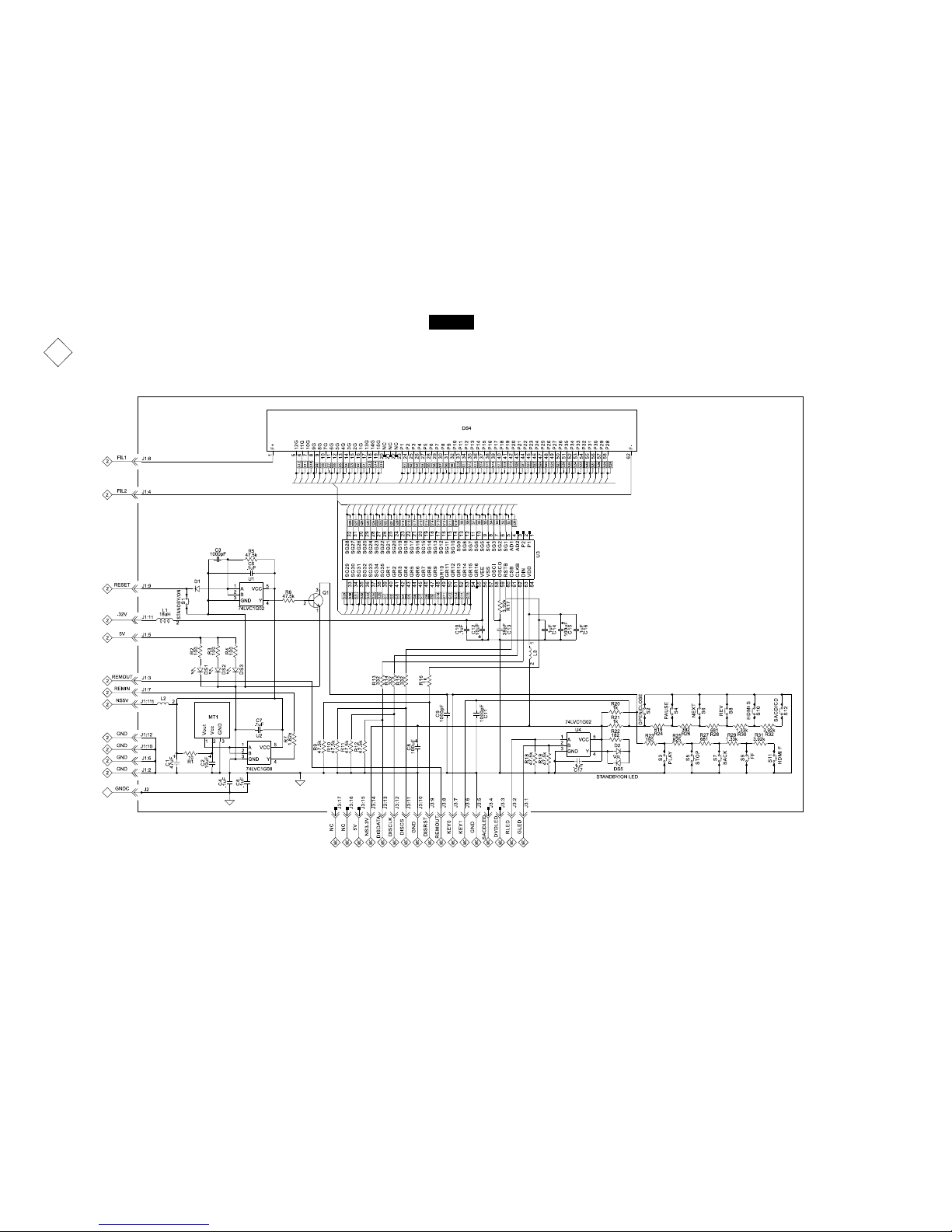

4DISPLAY SCH 750615
15 16

4DISPLAY PCB 750615
17 18

MVP871

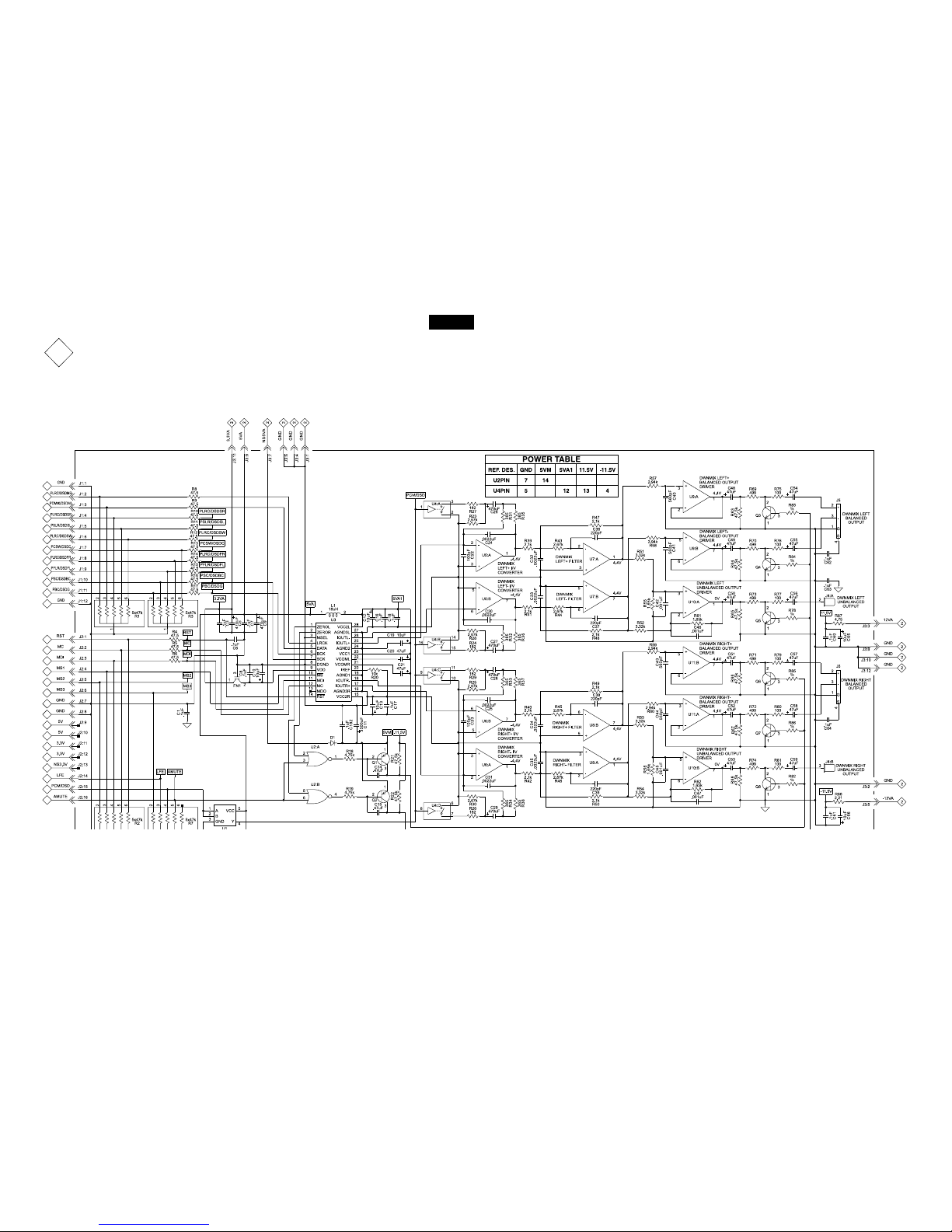

5AUDIO SCH 1 of 4 750616
19 20

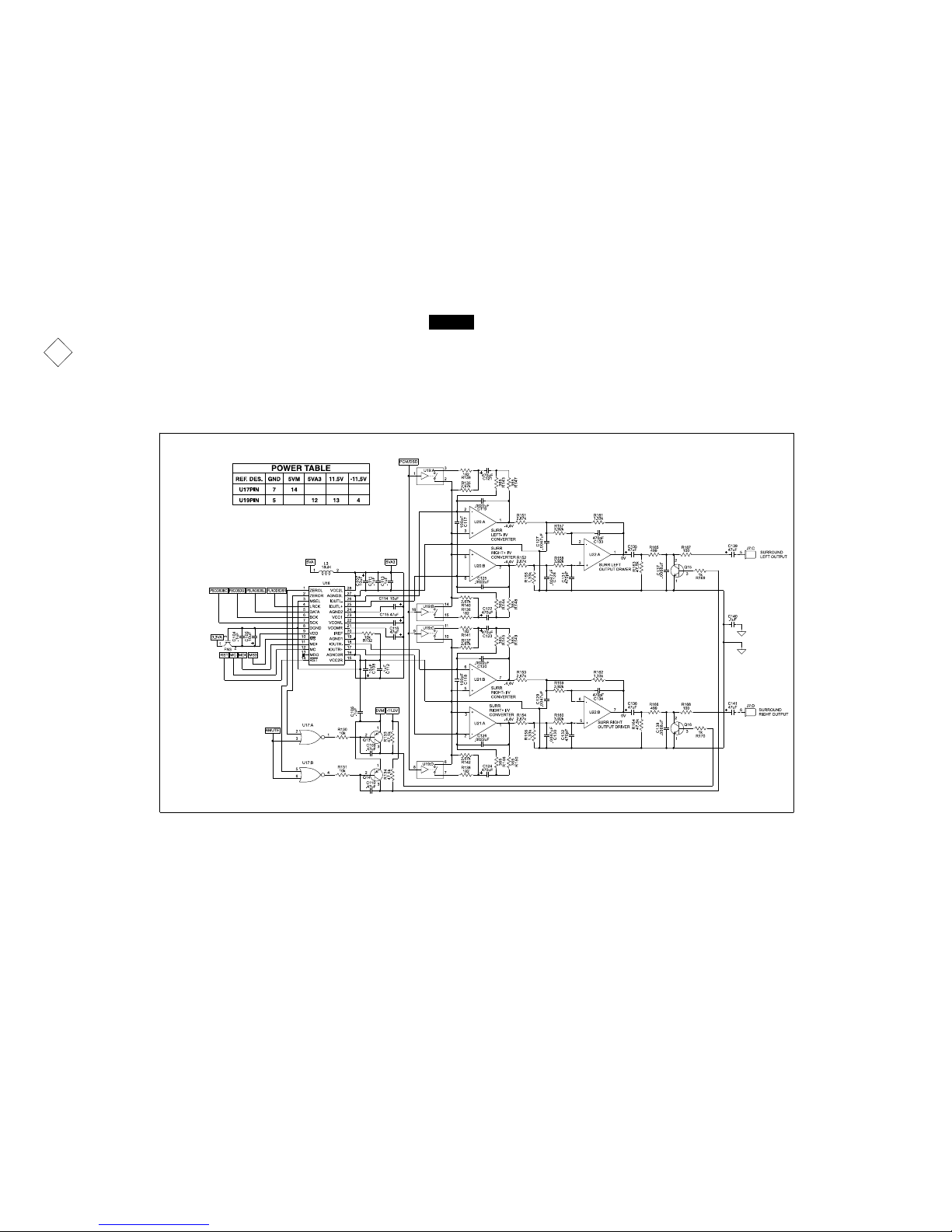

5AUDIO SCH 2 of 4 750616
21 22

MVP871

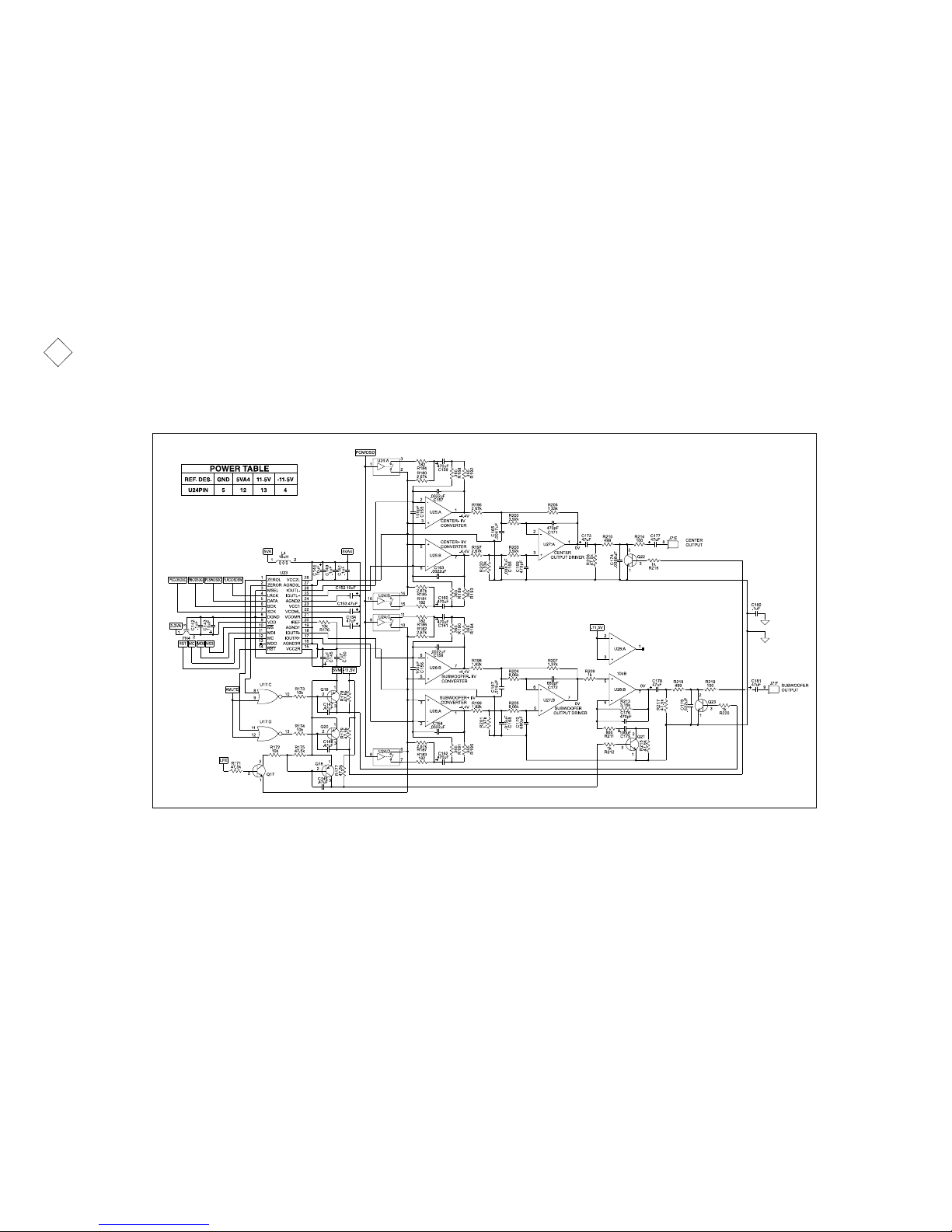

5AUDIO SCH 3 of 4 750616
23 24

5AUDIO SCH 4 of 4 750616
25 26

MVP871
5AUDIO PCB 750616
27 28

29 30
NOTES

MVP871
31
PARTS LIST
INTERCONNECT
Ref. No. Description Part No.
?????
1
2
Ref. No. Description Part No.
HEATSINK 018862
C1 CAP MONO .1UF 50V 20% Z5U 061346
C2 CAP ELECT 47UF 35V 066446
C3 CAP MONO .1UF 50V 20% Z5U 061346
C4 CAP MONO .1UF 50V 20% Z5U 061346
C5 CAP MONO .1UF 50V 20% Z5U 061346
C6 CAP MONO .1UF 50V 20% Z5U 061346
C7 CAP MONO .1UF 50V 20% Z5U 061346
C8 CAP MONO .1UF 50V 20% Z5U 061346
C9 CAP MONO .1UF 50V 20% Z5U 061346
C10 CAP MONO .1UF 50V 20% Z5U 061346
C11 CAP MONO .01UF 50V 20% X7R 061345
C12 CAP MONO .1UF 50V 20% Z5U 061346
C13 CAP MONO .1UF 50V 20% Z5U 061346
C14 CAP MONO .1UF 50V 20% Z5U 061346
C15 CAP ELECT 47UF 35V 066446
C16 CAP MONO 100PF 100V 10% NPO 061341
C17 CAP ELECT 47UF 35V 066446
C18 CAP ELECT 47UF 35V 066446
C19 CAP ELECT 220UF 25V 066507
C20 CAP ELECT 220UF 25V 066507
C21 CAP ELECT 220UF 50V 20% 066254
C22 CAP MONO .1UF 50V 20% Z5U 061346
C23 CAP MONO .1UF 50V 20% Z5U 061346
C24 CAP ELECT 3300UF 35V 066509
C25 CAP ELECT 3300UF 35V 066509
C26 CAP MONO .1UF 50V 20% Z5U 061346
C27 CAP MPF 0.033UF 100V 10% 064427
C28 CAP ELECT 220UF 50V 20% 066254
C29 CAP ELECT 47UF 35V 066446
C30 CAP MONO .1UF 50V 20% Z5U 061346
C31 CAP MONO 1000PF 50V 10% NPO 061344
C32 CAP MONO .1UF 50V 20% Z5U 061346
C33 CAP MPF 1UF 5% 63VDC 064337
C34 CAP MONO .1UF 50V 20% Z5U 061346
C35 CAP DISC MONO .47UF 50V 061320
C36 CAP MONO 1000PF 50V 10% NPO 061344
C37 CAP MONO .1UF 50V 20% Z5U 061346
C38 CAP MONO .1UF 50V 20% Z5U 061346
C39 CAP MONO .1UF 50V 20% Z5U 061346
C40 CAP DISC MONO .47UF 50V 061320
C41 CAP ELECT 100UF 25V 066573
C42 CAP MONO .1UF 50V 20% Z5U 061346
C43 CAP ELECT 10UF 50V 066445
C44 CAP MONO 1000PF 50V 10% NPO 061344
C45 CAP ELECT 2.2UF 50V 066511
C46 CAP MPF 1UF 5% 63VDC 064337
C47 CAP MPF 0.033UF 100V 10% 064427
C48 CAP MPF 0.033UF 100V 10% 064427
C50 CAP ELECT 3300UF 35V 066509
C52 CAP MONO .1UF 50V 20% Z5U 061346
C53 CAP MONO .1UF 50V 20% Z5U 061346
C54 CAP MONO .1UF 50V 20% Z5U 061346
C55 CAP MONO .1UF 50V 20% Z5U 061346
C57 CAP MONO .1UF 50V 20% Z5U 061346
C58 CAP MONO .1UF 50V 20% Z5U 061346
POWER PCB 750613
C59 CAP MONO .1UF 50V 20% Z5U 061346
C60 CAP ELECT 100UF 25V 066573
C61 CAP MONO .1UF 50V 20% Z5U 061346
C62 CAP MONO 100PF 100V 10% NPO 061341
C63 CAP MONO 100PF 100V 10% NPO 061341
C64 CAP MONO 100PF 100V 10% NPO 061341
C65 CAP ELECT 470UF 16V 066508
C66 CAP ELECT 470UF 16V 066508
C67 CAP ELECT 470UF 16V 066508
C68 CAP ELECT 220UF 25V 066507
C69 CAP ELECT 100UF 25V 066573
C70 CAP ELECT 470UF 16V 066508
C71 CAP ELECT 470UF 16V 066508
C72 CAP ELECT 1UF 50V 066510
C49 CAP ELECT 22000UF 16V 066579
C51 ELECT CAP 68000 6.3V 066587
C56 ELECT CAP 68000 6.3V 066592
D1 DIODE SILICON 070174
D2 DIODE SILICON 070174
D3 DIODE SILICON 070174
D4 DIODE SILICON 070174
D5 DIODE SILICON 070174
D6 DIODE ZENER 33V 5% 1/2W 070182
D7 DIODE ZENER 6.2V 5% 500MW 070184
D8 DIODE SIL 400 PIV @ 1.5A 070031
D9 DIODE SIL 400 PIV @ 1.5A 070031
D10 DIODE SIL 400 PIV @ 1.5A 070031
D11 DIODE SIL 400 PIV @ 1.5A 070031
D12 DIODE SIL 400 PIV @ 1.5A 070031
D13 DIODE SIL 400 PIV @ 1.5A 070031
D14 DIODE SILICON 070174
D15 DIODE SILICON 070174
D16 RECTIFIER SCHOTTKY 5A 100V 070171
D17 RECTIFIER SCHOTTKY 5A 100V 070171
D18 DIODE SCHOTTKEY 10A 45V 070194
D19 DIODE SCHOTTKEY 10A 45V 070194
D20 RECTIFIER SCHOTTKY 5A 100V 070171
D21 RECTIFIER SCHOTTKY 5A 100V 070171
D22 DIODE SCHOTTKEY 10A 45V 070194
D23 DIODE SCHOTTKEY 10A 45V 070194
D24 DIODE SILICON 070174
F1 FUSE 6.3V 250V SLO-BLO IEC 089127
(F1) HOLDER FUSE 5X20MM PCB MOUNT 178159
F2 FUSE 6.3V 250V SLO-BLO IEC 089127
(F2) HOLDER FUSE 5X20MM PCB MOUNT 178159
F3 FUSE 2A 250V SLO-BLO 5X20 IEC 089123
(F3) HOLDER FUSE 5X20MM PCB MOUNT 178159
F4 FUSE 2A 250V SLO-BLO 5X20 IEC 089123
(F4) HOLDER FUSE 5X20MM PCB MOUNT 178159
FN1 FILTER EMI 180057
FN2 FILTER EMI 180057
FN3 FILTER EMI 180057
FN4 FILTER EMI 180057
WASHER SHLDR #10 BLK NYLN INS 104101
HS1 HEATSINK TO-220 080021
HS2 HEATSINK TO-220 080021
HS3 HEATSINK TO-220 080021
HS4 HEATSINK TO-220 080021
INSULATOR ISOSTRATE TO 220 084133

32
PARTS LIST (Cont’d.)
POWER PCB 750613 (Cont’d.)
Ref. No. Description Part No. Ref. No. Description Part No.
J1 HEADER SHROUDED 13 PIN 2MM 117956
J2 HEADER 7 PIN SHROUDED 117910
J3 JACK HEADPHONE STEREO 1/8IN 117945
J4 JACK HEADPHONE STEREO 1/8IN 117945
J5 JACK HEADPHONE STEREO 1/8IN 117945
J6 JACK HEADPHONE STEREO 1/8IN 117945
J7 CONN 9 PIN SUB D 117902
J8 CONN 12 PIN FFC 117907
J9 CONN 12 PIN FFC 117907
J10 HEADER MTA-156 5 PIN 117964
J11 HEADER LOCKING 5 PIN 117957
J12 HEADER MTA-156 6 PIN 117966
K1 RELAY 5V DPST 087074
K2 RELAY REED FORM 1A 5V 500 OHMS 087050
L1 BEADS FERRITE LEADED 076023
L2 BEADS FERRITE LEADED 076023
L3 BEADS FERRITE LEADED 076023
L4 BEADS FERRITE LEADED 076023
L5 BEADS FERRITE LEADED 076023
L6 BEADS FERRITE LEADED 076023
Q1 COUPLER OPTICAL SCHMITT OUTPUT 131030
Q2 TRANSISTOR PNP SILICON 132304
Q3 TRANSISTOR PNP 2SB892 132263
Q4 TRANSISTOR PNP 2SB892 132263
R1 RES MF 47.5K 1% 1/4W 144526
R2 RES MF 47.5K 1% 1/4W 144526
R3 RES MF 47.5K 1% 1/4W 144526
R4 RES MF 47.5 OHM 1% 1/4W 144642
R5 RES MF 47.5 OHM 1% 1/4W 144642
R6 RES MF 1.5K 1% 1/4W 144539
R7 RES MF 3.32K 1% 1/4W 144518
R8 RES MF 47.5 OHM 1% 1/4W 144642
R9 RES MF 22.1K 1% 1/4W 144564
R10 RES MF 22.1K 1% 1/4W 144564
R11 RES MF 562 OHM 1% 1/4W 144622
R12 RES MF 1K 1% 1/4W 144513
R13 RES MF 1.82K 1% 1/4W 144582
R14 RES MF 47.5K 1% 1/4W 144526
R15 RES MF 475K 1% 1/4W 144604
R16 RES MF 1.82K 1% 1/4W 144582
R17 RES MF 10K 1% 1/4W 144504
R18 RES MF 47.5K 1% 1/4W 144526
R19 RES MF 3.32K 1% 1/4W 144518
R20 RES MF 10K 1% 1/4W 144504
R21 RES MF 1.82K 1% 1/4W 144582
R22 RES MF 3.32K 1% 1/4W 144518
R23 RES CF 0 OHM 5% 1/4W 141554
R24 RES MF 10K 1% 1/4W 144504
R26 RES MF 10K 1% 1/4W 144504
R27 RES POLYSWITCH RXE110 144671
R28 RES POLYSWITCH RXE110 144671
R29 RES MF 5.62 OHM 1% 1/4W 144556
R30 RES MF 10K 1% 1/4W 144504
R31 RES CF 0 OHM 5% 1/4W 141554
R33 RES MF 22.1K 1% 1/4W 144564
R34 RES MF 47.5K 1% 1/4W 144526
R35 RES MF 47.5K 1% 1/4W 144526
R36 RES MF 1.5K 1% 1/4W 144539
R37 RES MF 4.75M 1% 1/4W 144608
R38 RES MF 100K 1% 1/4W 144528
R39 RES MF 475 OHM 1% 1/4W 144509
R40 RES MF 475 OHM 1% 1/4W 144509
R41 RES MF 15 OHM 1% 1/2W 144555
R42 RES MF 4.75K 1% 1/4W 144520
R43 RES MF 1.5K 1% 1/4W 144539
R44 RES MF 475 OHM 1% 1/4W 144509
R45 RES MF 100K 1% 1/4W 144528
R46 RES MF 47.5K 1% 1/4W 144526
R47 RES MF 47.5 OHM 1% 1/4W 144642
R48 RES MF 4.75M 1% 1/4W 144608
R49 RES MF 61.9K 1% 1/4W 144596
R50 RES MF 56.2K 1% 1/4W 144618
R51 RES MF 54.9K 1% 1/4W 144544
R52 RES MF 4.75K 1% 1/4W 144520
R53 RES MF 187K 1% 1/4W 144621
R54 RES MF 10K 1% 1/4W 144504
R55 RES MF 95.3K 1% 1/4W 144538
R56 RES MF 475K 1% 1/4W 144604
R57 RES MF 806 OHM 1% 1/4W 144512
R58 RES MF 100 OHM 1% 1/4W 144568
R59 RES MF 221 OHM 1% 1/4W 144559
R60 RES MF 3.32K 1% 1/4W 144518
R61 RES MF 1.82K 1% 1/4W 144582
DECAL FUSE T2 AL 250V 166261
DECAL FUSE T6.3 AL 250V 166262
U1 QUAD 2 TO 1 DATA SELECTOR 133650
U2 IC RS232 DRIVER LINE 133561
U4 IC AND 2 INPUT X 4 133577
U5 IC MONOSTB MULTIVIB X 2 133593
U6 IC REGULATOR 12V 133590
U7 IC REGULATOR -12V 133574
U8 PROGRAMMED VERISON OF 133495 133652
(U8) IC SOCKET 28 PIN PLCC 178186
U11 IC TIMER 133612
U15 5V LOW DROP REGULATOR 133452
U16 IC REGULATOR 1.25A LOW DROPOUT 133631
U17 REGULATOR LOW DROP 3.3V 1.5A 133645
U18 IC REGULATOR 1.25A LOW DROPOUT 133631
U19 IC REGULATOR 1.25A LOW DROPOUT 133631
U20 REGULATOR LOW DROP 2.5V 1.5A 133644
U21 REGULATOR LOW DROP 1.2V 1.5A 133643
Y1 RESONATOR CERAMIC 6.0MHZ W/CAP 180072
SCR MS 4-40 X 1/4 PH PN BLK 400121
SCR MS 4-40 X 1/2 PH PN 400164
SCR MS 6-32X1/4 SEMS PH PN CLR 400250
NUT KEP 4-40 CLR 402001
ASSY INSERTION PCB POWER 702425
ASSY PCB POWER SM PARTS 710005
3PRIMARY PCB 750614
J1 CONN PCB MOUNT POWER RED 117719
J2 CONN PCB MOUNT POWER RED 117719
J3 CONN PCB MOUNT POWER RED 117719
J4 CONN PCB MOUNT POWER RED 117719
J5 BLADE FASTON W/FEET 117708
J6 BLADE FASTON W/FEET 117708
(F1) HOLDER FUSE 5X20MM PCB MOUNT 178159
PC BD PRIMARY 129803
