SERVICE MANUAL
Performance Specifications ........................................ 2
Notes ......................................................................... 2
Rear View and Section Location ................................. 3
Block Diagram ........................................................... 4
Interconnection Diagram ........................................... 5
Main Schematic and PCB .................................... 7 - 10
Display Schematic and PCB ............................... 11 - 13
L-Keyboard Schematic and PCB ............................... 14
R-Keyboard Schematic and PCB ............................... 15
Parts List ............................................................ 17 - 18
Exploded View and Parts Lists ........................... 19 - 20
Repacking Instructions ............................................. 21
CONTENTS
CD TRANSPORT

PERFORMANCE SPECIFICATIONS
2
1. The heavy notes on the schematic denote the primary
signal path.
2. Unless otherwise noted, all voltages indicated on the
schematics are measured under the following conditions:
a. AC input at 120 volts, 50/60Hz.
b. All voltages are +/-10% with respect to ground. A
high impedance (10 megaohm) voltmeter must be used.
3. Unless otherwise specified:
a. Resistor values are in ohms.
b. Capacitor values are microfarads (uF).
c. Inductor values are in microhenries (uH).
4. On PC board drawings, Square pad indicates:
a. Polarized Capacitors - Positive
b. Diodes - Cathode
c. Others - Pin 1
5. WARNING
Parts marked with the symbol have critical
characteristics. Use only replacement parts recom-
mended by the manufacturer.
MusicBankTM is a registered trademark of the Nakamichi Corporation
NOTES
Digital Audio Format
IEC958, S/PDIF
Digital Outputs
Optical: -15!""
""
"-20dBm
Coaxial: 0.5V p-p @ 75ohms
XRL: 5V p-p @ 110ohms (AES/EBU)
Transport
Pickup: Optical 3-beam laser
Objective Lens Drive System: 2-Dimensional parallel
Laser Type: GaAIAs semiconductor
Laser Beam Wavelength: 780nm
Digital Signal Format
Sampling Frequency: 44.1kHz
Quantization Bit: 16-bit linear/channel
Modulation Code: Eight to Fourteen Modulation
Error Correction: Cross Interleave Reed Solomon
Power Requirements
100 Volts, 50/60Hz at 20 watts
110 Volts, 50/60Hz at 20 watts
120 Volts, 50/60Hz at 20 watts
220 Volts, 50/60Hz at 20 watts
230 Volts, 50/60Hz at 20 watts
240 Volts, 50/60Hz at 20 watts
Note: Refer to the rear panel of the MCD1000 for the
correct voltage.
Dimensions
Front Panel: 17-1/2 inches (44.5cm) wide, 6 inches
(15.24cm) high (including feet). Depth is 16-1/8
inches (40.96cm) including the Front Panel and
knobs.
Weight
27.5 pounds (12.47g) net, 41.5 pounds (18.83kg) in
shipping carton

REAR VIEW
3
MCD1000
SECTION LOCATION
TOP VIEW WITH COVER REMOVED

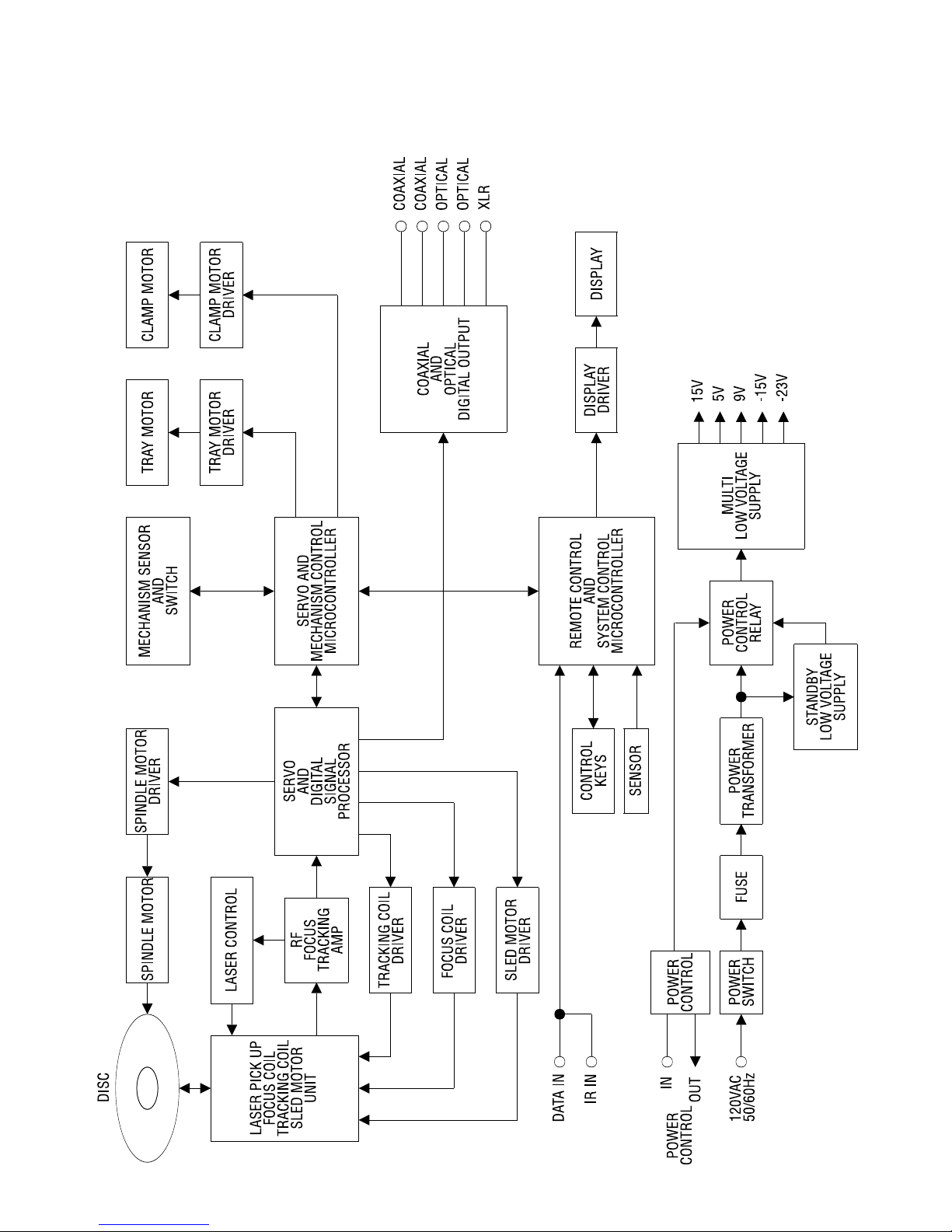

BLOCK DIAGRAM
4

INTERCONNECT
1
MCD1000
5

NOTES
6

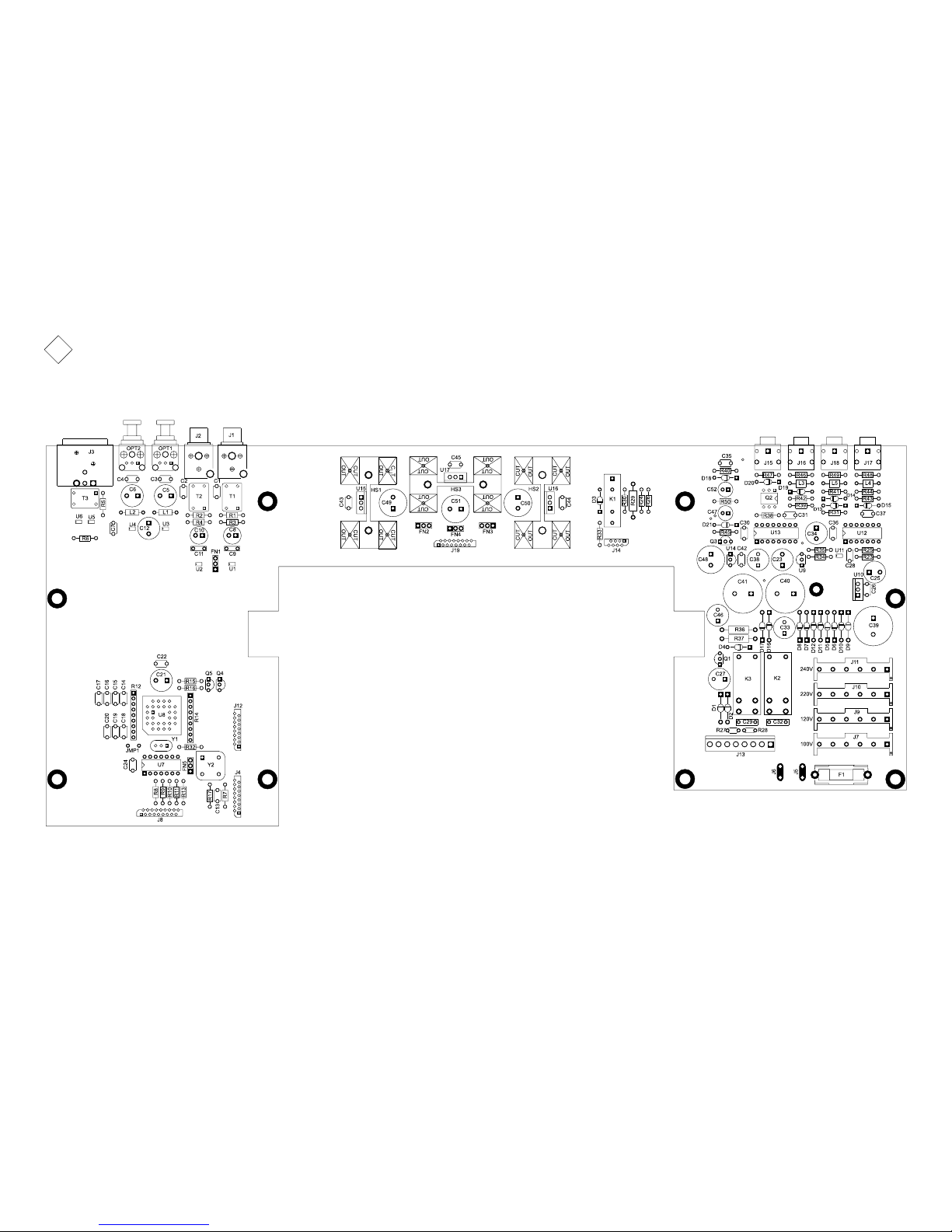

MAIN 050017
2
MCD1000
7 8

910
MAIN 050017
2

11 12
MCD1000
DISPLAY 050018
3

DISPLAY 050018
3
13 14

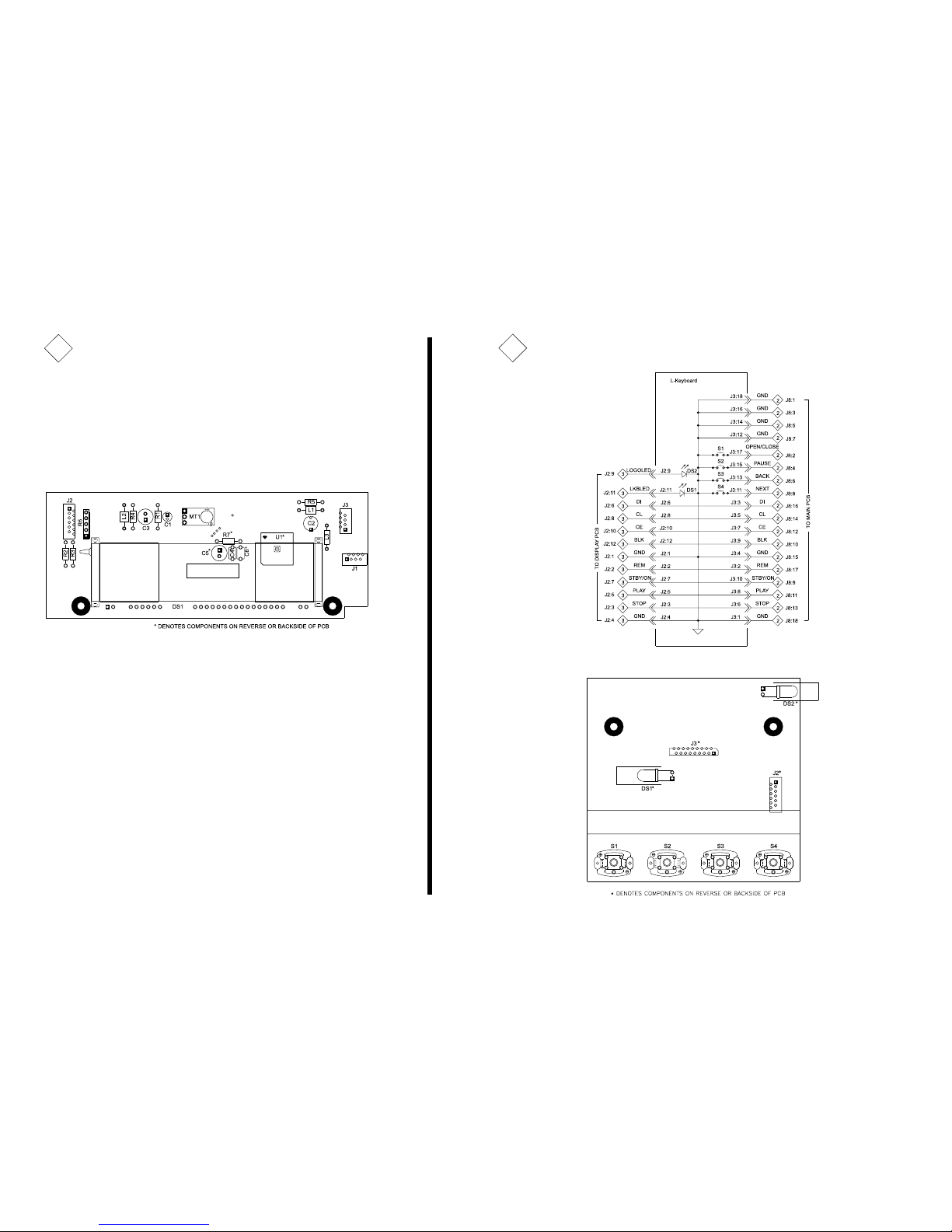

L-KEYBOARD 050019
4

R-KEYBOARD 050020
15
5
MCD1000

16
NOTES

17 18
MCD1000
PARTS LIST
Ref. No. Description Part No.
050017 MAIN PCB
C1 CAP MONO .1uF 50V 20% Z5U 061305
C2 CAP MONO .1uF 50V 20% Z5U 061305
C3 CAP MONO .1uF 50V 20% Z5U 061305
C4 CAP MONO .1uF 50V 20% Z5U 061305
C5 CAP ELECT 47UF 25V 066413
C6 CAP ELECT 47UF 25V 066413
C7 CAP MONO .1uF 50V 20% Z5U 061305
C8 CAP ELECT 10UF 100VDC 066411
C9 CAP MPF 0.1UF 5% 63VDC 064325
C10 CAP ELECT 10UF 100VDC 066411
C11 CAP MPF 0.1UF 5% 63VDC 064325
C12 CAP ELECT 47UF 25V 066413
C13 CAP MONO 33PF 200V 5%NPO T&R 061307
C14 CAP MONO .01UF 50V 20% X7R 061304
C15 CAP MONO .01UF 50V 20% X7R 061304
C16 CAP MONO .01UF 50V 20% X7R 061304
C17 CAP MONO .01UF 50V 20% X7R 061304
C18 CAP MONO .01UF 50V 20% X7R 061304
C19 CAP MONO .01UF 50V 20% X7R 061304
C20 CAP MONO .01UF 50V 20% X7R 061304
C21 CAP ELECT 47UF 25V 066413
C22 CAP MONO .1uF 50V 20% Z5U 061305
C23 CAP ELECT 100UF 25V 066412
C24 CAP MONO .1uF 50V 20% Z5U 061305
C25 CAP ELECT 100UF 25V 066412
C26 CAP MONO .1uF 50V 20% Z5U 061305
C27 CAP ELECT 1000UF 25V 066513
C28 CAP MONO .1uF 50V 20% Z5U 061305
C29 CAP MPF 0.033UF 100V 10% 064427
C30 CAP MONO .1uF 50V 20% Z5U 061305
C31 CAP MONO 100PF 100V 10% NPO 061300
C32 CAP MPF 0.033UF 100V 10% 064427
C33 CAP ELECT 220UF 50V 20% 066254
C34 CAP ELECT 47UF 25V 066413
C35 CAP MONO .1uF 50V 20% Z5U 061305
C36 CAP MONO .1uF 50V 20% Z5U 061305
C37 CAP MONO .01UF 50V 20% X7R 061304
C38 CAP ELECT 1000UF 25V 066513
C39 CAP ELECT 3300UF 35V 066509
C40 CAP ELECT 3300UF 35V 066509
C41 CAP ELECT 3300UF 35V 066509
C42 CAP MONO .1uF 50V 20% Z5U 061305
C43 CAP MONO .1uF 50V 20% Z5U 061305
C44 CAP MONO .1uF 50V 20% Z5U 061305
C45 CAP MONO .1uF 50V 20% Z5U 061305
C46 CAP ELECT 220UF 50V 20% 066254
C47 CAP ELECT 47UF 50V 066215
C48 CAP ELECT 220UF 25V AUDIO 066414
C49 CAP ELECT 220UF 25V AUDIO 066414
C50 CAP ELECT 220UF 25V AUDIO 066414
C51 CAP ELECT 220UF 25V AUDIO 066414
C52 CAP ELECT 47UF 50V 066215
D1 DIODE RECTIFIER 070131
D2 DIODE RECTIFIER 070131
D3 DIODE SILICON 070047
D4 DIODE SILICON 070047
D5 DIODE RECTIFIER 070131
D6 DIODE RECTIFIER 070131
D7 DIODE RECTIFIER 070131
D8 DIODE RECTIFIER 070131
D9 DIODE RECTIFIER 070131
D10 DIODE RECTIFIER 070131
D11 DIODE RECTIFIER 070131
D12 DIODE RECTIFIER 070131
D13 DIODE SILICON 070047
D14 DIODE SILICON 070047
D15 DIODE SILICON 070047
D16 DIODE RECTIFIER 070131
D17 DIODE RECTIFIER 070131
D18 DIODE ZENER 6.2V 5% 500MW 070085
D19 DIODE SILICON 070047
D20 DIODE SILICON 070047
D21 DIODE ZENER 24V 070091
F1 0.5A 5x20 fuse IEC 089092
FN1 FILTER EMI 180057
FN2 FILTER EMI 180057
FN3 FILTER EMI 180057
FN4 FILTER EMI 180057
FN5 FILTER EMI 180057
HS1 HEATSINK TO-220 080017
HS2 HEATSINK TO-220 080017
HS3 HEATSINK TO-220 080017
J1 JACK RCA ORANGE WITH GOLD 117798
J2 JACK RCA ORANGE WITH GOLD 117798
J3 RECEPTACLE XLR MALE 117686
J4 FFC CONNECTOR 16PIN 117839
J5 BLADE FASTON W/FEET 117708
J6 BLADE FASTON W/FEET 117708
J7 CONN PCB MOUNT POWER RED 117719
J8 CONN FFC 18PIN 117765
J9 CONN PCB MOUNT POWER RED 117719
J10 CONN PCB MOUNT POWER RED 117719
J11 CONN PCB MOUNT POWER RED 117719
J12 FFC CONNECTOR 16PIN 117839
J13 HEADER 8 PIN MTA-156 117717
J14 FFC CONNECTOR 8PIN 117842
J15 JACK HEADPHONE STEREO 1/8IN 117759
J16 JACK HEADPHONE STEREO 1/8IN 117759
J17 JACK HEADPHONE STEREO 1/8IN 117759
J18 JACK HEADPHONE STEREO 1/8IN 117759
J19 FFC CONNECTOR 16PIN 117839
K1 RELAY REED FORM 1A 5V 500 OHMS 087050
K2 RELAY DPST 12VDC 087059
K3 RELAY DPST 12VDC 087059
L1 CHOKE 18uH 5%-10% 122224
L2 CHOKE 18uH 5%-10% 122224
L3 BEADS FERRITE LEADED 076019
L4 BEADS FERRITE LEADED 076019
L5 BEADS FERRITE LEADED 076019
OPT1 TRANSMITTER FIBER OPTIC 058157
OPT2 TRANSMITTER FIBER OPTIC 058157
Q1 TRANSISTOR NPN SILICON 132171
Q2 COUPLER OPTICAL SCHMITT OUTPUT 131023
Q3 TRANSISTOR PNP SILICON 132172
Q4 TRANSISTOR NPN 132223
Q5 TRANSISTOR NPN 132223
R1 RES MF 100 OHM 1% 1/4W 144196
R2 RES MF 100 OHM 1% 1/4W 144196
R3 RES MF 332 OHM 1% 1/4W 144446
R4 RES MF 332 OHM 1% 1/4W 144446
R5 RES MF 110 OHM 1% 1/4W 144489
R6 RES MF 47.5K 1% 1/4W 144108
R7 RES MF 150 OHM 1% 1/4W 144122
R8 RES MF 221 OHM 1% 1/4W 144172
R9 RES MF 221 OHM 1% 1/4W 144172
R10 RES MF 221 OHM 1% 1/4W 144172
R11 RES MF 221 OHM 1% 1/4W 144172
R12 RES NETWORK 9X-1-223 144238
R13 RES MF 56.2K 1% 1/4W 144402
R14 RES NETWORK 9X-1-223 144238
R15 RES MF 10K 1% 1/4W 144053
R16 RES MF 47.5K 1% 1/4W 144108
R17 RES MF 100 OHM 1% 1/4W 144196
R23 RES MF 3.32K 1% 1/4W 144095
R24 RES MF 475 OHM 1% 1/4W 144086
R25 RES MF 2.21K 1% 1/4W 144298
R26 RES MF 475 OHM 1% 1/4W 144086
R27 PTC RESETTABLE FUSE 144488
R28 PTC RESETTABLE FUSE 144488
R29 RES CF 18 OHM 5% 1/2W 141206
R30 RES MF 475 OHM 1% 1/4W 144086
R31 RES MF 47.5K 1% 1/4W 144108
R32 RES MF 2.21K 1% 1/4W 144298
R33 RES MF 47.5 OHM 1% 1/4W 144442
R34 RES MF 3.32K 1% 1/4W 144095
R35 RES MF 2.21K 1% 1/4W 144298
R36 RES CF 180 OHM 5% 1/2W 141173
R37 RES CF 180 OHM 5% 1/2W 141173
R38 RES MF 475K 1% 1/4W 144364
R39 RES MF 47.5K 1% 1/4W 144108
R40 RES MF 10K 1% 1/4W 144053
R41 RES MF 562 OHM 1% 1/4W 144408
R42 RES MF 1K 1% 1/4W 144090
R43 RES MF 22.1K 1% 1/4W 144187
R44 RES MF 22.1K 1% 1/4W 144187
R45 RES MF 10K 1% 1/4W 144053
R46 RES MF 47.5 OHM 1% 1/4W 144442
R47 RES MF 1.5K 1% 1/4W 144128
R48 RES MF 47.5 OHM 1% 1/4W 144442
R49 RES MF 47.5 OHM 1% 1/4W 144442
R50 RES MF 10K 1% 1/4W 144053
T1 TRANSFORMER DIGITAL INTERFACE 159285
T2 TRANSFORMER DIGITAL INTERFACE 159285
T3 TRANSFORMER DIGITAL INTERFACE 159285
U1 SINGLE 2-INPUT AND GATE 133502
U2 SINGLE 2-INPUT AND GATE 133502
U3 SINGLE 2-INPUT AND GATE 133502
U4 SINGLE 2-INPUT AND GATE 133502
U5 SINGLE 2-INPUT AND GATE 133502
U6 SINGLE 2-INPUT NAND GATE 133501
U7 IC QUAD AND GATE 133372
U8 PROGRAMMED VERSION OF 133495 133520
U9 REGULATOR 3.3V LOW DROP 133464
U10 IC REGULATOR 5V 133250
U11 SINGLE 2-INPUT OR GATE 133516
U12 IC AND 2 INPUT X 4 133175
U13 IC MONOSTB MULTIVIB X 2 133182
U14 REGULATOR 5V LOW DROP 133452
U15 REGULATOR VOLTAGE 9V 1.5A 133340
U16 15V LOW DROPOUT REGULATOR 133515
U17 -15V LOW DROPOUT REGULATOR 133514
Y1 RESONATOR CERAM 12.0MHZ W/CAP 180059
Y2 CRYSTAL OSCILLATOR 16.9344MHZ 180063
050018 DISPLAY PCB
C1 CAP ELECT 10UF 16V 4X5 CASE 066382
C2 CAP ELECT 10UF 50V LOW ESR 066437
C3 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C4 CAP MONO .1uF 50V 20% Z5U 061305
C5 CAP ELECT 47UF 16V 6.3X5 CASE 066380
C6 CAP MONO 22PF 200V 10% NPO 061298
DS1 VACUUM FLUORESCENT DISPLAY 058160
J1 FFC CONNECTOR 8PIN RA 117837
J2 FFC CONNECTOR 12PIN RA 117838
J3 FFC CONNECTOR 8PIN RA 117837
L1 BEADS FERRITE LEADED 076019
L2 BEADS FERRITE LEADED 076019
L3 CHOKE 18uH 5%-10% 122224
MT1 SENSOR IR 38KHZ 121046
R1 RES MF 10 OHM 1% 1/4W 144157
R2 RES MF 100 OHM 1% 1/4W 144196
R3 RES MF 100 OHM 1% 1/4W 144196
R4 RES MF 332 OHM 1% 1/4W 144446
R5 RES MF 100 OHM 1% 1/4W 144196
R6 RES NETWORK 4 X 22K BUS 144234
R7 RES MF 5.11K 1% 1/4W 144083
U1 VFD DRIVER 133442
050019 L-KEYBOARD PCB
DS1 LED GREEN 5MM HI-INT VF[V] 3.5 058165
DS2 LED GREEN 5MM HI-INT VF[V] 3.5 058165
J2 FFC CONNECTOR 12PIN RA 117838
J3 CONN FFC 18PIN 117765
S1 SWITCH PB TACT 150058
S2 SWITCH PB TACT 150058
S3 SWITCH PB TACT 150058
S4 SWITCH PB TACT 150058
050020 R-KEYBOARD PCB
DS1 LED GREEN 5MM HI-INT VF[V] 3.5 058165
DS2 LED RED HIGH EFFICIENCY 058148
J1 FFC CONNECTOR 8PIN RA 117837
S1 SWITCH PB TACT 150058
S2 SWITCH PB TACT 150058
S3 SWITCH PB TACT 150058
320171 CD MECHANISM MODULE
1
3
4
5
6

19 20
Part
No. Description
Ref
No.

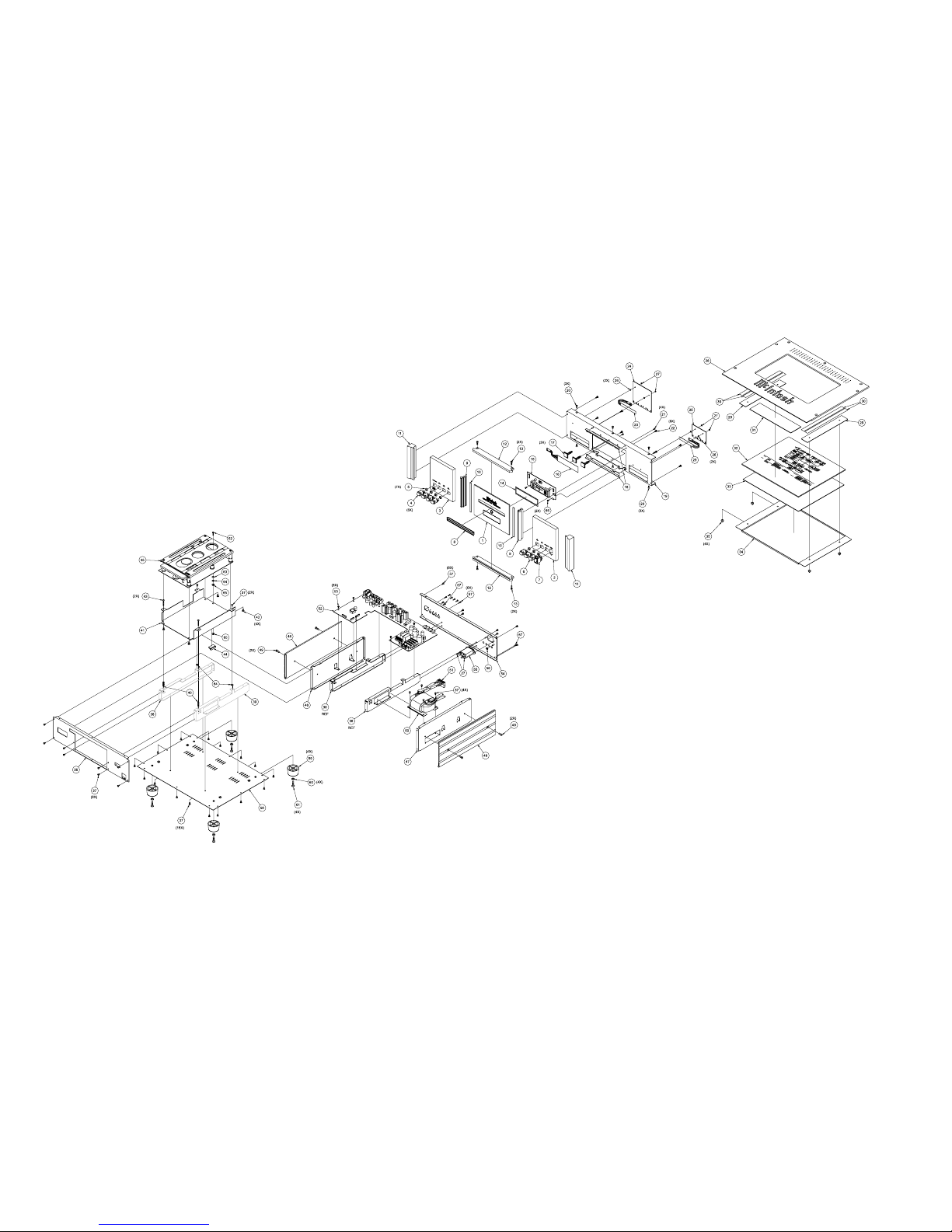

EXPLODED VIEW and PARTS LIST
1 016503 GLASS CENTER
2 016504 GLASS RIGHT
3 016502 GLASS LEFT
4 017517 PUSHBUTTON ASSY BLK
5 078033 O-RING
6 017531 PUSHBUTTON ASSY RED
7 148073 SWITCH LDPDT ROCKER
8 017949 CD BEZEL
9 018722 EXTRUSION CENTER 5”
10 094042 TAPE VINYL FOAM 1/16 X 1/4
11 018721 END CAP 5”
12 018715 TOP/BOTTOM END CAP
13 100342 SCREW 6-32 X 3/8 FILLISTER HD
14 092419 FILTER DISPLAY
15 050018 ASSY DISPLAY PCB
16 017901 LOGO PUSHBUTTON BACKLIGHT
17 017947 SUPPORT CIRCUIT BOARD
18 005360 GAP PLATE
19 005373 PLATE BACK
20 101232 SCREW 6-32 X ¼ PHIL FLAT
21 101074 SCREW TAPPING 4-40 X 1/4 PH PN
22 100276 SCR MCH SEMS 6-32 X 5/16 PH PN
23 017907 TITLE/PUSHBUTTON BACKLIGHT
24 050019 ASSY KEYBOARD LEFT
25 050020 ASSY KEYBOARD RIGHT
26 104179 NYLON WASHER .070
27 102001 NUT KEP 4-40 CADMIUM PLATE
28 018723 TOP PANEL
29 005364 TOP STRIP
30 094192 TAPE DOUBLE SIDED 1/2”
31 005396 GOLD STRIP
32 016505 GLASS TOP COVER
33 094442 FOAM PAD
34 005365 TRAY
35 102064 NUT CAP 6-32
36 005374 SUBPANEL
37 101196 SCR TAP SEMS 6-32 X 1/4 PH PN
38 005392 TRAY SUPPORT LEFT
39 005375 TRAY SUPPORT RIGHT
40 019058 SPRING
41 005377 TRAY TRANSPORT
42 100358 SCREW MACH M4 X 0.7 X 8mm
43 100300 SCR MACH SEMS 6-32 X 1 PH PN
44 017687 CLAMP CABLE
45 320171 CD MECHANISM
46 005394 SIDE PANEL LEFT
47 005393 SIDE PANEL RIGHT
48 018724 SIDE PANEL
49 100356 SCREW 10-32 X 1/2 LOW SHCS
50 159343 TRANSFORMER R-CORE POWER
51 117800 MTA CONNECTOR 8 PIN .156
52 050017 ASSY MAIN PCB
53 101222 SCREW TT SEMS 6-32 X 1/4 PH PN
54 005372 REAR PANEL
55 117755 RECEP INPUT & LINE FILTER
56 102020 NUT MACH 6-32 SELF-LOCK
57 101197 SCR HI/LO 4-24 X 3/8 PH RD BLK
58 005363 BOTTOM COVER
59 017937 FOOT
60 104083 WASHER #10 PLATED 104062
61 100159 SCR MCH 10-32 X 3/4 PH PN BLK
62 100304 SCR MCH SEMS 6-32 X 1/2 PH PN
63 104009 WASH FIBRE FLAT 6 X 3/8 X 3/64
64 104005 WASH FLAT STEEL 6 X 3/8 X .032
65 102003 NUT MACH 6-32 W/LOCK
66 101057 SCREW 4-40 X 1/4 PH PN
67 101109 SCREW 6-32 X 5/16 PH PN

21
REPACKING INSTRUCTION
MCD1000

SERVICE MANUAL
The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated, who reserve the right to improve design without
notice. Because of the constant upgrading of McIntosh products’ circuitry and components, the Company cannot insure, and does not warrant, the
accuracy of the within schematic material, which is intended for information only.
McINTOSH LABORATORY, INC., 2 CHAMBERS STREET, BINGHAMTON, NEW YORK 13903 Printed in U.S.A. Part Number 040911
CD TRANSPORT
