McLelland MAP-1200EW User manual

MAP-1200EW
OWNERS MANUAL
6 SOURCE/6 Z0NE
MULTIROOM CONTROLLER/
AMPLIFIER

2

3
The MAP-1200EW is a functional, easy-to-install, highly compatible,
expandable, and user-friendly audio distribution system. It provides up to 25W
@ 8 Ohm Power by Class D amplifier to up to 18 zones which at can be
controlled by packaged keypads (included with MAP-1200EW unit), RS232,IR
or network. Overall the distribution systems easy-to- install, so every
audiophile can enjoy the powerful audio wherever they are.
MAP-1200EW(includes 6 keypads)

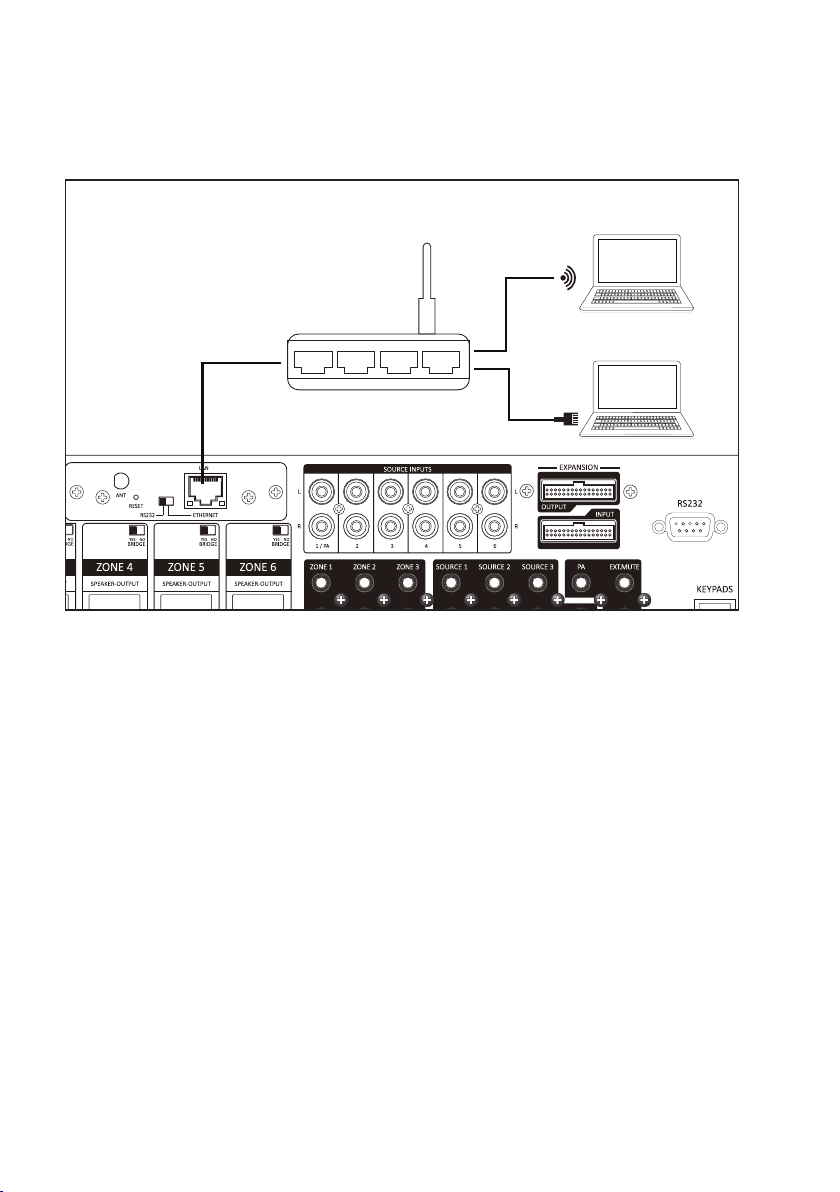

Integrated network allows for effortless control via PC or Macbook

4

5
Integrated network
1. Power ON/OFF Switch
2. Status LED White: Zone ON Blue: Standby mode Blue/White: Mute
1
1 2 3 4 6
5 7 8
9 10
13 12
11
14 15
2

6
1
3
5
6
7
2
7
4

7
1
7
2
5
6
3
4
3

8
MAP-1200EW
MAP-1200EW
RCA 3.5mm Stereo

The MAP-1200EW can work with speakers that are 4-8 Ohm. There are 9 two
modes that can be set for different setups: Stereo or Bridge. An 8 Ohm
speaker can only be used when in Bridge mode. To choose between modes,
use the mode switch to determine modes for each zone (Number 2 Panel
Descriptions, page 5)
9
and network.
STEREO MODE STEREO MODE

The MAP-1200EW comes with 6 POE enabled keypads. This allows for source
control from each specific zone as well as IR routing to the appropriate source
devices once selected. The MAP-1200EW also comes with a hub that allows for
all 6-keypads to be connected to the amp via Cat5e/6.
10
ZONE-1
ON ON OFF
1 2 3
ZONE-2
ON ONOFF
1 2 3
ZONE-3
ON OFFOFF
1 2 3
ZONE-4
ONONOFF
1 2 3
ZONE-5
ON OFFOFF
1 2 3
ZONE-6
ONOFFOFF
1 2 3
