McNeilus STREET SMART VISION SSV Extreme Guide

SSV Extreme 10.1” Monitor
Operation, Service, & Parts
© 2022 McNeilus Truck and Manufacturing, Inc.
Rev. 10/2022
Monitor PN: 1654644
Manual PN: 1659001

Street Smart Vision Systems
Extreme Monitor/DVR System
Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc.
Disclaimer:
This manual must not be used to repair your vehicle. Repair information is available by calling McNeilus Customer Service at
[phone].
The information in this Manual will be your guide to operation, service, and basic maintenance for this equipment.
A
ll information, illustrations, and specifications in this manual are based on the information available at the time this manual was
published.
The illustrations used in this manual are intended as representative reference views only. Because of our continuous
product improvement policy
, we may modify information, illustrations, and/or specifications to explain and/or exemplify a produ
ct,
service, or maintenance improvement.
We reserve the right to make any change at any time without notice. Go to
www
.streetsmartparts.com for current information.
No part of this publication may be reproduced by any means - graphic, electronic, or mechanical, including photocopying,
recording, taping, or information storage and retrieval systems for any use or purpose - without the written permission of
McNeilus
Truck and Manufacturing, Inc.
WARNING
Operating, servicing, and maintaining this vehicle or
equipment can expose you to chemicals including
exhaust, carbon monoxide, phthalates, and lead,
which are known to the state of California to cause
cancer and birth defects or other reproductive harm.
To minimize exposure, avoid breathing exhaust, do
not idle the engine except as necessary, service
your vehicle or equipment in a well ventilated area
and wear gloves or wash hands frequently when
servicing. For more information, go to
www.p65warnings.ca.gov.

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
Table of Contents
FOREWORD 1
Purpose of the Manual .............................................................................................................................. 1
Scope of the Manual ................................................................................................................................. 1
Parts and Service Locations...................................................................................................................... 2
Corporate Headquarters............................................................................................................................ 2
SAFETY 3
Important Safety Information ..................................................................................................................... 3
Operation Precautions............................................................................................................................... 3
Federal Communications Commission (FCC) Statement ......................................................................... 3
COMPONENT FEATURES 4
Monitor Features 10.1" Part Number 1654644.......................................................................................... 4
Camera Features ...................................................................................................................................... 5
MONITOR 10.1" 7
Monitor 10.1" Kit Parts List ................................................................................................................... 8
Monitor and GPS Receiver Installation................................................................................................. 8
Master Cable Harness.......................................................................................................................... 9
Camera Connection Pin Assignment.................................................................................................... 9
Power Accessory Harness.................................................................................................................... 10
Main Menu Functions ........................................................................................................................ 11
System Start-Up ........................................................................................................................................ 11
Power ................................................................................................................................................... 11
Menu..................................................................................................................................................... 11
System Setting ..................................................................................................................................... 11
Date and Time ...................................................................................................................................... 11
Language.............................................................................................................................................. 11
Record .................................................................................................................................................. 12
SD Card................................................................................................................................................ 12
Channel and Trigger ............................................................................................................................. 12
Display.................................................................................................................................................. 13
Image Setup ......................................................................................................................................... 13
Audio .................................................................................................................................................... 13
ID Tag ................................................................................................................................................... 13
Upgrade................................................................................................................................................ 13
TROUBLESHOOTING 14
WARRANTY AND SUPPORT INFORMATION 15
Warranty .................................................................................................................................................... 15
Monitor Specications ............................................................................................................................... 15
PARTS 16
Components for Individual Sale ................................................................................................................ 16

THIS PAGE INTENTIONALLY LEFT BLANK

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
1
Foreword
Purpose of the Manual
This manual provides safety, parts information, installation, operation, troubleshooting, monitor and camera
specications, and camera mounting for the Extreme Monitor/DVR System manufactured by McNeilus®Street
Smart Parts and Service™.
The information in this manual will be your guide to operation and maintenance for this equipment.
Scope of the Manual
This manual provides information for use by the equipment operator and service personnel under the following
headings:
• Safety
• Parts List
• Installation
• Operation
• Camera Mounting Locations
• Troubleshooting
• Individual Component Sales
• Monitor and Camera Specications
• Warranty
To order a free replacement manual, contact the McNeilus®Street Smart Parts and Service™ at 888-686-7278 or
visit www.streetsmartparts.com to download a free PDF copy.

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 2
Foreword
Parts and Service Locations
Contact your McNeilus®Street Smart Parts and Service™ location to order parts, receive service information,
or for other assistance. Contact by phone or visit www.streetsmartparts.com. We have factory owned parts and
service centers near you.
Phone Number 888-686-7278
State City
State City
CA
Colton
CT
East Granby
FL
Tampa
GA
Villa Rica
IL
Sugar Grove
MN
Dodge Center
NV
Las Vegas
OH Cincinnati
OH Columbus
PA Morgantown
TX Houston
TX Hutchins
UT West Valley City
WI Oshkosh
Canada
Ontario and W
estern Provinces 800-265-1089
Quebec and Maritime Provinces
800-996-4937
Corporate Headquarters
Contact McNeilus®Street Smart Parts and Service™ directly at our corporate headquarters at the following
address, phone numbers, and website address:
McNeilus®Street Smart Parts and Service™
615 East Hwy. Street
Dodge Center, MN 55927
Telephone: [phone] Website: www.mcneiluscompanies.com
Parts Toll Free: 1-888-686-7278 Parts Website: www.streetsmartparts.com

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
3
Safety
Important Safety Information
Read and understand this entire manual before operating, repairing, or adjusting your McNeilus
equipment.
Those who use and maintain this equipment must be thoroughly trained and familiar with the product.
If incorrectly used or maintained, this equipment can cause severe injury.
Always keep this manual in a location where it is readily available for persons who operate or maintain the
product. Additional copies of this manual are available from McNeilus Street Smart Parts and Service for no
charge. Please contact your McNeilus parts and service location to order parts, additional manuals, or if you
have any questions about the information in this manual, this product, or safe operating procedures.
THESE SAFETY PROCEDURES ARE FOR YOUR OWN PROTECTION.
Do not operate this equipment until you have read its contents thoroughly. Please contact McNeilus Truck and
Manufacturing, Inc. if you require assistance.
Should operators of this equipment have a reading or
learning disability, dyslexia, or other such condition, they
must be assigned a mentor/trainer to read and explain
to them the entire contents of this manual as well as the
safety guidelines, danger, caution, and warning decals
on this unit. Such individuals should not be allowed to
operate this equipment until they thoroughly understand
all of these materials. Failure to do so can result in
serious injury or death.
Safety and safe working procedures must be followed at all times.
Operation Precautions
1. Before you begin driving, ensure the monitor controls are adjusted properly to help avoid unnecessary
distractions while driving.
2. Before you begin driving, conrm the view provided by the camera is su󰀩cient for your needs. Adjustments
to the camera viewing angles should be made before you begin driving.
3. Before you begin driving, determine that the orientation of the image on the monitor is proper. For example,
cameras should produce a mirror image, meaning items on the left side of the vehicle will appear on the left
side of the monitor.
4. Do not let the Extreme Monitor/DVR System distract you from driving safely.
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part
15 of the FCC Rules.
SAFETY NOTICE
Perform your company's Lockout/Tagout
procedure. If your company does not have
a Lockout/Tagout procedure, follow OSHA
1910.147 and 1910.146 Conned Space as
appropriate.

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 4
Component Features
Monitor Features 10.1" Part Number 1654644
• 10.1 inch color high resolution, crystal clear
display
• Professional case with Certied Anti-Shock
Design up to 15G
• Advanced Graphical User Interface (GUI) with
touch panel input
• Multi-view display mode (single, 2/3/4/5/6 split-
screen mode)
• OSD control for individual normal/mirror camera
• Built-in DVR system (microSD Card type)*
• Locking microSD Card cover
• Supports up to six (6) camera inputs with
waterproof connectors
• Auto Sense technology adds and removes
cameras for faster installation
• Camera triggering wire used to activate individual
cameras or camera combinations
*File format of the microSD Card is Windows
compatible. One 128GB microSD card is included.
The monitor can accept up to 2 cards x 256GB
MicroSD card maximum size, Class 10, similar
performance to the example below. The second
microSD card can be purchased from your local
electronics store.
• Distance Grid
• IPS Touch Panel
• LCD
• Night brightness modes
• Standby recording with the LCD screen
turned o󰀨
• Motion Detection Surveillance while camera
is in idle mode
• Dimmer control: O󰀨 position or 1-4 di󰀨erent
position controls
• Supports English, French, and Spanish
• Auto Sense (supports CVBS PAL / NTSC,
AHD 720p, 108/0p @ 25/30fps)
• Support 9V-36V DC Power Supply
• Extra shielded cabling to help prevent
electrical, engine, and RF interference

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
5
Component Features
Camera Features
Part Number 1470028
NOTE
Remove the threaded plug on the back of the
camera to mirror the image on the screen. The
DVR will record a mirrored image.
NOTE
If a forward drive facing camera is used in the
cab, the IR must be turned o󰀨.
To do this:
1. Turn on the camera image on the monitor.
2. Place your hand in front of the camera so it
is viewed on the monitor.
3. Repeatedly press the IR button on the back
of the camera until the view of your hand
goes black on the monitor. The IR is now
turned o󰀨.
• 1/3" Sony CCD Image Sensor
• High 967 x 494 resolution
• 90°H wide angle, 65°V wide angle
• IP69K code - waterproof and dust proof rating
• 12 IR LEDs
• Certified Anti-Shock Design up to 20G
• Automatic or manual night vision adjustment
• Up to 39 feet of night vision distance
• Bracket mounted
• Image sensor: IR and Color
• Operating temperature of –67°F to 158°F (–20°C
to 70°C)
• Adjustable IR from off, high, medium, medium-
low, low positions
• Mirror image capable by removal of threaded plug
located on the back of the camera
• Microphone / audio capable
Front View of Camera
Mirror Image Plug
Adjustable IR Button
Back View of Camera
NOTE
The adjustable IR button is used to adjust
the intensity of the IR for night vision. Patent
Pending.

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 6
Component Features
NOTES

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
7
Monitor 10.1"
Monitor 10.1"
1654644
Installation and
Menu and DVR Functions

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 8
Installation
Basic Installation for Monitor 10.1" and its Components
Monitor 10.1" Kit Parts List
Item Description Quantity
1 10.1” LCD Monitor (PN 1654644) 1
2 Sun Shield 1
3 Mounting Bracket 1
4 Screws 4
5 Remote Control 1
6Power Accessory Harness 1
7 Camera Harness 1
8 SD Card Lock Cover (with 2 screws) 1
9GPS Antenna 1
Monitor and GPS Receiver Installation
READ AND UNDERSTAND THESE INSTALLATION INSTRUCTIONS BEFORE INSTALLING THE
MONITOR AND CABLES.
Follow all Lockout/Tagout instructions during installation of the monitor and its equipment.
Install the monitor in the vehicle's cab, either overhead or on the dashboard, and within three feet of the driver.
(For a dual drive vehicle, the monitor must be mounted where it is accessible from both the left side and right
side driving positions.)
1. In the cab, located an area that best accommodates the monitor and the driver's view of it. Make sure the
monitor will not obstruct any part of the driver's view for driving and operation. It is recommended
to place the monitor on a metal surface, or in cases where the surface is plastic, support plates may be
required.
2. Use the provided mounting bracket as a template for drilling the holes that hold the monitor in place. Verify
the area around and underneath being drilled into is clear of all wires or other items. Drill the holes. NOTE:
If the provided bracket does not allow for positioning the monitor in the best location for the driver's view,
other bracket options are available through McNeilus Parts at 888-686-7278 or
www.streetsmartparts.com. If you require a di󰀨erent bracket for the monitor, use that bracket as a
template for drilling the holes.
NOTE: McNeilus o󰀨ers various monitor mounting hardware (RAM®Mount products) for purchase (see Page
16). When using this system, it is recommended to use Blue #2 Loctite on the bolts to attach the RAM
Mount ball to the back of the monitor.
3. Mount the bracket using the vibration pad with the appropriate hardware. The vibration pad is placed
between the mounting surface and the monitor mounting bracket. Hardware is not provided.
4. Before placing the monitor on the bracket, locate the four wires on the monitor from the Power Accessory
Harness: Power (red), Reverse (green), Ground (black), Battery or constant power source (yellow). See
Page 10 for more information on connecting these wires.
a. Connect the ground wire (black) to a solid chassis ground.
b. Connect the power wire (red) to an ignition power source.
c. Connect the battery wire (yellow) to constant power source or to the battery.
d. Connect the reverse wire (green) to the reverse light circuit. When connected properly, this wire allows

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
9
Installation
the monitor system to come on when the vehicle is placed in reverse.
e. Connect the power accessory harness to the power socket on the rear side of the monitor.
5. Bolt the monitor in the bracket, and adjust the position as needed for the driver's view.
6. Clip the provided sun shield onto the monitor using the provided hardware, if desired.
Master Cable Harness
1
2
3
4
5
67
8
9
10
11
12
13 14
15
16
1718
19
20
21
22
23
24
1
2
3
4
Front view
24P male plug
Front view
4P male plug *6
AU
VI
GND
VCC
CH1
CH2
CH3
CH4
CH5
CH6
240±20
2000±80
OD 7.0
K278
Wire Function Note
BROWN (Color Wire 4 Pin Connector) CH 1 For Backup / Reverse Camera Connect
BROWN (Color Wire 4 Pin Connector) CH 2 For Left Camera Connect
BROWN (Color Wire 4 Pin Connector) CH 3 For Right Camera Connect
BROWN (Color Wire 4 Pin Connector) CH 4 For Driver / Facing Forward Camera Connect
BROWN (Color Wire 4 Pin Connector) CH 5 For Front / Hopper Connect
BROWN (Color Wire 4 Pin Connector) CH 6 For Misc Camera Connect
GPS ANTENNA CONNECTOR GPS To connect the GPS Antenna to the monitor
Camera Connection Pin Assignment
41
32
Pinout from the Monitor side to
the Camera connector.
Pin Assignments:
Pin 1 = GND (Ground)
Pin 2 = +12V (Power)
Pin 3 = Video
Pin 4 = Audio

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 10
Installation
Power Accessory Harness
1
2
3
4
5
67
8
9
10
11
12
13
Front view
800±20
2000±50
OD 6.5
K279
13P female plug
Half peeled 10mm
Brown
White
Black
Gray
Purple
Green
Blue
Yellow
Label: CAM1
Label: CAM2
Label: GND
Label: CAM3
Label: CAM4
Label: CAM5
Label: CAM6
Label: BATT+
Red Label: ACC
Wire Function Note
RED ACC POWER Connect to Ignition Power Source
BLACK GROUND Connect directly to the battery ground or to a good chassis
ground
YELLOW BATTERY
Connect to the battery or a constant power source to ensure
your monitor settings do not reset if the monitor is turned o󰀨 for
an extended period of time, and/or will allow the DVR system
to operate when LCD screen if o󰀨.
NOTE: The following wires only need to be used if you desire the camera to display when the vehicle is in a
specic operation (e.g., Reverse).
BROWN REVERSE / BACK UP
(CAMERA 1)
If you want this camera to be activated and displayed when the
truck is in Reverse, connect the BROWN wire to a Reverse/
Back Up signal
WHITE LEFT TURN
(CAMERA 2)
If you want this camera to be activated and displayed when the
Left Direction Turn Signal is activated, connect the White wire
to the directional signal Left.
GRAY RIGHT TURN
(CAMERA 3)
If you want this camera to be activated and displayed when the
Right Direction Turn Signal is activated, connect the Gray wire
to the directional signal Right.
PURPLE FRONT / HOPPER
(CAMERA 4)
If you want this camera to be activated and displayed when the
truck is in Drive, connect the Purple wire to a Power signal.
GREEN PARK
(CAMERA 5)
If you want this camera to be activated and displayed when the
truck is in Park, connect the Green wire to a Park signal.
BLUE MISC
(CAMERA 6)
If you want this camera to be activated and displayed, connect
the Blue wire to a power signal.
NOTE: When a trigger wire is activated, that camera takes precedence over all other recording options for the
period of time that the trigger wire is activated.
NOTE: Using a directional turn signal to activate a camera will require the use of the 2-second o󰀨 delay
programmable in Settings.
NOTE: The yellow wire must be connected to the battery or a constant power source to ensure your monitor
settings are retained and also to allow certain recording options to function when the LCD screen is turned o󰀨
(see Ignition O󰀨 Setup).

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
11
Main Menu Functions
Monitor 10.1" Functions
System Start-Up
Power
The monitor has a power button on the back-left, toward the top. On ignition, the monitor
will power up automatically. A screen timeout can be selected in the Settings.

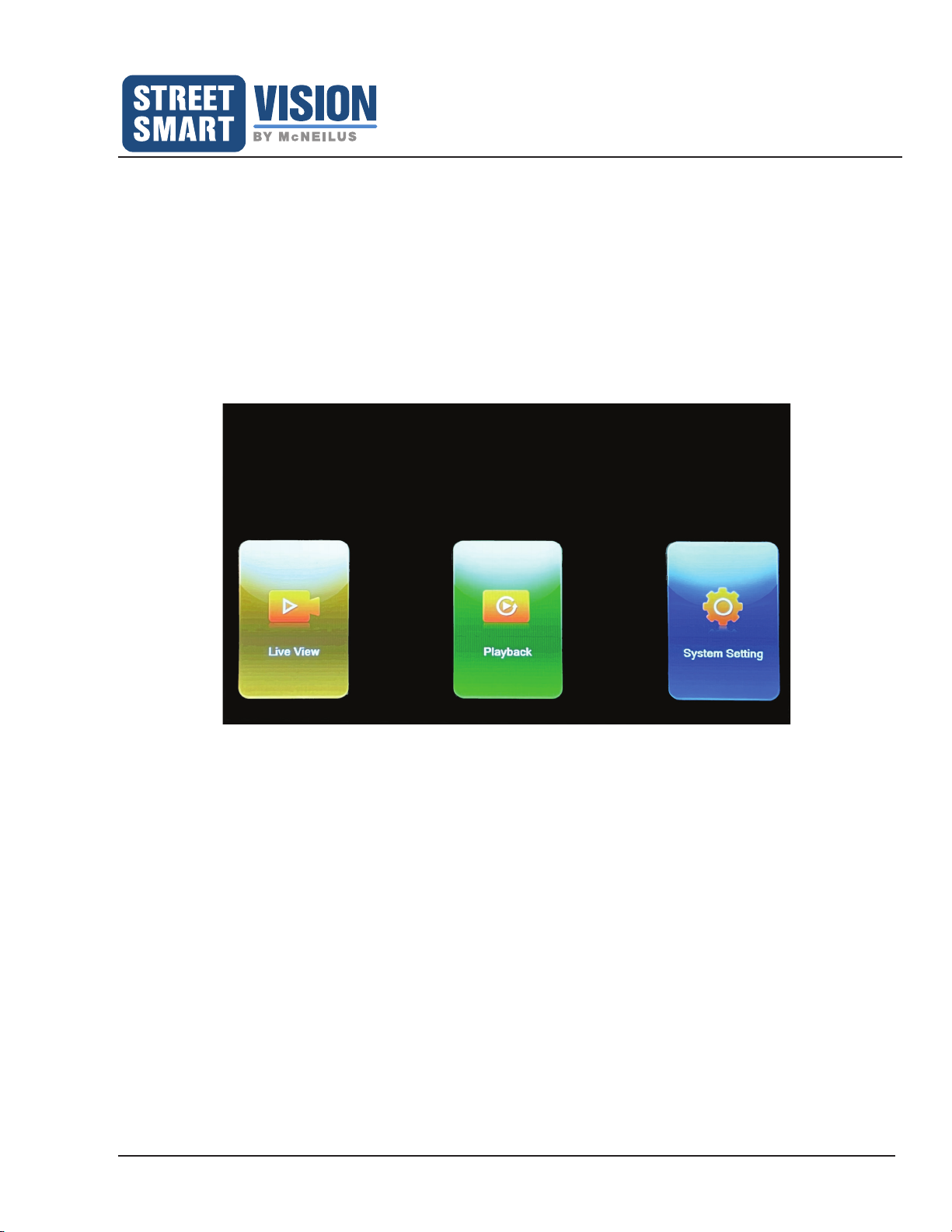

Menu
Provides the following selection:
• Touch the screen to reveal the menu icon, then touch the icon.
System Setting
• Touch System Setting icon
• Enter the passcode (5652583)
• Touch OK.
Date and Time
Set the Date and Time for your area.
Language
Set the preferred language.

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 12
Main Menu Functions

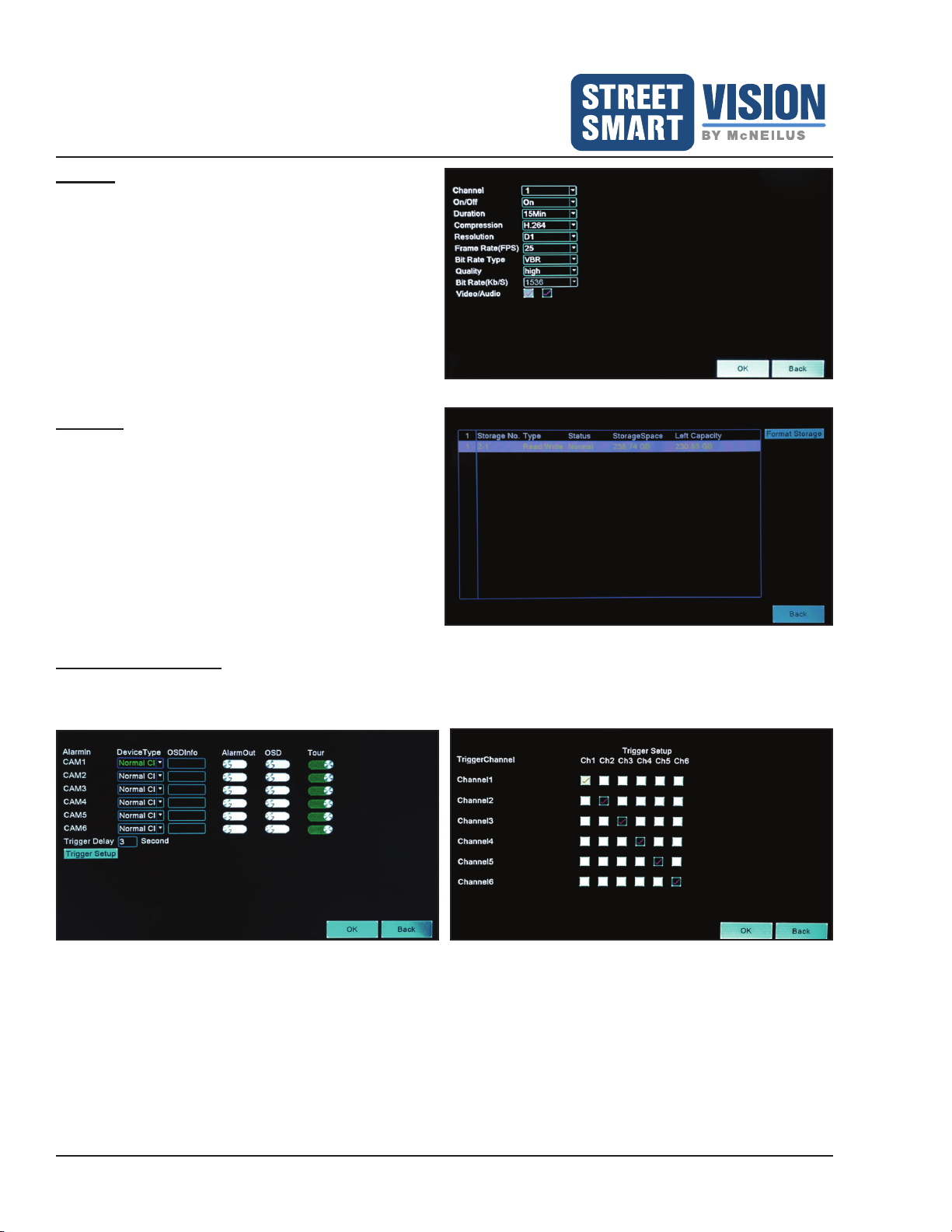

Record
Select to change record settings.
Touch OK to save changes before leaving this screen.
SD Card
Select to format your SD Cards. The system accepts
up to two (2) microSD cards, up to 256GB each.
Channel and Trigger
Select to limit focus on certain channels, and Select Trigger to program one or multiple channels to trigger
together, simply select the check boxes by touching them.

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
13
Main Menu Functions
Display
Select to adjust the Display Brightness, and also the
automatic screen timeout. This will turn the display
o󰀨, yet not interrupt channel recording.
Image Setup
Select to adjust camera Mirroring, Flipping, and
Gridline Display when triggered.
Audio
Select to adjust the volume of individual camera
channels and touch-tones.
ID Tag
Select to add vehicle specic information to be
tagged on recording.
Upgrade
Select this only when installing a rmware update.

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 14
Troubleshooting
Periodic checks of the monitor system, cables and their connectors and wiring, and cameras will help you spot
potential trouble areas before they result in a system failure. A good time to check is when the vehicle is in for
scheduled maintenance.
Problem and
Possible
Causes
How to Diagnose How to correct the Problem
Monitor does
not power up
Check monitor power wires
and fuses
Check for power to Battery / yellow wire and ACC power / red
wire. Check fuses for the Battery and ACC power wire, if fuses
are bad, replace with standard fuse (5amp).
Monitor lights
up, but no
Check monitor controls Adjust Brightness, Contrast, etc. to see if the picture appears.
Cable Visual inspection of cables
for damage Remove debris. Replace damaged cables.
Monitor does
not light up,
blue screen
Check power ACC harness
is connected to the monitor
Blue monitor screen can occur even if cameras are not
plugged in. Check that cameras are plugged in and detected
by the monitor. Make sure the camera cable is plugged in
correctly.
Picture is blurry,
out of focus, or
distorted
Check the camera for
debris covering the lens
Clean any dirt, dust, or moisture found on the outside of the
lends, check for proper camera and DVR connection. Check
battery voltage (needs to be 10V or higher).
Cameras do not
have power Check camera connections Ensure camera connections area correctly and securely connected. Check cables for damage.
Monitor is not in
color Cameras are in bright light Check Video settings and adjust.

Extreme Series 10.1" Monitor/DVR System © 2022 McNeilus Truck and Manufacturing, Inc.
15
Warranty and Support Information
Warranty
McNeilus Street Smart Parts and Service provides a one-year comprehensive warranty on this product (specic
parts covered).
The cameras, cables, and monitor of this McNeilus Street Smart Parts and Service product are protected for
one year from the original date of purchase from McNeilus Street Smart Parts and Service against defects in
material and workmanship. McNeilus will replace, at McNeilus’s sole discretion and without charge, any camera,
cable, or monitor which under normal and proper use is found to be defective within the e󰀨ective period of this
warranty. This warranty is void and does not cover product that has been lost or damaged in shipment, subjected
to improper installation, misuse, abuse, tampering, use contrary to operation instructions, or disassembly, repair
or alteration by anyone other than McNeilus or a McNeilus authorized service agent.
All defective camera, cable, or monitor products should be returned to McNeilus, delivery prepaid and insured.
Contact McNeilus at 888-686-7278 for service assistance.
Monitor Specications
Monitor Model and Color: CT-M10116-MCN-Silver
Screen Size and Type: 10.1" 16:9 Color Touchscreen, TFT Active Matrix LCD
Certied Anti-Shock Rating: Up to 10G
Resolution: H1024 x V600 = 614,400 pixels (RGB)
Brightness: 400 cd/m2
Back Light: LED
Contrast Ratio: 800:1
Dimmer Control: 9—1 (1 is o󰀨)
Supports Split Screen: Single/Dual/Triple/Quadruple
Viewing Angle: 85° H x 85° Up, 70° Down
Power: 9V —36V (<2000mA) DC
Video System: NTSC or PAL
Video Connections: Composite 1Vp-p 75Ω 5 In
Speaker Output: 1ea (2w)
Camera / Audio Inputs: 6ea / 6ea
DVR Output: (W x H x D) 10.5" x 6.75" x 1.51"
Weight: 5.1 lbs (2317g) (Monitor on bracket with harnesses)
Safety: FCC / CE / e13/ ROHS
Operating / Storage Temp: -4°F — +158°F (-20° — +70°C)

Extreme Series 10.1" Monitor/DVR System© 2022 McNeilus Truck and Manufacturing, Inc. 16
Parts
Components for Individual Sale
Component Part Number
Extreme Color Monitor 10.1" 1654644
SSP Color Camera 1470028
Cable 3' Camera/Monitor SSP 1495023
Cable 6' Camera/Monitor SSP 1495024
Cable 9' Camera/Monitor SSP 1495025
Cable 16’ Camera/Monitor 1433196
Cable 32’ Camera/Monitor SSP 1433200
Cable 65’ Camera/Monitor 1433250
Cable 82’ Camera/Monitor SSP 1431526
Kit Numbers*
Cameras per System Part Number
1 camera with one 65’ cable 1473542
2 cameras with two 65’ cables 1473543
3 cameras with two 65’ cables and one 32’ cable 1473544
3 cameras with one 82' cable, one 65' cable, and one 16' cable 1479610
4 cameras with two 65’ cables, one 32’ cable, and one 16’ cable 1473545
*Each kit contains the contents described and one monitor.
NOTE: Kits are packaged for the most common applications. It may be necessary to purchase additional
cables for specic applications.
Monitor Mounting Part Number
Universal double ball mount with two round plates, 1.5" ball 1483763
Ram Mount Individual Components
Mount, 1.5" Ball, 2.5 Base 1476231
RAM Mount, 1.5" Ball, 2.5"L 1476232
RAM Mount, Double Socket, 1.5" Ball, 4.5"L 1489033
RAM Mount, Double Socket, 1.5" Ball, 8"L 1489034
Camera Components Part Number
Hopper/Arm Camera with Light Assembly – Silver Body 1480171
Adaptor Cable 12V Power SSV (required to activate light on 1480171) 1485691
Light/Bracket Assembly for Hopper/Arm Camera 1480016
Alley, Rear, and Side Cameras – Silver Body 1470028
