MDR Electronics MX-1225 User manual

MX- FIBER OPTICAL
CONVERTER
MX-1225
MDR Electronics
www.mdrelectronics.com

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 2
Table of contents
1. Introduction 3
2. Image 4
3. Features and Specifications 5
4. Connection Procedure 6
5. Do’s and Don’ts 7
6. Warranty 8

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 3
INTRODUCTION
Congratulations on purchase of MX Fiber Optical Convertor cum distributor.
MX has a product range of over 3500 products. MX categories include Home theater
Cables and Connectors, Computer/Laptop Accessories, Pro Audio/Studio Cables and
Connectors, Audio/Video Components and Accessories, Fiber Optic Components and
Accessories, Cable TV Components and Accessories.
MX –1225 is mainly to convert your coaxial digital in to fiber optic light source out. It’s
mainly help full to convert your SPDIF IN to LIGHT SOURCE TOSLINK OUT.
Our Commitment
There are many outstanding technological innovations in the world. Through innovative
thinking we are committed to enriching the lives of people all around the world. It
aspires us to go beyond and touch people in ways that could make their lives more
satisfying. We continuously aim to exceed our customer’s expectations.

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 4

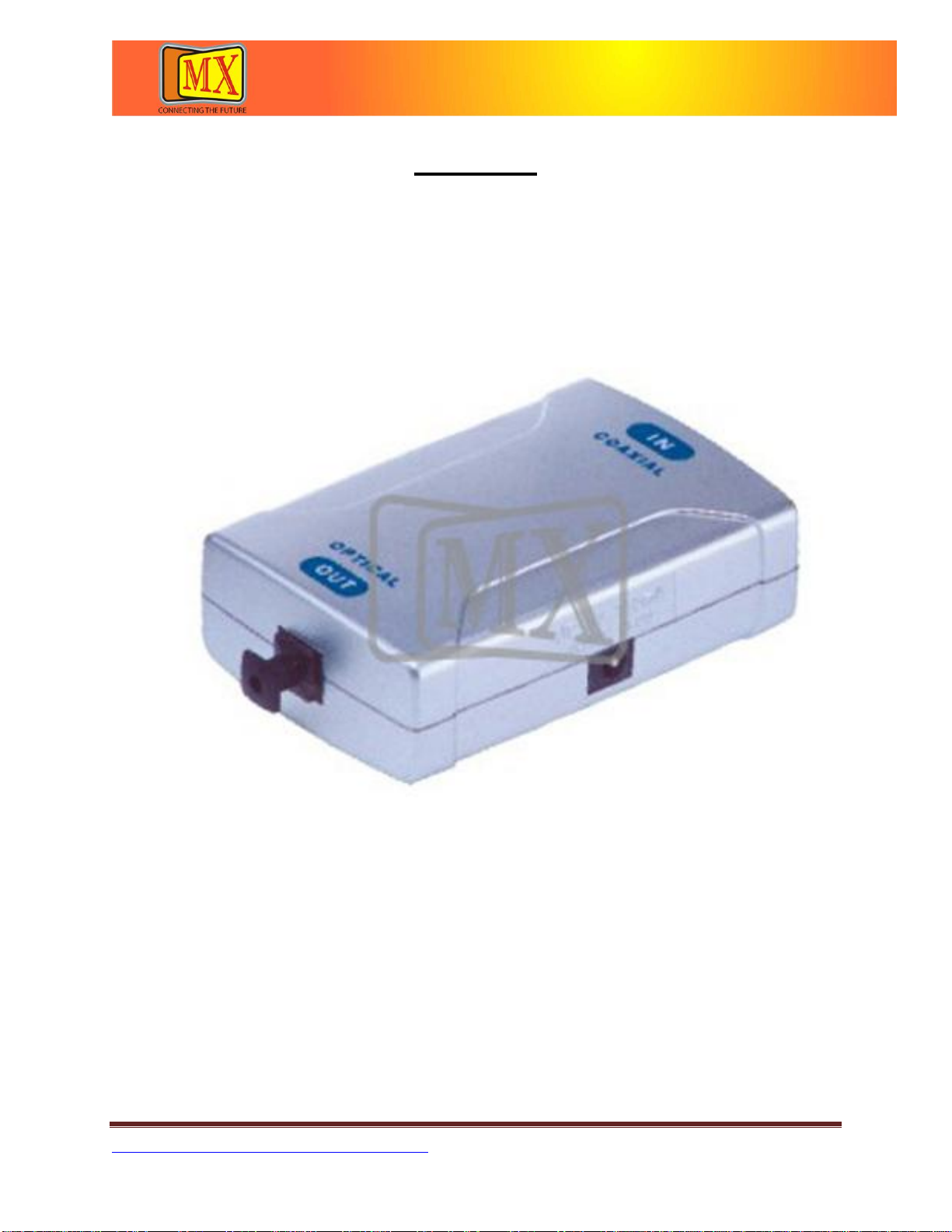

IMAGES

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 5
FEATURES
Converts your DVD, MP3, TV or any Multimedia products SPDIF OUT in to
TOSLINK OUT
Bit depth of Audio is Up to 48 KHz at 24 Bit.
Convert Coax SPDIF Audio to Toslink
Toslink output.
5.1 digital audio, 2 Ch pcm
Active circuitry for best performance.
Installation is easy.
SPECIFICATION
Model:-MX-1225
Coax SPDIF Input:-1
Optical Toslink Output:-1
Dimension2.75 x 1.75 x 0.76inch (7 x 4.5 x 2.2 Cm)
DC adapter (included)
5VDC adapter included
One Package Includes:
(1) Coaxial to Optical Fiber Converter
(1) User's Manual

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 6
HOW TO CONNECT
How to connect the converter to your devices
1. Connect the Media source with SPDIF out to your Converter with digital Coaxial
cable.
2. Connect the Toslink optical fiber cable from optical out to your AV RECIVER or
AMPLIFIER.
3. Turn on your multimedia source and your amplifier.
4. Plug the 5V power supply into the Converter.
5. Plug the 5V wall mount power supply into the wall outlet.

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 7
WARNING:
DO’S AND DON’TS
TO REDUCE THE RISK OF FIRE ELECTRIC SHOCK OR PRODUCT
DAMAGE
1. Do not expose this apparatus to rain, moisture dripping or splashing and make
sure that no objects filled with liquids are placed on the apparatus.
2. Do not install or place the unit in a bookcase or built in cabinets or in another
confined space. Ensure the unit is well ventilated.
3. To prevent the risk of electric shock or fire hazard due to overheating do not
obstruct the unit’s ventilation opening with newspaper, tablecloths, curtains and
other similar items.
4. Do not install near any heat sources such as radiators, heat registers, stoves or
other apparatus.
5. Do not place sources of naked flames near unit such as lighted candles etc.
6. Clean the apparatus only with dry cloth.
7. Unplug apparatus during lighting storms or when unused for long time.
8. Protect the power cord from being walked on or pinched, particularly at plugs.
9. Only use accessories specified by the manufacturer.
10.Refer all servicing to qualified service personnel only.

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 8
WARRANTY
MDR Electronics gives warranty on the equipment it manufactures to be free from
defects in material and workmanship. If equipment fails because of such defects and
MX is notified within ONE year from the date of shipment, MX will, at its option, repair or
replace the equipment, provided that the equipment has not been subjected to
mechanical, electrical, or other abuse or modifications. Equipment that fails under
conditions other than those covered will be repaired at the current price of parts and
labor in effect at the time of repair.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose,
all of which are expressly disclaimed.
THE WARRANTY IS VOID IF THE SEAL OF THE PRODUCT IS BROCKEN
The information in this manual has been carefully checked and is believed to be
accurate. However, MX assumes no responsibility for any inaccuracies that may be
contained in this manual. In no event will MX, be liable for direct, indirect, special,
incidental, or consequential damages resulting from any defect or omission in this
manual, even if advised of the possibility of such damages. The technical information
contained herein regarding Product features and specifications is subject to change
without notice.
For the latest warranty coverage information, please visit:
http://www.mdrelectronics.com/warranty.asp

http://www.mdrelectronics.com/| © at MDR Electronics 2010 Page 9
ASKING FOR ASSISTANCE
Technical Support:
Telephone: [phone]
Fax: [phone]
Technical Support HRS:
10.00AM to 7.00PM (IST)
Monday to Saturday
Write to:
MDR Electronics
Unit No 5/K, Laxmi Industrial Estate,
New Link Road, Andheri (West),
Mumbai 400053
India
[e-mail]
www.mdrelectroncs.com
Notice:
MDR Electronics reserves the right to make changes in hardware, packaging and any
accompanying documentation without prior written notice.
