APROLI 480
Oil-hydraulic operator
for tilt-up doors with counterbalance
1 - 16GB Instructions manual pages
the gate opener
istr_aproli480_GB.ai 1 26/09/2018 15:59:23

2
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
English
GENERAL WARNINGS FOR PEOPLE SAFETY
INTRODUCTION
This operator is designed for a specic scope of applications as
indicated in this manual, including safety, control and signaling
accessories as minimum required with FADINI equipment. □
Any applications not explicitly included in this manual may
cause operation problems or damages to properties and
people. □Meccanica Fadini snc is not liable for damages
caused by the incorrect use of the equipment, or for
applications not included in this manual or for malfunctioning
resulting from the use of materials or accessories not
recommended by the manufacturer. □The manufacturer
reserves the right to make changes to its products without
prior notice. □All that is not explicitly indicated in this manual
is to be considered not allowed.
BEFORE INSTALLATION
Before commencing operator installation assess the suitability
of the access, its general condition and the structure. □Make
sure that there is no risk of impact, crushing, shearing,
conveying, cutting, entangling and lifting situations, which
may prejudice people safety. □Do not install near any source of
heat and avoid contacts with ammable substances. □Keep all
the accessories able to turn on the operator (transmitters,
proximity readers, key-switches, etc) out of the reach of the
children. □Transit through the access only with stationary
operator. □Do not allow children and/or people to stand in the
proximity of a working operator. □To ensure safety in the
whole movement area of a gate it is advisable to install
photocells, sensitive edges, magnetic loops and detectors. □
Use yellow-black strips or proper signals to identify dangerous
spots. □Before cleaning and maintenance operations,
disconnect the appliance from the mains by switching o the
master switch. □If removing the actuator, do not cut the
electric wires, but disconnect them from the terminal box by
loosening the screws inside the junction box.
INSTALLATION
All installation operations must be performed by a qualied
technician, in observance of the Machinery Directive
2006/42/CE and safety regulations EN 12453 - EN 12445. □
Verify the presence of a thermal-magnetic circuit breaker
0,03 A - 230 V - 50 Hz upstream the installation. □Use
appropriate objects to test the correct functionality of the
safety accessories, such as photocells, sensitive edges, etc. □
Carry out a risk analysis by means of appropriate instruments
measuring the crushing and impact force of the main opening
and closing edge in compliance with EN 12445. □Identify the
appropriate solution necessary to eliminate and reduce such
risks. □In case where the gate to automate is equipped with a
pedestrian entrance, it is appropriate to prepare the system in
such a way to prohibit the operation of the engine when the
pedestrian entrance is used. □Apply safety nameplates with CE
marking on the gate warning about the presence of an
automated installation. □The installer must inform and instruct
the end user about the proper use of the system by releasing
him a technical dossier, including: layout and components of
the installation, risk analysis, verication of safety accessories,
verication of impact forces and reporting of residual risks.
INFORMATION FOR END-USERS
The end-user is required to read carefully and to receive
information concerning only the operation of the installation
so that he becomes himself responsible for the correct use of it.
□The end-user shall establish a written maintenance contract
with the installer/maintenance technician (on -call). □Any
maintenance operation must be done by qualied technicians.
□Keep these instructions carefully.
WARNINGS FOR THE CORRECT OPERATION OF THE
INSTALLATION
For optimum performance of system over time according to
safety regulations, it is necessary to perform proper
maintenance and monitoring of the entire installation: the
automation, the electronic equipment and the cables
connected to these. □The entire installation must be carried
out by qualied technical personnel, lling in the Maintenance
Manual indicated in the Safety Regulation Book (to be
requested or downloaded from the site
www.fadini.net/supporto/downloads).
□Operator: maintenance inspection at least every 6 months,
while for the electronic equipment and safety systems an
inspection at least once every month is required. □The
manufacturer, Meccanica Fadini snc, is not responsible for
non-observance of good installation practice and incorrect
maintenance of the installation.
DISPOSAL OF MATERIALS
Dispose properly of the packaging materials such as
cardboard, nylon, polystyrene etc. through specializing
companies (after verication of the regulations in force at the
place of installation in the eld of waste disposal). Disposal of
electrical and electronic materials: to remove and dispose
through specializing companies, as per Directive 2012/19/UE.
Disposal of substances hazardous for the environment is
prohibited.
Meccanica Fadini s.n.c.
Director in charge
CE DECLARATION OF CONFORMITY of the manufacturer:
Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: APROLI 480
complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along
with original accessories and components as indicated by the manufacturing company. An automatic gate operator is, by
law, a“machinery”and therefore the installer must t the equipment with all of the applicable safety norms. The installer is
also required to issue the installer’s Declaration of Conformity. The manufacturer is not liable for possible incorrect use of
the product. The product complies with the following specic norms: analysis of the risks and subsequent action to cure
them as per EN 12445 and EN 12453, Low Voltage Directive 2014/35/UE, Electromagnetic Compatibility 2014/30/UE. In
order to certify the product, the manufacturer declares under own responsibility the compliance with the EN 13241-1
PRODUCT NORMS.
istr_aproli480_GB.ai 2 26/09/2018 15:59:28

1 - Cover with lamp item code No. 510L (optional on request)
2 - Aproli 480 assembly with motor-pump and rotation actuator
3 - Fastening bracket
4 - Fixing plate for telescopic arms
5 - Fixing screws
6 - L = 1,5 m tubular bar with bush welded to it to t the rotation shaft
7 - Plate of the telescopic arm to be welded to the tubular bar
8 - Lateral brackets to support the tubular bars for hardware welding type
9 - Tubular components for telescopic arms for hardware welding type
10 - Plates of the telescopic arms for hardware non welding type
11 - Tubular components for telescopic arms for hardware non welding type
12 - 30x30 square tubular bar for telescopic rotation shaft
13 - 25x25 square tubular bar for telescopic rotation shaft
14 - Aluminium bush square hole 30x30 for hardware non welding type
15 - Aluminium bush square hole 25x25 for hardware non welding type
16 - Plastic bush for telescopic rotation shaft for hardware non welding type
17 - Angle brackets to x the telescopic arms for hardware non welding type
18 - Lateral brackets to support the telescopic rotation shaft for hardware non welding type
19 - Curved arms (one right and one left) for hardware non welding type
20 - Curved arms for hardware welding type
21 - Shaft tting short tubular bar L = 300 mm
Hardware components, welding type item code No. 483L
Hardware components, non welding type item code No. 512L
GENERAL DESCRIPTION OF THE PRODUCT
Aproli 480 is an oil-hydraulic operator designed for on-the-door mounting and studied for opening and closing counterbalanced
tilt-up doors on residential applications.
It is compact and being oil-hydraulic it has all the advantages that such technology can ensure ie. reliability, smooth movements,
adjustable thrust power by pressure valves. Therefore it can meet any installation requirements.
The operator can be xed to the door by a specially designed bracket made of galvanized steel along with tting accessories, galvanized
as well. Two types of hardware options are possible with Aproli 480 , either a welding type or a type where no welding is required,
which is made possible by components to be assembled together.
The rotation shaft is made of hardened steel to ensure long lasting performance.
The operator is double locking type, able to lock the door by the hydraulic system in both open and closed positions.
For the Aproli 480 system to be electrically operated, it is required that an electronic control board type Elpro 6 exp be connected to
it and located in a sheltered place, allowing for all the pre-set operations be performed either in outomatic or semiautomatic modes.
Aproli 480 is designed to take a number of complementary accessories ensuring safety and proper operations in order to turn this
product into a most versatile unit, able to meet any site requirements.
A cover is available on request, made of anodized aluminium and tted with a courtesy lamp which stays on alight for a timed period
after the door is closed.
A lever-operated override system is incorporated for hand operations of the door in case of a black-out.
COMPONENTS
Pic. 1
English
3
4
6
1
27
8
9
11
10
3
12 13
14
15
16 17 18
19
21
20
5
L = 300
L = 1.500 mm
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 3 26/09/2018 15:59:28

E13
E20
TOOLS REQUIRED FOR THE INSTALLATION
1 - Miri 4 asher with aerial
2 - Elpro 6 exp controller with VIX 53/2 R plug-in receiver
3 - 230 V - 50 Hz 0,03 A magneto-thermal circuit breaker (cable section 2,5 mm² beyond 100 m)
4 - Junction box
5 - Trifo 11 photocell receiver
6 - Trifo 11 photocell projector
7 - DGT 61 digital keypad
8 - Aproli 480
9 - Low prole safety edge
10 - VIX 53 radio transmitter
11 - DGT 61 main PC board Pic. 2
Pic. 3
ELECTRICAL GENERAL WIRING DIAGRAM AND COMPONENTS LAYOUT
Before installing Aproli 480 it is recommended that all of the essential safety and command accessories be prepared.
Indicative general layout: it is the installer’s care and responsibility to lay the tubes for the connections in the most suitable way.
English
4
4
6
1
7
8
9
10
4
4x1 mm²
4x1 mm²
2x1 mm²
RG58
2x1 mm²
2x1 mm²
5
4x1 mm²
+
2x1 mm²
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
GREASE
230 V - 50 Hz ±10%
3
2
11
4x0,5 mm²
4x0,5 mm²
istr_aproli480_GB.ai 4 26/09/2018 15:59:28

INSTALLATION BY HARDWARE WELDING TYPE
Before installing Aproli 480 make sure the door is adequate to be electrically operated.
If necessary reinforce the door by welding or bolting to
it a metal plate of 100 mm, 5/6 mm of thickness, allowing
for Aproli 480 xing bracket to have a stronger support
during door operations.
The bracket for the installation of Aproli 480 is to be xed in the middle of the door.
Pic. 4
Pic. 5
English
5
IMPORTANT: before proceeding with the installation, make sure the door can be smoothly open and closed by
hand, without any friction points.
IMPORTANT: consider that Aproli 480 and the hardware require extra counterweight to compensate the additional
weight, so that the door once automated and released for manual operations, be well balanced and able to stay
still in any position.
IMPORTANT: depending on the space, being more or less sucient, that can be available between
the system arms to be installed for automatic operations and the existing ones of the door, the
bracket is required to be mounted following the distances indicated in Pic. 6 (with the linear
arms) or in Pic. 7 (with the curved arms).
!
!
=
=
100
Movement
arm of
the door
=
=!
See Pic. 6
See Pic. 7
=
=
!
Movement
arm of
the door
See Pic. 6
See Pic. 7
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 5 26/09/2018 15:59:29

Hardware welding type
Hardware welding type
Telescopic arms are to be used
when there is enough space to
install them next to the existing
arms of the door
Pic. 6
English
6
!
!
60
60
Rotation pivot of the
movement arm of
the door
It is recommended that the
space between the arms be
20-25 mm approx.
Curved arms are to be used
when there is not enough
space to install them next to
the existing arms of the door
Pic. 7
Movement
arm of the
door
40
40
Movement
arm of the
door
60
60
Rotation pivot of the
movement arm of
the door
40
40
Movement
arm of
the door
80
Movement
arm of
the door
40
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 6 26/09/2018 15:59:29

E20
Mount Aproli 480 on to the bracket and x it by the 8 screws provided with the equipment
Proceed now to weld the tubular bar to the telescopic arms, with the door in closed position. To ensure that Aproli 480 can exert a
proper hydraulic force on to the door, note the following: the operator is factory preset for mounting a door in closed position;
rotate the operator shaft by approx. 5° degrees clockwise. The door will so get a constant pushing action to stay securely closed.
English
IMPORTANT: once Aproli 480 has been installed and in consideration of the weight of the torsion
bars, it is advised that the existing counterbalance be increased to compensate any extra load and
provide the door with proper balance since the early stage of the installation.
!
!
!
!
Pic. 8
Pic. 9
4° - 5°
1) 2) 3)
7
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 7 26/09/2018 15:59:29

Cut to measure the tubular bars.
First x the lateral supports, through which the bars are to be inserted, and install the telescopic arms, then weld the ends of the
tubular bars to the sliding plates of the telescopic arms.
English
!
It is recommended that Aproli 480 square shafts be
lubricated before being tted with the tubular bars
It is recommended that the telescopic
arms be lubricated along the sliding
surface into the tubular section
Fasten the telescopic
arms to the xing plates
Fix the lateral
supports
Weld the end of the tubular
bar to the sliding plate
of the telescopic arm
Pic. 10
Pic. 12 Pic. 13
Pic. 11
L
LL
!
Lateral support to
take the tubular bar
!The fastening pins are to be
tightened hard into the cavities
8
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
GREASE GREASE
GREASE
istr_aproli480_GB.ai 8 26/09/2018 15:59:30

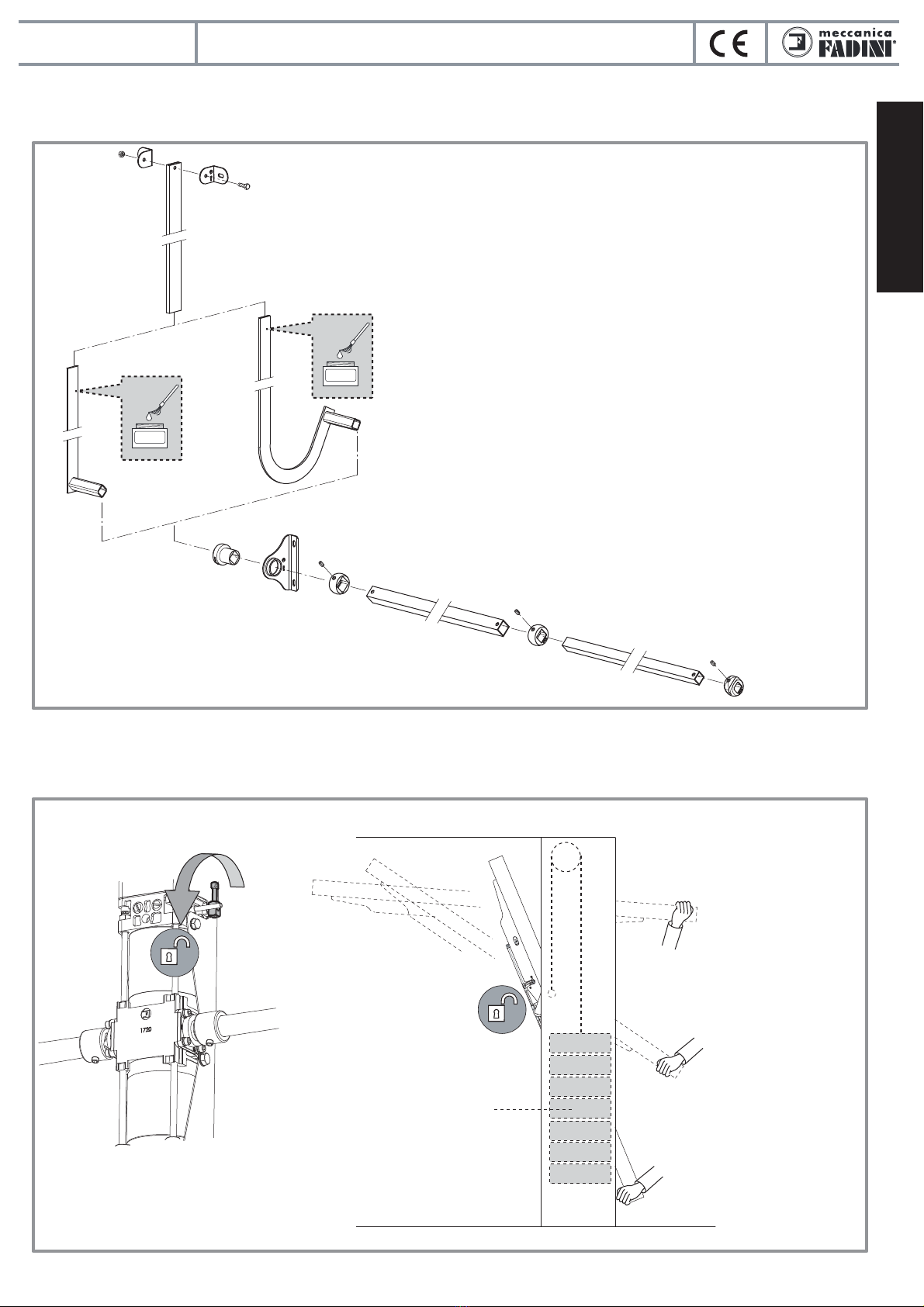

INSTALLATION USING THE NON WELDING TYPE OF HARDWARE
This type of metallic hardware, non welding, is supplied on request: for the installation follow the same instructions as per the
welding type hardware.
RELEASING FOR MANUAL OPERATIONS AND FIRST OPEN AND CLOSE TEST
Once completed all the installation steps and APROLI 480 is tted correctly onto the door, assess that the movements are performed
in a very smooth way without any friction. First make sure that Aproli 480 be released for the rst manual test and be well balanced.
Add extra counterbalance if necessary. The door must be able to stay balanced in any position it is stopped.
English
It is recommended that the telescopic
arms be lubricated along the sliding
surface into the tubular section
30x30
25x25
It should be able
to stay still in any
positions
Counterbalance
Pic. 14
Pic. 15
9
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
GREASE
GREASE
istr_aproli480_GB.ai 9 26/09/2018 15:59:30

ELECTRICAL CONNECTIONS TO THE MOTOR
Remove the terminal board cover to access power supply terminals.
Cut out the cover as indicated to allow the gland of the power supply cable to pass through.
With Aproli 480 tted with courtesy lamp, power supply terminals are positioned at the back.
ADJUSTING THRUST POWER
Aproli 480 is tted with screws to control the pressure valves ie. the thrust power to open and close the door.
If the door has been properly balanced as explained before, no power adjustment is required.
English
Should the operator shaft rotate
in the opposite direction, swap
the live 10 and 12
230 V - 50 Hz
6 μF
230 V - 50 Hz
blue common Live Live
Power supply
terminal board
Cover
Cable gland
Power supply
terminal board
Elpro 6 exp
Elpro 6 exp
In case a start
capacitor is
needed
Red screw: controls
power in opening
Clockwise = + power
Anticlockwise = - power
Green screw: controls
power in closing
Clockwise = + power
Anticlockwise = - power
Aproli 480 locking
device activated
Pic. 16
Pic. 17
10 11 12
13 14
10
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 10 26/09/2018 15:59:30

FASTENING THE OPERATOR COVER
English
Pic. 19
5 6
!
For garage doors with pedestrian access, a NC safety switch
is needed and this is to be series connected to terminals 5
and 6 of Elpro 6 exp control board.
Elpro 6 exp
Pic. 18
INSTALLATIONS WITH PEDESTRIAN DOOR
With those installations where a pedestrian door is tted, two Aproli 480 operators are required and the tubular bars in this case
are the shorter type (L = 300 mm).
11
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
L = 300
n° 2 pcs.
istr_aproli480_GB.ai 11 26/09/2018 15:59:31

English
12
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 12 26/09/2018 15:59:31

English
13
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 13 26/09/2018 15:59:31

English
14
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
istr_aproli480_GB.ai 14 26/09/2018 15:59:32

English
15
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
hand over to the end user of the installation
MAINTENANCE RECORD
hand over to the end user of the installation
Installation address:
Installation type:
Sliding gate
Over-head door
N°
1
2
3
4
5
6
Service date
Stamp and signature
installation technician/maintainer
Signed for acceptance
end user
buyer
Technical maintainer End user/sService description
Lateral folding
door
Swinging gate
Folding door
Bollard
.............................
Road barrier
Operator model:
Dimensions per gate leaf:
Weight per gate leaf: Installation date:
Quantity of models
installed:
Maintainer: Date:
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance,
repairs and replacements to be made only by using Fadini original spare parts.
This document, for the data included in it, must be made available to authorized inspectors/ocers, and a copy of it must
be handed over the end user/s.
The installer/maintainer are liable for the functionalities and safety features of the installation only if maintenance is
carried on by qualied technical people appointed by themselves and agreed upon with the end user/s.
X
the gate opener
istr_aproli480_GB.ai 15 26/09/2018 15:59:32

Direttiva 2012/19/UE
Smaltimento dei materiali
elettrici ed elettronici
VIETATO GETTARE NEI RIFIUTI
MATERIALI NOCIVI PER L’AMBIENTE
I
2018/09
Via Mantova, 177/A - 37053 Cerea (VR) Italy
Ph. [phone] Fax [phone]
[email protected] - www.fadini.net
English
121
65
750860
1.610 mm
180
91 106
Oil-hydraulic operator for tilt-up doors with counterbalance
APROLI 480
TECHNICAL SPECIFICATIONS
HYDRAULIC UNIT
Pump ow rate - P4 1,10 l/min
Average working pressure 20 atm
Max. pump pressure 40 atm
Working temperature -20 °C +80 °C (*)
Operating torque 220-300 Nm
Shaft rotation max 205°
Oil type Oil Fadini - Item 708L
Weight of operator 11 kg
Weight of Aproli 480 w/c accessories 24 kg
Door surface 7 m²
(*) -40 °C with specic optional accessories (Ref. General Catalogue).
ELECTRIC MOTOR
Power output 0,24 kW (0,33 HP)
Supply voltage 230 Vac
Frequency 50 Hz
Absorbed current 1,8 A
Absorbed power 330 W
Capacitor 12,5 μF
Motor rotation speed 1.350 rpm
Protection standards IP 67
Lamp 230 V - 25 W
Intermittent service S3
PERFORMANCE
Frequency of use intensive
Service cycle opening ~ 18 s
dwell 30 s
closing ~ 18 s
dwell 30 s
Complete cycle time ~ 96 s
Complete cycles
opening-dwell-closing-dwell No. 37/hour
Annual cycles (with 8 hours of use per day) No. 108.000
istr_aproli480_GB.ai 16 26/09/2018 15:59:32
