MedeScan 2 IN 1 User manual

Manual Ver : 1.0
27/12/2019

2 in 1
TOUCHLESS & EAR
THERMOMETER

Introduction
Thank you for purchasing this 2 IN 1 Forehead & Ear
Infrared Thermometer.
Please read the Operating Manual carefully before
using the thermometer, and put it in a safe and secure
place for reference.
Foreword
The infrared thermometer can be used to read the body
temperature by measuring the ear and forehead
temperature, which is suitable for adult and children
(ear test mode only for the child above 3 months).
Package Contents
No. Name Quantity
1 Infrared
Thermometer 1
2 Pouch 1
3 Battery (AAA,
optional) 2
4
5
Operating
Quick Start Guide
Manual 1
1

WARNINGS AND PRECAUTIONS ............................ 1
Product Description ................................................ 3
Overview ................................................................... 3
Structure .................................................................. 3
Operating principle ................................................. 4
Indications for use ................................................... 5
Contraindications .................................................... 5
Features ................................................................... 6
Product Structure .................................................... 6
Display description .................................................. 7
How to use your thermometer ............................... 7
In order to avoid the inaccuracy ............................ 7
Take your forehead temperature ........................... 7
Take your ear temperature ..................................... 8
Take room/object temperature ............................. 9
After a measurement ............................................. 9
Read your temperature .......................................... 10
Switching between mute and un-mute ................ 10
Checking 40 sets of memory data ....................... 11
ºC/ºF conversion ..................................................... 11
To turn off ................................................................. 11
Replace the battery ................................................ 11
Temperature taking tips ......................................... 12
Care and cleaning ................................................... 13
Error and Troubleshooting ...................................... 14
Technical Specifications ......................................... 15
Symbols .................................................................... 16
Appendix: EMC information-Guidance and
manufacturer’ s declarations ............................... 17
Warranty and After-Sale Service ........................... 22
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
13.
12.
1)
2)
3)
4)
5)
1)
2)
3)
4)
5)
6)
7)
8)
9)
10)
11)
1
3
3
3
4
5
5
6
6
7
7
7
8
9
9
10
10
11
11
11
11
12
12
13
14
15
16
17
22

WARNINGS AND PRECAUTIONS
Keep out of reach of children under 12 years.
Never immerse the thermometer into water or
other liquids (not waterproof). For cleaning and
disinfecting, please follow the instructions in the
“Care and cleaning” section.
Never use the thermometer for purposes other
than those it has been intended for. Please follow
the general safety precautions when using on
children.
Keep the thermometer away from direct exposure
to the sun and keep it in a dust- free, dry area,
well-ventilated place at a temperature between
10
ºC ( 50 ºF ) - 40 ºC ( 104 ºF ) . Do not use the
thermometer in high humidity environments. (＞
95% RH)
Do not use the thermometer if there are signs of
damage on the measuring sensor or on the instru-
ment itself. If damaged, do not attempt to repair
the instrument! Please contact the dealer.
This thermometer consists of high-quality precision
parts. Do not drop the instrument. Protect it from
severe impact and shock. Do not twist the instru-
ment or the measuring sensor.
Please consult your doctor if you see symptoms
such as unexplained irritability, vomiting, diarrhea,
dehydration, changes in appetite or activity, seizure,
muscle pain, shivering, stiff neck, pain when urinat-
ing, etc., even in the absence of fever.
Even in the absence of fever, those who exhibit a
normal temperature may still need to receive medi-
cal attention. People who are on antibiotics, analge
1.
1)
2)
3)
4)
5)
6)
7)
8)
1

sics, or antipyretics should not be assessed solely
on temperature readings to determine the severity
of their illness.
Temperature elevation may signal a serious illness,
especially in adults who are old, frail, have a weak-
ened immune system, or neonates and infants. Please
seek professional advice immediately when there is
a temperature elevation and if you are taking
temperature for whom are:
Over 60 years of age (Fever may be blunted or even
absent in elderly patients)
Having diabetes mellitus or a weakened immune
system (e.g., HIV positive, cancer, chemotherapy,
chronic steroid treatment, splenectomy)
Bedridden (e.g., nursing home patient, stroke,
chronic illness)
A transplant patient (e.g., liver, heart, lung, kidney)
This thermometer is not intended for preterm babies
or small-for-gestational age babies. This thermomter
is not intended to interpret hypothermic tempera-
tures. Do not allow children to take their tempera-
tures unattended.
Use of this thermometer is not intended as a substi-
tute for consultation with your physician or pediatri-
cian.
Clean the thermometer probe after each use.
Do not use the thermometer on newborns or for contin-
uous temperature monitoring purposes.
Do not take a measurement while or immediately
after nursing a baby.
Patients should not drink, eat, or be physically active
9)
10)
11)
12)
13)
14)
15)
2

before/while taking the measurement.
Product Description
Overview
Infrared Thermometer measures the body tempera-
ture based on the infrared energy emitted from the
eardrum or the forehead. Users can quickly get
measurement results after positioning properly the
temperature probe in the ear canal or forehead.
Normal body temperature is a range. The following
tables shows that this normal range also varies by
site. Therefore, readings from different site should
not be directly compared. Tell your doctor what type
of thermometer you used to take your temperature
and on what part of the body. Also bear this in mind
if you are diagnosing yourself.
Measuring part Normal temperature range
Forehead
temperature 36.1°C - 37.5°C (97°F -
99.5°F)
Ear temperature 35.8°C - 38°C (96.4°F -
100.4°F)
Oral temperature 35.5°C - 37.5°C (95.9°F -
99.5°F)
Rectal
temperature 36.6°C - 38°C (97.9°F -
100.4°F)
Axillary temperature 34.7°C - 37.3°C
(94.5°F - 99.1°F)
Structure
2.
1)
2)
3
The device consists of enclosure, button, a temperat-
ure sensor, Infrared temperature-measuring element,
microcomputer controlled circuit, LCD, backlight and
a buzzer.

In the nature, for all objects whose temperature is
higher than the absolute zero (-273.15℃), for the sake
of molecule’ s thermal motion, radiate electromagnetic
wave to the surrounding ambient including the infrared
wave without a break, the relationship between the
density of radiation energy with the object’ s tempera-
ture conform to the radiation law.
The infrared thermometer’ s working principle is
based on the fourth-power law: infer objects’ radiation
temperature by measuring objects’ radiation infrared
energy. Thermopile sensor can convert the infrared
energy into thermoelectricity, and output as a detect-
ed signal after signal processing.
The infrared temperature sensor detects infrared
energy emitted by the eardrum. A built-in lens focus-
es the collected energy, which is then converted into
a temperature reading by the thermopiles and
measurement circuits.
3) Operating principle
1
2
Dd
L I
3 4
5
1-Subject 2-Object len 3-Heat plate 4-Thermocouple 5-Eye Len
Figure 1
4

Indications for use
The infrared thermometers take human body
temperature via the eardrum or forehead. The
forehead mode is indicated for people of all ages
and the eardrum mode is indicated for people
above three months old. It applies to both profes-
sional use and home use.
Contraindications
Do not use the thermometer if the ear is infected
4)
5)

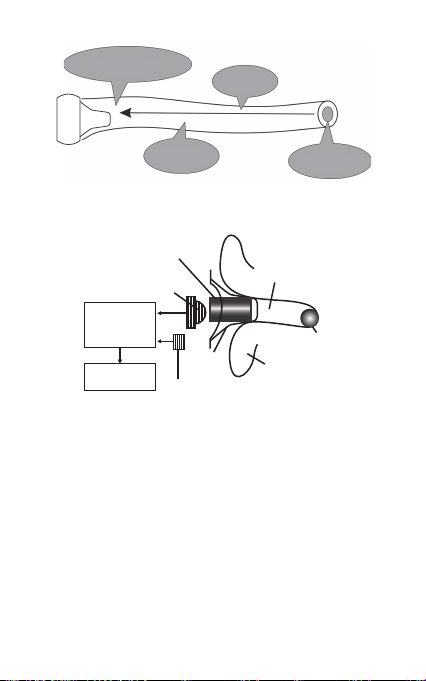

Figure 2
Infrared Thermometer probe
Infrared ray
Ear canal Eardrum
Figure 3
Computer
Display
Reference
External Ear
Ear Canal
Probe
Cover
Optical
Component
Ir Sensor
Tympanic
Membrane
5

with otitis or suppuration.
Features
Magnetic probe cover and automatic mode switch
between forehead & ear mode
Quick measurement, less than 1 second
Small Body with super large font
Multi-functional, can measure ear, forehead, room,
milk, water and object temperature
Accurate: clinically accurate algorithm with three
stage calibration
Reliable: each thermometer will do environmental
test under 15-35ºC during production
Easy operation, one button design, to measure ear,
forehead and object
40 sets of memories, easy to recall
Switching between mute and un-mute mode
Audio and visual fever warning
Switching between ºC and ºF
Auto shut-down and power-saving
Backlight color temperature indication
Patent technology to realize separate measurement
of adult and child
3.

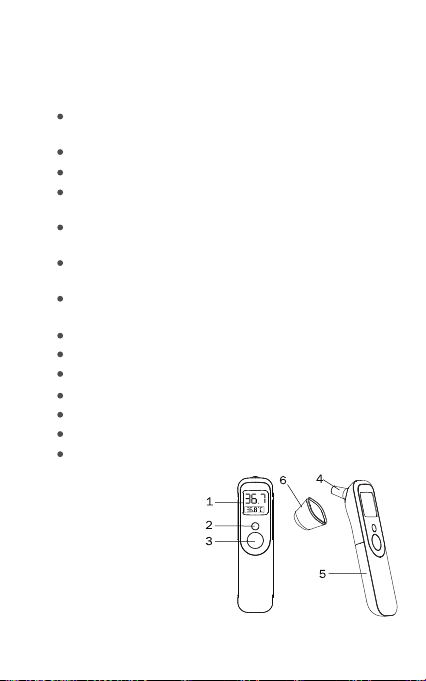

4. Product Structure
1. LCD display screen
2. Mode/Memory button
3. Measure/Mute-unmute button
4. Probe 5. Battery cover
6. Probe cover (take it off when
measuring ear temperature)
6

Display description
How to use your thermometer
In order to avoid the inaccuracy:
Please make sure that the device will be used in the
room only, and there is no strongly conversation of
wind.
Please make sure that there is no intense emotion
and movement before measuring.
If the device is transferred from one condition to
another, which has different ambient temperature, it
is suggested to deposit for more than 30 minutes.
If the tester is transferred from one condition to
another, which has different ambient temperature, it
is suggested to have a rest for more than 10 minutes.
Do not hold the device for a long time, as it is highly
sensitive to heat.
The device has undergone clinical test, it is safe and
accurate when using in accordance with operation
manual.
1)
2)
3)
4)
5)
5.
6.
1.Adult forehead mode
2.Child forehead mode
（under 12 years old）
3.Ear mode
4.Object mode
5. Fahrenheit / Celsius degrees
6. Previous temperature value
7. Low battery indication
8. Mute /Un-mute icon
(1)
7
9. Current temperature value
9
23 4
1
65
8
7

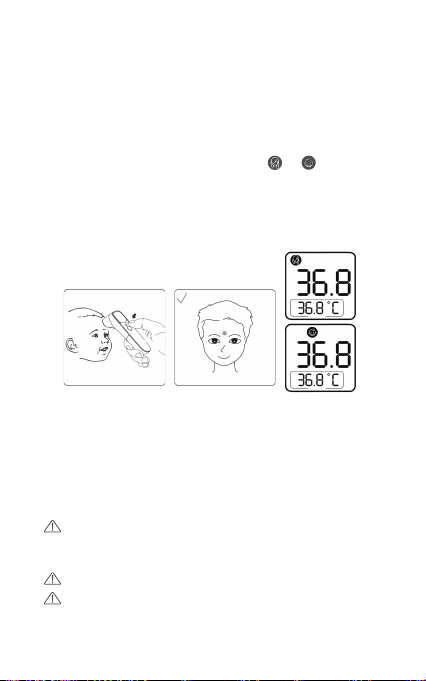

Take your forehead temperature
When using the thermometer for the first time,
please load the batteries.
Press and release the Measure/Mute-unmute
button in one second to power on. Press the
Mode/ Memory button to choose or . Then
point the temperature probe at the center of the for-
ehead, with a distance of 1-3 cm.
Press and release the Measure/Mute-unmute
button in 1 second.
The beep is heard, you can now
read the value.
NOTE: The forehead measurement is an indicative
reading. The measured forehead temperature can
fluctuate up to 1 ºF/0.5 ºC from your actual body
temperature. Please be aware of the factors that
influence the accuracy as described in the section
“Temperature taking tips” and “WARNINGS AND
PRECAUTIONS” .
If the eyebrow area is covered with hair, sweat or
dirt, please clean the area beforehand to improve
the reading accuracy.
Always check if the lens is clean.
Always make sure the user and the thermometer will
(2)
8

have been in the same room for at least 30 minutes
prior to the measurement.
Take your ear temperature
Please make sure that the ear is clean, with no
earwax or obstructions.
The right ear reading may differ from the reading
taken at the left ear. Therefore, always take the
temperature in the same ear.
Note:
Children under 1 year: Pull the ear straight back.
Children aged 1 year to adult: Pull the ear up and
back.
Do not force the thermometer into the ear canal.
Otherwise, the ear canal may get injured.
When taking the temperature on an adult, gently
pull the ear up and back to make sure the ear canal
is straight, so that the temperature probe can
receive an infrared ray from the eardrum.
Be careful when taking temperature on a child,
whose ear canal is small.
(3)
Press the Measure/Mute-unmute button to
power on.
Press the Mode/Memory button to choose
an and take off the probe cover, fit the
probe snuggly into the ear canal.
Press and release the Measure/Mute-un-
mute button in 1 second, the beep is
heard, you can now read the value.
1)
2)
3)
9

Take room/object temperature
Press the Mode/Memory button to choose . Keep
the thermometer about 1-3 cm (0.39-1.18 inches)
away from the object. Press and
release the
Measure/Mute-unmute
button in 1 second, the beep is
heard, you can now read the value.
After a measurement
Once the reading has been completed, remove the
thermometer away from the forehead/ear and
observe temperature.
After each measurement, you can enter the recall
mode and query earlier temperature readings.
Do not hold the thermometer for a long time,
because it is sensitive to the ambient temperature.
After each measurement, clean the temperature
probe with a soft cloth, and put the thermometer in
a dry and well-ventilated place.
You should wait at least 10 seconds between each
measurement.
It is dangerous to make a self-diagnosis or self-treat-
ment based on the obtained measurement results.
For such purposes, please consult a doctor.

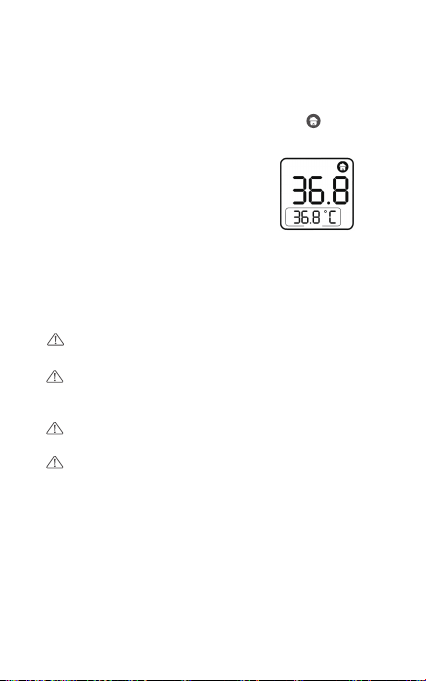

Read your temperature
T indicates a temperature reading.
In forehead or ear mode.
If 32ºC ≦ T ≦ 37.5ºC (89.6ºF ≦ T ≦ 99.5ºF), the
green light will be displayed, with one long beep.
If 37.6ºC ≦ T ≦ 38.0ºC (99.7ºF≦ T≦100.4ºF), the
(5)
(6)
(4)
Press the Measure/Mute-unmute button to
power on.
Press the Mode/Memory button to choose
an and take off the probe cover, fit the
probe snuggly into the ear canal.
Press and release the Measure/Mute-un-
mute button in 1 second, the beep is
heard, you can now read the value.
1)
10
Press the Measure/Mute-unmute button to power on.

11
orange light will be displayed with 3 short beeps,
each with 2 short sounds, which is a warning that
you may have a low fever.
In object mode.
If 0ºC ≦ T≦ 100ºC (32.0ºF≦ T ≦ 199.0ºF), the
white light will be displayed with one long beep.
Switching between mute and un-mute
When the thermometer is turned on, keep pressing
the Measure/Mute-unmute for 5 seconds,
to switch from un-mute to mute.
Checking 40 sets of memory data
ºC/ºF conversion
Caution
When the thermometer is turned on or
off, keep pressing the Mode/ Memory
button for 5 seconds to go to the
memory mode, press this button again
to check the 40 sets of memories one
by one. If no value, it will display “---” .
The unit will shut down automatically
after 10 seconds of no use.
Open the battery cover, use the toggle
switch to change the ºC/ºF.
If 38.1ºC ≦ T ≦ 42.9ºC (100.6° F≦ T≦109.2°F),the
red light will be displayed with 3 short beeps, each
with 2 short sounds, which is a warning that you may
have a high fever.
(7)
(8)
(9)
(10)
2)
All memory records will be lost when
uninstall or reinstall the battery.
Automatically turn off
toggl e switc h

12
Replace the battery.
Put two AAA batteries correctly into the compartment.
Remove the batteries if the thermometer will not be
used for more than two months.
Temperature taking tips
It is important to know each individual’ s normal
temperature when they are well. This is the only way to
accurately diagnose a fever. Record readings twice a
day (early morning and late afternoon). Take the
average of the two temperatures to calculate normal
oral equivalent temperature. Always take the tempera-
ture in the same location, since the temperature
readings may vary from different locations on the
forehead.
A child’ s normal temperature can be as high as 99.9ºF
( 37.7ºC ) or as low as 97.0ºF ( 36.1ºC ). Please note
that this unit reads 0.5ºC (0.9ºF) lower than a rectal
digital thermometer.
External factors may influence ear temperatures, includ-
ing when an individual has:
been lying on one ear or the other
had their ears covered
been recently swimming or bathing
In these cases, remove the individual from the situation
and wait 20 minutes prior to taking a temperature.
Use the untreated ear if prescription ear drops or other
ear medications have been placed in the ear canal.
1)
2)
3)
(11)
7.
been exposed to very hot or very cold temperatures

Holding the thermometer for too long in the hand
before taking a measurement can cause the device
to warm up. This means the measurement could be
incorrect.
Patients and the thermometer should stay in
steady-state room condition for at least 30 minutes.
Before placing the thermometer sensor onto the
forehead, remove dirt, hair, or sweat from the
forehead area. Wait 10 minutes after cleaning
before taking measurement.
Use an alcohol swab to carefully clean the sensor
and wait for 5 minutes before taking a measure-
ment on another patient. Wiping the forehead with
a warm or cool cloth may impact your reading. It is
advised to wait 10 minutes before taking a reading.
In the following situations it is recommended that
3-5 measurements in the same location be taken
and the highest one taken as the reading:
Newborn infants in the first 100 days.
Children under three years of age with a compro-
mised immune system and for whom the presence
or absence of fever is critical.
When the user is learning how to use the thermom-
eter for the first time until he/she has familiarized
himself/herself with the instrument and obtains
consistent readings.
Care and cleaning
Use an alcohol swab or cotton swab moistened with
70% alcohol to clean the thermometer casing and
the measuring probe. After the alcohol has complet-
ely dried out, you can take a new measurement.
4)
5)
7)
6)
8)
8.
13

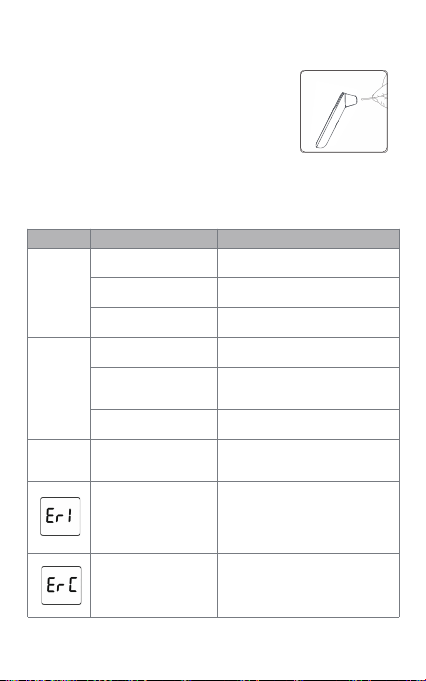

Ensure that no liquid enters the interior of
the thermometer. Never use abrasive clean-
ing agents, thinners or benzene for cleaning
and never immerse the instrument in water
or other cleaning liquids. Take care not to
scratch the surface of the LCD screen.
Symptom Possible
Cause Description & Solution
Failed to
power on
The battery level is
too low. Replace with a new battery
Polarities of the
batteries are reversed.
Ensure the batteries are in the
right position
The thermometer
is damaged Contact dealer
The
reading
is too low
The lens of the probe is
dirty. Clean the lens with a cotton swab.
The distance of the item
and target is too
far
You have just come
from a cold environment
Stay in a warmer room for at least
30 minutes before taking a reading
The
reading
is too high
You have just come
from a hot environment.
Stay in an adequately cool room
for at least 30 minutes before
taking a reading
The ambient
temperature is not in
range.
One long beep, and red backlit for
3 seconds. Take a measurement
under an ambient temperature
between 10°C (50.0°F) and 40°C
(104°F).
Memory error or calibra-
tion is not finished. Item
will be turned off autom-
atically after 3 seconds.
One long beep, and red backlit for
3 seconds. Contact dealer.
9. Error and Troubleshooting
14
keep in contact with forehead, or
put the probe into the Ear Canal.

Symptom Possible Cause Description & Solution
One long beep, and red backlit for
3 seconds.
The power voltage is
lower than 2.4V
One long beep, and red backlit
for 3 seconds.
15
The battery icon will flicker, the
item will be turned off automatically
after 3seconds. Please replace with
a new battery
The power voltage is
between 2.4V-2.7V
The battery icon will flicker, it
means the battery is low, but you
still can use the thermometer.
In ear or forehead mode,
T＞42.9°C（109.2°F)
In object mode, T＞
100°C ( 199°F)
In ear or forehead mode,
T＜32°C (89.6°F)
In object mode, T＜0°C
(32°F)
Technical Specifications：
Product
name 2-IN-1 Forehead & Ear infrared thermometer
Applicable
regulations and
laws
ASTM E 1965-98 (Re-approved 2009)
Standard Specification for Infrared Thermometers for
Intermittent Determination of Patient Temperature
ISO80601-2-56 First Edition 2009-10-01
Medical Electrical Equipment - Part 2-56: Particular
Requirements For Basic Safety And Essential
Performance Of Clinical Thermometers For Body
Temperature Measurement. (General Plastic
Surgery/General Hospital)
Display Segment LCD, Four color LED backlight
(white, green, orange, red)
Temperature units
°C / °F, switchable
Power supply DC 3V, AAAX2
Measurement
range
Forehead & Ear: 32.0°C–42.9°C (89.6°F–109.2°F)
Object: 0°C–100°C (32°F–199°F)
Accuracy
(Laboratory)
Ear & Forehead mode ±0.2°C /±0.4 °F
Object mode ±1.0°C / 2.0°F
10.

Display resolution 0.1ºC /°F
Automatic
shutdown
10s±1s
Memory 40 groups of measured temperature.
Operational
conditions
Temperature:10°C-40°C(50°F-104°F)
Humidity: 15-95%RH, non-condensing
Atmospheric pressure:70-106kPa
Storage
condition
Ambient Temperature: -20°C-55°C(-4°F-131°F)
Relative Humidity: 0-95% RH, non-condensing
Atmospheric pressure: 50kPa to 106kPa
Battery 2*AAA, can be used for more than 3000 times
Weight &
Dimension 80g (with battery),143x35x41mm
Symbols:
Symbol Description
Type BF applied part.
Information about a manufacturer.
Please read the instructionscarefully.
Waste electrical materials should be sent to a
dedicated collection point for recycling.
SN Serial number
LOT Batch number
IMPORTANT
Inaccurate reading or thermometer damage may
occur if the thermometer is not correctly used.
IP22
2 Protected against solid foreign objects of 12,5 mm
Ø and greater
2 If keep the thermometer in 15 degree angle, it still
can prevent the water drop.
11.
16
