Eco4us EM-Th1 User manual

Model: EM-Th1
Non-Contact Infrared Thermometer

EM-Th1 V.01 English
CONTENTS
I. SAFETY PRECAUTIONS ..................................................................................
II. INTENDED USE ...............................................................................................
III. INTRODUCTION .............................................................................................
IV. PRECAUTIONS BEFORE USE ......................................................................
V. OPERATING PRINCIPLE ................................................................................
THE DIFFERENT METHODS OF TEMPERATURE MEASUREMENT ...............
NORMAL TEMPERATURES ACCORDING TO MEASUREMENT METHOD ....
ADVANTAGES OF TEMPORAL ARTERY (TA) TEMPERATURE ......................
NORMAL TEMPERATURE ACCORDING TO AGE ............................................
PRACTICAL CONSIDERATIONS WHEN TAKING A TEMPERATURE ..............
HOW TO TAKE A TEMPERATURE .....................................................................
CONSTRAINTS ....................................................................................................
VI. BASIC INSTRUMENT .....................................................................................
VII. FEATURES ....................................................................................................
VIII. INSTRUCTIONS ...........................................................................................
IX. SETTING AND FUNCTION OF MENU ..........................................................
X. TECHNICAL SPECIFICATIONS ......................................................................
XI. MAINTENANCE OF THE PRODUCT .............................................................
XII. ACCESSORIES .............................................................................................
XIII. GUIDELINES .................................................................................................
XIV. TROUBLESHOOTING ..................................................................................
XV. EXPLANATION OF SYMBOLS .....................................................................
1
1
2
2
3
3
5
5
6
6
7
7
8
9
9
10
12
13
14
14
14
16

THE MANUFACTURER RESERVES THE RIGHT TO ALTER
THE SPECIFICATIONS OF
THE PRODUCT WITHOUT PRIOR NOTIFICATION
I. SAFETY PRECAUTIONS
- Follow the maintenance advice stipulated in this
instruction manual.
- This device may be used for professional purposes or
for personal home use.
- This device must only be used for the purposes
described in this instruction manual.
- This device must only be used in an ambient
temperature range of between 50°F and 104°F.
- This device must always be kept in a clean, dry area.
- Do not expose this thermometer to electric shocks.
- Do not expose this thermometer to extreme
temperature conditions of ＞131°F or ＜-4°F.
- Do not use this device in relative humidity higher than
85%.
- The protective glass over the lens is the most fragile
part of the thermometer.
- Do not touch the glass of the infrared lens with your
fingers.
- Clean the glass with a cotton bud lightly moistened
with 95° alcohol.
- Do not expose the thermometer to sunlight or to
water.
- Never drop the device.
- Should a problem occur with your device, please
contact your retailer. Do not attempt to repair this
device yourself.
II. INTENDED USE
The device is an infrared thermometer intended to
measure forehead temperature of infants and adults
without contacting human body. It can be used by
consumers in household environment and doctor in
clinic as reference.

The EM-Th1 is pre-set at the factory.
It is not necessary to calibrate the device when starting it up.
III.INTRODUCTION
The EM-Th1 Non-contact Infrared thermometer has
been developed by using the latest infrared technology.
This technology allows temporal artery (TA) tempera-
ture to be taken at a distance of about 1.2in~2in away
from the forehead. Precise, Instantaneous and without
Contact, the EM-Th1 is, up to now, the most suitable
thermometer for no risk on temperature measurement. It
has been demonstrated that this method of TA tempera-
ture measurement is more precise than the tympanic
thermometry and better tolerated than rectal thermome-
try (1).
However, as with other types of thermometer, it is
essential to use the EM-Th1 properly in order to obtain
reliable and stable results. You are therefore advised to
read this instruction manual and the safety precautions
carefully before use.
(1)Greenes D, Fleisher G. Accuracy of a Noninvasive
Temporal Artery Thermometer for Use in Infants. Arch
Pediatr Adolesc Med 2001;155:376.
IV.PRECAUTIONS BEFORE USE
In order to obtain reliable and stable results, you are
advised each time there is a significant change in the
ambient temperature due to a change in environment, to
allow the EM-Th1 to acclimatize to this ambient
temperature for 15 to 20 minutes before using it.
It is important to allow 3~5 seconds interval between two
measurements.

V. OPERATING PRINCIPLE
All objects, solid, liquid or gas, emit energy by radiation.
The intensity of this energy depends on the temperature
of the object.The EM-Th1 infrared thermometer is
therefore able to measure the temperature of a person
by the energy the person emits. This measurement can
be taken thanks to an external temperature probe on the
device which permanently analyses and registers the
ambient temperature. Therefore, as soon as the
operator holds the thermometer near the body and
activates the radiation sensor, the measurement is
taken instantly by detection of the infrared heat generat-
ed by the arterial blood flow. Body heat can therefore be
measured without any interference from the heat of the
surrounding environment.
THE DIFFERENT METHODS OF TEMPERATURE
MEASUREMENT
Core temperature
Core temperature is the most precise measurement and
involves measuring the temperature in the pulmonary
artery by means of a catheter equipped with a thermal
probe which can read the temperature in situ. The same
method is employed for probes measuring the oesopha-
geal temperature. However, such invasive temperature
measurement methods require specific equipment and
expertise.
Rectal thermometry
Rectal temperature adjusts slowly in comparison to the
evolution of the body’s internal temperature. It has been
demonstrated that rectal temperature remains raised

long after the internal temperature of the patient has
started to drop and vice versa. Furthermore, rectal
perforations have been known to occur as a result of this
method and without appropriate sterilisation techniques,
rectal thermometry can spread germs often found in
faeces.
Oral thermometry
Oral temperature is easily influenced by recent ingestion
of food or drinks and by breathing through the mouth. To
measure oral temperature, the mouth must remain
closed and the tongue lowered for three to four minutes
which is a difficult task for young children to accomplish.
Axillary (armpit) temperature
Although it may be easy to measure axillary tempera-
ture, it has been proven that it does not provide an
accurate measurement of the child’s internal tempera-
ture. To take this type of temperature, the thermometer
must be wedged tightly over the axillary artery. Despite
the low sensitivity and relative inaccuracy of axillary
temperature in detecting fever, this method is recom-
mended by The American Academy of Pediatrics as a
screening test for fever in newborns.
Tympanic thermometry
In order to obtain a precise temperature reading, good
command of the measurement technique is required.
The thermometer probe must be placed as close as
possible to the warmest part of the external ear canal. An
incorrectly placed probe could lead to a false tempera-
ture reading.

MEASUREMENT METHOD
RECTAL
ORAL
AXILLARY
AURICULAY
TEMPORAL
NORMAL TEMP°
97.8°F ~ 100.4°F
95.9°F ~ 99.5°F
94.4°F ~ 99.1°F
96.4°F ~ 100.4°F
96.4°F ~ 100°F
NORMAL TEMPERATURES ACCORDING TO MEASURE-
MENT METHOD
The temperature of the human body varies throughout
the day. It can also be influenced by numerous external
factors: age, sex, type and thickness of skin…
ADVANTAGES OF TEMPORAL ARTERY (TA)
TEMPERATURE
Infrared arterial temperature can be measured using a
device placed on the forehead, in the temporal artery
region. It has been demonstrated that this relatively new
method of measuring temperature is more precise than
tympanic thermometry and better tolerated than rectal
thermometry.
The EM-Th1 thermometer has been designed to
produce an instant forehead temperature reading
without any contact with the temporal artery. As this
artery is quite close to the surface of this skin and
therefore accessible and given the blood flow is perma-
nent and regular, it allows precise measurement of the
temperature. This artery is linked to the heart by the
carotid artery which is directly linked to the aorta. It
forms part of the main trunk of the arterial system. The
efficiency, speed and comfort of taking a temperature
from this area make it ideal compared with other
temperature measurements methods.

I. SAFETY PRECAUTIONS
- Follow the maintenance advice stipulated in this
instruction manual.
- This device may be used for professional purposes or
for personal home use.
- This device must only be used for the purposes
described in this instruction manual.
- This device must only be used in an ambient
temperature range of between 50°F and 104°F.
- This device must always be kept in a clean, dry area.
- Do not expose this thermometer to electric shocks.
- Do not expose this thermometer to extreme
temperature conditions of ＞131°F or ＜-4°F.
- Do not use this device in relative humidity higher than
85%.
- The protective glass over the lens is the most fragile
part of the thermometer.
- Do not touch the glass of the infrared lens with your
fingers.
- Clean the glass with a cotton bud lightly moistened
with 95° alcohol.
- Do not expose the thermometer to sunlight or to
water.
- Never drop the device.
- Should a problem occur with your device, please
contact your retailer. Do not attempt to repair this
device yourself.
II. INTENDED USE
The device is an infrared thermometer intended to
measure forehead temperature of infants and adults
without contacting human body. It can be used by
consumers in household environment and doctor in
clinic as reference.
Age °C °F
0-2 years 36.4-38.0 97.5-100.4
3-10 years 36.1-37.8 97.0-100.0
11-65 years 35.9-37.6 96.6-99.7
> 65 years 35.8-37.5 96.4-99.5
NORMAL TEMPERATURES ACCORDING TO AGE
PRACTICAL CONSIDERATIONS WHEN TAKING A
TEMPERATURE
- In order to ensure that precise and accurate tempera-
ture measurements are obtained, it is essential that
each user has received adequate information on and
training in the temperature measurement technique
when using such a device.
- It is essential to remember that although procedures
such as taking a temperature may be simple they
must not be trivialised.
- Temperature should be taken in a neutral context.
The patient must not have undertaken vigorous
physical activity prior to taking his/her temperature
and the room temperature must be moderate.
- Be aware of physiological variations in temperature
which must be taken into consideration when evaluat-
ing the results: temperature increases by 0.9°F
between 6 am and 3 pm. Women have a temperature
that is higher, on average, by around 0.3°F. Their
temperature also varies in accordance with their
ovarian cycle. It rises by 0.9°F in the second half of
the cycle and at the early stages of pregnancy.
- When sitting, temperature is lower by about 0.5°F to
0.7°F than when standing.

HOW TO TAKE A TEMPERATURE
Aim at the FOREHEAD, over the right temporal region,
from a distance of about 1.2in~2in, press the thermom-
eter’s measurement button and the
temperature is instantly displayed.
The reliability of the measurement cannot
be guaranteed if the temperature is measured
over another part of the body (e.g.arm, torso…)
CONSTRAINTS
Please observe the following before any temperature
measurement to ensure a stable and reliable result:
- Push back hair from the forehead
- Wipe away any perspiration from the forehead
- Avoid any drafts (e.g. from air conditioning…)
- Allow a 3-5 seconds interval between measurements.
- Each time there is a significant change in the ambient
temperature due to a change in environment, to allow
the EM-Th1 to acclimatise to this ambient tempera-
ture for at least 15 minutes before use.
!

VI. BASIC INSTRUMENT

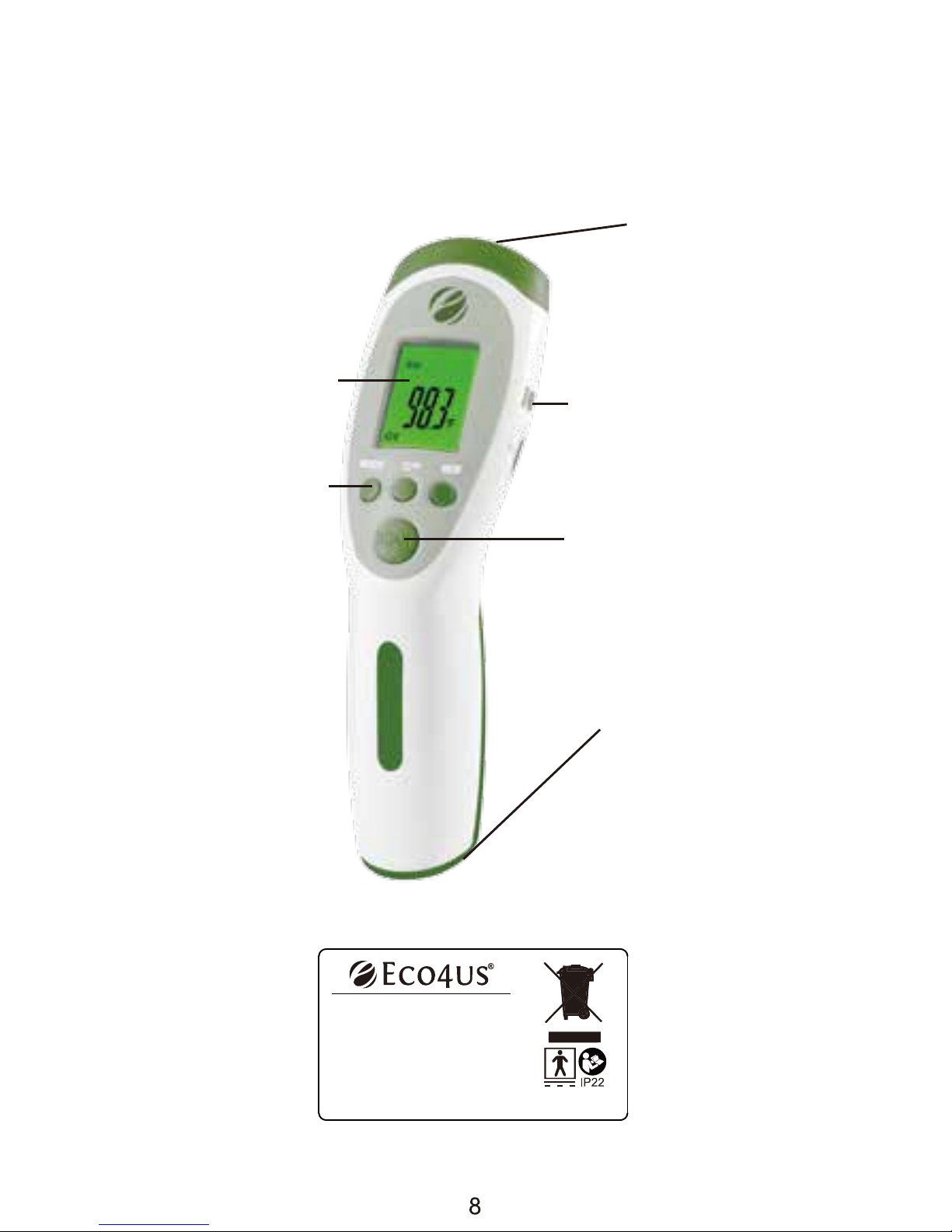

The type BF applied part: Sensor.
On/Scan Button
Setting keys
LCD panel
Battery
compartment
Language Button
Infrared Lens
Non-Contact Infrared Thermometer
Model No: EM-Th1
Batteries: DC 3V (2xAA)
Measuring Distance: 1.2in~2in
Made in China
Distributed by: Eco4us, Inc.

VII. FEATURES
1.Special design to take the Human Body Temperature
with a 1.2in~2in distance from forehead.
2.Reliable and stable measurement, thanks to the
advantage Infrared Detection System.
3.Audible alarm if temperature is more than 100.4°F.
4.Memorize the last 32 temperature measurements.
5.Three color backlits LCD digital display screen.
6.Temperature unit can be displayed in either Celsius or
Fahrenheit.
7.Automatic power-off (≤30 secs) to conserve energy.
8.Longevity use (40,000 readings).
9.Practical, easy to use.
ADDITIONAL USAGE:
EM-Th1 can also be used to measure the temperature
of a baby-bottle or bath (by using the Surface Temp
Mode), or room temperature (by using the Room Mode).
VIII. INSTRUCTIONS
1.Install battery.
2.For the first use or when inserting new Battery, wait
from 10~15 minutes for the warm-up of the unit. This
will allow the unit to become acclimated to the
temperature of the room.
3.Press
“ On/Scan ” button, aim towards the forehead
(see the diagram below for the EM-Th1 positioning),
from a distance of 1.2in~2in,
When press the
“On/Scan” button in the standby mode, the measuring
is done when the temperature is showing in the
screen or the beep is anouncing, measuring time is
one second.
Tips: Do not move the position of the thermometer
before the testing is done.
4.Before taking the temperature, make sure to remove hair
and perspiration from the forehead.

IX. SETTING AND FUNCTION OF MENU
1.Switch on the device
Press the “On/Scan” button, one second after the
screen panel in full display, it will enter the standby
mode with the sign “---°C” or “----°F”.
Then press the “On/Scan” button again, you will get
the measuring result in 1 second. But if there is no
more operation, it will turn off in 30 seconds automati-
cally.
2.In the switch on state, Setting the mode
a. Press “MODE” button, and the screen will display:
Body…°F
b. Press again “MODE” button and the screen will
display: Room…°F
c. Press again “MODE” button and the screen will
display: Surface Temp…°F
Note: The thermometer default is set to BODY
Important!
The surface temperature differs from the
internal body temperature. To obtain the
internal temperature, always use the “BODY”
mode. Please make sure to select “SURFACE
TEMP” mode for an external area reading.
MODE
On/Scan Button
°C/°F
MEM
Language
Symbol Low Battery
Memory
Temperature
Fahrenheit
Celsius

3.In the switch on state, Press the “°C/ °F” button to
transfer between Celsius and Fahrenheit.
4.In the switch on state, Press “MEM” (Memory) button,
which will then display the last temperature, and
allows for a view of the last 32 measurements.
In the switch on state,Press "MEM" button and hold
for 5 seconds, all data in memory will be deleted. Then
press "MEM" button again, the display will show "CLr"
5.In the switch on state, press the “LANGUAGE”
button will display a choice of three languages,
and an “OFF” setting, which will be silence the
talking feature of the unit.
6.Recalibration of device via the F4 MENU
When there is the difference between EM-Th1 and
mercury thermometer, and you believe mercury
thermometer from its temperature but it is not
convenient to use. You can use recalibration function
to adjust the EM-Th1 to make it the same test result
with mercury thermometer after recalibration.
Besides, when you use EM-Th1 for the people with
different skin color (For example: the yellow race, the
white race, black people and so on) you can use
recalibration too.
Instructions for recalibration:
In the switch on state, Press the “MODE” and “°C/ °F”
buttons at the same time for 3 seconds.
The screen will then display : “F4”
Press “MODE” to increses 0.1°F, press °C/ °F to
reduce 0.1°F.
Press “MEM” button to save the setting.
In the cases of seasonal or environmental changes a
verification and adjustment should be carried out.
7.Changing The Batteries
Display: when the LCD screen displays the flashed
symbol " ", the battery is used.

Operation: Open the lid and change the batteries,
taking great care with the correct positioning. A mistake
with this could cause damage to the apparatus and
compromise the guarantee of your EM-Th1. Never use
rechargeable batteries. Use only batteries for single
usage.
X. TECHNICAL SPECIFICATIONS
1.Normal using condition
Ambient temperature: 50°F ~ 104°F (10°C ~ 40°C)
Relative humidity: ≤85%
2.Batteries: DC 3V (2 pcs AA batteries)
3.Unit size: 6.8 x 1.9 x 2 in (L x W x H)
4.Unit weight (including batteries): 6.5oz
5.Temperature display resolution: 0.1°F (0.1°C)
6.Measuring range:
In body mode: 89.6°F ~ 109.2°F (32°C ~ 42.9°C)
Under body mode, there is three color backlits:
Green color backlit: ≤ 99.1°F (37.3°C), means
normal temperature.
Orange color backlit: 99.3°F~100.2°F (37.4°C~37.9°C),
means low fever.
Red color backlit: ≥ 100.4°F (38°C), means high
fever.
In surface temp mode: 32°F ~ 140°F (0°C ~ 60°C)
In room mode: 32°F ~ 104°F (0°C ~ 40°C)

7.Precision:
89.6°F ~ 94.8°F (32.0°C ~ 34.9°C) ±0.6°F(±0.3°C)
95°F ~ 107.6°F (35.0°C ~ 42.0°C) ±0.4°F(±0.2°C)
107.8°F ~ 109.2°F (42.1°C ~ 42.9°C) ±0.6°F(±0.3°F)
8.Consumption: ≤450mW
9.Accuracy: ± 0.6°F (0.3°C)
10.Measuring distance: 1.2in ~ 2in (3cm ~ 5cm)
11.Automatic power-off: ≤30 secs
12.Memory: 32 sets
※ Note: The Non-contact Infrared Thermometer Model
EM-Th1 can take temperature readings below 89.6°F or
above 109.2°F (32°C to 42.9°C) but precision is not
guaranteed outside of this range.
LONGEVITY OF THE PRODUCT
The EM-Th1 was conceived for an intense and profes-
sional use, its longevity is guaranteed for 40,000
takings.
XI. MAINTENANCE OF THE PRODUCT
- The protective glass over the lens is the most important
and fragile part of the thermometer, please take great
care of it.
- Clean the glass with cotton fabric, wet with 95° alcohol.
- Do not use other batteries than mentioned batteries,
do not recharge non rechargeable batteries, do not
throw in fire.
- Remove the batteries when thermometer is not used
for an extended period of time.
- Do not expose the thermometer to sunlight or water.
- An impact will damage the product.

XII. ACCESSORIES
User manual in English
1 pc
AA alkaline batteries 2 pcs
Carry case 1 pc
XIII. GUIDELINES
This device complies with the EU Directive 93/42/EEC
concerning medical products, the ISO 80601-2-56 and
the European Standard EN60601-1-2 and is subject to
particular precautions with regard to electromagnetic
compatibility.
XIV. TROUBLESHOOTING
If you have problems while using your thermometer,
please refer to this guide to help resolve the problem. If
the problem persists, please contact our customer
service.
THE SCREEN DISPLAYS TEMPERATURE HIGHER
THAN 109.2°F (42.9°C):
The temperature is in Fahrenheit. Change the measure-
ment to Celsius by pressing the “°C/ °F” button.
THE SCREEN DISPLAYS TEMPERATURE LOWER
THAN 89.6°F (32°C):
To take the surface temperature, press the “Mode”
button and set to the reading called “Body” , If the device
is in Surface Temp Mode, the 89.6°F (32°C) tempera-
ture displayed is showing the external temperature of
your body, rather than the internal.

THE SCREEN DISPLAYS THE MESSAGE HI
When using the EM-Th1 Thermometer,
the message “HI” can show on the screen.
In this case,the temperature is above
the measurement range selected, either
above 109.2°F (42.9°C) in Body Mode.
THE SCREEN DISPLAYS THE MESSAGE LO
When using the EM-Th1 Thermometer,
the message “LO” can show on the screen.
In this case, the temperature analyzed
is under the measuring range selected,
either less than 89.6°F (32°C) in Body Mode.
This message displays for various reasons.
Please find below a list of the main issues：
Body
Body
Reasons for LO
message display Advice
Make sure there is no obstruction
or dampness prior to taking
temperature.
Make sure there is no air blowing
in the area of use; this could
affect the infrared reading.
Pause for 3~5 seconds minimum
between readings; a 15 seconds
pause is recommended.
Take measurements at the
recommended distance (app.
1.2~2 in; 3~5 cm).
Temperature reading hampered
by hair or perspiration.
Temperature hampered by an air
draft or dramatic change in
ambient temperature.
Temperature readings are too close
together, and the thermometer did
not have time to reboot.
The measuring distance is too far.

3.In the switch on state, Press the “°C/ °F” button to
transfer between Celsius and Fahrenheit.
4.In the switch on state, Press “MEM” (Memory) button,
which will then display the last temperature, and
allows for a view of the last 32 measurements.
In the switch on state,Press "MEM" button and hold
for 5 seconds, all data in memory will be deleted. Then
press "MEM" button again, the display will show "CLr"
5.In the switch on state, press the “LANGUAGE”
button will display a choice of three languages,
and an “OFF” setting, which will be silence the
talking feature of the unit.
6.Recalibration of device via the F4 MENU
When there is the difference between EM-Th1 and
mercury thermometer, and you believe mercury
thermometer from its temperature but it is not
convenient to use. You can use recalibration function
to adjust the EM-Th1 to make it the same test result
with mercury thermometer after recalibration.
Besides, when you use EM-Th1 for the people with
different skin color (For example: the yellow race, the
white race, black people and so on) you can use
recalibration too.
Instructions for recalibration:
In the switch on state, Press the “MODE” and “°C/ °F”
buttons at the same time for 3 seconds.
The screen will then display : “F4”
Press “MODE” to increses 0.1°F, press °C/ °F to
reduce 0.1°F.
Press “MEM” button to save the setting.
In the cases of seasonal or environmental changes a
verification and adjustment should be carried out.
7.Changing The Batteries
Display: when the LCD screen displays the flashed
symbol " ", the battery is used.
XV. EXPLANATION OF SYMBOLS
Symbol Reference
Trade mark
IEC 60417-5333,Type BF applied part
IEC 60417-5031 Direct current
Protected against access to hazardous parts with a
finger and against vertically falling water drops when
enclosure tilted up to 15°
Refer to instruction manual / booklet
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.
Specifies serial number
SN

Made in China
Distributed by Eco4us, Inc.
www.eco4us.com

7.Precision:
89.6°F ~ 94.8°F (32.0°C ~ 34.9°C) ±0.6°F(±0.3°C)
95°F ~ 107.6°F (35.0°C ~ 42.0°C) ±0.4°F(±0.2°C)
107.8°F ~ 109.2°F (42.1°C ~ 42.9°C) ±0.6°F(±0.3°F)
8.Consumption: ≤450mW
9.Accuracy: ± 0.6°F (0.3°C)
10.Measuring distance: 1.2in ~ 2in (3cm ~ 5cm)
11.Automatic power-off: ≤30 secs
12.Memory: 32 sets
※ Note: The Non-contact Infrared Thermometer Model
EM-Th1 can take temperature readings below 89.6°F or
above 109.2°F (32°C to 42.9°C) but precision is not
guaranteed outside of this range.
LONGEVITY OF THE PRODUCT
The EM-Th1 was conceived for an intense and profes-
sional use, its longevity is guaranteed for 40,000
takings.
XI. MAINTENANCE OF THE PRODUCT
- The protective glass over the lens is the most important
and fragile part of the thermometer, please take great
care of it.
- Clean the glass with cotton fabric, wet with 95° alcohol.
- Do not use other batteries than mentioned batteries,
do not recharge non rechargeable batteries, do not
throw in fire.
- Remove the batteries when thermometer is not used
for an extended period of time.
- Do not expose the thermometer to sunlight or water.
- An impact will damage the product.
