Mega LED Lighting MJ-1006C User manual

LED Moving Head Light
MJ-1006C
User Manual
Thank you for choosing our LED moving head light. For the sake of your safety, Please read
and follow these instructions carefully and keep this manual in a safe place for future
reference.

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
Catalogue
Chapter Page
Safe Usage Of The Product --------------------------------------------------------------------------3
Preliminary Specifications----------------------------------------------------------------------------4
Install The Equipment ---------------------------------------------------------------------------------4
Power Code Connection ------------------------------------------------------------------------------5
DMX Connection ---------------------------------------------------------------------------------------5
DMX Terminator ----------------------------------------------------------------------------------------6
Function Set -----------------------------------------------------------------------------------------------7
Operation Menu ------------------------------------------------------------------------------------------7
Menu Operation Instructions--------------------------------------------------------------------------9
Maintenance -----------------------------------------------------------------------------------------------10
Keeping The Product Clean --------------------------------------------------------------------------10
Trouble Shooting-----------------------------------------------------------------------------------------10
Equipment and Appendix------------------------------------------------------------------------------11
Channel List------------------------------------------------------------------------------------------------11
Technical Parameters------------------------------------------------------------------------------------13
☆Important notice:
·In this instruction for use contains about the installment and the use aspect important information of the
LED moving head. When installing and using, you need to look this usage instruction strictly.
·Before open the LED moving head and if you want to do the repair work, please make sure the power
source is at the separation condition.
·Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing
and the unit are in good condition before installation and use. Should there be any damage caused by
transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not be
assumed by the manufacturer or dealer.
Attention: Unceasingly carries on the product improvement about our company the policy, in this
instruction booklet carries the data will have the possibility to be able to change in the future, when no longer
separate notice change matters concerned. Our company retains when the product improvement changes
the related specification the authority. This instruction booklet publisher cannot be responsible regarding this
instruction booklet in information accuracy, also cannot the related consequence which causes regarding
these information be responsible.

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
3
SAFE USAGE OF THE PRODUCT
When unpacking and before disposing of the carton, check there is no transportation
damage before using the product. Should there be any damage caused by transportation,
consult your dealer and do not use the apparatus.
The product is for indoor use only, IP20. Use only in dry locations. Keep this device
away from rain and moisture, excessive heat, humidity and dust. Do not allow contact
with water or any other liquids.
The product is not designed or intended to be mounted directly on to inflammable
surfaces
The product is only intended for installation, operation and maintenance by professional
person.
The product must be installed in a location with adequate ventilation, at least 50cm from
adjacent wall surfaces. Be sure that no ventilation slots are blocked.
Do not product the beam onto inflammable surfaces, minimum distance is 5m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the
power requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation
conforms to all relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug.
Never pull out the plug by tugging the power-cord.
Keep the optical system clean. Do not touch the LED lens with bare hands.
The product should always be installed with a secondary safety fixing. On the projector
base brink, there is a hole for the safety cord provided. It should be attached as shown in
“installing the projector” section.
LED lens shall be changed if they have become visibly damaged to such an extent that
their effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 40°C，when
steady state is achieved 50°C.
There is no user serviceable parts inside the projector, do not open the housing and never
operate the product with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
★Always disconnect from the mains, when the device is not in use or before cleaning
it or before attempting any maintenance work !

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
4
The MJ10064in1 unlocks a new dimension in colour control with it's unique six cell
arrangement opening up a whole new level of creative potential within.
The MJ10064in1 primary lens array can be changed with an optional lens kit allowing
different beam angles to suit your projection requirements.
PRELIMINARY SPECIFICATIONS
LED ENGINE
36 RGBW EPISTAR
POWER INPUT
POWERCON I/O
BEAM ANGLE
25°STANDARD
NARROW/WIDE TBC
POWER
90-240V AC 50/60Hz
DMX DATA
3 PIN XLR I/O 12/47
DMX channel MODES

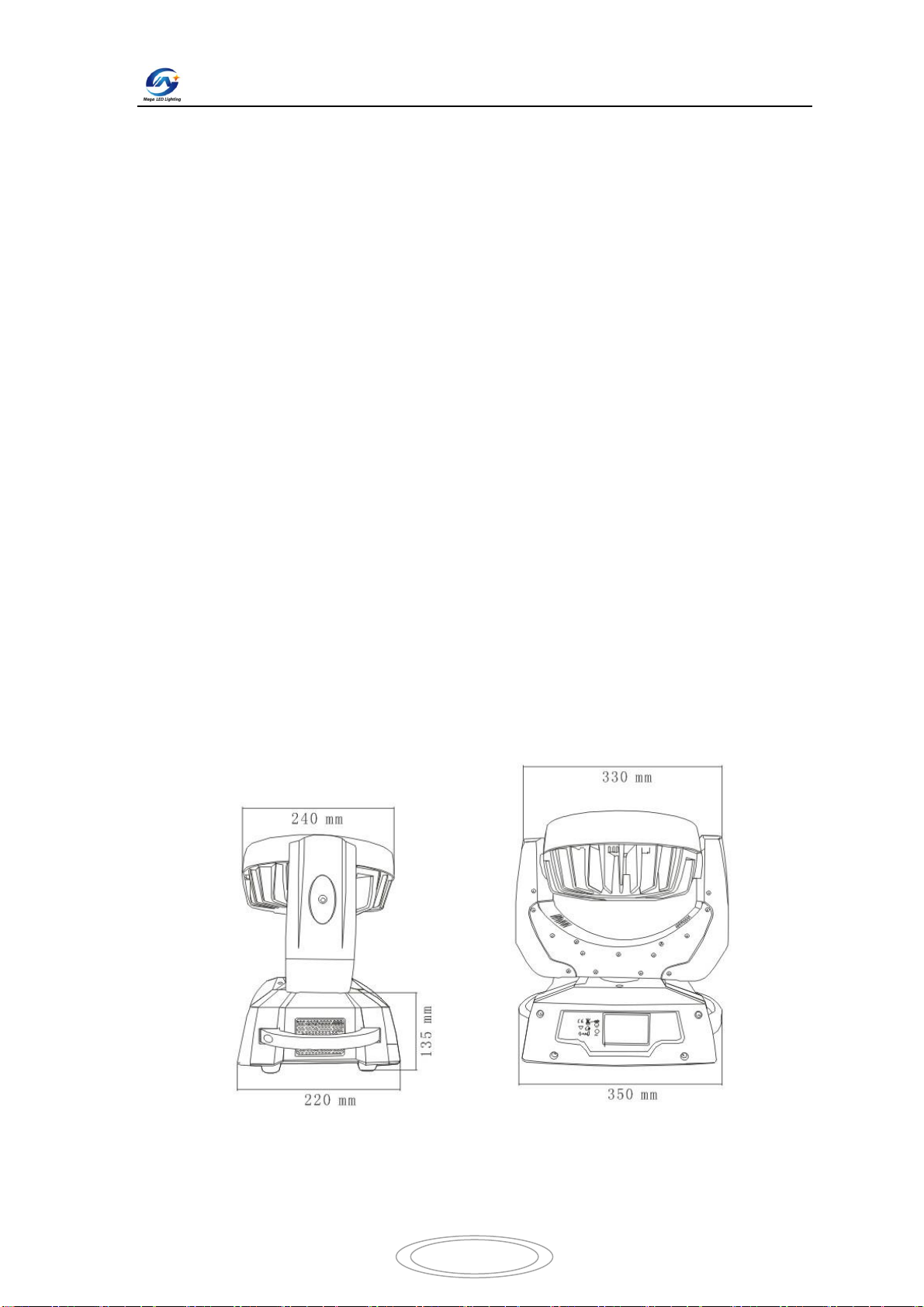

DIMENSIONS
420 x 330 x 460mm
PAN /
VELOCITY
0°> 630°in 2.5sec's
WEIGHT
12KG
TILT /
VELOCITY
0°> 265°in 1.5sec's
IP RATING
20
STROBE
25Hz
CELL ID REFERENCE DIAGRAM
Install The Equipment:

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
5
Use 1pcs clamp and safety cord(need to purchase).Use clamp fix with light hook which
in the packing box with light, then use screw install to the bottom of lamp. Hang the
fixture on the structure and fasten the screws attached to each clamp. Make sure the light
is installed reliable, and confirm the light which you fixed is strong enough for hanging
the light. Base on safety reason, please according to the above picture using safety wire
cross the light to make it strong enough again.
Warning!
1．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move
fixtures.
2．Base on safety reason, please use the safety cord which can afford the weight ten times
of lamp through Insurance hole for auxiliary hanging.
3．Don't use the handle of the moving head light to fixed or lift!
Power Code Connection:
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the
voltage and frequency marked on the panel of the projector. It is recommended that each
projector be supplied separately so that they may be individually switched on and off.
★It is essential that each projector is correctly earthed and the electrical installation
conforms to all relevant standards.
DMX Connection:

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
6

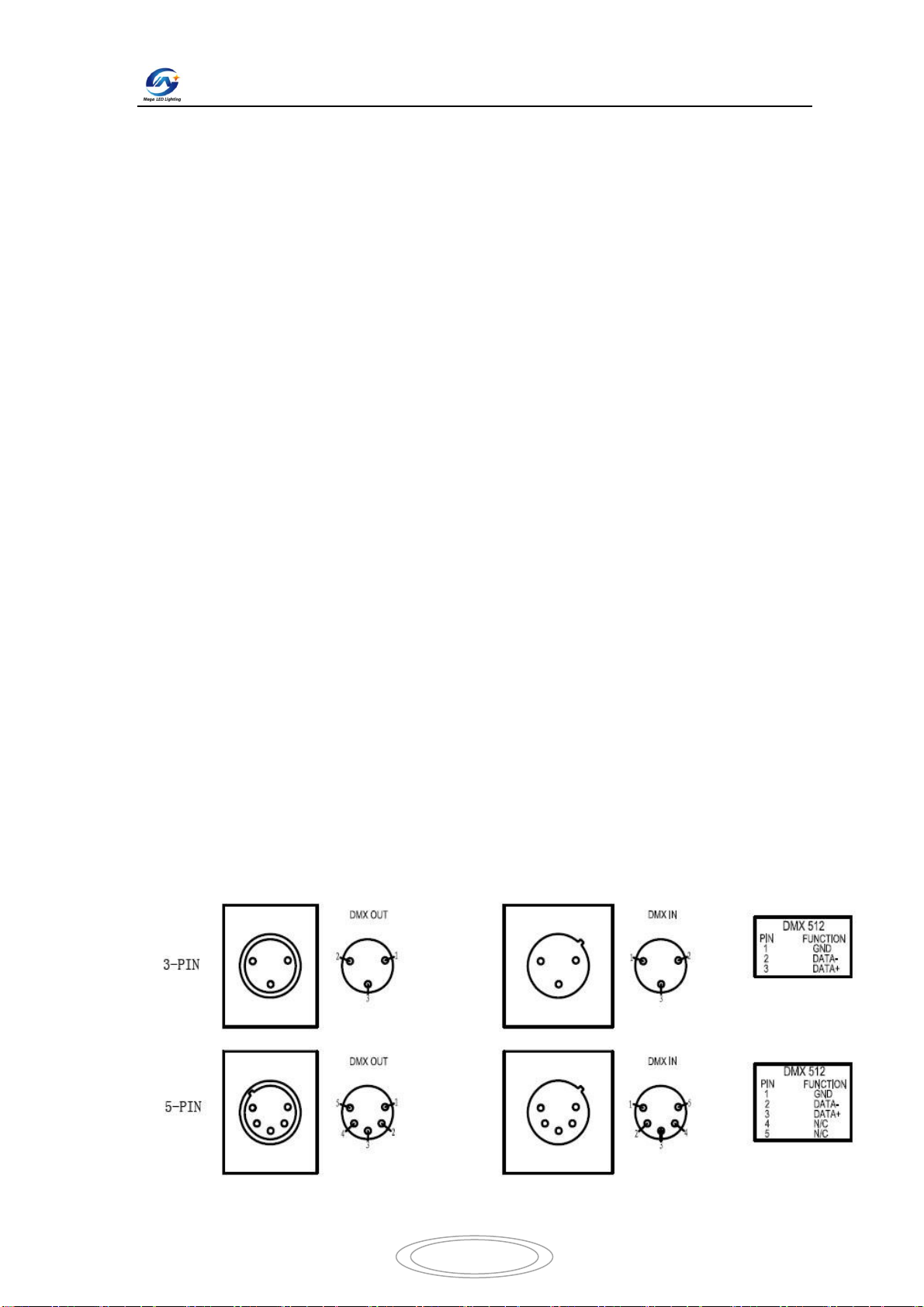

Connection between the controller and a projector and between one projector and another
must be made with a 2 core-screened cable, with each core having at least a 0.5mm
diameter. Connection to and from the projector is via cannon 3 pin (which are included
with the projector) XLR plugs and sockets. The XLR's are connected as shown in the
figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the
plug or each other. The body of the plug is not connected in any way. The XLED 590
accepts digital control signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s
output to the second fixture’s input and connect the rest fixtures in the same way.
Eventually connect the last fixture’s output to a DMX terminator as shown in the figure
below.
DMX Terminator:
In the Controller mode, at the last fixture in the chain, the DMX output has to be
connected with a DMX terminator. This prevents electrical noise from disturbing and
corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected
across pins 2 and 3, which is then plugged into the output socket on the last projector in
the chain. The connections are illustrated below.

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
7
Function Set:
MENU DOWN UP ENTER
Use buttonswitchand LCD display, cansetthe addresscodeand functioncodeeasily.
Check or modifylighting functionsettings, Press ENTERbutton, LCD displaypanelwilldisplay
functionmenu of lighting. Function operation menu all have corresponding submenu. Each menu
allrepresent the specific functions of lamps, specific see below "operationmenu" section.
Set or browse functionsetting oflamp, press UP or DOWN key.
Press ENTER key to save your changes or to ENTER submenu, press UP or DOWN
can change value(Plus or reduce number).
According to the MENU key to return to the last menu. If do not press MENU key,
system will return to display state automatic.
Operation Menu:
DMX Address
DMX Addr set
001-512
Config Set
Channel Set
Standard
Extended
Short
Fan Set
AUTO speed
High speed
Temperature Set
70-110℃

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
8
Option Set
Pan Invert
Pan swap off
Pan swap off
Tilt Invert
Tilt swap off
Tilt swap on
Dimmer Invert
Dimmer swap off
Dimmer swap on
Display Set
Language Set
English
No Chinese
Display Invert
Display off
Display on
Work Modes
Demo Modes 1
Master show
***
Demo Modes 2
Master Running
***
Sound Mode
Sound Running
***
Slave Mode
Slave Running
***
DMX512 Mode
DMX512 Mode
Information
Power On Hours
**** hour
Power this time
**** minute
Head ensor
Software version
YL-1080.1

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
9
Reset
To Factory Mode
Sytem Reset
Menu Operation Instructions：
一： DMX512 Address code Settings：
1. Press “MENU” button to Set DMX Address，to confirm by press “ENTER” button。
2. Show Set DMX address DMX address:001，correct by pressing “UP&DOWN” button。
3. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving
二：Config Settings：
1. Press “MENU” button to Config Settings , and choose channel quantity select，it will
be show Standard ,Extended , Short three mode, to confirm by press “ENTER”
button.
2. Show Fan Settings, choose menu by pressing ”UP&DWON” button, will show
AUTO speed and high speed, correcting by “UP&DOWN” Button.
3. Show temperature Settings, and press the menu choose set the temperature.
4. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving.
三：Option Settings
1. Press “MENU” button to choose Options Settings, it will be show Pan invert, Tilt
Invert and Dimmer invert three options. confirm by press “ENTER” button.
2. Show Pan invert ,Choose menu by pressing ”UP&DWON” button, will show pan
swap .correcting by “ENTER” Button.
3. Show Tilt invert , Choose menu by pressing ”UP&DWON” button, will show tilt
Swap and tilt DMX swap.correcting by “ENTER” Button.
4. Show Dimmer invert, Choose menu by pressing ”UP&DWON” button, will show
Dimmer Swap and dimmer invert. correcting by” ENTER” Button.
5. Press “ENTER ”button to save and quit. Press “MENU” button to quit no saving.
四：Display options settings.
1. Press “MENU” button to Set display option, Will show languages and display invert
functions. confirm by press “ENTER” button.
2. Show languages selections , Choose menu by pressing ”UP&DWON” button, will
show English and Chinese functions, correcting by “ENTER” Button.
3. Show display invert functions. Choose menu by pressing ”UP&DWON” button, will
show display invert on and display invert off. correcting by “ENTER” Button..
4. Press “ENTER ”button to save and quit. Press “MENU” button to quit no saving.
五：Work modes
1. Press “MENU” button to Set work modes，confirm by press “ENTER” button.
2. Show DEMO modes 1，press ”ENTER” button, Will show program demo ,
3. Show DEMO modes , correct by pressing “ENTER” button. Will show modes
running.
4. Show sound mode ,press “ENTER” will show sound control running.
5. Show slave mode, press “ENTER” will show slave running
6. Show DMX512 mode, press “ ENTER” will show main screen running status.
7. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving.

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
10
六：Information
1. Press “MENU” button to information confirm by press “ENTER” button. It will show
Power On Hours, Power this time ,Head Sensor, Software Version.
2. Press “ENTER” button to save and quit. Press “MENU” button to quit no saving.
七：Reset
1、Press “MENU” button to Reset, ，confirm by press “ENTER” button, it shows reset.
Maintenance:
To prolong the life of the projector, some maintenance work has to be done to ensure the
LED optical system in good condition. If the projector does not function, check the fuses
on the power socket of the projector, they should only be replaced by fuses of the same
specification. Should these be damaged, call a qualified technician before replacement.
The projector has thermal protection device that will switch off the projector in case of
overheating. Should either of these operate, check that the fans are not blocked, and if
they are dirty, clean them before switching on the projector again. Check that the fans
are operational, if not, call a qualified technician.
☆Any maintenance work should only be carried out by qualified technicians.
Keeping The Product Clean:
To ensure the reliability of the projector, it should be kept clean. It is recommended that
the fans should be cleaned every 15 days. LED lens should also be regularly cleaned to
maintain an optimum light output.
Cleaning frequency depends on the environment in which the fixture operates: damp,
smoke or particularly dirty surroundings can cause greater accumulation of dirt on the
unit's optics. A soft cloth and typical glass cleaning products should be used for cleaning.
It is recommended to clean the external optics at least once every 15 days.
☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
Trouble Shooting:
Problem
Answer
The LED moving head light doesn’t switch
on.
Check the fuse the power socket
Although shines, but the LED moving head
lamp doesn’t accept the instruction of the
controller.
Check the digital start address and
also check the connection situation of
the communication control line
LED moving head lamp only can work
intermittently.
Inspect the power supply and voltage
is whether normal.
Do not receive the DMX512 signal.
Whether the signal lines do contact
well or broken.
The light beam appears gloomily.
Check that the heat dissipation
system is running normally or Inspect
the optics part is whether clean.
☆Other maintain work should by the specialist which has the experience to carry on.

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
11
Equipment and Appendix:
The packing list of this light as follows:
☆Led moving head light 1pcs
☆Power Cable 1pcs
☆Signal Cable 1pcs
☆Light Hook 1pcs
☆M10 Screw 2pcs
☆The Product of Instruction 1pcs
Channel List:
Note: A,B,C,D,E,F is each Cell
12 Chanel Mode Value
DMX Channel
Value
Functions
CH1
0~255
Pan
CH2
0~255
Tilt
CH3
0~255
Main dimming
CH4
0~9
No functions
10-127
Strobe speed from S to F
128-255
Fade adjust
CH5
0~255
Red
CH6
0~255
Green
CH7
0~255
Blue
CH8
0~255
White
CH9
0~255
XY speed
CH10
0~99
No functions
100~255
color choice(15 color)
CH11
0~127
No functions
128~255
Automatic operation
CH12
0~254
No functions
255
Reset
4 7Chanel Mode Value
DMX Channel
Value
Functions
CH1
0~255
Pan
CH2
0~255
Tilt
CH3
0~255
Pan 16bit
CH4
0~255
Tilt 16bit

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
12
CH5
0~255
XY speed
CH6
0~255
Main Strobe
CH7
0~255
Main dimming
CH8
0~255
Asegment Strobe
CH9
0~255
Asegment dimming
CH10
0~255
Asegment Red
CH11
0~255
Asegment Green
CH12
0~255
Asegment Blue
CH13
0~255
Asegment White
CH14
0~255
B segment Strobe
CH15
0~255
B segment dimming
CH16
0~255
B segment Red
CH17
0~255
B segment Green
CH18
0~255
B segment Blue
CH19
0~255
B segment White
CH20
0~255
C segment Strobe
CH21
0~255
C segment dimming
CH22
0~255
C segment Red
CH23
0~255
C segment Green
CH24
0~255
C segment Blue
CH25
0~255
C segment White
CH26
0~255
D segment Strobe
CH27
0~255
D segment dimming
CH28
0~255
D segment Red
CH29
0~255
D segment Green
CH30
0~255
D segment Blue
CH31
0~255
D segment White
CH32
0~255
E segment Strobe
CH33
0~255
E segment dimming
CH34
0~255
E segment Red
CH35
0~255
E segment Green
CH36
0~255
E segment Blue
CH37
0~255
E segment White
CH38
0~255
F segment Strobe
CH39
0~255
F segment dimming
CH40
0~255
F segment Red
CH41
0~255
F segment Green
CH42
0~255
F segment Blue
CH43
0~255
F segment White
CH44
0~255
Color macro functions
CH45
0~255
Program speed
CH46
0~255
Automatic operation
CH47
0~255
Reset

LED Moving Head Wash 3610 MJ-1006C User Manual ver2.0
www.mjledlighting.com
13
Technical Parameters:
Construction: Composite plastic, die-casting aluminum,
Voltage: AC90V-240V; 50/60Hz
Power Consumption: 400W @(220V)
LED Bulbs:4in1*36LEDs
LED Current: 500mA
LED Lifetime: 50000Hours
Colors: RGBW color mixing
Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also
may mix the color tone
Strobe: 1-25/second high speed strobe, but single color Mixes the color strobe
Head Movement: Pan 540°, Tilt 270°, with auto position correction and electronic
replacement function.
Beam Angle: 25°
Control mode: DMX 512, Stand –alone mode, Self-test mode, Sound, Master/slave
DMX Channel: 12CH, 47CH
Control Panel: LCD display
IPGrade: IP20
WorkEnvironmentTemperature:-20°C~40°C
Other Functions: Pan and Tilt speed adjustable; Fan automatic control function; Display
LED lamps and lanterns use time; Menu inversion
Net weight:9.7KG
Gross Weight: 12 kg
Package Size: 42 x 33 x 46cm
Light Size(see it below)
