Mega LED Lighting MATRIX 2510 User manual

MATRIX 2510
MJ-1027
User Manual
Thank you for choosing our 25eyes beam LED moving head light. For the sake of your safety,
Please read and follow these instructions carefully and keep this manual in a safe place for
future reference.

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
2
Catalogue
Chapter Page
Safe Usage Of The Product -----------------------------------------------------------------------------------------3
Install The Equipment ------------------------------------------------------------------------------------------------4
Power Code Connection ---------------------------------------------------------------------------------------------4
DMX Connection ------------------------------------------------------------------------------------------------------5
DMX Terminator -------------------------------------------------------------------------------------------------------5
Function Set --------------------------------------------------------------------------------------------------------------6
Operation Menu ---------------------------------------------------------------------------------------------------------6
Maintenance --------------------------------------------------------------------------------------------------------------7
Keeping The Product Clean -----------------------------------------------------------------------------------------7
Trouble Shooting--------------------------------------------------------------------------------------------------------7
Equipment and Appendix---------------------------------------------------------------------------------------------8
Channel List---------------------------------------------------------------------------------------------------------------8
Technical Parameters--------------------------------------------------------------------------------------------------12
☆Important notice:
·In this instruction for use contains about the installment and the use aspect important information of the LED moving
head. When installing and using, you need to look this usage instruction strictly.
·Before open the LED moving head and if you want to do the repair work, please make sure the power source is at the
separation condition.
·Every unit is tested completely and packed properly by the manufacturer. Pleasemake sure the packing and the unit are
in good condition before installation and use. Should there be any damage caused by transportation, consult your dealer
and do not use the unit. Any damage caused by improper use will not be assumed by the manufacturer or dealer.
Attention: Unceasingly carries on the product improvement about our company the policy, in this instruction booklet
carries the data will have the possibility to be able to change in the future, when no longer separate notice change matters
concerned. Our company retains when the product improvement changes the related specification the authority. This
instruction booklet publisher cannot be responsible regarding this instruction booklet in information accuracy, also cannot
the related consequence which causes regarding these information be responsible.

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
3
SAFE USAGE OF THE PRODUCT
When unpacking and before disposing of the carton, check there is no transportation damage before
using the product. Should there be any damage caused by transportation, consult your dealer and do
not use the apparatus.
The product is for indoor use only, IP20. Use only in dry locations. Keep this device away from rain
and moisture, excessive heat, humidity and dust. Do not allow contact with water or any other
liquids.
The product is not designed or intended to be mounted directly on to inflammable surfaces
The product is only intended for installation, operation and maintenance by professional person.
The product must be installed in a location with adequate ventilation, at least 50cm from adjacent
wall surfaces. Be sure that no ventilation slots are blocked.
Do not product the beam onto inflammable surfaces, minimum distance is 5m.
Avoid direct exposure to the light from the lamp. The light is harmful to the eye.
Do not attempt to dismantle or modify the projector in any way.
Electrical connection must only be carried out by qualified personnel.
Before installation, ensure that the voltage and frequency of power supply match the power
requirements of the projector.
It is essential that each projector is correctly earthed and that electrical installation conforms to all
relevant standards.
Do not connect this device to any other types of dimmer apparatus.
Make sure that the power-cord is never crimped or damaged by sharp edges. Never let the
power-cord come into contact with other cables. Only handle the power-cord by the plug. Never pull
out the plug by tugging the power-cord.
Keep the optical system clean. Do not touch the LED lens with bare hands.
The product should always be installed with a secondary safety fixing. On the projector base brink,
there is a hole for the safety cord provided. It should be attached as shown in “installing the projector”
section.
LED lens shall be changed if they have become visibly damaged to such an extent that their
effectiveness is impaired, for example by cracks or deep scratches.
Exterior surface temperatures of the luminaire after 5 minutes operation is 40°C，when steady state is
achieved 50°C.
There is no user serviceable parts inside the projector, do not open the housing and never operate the
product with the covers removed.
If you have any questions, don’t hesitate to consult your dealer or manufacturer.
★Always disconnect from the mains, when the device is not in use or before cleaning it or
before attempting any maintenance work !

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
4

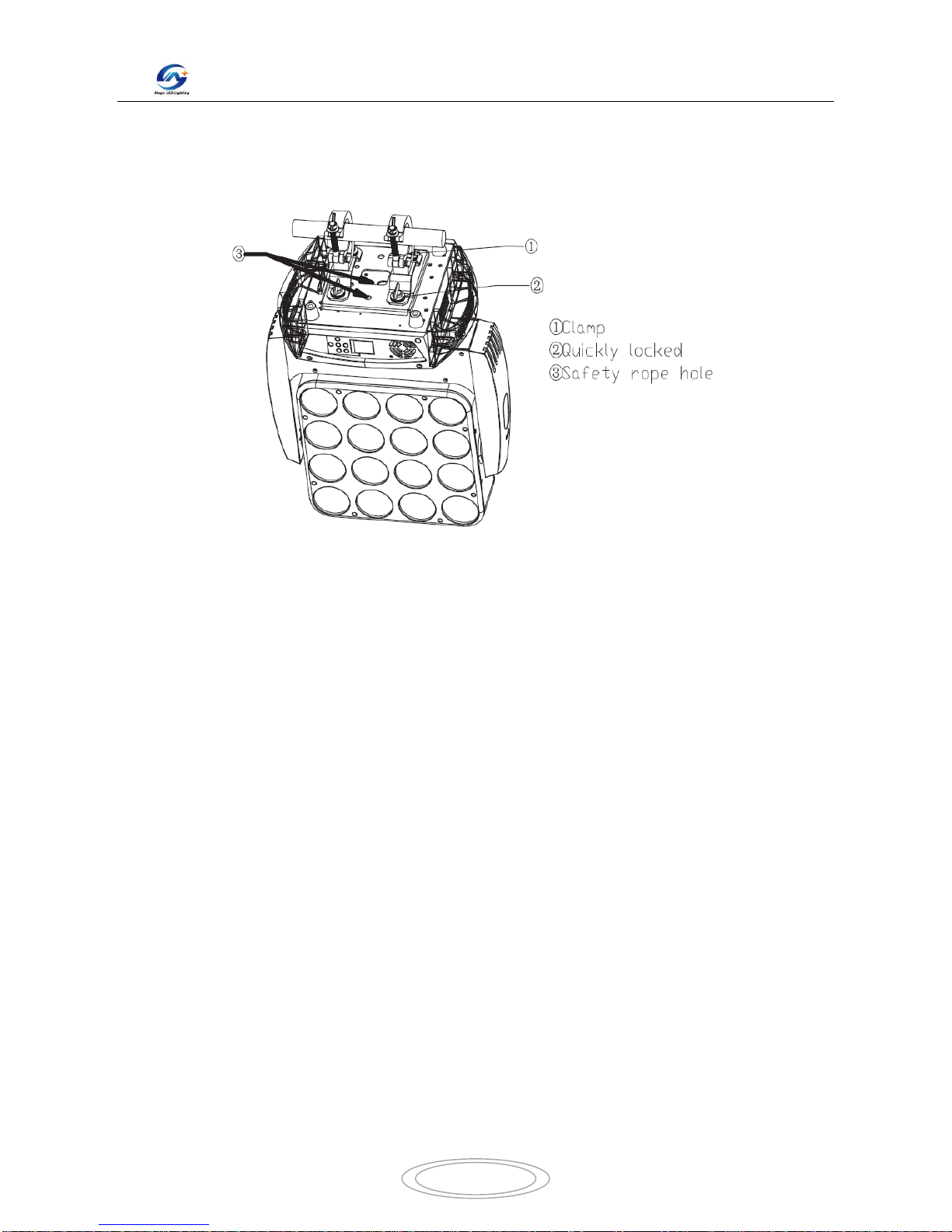

Install The Equipment:
Use 2pcs clamp and safety cord(need to purchase).Use clamp fix with light hook which in the
packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure
and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm
the light which you fixed is strong enough for hanging the light. Base on safety reason, please
according to the above picture using safety wire cross the light to make it strong enough again.
Warning!
1．Hook and clamp only use for hanging the light. Do not use clamp as a tool to move fixtures.
2．Base on safety reason, please use the safety cord which can afford the weight ten times of lamp
through Insurance hole for auxiliary hanging.
3．Don't use the handle of the moving head light to fixed or lift!
Power Code Connection:
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Use the plug provided to connect the mains power to the projector paying attention to the voltage and
frequency marked on the panel of the projector. It is recommended that each projector be supplied
separately so that they may be individually switched on and off.
★It is essential that each projector is correctly earthed and the electrical installation conforms
to all relevant standards.

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
5
DMX Connection:
Connection between the controller and a projector and between one projector and another must be
made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to
and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and
sockets. The XLR's are connected as shown in the figure above.
Note: Care should be taken to ensure that none of the pins touch the metallic body of the plug or each
other. The body of the plug is not connected in any way. The XLED 590 accepts digital control
signals in protocol DMX512 (1990).
Connect the controller’s output to the first fixture’s input, and connect the first fixture’s output to the
second fixture’s input and connect the rest fixtures in the same way. Eventually connect the last
fixture’s output to a DMX terminator.
DMX Terminator:
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a
DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control
signals.
The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins
2 and 3, which is then plugged into the output socket on the last projector in the chain. The
connections are illustrated below.

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
6
Function Set:
Menu UP DOWN Enter
Use button switch and LED display, can set the address code and function code easily.
Check or modify lighting function settings, Press the MENU button. LED display panel will display 8kinds
different function menu of lighting. Function operation menu all have corresponding submenu. Each menu all
represent the specific functions of lamps, specific see below "operation menu" section.
Set or browse function setting of lamp, Press UP or DOWN button.
Press ENTER button to save your changes or to ENTER submenu, Press UP or DOWN can change value (Plus or
reduce number).
According to the ENTER key to return to the last menu.
Operation Menu:（All the functions are according to the selected and then press the D key to confirm）
Menu Structure chart
No
Display
Function description
1
DMX-14 MODE
channel D:001
14 channel address code，（ 001—512）
UP or DOWN key to add and subtract address code values
2
DMX35 MODE
channel D: 001
35 channel address code，（ 001—512）
UP or DOWN key to add and subtract address code values
3
DMX110 MODE
channel D: 001
110 channel address code，（ 001—512）
UP or DOWN key to add and subtract address code values
4
Color Cycle
Speed 50
7 colours jump to change，（01—99）
UP or DOWN button change jump change speed
5
Gradual change
Speed 50
7 colours fading，（ 01—99）
UP or DOWN button change fading speed
6
Pulse change
Speed 50
7 colors pulse，（01—99）
UP or DOWN button change pulse change speed
7
Color Run
M 022 Sp 50
Running change，（01—99）
UP or DOWN key change running pattern, the running speed
8
Color Voice
Mood 00
7 colour voice control running change
UP or DOWN button change voice control pattern
9
Color Red
Speed 200
Red color，（000—255）
UP or DOWN button change color value
10
Color Green
Speed 200
Green color，（000—255）
UP or DOWN button change color value
11
Color Blue
Speed 200
Blue color，（000—255）
UP or DOWN button change color value
12
Color White
Speed 200
White color，（000—255）
UP or DOWN button change color value

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
7
13
Slave
25Eye Slave
Slave mode
14
Restore Factory
Yes ?
Restore the factory Settings
Maintenance:
To prolong the life of the projector, some maintenance work has to be done to ensure the LED
optical system in good condition. If the projector does not function, check the fuses on the power
socket of the projector, they should only be replaced by fuses of the same specification. Should
these be damaged, call a qualified technician before replacement. The projector has thermal
protection device that will switch off the projector in case of overheating. Should either of these
operate, check that the fans are not blocked, and if they are dirty, clean them before switching on the
projector again. Check that the fans are operational, if not, call a qualified technician.
☆Any maintenance work should only be carried out by qualified technicians.
Keeping The Product Clean:
To ensure the reliability of the projector, it should be kept clean. It is recommended that the fans
should be cleaned every 15 days. LED lens should also be regularly cleaned to maintain an optimum
light output.
Cleaning frequency depends on the environment in which the fixture operates: damp, smoke or
particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics. A soft cloth
and typical glass cleaning products should be used for cleaning. It is recommended to clean the
external optics at least once every 15 days.
☆Do not use any organic solvent, e.g. alcohol, to clean housing of the apparatus.
Trouble Shooting:
Problem
Answer
The LED moving head light doesn’t switch
on.
Check the fuse the power socket
Although shines, but the LED moving head
lamp doesn’t accept the instruction of the
controller.
Check the digital start address and
also check the connection situation of
the communication control line
LED moving head lamp only can work
intermittently.
Inspect the power supply and voltage
is whether normal.
Do not receive the DMX512 signal.
Whether the signal lines do contact
well or broken.
The light beam appears gloomily.
Check that the heat dissipation
system is running normally or Inspect
the optics part is whether clean.
☆Other maintain work should by the specialist which has the experience to carry on.

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
8
Equipment and Appendix:
The packing list of this light as follows:
☆Led moving head light 1pcs
☆Power Cable 1pcs
☆XLR connector 1unit
☆Light Hook 2pcs
☆The Product of Instruction 1pcs
Channel List:
14CH MODE
Channel
Function
Description
CH1
0-255
X motor
CH2
0-255
Y motor
CH3
0-255
X fine-tuning（16Bit）
CH4
0-255
Y fine-tuning（16Bit）
CH5
0-255
XY motor speed from quick to slow
CH6
Main dimming
R、G、B、W main dimming，linear dimming，from dark to bright
CH7
Main strobe
R、G、B、W main strobe，from slow to quick
CH8
Function slection 1
0--24：DMX 14 channel control；
25--30：color slection（motor controlled by DMX 512 controller）；
31--36：Jump change（motor controlled by DMX 512 controller）；
37--42：fading，pulse（motor controlled by DMX 512 controller）；
43--46：running figure 1（motor controlled by DMX 512 controller）；
47--50：running figure 2（motor controlled by DMX 512 controller）；
。。。。。。。。：
129—132 ：running figure 2 （motor controlled by DMX 512
controller）；
133--138：sound control（motor controlled by DMX 512 controller）；
139--144：color slection（motor running the built-in program）；
145--150：Jump change（motor running the built-in program）；
151--156：fading，pulse（motor running the built-in program）；
157--160：running figure 1（motor running the built-in program）；
161--164：running figure 2（motor running the built-in program）；
。。。。。。。。
244--248：running figure 23（motor running the built-in program）；
249--255：sound control（motor running the built-in program）；
CH9
Function slection 2
0--5：DMX 14 channel control ；
6--130：Fixed 126pcs figures slection（motor controlled by DMX
512 controller）；
131--255：Fixed 125pcs figures slection（motor running the
built-in program）；

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
9
CH10
Function speed 1
Function speed，from slow to quick
Function speed 2
0--31：fixed figure direction 1；
32--63：fixed direction 2；
64--95：fixed direction 3；
96--126：fixed direction 4；
127--195：figure clockwise rotation, from slow to quick；
196--255：figure counterclockwise rotation, from slow to quick；
CH 11
R dimming
R dimming，linear dimming，from dark to bright
CH 12
G dimming
G dimming，linear dimming，from dark to bright
CH 13
B dimming
B dimming，linear dimming，from dark to bright
CH 14
W dimming
W dimming，linear dimming，from dark to bright
35CH MODE
Channel
Function
Description
CH 1
0-255
X motor
CH 2
0-255
Y motor
CH 3
0-255
X fine-tuning（16Bit）
CH 4
0-255
Y fine-tuning（16Bit）
CH 5
0-255
XY motor speed from quick to slow
CH 6
Main dimming
R、G、B、W main dimming，linear dimming，from dark to bright
CH 7
Main strobe
R、G、B、W main strobe，from slow to quick
CH 8
Function slection 1
0--24：DMX 35 channel control；
25--30：color slection（motor controlled by DMX 512 controller）；
31--36：jump change（motor controlled by DMX 512 controller）；
37--42：fading，pulse（motor controlled by DMX 512 controller）；
43--46：running figure 1（motor controlled by DMX 512 controller）；
47--50：running figure 2（motor controlled by DMX 512 controller）；
。。。。。。。。
129--132：running figure 23（motor controlled by DMX 512
controller）；
133--138：sound control（motor controlled by DMX 512 controller）；
139--144：color slection（motor running the built-in program）；
145--150：jump change（motor running the built-in program）；
151--156：fading，pulse（motor running the built-in program）；
157--160：running figure 1（motor running the built-in program）；
161--164：running figure 2（motor running the built-in program）；
。。。。。。。。
244--248：running figure 23（motor running the built-in
program）；
249--255：sound control（motor running the built-in program）；

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
10
CH 9
Function slection 2
0--5：DMX 35 channel control；
6--130：Fixed 126pcs figures slection（motor controlled by
DMX 512 controller）；
131--255：Fixed 125pcs figures slection（motor running the
built-in program）；
CH 10
Function speed 1
Function speed，from slow to quick
Function speed 2
0--31：fixed figure direction 1；
32--63：fixed figure direction 2；
64--95：fixed figure direction 3；
96--126：fixed figure direction 4；
127--195：figure clockwise rotation, from slow to quick；
196--255：figure counterclockwise rotation, from slow to quick；
CH 11
1 dimming
R、G、B、W dimming
CH 12
2 dimming
R、G、B、W dimming
CH 13
3 dimming
R、G、B、W dimming
CH 14
4 dimming
R、G、B、W dimming
......
.......
..........
CH 35
25 dimming
R、G、B、W dimming
110CH MODE
Channel
Function
Description
CH 1
0-255
X motor
CH 2
0-255
Y motor
CH 3
0-255
X fine-tuning（16Bit）
CH 4
0-255
Y fine-tuning（16Bit）
CH 5
0-255
XY motor speed from quick to slow
CH 6
Main dimming
R、G、B、W main dimming，linear dimming，from dark to bright
CH 7
Main strobe
R、G、B、W main strobe，from slow to quick
CH 8
Function slection 1
0--24：DMX 110 channel control；
25--30：color slection（motor controlled by DMX 512 controller）；
31--36：jump change（motor controlled by DMX 512 controller）；
37--42：fading，pulse（motor controlled by DMX 512 controller）；
43--46：running figure 1（motor controlled by DMX 512 controller）；
47--50：running figure 2（motor controlled by DMX 512 controller）；
。。。。。。。。
129--132：running figure 23（motor controlled by DMX 512
controller）；

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
11
133--138：sound control（motor controlled by DMX 512 controller）；
139--144：color slection（motor running the built-in program）；
145--150：jump change（motor running the built-in program）；
151--156：fading，pulse（motor running the built-in program）；
157--160：running figure 1（motor running the built-in program）；
161--164：running figure 2（motor running the built-in program）；
。。。。。。。。
244--248：running figure 23（motor running the built-in program）；
249--255：sound control（motor running the built-in program）；
CH 9
Function slection 2
0--5：DMX 110 channel control；
6--130：Fixed 126pcs figures slection（motor controlled by
DMX 512 controller）；
131--255：Fixed 125pcs figures slection（motor running the
built-in program）；
CH 10
Function speed 1
Function speed，from slow to quick
Function speed 2
0--31：fixed figure direction 1；
32--63：fixed figure direction 2；
64--95：fixed figure direction 3；
96--126：fixed figure direction 4；
127--195：figure clockwise rotation, from slow to quick；
196--255：figure counterclockwise rotation, from slow to quick；
CH 11
R1 dimming
R1 dimming，linear dimming，from dark to bright
CH 12
G1 dimming
G1 dimming，linear dimming，from dark to bright
CH 13
B1 dimming
B1 dimming，linear dimming，from dark to bright
CH 14
W1 dimming
W1 dimming，linear dimming，from dark to bright
CH 15
R2 dimming
R2 dimming，linear dimming，from dark to bright
CH 16
G2 dimming
G2 dimming，linear dimming，from dark to bright
CH 17
B2 dimming
B2 dimming，linear dimming，from dark to bright
CH 18
W2 dimming
W2 dimming，linear dimming，from dark to bright
。。。。
。。。。。
。。。。。
CH 110
W25 dimming
W25 dimming，linear dimming，from dark to bright

MATRIX 2510 MJ-1027 User Manual ver1.0
www.mjledlighting.com
12
Technical Parameters:
Construction: Composite plastic, die-casting aluminum,
Voltage: AC90V-240V; 50/60Hz
Power Consumption:300W (220V)
LED Bulbs: 4IN1*25LEDs
Beam Angle: 5°
LED Current: 650mA
LED Lifetime: 50000Hours
Colors: RGBW color mixing
Adjusts the light: 0-100 electron adjusts the light, various colors may alone move also may mix the
color tone
Strobe: 1-25/second high speed strobe, but single color Mixes the color strobe
Head Movement: Pan 630°, Tilt 270°, with auto position correction and electronic replacement
function.
Control mode: DMX 512, Stand –alone mode, Self-test mode, Sound, Master/slave
DMX Channel: 14CH, 35CH,110CH
Control Panel: LCD display panel
IPGrade: IP20
WorkEnvironmentTemperature:-20°C~40°C
Net weight:18KG
Gross Weight: 20 kg
Package Size: 420 x 330x 460cm
