Meiko TopLine User manual

9617722 / Valid from: 2005-03 / Update: 2021-03
www.meiko.info
MEIKO TopLine
Washer-disinfector
Instructions for use
Read the instructions for use before
using the appliance!
EN

9617722
2 / 60
Translation of the “original instructions for use”
Contents
1INFORMATION ON INSTRUCTIONS FOR USE........................................ 5
1.1 Product identification 5
1.2 Delivery contents 5
1.3 Related documents 6
1.4 Presentation conventions 6
1.4.1 Safety symbols in the instructions 7
2LIABILITY AND WARRANTY..................................................................... 7
3SAFETY....................................................................................................... 8
3.1 Intended purpose 8
3.2 Foreseeable misuse 9
3.3 Requirements for the personnel 10
3.4 Safety information 11
3.5 Electromagnetic compatibility 12
3.6 What to do in the event of an emergency 12
4PRODUCT DESCRIPTION ....................................................................... 12
4.1 Variants 12
4.2 Functional description 13

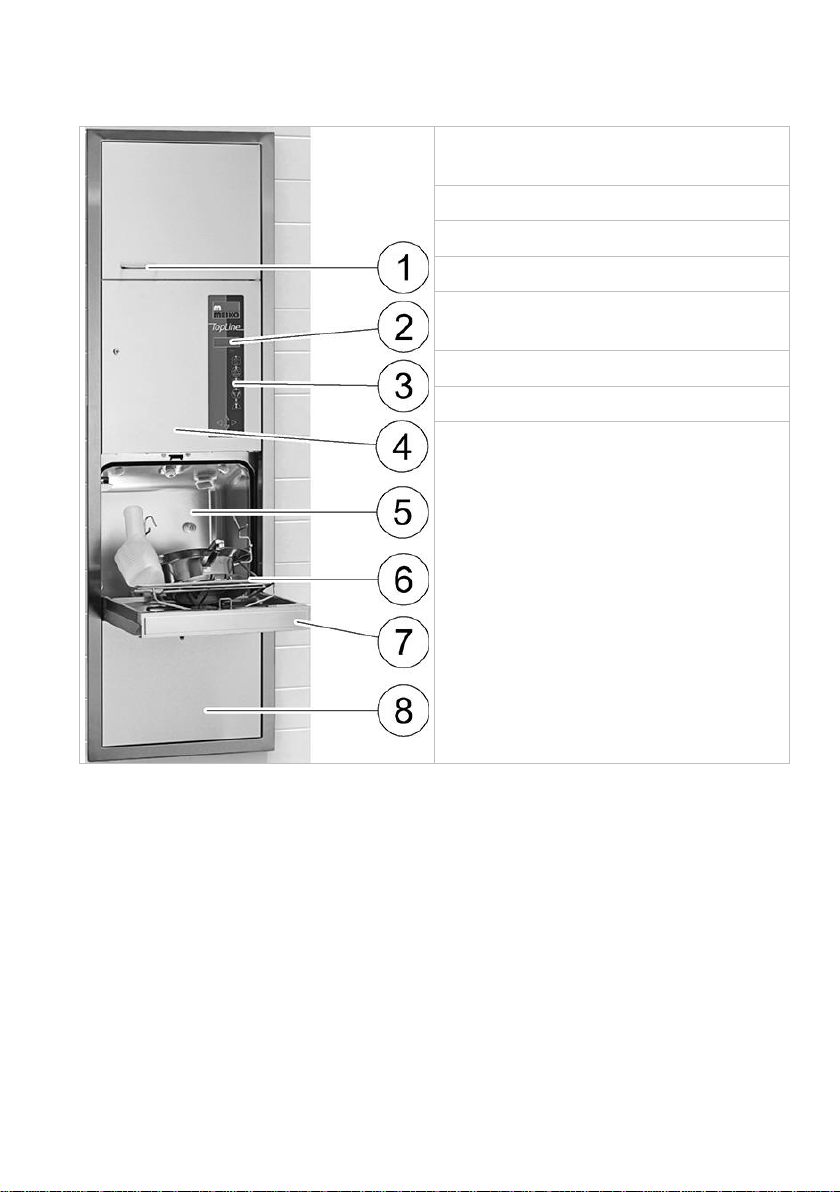

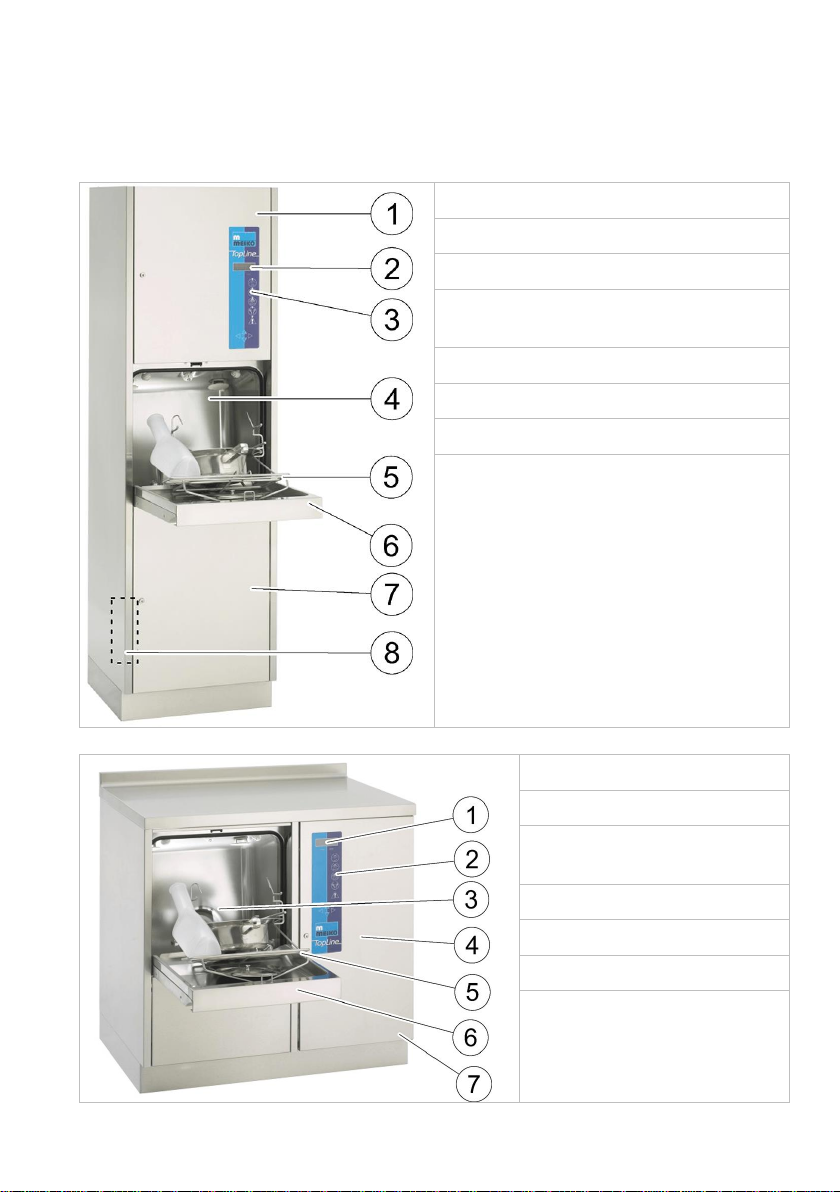

4.3 Overview illustration 15
4.4 Options 16
4.4.1 Detergent dosing 16
4.4.2 Automatic door (AT) 17
4.4.3 Slop sink flushing with separate slop sink unit 17
4.5 Holder 17
5TECHNICAL DATA................................................................................... 20
5.1 EC/EU declaration of conformity 23
6ASSEMBLY............................................................................................... 24
7COMMISSIONING..................................................................................... 24
8OPERATION/USE ..................................................................................... 25
8.1 Membrane key pad 25

MEIKO TopLi ne
3 / 60
9617722
8.2 Clean and disinfect care utensils (programme cycle) 26
8.2.1 Clean care utensils (basic version of the appliance) 28
8.2.2 Cancel programme 30
8.2.3 Selecting the cleaning programme 30
8.2.4 Automatic door (AT), operation with sensor (option) 31
8.2.5 Automatic door (AT), operation with foot switch (option) 31
8.2.6 Door lock with code lock / code entry (option) 32
8.3 Factory setting of the A0value 33
8.4 Select A0value 33
8.5 Replace canister 34
8.6 Perform slop sink flushing (option) 35
8.7 Wash chamber rinsing 36
8.8 Malfunctions 37
8.8.1 Messages 39
9CHANGE SERVICE LEVEL/SETTINGS................................................... 46
9.1 Call service levelCall service level 46
9.2 Display or change the list of service parameters 47
9.3 Ventilating the pipes 48
9.4 Set date and time 48
9.5 Set time switch for automatic programme start 49
9.6 Open door or unlock door 49
9.7 Define first text line in the error indicator 49
10 MAINTENANCE AND CLEANING............................................................ 50
10.1 Maintenance 50
10.1.1 "Next maintenance" sticker 52
10.2 Process validation 52
10.3 Routine check 52
10.4 Daily cleaning 53
10.5 De-scaling 53
11 BEHAVIOUR WHEN THE APPLIANCE IS NOT IN USE......................... 54
12 DECOMMISSIONING................................................................................ 54
13 DISMANTLING AND DISPOSAL.............................................................. 54
13.1 Disposal of packaging materials 54

9617722
4 / 60
13.2 Disposal of the old appliance 55
14 INDEX........................................................................................................ 56
15 NOTES....................................................................................................... 58

MEIKO TopLi ne
5 / 60
9617722
1 Information on instructions for use
The instructions for use are an integral part of the device and must be passed
on to all subsequent owners or users.
Please read these instructions for use carefully before use. Only through under-
standing these instructions for use can errors be avoided and trouble-free oper-
ation of the device guaranteed. By paying attention to the instructions for use,
hazards can be avoided, repair and breakdown costs reduced and the reliability
and durability of the device can be increased.
Retain these instructions for use for the entire lifetime of the device. The stor-
age location must be protected against moisture. Retain the instructions for use
in a readily accessible place near the device.
Ensure that all persons who work on or with the device have read and under-
stood the instructions for use.
The instructions for use must be available in the local language for each EU
country. If this is not the case, the device must not be commissioned.
The original instructions for use in German, as well as all instructions for use in
all local languages for the EU countries can be downloaded from the following
address: https://partnernet.meiko-global.com.
All serious incidents relating to the product must be reported to the manufac-
turer and the competent authority of the Member State.
1.1 Product identification
These instructions for use apply to the following models of appliance:
MEIKO TopLine washer-disinfector
1.2 Delivery contents
The delivery contents include:
•MEIKO TopLine washer-disinfector.
•Documentation, for details see Related documents.

9617722
6 / 60
1.3 Related documents
In addition to these instructions for use, there are other documents that are
available depending on the authorisation:
Operator (included in delivery contents)
Authorised service technician
EC/EU declaration of conformity
Installation instructions
Brief instructions for use
Service instructions
Specific positioning of care utensils
Installation and operational quali-
fication
Wiring diagram
1.4 Presentation conventions
Warnings
DANGER –indicates an imminently hazardous situation which, if not
avoided, will result in serious injury or death.
WARNING –indicates a potentially hazardous situation which, if not
avoided, could result in serious injury or death.
CAUTION –indicates a possible hazardous situation which, if not avoided,
could result in minor or moderate injury or damage to property.
Notices on use
Note –indicates useful and important information about the
product or its use.
Notes on using the document:
•A bullet point (•) designates an action step.
•Numerals (1.) designate several action steps that must be executed in the
specified sequence.
•Position numbers in the text that refer to position numbers in illustrations are
shown in parentheses:
(1)Position number 1 in the illustration
•The text is always below the illustration and refers to it until a new image fol-
lows.

MEIKO TopLi ne
7 / 60
9617722

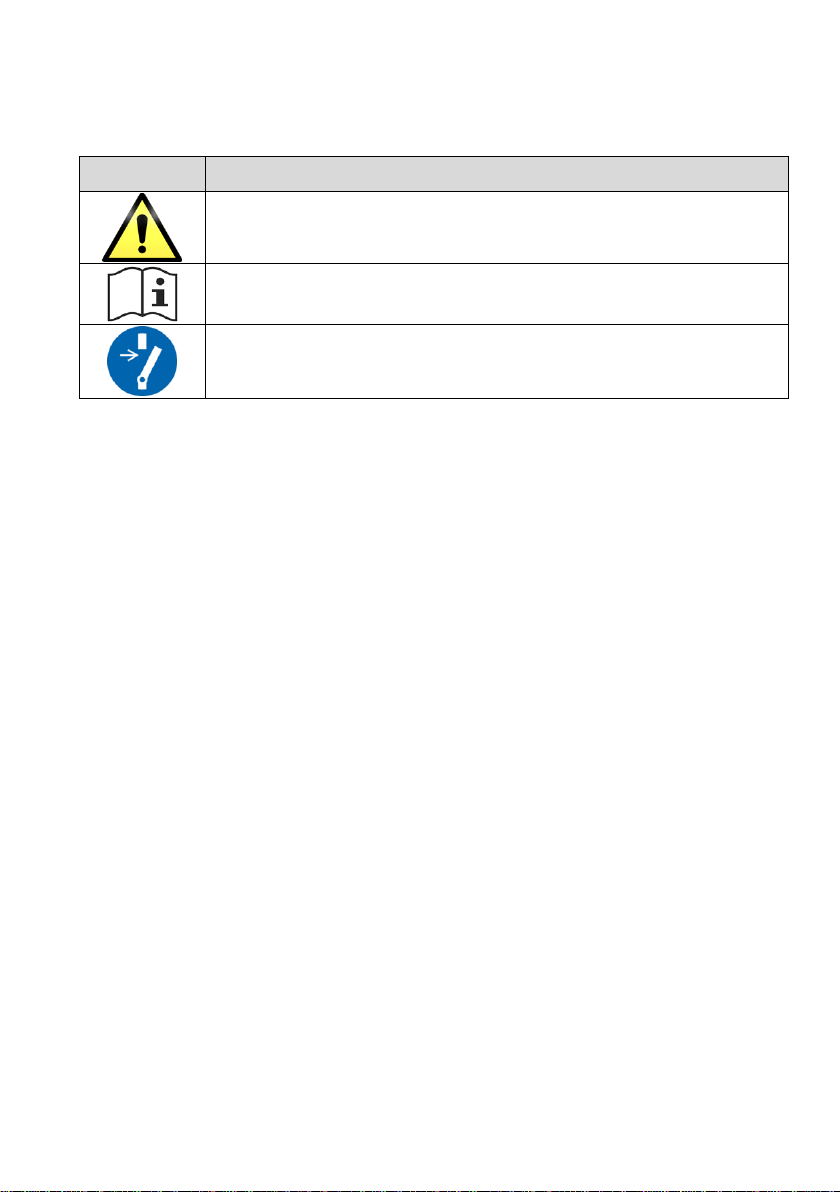

1.4.1 Safety symbols in the instructions
Symbol
Meaning
Warning of hazardous areas
Read instructions for use
Disconnect before servicing or repair
2 Liability and warranty
All of the manufacturer's obligations arise from the relevant purchase contract,
which also contains the entire and only valid guarantee provisions. These con-
tractually guaranteed provisions shall be neither extended nor restricted as a re-
sult of any explanations given in the instructions.
If you follow these operating instructions for use, your washer-disinfector will al-
ways work to your complete satisfaction and have a long service life.
The delivered device corresponds to the state of technology and safety regula-
tions valid at the time of production/delivery.
The information, data and notes specified in the instructions for use correspond
to the latest version at the time of printing. No claims for already delivered sys-
tems may be asserted based on these statements, illustrations and descrip-
tions.
Claims must be reported to the manufacturers immediately after determination
of the defect or error. Liability claims for personal injury or material damage as
well as for operational problems are excluded if they are due to one or more of
the following causes:
•Unintended use.
•Improper assembly, commissioning, operation or maintenance.
•Operation of the machine or system with defective safety devices or improp-
erly attached or non-functioning safety or protective devices.
•Noncompliance with the notes in the instructions for use regarding transport,
storage, assembly, commissioning, operation and maintenance.
•Unauthorised design changes or settings on the machine or system beyond
the intended purpose.

9617722
8 / 60
•Improper monitoring of parts subject to wear.
•Use of wear and spare parts that are not from the manufacturers.
•Improperly performed repairs, inspections or maintenance.
•Catastrophes due to human-induced events or force majeure.
3 Safety
3.1 Intended purpose
The washer-disinfector is intended exclusively for commercial use and may only
be applied and used according to the purpose intended. Any other use, modifi-
cations and alterations are not permitted and can lead to personal injury and
damage to property.
Only use the washer-disinfector for emptying, cleaning and disinfecting:
•Bedpans, commode buckets and their covers
•Urine bottles
•Hospital containers, e.g. bowls, urine collecting containers
•Suction bottles
•Similar products as listed above, used for similar purposes.
It is intended that the washer-disinfector is only operated by qualified, trained
personnel, older than 14 years of age. Detailing the user group and their qualifi-
cations, see page 10.
Environment where the appliance is used:
•Preferably non-sterile utility rooms.
•Appliances for installation in ensuite bathrooms of patient rooms in an en-
closed space.
Only use rinse/water softening agents and detergents in our washer-disinfectors
for which MEIKO have given their written approval.
Approved products:
•Rinse aid/water softener: Doyen SK 22 E / SK 33 E
•Detergent: Doyen R 100 / RS 120
Note dosing agent warnings (see accompanying safety data sheets).

MEIKO TopLi ne
9 / 60
9617722
3.2 Foreseeable misuse
Any use which is not detailed in the section on "Intended purpose" is contrary to
the intended use!
List of foreseeable misuses:
•Emptying of care utensils, although the holder is still equipped with freshly
disinfected care utensils.
•Inserting care utensils incorrectly.
•Insertion of unsuitable utensils and objects (tableware).
•Disinfection of objects for which a different method of preparation is stipu-
lated e.g. instruments.
•Heating objects or keeping them warm (hot water bottles, pre-packaged
food, etc.)
•Used for rubbish disposal e.g. garbage, nappies (diapers), disposable
gloves, syringes etc.). This also applies to excessive volumes of cellulose
and disposable care utensils.
•Activating the controls with pointed or sharp objects.
•Operation by untrained persons.
•Use of incorrect or non-approved process chemicals.
•Installing the canisters of process chemicals (rinse aid/water softener) at an
angle after the system warned that the chemicals had run out (consequence:
the appliance operates without chemicals and lime scale can be deposited).
•Filling the process chemical canisters with different liquid.
•Failure to observe the specified maintenance cycles.
•Use of the wash chamber door as a ladder or seat.

9617722
10 / 60
3.3 Requirements for the personnel
•Make sure that only trained and experienced staff operate the washer-disin-
fector.
•Personnel who have not been briefed or trained may not handle the washer-
disinfector.
•Make sure that staff learning to use the washer-disinfector are supervised by
a trained and experienced operator at all times.
•Clearly define the staff's responsibilities.
•Confirm training in writing.
Persons
Experi-
enced
staff
Instructed
in-house
technician
Authorised in-house
technicians/fitters
(Medical Products Ad-
visor)
Activity
Installation/assem-
bly

Commissioning

Operation, use



Cleaning



Checking safety de-
vices


Troubleshooting


Troubleshooting,
mechanical


Troubleshooting,
electrical

Maintenance

Repairs


MEIKO TopLi ne
11 / 60
9617722
3.4 Safety information
•Only use the washer-disinfector according to instructions (see page 8).
•Only use the washer-disinfector in its original condition without independent
changes and in a technically perfect condition.
•The electrical safety of this machine is only ensured if it is connected to a
system with a properly installed protective earth conductor system. It is very
important to verify this fundamental safety feature. If in doubt, have the local
wiring checked by an electrician. The manufacturer cannot be held liable for
damage caused due to the protective earth conductor being missing or dis-
connected (e.g. electric shock).
•The washer-disinfector does not generate targeted non-ionizing radiation.
For technical reasons, only the electric appliances emit non-ionizing radia-
tion. In the immediate vicinity of the washer-disinfector, the influence of ac-
tive implants (e.g. cardiac pacemakers, defibrillators) can be ruled out with a
high degree of probability.
•Before opening the inspection door, make sure the appliance has been dis-
connected from the power supply and secured so that it cannot be turned on
again; this also applies to other work on the appliance.
•Do not place the washer-disinfector in a potentially explosive atmosphere or
in areas subject to frost.
•If the washer-disinfector is damaged or leaking, this may be dangerous and
pose a safety hazard. Immediately decommission the washer-disinfector and
inform the MEIKO service.
•The water in the wash chamber and in the water container is NOT safe to
drink.
•Take care when handling dosing agents (water softeners/rinsing aids and
detergents). They are corrosive substances. Observe the applicable safety
regulations! Use safety eyeware and protective gloves. Observe the manu-
facturer's safety instructions and safety data sheets when dealing with dos-
ing agents.
•Do not sit or stand on the opened wash chamber door. This could damage
the washer-disinfector and cause injury.
•Keep the instructions for use legible and complete on the washer-disinfector.
•Make sure that the instructions for use are available to anyone operating the
washer-disinfector.
•Observe the instructions for use for accessories and integrated third-party
components.
•Do not put any objects on the washer-disinfector.
•Observe the installation conditions (see page 20).

9617722
12 / 60
3.5 Electromagnetic compatibility
•MEIKO washer-disinfectors, built according to the standard CISPR 11:2009
Section 5, are class A appliances.
The following applies for these appliances:
Warning:
This appliance may cause radio interference or may interfere with
the operation of appliances in the vicinity. It may be necessary to
take appropriate remedial action, such as realigning, rearranging or
shielding.
•MEIKO washer-disinfectors with additional mains filter, built according to the
standard CISPR 11:2009 Section 5, are class B appliances. No further ac-
tions are required for these appliances.
3.6 What to do in the event of an emergency
•In dangerous situations, disconnect from the power sup-
ply using the locally available mains isolator.
4 Product description
4.1 Variants
The washer-disinfector is available in the following models:
•MEIKO TopLine 10 (wall-mounted)
•MEIKO TopLine 20 (standing)
•MEIKO TopLine 30 (wall installation)
•MEIKO TopLine 40/40E (undercounter)
Equipment variants:
•DT-NDV: Centralised thermal disinfection with fitted low-pressure steam
generator
•DT-NDD: Centralised thermal disinfection with building's installed low-pres-
sure steam
All models are available for different operating voltages.

MEIKO TopLi ne
13 / 60
9617722
Other possible additional equipment:
•Dispenser for liquid cleaner (DR), e.g. Doyen R100
•AT - Automatic door
•Slop sink flushing
4.2 Functional description
The washer-disinfector serves the emptying, cleaning and disinfecting of:
•Bedpans, commode buckets and their covers
•Urine bottles
•Hospital containers, e.g. bowls, urine collecting containers
•Suction bottles
•Similar products as listed above, used for similar purposes.
Equipping the appliance
The care utensil is inserted into the holder, which is located on the inside of the
wash chamber door. This makes sure that the care utensils are in the correct
position for cleaning. The arrangement of the wash nozzles in the wash cham-
ber guarantees perfect cleaning if the care utensils are positioned correctly.
When the wash chamber door is closed, the inserted containers are emptied
and the care utensils are moved into the cleaning position. The wash chamber
door is locked. The operator selects a cleaning programme on the membrane
key pad and presses the programme start key. An automatic programme start
after closing the wash chamber door can be set.
Appliances with automatic wash chamber door (option) additionally allow touch-
free operation.
Programme run
The cleaning programme includes four phases:
•Precleaning with cold water.
•Cleaning with hot water.
•Thermal disinfection of the care utensil.
•Recooling and drying of the care utensils.
Thermal disinfection and recooling
Thermal disinfection works according to the A0process. The term A0refers to a
way of measuring (duration/temperature) how microorganisms are eliminated by
moist heat disinfection methods. Thermal disinfection is fulfilled when the preset
A0value is reached on all surfaces to be disinfected.

9617722
14 / 60
In order to lower the temperature of the care utensils, a recooling step is carried
out. In this process, the high temperature is reduced with cool, filtered air and
the care utensils are dried.
At the end of the programme, the wash chamber door is unlocked. The care
utensils can be removed and must be visually checked by the operator.
The disinfection capability complies with the capability required DIN ISO 15883
Part 3, ”Requirements for and Testing of Cleaning/disinfection appliances using
Thermal Disinfection for Containers for Human Excreta” which specifies a mini-
mum A0value of 60.

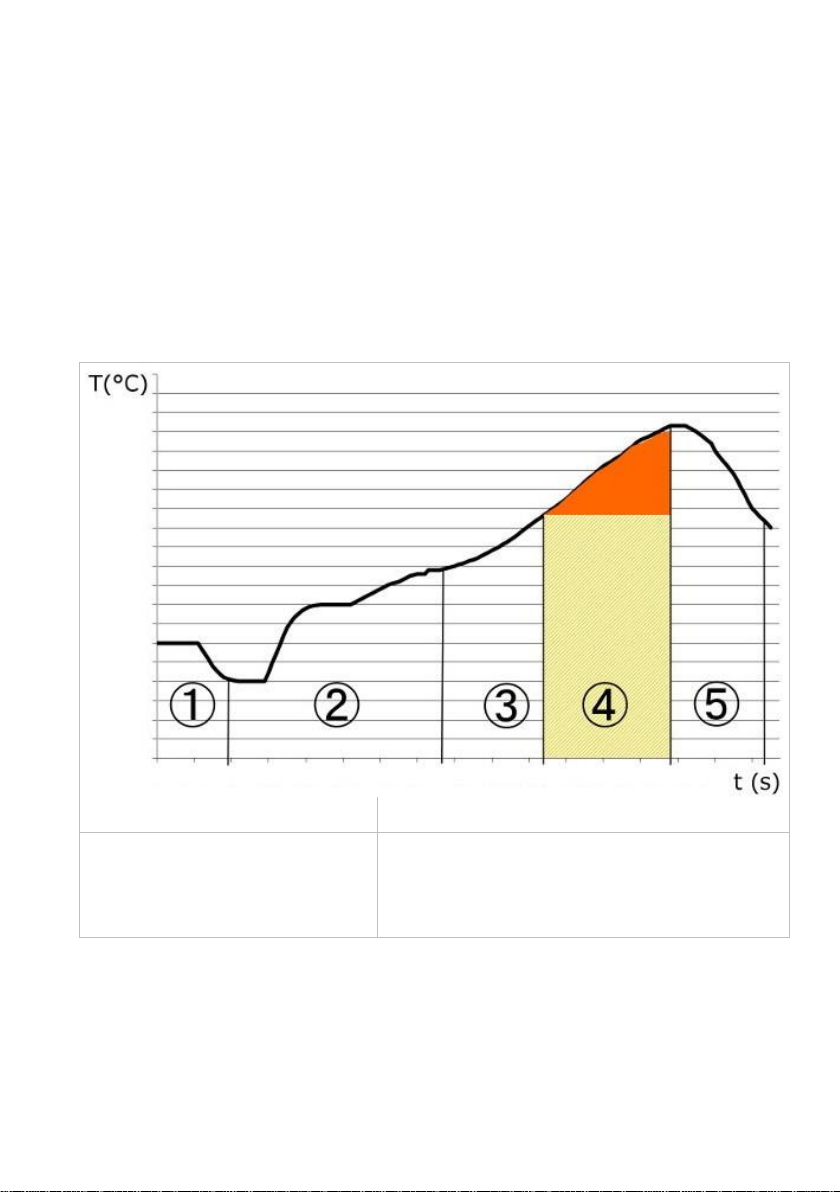

Temperature curve of wash chamber/care utensils
t(s) = Time in seconds
T(°C) = Temperature in °C
1 Precleaning with cold water
2 Cleaning steps 1-3 with hot water
3Heating
4Thermal disinfection A060
5Recooling/drying

MEIKO TopLi ne
15 / 60
9617722
4.3 Overview illustration
MEIKO TopLine 20 / TopLine 10
1 Inspection door
2 Display
3 Membrane key pad
4 Wash chamber with cleaning noz-
zles
5Holder
6 Wash chamber door
7 Inspection door
8 Canister (behind the door)
MEIKO TopLine 40
1 Display
2 Membrane key pad
3 Wash chamber with
cleaning nozzles
4 Inspection door
5 Holder
6 Wash chamber door
7 Canister (behind the
door, only for individual
appliance, not for Top-
Line 40E)

9617722
16 / 60
MEIKO TopLine 30
1 Compartment with canisters for
dosing agent
2 Display
3 Membrane key pad
4 Inspection door
5Wash chamber with cleaning noz-
zles
6 Holder
7 Wash chamber door
8 Inspection door
4.4 Options
4.4.1 Detergent dosing
An additional dosage of a detergent is recommended for heavily soiled care
utensils. The detergent dosing comprises a complete dosing system (suction
lance, hoses, dosing monitoring and dosing unit), which is installed in the appli-
ance.

MEIKO TopLi ne
17 / 60
9617722
4.4.2 Automatic door (AT)
•Touchless door opening with sen-
sor, see page 31.
•Touchless door opening with foot
switch, see page 31.
4.4.3 Slop sink flushing with separate slop sink unit
It is possible to wish a sink with the integrated pump of the washer-disinfector.
The programme for slop sink flushing is started directly on the appliance, see
page 35.
4.5 Holder
The holder takes the care utensils and brings them into the optimal position for
cleaning and disinfection.
Holder SUH 1
Holder SUH 2

9617722
18 / 60
How to insert the care utensils in the holder SUH 1

MEIKO TopLi ne
19 / 60
9617722
How to insert the care utensils in the holder SUH 2
Positions of special holder
•See separate care utensil image

9617722
20 / 60
5 Technical data
Protection de-
gree
Protection
class
MEIKO TopLine 10/20/40: IP X4; TopLine 30: IP X5
Class I in accordance with VDE 0750 / IEC 601
Installation
conditions
Max. height 2000 m above NHN, 5–40°C with max. 80% rel-
ative humidity, exclusively for indoor use, degree of soiling 2,
overvoltage category 2, mains voltage tolerance ± 10%, min.
illuminance ambient light: 200 lx
Fresh water
supply line
Air gap group A, type A according to DIN 1988 /
DIN EN 1717
On-site sup-
ply line
DN 15 (½ inch), cold water 5-25°C, hot water 45-60°C. From
a biological perspective, the fresh water must be of drinking
water quality. This also applies to processed water.
Water flow
pressure
100–500 kPa, before the solenoid valve
Water flow
18 l/min
Boiler content
DT-NDV
2.1 l
Steam pres-
sure
DT-NDD
10–50 kPa
Steam flow
DT-NDD
Approx. 5 kg/h
Disinfection
performance
A0-value can be adjusted from 60–3,000
Heat emission
For 10 programme cycles/h:
Total 0.7 kW / sensitive 0.45 kW / latent 0.25 kW
Noise emis-
sion
Workplace noise emissions: LpA = 48.2 dB(A)
The emissions noise level at the workplace for the docu-
mented load has been determined on the basis of: DIN EN
ISO 11204; precision class 3, measurement reliability ± 5 dB.
Level at user location: 61.2 dB(A)
Level at 1 m distance from the appliance: 59.5 dB(A)
