Meiko WS 125 User manual

9648649 / Valid from: 2007-09 / Update: 2019-06-18
TRANSLATION OF THE "ORIGINAL OPERATING INSTRUCTIONS"
Operating Instructions
Trolley washing machine
WS 125
Professional warewashing technology
EN

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 2of 38
Contents
Page
1Introduction and general instructions .............................................................................4
1.1 Safe keeping..............................................................................................................................5
1.2 Name and address of manufacturer ...........................................................................................5
1.3 Authorization for service technicians of our service partners ......................................................5
1.4 Designation of machine type ......................................................................................................5
2Explanations of the safety symbols used........................................................................6
3General description and intended use.............................................................................7
3.1. General description....................................................................................................................7
3.2. Intended use ..............................................................................................................................7
4EC declaration of conformity............................................................................................7
4.1. EC declaration of conformity.......................................................................................................8
4.2. Declaration of Incorporation .......................................................................................................9
5General safety instructions.............................................................................................11
5.1. Operator’s duty of care.............................................................................................................11
5.2. Basic safety measures .............................................................................................................12
5.3. Working on the electrical equipment.........................................................................................14
6Assembly instructions (for a partially completed machine)........................................14
7Delivery, transport, installation and assembly..............................................................15
7.1 Delivery....................................................................................................................................15
7.2 Transport and installation.........................................................................................................15
7.3 Installation and assembly.........................................................................................................16
7.4 Instructions for disposal of packing material.............................................................................16
7.5 Electrical connection ................................................................................................................16
8Adjustment of the machines effected by a service technician during the first setting
in operation...............................................................................................................................17
8.1 Commissioning.........................................................................................................................17
8.2 Chemical product settings........................................................................................................17
8.3 Work prior to initial commissioning ...........................................................................................17
9Washing with the trolley washing machine...................................................................18
10 Preparation for Operation...............................................................................................18
10.1 Basic safety measures during normal operation.......................................................................18
10.2 Operation .................................................................................................................................18
10.3 Commissioning the system.......................................................................................................20

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 3of 38
11 Switching on the washing machine............................................................................... 20
12 Switching off the washing machine and cleaning........................................................ 21
13 Cleaning........................................................................................................................... 22
13.1 Safety rules for cleaning...........................................................................................................22
13.2 Cleaning after operation...........................................................................................................22
13.3 Cleaning instructions – daily.....................................................................................................23
13.4 Care of stainless steel surfaces................................................................................................24
13.5 Check list after cleaning ...........................................................................................................24
15 Description of execution................................................................................................. 25
16 Functional description.................................................................................................... 25
17 Help yourself in case of faults........................................................................................ 26
18 Staff training.................................................................................................................... 28
19 Disposal of the installation............................................................................................. 28
20 Noise emission................................................................................................................ 28
21 Non-ionising radiation .................................................................................................... 29
22 Maintenance..................................................................................................................... 29
22.1 Basic safety measures during normal operation.......................................................................29
22.2 Before putting back into operation following maintenance or repair work.................................. 29
22.3 Observe environmental protection regulations..........................................................................29
23 Maintenance recommendation....................................................................................... 30

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 4of 38
1 Introduction and general instructions
Dear customer,
we are delighted about the confidence you have shown in our products.
It is very important to us that you should obtain a great deal of pleasure and usefulness
from MEIKO products and that they should make your work easier.
If you follow the instructions in this document carefully, your washing machine will always
give you total satisfaction and will have a long service life.
After assembly at our factory, this washing machine was put through a thorough
inspection. This helps us make sure, and gives you the guarantee that you always
receive a mature product.
We would therefore ask you to read these operating instructions carefully before
using the installation. Any further related operating instructions for accessories
and incorporated third-party products must be strictly observed!
These operating instructions are designed to familiarise the owner/operator of this
washing machine with its installation, modes of operation, use, safety instructions and
servicing.
In the event of any damage caused by non-observance of these operating instructions,
any guarantee claims are invalid. We accept no liability for any additional damage caused
as a result.
MEIKO operates a policy of continuous development on all its appliances.
As a result of this, please understand that we thus reserve the right to make changes to
the scope of supply concerning the design, equipment and technical features at any time.
No claims may therefore be based on the details, the images or the descriptions
contained in these operating instructions.
Should you require any further information, or in case any particular problems should
arise that are not dealt with in great detail in the operating instructions, you may contact
the relevant MEIKO branch to obtain the information you require.
Further, we draw your attention to the fact that the content of these instructions does not
form part of a former or existing agreement, promise or legal relationship and does not
modify such a point.
All MEIKO’s obligations arise from the relevant purchase contract which also contains the
entire and only valid guarantee provisions. These contractual guarantee rules shall be
neither extended nor restricted as a result of any explanations given in the instructions.
The operating instructions must exist in the local language for each EU country. If this is
not the case, the washing machine must not be commissioned.
The original operating instructions in German and all operating instructions in all
languages for EU countries can be downloaded from the following address:
https://partnernet.meiko.de
You receive all this technical documentation free of charge. Any additional copies
required are available for a nominal fee.
MEIKO wishes you much pleasure and success!
© 2013 MEIKO Maschinenbau GmbH & Co.KG
All rights (including photo-mechanical reproduction and storage on electronic media)
reserved to MEIKO Maschinenbau GmbH & Co KG. Any commercial use or distribution of
texts, illustrated models, drawings and photographs within this product is not permitted. It
is not permitted to reproduce, save, transfer, reflect or translate the operating manual,
either in parts or on a whole, using any medium.

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 5of 38
1.1 Safe keeping
Keep this operating manual in the vicinity of the washing machine in a location that is
easily accessible to all users.
1.2 Name and address of manufacturer
In case of further questions or technical problems, contact directly:
MEIKO Maschinenbau GmbH & Co. KG
Englerstrasse 3
D - 77652 OFFENBURG
Phone + 49 / 781 / 203-0
http://www.meiko.de
[e-mail]
or:
Name and address of the MEIKO branch, manufacturer’s agent
or from MEIKO authorised Service Partners.
(Enter company’s stamp or address)
1.3 Authorization for service technicians of our service partners
MEIKO exclusively authorises authorised Service Partners for commissioning, inductions,
repairs, maintenance, assembly and installation of the corresponding product groups
within MEIKO devices.
1.4 Designation of machine type
Please provide the following information on any query and/or when ordering spare parts:
Model:
SN:
This information can be found on the type plate.

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 6of 38

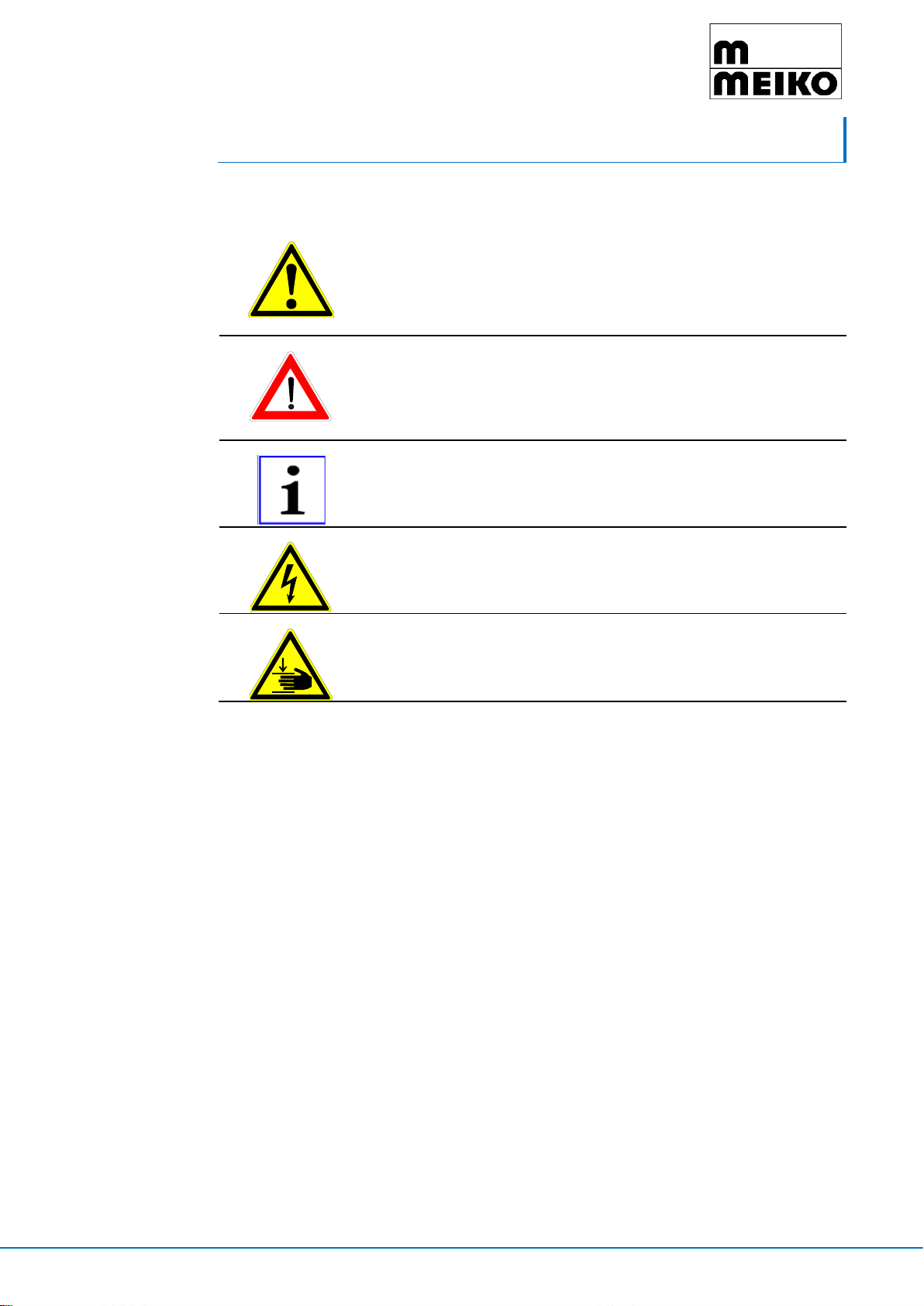

2 Explanations of the safety symbols used
The following safety symbols will appear throughout these operating instructions. These
symbols are designed to draw the reader's attention to the text next to the safety
instructions.
CAUTION!
This symbol warns that there is danger to human life and health.
DANGER!
This symbol warns that there is danger to the installation, to material
or to the environment.
This symbol denotes information that helps you to understand the
installation’s operation.
Warning against dangerous electric voltage!
Warning against hand injuries!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 7of 38
3 General description and intended use
3.1. General description
This machine involves a trolley washing machine as a continuous model. The trolley is
moved manually or automatically into the machine on the inlet side. The trolley is cleaned
and, if applicable, dried. On the other side of the machine, the discharge side, the trolley
is removed automatically or manually.
3.2. Intended use
The washing machine must be used according to its purposes only.
This washing machine
is only intended for washing tray transport trolleys, rack or shelf
trolleys, Cook & Chill, cantilever trolleys
as well as serving trolleys.
Other uses are prohibited.
The items to be washed must be suitable for industrial dishwashing.
Other objects must not be transported through the machine.
This washing machine is intended solely for use in a commercial envi
ronment.
4 EC declaration of conformity
A Declaration of Incorporation is provided with the machine if it is not supplied in fully
operational state, that is, as a partially completed machine pursuant to the Machine
Directive.
An EC Declaration of Conformity is provided with the machine if it is supplied in fully
operational state as a complete machine.
DANGER!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 8of 38
4.1. EC declaration of conformity
Muster / Example / Exemple / Esempio / Ejemplo / Voorbeeld / Mönster
EG-/EU-Konformitätserklärung
2017-11-07 (Update)
EC-/EU-Declaration of Conformity / CE-/UE-Déclaration de conformité / CE-/UE-Dichiarazione di conformità / CE-/UE-Declaración de conformidad /
EG-/EU-conformiteitsverklaring / EG-/EU-försäkran om överensstämmelse
Firma
Company / Société / Ditta / Empresa / Fabrikant / Företag
MEIKO Maschinenbau GmbH & Co. KG
Englerstraße 3 - 77652 Offenburg - Germany
Kontakt
Contact / Contact / Contatto / Contacto / Contact / Kontakt
Internet: www.meiko.de
E-mail: [e-mail]
Telefon: [phone]
Seriennummer
Serial number / numéro de série / numero di serie / número de serie / volgnummer /
serienummer
Spülmaschine Typ
Dishwasher model / Lave-vaiselle modèle / Lavastoviglie modello /
Lavavajillas modelo / Vaatwasmachine model / Diskmaskin modell
WS 125
Konformitätserklärung
Declaration of Conformity / Déclaration de conformité / Dichiarazione di conformità / Declaración de conformidad / Conformitetsverklaring /
Försäkran om överensstämmelse
Hiermit bescheinigen wir in alleiniger Verantwortung die Konformität des Erzeugnisses mit den grundlegenden
Anforderungen der folgenden EG-Richtlinien, harmonisierten Normen, nationalen Normen.
We hereby declare at our sole responsibility that the product conforms to the essential requirements of the following EC Directives, harmonized
standards, national standards.
Par la présente nous certifions sous notre seule responsabilité la conformité du produit avec les exigences fondamentales des directives CE,
normes harmonisées et normes nationales suivantes.
Con la presente dichiariamo sotto la nostra responsabilità la conformità del prodotto con i regolamenti basilari delle seguenti direttive CE, normative
armonizzate e normative nazionali.
Por la presente declaramos bajo nuestra sola responsabilidad que nuestros productos están en conformidad con las exigencias básicas de las siguientes
directivas de la CE, normas homologadas y normas nacionales.
Hiermee verklaren wij onder geheel eigen verantwoordelijkheid de conformiteit van het product met de fundamentele en gestelde eisen volgens
EG-richtlijnen, geharmoniseerde normen en nationale normen.
Vi intygar härmed på eget ansvar att produkten överensstämmer med de väsentliga kraven i nedan angivna EG-
direktiv, harmoniserade standarder och natio
standarder.
Richtlinie / Directive / Directive / Direttiva / Directiva / Richtlijn / Direktiv
2006/42/EG / 2014/30/EU
Dokumentationsbevollmächtigter
Viktor Maier
Responsible for documentation / Responsable de la documentation / Responsabile della
documentazione/ Responsable de la documentación / Voor deze documentatie verantwoordelijk /
Ansvarig för dokumentation
MEIKO Maschinenbau GmbH & Co. KG
Englerstr. 3 - 77652 Offenburg - Germany
Offenburg,
MEIKO Maschinenbau GmbH & Co. KG
ppa.
(per procura)
Dr. Thomas Peukert
Technischer Leiter
Chief Technology Officer / Directeur de la technologie / Direttore tecnico /
Director técnico / Technisch directeur / Teknisk direktör

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 9of 38
4.2. Declaration of Incorporation
Muster / Example / Exemple / Esempio / Ejemplo / Voorbeeld / Mönster
Einbauerklärung
Datum: 2017-11-07 (Update)
Declaration of incorporation / Déclaration de montage / Dichiarazione di montaggio / Declaración de montaje /
Inbouwverklaring / Försäkran om inbyggnad
Firma
Company / Société / Ditta / Empresa / Fabrikant / Företag
MEIKO Maschinenbau GmbH & Co. KG
Englerstraße 3 - 77652 Offenburg -Germany
Kontakt
Contact / Contact / Contatto / Contacto / Contact / Kontakt
Internet: www.meiko.de
E-mail: [e-mail]
Telefon: [phone]
Seriennummer
Serial number / numéro de série / numero di serie / número de serie /
volgnummer /
serienummer
Maschinentyp
Machine type / Modèle machine / Tipo di macchina / Tipo de máquina / Machinemodel / Modell
Einbauerklärung für eine unvollständige Maschine
Declaration of incorporation for partly completed machinery / Déclaration de montage pour une machine incomplète / Dichiarazione di montaggio per una
macchina incompleta / Declaración de montaje de incorporación para una máquina incompleta / Inbouwverklaring voor een onvolledige machine /
Försäkran om inbyggnad för en ofullständig maskin
Hiermit bescheinigen wir:
We herewith certify / Nous certifions par la présente / Con la presente attestiamo / Por la presente certificamos / Hiermee verklaren wij / Vi intygar härmed:
dass die zum Einbau in Maschinen vorgesehenen Produkte oder Baugruppen mit den grundlegenden Sicherheits- und
Gesundheitsschutzanforderungen nach Anhang I der Maschinenrichtlinie 2006/42/EG übereinstimmen. Die speziellen
technischen Unterlagen gemäß Anhang VII B (für unvollständige Maschinen) wurden ers
tellt und werden der zuständigen
Behörde auf Verlangen in elektronischer Form übermittelt.
that the product or sub-
assemblies that are intended for installation in machines complies with the fundamental health and safety requirements in
accordance with Annex I of the Machine Directive 2006/42/EG. The special technical documents have been created according to Annex VII B (for partly
completed machinery) and shall be transferred to the responsible authority in electronic format when requested.
que les produi
ts et modules destinés au montage dans des machines satisfont aux exigences fondamentales en matière de sécurité et de santé
conformément à l'annexe I de la directive sur les machines 2006/42/CE. Les dossiers techniques spécifiques conformément à l'annexe VII B (pour les
machines incomplètes) ont été rédigés et seront transmis sur demande aux autorités responsables sous forme électronique.
che i prodotti o gruppi di componenti previsti per il montaggio in macchine corrispondono ai requisiti essenziali di sicurezza e di tutela della salute secondo
l'allegato I della Direttiva Macchine 2006/42/CE. La documentazione tecnica speciale secondo allegato VII B (per macchine incomplete) è stata creata e
sarà trasmessa su richiesta e in forma elettronica all'ente responsabile.
que los productos o grupos previstos para la incorporación en máquinas cumplen con los requisitos básicos de seguridad y prot
ección de la salud,
conforme al anexo I de la directiva de máquinas 2006/42/CE. Se han confeccionado los documentos técnicos especiales conforme al anexo VII B (para
máquinas incompletas), que se entregarán a las autoridades competentes en forma y por vía electrónica, en caso de solicitarlo las mismas.
dat de voor inbouw in de machine bestemde producten of bouwgroepen voldoe
n aan de fundamentele eisen met betrekking tot de veiligheid en
bescherming van de gezondheid conform bijlage I van de machinerichtlijn 2006/42/EC. De speciale technische documentatie is conform bijlage VII B (voor
onvolledige machines) opgesteld en wordt desgewenst in elektronische vorm ter beschikking gesteld aan de verantwoordelijke instanties.
att produkterna eller komponenterna som är avsedda för inbyggnad i maskiner överensstämmer med de grundläggande säkerhets- och hälsoskyddskraven
i bilaga I i maskindirektivet 2006/42/EG. De särskilda tekniska underlagen enligt bilaga VII B (för ofullständiga maskiner) har tillhandahållits och översänds
på begäran till ansvariga myndigheter i elektronisk form.
die Konformität mit den Bestimmungen folgender weiterer EG-Richtlinien:
the conformity with the provisions of the following additional EC Directives:
la conformité avec les dispositions des directives européennes supplémentaires suivantes:
la conformità alle disposizioni delle seguenti ulteriori direttive CE:
la conformidad con las disposiciones de las siguientes directivas de la CE adicionales:
de conformiteit met de bepalingen van de volgende aanvullende EC-richtlijnen:
överensstämmelse med bestämmelserna i nedan angivna ytterligare EG-direktiv:
2014/30/EU

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 10 of 38
Die vorgenannten speziellen technischen Unterlagen können angefordert werden bei:
The above mentioned technical documentation can be requested from:
Les documents techniques spécifiques précités peuvent être demandés auprès de:
La suddetta documentazione tecnica speciale può essere richiesta presso:
Los documentos técnicos especiales reseñados con anterioridad se pueden solicitar a:
De bovengenoemde speciale technische documentatie kan worden opgevraagd bij:
Ovannämnda särskilda tekniska underlag kan beställas från:
Dokumentationsbevollmächtigter
Viktor Maier
Responsible for documentation / Responsable de la documentation / Responsabile della
documentazione/ Responsable de la documentación / Voor deze documentatie verantwoordelijk
MEIKO Maschinenbau GmbH & Co. KG
Englerstr. 3 - 77652 Offenburg - Germany
Die Inbetriebnahme ist so lange untersagt, bis festgestellt wurde, dass die Maschine oder Anlage, in welche die o.a.
unvollständige Maschine eingebaut werden soll, den Bestimmungen der Maschinenrichtlinie 2006/42/EG entspricht.
Commissioning is prohibited until it has been determined that the machine or system into which the partially completed machinery specified above is to
be incorporated also complies with the provisions of the Machinery Directive 2006/42/EC.
La mise en service de la machine est interdite jusqu'à ce qu'il ait été déterminé que la machine ou l'installation dans laquelle la machine incomplète
susmentionnée doit être montée respecte les dispositions de la directive relative aux machines 2006/42/CE.
La messa in funzione è vietata fino a che non sia stato accertato che la macchina o l'impianto, in cui deve essere installata la suddetta macchina
incompleta, risponda alle disposizioni della Direttiva Macchine 2006/42/CE.
La puesta en marcha estará prohibida hasta que no se haya determinado que la máquina o instalación en la que se pretenda incorporar la máquina
incompleta indicada arriba cumpla las disposiciones de la directiva de máquinas 2006/42/CE.
De inbedrijfstelling is niet toegestaan voordat is vastgesteld dat de machine of installatie waarin de o.a. onvolledige machine moet worden ingebouwd
aan de bepalingen van de machinerichtlijn 2006/42/EC voldoet.
Idrifttagande är förbjudet tills att det har fastställts att maskinen eller anläggningen som den ovannämnda ofullständiga maskinen ska byggas in i uppfyller
bestämmelserna i maskindirektivet 2006/42/EG.
Offenburg,
MEIKO Maschinenbau GmbH & Co. KG
ppa.
(per procura)
Dr. Thomas Peukert
Technischer Leiter
Chief Technology Officer / Directeur de la technologie / Direttore tecnico /
Director técnico / Technisch directeur / Teknisk direktör

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 11 of 38
5 General safety instructions
5.1. Operator’s duty of care
The washing machine has been constructed based on a risk analysis and after careful
selection of the applicable harmonized standards, as well as additional technical
specifications. It is therefore state of the art and guaranteed to provide maximum safety.
Safety can only be guaranteed during operation if all
necessary measures are taken. The
operator of the machine has an obligation of care to ensure that these measures are
planned for, and also to check that they are correctly implemented.
Measures to ensure the safe machine operation
The operator must
ensure in particular that ...
... the washing machine is only used in accordance with the regulations
in case of other use or operation, damage or risks may arise for which we accept no
liability (cf. chapter "Intended use").
… in order to guarantee functionality and safety, use only original parts supplied by the
manufacturer when needed.
Any potential claims by the user shall be rendered void if the system was altered using
parts other than original spare parts.
… only appropriately qualified an
d authorized personnel operate, maintain, and repair the
installation.
… staff is regularly trained in all questions relating to occupational safety and
environmental protection and, in particular, that staff is familiar with the Operating
Instructions as well as with the safety instructions they provide.
… the washing machine is only operated in a perfect, operationally efficient condition
and, in particular, that the safety systems and switch elements are checked on a regular
basis for their operational efficiency.
... the required personal protective equipment is made available to and used by
maintenance and repair personnel.
... a
functional
test on all safety systems of the machine / installation is carried out during
every regular m
aintenance.
... all doors and flaps must be closed!
... no one must remain inside the machine when the door is closed!
... the wash tank in the washing zone must remain closed while the machine is in
operation.
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 12 of 38
... when the machine
is in operation:
•the doors of tray-
carrying trolleys must be open in the washing position and
properly secured,
•there must be no trays, dishware or menu-card holders in or on the trolley.
... to work with rubber gloves during the cleaning and the main
tenance works.
... the operating instructions are always in a legible state, complete, and available at the
machine's location of use.
... all the safety, warning and operating instructions provided are not removed and are
legible.
... any necessary initial tests to parts supplied by sub-
suppliers, such as heat pumps or
other equipment, must be carried out. More detailed information, if required, can be
found in the relevant operating instructions.
…with the use of demineralised, osmosis and desalinated water as preventative
maintenance measures, the return spring in the final rinse must be replaced every 4
-6
months.
After installation, commissioning and handing over of the washing machine to the
customer/operator, no modifications ma
y be made (e.g., electrical system or location).
Modifications to the washing machine, and in particular technical modifications carried out
without the manufacturer’s written authorization, or any modifications carried out by
unauthorized persons, will le
ad to the complete loss of any guarantee claims and will
invalidate any liability for the product.
... equipment for optimising energy consumption must not be used to reduce essential
operating temperatures, as set out in DIN 10510, 10511 and 10512. I
f you, the client,
install equipment for optimising energy consumption, any possible reduction in the quality
of the wash and hygiene is your responsibility.
5.2. Basic safety measures
Danger can arise from the improper use of the machine or if it is used
for purposes for
which it was not intended.
Parts carrying electric current as well as moving or rotating parts can cause
•
dangers to the user’s life and limb and
•
material damage
result.
The machine may only be operated by adequately qualified staff wh
o have been trained
by the operating company and who have been trained about the hazard and safety
instructions.
Qualified staff, as defined by the Operating Instructions, are persons:
•over 14 years of age
•who have read and who observe the safety instructions,
•who have read and who observe the operating instructions (or the part applicable to
the work to be carried out).
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 13 of 38
The machine is working with hot water. Avoid all contact with the rinse water Danger of
scalding! Danger of scalding as a result, t
he dishes etc being washed are at high
temperature. Please observe appropriate protective measures.
Observe all the instructions posted on the machine.
Warning !
When electrical equipment is in operation, it is inevitable that some parts of this
equipm
ent are live with dangerous current.
The entire washing machine must be de
-energised before opening washing machine
cover panels or electrical equipment.
PLACE THE MAIN SWITCH IN THE “OFF“ POSITION and install suitable security
measures to prevent the swit
ch from being switched on.
Work and troubleshooting on electrical parts of the washing machine must be performed
by specialists only. Observe accident prevention regulations.
The operator must not restart the washing machine until
all cover panels have been put
back in place.
The machine, switch cabinets and other electrical components must NOT be sprayed with
a hose or a high pressure cleaner.
The washing machine may only be operated under the supervision of trained personnel.
Do not use the
washing machine if you are unsure about system operation.
Always keep doors and hatches closed!
As there is a risk of becoming caught by the transport belt and/or items during transport,
operating personnel must wear close
-fitting clothes and avoid wearing rings, bracelets or
similar. We also recommend wearing safety shoes with steel toe caps!
The tank heating elements may still be hot after the tank has been emptied. As a result,
there is a risk of burns or scalding when cleaning the mach
ine manually!
All work and troubleshooting of the steam installation must be carried out qualified
professionals.
Only use detergents and rinse aids suitable for commercial dishwashing machines.
Please contact the manufacturers of these products
für information.
Detergent and rinse aid may contain hazardous substances.
Observe the manufacturers' hazard warnings on the original containers and safety data
sheets.
Please turn off the main switch at end of operations.
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 14 of 38
WE DO NOT ACCEPT NO LIABILITY FOR DAMAGE
OR INJURY ARISING FROM FAILURE TO
OBSERVE AND ABIDE BY THESE SAFETY
INSTRUCTIONS!!!!
5.3. Working on the electrical equipment
Any repair work and troubleshooting on the system's electrical equipment must be carried
out by a qualified electri
cian!
Check the electrical equipment regularly! Tighten any loose connections! Replace any
damaged leads/cables immediately!
Always keep the switch cabinet closed! Access is only allowed to authorized persons with
key/tools!
6 Assembly instructions (for a partially completed
machine)
These apply where the MEIKO product is a partially completed machine in the sense of
the Machinery Directive (Directive 2006/42/EC).
Observe the following items when connecting MEIKO products to an existing installation:
- The components must be aligned with one another, connected in an appropriate
manner, and fastened so that safe operation is assured. (Choose conditions and
fasteners on site in line with this).
- Dangers (e.g. drawing in, crushing, shearing or cutting) that potentially arise due to
the connection must be prevented appropriately.
- The electrical connection to the supply grid on site, and any necessary electrical
connections must be implemented in line with the enclosed wiring diagram.
- During installation, make sure that you avoid damage, in particular to the electrical
installation.
- After completing the works, check the system for damage.
- Safety and functional tests must be performed in the scope of testing the complete
system at the latest.
- The system is supplied with slide rails to optimise the transition point where
applicable.
CAUTION!
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 15 of 38
Working on the electrical equipment
DANGER
Risk of injury due to electric shock
Work or repairs to the electrical equipment of the system must be conducted by a
qualified electrician!
The wiring diagram for the partially completed machine delivered contains all necessary
operational shut-offs known to the manufacturer MEIKO, as well as other known,
necessary shut-offs and electrical connections. The connectors are clearly indicated in
the wiring diagram. Always make sure that these connections are implemented prior to
commissioning the machine, and that they work reliably.
If any unknown sources of danger that are not described by MEIKO arise due to
connecting system parts, you must eliminate them; this may potentially mean that you
must not operate the machine.
7 Delivery, transport, installation and assembly
7.1 Delivery
Check that the delivery is complete immediately after receiving it by comparing it with
MEIKO’s contract confirmation and/or the delivery note.
If necessary, complain about any missing parts immediately to the shipping company and
notify MEIKO.
Check the entire installation for any damage that may have occurred during shipping.
Should you suspect any damage has occurred during shipping, you should inform:
•the forwarder,
•and MEIKO
in writing, and also send a photo of the damaged parts to MEIKO.
7.2 Transport and installation
In order to avoid damage to the machine and life-threatening injuries when shipping the
system, the following points must be observed:
•Transport works must only be performed only by qualified persons observing the
safety instructions.
For safe transport, the machine parts are supported by a special square-timber frame.
The machine must only be transported on the supplied wooden frame. This is specifically
designed to enable safe and secure transport using two pallet trucks.
It is possible to negotiate gentle curves if the pallet trucks are not positioned completely
under the wooden bearers
•Please also read the chapter on “General safety instructions ".
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 16 of 38
7.3 Installation and assembly
MEIKO has prepared an assembly diagram showing the machine dimensions and the
connected loads in detail.
The machine many only be installed by MEIKO technicians. Assembly is completed by
reference to the installation drawings.
7.4 Instructions for disposal of packing material
•The four-sided wooden frame consists of untreated pine / spruce.
•The plastic sheeting (PE sheeting) can be recycled.
•The cardboard packaging material used to protect the edges can also be recycled.
•The steel strap from the packaging can be recycled as steel scrap.
•The plastic tensioning strap (PP) can be recycled.
7.5 Electrical connection
Work on the electrical part of the machine may only be undertaken by specialist
personnel.
The corresponding electrical wiring diagram can be found in the switch cabinet. This
wiring diagram is a part of the machine and must therefore not be removed!
The type plate with the connected electrical loads is located inside the switch cabinet.
General Electrical Regulations must be observed when connecting the machine to the
power supply.
Caution:
The pre-fuse in the building must be chosen to meet local
requirements and match the nominal machine current in order to
provide back up- protection (VDE 0100 for Germany).
The mains supply cable must be provided with fuses in accordance
with regulations and must have a main switch (accessible on site or on
the appliance for operating personnel). If the neutral line (N) is not
earthed, you must use a 4-pin master switch. Mains connecting leads
must be oil-resistant, shielded cables no lighter than an H 07 RN-F
cable.
The potential equalisation connection must be carried out in
accordance with the requirements of the local electricity supply
company and all applicable local regulations (in Germany VDE 0100
Part 540 must be observed).
VDE 0160/EN 50178 specifies that within electrical equipment
featuring/planning residual current devices on the grid side to install
AC/DC sensitive type B FC frequency converters upstream of the
installed type A FC frequency converters- must be used.
A 5-pin terminal rail is provided for the mains connection (L1, L2, L3, N,
PE).
The electrical connection data, voltage, type of current, output can be seen on the type
plates on the machine.
Please check the voltage.
Route all electrical cable connections through the marked cable gland to the intended
terminals and contactors in the electrical cabinet and connect to the intended terminals
and contactors.
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 17 of 38
8 Adjustment of the machines effected by a service
technician during the first setting in operation
8.1 Commissioning
To avoid damages or dangerous injuries during the setting in operation of the washing
machine, please observe the following points:
Perform any required initial checks on supplied parts, such as heat pumps or other units.
More detailed information, if required, can be found in the relevant operating instructions.
•The setting in operation must be executed by qualified personnel under consideration
of the safety standards.
•Before the first start, check if all tools and foreign parts are removed out of the
installation.
•Check any escaped fluids have been removed.
•Activate all the safety systems and door switches before commissioning.
•Check that all screw connections are tight.
•Please also read the chapter “General safety instructions".
Commissioning and training will be handled and provided by MEIKO-trained service
engineers. The operator must not use the installation before completing training.
8.2 Chemical product settings
The correct settings for the quantity of detergent and rinse aid depend on the product
used. The relevant chemical product supplier can install the correct setting.
8.3 Work prior to initial commissioning
It is paramount to comply with the instructions in this section prior to initial commissioning.
−Water-carrying pipes
All pipes must be thoroughly flushed. The heating system must be switched off when
this is done (remove the fuses) in order to prevent the heating elements from
operating when the system is dry. Subsequently clean all dirt traps.
−Steam pipes
All pipes must be thoroughly flushed. In this process, all control valves must be open
and all condensation traps must have been removed. Subsequently clean all dirt traps.
−Electrical connection
•Retighten all electrical terminals in the switch cabinet; check that electrical plug-in
connections are firmly seated.
•Check all motors for correct sense of direction.
•Carry out a visual check on all electrical equipment (e.g. switches, cables,
housings, covers).
•Carry out functional tests on all electrical switches.
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 18 of 38
−Machine interior
Ensure that there are no foreign bodies inside the machine (e.g. cleaning rags, loose
bolts/washers/nuts, tools, packaging materials etc.).
Caution
Safeguard smooth transitions in areas where moving parts move
past fixed parts (e.g. hoses.)
Make sure that all wash pipes, wash systems, final rinse arms, sieves, tank covers and
drain pipe as well as flaps have been connected to the input and output. Ensure that all
the parts are correctly installed!
9 Washing with the trolley washing machine
Once all installation work on the machine is complete and all settings have been entered
by MEIKO installation engineers, the machine can be commissioned.
10 Preparation for Operation
10.1 Basic safety measures during normal operation
The washing machine may only be operated by trained and authorized persons who are
familiar with the operating instructions and who are capable of working in accordance with
them!
Ensure the following before switching on the installation:
•only authorised and trained persons are present in the installation’s operating area.
•nobody could be injured by stetting the installation into operation.
Before commissioning, each time
•inspect the washing machine for any visible damage and ensure that it is only
operated in perfect working condition!
Report any defects to the foreman immediately!
Remove any materials and/or objects that are not required for operation from the
operating area!
•check and ensure that all the safety equipment is operating perfectly!
10.2 Operation
FILLING/HEATING
When pressing the key “Filling/Heating on“
the wash tanks are automatically filled and
heated up. (This process may take some time depending on the water temperature, water
pressure and heating power available.)
CAUTION!

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 19 of 38
PROGR. START
After displaying "OPERATING MODE" in the touch panel, the machine is put into
operation with the "PROGRAM START" button.
The machine takes control of all other functions (such as mo
nitoring the wash tank,
rinsing and drying temperature, loss of water in the wash tank, etc.), thereby eliminating
the need for further control or operation.
RESET
Washing can be temporarily interrupted with the "RESET"
button; i.e. the wash pumps
and transport are switched off.
However, the tank heating elements are not switched off with the result that the machine
remains ready for operation and washing can recommence when the button
“OPERATION” is pressed.
FILLING/HEATING OFF
With the key „FILLING/HEATING OFF“the machine is completely set out of operation.
(Note! "Cleaning the machine")
EMERGENCY STOP
EMERGENCY STOP
The machine has one or more emergency off switches. This enables the entire machine
to be shut down. Restarting the machine requires unlocking the emergency off switch and
is only possible in the switch cabinet.
The machine must be restarted only once it has been established that the hazardous
situation triggering the emergency stop has been rectified and restarting the machi
ne will
not cause any danger.
EMERGENCY STOP
safety pull wire
EMERGENCY STOP safety pull wire
On the window side of each chamber on the inside of the machine, the
machine is equipped with an EMERGENCY STOP safety pull wire. The pull
wire operates identically to an EMERGENCY STOP switch.
It allows to shutdown the entire machine. Restarting the machine requires
unlocking the blue emergency off switch and is possible in the installation room
only, at the machine input and output.
The machine must be restar
ted only once it has been established that the
hazardous situation triggering the emergency stop has been rectified and
restarting the machine will not cause any danger.
Function message lamp
The following functions can be recognized:
Red lamp: I
n the event of a collective malfunction, the red lamp flashes, and lights
up permanently if the EMERGENCY STOP switch is pressed.
White lamp: Program executing
Green lamp: Program end

Operating instructions for trolley washing machine model WS 125
9648649 Design and construction subject to change without prior notice!
Page 20 of 38
10.3 Commissioning the system
Make sure that all wash pipes, wash systems, final rinse arms, sieves, tank covers and
drain pipe as well as flaps have been connected to the input and output. Ensure that all
the parts are correctly installed!
1. Press the “FILLING/HEATING“ button.
2. After displaying "OPERATING MODE" in the touch panel, the items to be washed
can be put into the machine.
3. Close the door.
4. Press the “PROGRAMM START“ button.
5. Automatic doors close automatically (optional)
11 Switching on the washing machine
Press the button
„FILLING/HEATING ON“
The machine fills and
heats up to operational
temperature
Wait for the "ready for
operation" signal
Press the "RESET DOOR
SURVEILLANCE" button
after having loaded the
installation with wash ware
and closed the door.
Press the “PROGRAM
START“button.
In case of interruption,
press the "RESET"
button.
The machine remains
ready for operation
Press the “PROGRAM
START“ button.
To switch off machine:
Press the
“FILLING/HEATING
OFF“ button.
Inform the house
engineer when an error
message appears on
the
control panel!
