Meinberg IMS-MDU312 User manual

MANUAL
IMS-MDU312
Modular Sync. System
11th April 2018
Meinberg Funkuhren GmbH & Co. KG

Front view (Frontansicht) IMS-MDU312
1
DEUTSCH 1. LED Statusanzeige: Status
Eingangssignal In 1 Eingangssignal In 2 Fehler / Alarm
ENGLISCH 1. LED status Indicators: State (normal operation: green)
Input Signal In 1 Input Signal In 2 Error / Alarm
MDU 3
Modular Distribution Unit
Status In 1 In 2 Alarm
Intelligent Modular Synchronization

Rear view (Rückansicht) IMS-MDU312

Table of Contents
1 Imprint 1
2 Safety instructions for building-in equipment 2
2.1 Additional Safety Hints ........................................... 3
2.2 Supply Voltage ................................................ 3
2.3 Cabling ..................................................... 4
2.4 Grounding connection IMS-MDU312 ................................... 4
3 Modular System IMS-MDU 5
4 Quick Start Guide for Initial Operation 6
5 Attachment: Technical Information 9
5.1 Technical Specifications IMS-MDU312 BGT Housing ......................... 9
5.2 Available Modules and Connectors .................................... 10
5.3 IMS Module Options ............................................. 11
5.3.1 Power Supply 100-240 V AC / 100-200 V DC .......................... 11
5.3.2 Power Supply 20-60 V DC ..................................... 12
5.3.3 SDI-N2X - Signal Input Module ................................. 13
5.3.4 SDI-4112 - Signal Input Module ................................. 15
5.3.5 SDI-4505 - Fiber Optical Input Module ............................. 17
5.3.6 SDI-5302 - Signal Input Module ................................. 18
5.3.7 Assignment of the DIP Switch ................................... 19
5.3.8 TCR Clock - Time Code Reader and Generator ......................... 20
5.3.9 SPT Switch Card .......................................... 24
5.3.10 RSC Switch Card .......................................... 25
5.3.11 REL1000: Error Relay Module .................................. 29
5.3.12 LIU - Line Interface Unit ...................................... 31
5.3.13 LNO - 10MHz Sinus Output Module ............................... 39
5.3.14 BPE - Backplane Port Expander ................................. 40
6 Declaration of Conformity 42
Date: 11th April 2018 IMS-MDU312

1 Imprint
1 Imprint
Meinberg Funkuhren GmbH & Co. KG
Lange Wand 9, 31812 Bad Pyrmont / Germany
Phone: + 49 (0) 52 81 / 93 09 - 0
Fax: + 49 (0) 52 81 / 93 09 - 230
Internet: https://www.meinbergglobal.com
Mail: [email protected]
Date: 2017-04-27
IMS-MDU312 Date: 11th April 2018 1

2 Safety instructions for building-in equipment
This building-in equipment has been designed and
tested in accordance with the requirements of Stan-
dard IEC60950-1 "Safety of Information Technology
Equipment, including Electrical Business Equipment".
During installation of the building-in equipment in
an end application (i.e. rack) additional requirements
in accordance with Standard IEC60950-1 have to be
taken into account.
NOTE: First attach the case to protective earth - be-
fore you connect the IMS-MDU312 with the power line
(see chapter Grounding connection IMS-MDU312).
General Safety instructions
•The building-in equipment has been evaluated for use in office environment (pollution degree 2) and
may be only used in this environment. For use in rooms with a higher pollution degree more stringent
requirements are applicable.
•The equipment/building-in equipment was evaluated for use in a maximum ambient temperature of 50◦C.
•The building-in equipment may not be opened.
•Protection against fire must be assured in the end application.
•The ventilation opening may not be covered.
For AC Supply 100-240 V AC
•The building-in equipment is a class 1 - equipment and must be connected to an earthed outlet
(TN Power System).
•For safe operation the building-in equipment must be protected by max 16 A fuse in the power installation
system.
•Disconnection of the equipment from mains is done by pulling the mains plug at the outlet. Don’t use the
connector at the module for disconnection from mains.
For DC Supply 100-200 V DC
•The device can be disconnected outside the unit in accordance with the regulations as in EN 60950 (e.g.
through primary side line protection).
•Assembling and disassembling of the power connector is only allowed if the device is disconnected from
power supply (e.g. trough primary side line protection).
•All feed lines are sufficiently protected and dimensioned.
Fuse: T3A
Connector Diameter: 1mm2- 2,5mm2/ 17AWG - 13AWG
2 Date: 11th April 2018 IMS-MDU312

2 Safety instructions for building-in equipment
2.1 Additional Safety Hints
This manual contains important information for the installation and operation of this device as well as for your
safety. Make sure to read carefully before installing and commissioning the device.
Certain operating conditions may require the observance of additional safety regulations not covered by this
manual. Nonobservance of this manual will lead to a significant abatement of the security provided by this
device. Security of the facility where this product is integrated lies in the responsibility of the installer.
The device must be used only for purpose named in this manual, any other use especially opteration above the
limits specified in this document is considered as improper use.
Keep all documents provided with the device for later reference.
This manual is exclusively for qualified electricians or by a qualified electrician trained personnel who are
familiar with the applicable national standards and specifications, in particular for the construction of high
voltage devices.
2.2 Supply Voltage
WARNING!
This device is powered by a dangerous voltage. Nonobservance of the safety instructions of this manual may
lead to serious damage to persons and property and to danger to life! Installtion, commissioning, maintenance
and operation of this device are to be carried out by qualified personnel only.
The general safety instructions and standards ( e.g. IEC, DIN, VDE, EN ) for installation and work with
high voltage equipment as well as the respective national standards and laws must be observed.
NONOBSERVANCE MAY LEAD TO SERIOUS DAMAGE TO PERSONS AND PROPERTY AND TO DAN-
GER TO LIFE!
The device may not be opened. Repair services may only be carried out by the manufaturer.
Supply lines for this decice must be equipped via an appropriate switch that must be mounted close to the
device and must be marked as a mains switch for the device.
To ensure safe operation supply mains connected to this decice must be equipped with a fuse and a fault-
current circuit breaker according to the applicable national standards for safe operation.
The device must be connected to a protective earth with low grounding resistance according to the applicable
national rules.
IMS-MDU312 Date: 11th April 2018 3

2.3 Cabling
WARNING!
DANGER TO LIFE BY ELECTRICAL SHOCK! NO LIVE WORKING!
Wiring or any other work done the connectors particularly when connectors are opened may never be carried out
when the installation is energized. All connectors must be covered to prevent from accidental contact to life parts.
ALWAYS ENSURE A PROPER INSTALLATION!
2.4 Grounding connection IMS-MDU312
Note:
To ensure a safe operation and to fulfil the require-
ments in accordance with DIN EN 60950, the sys-
tem must be correctly connected to an equipotential
grounding bus. On the front panel of the system a
grounding connector is provided.
The mounting components (without a cable) are in-
cluded.
Tooth washer
Nut M4
Plain washer
Ring or
fork lug
Tooth washer
Nomel washer
Nomel washer
Flat connector
Tooth washer
Nut M4
Note:
Use a grounding cable with >= 1,5mm2
Please ensure a correct crimp connection!
4 Date: 11th April 2018 IMS-MDU312

3 Modular System IMS-MDU
3 Modular System IMS-MDU
Meinberg MDU (Multi-Distribution Units) are the simplest and most convenient way to add more buffered
timing signal outputs to your distribution rack. MDU systems enable multiplication of input signals coming
from an external system such as a LANTIME or a GPS clock with, for example, PPS and 10MHz outputs to
be expanded to a large number of output signals of the same type. The 3U / 19-inch MDU basic chassis can
compose of a redundant power supply and can be equipped with one or two input modules to allow redundancy
of the input signals.
An MDU Input Module (SDI - Signal Distribution Input) can provide up to four inputs via BNC or SMA
connectors - with 10 MHz, PPS, TC-AM and TC-DCLS as input signals. An optional alarm relay contact and
status LEDs on the front panel show the user whether an input signal, an internal error (in case of a SDI-2101)
or an error of the upstream clock (SDI-4112) which can affect output signals has been detected. With a SDI-
2101 module, an internal error or a status of the card can be transferred via USB interface.
The IMS-MDU System can be configured with up to 14 Output Signal Modules, each including 4 BNC female
connectors (other connector types are available upon request).
For IMS-MDU Systems the following plug-in modules are available divided into below-mentioned categories:
•PWR (Power Supply)
•SDI (Signal Input Modules)
•SCU (Switchover unit for Redundant operation)
•I/O (Output modules)
PWR:
Two PWR slots - they can be equipped with various IMS power supply modules in AC / DC range 100-240 V
or low DC 20-72 V. In this way a basic or redundant power supply configuration can be realized.
SDI:
Two slots for SDI Input Signal modules. They have a dual function. By default, they can be attached with
two separate systems using different input cards individually or duplicated input signals to facilitate redundant
operation. It is also possible to plug a Standard Meinberg Receiver into SDI slots. In this case the receiver
generates output signals independently.
SCU:
In redundant operation a RSC (Redundant Switch Controller) card switches to serial interfaces and pulse /
frequency outputs of the redundant input card in case of a failure of the active input module. The switching can
be perfomed manually or automaticaly. All essential functions of the RSC, such as the actual switching status,
alarming and operation mode can be monitored or triggered via a SNMP / Ethernet Interface.
I/O:
Up to 14 output modules can be inserted for individual configuration of the IMS-MDU system.
IMS-MDU312 Date: 11th April 2018 5

4 Quick Start Guide for Initial Operation
After a power cable has been connected to the IMS MDU and the RSC switch card has been connected to the
network, the installed IMS modules can be configured and monitored by using the software Meinberg Device
Manager.
The Meinberg Device Manager software can be downloaded here:
Windows: https://www.meinbergglobal.com/download/utils/windows/mbgdevman_setup.exe
Linux: https://www.meinbergglobal.com/download/utils/linux/mbgdevman.tar.gz
Configuration via network with Meinberg Device Manager
After starting "mbgdevman" , all devices found in the network will be shown in the main window. By clicking
the plus button on the left side of an MDU entry, all installed IMS modules can be displayed. The LED icon
indicates the status of the module. After selecting the checkbox, the buttons "Edit Connection Settings" and
"Remove Device" are activated in the top left of the window. You can now use the "Edit Connection Settings"
button to adjust the connection type (network or serial connection). Here, you can also change the password,
that shall be used to connect to a network device (default: "mbg").
The upper part (center) of the window also contains the buttons "Configure Device(s)" and "Show Device(s)
Status". The button "Configure Device(s)" opens the "Device Configuration" window, where all important settings
for the selected module(s) can be made:
6 Date: 11th April 2018 IMS-MDU312

4 Quick Start Guide for Initial Operation

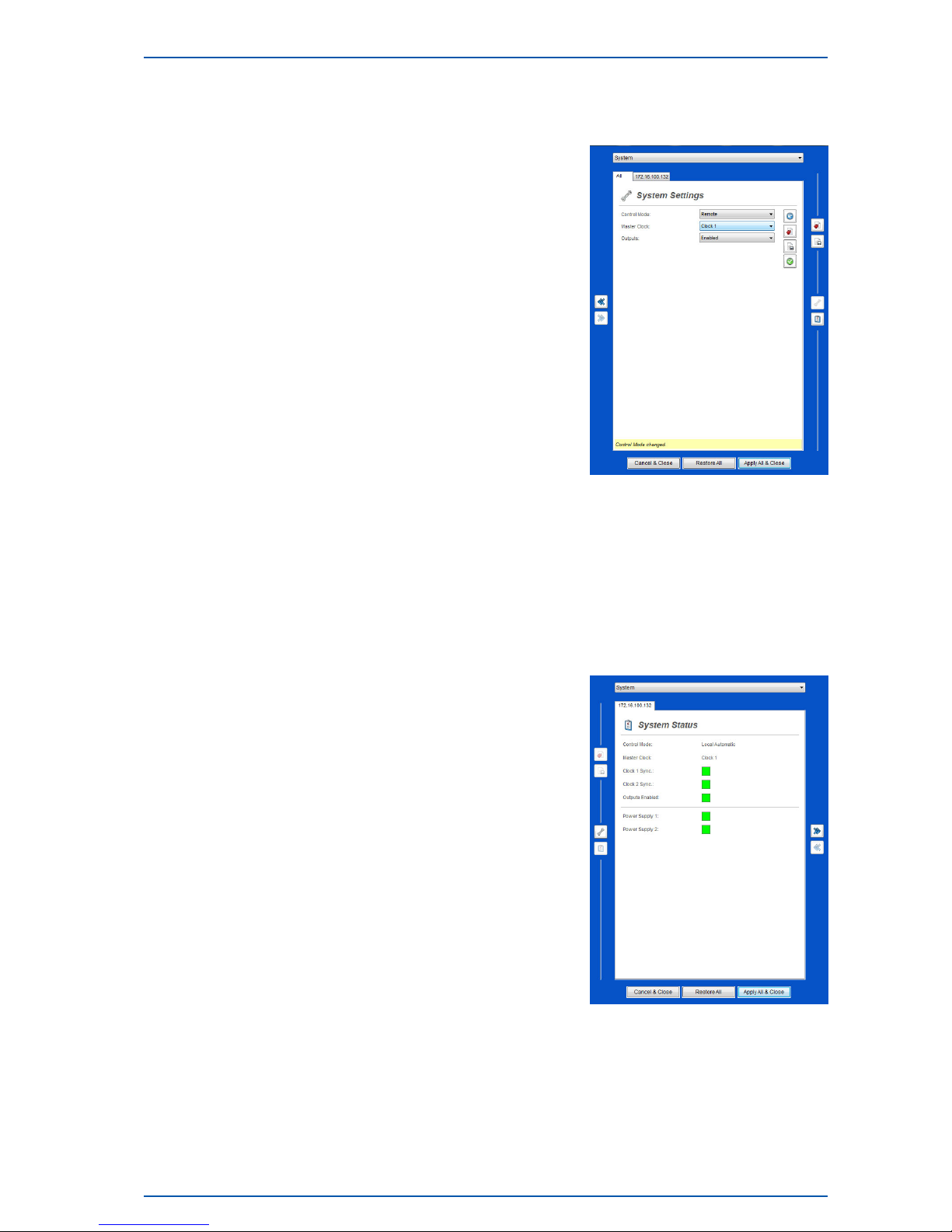

System Settings Control Mode: Remote or Manual
Master Clock: Clock 1 / Clock 2
Outputs: enabled / disabled
Network Settings Hostname
Gateway
DNS Server
Interface (lan0)
DHCP: disabled / enabled (default)
Netmask
VLAN
Button "Show Device(s) Status"
The button "Show Device(s) Status" can be used to access all important status information:
System Status Control Mode
(Local Auto or Remote)
Master Clock 1 and/or Clock 2 sync
(SDI 1 or SDI 2)
Outputs Enabled (green if active)
Power Supply 1 and Power Supply 2
(green if voltage is applied)
Network Status Gateway, DNS Server
Mac Address, Link Status, DHCP,
IP - Address, Netmask, VLAN
Sensor Status Depending on the installed sensors
of the appropriate module(s), i.e.
the operating temperature can
be monitored.
IMS-MDU312 Date: 11th April 2018 7

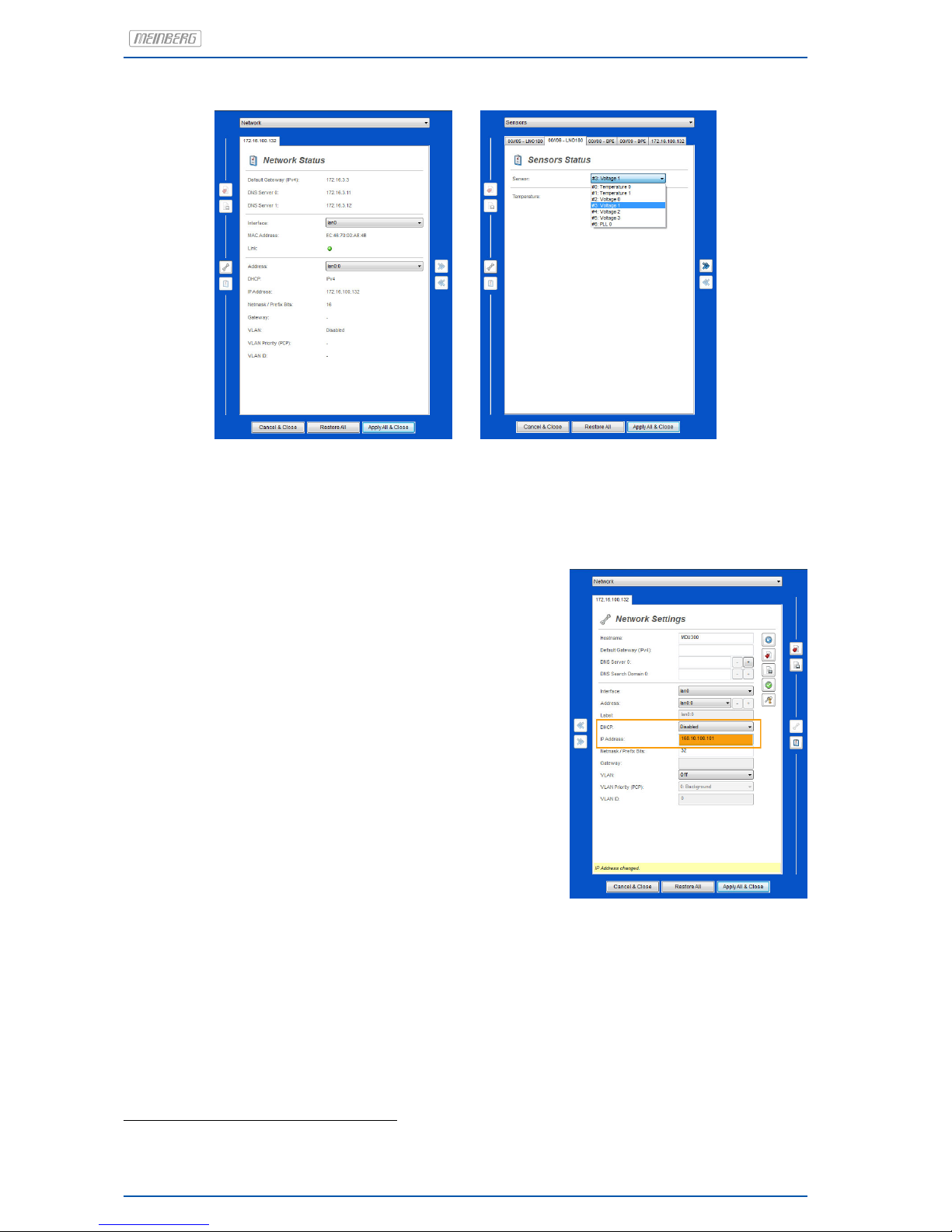

The figure shows the network status and the module sensors (temperature, voltage ...).
Network Settings
To adjust the network parameters of the MDU-RSC,
you can open the "Device Configuration" window and
select "Network" from the drop-down list at the top.
By default, the DHCP service is enabled so that an IP
address is assigned automatically. If no DHCP server
could be found or no IP address has been assigned
via DHCP by any other reason, a fallback IP address
169.254.xxx.yyy will be set automatically (Zeroconf 1).
If a static IP address shall be assigned, DHCP has
to be disabled in this area.
1Zeroconf: If a computer configures a link local IP address, it selects an IP address between 169.254.1.0 and 169.254.254.255 by using a
random number generator.
8 Date: 11th April 2018 IMS-MDU312

5 Attachment: Technical Information
5 Attachment: Technical Information
5.1 Technical Specifications IMS-MDU312 BGT Housing
Housing: Metal 19"Modular chassis, Schroff EUROPAC lab HF
Front panel: 3U/84HP (128 mm high / 426 mm wide)
Protection Rating: IP20
Physical Dimensions: 483 mm wide x 132 mm high x 270 mm deep
Ambient Temperature: 0 ... 50 ◦C
Storage Temperature: -20 ... 70 ◦C
Humidity: max. 85% (non-condensing) @ 30 ◦C
ATTENTION:
Due to potential excessive heat development which may cause an overheating damage during device operation
it is necessary to leave space for ventilation of at least 1U height at the top and the bottom of the IMS system.
The figure shows the expected air flow during device in operation with space between devices for ventilation
(1U at the bottom and the top).
IMS-MDU312 Date: 11th April 2018 9

5.2 Available Modules and Connectors
Name Type Signal Cable
————————————————————————————————————————
Power Supply:
PWR-AD10 5pin DFK male 100-240 V AC / 5pin MSTB clamp
100-200 V DC
PWR-DC20 5pin DFK male 20-60 V DC 5pin MSTB clamp
Reference - Synchronization Signals:
SDI-N2X RJ45 Network NTP / PTP CAT 5 network cable
SDI-5302 2pin DFK Error-In shielded data line
BNC TC AM In / TC DCLS In
SMA PPS In / 10MHz In
D-SUB9 female Serial time telegram
SDI-4112 2pin DFK Error-In shielded data line
BNC TC AM In / TC DCLS In
SMA PPS In / 10MHz In
SDI-4505 F-ST Error-In multimode FO-patch cable
F-ST TC AM In / TC DCLS In multimode FO-patch cable
F-ST PPS In / 10MHz In multimode FO-patch cable
Output Signals:
LNO 4 x BNC 10MHz sine Out shielded data line
with internal OCXO
LNO 4 x BNC 10MHz sine Out shielded data line
BPE See chapter BPE - Backplane Port Expander
LIU See chapter LIU - Line Interface Unit
————————————————————————————————————————
10 Date: 11th April 2018 IMS-MDU312

5 Attachment: Technical Information
5.3 IMS Module Options

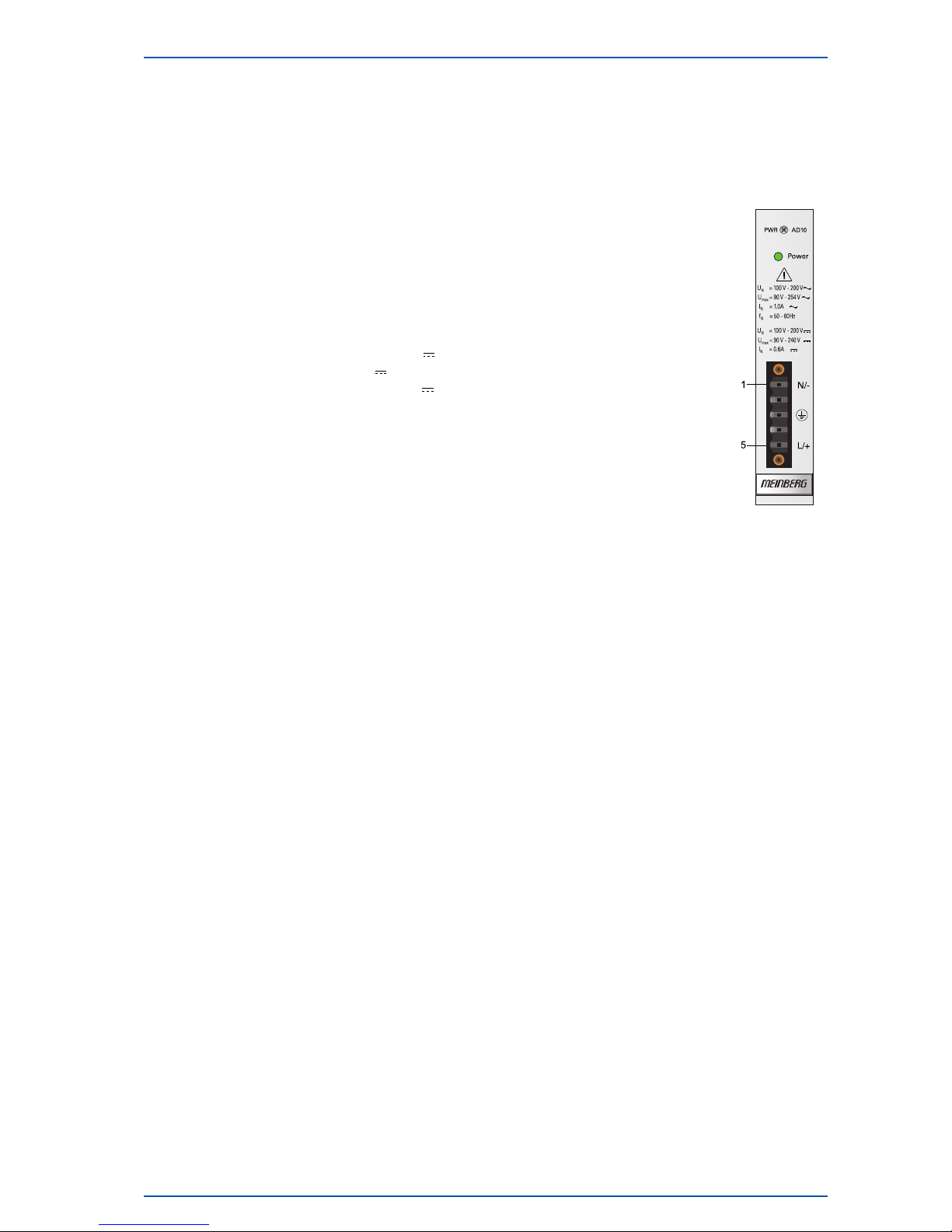

5.3.1 Power Supply 100-240 V AC / 100-200 V DC
Operational
Voltage: UN= 100 - 240 V∼
IN= 1.0 A∼
fN= 50 - 60 Hz
Umax = 90 - 254 V∼
fmax = 47 - 63 Hz
—————————————
UN= 100 - 200 V
IN= 0.6 A
Umax = 90 - 240 V
Output
Current: max. 10.0 A
min. 0.15 A
Fuse: internal, T2.5 A / 250 V
Protective Class: Class 1
LED: green, diameter 5mm, on if output OK
Power Connector: 5pin DFK
Hotplug: It is possible to remove or install
the power supply out of the terminal
equipment during operation.
Pin Assignment: 1: N/-
2: not connected
3: PE (Potential Earth)
4: not connected
5: L/+
IMS-MDU312 Date: 11th April 2018 11

5.3.2 Power Supply 20-60 V DC
Operational
Voltage: UN= 48 V
IN= 1.25 A
Umax =20-60V
Output
Current: 10 A
Output
Voltage: +5 V
Output
Power: 50 W
Fuse: 6 A (T) / 250 V
Power Connector: 5pin DFK
Protective Class Class 1 - regarding EN 60950
Hotplug: It is possible to remove or install
the power supply out of the terminal
equipment during operation.
Pin Assignment: 1: not connected
2: N/-
3: PE (Potential Earth)
4: L/+
5: not connected
12 Date: 11th April 2018 IMS-MDU312

5 Attachment: Technical Information

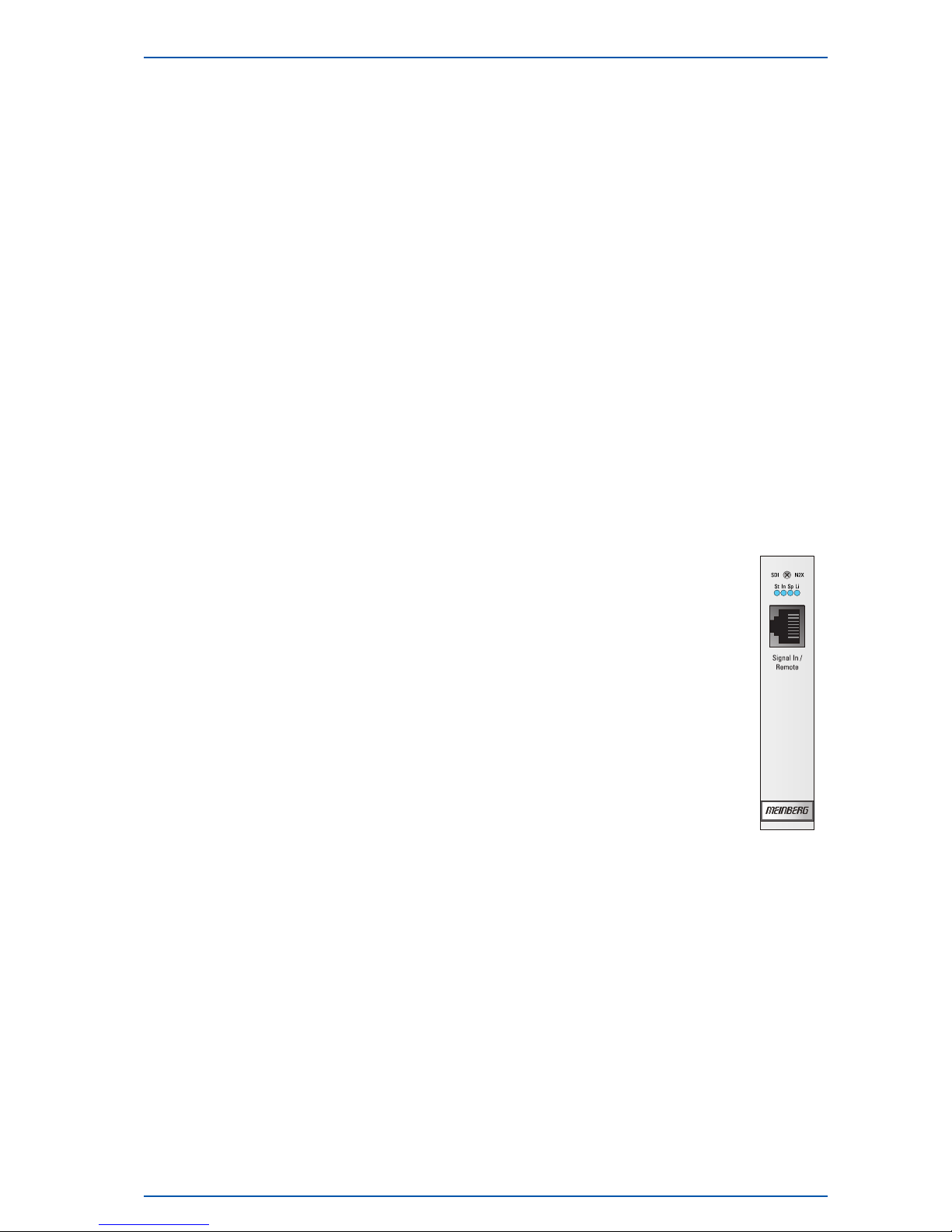

5.3.3 SDI-N2X - Signal Input Module
•Configuration and montoring with MBGDEVMAN
•PTP Multicast (Power Profile compatible / PTP Unicast (Telecom Profile compatible) / NTP)
•PPO (PPS, PPM, PPH ...),
•IRIG AM, Freq. Synth. sinus outputs
•Generates several different unmodulated IRIG time codes
The Meinberg N2X180 is synchronized by an PTP Grandmaster or by a NTP Server and can be used as
reference time source for the IMS MDU. The module provides equipment that requires Freq.Synth/sine, PPOs
(PPS, PPM, PPH, Time Code DCLS - IRIG/AFNOR/IEEE1344) or serial time string for synchronization.
The N2X180 operates as an IEEE-1588 slave clock or NTP client in a network.
This converter can synchronize many different systems. Our IEEE-1588 Grandmaster or LANTIME NTP Server,
such the LANTIME M1000, can be used as a reliable time source.
In order to support network management systems the N2X180 offers an extensive SNMP Interface, which
can be accessed by SNMP V1.
Four Status LEDs:
St (Status): blue: during initialisation
green: normal operation
In (Init): red: no network cable connected
(requires a few minutes after connection)
yellow: signal is available, not synchronized
green (blink): locked to input signal and synchronized
but not accurate
green: Oscillator is warmed up, internal clock
is accurate
Sp (Speed): out: no cable connection
yellow: 10 Mbit
green: 100 Mbit
Li (Link): out: no cable connection
yellow (blink): if traffic and 10 Mbit
green (blink): if traffic and 100 Mbit
IMS-MDU312 Date: 11th April 2018 13

Technical Specifications
Power Consumption: max 5 W
Accuracy of
pulse outputs: PTP: ±100 ns (relative to the used
IEEE 1588 Grandmaster Clock, after
initial synchronization phase)
NTP: ±1 ms (relativ to NTP when using
a local time server after warm-up period)
Connector: LAN RJ-45, 10/100 BaseT
Duplex Modes: Half/Full/Autonegotiaton
Cable: CAT 5 network cable
Oscillator: OCXO-SQ (OCXO-MQ/HQ Options are available)
Network Time Protocol (NTP)
•Up to seven configurable external NTP Time Server
•Min. and max. polling interval (8s – 1024s)
•Standard NTP options (noselect, true, prefer, iburst)
Precision Time Protocol (IEEE 1588)
•UDP/IPv4 (L3) or IEEE802.3 (L2)
•E2E, E2E Hybrid or P2P Delay Mechanism
•PTP Subdomains (0-255)
•Power Profile compatible
•Telecom Profile compatible
14 Date: 11th April 2018 IMS-MDU312

5 Attachment: Technical Information
5.3.4 SDI-4112 - Signal Input Module
Technical Spezifications SDI-4112:
Signal Inputs: Error Input, via 2pin DFK connector, to connect to an existing
error relays output (e.g. LANTIME M300...)
(+ 5V current)
2 x BNC female - Time Code AM and DCLS In
2 x SMA female - PPS and 10MHz sine In
Current Consumption: 5 V +- 5%, @400 mA
Ambient Temperature: 0 ... 50◦C / 32 ... 122◦F
Humidity: Max. 85%
Received Time Codes
Time Code modulated input, SMA connector, isolated by transformer
Insulation voltage: 3000 VDC
Input impedance: 50 Ohm, 600 Ohm, 5 kOhm
Internally selectable by jumper (default 600 Ohm)
Input signal: 600mV to 8 V (Mark, peak-to-peak)
Time Code unmodulated input, BNC connector, isolated by opto-coupler
Insulation voltage: 3750 Vrms
Internal series resistor: 330 Ohm,
Max. input current: 25 mA
Diode forward voltage: 1.0 V...1.3 V
Pulse- and Frequency Input Signals
10 MHz sine Input: sine (1.5 Vpp - 5 Vpp), female SMA connector
PPS Input: TTL, active high, female SMA connector
IMS-MDU312 Date: 11th April 2018 15
