Meinberg microSync HR100/DC Use and care manual

TECHNICAL REFERENCE
microSync
HR100/DC
29th July 2021
Meinberg Funkuhren GmbH & Co. KG

Table of Contents
1 Imprint 1
2 microSync Introduction 2
3 Technical Specifications microSync Chassis 3
4 Important Safety Information 4
4.1 Important Safety Instructions and Protective Measures . . . . . . . . . . . . . . . . . . . . . . . . . 4
4.2 UsedSymbols................................................. 5
4.3 SecurityduringInstallation......................................... 7
4.4 Protective Conductor- / Ground-Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.5 SafetyduringOperation........................................... 9
4.6 SafetyduringMaintenance......................................... 10
4.7 HandlingBatteries.............................................. 10
4.8 CleaningandCare.............................................. 11
4.9 PreventionofESDDamage......................................... 11
4.10 Return of Electrical and Electronic Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

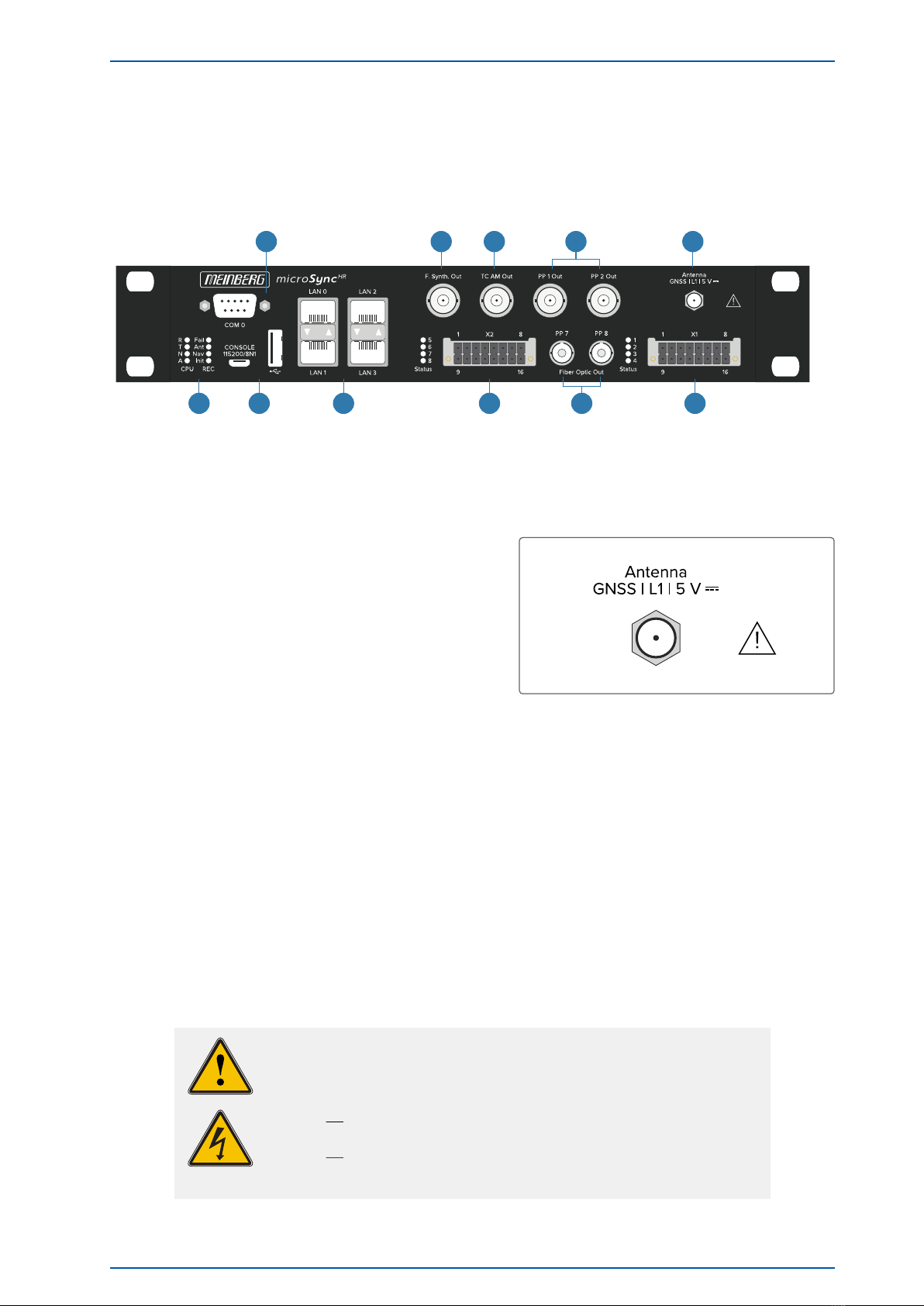

5 microSync HR100/DC Connectors 13
5.1 GNSSAntenna................................................ 13
5.2 Programmablepulseoutput......................................... 14
5.3 Time Code AM (modulated) Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.4 FrequencySynthesizerOutput....................................... 15
5.5 RS-232COMxTimestring.......................................... 15

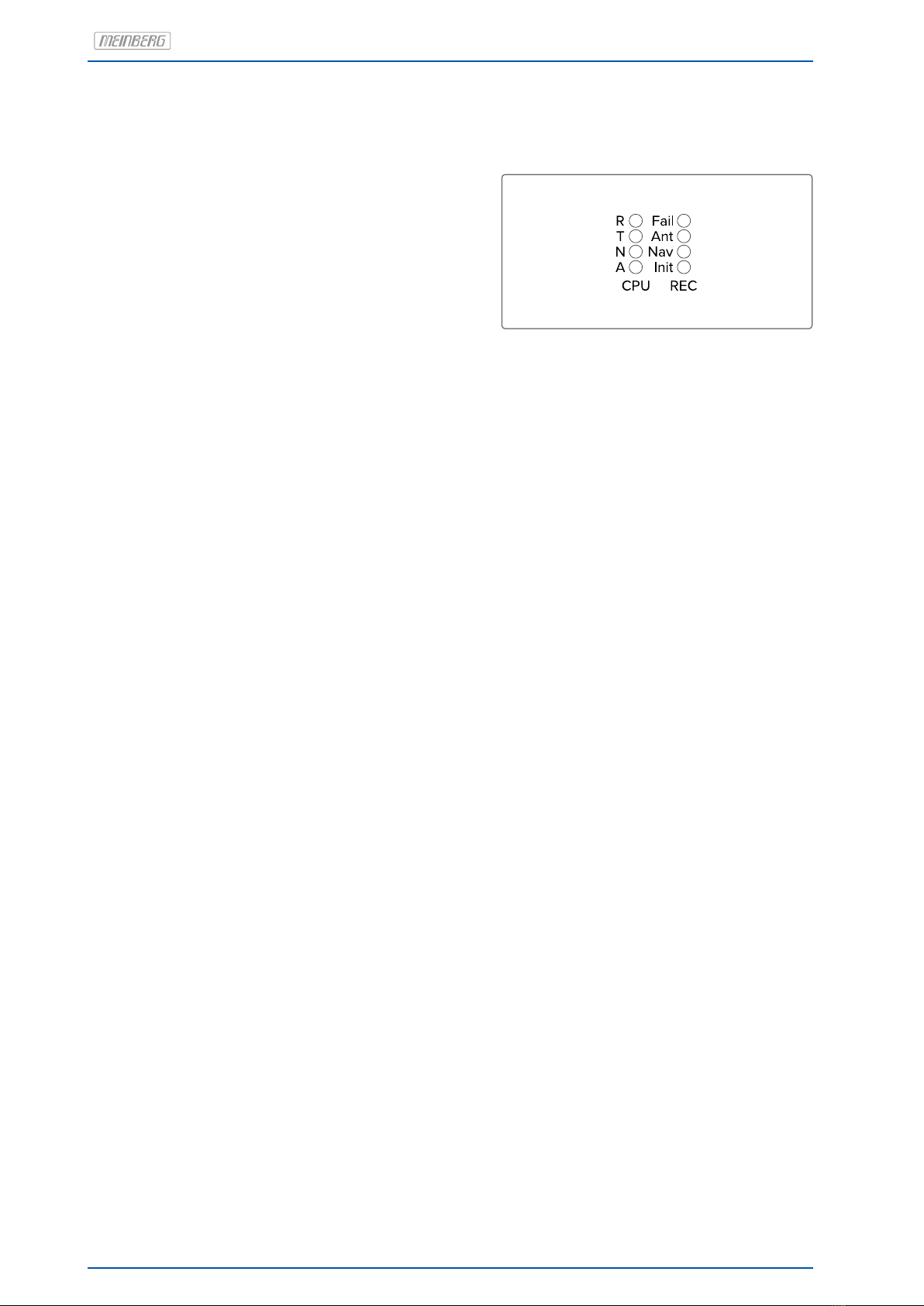

5.6 Status Indicators - CPU and Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
5.7 USBInterface................................................. 17
5.8 LANNetworkInterfaces........................................... 17
5.9 DMCX2TerminalConnector........................................ 18
5.10 Fiber Optic - Programmable pulse Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.11 DMC X1 Terminal Connector / DC Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6 GNSS Satellite Navigation 22
6.1 TimeZoneandDaylightSaving ...................................... 23
7 Installation GNSS Antennas 24
7.1 Installation Multi GNSS Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.2 Installation of the RV-76G GPS/GLONASS Antenna for mobile Applications . . . . . . . . . . . . 28
8 Starting of Operation 29
8.1 InitialNetworkConfiguration........................................ 30
8.1.1 Network configuration with the mbgOSWizard . . . . . . . . . . . . . . . . . . . . . . . . . 31
8.2 InitialStartofOperation .......................................... 32
9 Technical Appendix 34
9.1 Technical Specifications GNSS Receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
9.2 ConfigurationOptions ............................................ 36
9.3 ProtocolsandProfiles............................................ 36
9.4 Compliances.................................................. 36
10 Technical Appendix - GNSS Antennas + Accessories 37
10.1 Information about the 40dB Multi GNSS Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
10.2AntennaCable: ................................................ 38
10.3AntennaShort-Circuit ............................................ 38
0

10.4 Technical Specifications - MBG S-PRO surge protection . . . . . . . . . . . . . . . . . . . . . . . 39
10.4.1 MBG S-PRO - Physical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.4.2 InstallationandGrounding..................................... 41
10.5 Information about the RV-76G GPS/GLONASS Antenna for mobile applications . . . . . . . . . . 42
11 RoHS and WEEE 44
12 Declaration of Conformity 45
Date: 29th July 2021 microSync

1 Imprint
1 Imprint
Meinberg Funkuhren GmbH & Co. KG
Lange Wand 9, 31812 Bad Pyrmont / Germany
Phone: + 49 (0) 52 81 / 93 09 - 0
Fax: + 49 (0) 52 81 / 93 09 - 230
Internet: https://www.meinbergglobal.com
Mail: [email protected]
Date: 2021-02-23
Manual
Version: 1.06
microSync Date: 29th July 2021 1

2 microSync Introduction
microSync is a multipurpose synchronization solution with compact design and high performance. The mi-
croSync system provides multiple output signals and allows synchronization of both NTP clients and PTP
slaves.
The device has four 100/1000 MBit network interfaces and can provide both, optical and electrical network
connections by using SFP modules. It is possible to use different receiver variants, e.g. the 72-channel GNSS
receiver for GPS, Galileo, GLONASS and BeiDou.
The sync optimized operating system supports NTP, PTP IEEE 1588 and a variety of protocols for management
tasks.
Product Highlights
•Powerful IEEE 1588 PTP Time Server incl. IEC/IEEE 61850-9-3 & IEEE C.37.238
•High performance (S)NTP server
•Half rack solution for a space efficient design
•Different Oscillator options for advanced holdover performance
•Meinberg Device Manager for configuration and status monitoring
•Three-year manufacturer‘s warranty
•Unlimited technical support including firmware updates
2 Date: 29th July 2021 microSync

3 Technical Specifications microSync Chassis
3 Technical Specifications microSync Chassis
Protection
Rating: IP30
Operating
Temperature: –20 to 55 ◦C (–4 to 131 ◦F)
As tested per IEC 60068-2-1, Cold: –40 ◦C (–40 ◦F)
As tested per IEC 60068-2-2, Dry Heat: 85 ◦C (185 ◦F)
Storage Temperature: –30 to 70 ◦C (–22 to 158 ◦F)
Relative Humidity: 5 to 95 % (non-condensing) at 40 ◦C (104 ◦F)
Operating Altitude: up to 4,000 m (13,123 ft) above sea level
Atmospheric Pressure: 615 to 1,600 hPa

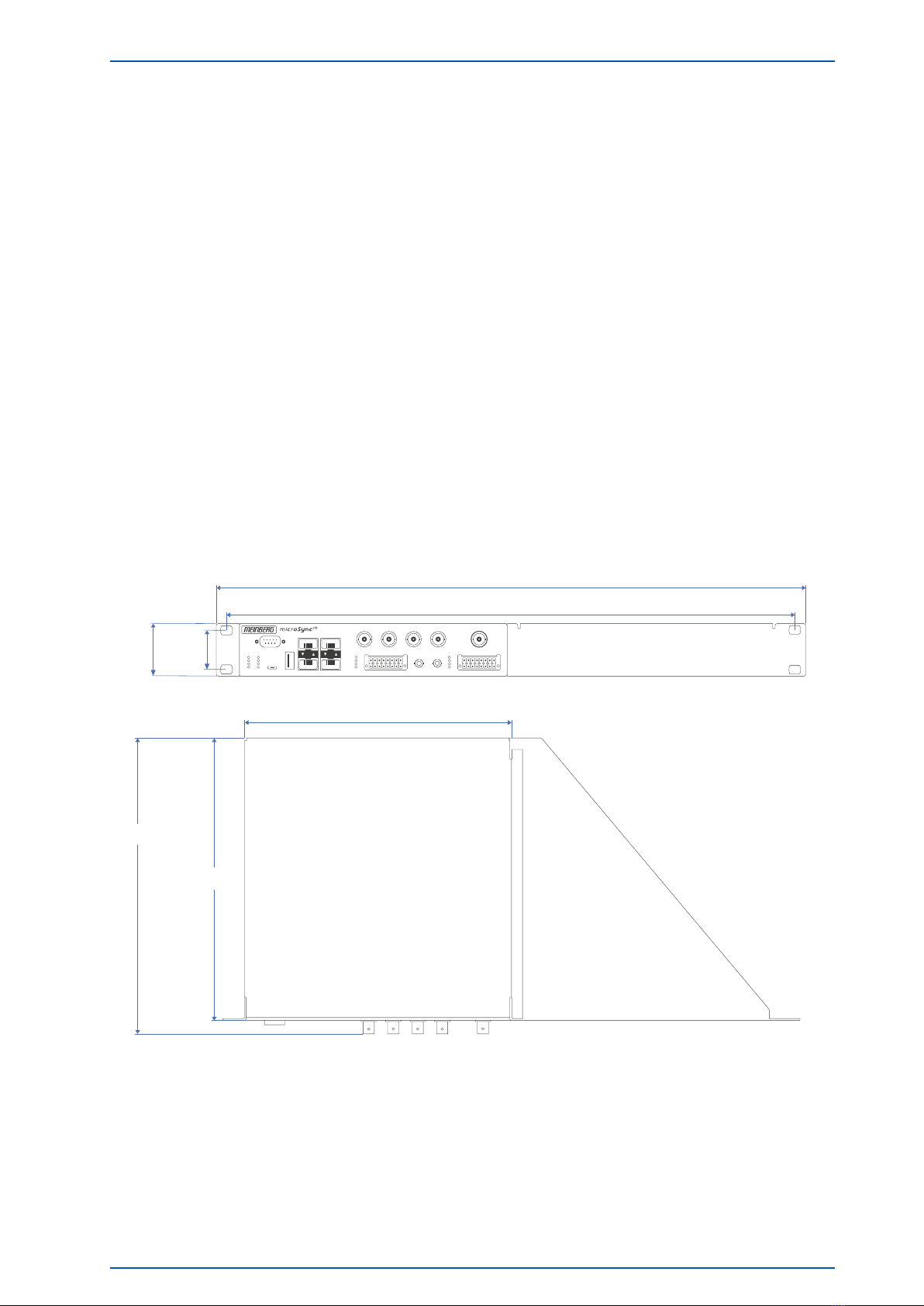

Physical Dimensions:
43.7 mm
[ 1.72 inch ]
31.8 mm
[ 1.25 inch ]
465.1 mm [ 18.31 inch ]
482.6 mm [ 19 inch ]
236 mm
[ 9.29 inch ]
251 mm
[ 9.88 inch ]
223 mm [ 19 inch ]
microSync Date: 29th July 2021 3

4 Important Safety Information
4.1 Important Safety Instructions and Protective Measures
The following safety instructions must be respected in all operating and installation phases of the device. Non-
observance of safety instructions, or rather special warnings and operating instructions in product manuals,
violates safety standards, manufacturer instructions and proper usage of the device. Meinberg Funkuhren shall
not be responsible for any damage arising due to non-observance of these regulations.
Depending on your device or the installed options
some information is not valid for your device.
The device satisfies the requirements of the following EU regulations: EMC-Directive,
Low Voltage Directive, RoHS Directive and - if applicable - the Radio Equipment Directive.
If a procedure is marked with the following signal words, you may only continue, if you have understood and
fulfilled all requirements. In this documentation dangers and indications are classified and illustrated as follows:
DANGER!
The signal word indicates an imminently hazardous situation with a high risk level . This notice
draws attention to an operating procedure or similar proceedings, of which a non-observance may
result in serious personal injury or death .
WARNING!
The signal word indicates a hazard with a medium risk gradient . This notice draws attention to an
operating procedure, a procedure or the like which, if not followed, can lead to serious injuries ,
possibly resulting in death .
CAUTION!
The signal word indicates a hazard with a low risk gradient . This notice draws attention to an
operating procedure, a procedure or the like which, if not followed, can lead to minor injuries .
ATTENTION!
This notice draws attention to an operating procedure, a procedure or the like which, if not followed,
can cause damage to the product or loss of important data .
4 Date: 29th July 2021 microSync

4 Important Safety Information

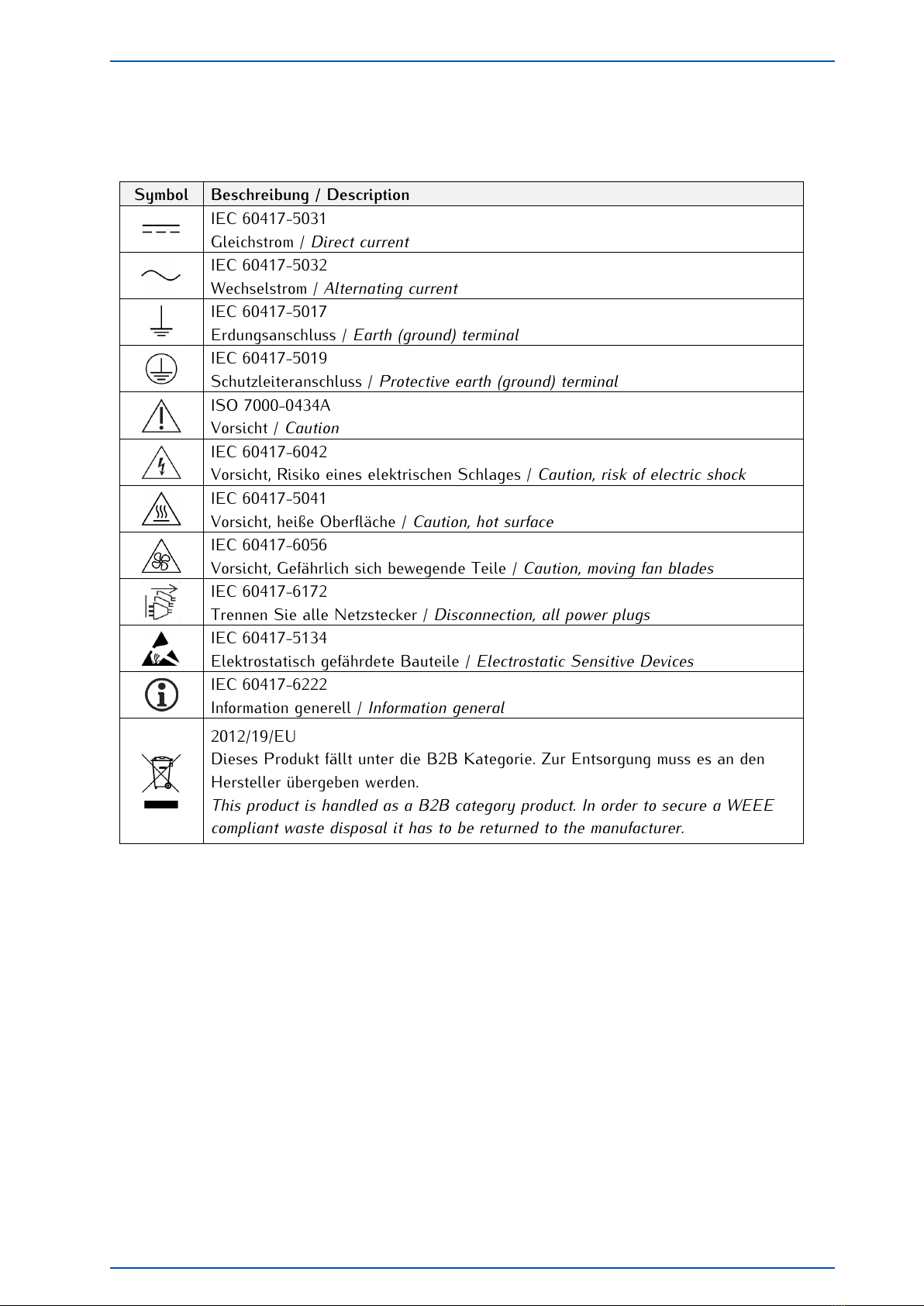

4.2 Used Symbols
The following symbols and pictograms are used in this manual. To illustrate the source of danger, pictograms
are used, which can occur in all hazard classes.
Symbol
Beschreibung / Description
IEC 60417-5031
Gleichstrom / Direct current
IEC 60417-5032
Wechselstrom / Alternating current
IEC 60417-5017
Erdungsanschluss / Earth (ground) terminal
IEC 60417-5019
Schutzleiteranschluss / Protective earth (ground) terminal
ISO 7000-0434A
Vorsicht / Caution
IEC 60417-6042
Vorsicht, Risiko eines elektrischen Schlages / Caution, risk of electric shock
IEC 60417-5041
Vorsicht, heiße Oberfläche / Caution, hot surface
IEC 60417-6056
Vorsicht, Gefährlich sich bewegende Teile / Caution, moving fan blades
IEC 60417-6172
Trennen Sie alle Netzstecker / Disconnection, all power plugs
IEC 60417-5134
Elektrostatisch gefährdete Bauteile / Electrostatic Sensitive Devices
IEC 60417-6222
Information generell / Information general
2012/19/EU
Dieses Produkt fällt unter die B2B Kategorie. Zur Entsorgung muss es an den
Hersteller übergeben werden.
This product is handled as a B2B category product. In order to secure a WEEE
compliant waste disposal it has to be returned to the manufacturer.
microSync Date: 29th July 2021 5

The product manuals are stored on a USB stick, which is delivered with the system. The manuals can also
be downloaded from the Meinberg website https://www.meinbergglobal.com. Enter the respective system name
into the search box at the top of the page.
This manual contains important safety instructions for the installation and operation of the
device. Please read this manual completely before using the unit.
This device may only be used for the purpose described in this manual. In particular, the given
limits of the device must be observed. The safety of the installation in which the unit is
integrated is the responsibility of the installer!
Non-observance of these instructions can lead to a reduction in the safety of this device!
Please keep this manual in a safe place.
This manual is intended exclusively for electricians or persons trained by an electrician who are familiar with
the applicable national standards and safety rules. Installation, commissioning and operation of this device may
only be carried out by qualified personnel.
