1. Scope and Development Kit content
The DVK91220 provides all the needed components to evaluate the performances and the functionalities of
MLX91220 integrated current sensor family. It includes:
-A ready-to-use evaluation board provided with MLX91220KDC-ABF-050 for a quick start.
-An evaluation board with no IC to be customized with the reference you need. Please refer to the
datasheet for all available product codes.

DVK91220 – SOIC8
User Guide
Doc. №390119122002
DVK91220 – SOIC8
User Manual
Page 2 of 8
REVISION 1.0 – 1 December 2020
2. Key features
2.1. Sensor
Isolated current measurement demonstrator factory calibrated for 50 A
5 V of working supply
2.4k
 of voltage isolation
Stray field immune due to differential measurement
< 3 µs response time
2.2. PCB
PCB adapted to high current measurements up to 30 Arms continuous
Ground Layer and decoupling capacitors for high EMC performances
Placeholder for output filter implementation

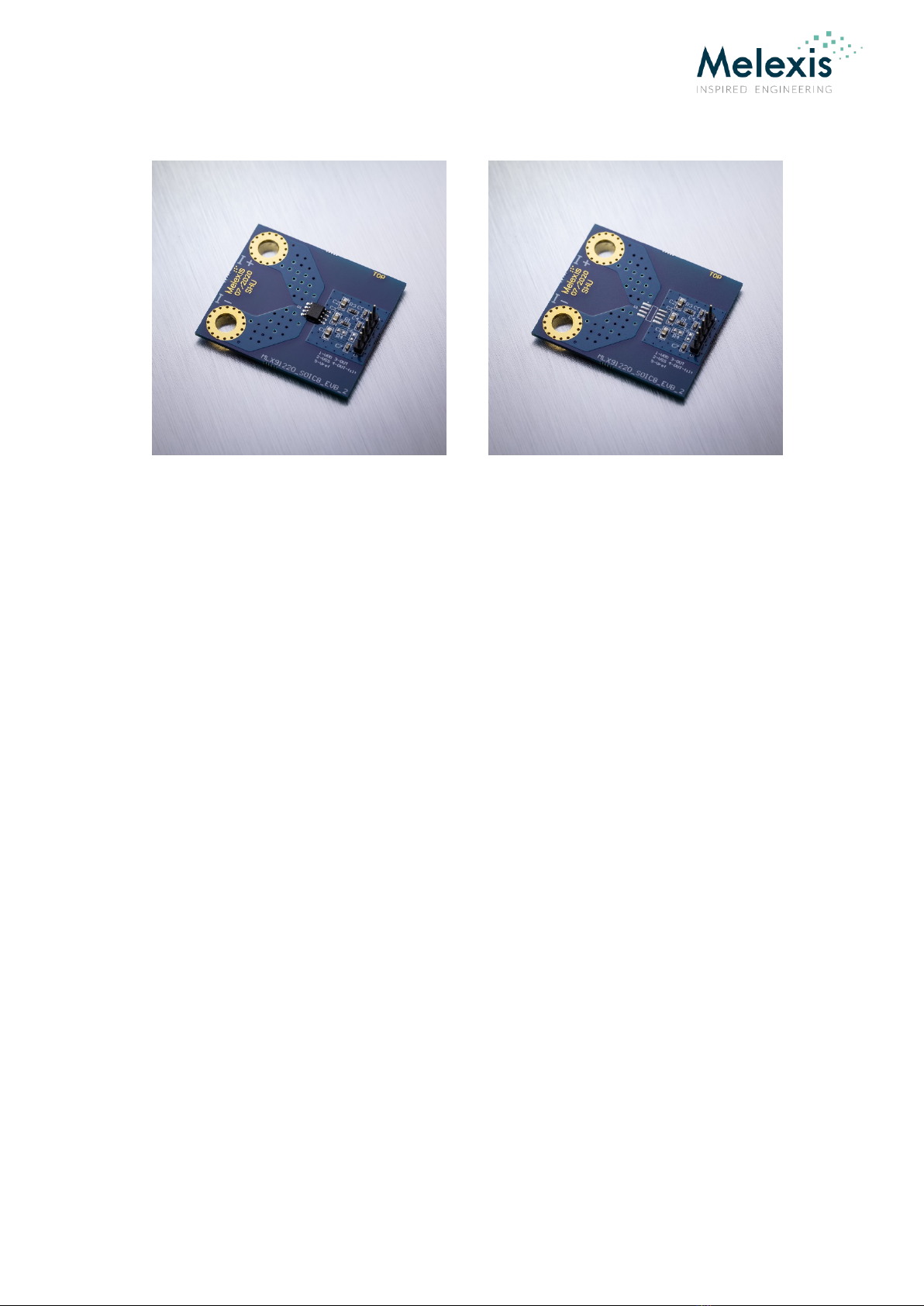

Figure 1: Content of DVK91220-SOIC8 : A ready-to use EVB with MLX91220KDC-ABF-050 (left)
and a customizable EVB (right)

DVK91220 – SOIC8
User Guide
Doc. №390119122002
DVK91220 – SOIC8
User Manual
Page 3 of 8
REVISION 1.0 – 1 December 2020
3. Hardware
3.1. PCB layout
Figure 2: Layout of the EVB91220 SOIC8
3.2. PCB characteristics
The MLX91220_SOIC8_EVB is manufactured with two 105 µm copper layers and an ENIG Surface finishing.
Please note that the revision 2 of the board (MLX91220_SOIC8_EVB_2) has two 70 µm copper layers and no
ENIG surface finishing. This version can still be used for 35 Arms continuous current at 25°C but the thermal
management will be less efficient.
Current input
MLX91220
Connector

DVK91220 – SOIC8
User Guide
Doc. №390119122002
DVK91220 – SOIC8
User Manual
Page 4 of 8
REVISION 1.0 – 1 December 2020
3.3. Schematics
Figure 3: Schematics of the EVB91220 - SOIC8
3.4. Pins Designation
Table 1: MLX91220 pin designation
PIN
Pin
Function
Type
1
IP+
Primary Current Path
Input
Analog
2
3
IP-
Primary Current Path
Output
Analog
4
5
VSS
Ground Voltage
Ground
6
VREF
Reference Voltage
Analog
7
VOUT
Output Voltage
Analog
8
VDD
Supply Voltage
Supply
Table 2: Connector pins designation
Pin Function
1 Supply Voltage
2 Ground Voltage
3 Output Voltage
4 Filtered Output Voltage (not populated)
5 Reference Voltage

DVK91220 – SOIC8
User Guide
Doc. №390119122002
DVK91220 – SOIC8
User Manual
Page 5 of 8
REVISION 1.0 – 1 December 2020
3.5. Bill of Material
Part Description Value
C1 Reference pin decoupling
capacitor EMI, ESD 47 nF
C2 Supply capacitor, EMI , ESD 47 nF
C3 Output pin Decoupling capacitor
EMI, ESD 4.7 nF
C4, C5, C7 Decoupling capacitor EMI, ESD 1 nF
R1, R3 Connection to header 0 Ω
R4, C6 Extra RC filter TBD

DVK91220 – SOIC8
User Guide
Doc. №390119122002
DVK91220 – SOIC8
User Manual
Page 6 of 8
REVISION 1.0 – 1 December 2020
4. MLX91220KDC-ABF-050
4.1. Characteristics
The Development Kit contains two PCBs. One is not populated. Please refer to the datasheet of MLX91220 or
MLX91221 to find the adapted product for your application.
One PCB is populated with MLX91220KDC-ABF-050. Table 3 describes its configuration. Please refer to the
datasheet for the full specifications. Figure 4: Output of MLX91220KDC-ABF-050
Table 3: MLX91220KDC-ABF-050 configuration
Product
code Legend
MLX91220 5V Supply Integrated Current Sensor
K - 40°C to 125°C ambient temperature
DC SOIC-8 NB (Narrow Body – 150mils) package
A Die version
B
Bipolar sensing. The sensor provides a symmetrical output around the 0A point which is set
at


F Fixed mode output
50 50 A at Full Scale current measurement (corresponding to 2V excursion from VOQ).
Corresponds to a sensitivity of 40 mV/A

DVK91220 – SOIC8
User Guide
Doc. №390119122002
DVK91220 – SOIC8
User Manual
Page 7 of 8
REVISION 1.0 – 1 December 2020
4.2. Sensor output
Figure 4 displays the expected output of the sensor and 
 value. The measured current can be retrieved by
the following formula:
= 
 −  

Where S = 40 mV/A.
Figure 4: Output of MLX91220KDC-ABF-050

DVK91220 – SOIC8
User Guide
Doc. №390119122002
DVK91220 – SOIC8
User Manual
Page 8 of 8
REVISION 1.0 – 1 December 2020
