Members Mark GR2310803-MM-00 Owner's manual

1 | P a g e
Assembly Instructions & User’s Manual
for
Member’s Mark Charcoal & Gas Combo Grill
Item Number: 980305021 / 980305488
Model Number: GR2310803-MM-00
Customer Assistance (spare/replacement parts): 1-888-837-1380
or Email: [e-mail]
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

2 | P a g e
Table of Contents
Quality Statement.....................................................................................................................................3
Important Safety Information................................................................................................................3
Before Assembly......................................................................................................................................3
Care & Use..............................................................................................................................................3-6
Package Contents.................................................................................................................................7-8
Product Information ................................................................................................................................8
Components.........................................................................................................................................9-13
Hardware..................................................................................................................................................14
Tools..........................................................................................................................................................14
Step 1 –Step 29.................................................................................................................................15-29
Warning..................................................................................................................................30-35
Danger.........................................................................................................................................36
Troubleshooting.....................................................................................................................................37
Care & Use Instructions..................................................................................................................38-47
Technical Data........................................................................................................................................47
Warranty Information............................................................................................................................48
WARNING
1. Do not store or use gasoline or other flammable liquids or vapors in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any
other appliance.
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance and immediately
call your fire department.
Failure to follow these instructions could result in fire or explosion
which could cause property damage, personal injury or death.

3 | P a g e
Quality Statement
Important Safety Information
•Please read all instructions carefully before assembling this product.
•Where applicable, and for your safety, assembly by an adult is strongly
recommended.
•Use only vendor-supplied hardware to assemble this item. Using unauthorized
hardware could jeopardize the structural integrity of the item.
•Hardware may loosen overtime. Periodically check that all connections are tight.
•Follow all warnings and instructions when using the appliance.
•Failure to follow these instructions and warnings could result in serious product or
personal damage.
Before Assembly
•Remove all parts and hardware from the box. Place all items on a carpeted or
scratch-free work surface, as this will avoid damaging parts during assembly.
•The shipping box can provide an ideal work surface if none is available.
•Use the components and hardware lists below to identify, inventory and separate
each of the hardware and components included.
•To avoid accidentally discarding small components or hardware, do not dispose
of any packaging or contents of the shipping carton until assembly is complete.
•DO NOT USE power tools unless it is explicitly identified in this manual as
required for use during assembly. Power tools can damage the fasteners,
hardware and/or components.
•Do not fully tighten all fasteners / screws until all parts are in place. Failure to
follow these instructions may cause the fasteners / screws to misalign during
assembly.
Care & Use
•Use a soft, clean cloth that will not scratch the surface when cleaning.
•Gloves are recommended while assembling the grill.

4 | P a g e
USE AND INSTALLATION OF LP GAS CYLINDER (PROPANE TANK)
BEFORE INSTALLING:
The installation must conform with local codes or (in the absence of local codes) with
either the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane
Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2, or the
Standard for Recreational Vehicles, ANSI A 119.2/NFPA 1192, and CSA Z240 RV Series,
Recreational Vehicle Code, as applicable.
BEFORE EVERY USE:
Be sure to inspect the hose for leaks, cuts, wear, abrasion, or damage of any sort before
using this appliance. If any the hose shows any damage, it must be replaced with a new
hose specified by the manufacturer before further use.
LP GAS CYLINDER
The LP (liquid propane) cylinder specifically designed to be used with this unit MUST
have a 20 lb. (9.1kg) capacity with a Type 1 cylinder valve and an overfilling protection
device (OPD).
LP Tank Valve Requirements:
⚫Purchase LP tanks only with these required measurements:
12” (30.5cm) (diameter) x 18” (45.7cm) (tall) with 20lb. (9kg)
capacity maximum.
⚫Type 1 outlet compatible with regulator or appliance.
⚫Safety relief valve.
⚫UL-listed Overfill Protection Device (OPD). This OPD safety
feature is identified by a unique triangular hand wheel. Use
only tanks equipped with this type of valve.
⚫LP tank must be arranged for vapor withdrawal.
⚫The LP cylinder must be constructed and
marked in accordance with the Specifications
for LP-Gas Cylinders of the U.S. Department of
Transportation (D.O.T.) or the National
Standard of Canada CAN/CSA – B339,
Cylinder, Spheres, Tubes for Transportation of
Dangerous Goods; and Commission of
Dangerous Goods; and Commission, as
applicable.
⚫The LP cylinder must include a collar to protect the cylinder valve.
⚫When this appliance is not in use, the gas must be turned off at the supply
cylinder(s).
⚫The LP cylinder must be stored outdoors out of the reach of children and MUST NOT
be stored in a building, garage, shed, breezeway, or any other enclosed space.
⚫Storage of an outdoor cooking gas appliance indoors is permissible ONLY if the
cylinder is disconnected and removed from the appliance.
⚫The cylinder should ALWAYS sit in an upright position.

5 | P a g e
INSTALLING GAS CYLINDER
1. Check that the cylinder valve is closed by turning the knob clockwise.
2. Place the cylinder into cylinder holder and tighten the fixing bolt. Place cylinder such
that the valve opening faces the side burner in such a way that the hose is not
kinked/damaged.
3. Attach/detach the regulator to LP cylinder only when the cylinder is resting on the cart
base properly.
CAUTION
⚫When installing LP cylinders, the pressure regulator and hose supplied by the
manufacturer MUST be used with the appropriate cylinder. Replacement
regulators and hoses need to be specified by the manufacturer of this
appliance.
⚫Place the dust cap on the cylinder valve outlet whenever the cylinder is not in
use. Only install the type of dust cap on the cylinder valve outlet that is
provided with the cylinder. Other types of caps or plugs may result in a propane
leak.

6 | P a g e
CONNECTION PROCEDURES

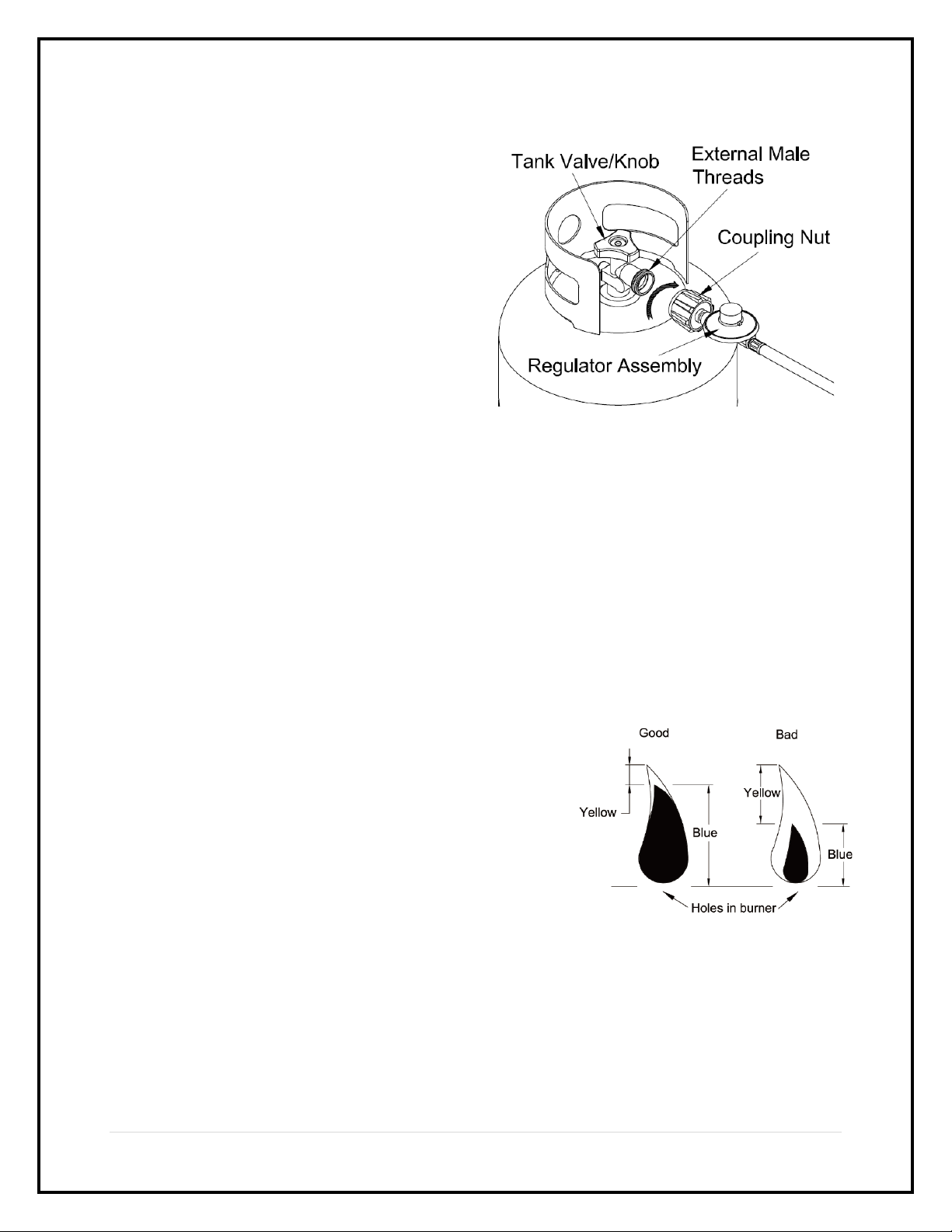

1. Make sure the tank valve is closed (turn
valve clockwise until tight).
2. Check the tank valve to ensure it has the
proper external male threads.
3. Make sure all burner valves are turned
OFF.
4. Check valve connections, port, and
regulator assembly for any damage or
debris. Remove any debris. Inspect the
hose for damage. Never attempt to use
damaged or obstructed equipment.
Contact your local LP gas dealer for
repair.
5. When connecting the regulator assembly
to the valve, hand-tighten the quick coupling nut clockwise until tight. Do not use a
wrench to tighten. Use of a wrench may damage the quick coupling nut.
6. Open the tank valve fully (counterclockwise). Use a soapy water solution to check all
connections for leaks (leak test) before attempting to light the grill (see P.32-33). If a
leak is found, turn the tank valve off and do not use the grill until your LP gas dealer
can make repairs.
TO DISCONNECT LP CYLINDER:
1. Turn the burner valves off.
2. Turn the tank valve off fully (turn clockwise).
3. Detach the regulator assembly from the tank valve by turning the quick coupling nut
counterclockwise.
FLAME CHARACTERISTICS
Burner flames should be blue and stable with little
yellow tips and no excessive noise or lifting. If the
flame is yellow, it indicates insufficient air. If the flame
is noisy and tends to lift away from the burner, it
indicates too much air. If any of these conditions exist,
call our customer service line. Visually check the
burner flames prior to each use.

7 | P a g e

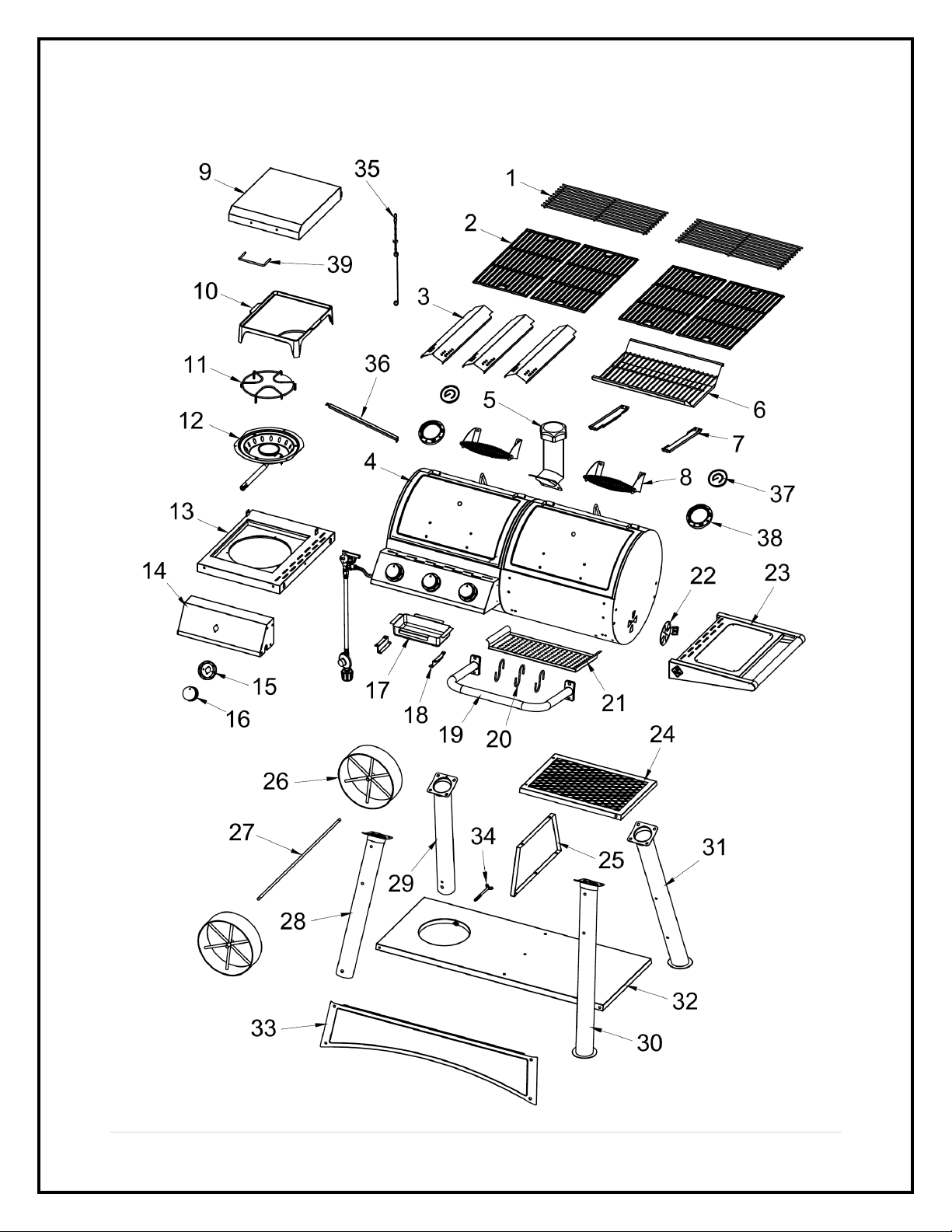

Package Contents

8 | P a g e
Component
Description
Quantity
Component
Description
Quantity
1
Warming Rack
2
21
Front Handle Tray
1
2
Cooking Grate
4
22
Air Vent
1
3
Flame Tamer
3
23
Side Table
1
4
Grill Body
Assembly
1
24
Cart Rack
1
5
Smoke Stack
Assembly
1
25
Cart Rack Support
1
6
Charcoal Tray
1
26
Wheel
2
7
Charcoal Tray
Holder
2
27
Wheel Axle
1
8
Lid Handle
2
28
Left Front Leg
1
9
Side Burner Lid
1
29
Left Rear Leg
1
10
Griddle
1
30
Right Front Leg
1
11
Side Burner Grate
1
31
Right Rear Leg
1
12
Side Burner
Assembly
1
32
Cart Base
1
13
Side Burner
Frame
1
33
Cart Front Panel
1
14
Side Burner
Control Panel
1
34
Tank Fixing Bolt
1
15
Control Knob
Bezel
1
35
Match Holder
1
16
Control Knob
1
36
Side Burner Support
1
17
Grease Cup
1
37
Thermometer
2
18
Grease Cup
Holder
1
38
Thermometer Bezel
2
19
Front Handle
1
39
Side Burner Lid Handle
1
20
Hook
3
Product Information
Product Dimensions –70.94” x 36.69” x 51.57” (180.2cm x 93.2cm x 131.0cm)
Product Weight Capacity –Supports up to 145.5 lbs. (66.1 kg.)
Need Assistance? Visit us at: samsclub.com/membersmarkhelp

9 | P a g e

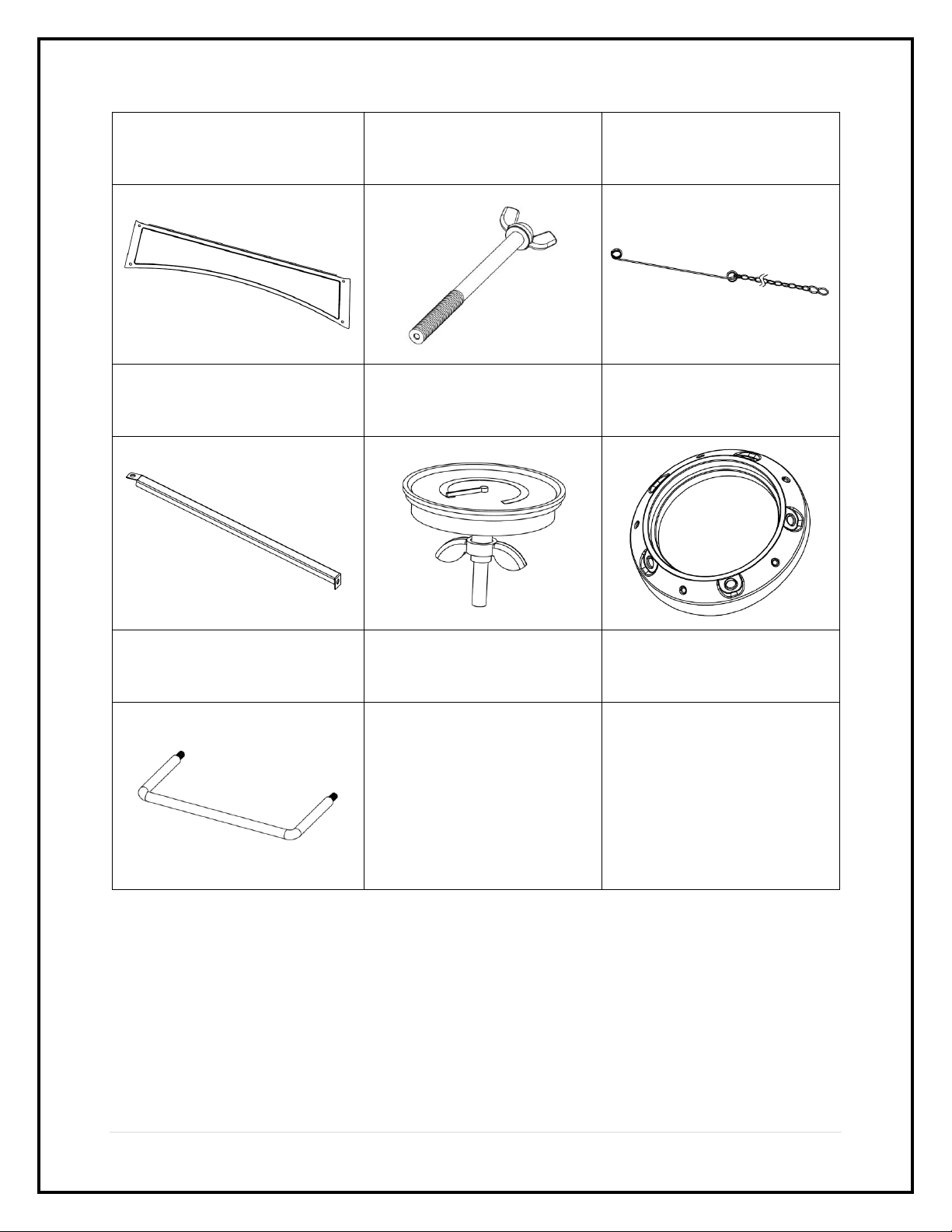

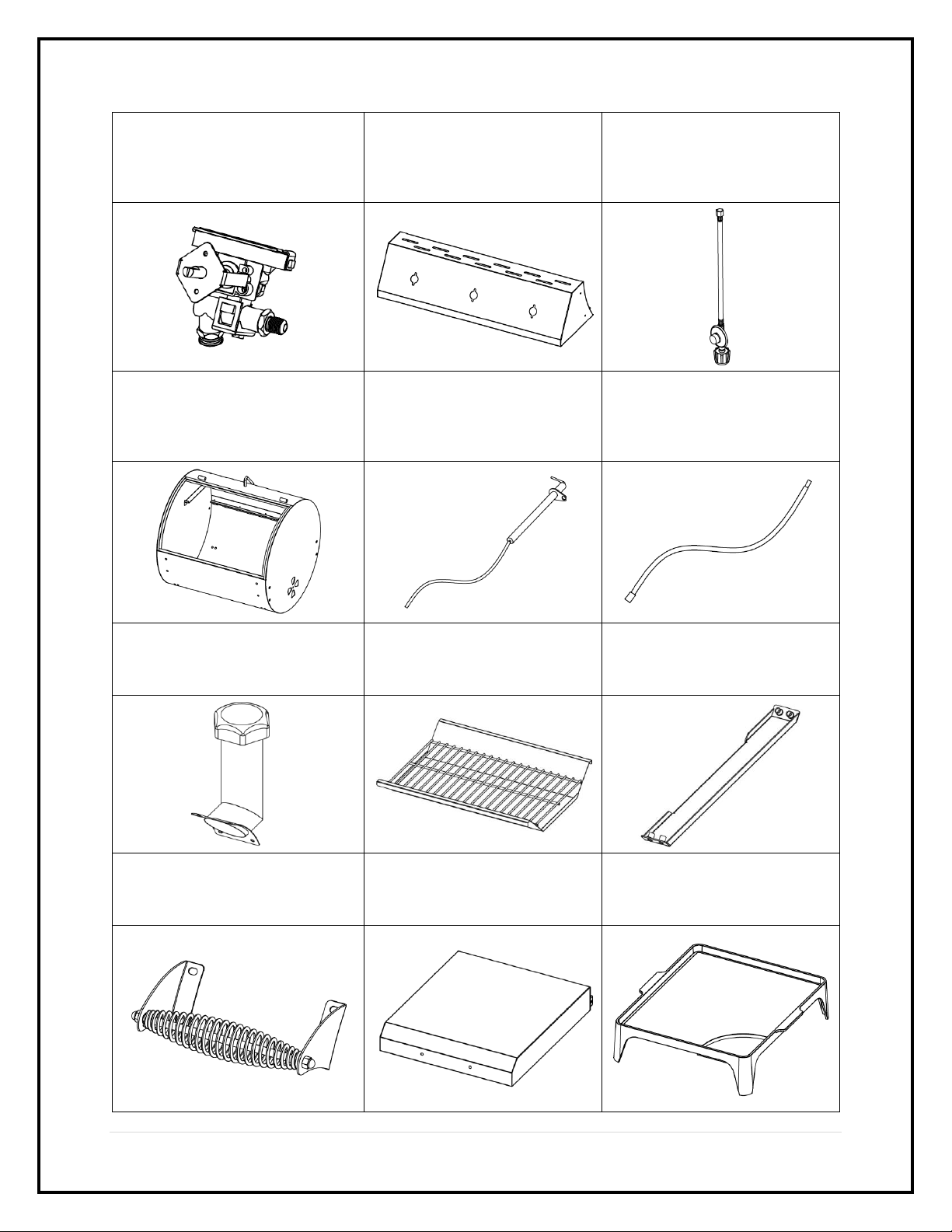

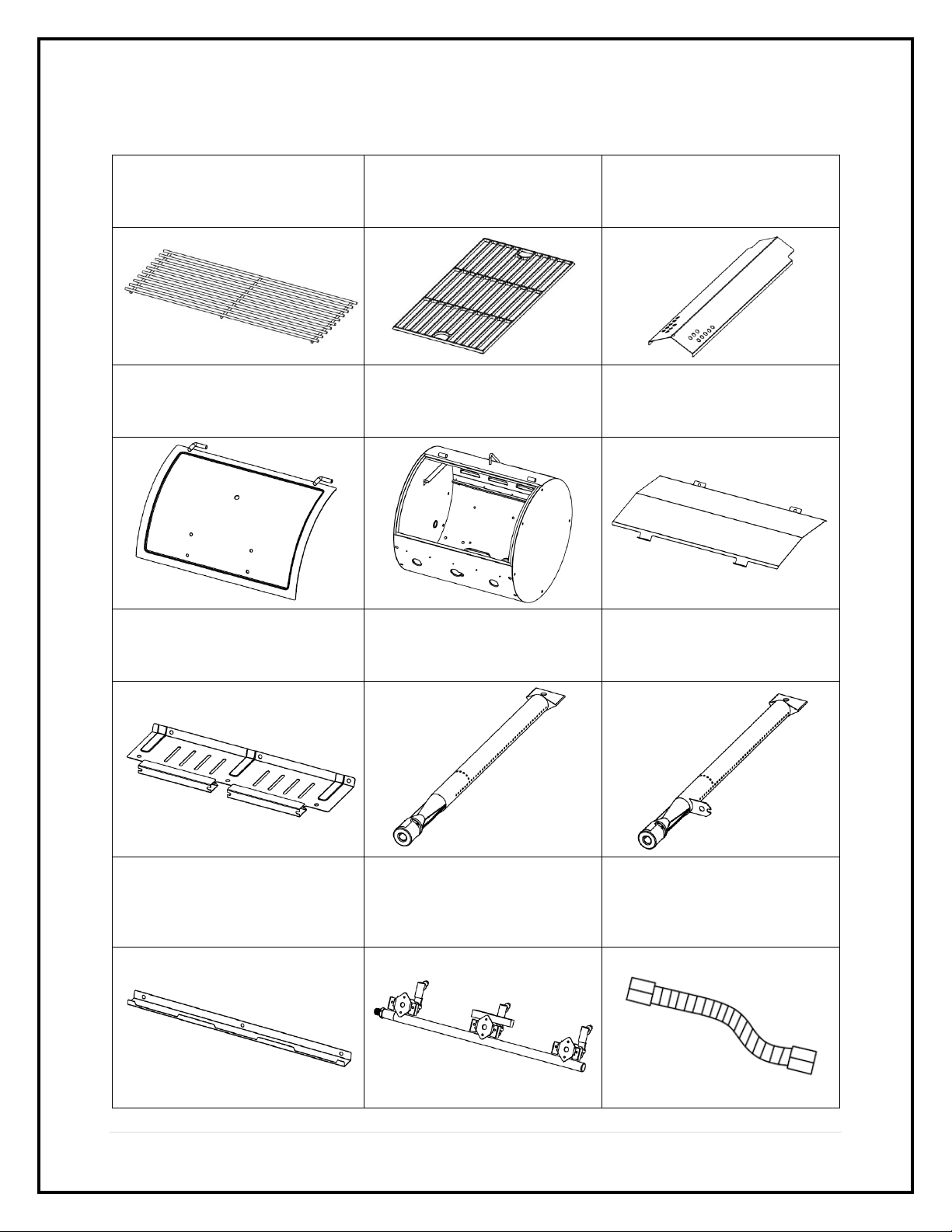

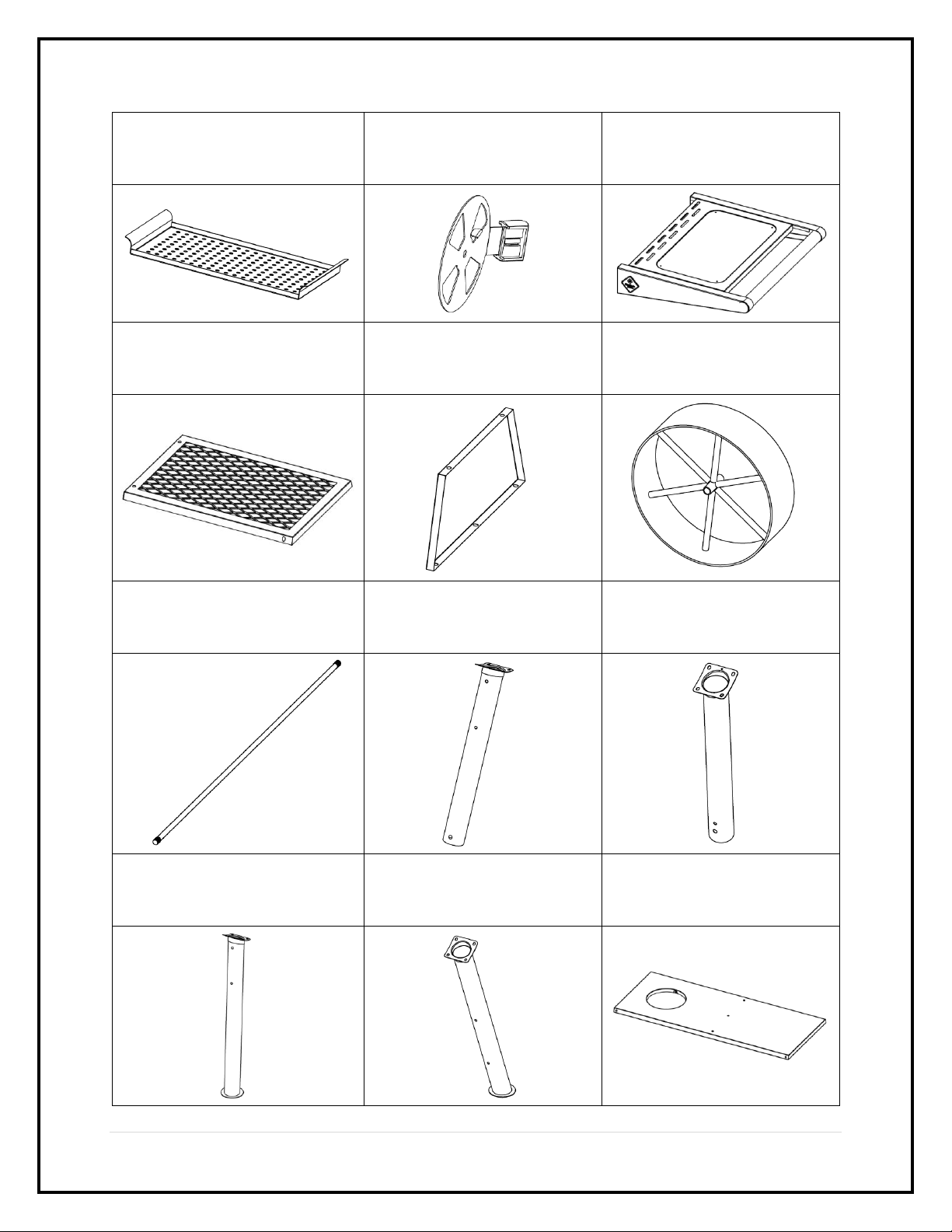

Components
Component 1
Warming Rack
Part No. MET-3B0123
Qty 2
Component 2
Cooking Grate
Part No. MET-3B0124
Qty 4
Component 3
Flame Tamer
Part No. MET-3B0125
Qty 3
Component 4a
Grill Body - Lid
Part No. MET-3B0126
Qty 2
Component 4b
Grill Body –Fire Box (Gas Grill)
Part No. MET-3B0127
Qty 1
Component 4c
Grill Body –Heat Shield
Part No. MET-3B0128
Qty 1
Component 4d
Grill Body –Carry Over
Part No. MET-3B0129
Qty 1
Component 4e
Grill Body –Burner
Part No. GAS-3B0015
Qty 2
Component 4f
Grill Body –Ignition Burner
Part No. GAS-3B0016
Qty 1
Component 4g
Grill Body –Flame Tamer Holder
Part No. MET-3B0130
Qty 1
Component 4h
Grill Body –Valve & Manifold
Assembly
Part No. GAS-3B0017
Qty 1
Component 4i
Grill Body –Corrugated Gas
Tube
Part No. MET-3B0131
Qty 1

10 | P a g e
Component 4j
Grill Body –Side Burner Valve
Part No. GAS-3B0018
Qty 1
Component 4k
Grill Body –Control Panel
Part No. MET-3B0132
Qty 1
Component 4l
Grill Body –Hose & Regulator
Assembly
Part No. GAS-3B0019
Qty 1
Component 4m
Grill Body –Fire Box (Charcoal
Grill)
Part No. MET-3B0133
Qty 1
Component 4n
Grill Body –Ignition Electrode&
Wire
Part No. ELE-3B0006
Qty 1
Component 4o
Side Burner –Ignition Wire
Part No. ELE-3B0008
Qty 1
Component 5
Smoke Stack Assembly
Part No. MET-3B0134
Qty 1
Component 6
Charcoal Tray
Part No. MET-3B0135
Qty 1
Component 7
Charcoal Tray Holder
Part No. MET-3B0136
Qty 2
Component 8
Lid Handle
Part No. MET-3B0137
Qty 2
Component 9
Grill Body –Side Burner Lid
Part No. MET-3B0138
Qty 1
Component 10
Griddle
Part No. MET-3B0139
Qty 1

11 | P a g e
Component 11
Side Burner Grate
Part No. MET-3B0140
Qty 1
Component 12a
Side Burner –Side Burner Tray
Part No. MET-3B0141
Qty 1
Component 12b
Side Burner –Side Burner
Part No. GAS-3B0020
Qty 1
Component 12c
Side Burner –Ignition Electrode
With Lead Wire
Part No. ELE-3B0007
Qty 1
Component 13
Side Burner Frame
Part No. MET-3B0142
Qty 1
Component 14
Side Burner Control Panel
Part No. MET-3B0143
Qty 1
Component 15
Control Knob Bezel
Part No. PLA-3B0009
Qty 4
Component 16
Control Knob
Part No. PLA-4B0003
Qty 4
Component 17
Grease Cup
Part No. MET-3B0144
Qty 1
Component 18
Grease Cup Holder
Part No. MET-3B0145
Qty 2
Component 19
Front Handle
Part No. MET-3B0146
Qty 1
Component 20
Hook
Part No. MET-3B0147
Qty 3

12 | P a g e
Component 21
Front Handle Tray
Part No. MET-3B0148
Qty 1
Component 22
Air Vent
Part No. MET-3B0149
Qty 1
Component 23
Side Table
Part No. MET-3B0150
Qty 1
Component 24
Cart Rack
Part No. MET-3B0151
Qty 1
Component 25
Cart Rack Support
Part No. MET-3B0152
Qty 1
Component 26
Wheel
Part No. MET-3B0153
Qty 2
Component 27
Wheel Axle
Part No. MET-3B0154
Qty 1
Component 28
Left Front Leg
Part No. MET-3B0155
Qty 1
Component 29
Left Rear Leg
Part No. MET-3B0156
Qty 1
Component 30
Right Front Leg
Part No. MET-3B0157
Qty 1
Component 31
Right Rear Leg
Part No. MET-3B0158
Qty 1
Component 32
Cart Base
Part No. MET-3B0159
Qty 1

13 | P a g e
Component 33
Cart Front Panel
Part No. MET-3B0160
Qty 1
Component 34
Tank Fixing Bolt
Part No. HAR-3B0006
Qty 1
Component 35
Match Holder
Part No. MET-3B0161
Qty 1
Component 36
Side Burner Support
Part No. MET-3B0162
Qty 1
Component 37
Thermometer
Part No. THE-3B0004
Qty 2
Component 38
Thermometer Bezel
Part No. MET-3B0163
Qty 2
Component 39
Side Burner Lid Handle
Part No. MET-3B0164
Qty 1

14 | P a g e

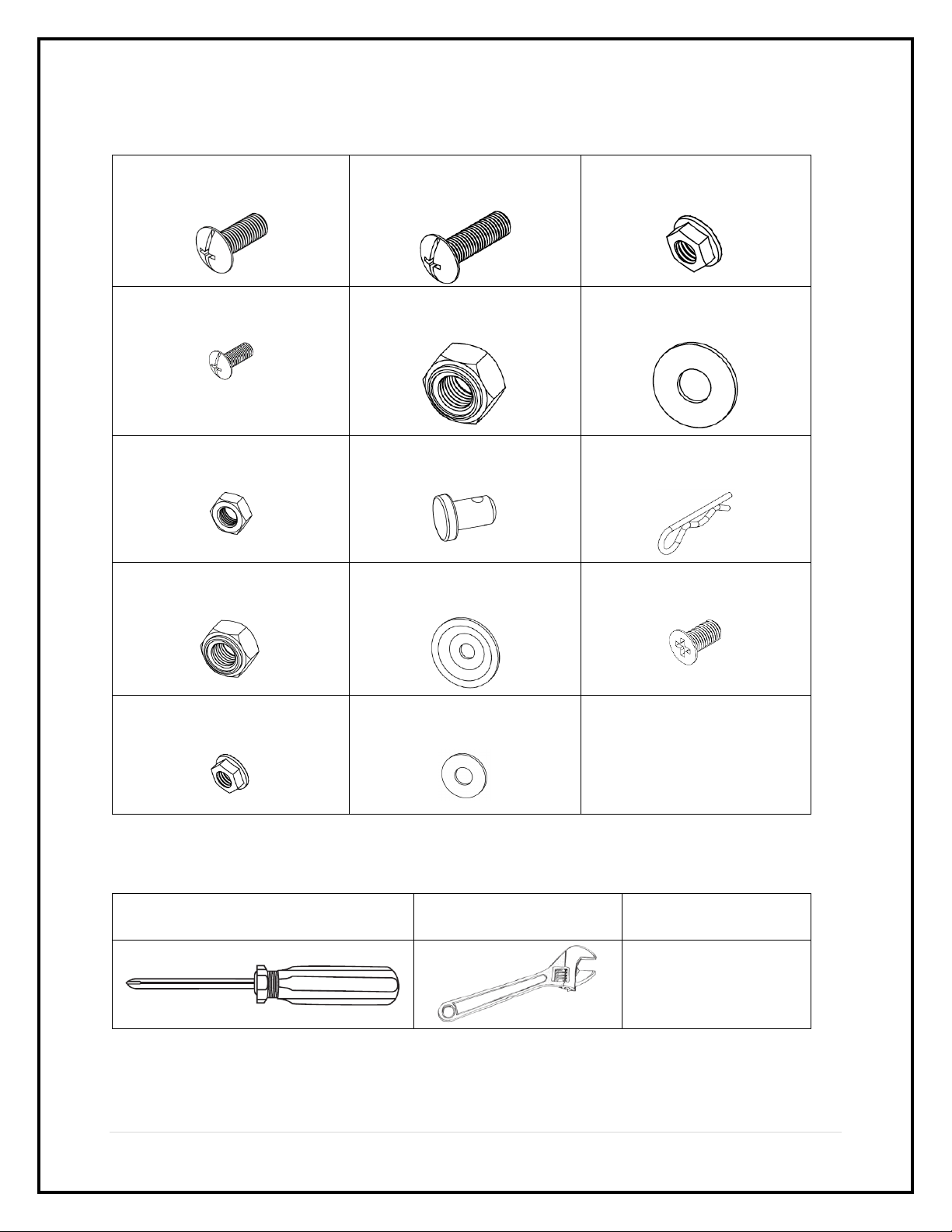

Hardware
Phillips Head Bolt, M6x12mm,
Item No. A
Qty: 71
Phillips Head Bolt, M6x20mm,
Item No. B
Qty: 4
M6 Nut,
Item No. C
Qty: 16
Phillips Head Bolt, M4x10mm,
Item No. D
Qty: 5
M10 Locking Nut,
Item No. E
Qty: 2
M10 Washer,
Item No. F
Qty: 4
M4 Nut,
Item No. G
Qty: 3
Hinge Pin,
Item No. H
Qty: 2
Cotter Pin,
Item No. I
Qty: 2
M6 Locking Nut
Item No. J
Qty: 1
Tanking Fixing Washer
Item No. K
Qty: 1
M4 Flat Head Bolt
Item No. L
Qty: 1
M5 Nut
Item No. M
Qty: 2
M5 Washer
Item No. N
Qty: 2
Tools
Phillips Head Screwdriver (Not included)
Adjustable Wrench (Not
included)
Need Assistance? Visit us at: samsclub.com/membersmarkhelp

15 | P a g e
Step 1 –Step 29（Two person for assembly is recommended）
Step 1. Attach the Legs (28, 29, 30 & 31) to the Grill Body Assembly (4) using 16 pcs
M6x12 Bolts (A). Do not fully tighten the bolts.
Step 2. Attach the Tank Fixing Bolt (34) to the Cart Base (32) using one M4 Flat Head
Bolt (L) and one Tank Fixing Washer (K).

16 | P a g e

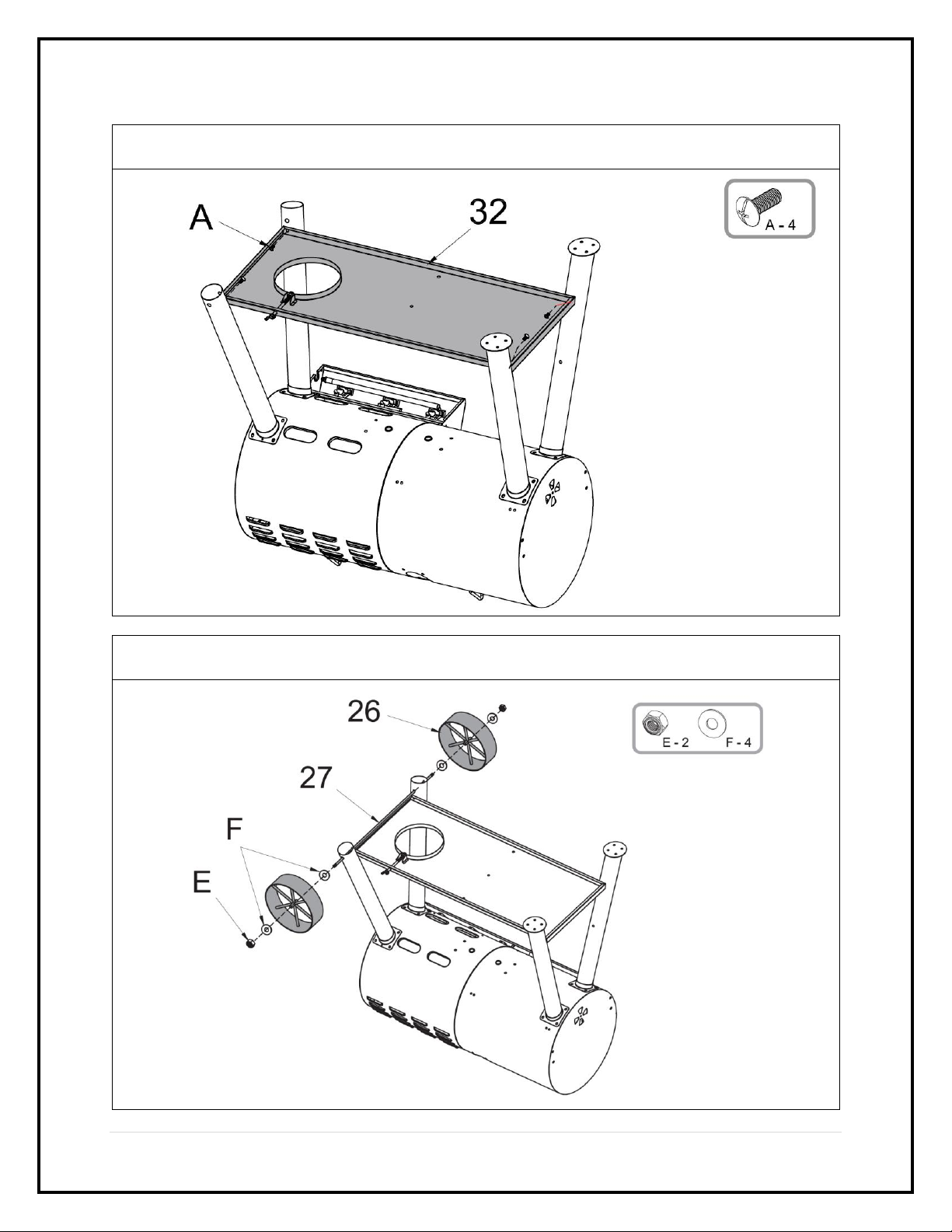

Step 3. Attach the Cart Base (32) to the cart legs using 4 pcs M6x12 Bolts (A). Do not
fully tighten the bolts.
Step 4. Attach the Wheel Axle (27) and the Wheels (26) to the cart assembly using 2
pcs M10 Locking Nuts (E) and 4 pcs M10 Washers (F).

17 | P a g e
Step 5. Attach the Cart Front Panel (33) to cart assembly using 4 pcs M6x12 Bolts
(A).
Step 6. Attach the Grease Cup Holders (18) to the grill body using 4 pcs M6x12 Bolts
(A).

18 | P a g e
Step 7. Attach the Cart Rack Support (25) to the cart assembly using 3 pcs M6x12
Bolts (A).
Step 8. Attach the Cart Rack (24) to the cart assembly using 4 pcs M6x12 Bolts (A).

19 | P a g e
Step 9. Fully tighten all the bolts on the cart assembly.

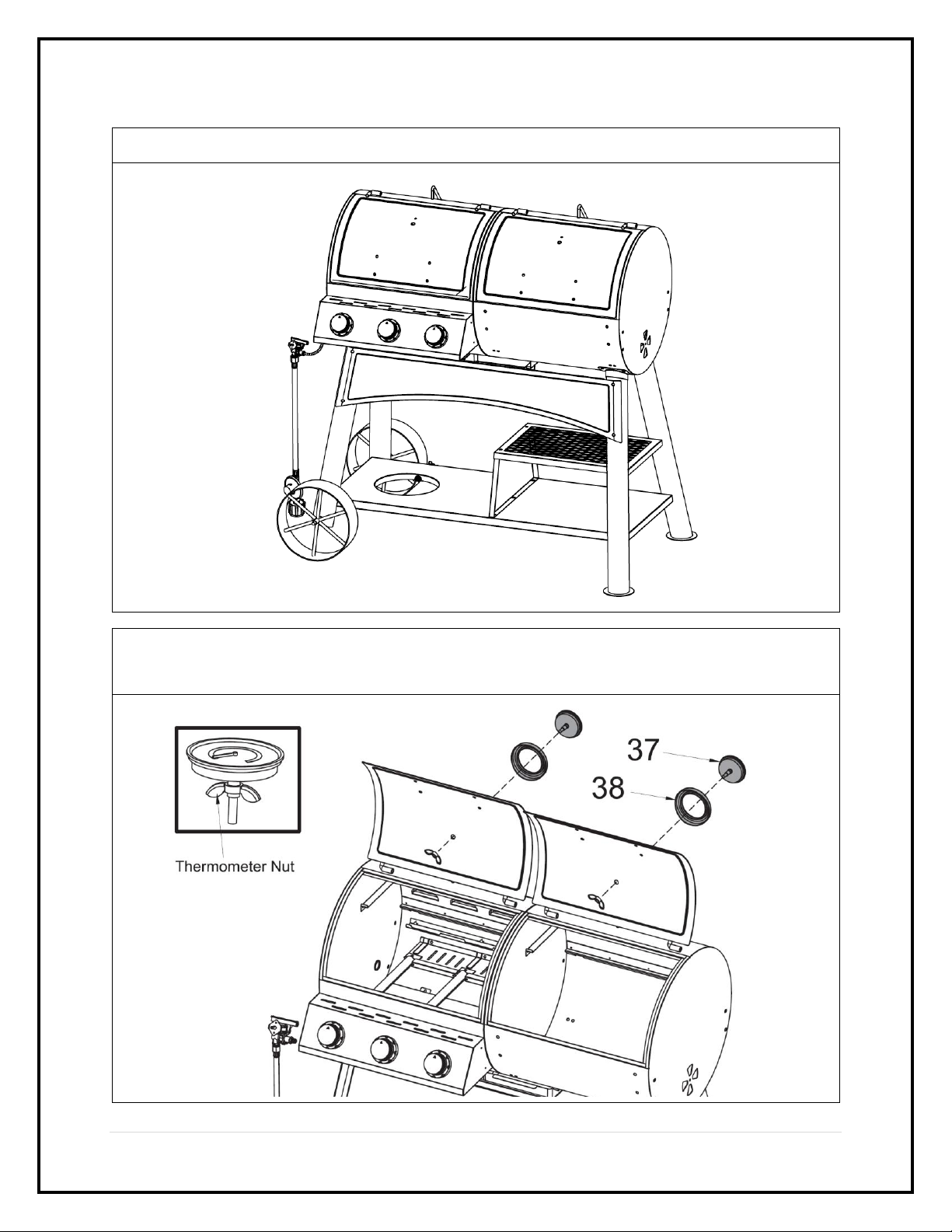

Step 10. Remove the thermometer nuts from the Thermometers (37). Attach the
Thermometers (37) and the Thermometer Bezels (38) to the lids using the removed
nuts as shown below.

20 | P a g e
Step 11. Attach the Lid Handles (8) to the lids using 8 pcs M6x12 Bolts (A) and 8 pcs
M6 Nuts (C).
Step 12. Attach the Side Burner Control Panel (14) to the Side Burner Frame (13)
using 3 pcs M6x12 Bolts (A).
