Members Mark BQ06043-1 User manual

Grill Guide
For Model BQ06043-1
Professional Liquid Propane Gas Island Grill
FOR YOUR SAFETY:
1. Read this Grill Guide before attempting to
assemble or operate your grill.
2. Follow all safety instructions.
3. Check for leaks according to directions in
this Grill Guide before operating your grill,
even if purchasing an assembled grill.
4. Keep this Grill Guide for future reference.
5. Contact 1-800-933-0527 should you need
assembly assistance or have any questions.
Stop!
Missing a part? No need to go back to SAM'S CLUB!
SAM'S CLUB does not stock parts for this item at the Club, but our grill team is here to
help you. If you need parts, whether they are missing or damaged,
please call Toll Free Help Line 1-800-933-0527
Call us between 8:30 AM to 5:00 PM Central Time, Monday through Friday.

Safety Precautions
Always read and follow all DANGER, WARNING, AND FOR YOUR SAFETY notices in this Grill
Guide. Failure to do may result in serious bodily injury or death, or in a fire or an explosion causing
damage to property.
1. Grill installation must conform with local codes, or in their absence, with either the National Fuel
Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1, or
Propane Storage and Handling Code, B149.2.
2. This gas grill, when installed, must be electrically grounded in accordance with local codes, or, in
the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian
Electrical Code, CSA C22.1.
3. This gas grill shall be used outdoors only, and shall not be used in a building, garage, or any other
enclosed area.
4. This gas grill is not intended to be installed in or on recreational vehicles and/or boats.
5. Never use any other type of fuel for this grill other than that specified on the name plate attached to
the grill or the cover of this Grill Guide.
6. Only use the pressure regulator with a type 1 connector that is supplied with this gas grill.
7. Before each use, check the gas hose for excessive abrasion or wear, or cuts. Replace a hose
assembly showing those signs with the hose assembly specified in the parts list before using the
grill.
THIS GRILL IS FOR OUTDOOR USE ONLY.
If stored indoors, then detach and leave propane cylinder outside.
WARNING
1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.
!
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the appliance, and immediately call your gas supplier or your fire
department.
!
WARNING
Combustion by-products produced when using this product contain chemicals known to the State of
California to cause cancer, birth defects, and other reproductive harm.
!
TO THE INSTALLER OR PERSON ASSEMBLYING THIS GRILL:
Leave this Grill Guide with the consumer.
TO THE CONSUMER:
Retain this Grill Guide for future reference.

3
Table of Contents
Safety Precautions……….……………………………..……………...…………...…… 2
Table of Contents…………………….…………………………………..……….……...3
Warranty……………………………….………………………………………….…….. 4
Customer Support Center……………….………………………………………….…….4
Assembly Instructions...…………………………………………………………..…..5-11
General Information and Operation………………..………………………………..12-20
Trouble Shooting Guide…………………………………………………..................…21
Frequently Asked Questions……………………………………………………………22
Write down here and keep for future
reference
Date of Purchase: _________________
Serial Number: ___________________
The serial number may be found on the placard located
on the back of the grill
BQ06043-1
Retailer :
Address :
Visit us at: www.samsclub.com

4
Limited Warranty
The manufacturer warrants to the original
consumer-purchaser that this product shall be
free from defects in workmanship and materials
under normal and reasonable use when
assembled and operated according to this Grill
Guide from date of purchase as follows:
One year except as noted below:
Stainless Steel Burners – 3 years
Stainless Steel Parts except Burners, Grates,
Warming Rack, and Heat Diffusers - 5 years
The manufacturer will, at its option, refinish or
replace any product or part found to be defective
during the limited warranty period. There may be
a shipping charge. The manufacturer may require
you to return the part(s) claimed to be defective
for its inspection, freight or postage prepaid.
Contact our Customer Support Center as shown
below before returning any part(s).
Additional information can be obtained by
writing:
Barbecue Grills
Warranty Dept.
1375 Mitchell Blvd
Schaumburg, IL 60193
The manufacturer will require reasonable proof
of purchase. We strongly recommend you
keep your sales receipt and register your grill.
You can attach your receipt to this guide.
This limited warranty does not cover the cost of
any inconvenience or property damage due to
failure of the product and does not cover damage
due to misuse, abuse, alteration, improper or
failure to perform normal and routine
maintenance, discoloration, scratches, rust,
accident, damage arising out of transportation of
the product, or normal wear and tear. This
limited warranty will not apply to any grill used
for commercial use.
This limited warranty is the sole warranty given
by the manufacturer and is in lieu of all other
warranties; express or implied, including implied
warranty of merchantability or fitness for a
particular purpose. Neither manufacturer dealers
nor the retail establishment selling this product
have any authority to make any warranties or to
promise remedies in addition to or inconsistent
with those stated above.
This limited warranty applies only to products
sold at retail, and is not transferable.
The manufacturer's maximum liability, in any
event, shall not exceed the purchase price of the
product paid by the original consumer-purchaser.
Some states do not allow the exclusion or
limitation of incidental or consequential damages.
Therefore, the above limitations or exclusions
may not apply to you. This warranty gives you
specific legal rights and may also have other
rights, which vary from state to state.
Customer Support Center
Thanks for purchasing a Member’s Mark Grill. We’re here to help you maximize your enjoyment and
appreciation of your new grill. Please don’t hesitate to contact us should you have any questions regarding
assembly, performance, warranty, or accessories. We have a full line of replacement parts available. Please
have your model number ready before you contact us. We’re here to serve You!
• If you need assistance or to order parts: Call 1-800-933-0527 or send a FAX to 1-847-252-1001.
• Business hours: Monday through Friday; 8:30AM-5:00PM Central Time.
• Visit us on the web at: www.omahagrills.com

5
Assembly Instructions
This page will give you an overview of information to assemble your grill. The following pages will show in
step-by-step detail how to do so. We offer the following suggestions to make your grill assembly as easy as
possible.
1.) Read through the entire Assembly Instructions before you begin.
2.) Choose an area large enough to comfortably lay out all the parts and hardware with enough room to easily
maneuver.
3.) Have an area with a non-abrasive surface where you can lay parts without scratching them.
4.) The Grill Island weighs in at close to 300 pounds. Use caution, and enough people, to remove the Grill
Island from the carton and steel pallet on the bottom.
5.) Lay all parts and hardware out and ensure you have everything listed on the Parts and Hardware page before
you begin assembly. See the Customer Support Page for contact information should any parts be damaged
or missing.
.
.6.) Do not use a Power Screwdriver for assembly as you could strip the threads on the Nuts and Bolts.
.7.) The propane tank for this grill is sold separately. See the LP Gas and Cylinder Information later in this
guide.
BQ06043-1
WARNING
Failure to follow all Danger,
Warnings, and For Your Safety
notices in this Grill Guide may
result in serious bodily injury or
death, or in a fire or an explosion
causing damage to property.
CAUTION
Perform the Leak Test explained
later in this Grill Guide before
operating your grill.
!
!

6
1. Thermometer 36. Left -Top Drawer
2. Hood Assembly 37.Top Drawer Handle
3. Hood Bolt 38. Drawer Glide Bracket
4. Silicon Stopper for Hood 39. Left Control Panel Support
5. Heat insulator for hood handle 40. Cabinet Left-Top-Back Panel
6. Hood Handle 41. Right-Top Drawer
7. Hood Handle Seat 42. Cabinet Left - Back Panel
8. Firebox Back - Top Panel 43. Right Control Panel Support
9. Firebox Rear Panel 44. Cabinet Crossbar
10. Firebox Back Panel 45. Firebox Support - Left
11. Firebox Front Panel 46. Right Front Cabinet Support
12. Heat Shield – Control Panel Inner 47. Bottom Drawer
13. Gas Manifold Assembly 48. Left Front Cabinet Support
14. Control Panel 49. Drawer Front Crossbar
15. Control Knob Seat 50. Cabinet Left Door
16. Control Knob 51. Door Handle
17. Warming Rack 52. Grease Cup Assembly
18. Cooking Grate –Big 53. Cabinet Right-Top –Back Panel
19. Heat Diffuser- Big 54. Cabinet Right –Back Panel
20. Heat Diffuser-Small 55. Cabinet Left Door Inside Shelf
21. "U" Main Burner 56. Cabinet Left Door Inside Shelf- Support
22. "I" Main Burner 57. Cabinet Bottom Panel
23. Burner Support Rail 58. Cabinet Left Side Skirt
24. Firebox Left Side Panel 59. Firebox Support - Right
25. Bottom Heat Shield 60. Cabinet Front Skirt
26. Grease Tray 61. Locking Caster
27. Cooking Grate-Small 62. Caster
28. Regulator and Hose 63. Cabinet Right Door
29. Manual Igniter 64. Cabinet Right Side Panel
30. Firebox Right Side Panel 65. Cylinder Support Ring
31. Countertop Granite Insert 66. Cylinder Tray
32. Silicon Stopper for Countertop 67. Cabinet Right Side Skirt
33. Countertop Frame 68. Locking Swivel Caster
34. Towel Bar Handle 69. Swivel Caster
35. Cabinet Left Side Panel
BQ06043-1 Detail Parts List
Detail Parts List - Not Show In Diagram
70. Grill Cover 72. Handle Bolt 75. Towel Bar Screw
71. Main Burner Screw 74. Control Knob Allen Screw

7
Detail Parts List

8
BQ06043-1 Assembly Parts List
Heat Diffuser (Big ) ….2 PCS Warming Rack --- 1 PC Heat Diffuser
(Small) ….1 PC
Towel Bar Handle-----2 PCSSmall Cooking
Grate …......1PC
Large Cooking
Grate ....….2PCS
WARNING
Always wear protective gloves when assembling your grill.
!

9

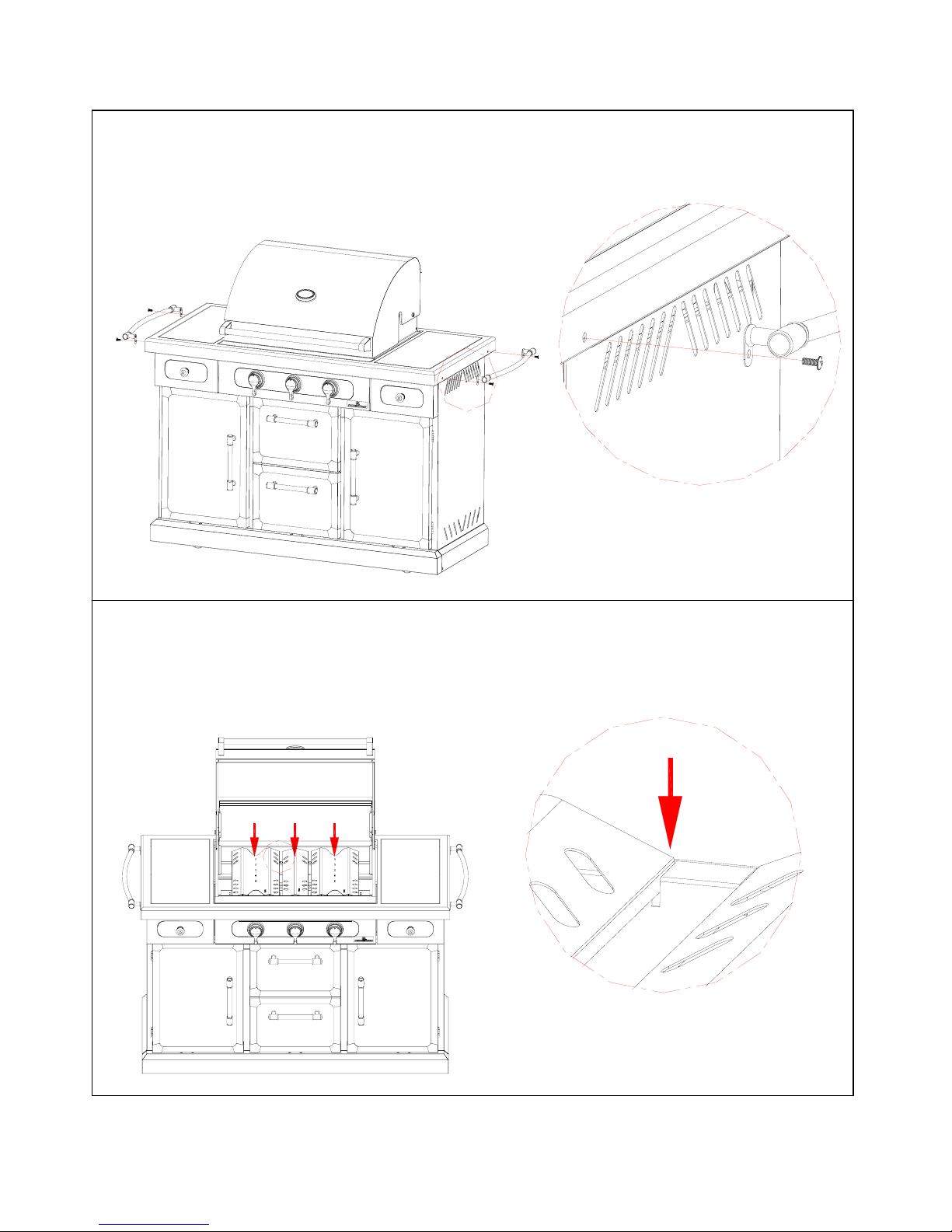

STEP 2- Insert the 3 Heat Diffusers inside the firebox. Note that the fronts of the heat diffusers are
stamped “Front” and must be at the front of the firebox. The sides of the heat diffusers fit down into slots
on the front and back of the firebox as shown in the insert.
STEP 1-Remove 2 Philips head screws on each end of the tabletop frame. Use the screws to attach a
towel bar to each end as shown.

10
STEP 3 – Insert the 3 Cooking Grates into the firebox. There are 1small and 2large cooking grates. They
can be inserted in any order.
STEP 4 - Insert the Warming Rack into the upper sides of the firebox. Be sure the sides of the
warming rack fit down into the slots to secure it in place.

11
STEP 5 –Remove any labels and additional packing material from the grill except CSA Label. Be
sure to clean all foam packing material out of all areas
Congratulations! Your grill is now fully assembled. Please proceed and read the General Information
and Operation portion of the Grill Guide before attempting to hook up the LP gas cylinder or operating
your grill.

12
General Information and Instructions
Your new Member’s Mark Grill Island has been designed and manufactured to high quality standards. It will
provide you with many years of enjoyment with a minimal amount of maintenance. Please keep in mind the
following FOR YOUR SAFETY.
OPERATION
1. Your gas grill requires reasonable care during operation. It will be hot during cooking and cleaning.
You should never leave the grill unattended or move the grill when in use.
2. Children should never use your gas grill. Keep younger children and pets away when in use.
3. Only use your gas grill outside in a well-ventilated area. Never use indoors in any building, garage,
shed, or under any type of flammable canopy or overhang.
4. Ensure your grill is on level ground and the locking casters are locked before use.
5. Turn all gas valves off should the burners go out when cooking. Open the lid and wait 5 minutes before
relighting.
6. Do not lean over the grill or touch the edges of the firebox or lid when in use.
7. Turn the burners off, close the lid, and shut off the LP cylinder should a grease fire occur.
8. Do not obstruct the flow of combustion and ventilation air to this grill.
9. Keep the ventilation openings of the cylinder enclosure free and clear from debris.
10. Keep the outdoor cooking gas appliance area clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
11. Do not put a barbecue cover or other flammable material in the storage area of this grill.
12. Do not use charcoal briquettes, lava rock, or any type of ceramic product in this grill.
LP Gas and Cylinder Information
Your new gas grill operates on LP (Liquid Propane) Gas. It is odorless, colorless, and non-toxic when produced.
You can smell LP gas as it has been given an odor similar to rotten cabbage for your safety.
Your grill uses the newest and safest LP Gas Cylinder.
1. A listed O.P.D. (Overfill Protection Device) must be used. This prevents
accidental gas leaks caused by overfilling of the tank. Each tank contains
a float that closes the input valve when the tank is 80% full. This allows
room for the LP gas to expand in hot temperatures. A triangular hand
wheel distinguishes this type of tank.
2. Q.C.C.1 Type 1 Quick Connect Valve – provides fast tank hook-ups and requires only to be tightened by
hand. Large external threads on the outlet part of the valve distinguish this.
In addition, the LP tank you use with your grill must meet the following requirements
1. Required Measurements: 12-1/2” (317mm) in diameter and 18-1/2” (472mm) in height.
2. 20-pound (9.1kg) propane cylinder.
3. Constructed and marked with U.S. Department of Transportation (D.O.T.) for the US or CAN/CSA-
B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods; and Commission, for
Canada.
4. A safety release valve.
5. A means for vapor withdrawal.
6. A collar to protect the tank valve.
7. A bottom ring for mounting.
Triangular Hand Wheel
WARNING
Do not attempt to use a cylinder with any other type of connection device.
!

13
LP CYLINDER FILLING AND EXCHANGE
Some areas only allow you to exchange your empty cylinder for a replacement that is already full. Other areas
allow you to refill your cylinder. If you are in an area where you can refill your cylinder:
1. Use only a licensed dealer.
2. The dealer must first purge a new cylinder before filling.
3. Never fill a cylinder more than 80% full by weight. Volume will vary by temperature. An empty
cylinder weighs approximately 18 pounds (8.2kgs).
4. Be sure the LP dealer checks the cylinder for leaks after filling.
5. Do not release LP gas into the atmosphere, as it can unexpectedly ignite when mixed with air.
6. Contact a LP dealer to remove LP gas from a cylinder.
7. Only exchange your cylinder for one with an O.P.D. feature as shown above.
LP CYLINDER LEAK TEST
A leak test should be done each time a cylinder is refilled or exchanged. Do
not smoke or use any type of flammable material in the area during this leak test.
Do not use an open flame to check for leaks.
1. Test outside in a well ventilated area.
2. Use a paintbrush and a solution of 50% liquid soap and 50% water. Do
not use cleaning agents and they can damage the fuel supply parts.
3. Brush liquid onto areas highlighted with arrows.
4. Bubbles indicate a leak.
WARNING
1. Never store any extra cylinders under or near your grill.
2. Never fill your cylinder over 80% full by weight. This may cause release of gas from the safety
relief valve.
3. If the information in points 1 and 2 above is not followed exactly, a fire causing death or serious
injury may occur.
DANGER
Bubbles indicate a leak. In that case, call your LP dealer or fire department immediately.
FOR YOUR SAFETY
1.) The gas supply must be turned off at the LP gas supply cylinder when this gas grill is not in use.
2.) Storage of this gas grill indoors is permissible only if the cylinder is disconnected and removed from
the gas grill.
3.) Cylinders must be stored outdoors out of reach of children and must not be stored in a building,
garage, or any other enclosed area.
WARNING
A frosty cylinder valve indicates possible gas overfill. Close the LP valve and call your dealer
immediately.
!
!
!
!

14
TRANSPORTATION AND STORAGE
1. Place dust cap on cylinder valve outlet whenever the cylinder is not in use.
Only install the type of dust cap on the cylinder valve outlet that
is provided with the cylinder valve. Other types of caps or plugs
may result in leakage.
2. Always transport in an upright position.
3. Do not smoke when transporting your cylinder.
4. Keep cylinders out of direct sunlight and away from sources of heat.
Your regulator is equipped with a Q.C.C. Type 1 quick connect system. It will not allow gas to flow until a
positive seal has been made. It has a flow-limiting device that will restrict the flow of gas to 10 cubic feet per
hour (0.28 cubic meters per hour).
TO PLACE THE CYLINDER INTO THE GRILL CABINET
1. Place the tank onto the sliding LP cylinder tray.
2. The front of the tank valve should face to the front of the cabinet.
3. Unhook the LP cylinder support ring and lower it down over the
neck of the LP cylinder. Reattach the hook to secure.
4. Lock the LP cylinder tray in place by turning the LP cylinder
tray stopper to a right angle.
TO CONNECT THE CYLINDER TO THE REGULATOR AND HOSE
1. Be sure the LP cylinder is “OFF” by turning the hand wheel clockwise
until it stops.
2. Place the cylinder into the base cabinet shelf of the grill with the valve
facing outward and secure with the cylinder retaining bolt.
3. Be sure all burner controls are turned to the “Off” position.
4. Remove the safety cap from the cylinder valve.
5. Center the nipple of the regulator into the cylinder
6. Turn the black nut clockwise until it stops. Hand Tighten Only.
Do Not Use A Wrench.
Dust Cap
CAUTION
The pressure regulator and hose assembly provided with this gas grill must be used. This regulator is set
for an outlet pressure of 11 inches water column. Replacement pressure regulators and hose assemblies
must be those specified in the parts list.
!
Regulator and LP Cylinder Connections

15
LEAK TESTING THE REGULATOR, VALVES, HOSES, AND CONNECTIONS
1. Ensure the LP cylinder valve and all burners are “Off”.
2. Ensure the LP cylinder is connected to the regulator.
3. If the information in 1 & 2 is not followed exactly, a fire causing death or serious injure may occur.
4. Mix up a solution of 50% water and 50% liquid dish soap. Do not use any household cleaner
solution.
5. Open the LP tank valve by turning the hand wheel counterclockwise one turn. If you hear a rushing
sound, turn the gas off immediately. In that case, there could be a leak at the connection. Reconnect
the cylinder to the regulator.
6. Spray or brush on the solution covering the following areas: cylinder welds, regulator and cylinder
connection, gas hose connection to the regulator, gas hose, and the gas hose connection to the gas
manifold assembly.
7. Growing bubbles on any of the parts and connections listed above indicate a gas leak. Immediately
shut off the LP tank valve by turning the valve clockwise. Retighten the connections or order
replacement parts as needed. Continue to test as necessary until no leaks are detected.
8. Close the LP tank valve by turning the hand wheel clockwise.
WARNING
1. Do not connect this grill to any unregulated sources of propane.
2. Before each use, check the gas hose for excessive abrasion or wear, or cuts. Replace a hose
assembly showing those signs with the hose assembly specified in the parts list before using the
grill. Inspect the hose assembly by opening the cabinet door underneath the side burner and
following the regulator hose up to its connection to the gas manifold assembly.
3. Always perform the Leak Test listed below before using your grill for the first time, if the cylinder
has been changed, any gas components have been changed, the regulator flow-limiting device has
been activated, or after a long period of non-use.
4. Do not attempt to connect this grill to the LP system of a motor home or trailer.
Center this nipple of the
regulator into the cylinder
valve.
The regulator must enter the
cylinder valve in a straight
line.
WARNING
1. DO NOT USE THE GRILL if you cannot stop a leak. Be sure the LP cylinder valve is
closed. If the LP cylinder is still leaking, contact your LP dealer or local fire department.
2. Do not use any match or open flame, or smoke, during leak testing.
3. Do not light a burner during leak testing.
4. The re
p
lacement hose assembl
y
must be the one identified.
Q.C.C.1 Type 1 Connector
!
!
!
WARNING
Always keep the g as cylinder in
the upright position all the time

16
Grill Placement
Grill Operations
BEFORE AND AFTER LIGHTING
1. Ensure your grill is located on a level surface.
2. Lock the locking casters by pressing or turning the locking lever on the casters counterclockwise before
use. Unlock by turning or pressing the locking lever on the casters clockwise.
3. Keep the gas grill area clear and free from combustible materials, gasoline, and
other flammable vapors and liquids.
4. Ensure nothing is obstructing the flow of combustion and ventilation air.
5. Ensure the ventilation openings of the cylinder enclosure are free and clear of debris.
6. Visually check burner flames.
LIGHTING THE MAIN BURNERS WITH PUSH AND TURN IGNITION
1. Open the lid.
2. Ensure all burner control knobs are in the “Off” position.
3. Turn on the LP gas by slowly turning the hand wheel on the cylinder valve.
4. Push in the burner control knob of the burner you wish to light
and turn left to “HI/LIGHT”. You will hear a click as a spark is sent
to the burner. If the burner does not light, then turn back to “Off”,
and repeat this procedure. Continue this process until the burner
lights.
5. Use the Manual directions if it still will not light.
6. When lit, turn the burner control knob to its desired heat setting.
!FOR YOUR SAFETY!
1. Minimum clearance required from
sides and back of unit to adjacent
combustible construction is 24 inches
(61 cm).
2. Do not locate or use this outdoor
cooking gas appliance under
overhead combustible surfaces.
APARTMENT RESIDENTS
Check with your apartment manager regarding
y
our re
g
ulations for barbecues.
WARNING
1. Read instructions before lighting.
2. Open lid during lighting.
3. If ignition does not occur in 5 seconds, turn the burner control(s) off, wait 5 minutes and repeat
the lighting procedure
Do not face the grill directly into the wind
Keep any electrical supply cord and the fuel
supply hose away from any heated surfaces
and water.
!
Main Burner
24"(61cm)
24"(61cm)

17
MANUALLY LIGHTING THE MAIN BURNERS WITH THE MATCH HOLDER
1. Open the lid.
2. Ensure all burners are in the “Off” position.
3. Slowly turn on the gas at the LP cylinder valve if it is not already on.
4. Place a match in the Match Holder. This is located in the top center
drawer of the grill cabinet underneath the right main burner.
5. Use the holder to slide the lit match though the cooking grates and the
front of the heat tent to the left of the burner you wish to light.
6. Press and turn the burner control knob to “HI/LIGHT”. Continue to push
in and hold up to 5 seconds or until the burner lights.
7. If the burner does not light within 5 seconds, turn the burner control
knob to “Off”. Wait 5 minutes for gas to clear, and try again.
8. When lit, turn the control knob to the desired heat setting.
TURNING OFF YOUR GRILL
1. Turn all burner control knobs to the “Off” position.
2. Turn off the gas supply at the LP tank by turning the valve clockwise.
Cleaning and Maintaining Your Grill
STAINLESS STEEL SURFACES AND OTHER EXTERIOR SURFACES– wash with a mild dish soap
and warm water. A cloth, soft brush, or plastic cleaning pad can be used. Rinse thoroughly and wipe dry. The
stainless steel used in the construction of your grill is 304 commercial grade. There are many specific stainless
steel cleaners available. Follow the manufacturer’s directions. Always polish in the direction of the lines. Do
not allow dirt and grease to accumulate. Do not use steel wool, as it will scratch the surface.
In addition, the following products and naturally occurring substances
in the outdoors will damage all stainless steel finishes. Use caution so that they do not come in contact with
your Gas Grill. Immediately wash them off and dry the stainless steel should they ever come in contact with
your Gas Grill. This includes, but is not limited to, Pool Chemicals (chlorine and bromine), Lawn Fertilizer, Ice
Melting Salts, Sea or Salt Water, Urine, Bird Droppings, and Tree Sap.
COOKING GRATES, WARMING RACK, AND HEAT DIFFUSERS – use a stiff brass brush. Wash with
warm water and mild dish soap as needed, rinse, and dry.
WARNING
1. Do not clean any part of your barbecue grill in a self-cleaning oven.
2. Do not use oven cleaners, abrasive kitchen cleaners, cleaners that contain citrus products, or
mineral spirits.
3. Do not use any type of steel bristled brush.
4. Clean your grill regularly to prohibit grease build-ups and avoid a grease fire or excessive flare-
ups.
5. Alwa
y
s wear
p
rotective
g
loves when cleanin
g
y
our
g
rill.
!

18
GREASE PAN AND TRAY – check after each use. Remove and empty the Tray when half full. Remove and
clean the Pan as grease builds up. Both can be washed with warm water and mild dish soap.
BURNERS – we recommend you clean your burners at least twice a year, or before use if the grill has not been
used in over one month.
CLEANING THE BURNERS
1. Ensure the LP gas is turned off at the LP cylinder.
2. Remove the cooking grates, heat diffusers, and grease tray.
3. Remove the Phillips Head screws located at the back end
of each burner.
4. Lift each burner up and out.
5. Clean the inside of the burner using a stiff wire. A
straightened coat hanger is one suggested tool. An
alternative way to clean the inside of the burner is using
compressed air. Always wear eye protection if using this
method. Never enlarge the burner ports during cleaning.
6. Brush the outer surface of the burner.
7. Ensure all ports (holes) are free of all debris
8. Inspect the burner. Replace if any cracks or enlarged holes.
9. Reinstall the burners making sure the burners seat over the
valves as shown in the figure to the right.
10. Secure the back of the burners to the firebox with the Phillips
Head screws.
11. Replace the grease tray, heat diffusers, and cooking grates.
12. Perform a Leak Test described earlier in this guide.
BURNER FLAMES
Always inspect the burner flame after lighting. A good flame
should be primarily blue with a yellow tip and have a minimal
amount of noise. Some yellow tips are OK if under one inch.
New burners sometimes have oil residue, which will cause
WARNING
Small insects, such as spiders, are able to access the burner tubes. Sometimes they will build nests or spin
webs. In either case, this can block or reduce the amount of gas flowing through the burner. You will
usually see a smaller flame, or a flame that is mostly yellow rather than blue, coming from the burner when
this happens. Other signs include the gill not heating evenly, not reaching temperature, or burners not
igniting. In cases with severe blockage, this can cause the flame to burn backwards, and outside of the
burner tubes, which can cause damage to your grill and/or personal injury. IMMEDIATELY SHUT OFF
THE FLOW OF LP GAS AT THE CYLINDER BY TURNING THE HAND WHEEL
CLOCKWISE SHOULD THIS HAPPEN. Wait for the grill to cool, and then clean all burners. Your
grill may be stored indoors only if the LP cylinder is disconnected and removed from the appliance.
!
WARNING
Properly locating the burner with respect to the orifice is vital for safety
!

19
yellow flame when burning off. Variations in gas supply,
altitude, weather, and other factors can all impact burner
performance. Older grills can also show more yellow flame as
food deposits, oils, and fats can build up
To replace the air shutter, pull out the central drawer, use Philips driver to replace it.
ALWAYS
1. Keep the grilling area clear and free from combustible materials, gasoline and other flammable vapors
and liquids.
2. Do not obstruct the flow of combustion and ventilation air.
3. Keep the ventilation openings of the cylinder enclosure free and clear from debris.
GRILL STORAGE
1. Clean your grill before storage.
2. Storage of a gas grill indoors is permissible only if the cylinder is disconnected and removed from the
gas grill.
3. Cover the grill.
4. Perform a Leak Test before use after storage.
Grilling With Your New Grill
Welcome to the world of grilling. Whether you’re already an established griller, or just starting out, your new
grill should bring you much enjoyment and satisfaction, to say nothing of some phenomenal meals. We
encourage you to experiment to find your own favorite recipes.
The control panel is labeled “HI/LIGHT”, “LOW”, and “OFF” for each burner control knob. Simply push in on
the temperature control knobs and turn to the desired heat setting. A thermometer is placed in the hood so that
you can see the cooking temperature inside the grill.
The heat diffusers are designed to help evenly distribute heat throughout the grill. They are also designed to
catch and smoke the right amount of drippings, adding more flavors to your meal.
DIRECT VS. INDIRECT COOKING
Food cooked on the grill is either done using direct or indirect cooking. Direct cooking is when the food is
cooked directly over the heat. Food is placed in-between the burners for indirect cooking.
DIRECT – used for preheating and searing
Use Direct cooking to sear meats. This helps to keep food moist by locking in juices. Some food, such as steak,
is first seared using Direct cooking, and then finished cooking using the Indirect method. This is generally used
for quicker cooking foods. Preheat the grill to 500°F (260°C). You can shut off one or more burners if you do
not need to use the entire grilling surface once you reach over 500°F(260°C). You can also use a medium high
heat of 400°F or more by turning the burners down slightly. Place the food directly over the heat source.
Remain vigilant when grilling using this method, as it’s easy to overcook.

20
INDIRECT – how most food is cooked on a gas grill
Indirect cooking is used for foods that take longer to cook, including large cuts of meat such as roasts. It’s also
used for cooking more delicate food that can dry out quickly such as fish and poultry, for fattier foods to reduce
flare-ups, and when grilling using a roasting pan or aluminum foil. Preheat the grill to 500°F(260°C). Then
turn some burners off, and others to medium to low depending on the temperature you want to maintain.
Generally, turn the center burner off for a 3-burner model and the 2 inside burners off on a 4-burner model.
Grills with more than 4 burners will vary depending on what you are cooking. Generally, you want to keep the
temperature around 350°F. Do not place the food directly over any burners when using this grilling method.
KNOWING WHEN THE FOOD IS DONE
We strongly recommend using a meat thermometer. Food cooked on a grill can brown very fast on the outside,
well before it’s cooked on the inside. Many factors can influence cooking times, including wind, outdoor
temperatures, and altitude. Therefore, it’s best to use a meat thermometer to ensure your food has cooked long
enough. Check with your specific recipe, but for general guidelines:
1. Hamburgers, sausages, and all ground meat should reach 160°F (71°C).
2. Beef should reach 145°F (63°C) for medium rare
3. Veal should reach 160°F (71°C) for medium and lamb should reach 145°F (63°C) for medium rare.
4. Pork should reach 160°F (71°C).
5. Poultry should reach 180°F(82°C), or 170°F(77°C) for boneless pieces.
GRILLING TIPS AND TRICKS
1. Always "Preheat"your grill before cooking. Light all main burners, turn to "HI", and close the lid until
the thermometer reads over 500¢XF (260¢XC), which should be 5 to 10 minutes. Then adjust the burner
control knobs to the proper temperature. Note that no preheating is necessary for the side burner.
2.The thermometer measures the temperature at the top of the lid. The temperature down by the cooking
grates is generally somewhat warmer.
3. Mother Nature can impact your grilling times. Allow more cooking time for cold, wind, and higher
altitudes. We recommend you place the grill in an area protected from much wind.
4. Trim away any excess fat from meat to reduce flare-ups.
5. Keep similar size portions together so that they cook more evenly.
6. Generally speaking, the more food on the grill, the longer the cooking time.
7. Be aware when using the Direct cooking method, as food can easily become overcooked, burned, or dry
out. Food may require more turning, or sometimes, may need to be moved off the flame.
8. Larger pieces of meat generally require more cooking time per pound than smaller pieces of meat.
9. If a major flare-up, or too many flare-ups occur, turn off the gas, move the food away from the flare-up,
and close the hood. Restart the grill once the flare-up has died down.
10. Turn foods infrequently. Generally, only turn a steak once during cooking.
11. Use tongs rather than a fork when turning the food on the grill. Less juice will be lost that way.
12. Know your sauce and when to apply.Oil and vinegar based sauces can be brushed on any time. Sugar
based sauces like barbecue sauce should be applied during the last few minutes of cooking.
13. A timer can help you keep from over-cooking the food.
14. Use insulated protective mitts or potholders when working around a grill in operation.
15. Use a small amount of cooking oil on the cooking grates before heating to reduce foods sticking on the
grates.
FOOD SAFETY
1. Always use safe food handling and preparation when using this grill.
2. Wash all poultry, seafood, and vegetables before cooking.
3. Use separate platters, plates, and utensils for uncooked and cooked foods.
4. Leave all meat, poultry, and seafood in the refrigerator until ready to cook.
5. Use a meat thermometer to ensure foods are adequately cooked.
