Meopta H75 30x WA-R User manual

A Better View of the World
Sports Optics

As our
society
becomes more
technologically
advanced and we find
ourselves spending less
and less time communing with
nature, we feel that the time we do
spend becomes more important for
our overall well-being and inner balance.
Enhancing our outdoor experience is
the viewing of nature and wildlife in
its natural setting. Even though the
human eye represents the finest and
most sophisticated optical instrument ever
designed, it may require man-made optical
mechanical assistance from time to time to take
in all of nature’s glorious beauty!
Meopta products are designed and built to enhance the viewing
experience of even the most demanding professional. We strongly
recommend you make a Meopta optical product part of your
regular outdoor experience, for an even
Better View of the World !

Meostar R1 7x56
Meostar R1 3-12x56
Meostar R1 1-4x22
Meostar R1 4-12x40
Meostar R1 3-10x50
Meostar R1 7x56 RD
Meostar R1 1-4x22 RD
Meostar R1 3-12x56 RD
Meostar R1
•Lightweight, one-piece, aircraft grade aluminum
alloy tube
•Unique internal mechanism design ensures top
mechanical ruggedness
•Excellent optical performance
•Multiple antireflection coatings MB-5501 ensuring
light transmission of 92% – 95% (depending on
the model)
•Reticle in the rear focal plane (except for the
model Meostar R1 3-12x56)
A nitrogen purged and sealed body for fog
proof and water proof performance
•Quadratic windage and elevation adjustments
with a step of ¼ in / 100 yd, i.e. 0,7cm / 100m
The most technologically advanced series of new
generation riflescopes that meet the needs of the
most demanding users. The tube is made of the
highest grade aluminum alloy which allows the
surface of the device to be black anodized. This
surface treatment is molecularly bonded to the
aluminum alloy, making the tube surface extremely
chemical resistant.
In addition, the surface is treated by a special
technology so that no finger prints can be seen and it
is pleasant to touch. The anti-reflection coating MB-
5501 makes use of the latest technology in the field,
and is applied to all optical components, ensuring the
top light transmission values for the riflescopes.
The Meostar R1 1-4x22 model with illuminated
K-Dot reticle is specifically designed for hunting
in the daytime as well as low light situations. A
riflescope versatile enough for use as a
dangerous game hunting scope as it is in
close quarter combat situations. At
maximum intensity, the K-Dot reticle is
visible in sunny conditions, while at its
lowest settings, still ideal for late dawn or
early dusk. With magnification set to 1x
power and the reticle illuminated, the
riflescope may be used a short range,
close quarter sighting device, by allowing
the user to keep both eyes open. This
allows for a clear, substantially improved
field of view while also providing quick target
acquisition. The illumination adjustment
(located to the left of the elevation turret) offers
seven levels of intensity (with seven being the
brightest) with half-click on/off positions. Off
positions are signified by a dot, while numbers 1-7
indicate the illumination intensity. This unique feature
allows for a quick return to the previously used intensity
instead of having to cycle thru the entire adjustment range each time the illumination is turned off. The service life
of the CR 2354 battery (included) is roughly 80 continuous hours, while a more readily available CR 2032 battery
may also be used, however the service life is only about 60 continuous hours.
The Meostar R1 RD 7x56 and 3-12x56 models are designed for hunting in extreme low light conditions at early
dawn or late dusk. Many prized animals can only be found moving about during these difficult low light conditions,
and the Meostar R1 RD models will help ensure that you do not miss out on the potential trophy of a lifetime.

Meostar R1Meostar R1 Tactic Meostar R1 / MR
Meosight
Meostar R1 1-4x22 RD / MR Meostar R1r 3-12x56 RD / MR

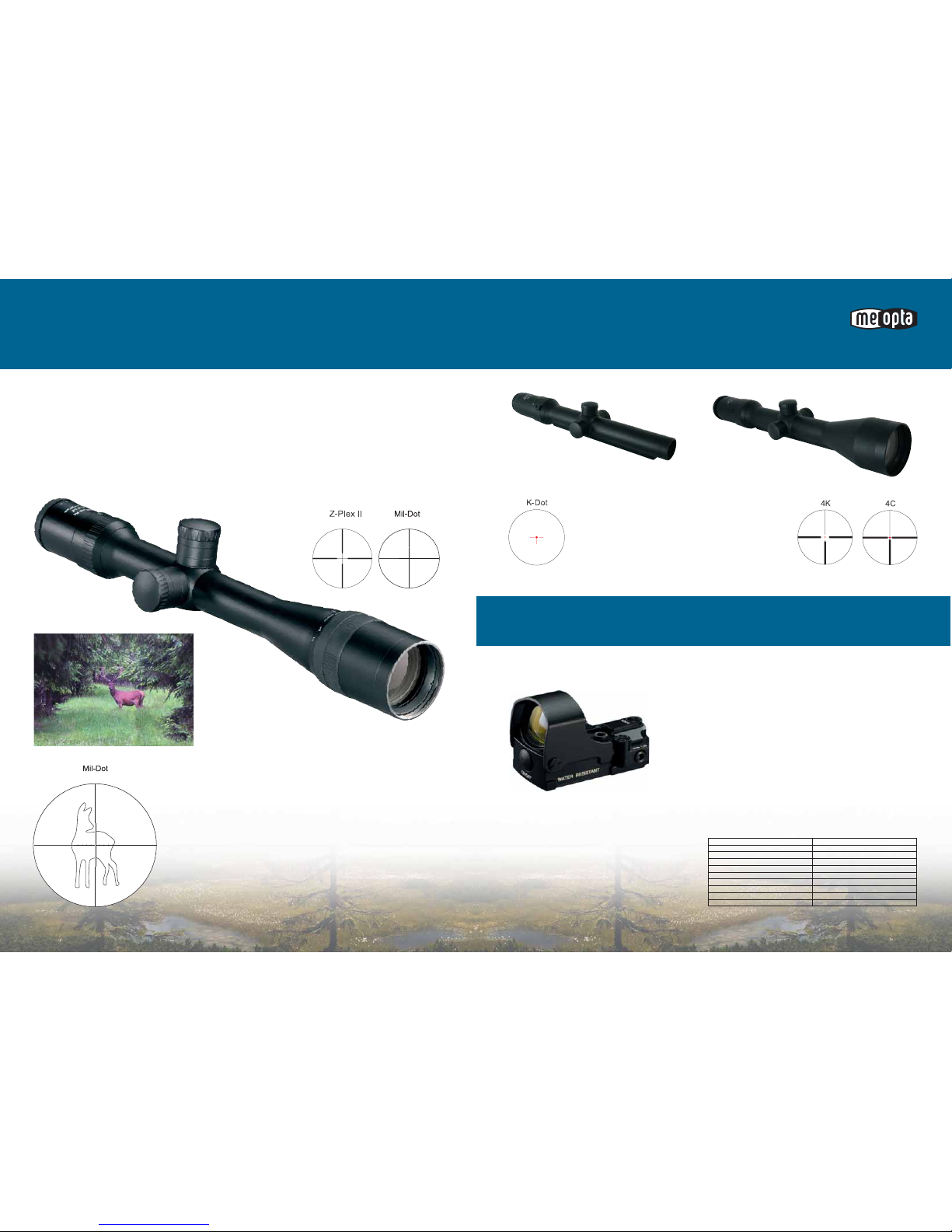

A riflescope designed to meet the needs of serious long-range shooters. Designed with an adjustable objective for
setting zero parallax at distances from 3 meters to infinity, as well as low profile target knobs, enabling fast field
setting of the line of sight (reticle cross-hairs center) in terms of the target distance and relevant windage
adjustment. The covered adjustment knobs have single click values of 0,7 mm/100 m, 1/4 in/100 yd or 1/4 MOA.
The vertical scale serves for orientation when turning the knob by more than 360°. The elevation knob allows for
calibration of bullet drop at any known distance and can be re-set to zero. The windage knob allows for quick
left/right adjustment to compensate for bullet drift due to cross winds. Fitted with a Mil-Dot style reticle this scope
enables the user to quickly and precisely determine the exact distance of an intended target at
virtually any range.
Use of Mil-Dot style cross-hairs
The dots placed on the stadia equal an angle of 1 m at 1000 m, or 1
milliradian. In military terminology this angle is called 1 mil. The distance D
can be determined by a simple calculation using the formula D = 1000 x H /
h, where H stands for the actual target height in meters and h stands for its
angular height in scale divisions. For very precise
range finding it is therefore necessary to know the exact target height. With
experience in approximate target size, very accurate estimates of the
distance to the target can be made. With an adult Roebuck body trunk
height estimated to be 0.5 m and as seen in the illustration the distance is
calculated as follows: D = 1000 x 0.5 / 6 = 83 m. Caution! The above
method of range finding provides correct results only with riflescope set on
the maximum magnification, i.e. 16x.
Meostar R1 MR with rail
The models with rails of the
Zeiss type are dedicated for
special mounts without rings.
Meosight
Introduced in 2008, the Meopta Meosight is the first of our offerings to
target the ever growing Red Dot Sight market. An extremely compact
reflex sight designed for immediate close quarter target acquisition and
accurate shooting, the Meosight is quickly becoming a favorite of law
enforcement and military personnel across the globe. At just 55 grams,
the Meosight is a perfect fit for handguns, tactical shotguns and tactical
rifles of all shapes and sizes.
•Compact and easy to use
•Waterproof
•Red Dot offers five levels of intensity adjustment, ideal for various
shooting conditions
•The Meosight’s internal systems monitors battery life and will shut off
after three hours of inactivity.
•Low battery life is indicated by a blinking red dot
•Sight is fully compatible with Docter sight mounts
•3MOA and 5MOA models available
Model
Magnification
Window dimensions (height x width)
Aiming Point Size
Weight
Length/Width/Height
Adjustment range - Horizontal
Adjustment range - Vertical
Power Supply
Effective Life of the Battery
Meosight 30 Meosight 50
1x 1x
17x23 mm 17x23 mm
3 MOA 5 MOA
55 g 55 g
55x29x32 mm 55x29x32 mm
± 120 MOA (± 350 cm/100 m) ± 120 MOA (± 350 cm/100 m)
± 180 MOA (± 524 cm/100 m) ± 180 MOA (± 524 cm/100 m)
2xCr 1632 2xCr 1632
300 hrs 300 hrs

Meostar R1
1 4 4B 4C 4K K-Dot Z-Plex II
Meostar R1
7x56 ••• •
1-4x22 •• •
4-12x40 •• •
3-10x50 •• •
3-12x56 ••• •
Meostar R1 RD
7x56 •
1-4x22 •
3-12x56 •
1-4x22 RD / MR •
3-12x56 RD / MR ••
Meostar R1 in the Hands of Champions
Czech National Team in hunting and shooting
disciplines
•2004 European Championship in Hunting
Rifle and Hunting Combined Tallinn, Estonia
Gold Medal
•2006 European Championship in Hunting
Rifle and Hunting Combined Kroměříž, Czech
Republic, Bronze Medal
•2008 European Championship in Hunting
Rifle and Hunting Combined Katowice, Poland
Shooting combined - Gold medal
Rifle Shooting - Silver medal
Shotgun Shooting - Bronze medal
The same team won gold medal three times
•Pavel Zázvorka - Czech Champion 2005 and
2006 in Hunting Rifle, ranked the number one
Czech shooter in total of all disciplines
•Ing. Jindřich Kořínek - Czech Champion 2005
in Hunting Combined, ranked the number two
Czech shooter 2006
•Jan Buksa - Czech Champion 2006 in
Hunting Combined,Record holder in Hunting
Combined (978 out of 1000),ranked the number
two Czech shooter in 2005 and third in 2006
•Karel Kotrc - Czech Champion 2005 in all
disciplines and the third best Czech shooter in
2005
Czech Team uses Meopta riflescopes
Leoš Hlaváček - member of Czech
National Team in skeet
•World Championship in team match,
the skeet discipline, from years
1990, 2001, 2002
•Holder of the world record in skeet
from year 2002
•The winner of the Czech cup
individuals in skeet from years
2003, 2004, 2005, 2006
•World Championship in team match,
the skeet discipline from the year
2006, Zahreb, Silver Medal
Leoš Hlaváček relies on Meopta
riflescopes for all of his big game
hunting
Meobright multicoated field lens
Meobright multicoated
4 element eyepiece
Meobright multicoated
4 element erector
Red LED for reticle illumination
3V Battery
CR2354 - 80 hrs (higher capacity)
CR2032 - 60 hrs (lower capacity)
Meobright multicoated
2 element objective lens
A lightweight, one-piece, 30mm tube,
constructed of the highest-grade aircraft
aluminium alloy available to ensure
maximum durability
Reticle etched on Meobright
multicoated glass
Rotating sleeve adjusts brightness in a
range level of 1-7 with illumination off at the
edges and interpositions
Anodized matte black for
reduced reflection

Artemis
Artemis 2000 4x32
Artemis 2000 1,5-6x42
Artemis 2000 2-8x42
Artemis 2000 3-9x42
Artemis 2000 7x50
Artemis 2000 6x42
Artemis 2000 3-12x50
Artemis 2100 7x50
Artemis 2100 3-12x50
Artemis 3000 3-9x42
4 4A 4B 4C Z-Plex
Artemis 2000
4x32 ••• •
6x42 ••••
7x50 ••••
1,5-6x42 ••• •
2-8x42 ••••
3-9x42 ••••
3-12x50 ••••
Artemis 2100
7x50 •
3-15x50 •
Artemis 3000
3-9x42 •• •
Traditional riflescope series in the truest sense of the
word. It offers favorite and proven models made of
traditional materials. The solid steel tube is the
distinctive feature of the whole Artemis 2000 and
2100 series.
Top shock resistance, excellent optical power,
watertightness and elegant, fully functional design -
these are the properties that will be appreciated both
by newcomers, as well as by professionals for whom
hunting is an inseparable part of their lifestyles.
•Steel tube (except for the model Artemis 3000 3-9x42)
•Unique internal mechanism design ensures the pinnacle
of mechanical ruggedness
•Excellent optical performance
Multiple
antireflective coatings
ensure light transmission of 87%
– 90% (depending on the model)
•Reticle in the front focal plane (except for
the model Artemis 3000 3-9x42)
•A nitrogen purged and sealed body for fog proof
and water proof performance
• Quadratic windage and elevation adjustments with step
of 1cm / 100m (except for the model Artemis 3000
3-9x42, which has the step of 1/4 in / 100 yd, i.e.
0,7cm / 100m)
The Artemis 2100 series offers an illuminated center dot
for hunting in low light conditions.
The illumination of the center dot under normal daylight
conditions is observable only when set on intensity level
6 or 7, so that no matter how small the target is, it will not
be overwhelmed or lost in the brightness of the dot when
illuminated. The brightness levels can be adjusted with
the knob on the left side of the elevation turret in seven
steps marked 1-7 (with 7 being the brightest). The
interpositions marked with a dot, provide an interim off
position between each intensity level, allowing for quick,
single click on and off operation. The service life of the
original battery, a CR2354, is roughly 80 hours. It is also
possible to use a more readily available battery, the
CR2032, which has a service life of about 60 hours.

0,5
CD
G
HB
A
K
F
E
Artemis 2000 Artemis 2000 Artemis
3000
4x32 6x42 7x50 1,5-6x42 2-8x42 3-9x42 3-12x50 7x50 3-12x50 3-9x42
4x 6x 7x 1,5-6x 2-8x 3-9x 3-12x 7x 3-12x 3-9x
32 42 50 42 42 42 50 50 50 42
10,5 7,0 5,7 7,0-21,2 5,1-16,6 4,8-13,2 3,5-11,1 5,7 3,5-11,1 4,8-13,2
80 80 80 75 75 75 75 80 75 75
±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3
262 145 145 218 175 145 116 116 116 145
400 500 500 660 670 670 690 620 740 530
RRRFFFFFFR
272 348 353 317 335 317 357 353 357 320
140 157 152 156 164 156 169 152 169 140
50 67 62 53 61 53 66 62 66 45
63 63 63 73 73 73 73 63 73 66
38 49 57 49 49 49 57 57 57 48,7
42,5 42,5 42,5 42,5 42,5 42,5 42,5 42,5 42,5 42,5
25,4 25,4 25,4 30 30 30 30 25,4 30 30
49 108 118 66 76 66 93 118 93 78
83 83 83 95 95 95 95 83 95 102
Meostar R1 Meostar R1 RD Meostar
Tactic
Meostar
RD/MR
Meostar
R1r
Meostar
R1rRD
Meostar
R1RD/MR
7x56 1-4x22 4-12x40 3-10x50 3-12x56 7x56 1-4x22 3-12x56 4-16x44 1-4x22 3-12x56 3-12x56 3-12x56
7x 1-4x 4-12x 3-10x 3-12x 7x 1-4x 3-12x 4-16x 1-4x 3-12x 3-12x 3-12x
56 22 40 50 56 56 22 56 44 22 56 56 56
5,7 8,6-37 3,3-9,9 4-13,3 3,5-11,1 5,7 8,6-37 3,5-11,1 2,4-802 8,6-37 3,5-11,1 3,5-11,1 3,5-11,1
80 80 80 80 75 80 80 75 80 80 75 75 75
±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3 ±3
116 230 145 145 116 116 230 116 116 230 116 116 116
495 480 530 630 615 495 530 665 740 560 590 640 660
RRRRF/RRRFRRR R R
353 306,5 328 330,5 365 353 306,5 365 386,5 306,5 342 342 342
136 202 157 139 151 136 202 151 153 202 137 137 137
47 118 74 57 49 47 118 49 71 118 54 54 54
60 55 55 55 75 60 55 72 55 55 53 53 53
62 30 49,5 60,5 62 62 30 62 55,5 30 62 62 62
42,5 41,5 41,5 41,5 42,5 42,5 41,5 42,5 41,5 41,5 41,5 41,5 41,5
25,4 30 30 30 30 25,4 30 30 30 RAIL 30 30 RAIL
132 - 75 93,5 117 132 - 117 135,5 - 105 105 105
85 97 95 97 96 85 103 96 97 103 100 100 100
1
234
no-name
meopta
Tube construction, steel or aluminum alloy
The question of which is better for riflescope tube construction, Steel or
Aluminum, has been pondered for many years, and the answer still remains
the same. Both have properties that make each one of them advantageous.
Steel tubes are the most resistant to external damage, while aluminum alloy
offers a lighter product. But both provide strong durable outer protection for
the internal mechanism and optics when used properly. Meopta is proud to be
able to offer both. If getting the highest level of strength and durability is most
important, then try our Artemis 2000 or 2100 Series. If weight is your main
concern, then our Artemis 3000 and MeostarTM series are just what you are
looking for. Construction of Meopta riflescopes with steel tubes offers an
additional advantage. As with virtually any material, an extreme temperature
change can cause expansion and contraction and thus vary the alignment of
inner and outer mechanisms, resulting in minor shifts in parallax at 100 M.
However, with the consistent properties of steel we are able design and build
riflescopes that control this problem. As a result, null parallax shift at 100 M in
production means null parallax shift at 100 M in the hottest African or the
coldest Alaskan environment!
Quadratic course of adjustment
Quadratic course of adjustment means that windage and elevation adjustments
are mutually independent and as such, guarantees a full range of movement in
any direction. The illustration below shows a comparison of a full range of
adjustment for a Meopta riflescope and a „no-name“ riflescope. You will note that in
some directions, the adjustment range of the „no-name“ riflescope exceeds the
Meopta range. However, in important (especially in the diagonal or windage
direction) directions it attains insufficient adjustment range. Irregular circumference
of the adjustment field of the „noname“ scope indicates that horizontal and vertical
movements are not independent (especially in extreme positions) and are each
affected when only one is adjusted, i.e., when turning the windage adjustment knob the reticle also moves in the
vertical or elevation direction.
Reticle in front or rear focal plane
Placement of the reticle (crosshairs) in the front focal plane (behind the objective lens) means that with increased
magnification both the target image and the reticle thickness increase (Artemis 2000, 2100; Meostar
R1 3-12x56 model offer front focal plain reticles). Placing the reticle in the rear focal plane (in front of the eyepiece)
allows the reticle to maintain its virtual size throughout the entire magnification range. (The Meostar series offer the
reticle in the rear focal plain, see the chart below)
So shortly:
• all fixed magnification riflescopes are not affected by the reticle position
• a reticle positioned in the front focal plane enables the user to use the reticle distance estimation scale and
opitches of thick lines for measuring distance at any magnification.
Meostar R1r 3-12x56
Contrary to its predecessor (Meostar R1 3-12x56 model) Meostar R1r 3-12x56
has the reticle located in the rear focus plane, which logically makes
the Meostar R1 line complete.
Use of the distance scale with 4A, 4B reticles
To use the distance scale in your riflescope, simply line up the target or the portion
of the target, whose height you estimate to be 0.5 m (this dimension is indicated by the
number 0.5 to the left of the scale), on the bottom line in the ranging scale. Once you
have done this then the number that coincides with the top of your target indicates the
targets distance in hundreds of meters. For example, if the body trunk height of an adult
Roebuck is estimated to be 0.5 m, then as seen in the illustration this Roebuck is approximately 200 meters away
from the shooter.
Elevation
adjustment
Windage
adjustment
Model
Magnification
Optical lens diameter (mm)
Field of view (m/100 m)
Eye relief (mm)
Dioptric range of eyepiece (dpt)
Min. adjustment range (cm/100m)
Weight (g)
Reticle in front or rear focal plane
A
B
C
D
E
F
G
H
K

Meostar B1 7x42
Meostar B1 8x42
Meostar B1 10x42
Meostar B1 8x32
Meostar B1 10x32
Meostar B1 7x50
Meostar B1 10x50
Meostar B1 12x50
Meostar B1 8x56
8x32 10x32 7x42 8x42 10x42 7x50 10x50 12x50 8x56
8x 10x 7x 8x 10x 7x 10x 12x 8x
32 32 42 42 42 50 50 50 56
7,9 6,3 7,84 7,84 6,35 7,21 6,3 5,24 6,35
138 110 137 137 110 126 110 91 111
min. 15,4 min. 15 min. 20 min. 17 min. 15 min. 22,5 min. 17 min. 14,8 min. 21,5
min. ±3 min. ±3 min. ±3 min. ±3 min. ±3 min. ±3 min. ±3 min. ±3 min. ±3
max. 1,8 max. 2 max. 3 max. 3 max. 3 max. 4 max. 4 max. 4 max. 5
598 600 890 897 877 987 1020 1020 1120

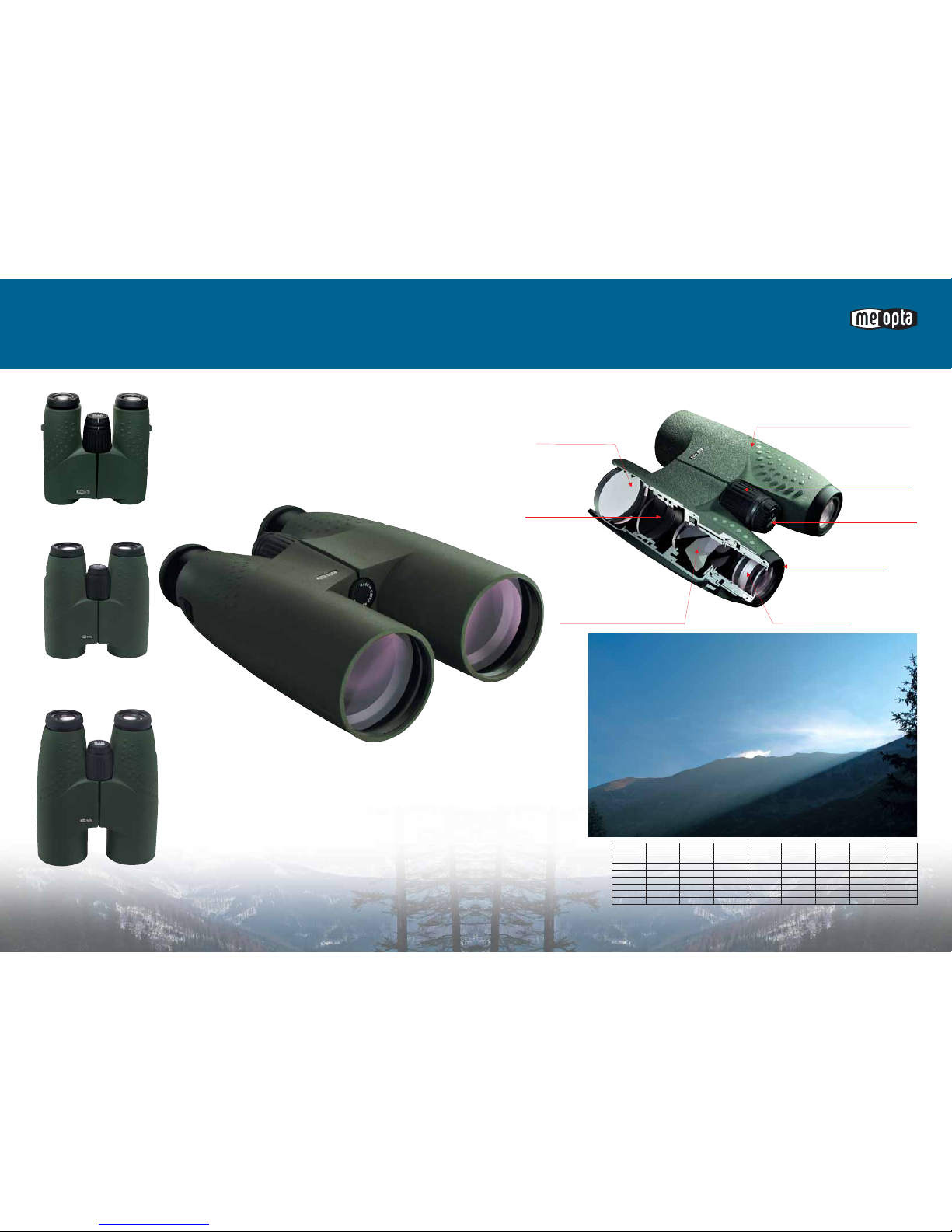

Meostar B1
Meostar binoculars are the culmination of our extensive experience with
designing and manufacturing top quality, different professional grade
optical products for many different industries including riflescopes and
spotting scopes. The Meostar name denotes that these binoculars,
utilize only the finest material available in conjunction with the most
advanced, processes in their construction. Designed and built
to satisfy even the most demanding professional or enthusiast, these
binoculars offer superior light transmission, accurate color rendition and
crisp edge to edge image clarity, putting them on par with other premium
European Brands.
•Streamlined ergonomics
for ease of use.
•Solid aluminum alloy body for a
lifetime of reliable performance.
• Rugged rubber armored exterior for
improved grip and impact protection.
•Fully multi-coating of all air to glass surfaces and phase corrective
coating of the half pentagonal and Schmidt design roof prisms for
maximum light transmission, superior edge to edge image clarity and
improved comfort during long term use.
•Convenient twist-up rubber eye cups to accommodate both eyeglass
wearers and non eyeglass wearers.
•Single oversized center focus wheel with built in adjustable diopter for
fast, easy single finger adjustment.
•Completely Nitrogen purged and sealed body for a lifetime of fogproof,
waterproof performance.
•Wide, comfortable, padded neckstrap
Model
Magnification
Optical lens diameter (mm)
Field of view (°)
Field of view (m/1000m)
Eye relief (mm)
Dioptric range of eyepiece (dpt)
Minimum observing distance
Weight (g)
Nitrogen filled and sealed body for waterproof,
fogproof and dustproof performance
Perfectly balanced ergonomic design with thumb
depressions for added comfort and easy of use
Meobright multicoated
4 element objective lens
Focusing lens
Phase correct, Meobright multicoated roof
prism system designed to optimize image
clarity, light transmission and color rendition Meobright multicoated
4 element eyepiece lens
Focusing wheel
Dioptric correction
wheel
Adjustable twist-up
rubber eyecups

Meopod
Meostar B1, Meostar S1
accessories Meostar B1, Meostar S1 helps to protect the Natur
Convertor 2x for binoculars
Convertor for binocular –
enables you to double the
binocular magnification and
convert it into a small spotting
scope. Compact, lightweight
and easy to use.
Luxury Leather Case for Meostar B1 Binoculars
Case is supplied in 3 sizes:
for models 7x42, 8x42 a 10x42
for models 7x50, 10x50 a 12x50
for model 8x56
KODAS (Club for Protection of Birds of Prey and Owls,
branch of Children of the Earth) is a non-profit group of
people who are extremely concerned with the fate of
endangered birds of prey and owls. They realize the dire
situations of these birds and have banded together to
change this dismal state. In all KODAS projects, they strive
to create conditions where birds of prey and owls can return
to their environment, protect their nests during nesting times
and to change the general attitude towards these amazing
and graceful birds.
The main objective of the Falco project is to provide vigilant
protection to endangered nests of rare birds of prey within
the framework of Action Falco and Action Aquila. The
secondary mission is to monitor areas where illegal bird
trafficking is at its worst and to bring light to these so-called
“bird crimes”.
For observing nests and birds KODAS uses Meopta
Meostar S1 spotting scopes and Meostar B1 binoculars
Leoš Hlaváček likes relaxing in the countryside
using the high quality Meopta optics, too.
Tripod adapter for
binoculars
Standard Case (included)
Tripod

20x60x
Meostar S1
Spotting scopes are designed for the
Natureviewer, Birdwatcher, Hunter and
Target Shooter who demands a compact,
lightweight, waterproof instrument with the
highest levels of light transmission and
definition.
Meostar S1-75 APO (provided with
apochromatic objectives) are devoted to
the most exigent customers. These
scopes have been designed to reduce
secondary color aberration and assure
brilliant crystal clear images under even
the most difficult light conditions and are
ideally suited for taking long distance
photos. The eyepieces for Meopta TGA
and Meostar S1 are mutually
interchangeable except for the 30x WA-R
ranging eyepiece, which can only be used
with the TGA75.
Carrying/stay-on cases
Magnification
Field of view
Exit pupil diameter
Lens diameter
Dioptric correction
Eye relief
Close fokus (with 0 Dpt)
Tripod thread
Length (without eyepiece)
Weight (without eyepiece)
Meostar S1 75
Straight/Angled
Meosta S1 75 - APo
Straight/Angled
30xWA 20-60x 30xWA 20-60x
38 m/1000 m 31-16 m/1000 m 38 m/1000 m 31-16 m/1000 m
2,5 mm 3,75-1,25 mm 2,5 mm 3,75-1,25 mm
75 mm
±5 Dpt
15 mm
4,2 m
W 1/4”
350 mm 365 mm
1150 g 1295 g
Meostar S1 75 APO Angled
Meostar S1 75 Straight
Meostar S1 75 Angled
Meostar S1 75 S APO Straight
Eyepiece 30x WA

Digiscoping TGA 75
Meopta DP1 30x
High quality digiscoping has never been as easy and affordable as it is with the
new Meopta DP1 30x eyepiece. The Meopta DP1 30x eyepiece enables you to
capture an image while still observing the image through the eyepiece. You do not
have to interrupt your observation to take a picture, nor do you need to invest in
an expensive device that merges those two functionalities. All you need is your
favorite digital camera, fitted to the Meopta DP1 30x eyepiece by means of the
camera’s tripod thread. Then, simply
observe and capture images as you
desire.
•Meopta DP1 30x eyepiece fits most
compact digital cameras with an optical
zoom span of up to 6x. The Meopta DP1 30x does not
work with SLR and DSLR cameras.
•In many instances, pictures will be bordered by a black
frame with rounded corners. This is normal, but can be
edited using any photo editing software, if so desired.
•For best results, it is important to minimize vibrations in your
digiscoping set-up. A solid tripod is a must, while a remote
shutter release offers a significant advantage.
Digiscoping with DSLR cameras
•The Meopta Photoadapter is designed for digiscoping with single lens reflex (SLR) cameras.
The Photoadapter transforms your Meostar spotting scope into an 800mm telephoto lens.
•A T-ring is used to connect the standardized thread of the Photoadapter to your camera’s body.
T-rings are brand specific and can be purchased for your brand of camera at any good camera shop.
•Compatible with most SLR and DSLR cameras
This product was
developed with the
support of the
Ministry of Trade
and Industry of the
Czech Republic
The design of our TGA 75 draw tube spotting scope offers superior light transmission, edge to edge image
resolution and clarity, stemming from our fully multi coated lenses and prisms. The draw tube design allows for
quick set up, using an 1/4“ or 3/4“ tripod mount, or simply a rock or tree for support. The TGA 75 has a secure grip
and provides smooth and precise focusing. This collapsible (9.5 inches) and easy to carry light weight (40.6 ounce)
scope is ideal for use in the field and especially on the move! The noise and shock dampening rubber armor makes
this water and dust resistant scope extremely rugged and a must for any serious
backpacker or hunter. The eyepieces for Meopta TGA 75 and Meostar S1 75
are mutually interchangeable except for the 30x WA-R
ranging eyepiece, which can only be used with the
TGA 75.
Meopta H75 30x WA-R
The Meopta H75 30x WA-R is a fixed power wide-angle eyepiece, which has
been designed for the TGA 75. What makes this eyepiece unique is that it has
been fitted with a ranging reticle (cross) enabling the user to estimate the
distance of the object being observed. Use of the ranging reticle to estimate
distance:
The dash lines placed from top to bottom on thin lines subtend the angle of 1
m at 1000 m, i.e. 1 milliradian. In military terminology this angle is called 1 mil.
The distance D can be determined by a simple calculation using the formula D
= 1000 x H / h, where H stands for the actual target height in meter and h
stands for its angular height in scale divisions. For precise range finding it is
necessary for the user to know the exact or estimated target height. For
example, the estimated height of an adult Roebuck body trunk is 0.5 m and
with angular height in the reticle screen as seen in the illustration below the
distance is calculated as follows: D = 1000 x 0,5 /h = 125 m.
Magnification
Eye relief (mm)
Dioptric range of eyepiece (dpt)
Field of view
Dimensions (mm)
Weight (g)
visual photographical
30x 16x
16 24
±4 -
2°8’ (37m/131mm) 1°20’x1° (23,3x17,5m/1000m)
137x132x131
669
Focal length
f-number
Camera attachment
Photoadapter lenght
Photoadapter weight
Meostar S1-75 Straight/Angled,
Meostar S1-75 APO Straight/Angled,
TGA 75 with photoadapter
800 mm
11,1
ring T2
167 mm
180g
Magnification
Field of view
Lens diameter
Dioptric correction
Eye relief
Minimum observing distance
Length (without eyepiece)
Weight (without eyepiece)
30xWA, 30x WA-R 20-60x
38 m/1000 m 31-16 m/1000 m
75 mm
±5 Dpt
15 mm
6 m
250 / 375 mm
1150 g

Meostar S1
NEMÁM
Foto Radek Kočí
Meostar S1 in the Hands of Champions
Pavel Balák – Represents the Czech National Team in Muzzel Loader Competition
•Hradec Kralove Czech Champion and Bronze Medalist, representing the Czech National
Team in Flintlock Musket shooting
•26x Czech Champion in Muzzle Loader competition
Pavel Balák exclusively uses Meostar S1 spotting scopes for target observation in practice and
competition.
Michal Šlesingr, Member of Czech biathlon team
•Biathlon World Championships -
Antholz- Anterselva ITA) 2007 - Men
10 km Sprint - Silver Medal
•Men 20 km Individual - Bronze Medal
•Biathlon European Championships -
Nové Město na Moravě (CZ) 2008
•Men 20 km Persistence race - Silver
Medal
•Men 10 km Sprint – Bronze Medal
•Relay Men 4 x 7,5 km – Bronze Medal
•Biathlon World Championships -
Oberhof, Germany 2009 - Men
10 km Sprint - Fourth position
Zuzana Tryznová, Czech biathlon member
•Biathlon European Championships -
Nové Město na Moravě (CZ) 2008
•Woman Sprint 7,5 km – Silver Medal
Czech biathlon team is equipped with Meopta Meostar S1 75 APO spotting scopes.
Norwegian biathlon team is equipped with
Meopta Meostar S1 75 APO spotting scopes,
too.
Integrated sun-shade with
aiming element Fully multi coated standard glass objective for the Meostar S1 and TGA models.
Meobright fully multi coated premium grade fluorite (APO version) and non-fluorite
glass objective lenses
Focusing lens
Nitrogen filled and sealed body for waterproof, dustproof superior
performance.Perfectly balanced ergonomic design for added comfort and
easy of use
Rugged outer body
compositions include
Lightweight Aluminium
A
lloy for TGA model. To
reduce weight further Aluminium
A
lloy and Carbon fiber composite have
been combined for the Meostar S1 series
Rapid focus focusing wheel from 4m to infinity
Tripod mount
Phase correct roof prism system
designed to optimize image clarity, light
transmission and color rendition
Eyepiece fitting
Meostar S1 in the Hands
of Champions

Slovakia
Austria
Hungaria
München
250 km
Meopta - optika, s.r.o.
Kabelíkova 1, 750 02 Přerov
Czech Republic
Tel.:[phone]
Fax: [phone]
E-mail: [email protected]
www.meopta.com
Czech Republic
Poland
Germany
Praha
Olomouc
Brno
Přerov
Wien Bratislava
010/MA2009
