MeraGana Karaoke Microphone User manual

Anywhere and Anytime
Karaoke Microphone
Sing Along to your favourite songs, anywhere and
anytime with the help of background music and lyrics,
converting the setup into your very own virtual Portable
Karaoke System.
User Manual


GETTING STARTED
You are now the proud owner of a Portable Karaoke System. Sing
Along to your favourite songs, Anywhere and Anytime with the help
of background music and lyrics, converting the setup into a virtual
Portable Karaoke System.
In order to enjoy the Karaoke, subscription to the Karaoke
content may be required. You can also use Karaoke DVD, VCD
or Audio Disks or any other audio/video source for your
karaoke.
Connecting the Microphone is simple, just plug in the
background music source to the input of the microphone and
the speaker or TV to the output of the microphone.
Connect the 10V DC power adaptor, switch on the microphone
and start singing.
CONTROLS
1. LED INDICATOR
It will light up when the KARAOKE MICROPHONE is switched
on.
2. FUNCTION SWITCH
•Set to ECHO to power up the KARAOKE MICROPHONE with
ECHO effect. (The ECHO Function of the Duet Microphone is
controlled by the main ECHO Microphone).
•Set to ON to power up the KARAOKE MICROPHONE only.
•Set to OFF to turn the KARAOKE MICROPHONE off.
3. MIC VOLUME
There are 5 levels for you to adjust your desired sound level of
your voice
4. MUSIC VOLUME
There are 4 levels for you to adjust the desired sound level of the
input background music

DUET MICROPHONE 
If you want to sing duets, then you may attach the Duet Microphone,
which is available separately. The Controls of the Duet Microphone
are as below.
The Duet Microphone just needs to be plugged into the connector
with the main Microphone.

CONNECTIONS 
Connecting a CD player

Connecting a Laptop
Connecting a Mobile Phone

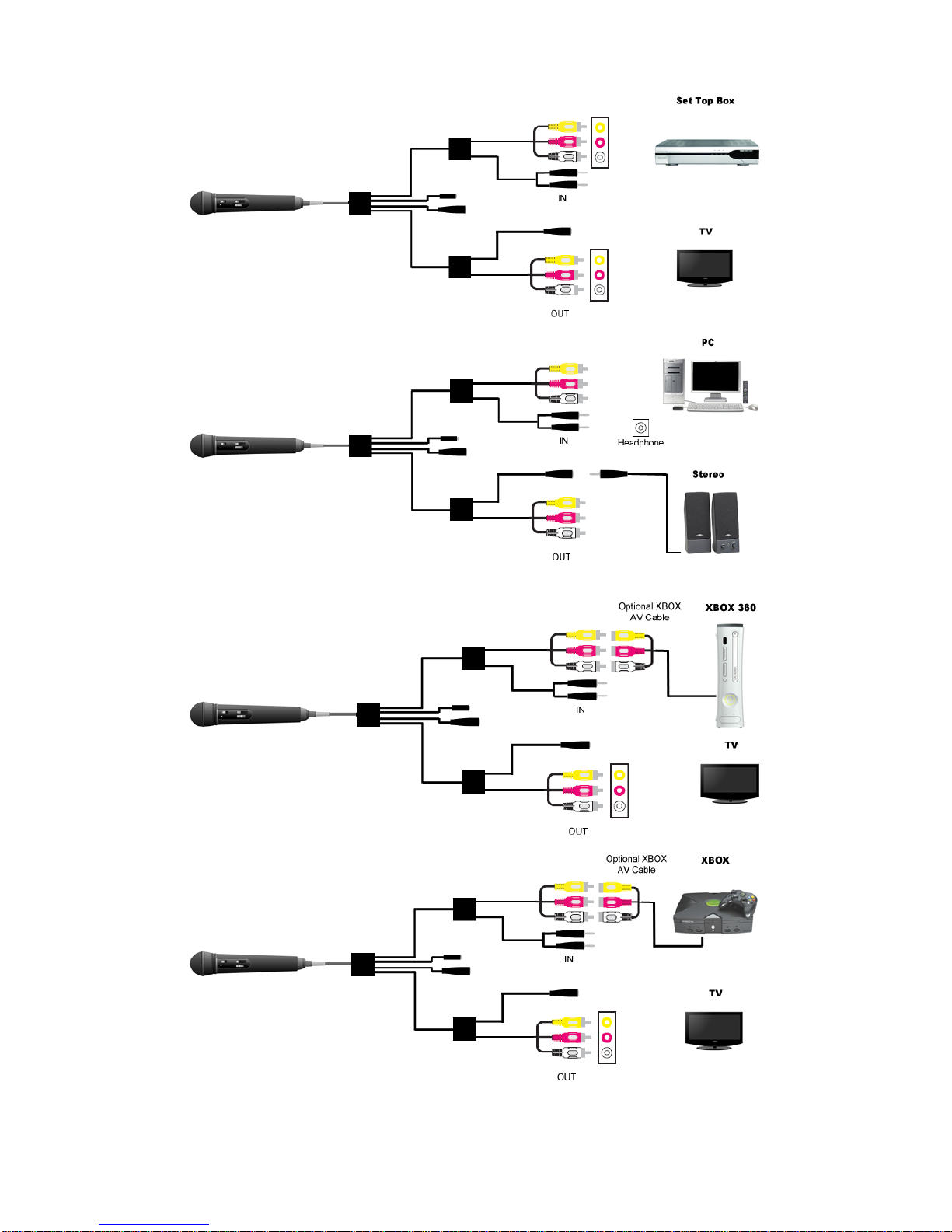

Connecting a Cable TV, DTH or IPTV Set top Box
Connecting a Personal Computer
Connecting a XBOX 360
Connecting a XBOX

Connecting a IPOD
Connecting a DVD/VCD Player
Connecting a CDG Player
Connecting a MP3/MP4 Player

Connecting a PS2
Connecting a PS3
Connecting a ZUNE Player
Connecting a Home Theater

BASIC OPERATION
1. Plug and connect the Microphone as described above between
your music source and your speaker or TV.
2. Select your favourite track and press play.
3. Switch on the KARAOKE MICROPHONE to start singing along
with the selected song.
4. Use the Sliding Mic Volume and the Music Volume control on the
MICROPHONE to adjust the volume of the Microphone and
Music to suit your singing style.
5. Note: To avoid loud “feedback” or “howling”, DO NOT POINT
THE MICROPHONE AT THE SPEAKERS OF THE TV OR
AMPLIFIER.
6. When you have finished singing always switch the KARAOKE
MICROPHONE to OFF.
ECHO CONTROL
This KARAOKE MICROPHONE includes an ECHO effect, giving
your voice the sound of being on a stage. Vocal echo adds a
professional sound to your performance. To activate the ECHO
effect, slide the FUNCTION SWITCH to the ECHO position.
POWER ADAPTOR
Use a 10V DC power adaptor with an output of a minimum of 0.2A
(included in the box) and with a positive polarity as shown
BATTERY INSTALLATION
Your Karaoke Microphone is also designed to operate on a 9V
battery only (Type 6F22, Not included).
Note: Always turn the unit off before replacing battery.
1. Unscrew to open the BATTERY DOOR.
2. Install one DC 9V battery to the battery connector. The snap
connector only fits one way to ensure the correct polarity.
3. Be sure that the battery is installed correctly. Wrong polarity may
damage the unit.
4. Only battery of the same or equivalent type as recommended
should be used.
5. Close the battery door.
6. Replacement of battery should be done by an adult.
7.Do not dispose of batteries in fire. Batteries may leak or explode.
PRECAUTIONS
1. Avoid leaving your unit under direct sunlight or in hot, humid, wet
or dusty places.
2. Always switch off the KARAOKE MICROPHONE when you have

finished singing.
3. If the KARAOKE MICROPHONE becomes dirty or smudged with
fingerprints it may be cleaned with a soft cloth slightly dampened
with a mild soap and water solution. Never use abrasive cloths,
Chemicals or Commercial Cleaners or polishes as these will
damage the finish of your Microphone.
COMPLIANCE WITH FCC
REGULATIONS
This equipment has been tested and found to comply with the limits
for a Class B Digital Device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and the receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio technician for help.
WARNING
Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to
operate the equipment.
SERVICE
Please refer to the instructions on the enclosed warranty card for
returning your unit for service. When returning the unit, please
remove the battery to prevent damage to the unit in transit and/or
from possible battery leakage.
DISCLAIMER: We are not responsible for the battery returned with
the product or for the cost of replacement.


TROUBLESHOOTING GUIDE
For online help:
www.MeraGana.com
www.MeraGana.mobi
Click on Customer Service
SYMPTOM POSSIBLE CAUSE SOLUTION
No Sound Karaoke Microphone
not turned on.
External equipment
not turned on.
TV Cable RCA ends
disconnected.
Speaker Cable is not
connected
Volume Control(s) at
minimum setting
Switch on the Karaoke
Microphone.
Switch on the
equipment.
Reconnect the TV
Cable RCA ends.
Reconnect the
Speaker.
Adjust the volume
control on the
MICROPHONE or the
TV, amplifier, etc.
No Screen or
lyrics.
Player and TV not
Connected properly
TV not turned ON
Reconnect the external
equipment.
Turn the TV ON

Distributed by:
Innovative Interactive Infotainment
(A Division of CLA Investment and
Trading Company Private Limited)
2, Community Centre,
Sachet, New Delhi 110 017,
India
For online help:
www.MeraGana.com
www.MeraGana.mobi
Click on Customer Service





InnovativeInteractiveInfotainment
2,CommunityCentre,
Saket,NewDelhi110017,
India
---------------------------------------------------------------------------------------------------------
LIMITEDWARRANTYAndSERVICE
InnovativeInteractiveInfotainmentwarrantsthisproducttobefreefromdefectsinmaterialandworkmanshipfora
periodofNinety(90)daysfromdateofsaletotheoriginalconsumerpurchaser.TheProductwillberepairedorreplaced
freeofchargeifitisproventobedefectivewithintheninety(90)dayperiod.THISWARANTYDOESNOTCOVERANY
EXPENSESINCURREDINTHETRANSPORTATION,REMOVALANDREINSTALLATIONOFTHISPRODUCT.Thiswarrantydoes
notapplytoanyproductdamagedbyaccident,misuse,abuse,improperlinevoltagefire,water,lightningorotheracts
ofGod,oranypartsofservicefurnishedbyanyoneelse.Thiswarrantydoesnotcovercartons,carryingcases,batteries,
brokenordamagedcabinets,oranyotheritemsusedinconnectionwiththeproductorconsequentialdamagesdueto
defectintheproduct.ThiswarrantydoesnotcoverproductssoldASISorRE‐MANUFACTUREDunitsorunitssold
outsidetheInnovativeInteractiveInfotainmentdistributionchannel(s).

ALLIMPLIEDWARRANTIESARELIMITEDTOTHEDURATIONOFTHISWARRANTY.THISISTHECOMPLETEWARRANTYAND
NOOTHEREXPRESSEDWARRANTYISVALID.TOVALIDATEYOURWARRANTY:Filloutthewarrantycardthathasbeen
includedinthepackagingofthisunitandmailthewarrantytotheaddressprovidedonthecard.

TOOBTAINSERVICEONWARRANTYUNITS,callourserviceCenter.Proofofpurchaseisrequired.Allpackagesshippedto
ServiceCentermustbefullyinsuredandfreightprepaid.Encloseadetaileddescriptionofthedefect.PleasesendaCheque
drawninfavourof“InnovativeInteractiveInfotainment”forRs.100.00tocoverreturncharges.YoumustProvideuswith
yourcompletemailingaddressanddaytimetelephonenumber.
SERVICECENTER:
InnovativeInteractiveInfotainment
2,CommunityCentre,Saket
NewDelhi,110017,India
Tel:+91.11.26960817

Place
Stamp
Here

OWNERREGISTRATIONCARD
PLEASEPRINTCLEARLY
Name:…………………………………………………………………………………………………..
Address:………………………………………………………………………………………………..
City:…………………………………………………………State:……………..Pin:………….
Phone:…………………………………………………….MobilePhone………………………
Email:……………………………………………………………………………………………………

ToBefilledinbyShopSellingtheMicrophone)
DatePurchased:………………………………………BillNo.……………………………….
Name:…………………………………………………………………………………………………..
Address:………………………………………………………………………………………………..
City:…………………………………………………………State:……………..Pin:………….
--------------------------------------------------------------------------------------------------------- 

