Mercury Floor Machines, Inc.
New Equipment Warranty
Limited Warranty
Mercury Floor Machines, Inc. warrants new equipment against defects in material and
workmanship under normal use and service to the original purchaser. Any statutory implied
warranties, including any warranty of merchantability or tness for a particular purpose, are
expressly limited to the duration of this written warranty. Mercury Floor Machines, Inc. will not be
liable for any other damages, including but not limited to indirect or special consequential damages
arising out of or in connection with the furnishing, performance, use or inability to use the machine.
This warranty shall be the exclusive remedy of the purchaser. The warranty period is subject to the
conditions stated below.
5 Years - Motor and Chassis, 1 Year - Service Labor
Mercury Floor Machines, Inc. warrants electric motors and chassis components on this machine
to be free from defects in material and workmanship, under normal use and service for ve (5)
years to the original purchaser. Parts replaced or repaired under this warranty are warranted for
the remainder of the original warranty period. Service labor charges are covered for one (1) year
from the date of purchase, when performed by a Mercury Floor Machines, Inc.-authorized service
provider. Freight charges to and from this service provider will be covered for ninety (90) days
from the purchase date. After this ninety (90) day period, these freight charges will be paid by the
equipment owner. Travel expenses are not covered.
Wear Items on all Machines
Critical Wear Items - bearings, capacitors, clutches, pulleys, rectiers, relays, switches, wheels,
tires and casters are warranted for manufacturing defects for one (1) year from the purchase date.
Normal Wear Items - belts, brushes, bumpers, capacitors, carbon brushes, casters, clutches, cords,
nishes, gaskets, rectiers, switches, squeegees, bearings, pulleys, relays, actuating cables, wheels,
and tires will be warranted for manufacturing defects for ninety (90) days from the purchase date.
All warranties of motors and associated components will be voided: if the machine is used as a
oor sander; if the machine is serviced by anyone other than a Mercury Floor Machines, Inc.-
authorized service provider; if the machine is mechanically modied; if a 2000 RPM model is
operating without the front wheel assembly attached; if a machine is operated when not operating
properly; or if the machine is misused or abused.
The warranty starts on the purchase date by the original purchaser from Mercury Floor Machines,
Inc. subject to proof of purchase. The Machine Registration Card must be completed and returned
immediately at the time of purchase. If proof of purchase cannot be identied, the warranty start
date is ninety (90) days after the inventory stocking date at the Mercury Floor Machines, Inc.
warehouse.
© 2012 Copy Rights Reserved Mercury Floor Machines, Inc.
© 2012 Copy Rights Reserved Mercury Floor Machines, Inc.
Mercury Floor Machines, Inc.
110 South Van Brunt Street
Englewood, NJ 07631
Phone: [phone]
Toll Free: [phone]
Fax: [phone]
www.mercuryoormachines.com
Important Information and Safety Instructions
Register your Machine at mercuryoormachines.com/registration.aspx
Serial No:
Ultra D.C. High-Speed BurnisheR
5 Apron Sizes
Fully Adjustable
Balanced Design
All Metal Chassis
Quiet Motor
Safe & Easy to Use
REGISTER
YOUR
MACHINE
ONLINE!
Safety, Operation and Maintenance
Manual with Parts List
Please read before use!
1.5 HP
1170, 1500 or 2000 RPM
19”, 20”and 21”Apron Sizes

1.0 Safe Operating Conditions
READ THIS MANUAL BEFORE USING BURNISHER. KNOW THE PROPER
OPERATION, CORRECT APPLICATIONS AND THE LIMITATIONS OF THIS
EQUIPMENT BEFORE USE.

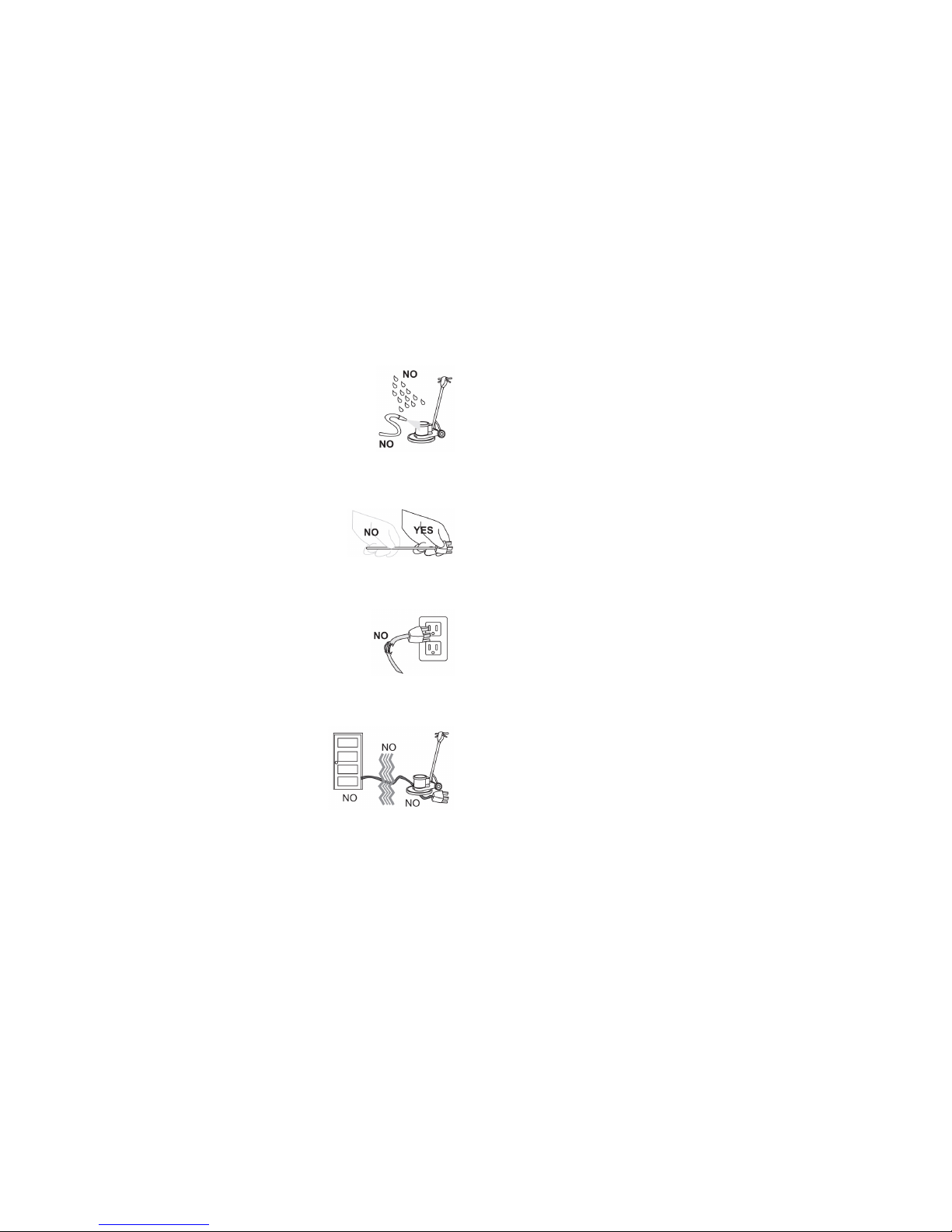

Reduce the Risk of Fire, Electric Shock or Injury:
• This burnisher is designed for indoor use only. Do not
use outdoors. Do not expose to rain.
• Do not wash the motor with owing water. If the motor
gets wet, seek authorized service.
• Keep the vents on this air-cooled motor free from debris.
Do not operate with the motor covered or with vents
blocked. Do not use this machine as a oor sander.
• Never operate this machine near ammable dusts, liquids
or vapors. Never use ammable solvents as a cleaning
agent. Engine sparks and operating heat can cause re.
• Never handle electrical equipment with wet hands. Never
operate this machine with bare feet.
• Unplug the machine when not in use and when servicing
the equipment. To unplug, grasp the plug not the cord.
• Do not operate a burnisher with damaged handle
controls, cord or plug. If the equipment is not performing
properly, seek repair from a qualied service supplier.
• This machine is constructed with electrical grounding
at the plug. Operate only when connected to a properly
grounded outlet. See section 1.2 for grounding details.
• Prevent electrical cord abuse. Do not close a door
upon the cord, drive equipment over it, or run the oor
machine over it. Do not expose the cord to hot surfaces.
Do not lift, pull or carry this burnisher by the cord.
• Never operate the machine over sharp objects that can be
thrown out and harm the operator and damage the oor.
Sweep hard oors before scrubbing or bufng. Vacuum
clean carpets before shampooing or bonnet cleaning.
• Train your staff in proper use of this machine.
(2) Ultra High-Speed Burnisher Ultra High-Speed Burnisher (11)
8.0 Machine Parts List
Drawing No. Description Part No. Qty.
46 Drip Cap Mount Screw B-151 6
47 66 Fr. Drip Cap Cover M-242 2
48 66 Fr. Drip Cap Cover Bumper - Yellow M-239-Y 2
49 UHS Motor Screen SCR-01 1
50 UHS Motor Screen Bumper - Yellow M-238-Y 1
51 Cork Drip Cap Gasket M-248 2
52 UHS 1.5 HP Motor Only MOTOR-DC-IMP 1
53 Washer B-28 2
54 Motor Mount Bolt for UHS Motor B-143 2
55 Bearing Block Assembly Mount Bolt B-144 4
56 Bearing Block Assembly BBA-1 1
57 Bearing Block Gasket B-145 1
58A Base Casting 19” A-131 1
58B Base Casting 20” A-132 1
58C Base Casting 21” A-132 1
59 Motor Mount Lock Nut B-150 4
60 Bumper - Yellow BUMPER STOCK 1
61 Ground Wire Screw B-68 1
62A Floppy Disk Driver 19” DC-18 1
62B Floppy Disk Driver 20” DC-20 1
62C Floppy Disk Driver 21” DC-20 1
63 Big Mouth Blue Retainer PR7-ABL 1
64 Screw B-95 4
65 Bolt B-149 1
66 Pulley Driver PD-1 1
67 Bumper Screw B-68 1
68 Bumper Strap BUMPER STRAP 1
69A Drive Belt DC-1500 and 1170 DB-2 1
69B Drive Belt DC-2000 DB-1 1
70 Allen Head Set Screw For PD B-149 2
71A Pulley To Fit Motor 1500 RPM DC PM-3 1
71B Pulley To Fit Motor 1170 RPM DC PM-2 1
71C Pulley To Fit Motor 2000 RPM DC PM-1 1
72 Cotter Pin Wheel Axel B-142 2
73 Spring Washer B-51 4
74 Wheel Axel B-16 2
75 6” Operating Wheel M-250 2
76 Transport Wheel Axel Bolt B-26 2
77 4” Transport Wheel M-209 2
78 Lock Nut B-77 2
79 Front Wheel Assembly FCA-1 1

1.1 Electrical Power
This burnisher operates on a 13 amp nominal 115 V,
60 Hz, A.C. power circuit. (Motors may be custom
wired at the factory for 220 V, 50 Hz international
operation). The amp, hertz and voltage ratings are
listed on the motor spec label found on each burnisher.
Using voltages above or below those indicated on the
spec label will damage the motor. Always check your
local voltage requirements.
1.2 Grounding Instructions
This burnisher must be grounded while in use to
protect the operator from electrical shock. This
machine is built with a 3-wire cord and a 3-prong
grounding-type plug (Figure 1) to t a properly
grounded receptacle.
Before using this burnisher, make sure a properly
grounded, 3-hole electrical outlet is available. If not
available, as in some older facilities, use an adapter
for connecting a 3-prong plug to a 2-prong receptacle
(Figure 2) to ground the outlet chassis.
IMPORTANT: This adaptor may not be used in
Canada.
IMPORTANT: Never cut off the grounding prong for
use in a 2-prong outlet. By doing so, you have cut off
your protection from electrical shock.
Never assume that all 3-hole outlets are properly
grounded. Check before use.
Never assume that an adaptor connection (as in
Figure 2) is properly grounded. Check the outlet
with a ground fault interrupter device which quickly
indicated if a ground is connected. Correct a faulty
grounding before proceeding.
1.3 Extension Cords are Not Recommended
The burnisher is built with a 50 foot (15 M) safety cord which plugs directly into an
approved outlet. Use of any extension cords is NEVER RECOMMENDED.
(10) Ultra High-Speed Burnisher Ultra High-Speed Burnisher (3)
7.0 Machine Schematic Drawing
Figure 1
Figure 2

(4) Ultra High-Speed Burnisher Ultra High-Speed Burnisher (9)
1. Mount the handle to the chassis:
Align the handle with the yoke (1) over the mount
(2) on the burnisher chassis. The power cord will be
facing away fro the motor. Place a at washer (4) on
a 3” bolt (3), then place the bolt through the holes
in the yoke and the mount. Place another washer on
the bolt and secure with the locking nut (5). Tip the
handle back and out of your way for the next step.
2. Mount he support braces on the handle:
Tip the handle up. The handle mounting collar (7)
is designed to slide freely up and down the handle
tube, allowing the handle to be adjusted for the
comfortable operation of all users. Line up the
mounting collar with the upper holes in the two
straight handle braces (6).
• Place the curved spacer (12) with a square hole
onto the locking lever shaft (11). The curve
must face the lever.
• From behind the machine, insert the shaft
through the right handle brace (6), the
mounting collar (7) and the left handle brace.
• Place a spacer (9) on the shaft.
• Place the split washer (13) on the shaft.
• Place the locking wing nut (14) on the shaft.
• Adjust the wing nut for tightness. When
correctly installed, the collar slides easily
when the cam-engineered locking lever is
“up,” but is rmly xed wen the lever is
“down.”
2.0 Mount the Handle
This burnisher is shipped from the factory with the handle unattached. You will need two
7/16” wrenches to complete the assembly.
Remove the handle and mounting hardware from its carton. Bolts, nuts, washers and the
locking lever assembly are in the plastic bag attached to the handle.

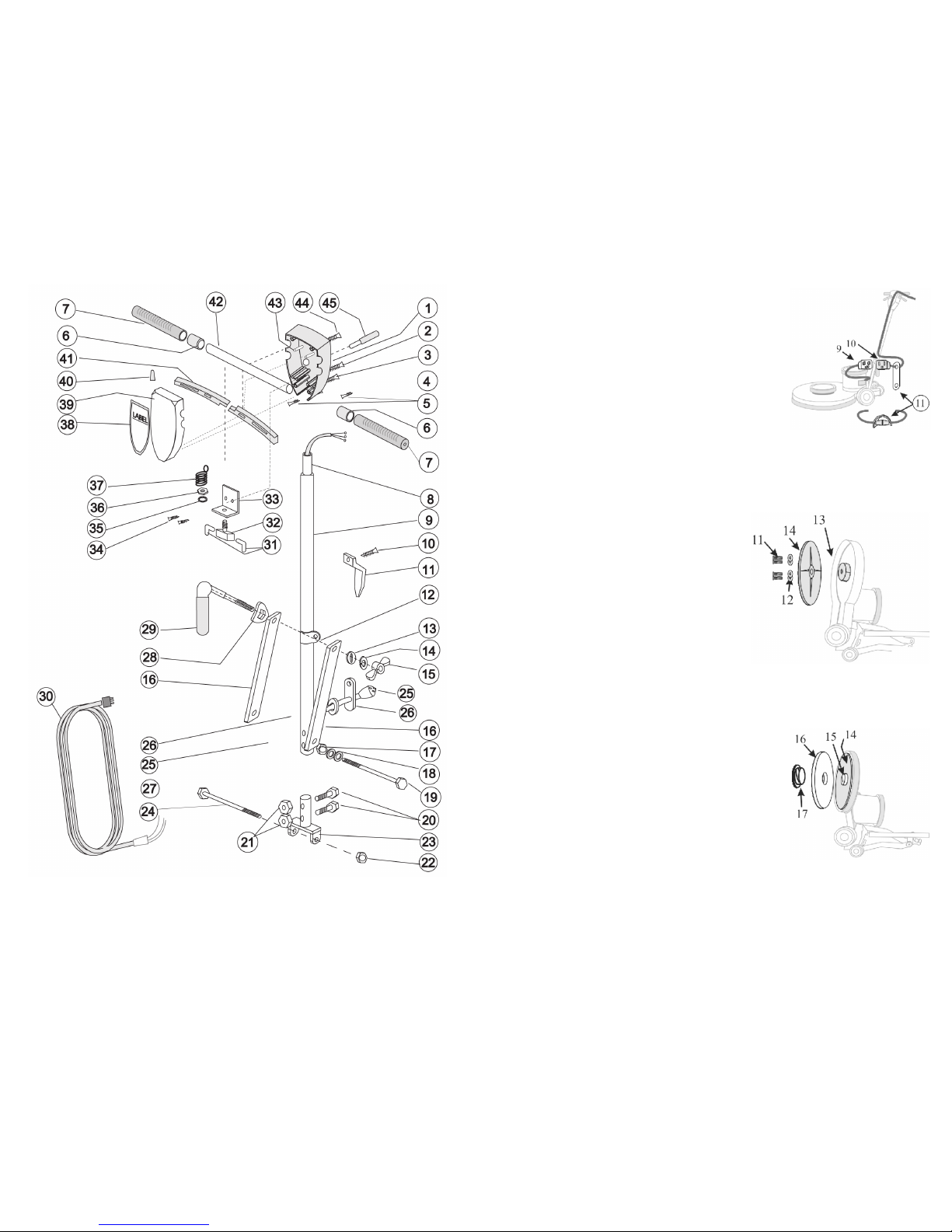

6.0 Handle Parts List
Drawing No. Description Part No. Qty.
1 Switch Box Back Cover A-104 1
2 Handle Tube Screw B-23 2
3 Switch Box Closing Screws B-21 4
4 Strain Relief Clip M-213 1
5 Switch Plate Screw B-68 2
6 Rubber Spacer - Black M-218-B 2
7 Hand Grip M-218 2
8 Handle Tube Insert M-247 1
9 Handle Tube Assembly M-206 1
10 Cable Hook Screw B-2 2
11 Cable Hook A-164 1
12 Sliding Collar A-111 1
13 Flat Washer B-37 1
14 Split Washer B-39 1
15 Cam Lock Wing Nut B-25 1
16 Straight Brace M-233 2
17 Stop Nut B-10 1
18 Washer B-28 2
19 Cap Screw B-9 2
20 Yoke Tube Mount Bolt B-18A 2
21 Tube Mounting Nut B-19 2
22 Yoke A-1001 1
23 Yoke Nut B10 1
24 Yoke Bolt B14 1
25 Handle Tube Cable G-16 1
26 Black Rubber Cable Connector M-249 1
27 Cable Grommet B-63 1
28 Rectangular Hole Cam Washer B-67 1
29 Cam Assembly C-100 1
29A Complete Cam Assembly Kit CCA 1
(Includes 1 each of Drawing Items
#13, 14, 15, 28, 29)
30 50-Foot, 14/3-Gauge - Yellow G-14-50 1
31 Insulated Flag Wire Connector G-48 5
32 On/Off Switch and Plate Assembly G-30-AB 1
33 Switch Mounting Plate G-30-B 1
34 Ground Wire Screw B-1 2
35 Int. Tooth Lock Washer B-35 1
36 Flat Hex Nut B-33 1
37 Trigger Return Spring G-30-C-T057 1
38 Label - Switchbox 1
39 Switchbox Front A-103 1
40 Wire Nut G-47 1
41 Triggers A-105 2
42 16” Crossbar M-211-A 1
43 Trigger Pins B-70 2
44 Cross Bar Screw B-22 2
45 Safety Interlock Assembly SIA-1 1

2.1 Attach the Power Cord
The triple-wire grounded power cord has been factory-
installed into the handle tube. A exible rubber cable
connector (11) is used to secure the plug-in connections.
The burnisher ships with this connector mounted on the cord
coming out of the handle (10).
Stretch the connector and slip the male connector (9)
(coming out of the motor housing) through the connector
hole and then into the female connector. Now, plug the end
of the 50-foot cord into a grounded power outlet. Squeeze
the triggers on the handle and check for power to the motor.
2.2 Inspect the Pad Driver
A exible, high-speed pad driver has been bolted onto the burnishing machine and
dynamically balanced. This driver is the connection between the burnisher and a
disposable pad that burnishes the hard oor nish. If this molded plastic part ever
becomes damaged or if the molded hooks are worn
and cannot hold the pad, replace promptly.
Unplug the burnishing machine. Lock the handle
in the “up” position and tip the machine back fully.
Remove the 4 mounting screws (11) and washers
(12) from the drive hub (13).
Place the new pad driver (14) onto the main drive
pulley. Insert the mounting screws (11) through the
washers (12) into the bolt hole. Tighten securely.
2.3 Install the Pad
The face (bottom) of the pad driver (14) is covered with small “hooks” that grab onto the
pad (16). Every time you mount a new pad onto the pad driver, follow these steps:
• Unplug the burnishing machine. Lock the handle in the “up” position and tip the
machine back fully.
• Pad Sizes: 20” diameter pad on the 20” and 21”
machines. Mount a pad (16) over the male shoulder
(15) on the pad driver. Make sure that the pad is
centered on the driver.
• Insert the locking ring (17) through the center hole in
the pad and into the shoulder. Tighten until the locking
ring lies below the face of the pad. If the ring is not
fully locked, it will scratch the oor.
NEVER operate the burnisher without a pad.
NEVER operate the burnisher with a damaged pad of without a locking ring to hold the
pad in place.
5.0 Handle Schematic Drawing
(8) Ultra High-Speed Burnisher Ultra High-Speed Burnisher (5)

3.2 Transport
To transport this burnisher from the janitor’s closet to
the work area:
• Lock the handle in the “up” position. Wind the
cord around the handles and the bottom cord
hook.
• Tip the machine back onto the transport wheels.
Push or pull the machine by the handle, not by
the cord or any other part of the machine. Travel
carefully.
4.0 Troubleshooting
Never operate this burnisher when the equipment is not performing as expected or
when any parts are visibly damaged. The cause and solution for some basic problems
are described below. When repair is needed, take the equipment to an authorized repair
service center.
4.1 Burnisher will not Run
• Circuit breakers are tripped in the building. Check and reset.
• Equipment is unplugged. Check plug wall and at machine base. Plug in.
• Power cord failure. Test with a working power cord. Lock the handle up and tip the
motor back. Unplug the cord at the motor and plug the motor into your working
power cord.
• IMPORTANT! THIS IS JUST FOR TESTING. When you do this, you have removed
the safety handle controls from the circuit and you are sending power directly to the
motor. If the motor now spins, the problem is in the cord of the handle assembly.
Seek authorized repair service.
• If the motor still does not spin, the problem is either in the male connection at the
motor base or in the motor. Seek authorized repair service.
• Motor sparks or smokes. Seek authorized repair service.
4.2 Electrical Shock to Operator
• Equipment wiring failure or electrical short in the machine. Seek authorized service.
• Poor grounding or no grounding. Test the outlet with a ground fault interrupter.
Retain certied electrician to inspect and repair grounding. NEVER clip off the
ground plug on your cord.
• Repeated circuit breaking. High amp draw and circuit breaking can be an electrical
or mechanical problem. Seek authorized repair service.
4.3 High Vibration
• Pads are not centered on the pad driver. Tip machine back and re-center the pad.
• Uneven wear or warp to pad or brushes. Replace.
• Machine chassis is damaged by dropping. Replace.
2.4 Adjust the Front Wheel Assembly on 2000 RPM Model
The 2000 RPM model is designed with a front wheel
assembly that controls the down pressure that the pad
applies to the oor. Raise the apron height to reduce the
down pressure. Lower the apron height as the pad wears.
The warranty on a 2000 RPM machine will be voided if the
machine is operated without this wheel assembly in place
and operating correctly.
3.0 Operating Tips
• For indoor use only. Sweep abrasive soils before burnishing.
• While the pad driver is spinning, keep the burnisher moving to
avoid “donut” burns on the oor.
To Start Operation:
• Unlock the handle by raising the locking lever.
• Lower the handle to a comfortable position, typically waist high.
• Relock the handle by pushing the lever down. NEVER
OPERATE THE MACHINE WITH THE HANDLE
UNLOCKED.
• This burnisher has a high torque motor.
• Hold the machine rmly with both hands when starting up.
• Push the red safety interlock switch forward to unlock the dual
triggers.
• Squeeze both triggers to power the motor. Once power is on,
either trigger will keep power to the motor. To stop, release both
triggers.
3.1 To Store your Machine
• Lock the handle in the “up” position. Tilt the machine
back onto the transport wheels. Never store the machine
with the pad on the ground.
• Wind the cord around the handles and the bottom cord
hook.
• Wash pads and hang to dry.
• Inspect and maintain equipment on a regular schedule for
best results.
• Check and clean pads after each operation. Remove soil
and chemical buildup. Replace worn or damaged pads.
• Check the triggers and switches for proper operation.
• Use air pressure or vacuum to remove dust and debris
from the motor vents.
• Report problems and repair promptly.
(6) Ultra High-Speed Burnisher Ultra High-Speed Burnisher (7)
