Meridian D-ILA1080MF1 User manual

D-ILA1080MF1 DIgItAL V I D e o P rojector
user M A n u A L

Preface
i i
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
• (North America) Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade,
or the third prong are provided for your safety. If the provided
plug does not fit your outlet, consult an electrician for
replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and at the point
they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
• Unplug the apparatus during lightning storms or when unused
for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen in to the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
Safety warnings
• Do not expose the product to dripping or splashing.
• Do not place any object filled with liquid, such as a vase, on
the product.
• Do not place naked flame sources, such as lighted candles, on
the product.
To avoid interference
Do not position the product:
• Near strong magnetic radiation, such as near a power amplifier.
• Near to a television, or where connecting cables may be
subject to or cause interference.
WARNING: TO REDUCE THE RISK OF FIRE
OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPARATUS TO RAIN OR MOISTURE
This apparatus has been designed with Class 1 construction and
must be connected to a mains socket outlet with a protective
earthing connection (the third grounding pin).
To avoid overheating
• Leave at least 10cm around the equipment to ensure sufficient
ventilation.
Do not position the product:
• In direct sunlight.
• Near heat sources, such as a radiator.
• Directly on top of heat producing equipment, such as a power
amplifier.
• On a soft surface, such as a carpet, which would obstruct the
ventilation holes in the base.
The product normally runs warm to the touch.
FCC Information (USA Only)
CAUTION:
Changes or modifications not approved by Meridian/
Faroudja could void the user’s authority to operate the
equipment.
FCC Warning
This equipment generates and can radiate radio frequency energy
and if not installed and used correctly in accordance with our
instructions may cause interference to radio communications
or radio and television reception. It has been type-tested and
complies with the limits set out in Subpart J, Part 15 of FCC
rules for a Class B computing device. These limits are intended to
provide reasonable protection against such interference in home
installations. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encourage to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
Preface
Important safety instructions

Contents
iii
Contents
Introduction 1
This guide provides full information about unpacking the Digital Video Projector and
connecting it to the other equipment in your system.
About the D-ILA1080MF1 1
Technical specifications 2
Installing the digital video projector 3
This chapter explains how to install the digital video projector. It describes what you should
find when you unpack the product, and how you should connect it to the sources and
displays in your system.
Considerations for projector installation 3
Mounting the projector 4
Projector and screen installation 5
Screen size and projection distance 6
Lens shift setting 6
Precautions against fire and electric shock 8
Operating the projector 9
This chapter explains how to operate the D-ILA1080MF1 Digital Video Projector using the
Faroudja remote control.

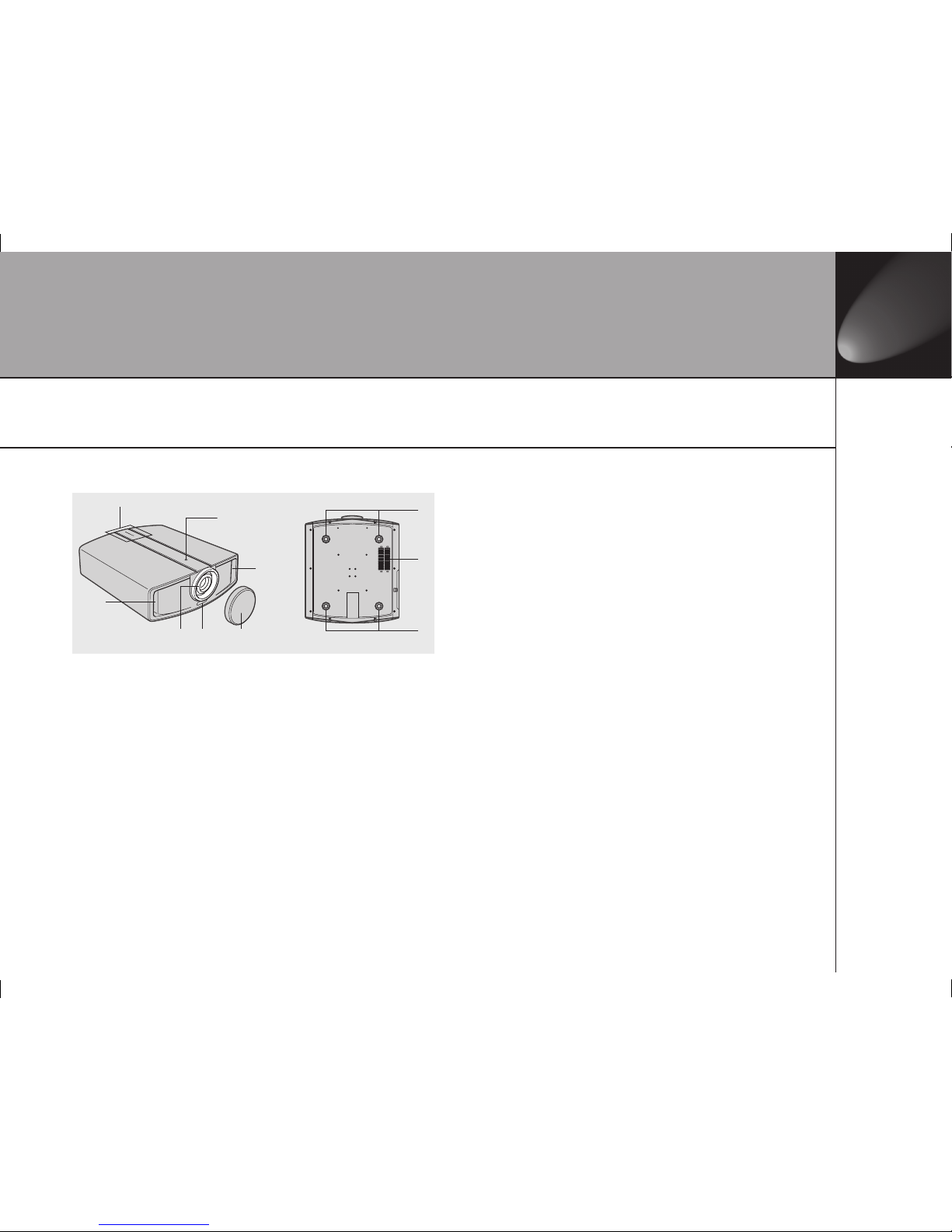

Controls – front, top, and underside 9
Controls – right side and rear 10

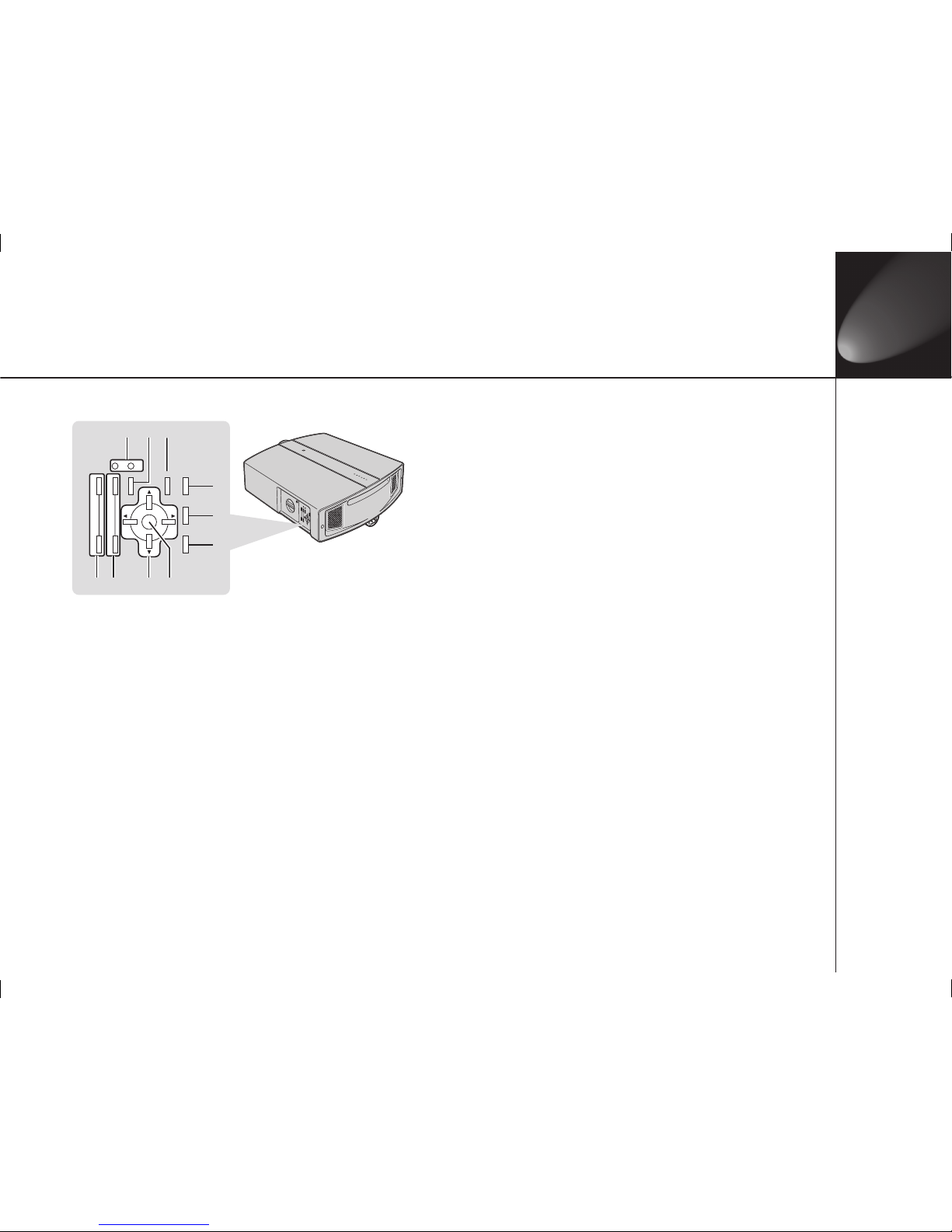

Control panel 11
Indicators 12
Remote control 13
Basic operation 14
Adjustments and settings using menus 15
Image Adjust menu 16
Setup menu 17
Options menu 18
Information menu 19
Maintenance and troubleshooting 21
This chapter explains how to configure the D-ILA1080MF1 Digital Video Projector using
options on the SETUP menu.
Replacing the lamp 21
Lamp replacement procedure 22
Resetting lamp time 23
Cleaning and replacing the filter 24
On-screen warning messages 24
Warning indicators 25
Troubleshooting 26
Index 29

Preface
i v
Copyright and acknowledgements
Sales and service in the UK
Meridian Audio Ltd
Latham Road
Huntingdon
Cambridgeshire
PE29 6YE
England
Tel [phone]
Fax [phone]
Sales and service in the USA
Meridian America Inc
8055 Troon Circle
Suite C
Austell
GA30168-7849
USA
Tel [phone]
Fax [phone]
World Wide Web – http://www.meridian-audio.com/
Copyright © 2006-07 Meridian Audio Ltd
No part of this document may be copied, photocopied, translated, or reproduced to any
electronic medium or machine readable form without prior consent, in writing, from
Meridian.
Designed and manufactured in the UK by Meridian Audio Ltd. Meridian Audio reserves
the right to make changes and improvements to any of the products described in this
document without prior notice.
Boothroyd|Stuart Meridian, Meridian, and Meridian Digital Theatre are registered
trademarks of Meridian Audio Ltd. The Faroudja name and logo, and ‘DCDi by Faroudja’ are
registered trademarks of Genesis Microchip Inc.
The Faroudja D-ILA1080MF is covered by the following United States patents: 4,030,121,
4,179,705, 4,240,105, 4,262,304, 4,847, 681, 4,864,389, 4,876,596, 4,893,176,
4,916,526,4,967,271, 4,982,280, 4,989,090, 5,014,119, 5,025,312, 5,159,451,
5,237,414.
Faroudja equipment is manufactured by Meridian Audio Limited under licence from Genesis
Microchip Inc. Country of origin as specified on product label.
This guide was produced by Human-Computer Interface Ltd,
http://www.interface.co.uk/
Part no: P80316

Introduction
1
About the D-ILA1080MF1
The D-ILA1080MF1 Digital Projector takes high performance theatre to a new level,
utilising three 1920x1080 DILA-based display chips. With a native resolution equal to
full-bandwidth High Definition, all the beauty and drama of the original source can be
reproduced with stunning accuracy.
D-ILA technology gives a cinema quality picture
The D-ILA1080MF1 Digital Projector uses D-ILA (Direct Drive Image Light Amplifier)
technology based on a reliable, precision mirror reflective system with no moving parts to
produce the full-spec 1080p High Definition resolution. The D-ILA1080MF1 uses three D-
ILA integrated circuits, each with a native 1920 x 1080 resolution, to produce clear, natural
images without the flicker or ‘strobed rainbow’ artefacts found in some other projectors.
There is also no visible grid of pixels or ‘screen door effect’ with D-ILA, so the results are as
close as possible to cinema quality.
Professional-standard greyscale reproduction
Analogue Gradation technology produces highly accurate shades with low noise,
particularly in darker areas with less than 20% brightness. The quality of greyscale
reproduction is further enhanced by a constant, high 2500:1 contrast ratio that ensures
high-precision, high-quality pictures even when the on-screen image is dark. In addition,
D-ILA technology reproduces blacks that are truly black, and there is impressively accurate
rendering of shadow detail.
Superior colour performance
The optical engine produces rich, natural colours with smooth gradations and low noise.
White field uniformity is tuned to near perfect, providing optimal cinema-style reproduction
consistently from projector to projector. D-ILA also offers a uniform response, irrespective of
brightness, displaying a wide range of intermediate tones.
D65 colour temperature
Reference standard D65 colour temperature ensures accurate colour reproduction of video
and film originated programming. D65 performance and dynamic range is adjusted by an
illumination system with RGB-optimised f-numbers. The colour gamut of D-ILA is greater
than that of any current television standard, ensuring accurate reproduction of virtually any
programme material.
Flexible installation
To accommodate the widest variety of theatre sizes and configurations, two models are
available, Normal Throw and Short Throw, each offering a different range of lens throw
distances. The Normal Throw version features a 1.9x power zoom lens (2.0:1 to 3.8:1),
while the Short Throw version (1080MF1-S) incorporates a 1.4x power zoom lens (1.5:1
to 2.1:1). Precision high-resolution all-glass lenses with motorised zoom and focus make
installation a snap, while installation flexibility is further enhanced by lens shift capability
of up to 60%. This allows the light path to be easily adjusted according to the installation
position.
Low fan noise design
The cooling system’s airflow design provides optimum cooling while keeping the noise level
down to a near-silent 27 dB. Thanks to this low fan noise design, subtle sounds in quiet
scenes on-screen are not overwhelmed by ambient noise.
Cost-effective high-pressure Mercury Lamp
To keep running costs down, the MF1 projector uses a low-cost, long-life 200 W ultra high-
pressure mercury lamp. The lamp can be easily replaced without de-mounting the projector,
and only needs replacement every 2000 hours.
This guide provides full information about unpacking the D-ILA1080MF1 Digital Video Projector
and connecting it to the other equipment in your system. It also explains how to operate it to get
superb results with your video sources and display devices.
Introduction

Introduction
2
Optimized by William Phelps
To remove the guesswork from projector installation, each unit is individually precision-
tuned and calibrated in our UK factory using technology, techniques and expertise
developed exclusively by world-renowned video expert William Phelps. To take just one
example: conventional calibration simply aligns a projector’s white reference to a given
colour temperature. However, colour temperature, surprisingly, does not tell you how
accurate the colour rendering is. Only one point in the colour measurement coordinate
system (D65) is actually correct - and our projectors are calibrated specifically to that point.
Optional Digital Video Processor
The D-ILA1080MF1 projector has no internal scaling, and so is recommended for use with
the DVP1080MF Digital Video Processor to convert all analogue and digital high definition
and standard definition sources to the native 1920x1080p resolution of the projector.
The processor features Faroudja’s advanced motion adaptive de-interlacing with DCDi and
3:2 pull-down technology to ensure error-free progressive-scan signals.
Faroudja colour matrixing provides accurate colour profiles for PAL, NTSC and HDTV,
allowing the processor to up-convert standard analogue and digital video inputs to a
high-resolution, fully HDCP-compliant digital signal that can be transmitted via the DVI-D
connector to the projector.
The processor also allows detailed video adjustments to suit viewer preferences, and
custom user-defined configuration profiles can be established, saved and recalled at will to
address an extensive range of operating requirements.
Technical specifications
Model Meridian Faroudja D-ILA1080MF1 Home Theatre Projector
Emission method D-ILA (Direct drive Image Light Amplifier)
(Reflective Active Matrix Principle)
Display panel/size: D-ILA Device / 0.82in (1920 pixels 1080 pixels) x 3
(Total pixels: Approx. 6,220,000) D-ILA devices are manufactured using
extremely high-precision technology. Pixel effectiveness is 99.99%.
Only 0.01% or less of the pixels will either not illuminate or remain
permanently illuminated.
Projection lens Normal (Long) Throw version 1.9x power zoom lens (2.0:1 to 3.8:1)
(D-ILA1080MF1 model)
Short Throw version: 1.4x power zoom lens (1.5:1 to 2.1:1)
(D-ILA1080MF1S model)
Power zoom/focus adjustment
Light-source lamp 200W Ultra-high pressure mercury lamp. Part No: BHL5008-S
Screen size Approx. 1.5m to 5m (60" to 200") (Aspect ratio: 16:9)
Projection distance Normal (Long) Throw: Approx. 2.5m to 15m
Short Throw: Approx. 2m to 10m
Input signal 1080/60p or 1080/50p
Resolution 1920 dots x 1080 dots
Input sync frequency Horizontal: 56.25kHz, 67.43kHz, 67.5kHz
Vertical: 50Hz, 59.94Hz, 60Hz
Inputs Video In: DVI input via DVI-D (Single-24pin) terminal, HDCP-compatible
Control: RS232C I/O via D-sub 9 pin 1 (External control)
Service: 3.5mm diameter, tip/ring/sleeve mini-jack 1 (For Service)
Outputs Screen Trigger: 3.5mm diameter, tip/sleeve mini-jack
Power requirements AC 100V – 240V AC, 50Hz/60Hz
Rated power 3.5A (100V AC) – 1.4A (24V AC)
Environment Temperature: +5ºC to +35ºC (41ºF to 95ºF)
Humidity: 20% to 80% (No condensation)
Storage Temperature: -10ºC to +60ºC (14ºF to 140ºF)
Dimensions 513mm x 193.7mm x 558.5mm approx (20.2" x 7.6" x 22") WHD
(Excluding lens and protrusion portion)
Weight 17.0kg (37.5lbs)
Specifications and features subject to change without notice.

Installing the
digital video
projector
3
Considerations for projector installation
Please read the following carefully before installing this unit.
Installation environment
This unit is a precision device. Do not install it in the following places. Doing so may cause
fire or malfunction of the unit.
• Where there is water, humidity or dust.
• Where the unit may be subjected to oily or cigarette smoke.
• On a soft surface such as carpet or cushion.
• Where the unit may be subjected to high temperature due to direct sunlight.
• When temperature is high or low.
Allowable operation temperature range: +5º to +35ºC.
Allowable relative humidity range: 20% to 80% (no condensation)
Allowable storage temperature range: -10º to +60ºC.
• Any room in which there is cigarette smoke or grease.
Even where smoke and grease levels are minimal, prolonged exposure will affect this unit.
This unit produces significant amounts of heat, and the optical components are cooled by
taking in a large amount of air. The optical path may be soiled by grease/dirt, thus causing
images to become dark or colour projection to deteriorate. Where soiling of the optical
components occurs, total removal of grease/dirt may not be possible.
Operating precautions
This unit uses a light source that reaches high temperatures during projection.
Do not allow projection under the following conditions, as doing so may cause
fire or failure of the unit:
• Projection with the unit laid on its sides
• Projection with the unit installed at an unreasonable angle
Avoid using this unit at an angle of more than 5º horizontally and 25º vertically. Doing so
may cause unevenness in the colour and/or shorten the lamp life.
• Projection in a location that blocks the air inlets or exhaust vents
• Projection in a place exposed to air blasts from an air conditioner
• Projection without removing the lens cap
This chapter explains how to install the digital video projector. It describes what you should find when you
unpack the product, and how you should connect it to the sources and displays in your system.
Installing the digital video projector

Installing the
digital video
projector
4
Mounting the projector
The projector can be operated in a free-standing position using the feet supplied. To mount
the projector, remove the 4 feet and make use of the 4 screw holes (M8 nuts) on the
underside of the projector. Allow sufficient space around the air inlets to avoid blocking
them.
Precautions for ceiling-mount
To ceiling-mount this unit, special expertise and techniques are necessary. Be sure to ask
your dealer (or a specialist) to perform mounting (to ceilings, etc.).
• Do not mount in places that may be subjected to vibration and shock.
• The depth of the threaded holes is 30 mm. Use screws shorter than 30mm but longer
than 19mm. Longer screws may damage internal parts of the projector and cause
malfunction.
• Safety of the installation location should be considered in case this unit, or a part of it,
falls. Note that if the light-source lamp is broken, glass shards from the filter mesh may
spread outside the projector.
Minimum space required
300mm and
above
150mm and
above
300mm and
above
500mm and
above
150mm and above
Do not use a cover which may enclose this unit or block the air inlets/exhaust vents. Allow
sufficient space around this unit. When this unit is enclosed in a space of dimensions as
indicated above, use an air-conditioner so that internal and external temperatures are the
same.

Installing the
digital video
projector
5
Projector and screen installation
The optimum image can be obtained when the centre of the projector’s lens and the screen
are placed perpendicular to each other. Take note of the projection angle when placing
both items. Failing to do so may give rise to trapezoidal distortion of the projected image.
Note: This unit does not come with a function to correct trapezoidal distortion or adjust
horizontal gradient.
View from the side
Install the projector such that the centre of the projection screen is on the same level as
the centre of the lens when there is a 0% shift (offset).
90° 90° 90°
Centre line of lens
Install the projector such that the lower end of the projection screen is on the same level as
the centre of the lens when there is a 50% shift (offset).
90° 90° 90°
Centre line of lens
View from above
90° 90° 90°
Centre line of lens

Installing the
digital video
projector
6
Screen size and projection distance
Adjust the distance from the lens to the screen to achieve your desired screen size.
You will need to have specified the Normal Throw (DILA1080MF1) or Short Throw
(DILA1080MF1S) version of this projector when ordering. The Normal Throw version uses
a 1.9x power zoom lens, while the Short Throw version has a 1.4x power zoom lens. As a
result, the Normal Throw version displays a given image size on a screen up to about 150%
as far away as the same-sized image displayed by the Short Throw version. In most cases,
especially when the projector is mounted in a projection room, the Normal Throw version
will be most appropriate. When the projector is used in a smaller room, however, the Short
Throw version will probably be more effective. The relationship of projection distance and
screen size for both versions is given by the table below.
Projection distance and projection screen size relationship chart
The projection screen sizes (recommended) and projection distances in the table below are
provided only as a guide. Please use them as reference during installation. The projected
image size may vary depending on the manufacturing tolerance of the lens.
Use a projection image of 16:9 aspect ratio for setup adjustment.
Screen size
Short-throw
projecting distance
Normal throw
projecting distance
152cm (60") 1.96m - 2.77m 2.58m - 4.94m
178cm (70") 2.29m - 3.29 3.20m - 5.78m
209cm (90") 2.96m - 4.17m 3.90m - 7.46m
254m (100") 3.29m - 4.64m 4.34m - 8.30m
279cm (110") 3.63m - 5.11m 4.79m - 9.14m
305cm (120") 3.96m - 5.57m 5.23m - 9.98m
330cm (130") 4.29m -6.04m 5.67m - 10.82m
356cm (140") 4.63m - 6.51m 6.11m - 11.65m
381cm (150") 4.96m - 6.98m 6.55m - 12.49m
Screen size
Short-throw
projecting distance
Normal throw
projecting distance
406cm (160") 5.30m - 7.45m 6.99m - 13.33m
492cm (170") 5.63m - 7.91m 7.43m - 14.17m
457cm (180") 5.96m - 8.38m 7.88m - 15.01m
482cm (190") 6.30m - 8.85m 8.32m
508cm (200") 6.63m - 9.32m 8.76m
Lens shift setting
This unit comes with a Lens shift feature that enables you to adjust the projection screen
position up or down. Adjust accordingly depending on the installation conditions.
The shift level is between 0% and 60%. The shift level is set to 50% as the default. The
following diagram shows the range of adjustment:
Approx. 60% (upward maximum)
Approx. 50% (default position)
Approx. 0%
(downward maximum)
The position of the projection screen may be out of alignment due to the gear movement.
When lens shift setting (adjustment) is completed, mount the lens shift cover to this unit.

Installing the
digital video
projector
7
To adjust the lens shift setting
• Project a reference image on the screen.
• Access the lens shift cover by unscrewing the knurled aluminium cover on the top of the
projector.
• Adjust the projection screen position by turning the shift adjustment screw using a flat-
blade or Philips head screwdriver and adjust accordingly:
Turn clockwise: Screen shifts upwards.
Turn anti-clockwise: Screen shifts downwards.
Shift downwardsShift upwards
Shift adjustment
screw
• Re-fit the lens shift cover making sure it is no more than finger-tight.
Interfacing the projector
Before connection, be sure to turn off both the projector and the device to be connected.
Thoroughly read the manual that is supplied with the device to be connected.
To connect to a video processor
RS-232C
R
VICE
DVI OUTPUT
Projector
DVI-D cable
Connect to
the DVI input
DVI
Processor
A Meridian/Faroudja Digital Video processor is the ideal companion for your projector.
It is capable of processing and upscaling all your video sources to HD quality and will
give you the maximum image quality from any source. Consult your dealer for additional
information.
Video is connected to the projector via a DVI connector. To avoid image degradation,
always use the highest quality DVI cables you can. In addition, using HDMI/DVI adaptor
cables, you can connect a Meridian HDMAX 121 HDMI Extender near the projector end of
the run, which is especially useful in the case of long cable runs. In any event, when using
a DVI-D cable longer than 3m, the use of a booster or optical fibre cable is recommended.
This projector accepts 1080/50p and 1080/60p signals via the DVI-D connector, and HDCP
content protection is supported.

Installing the
digital video
projector
8

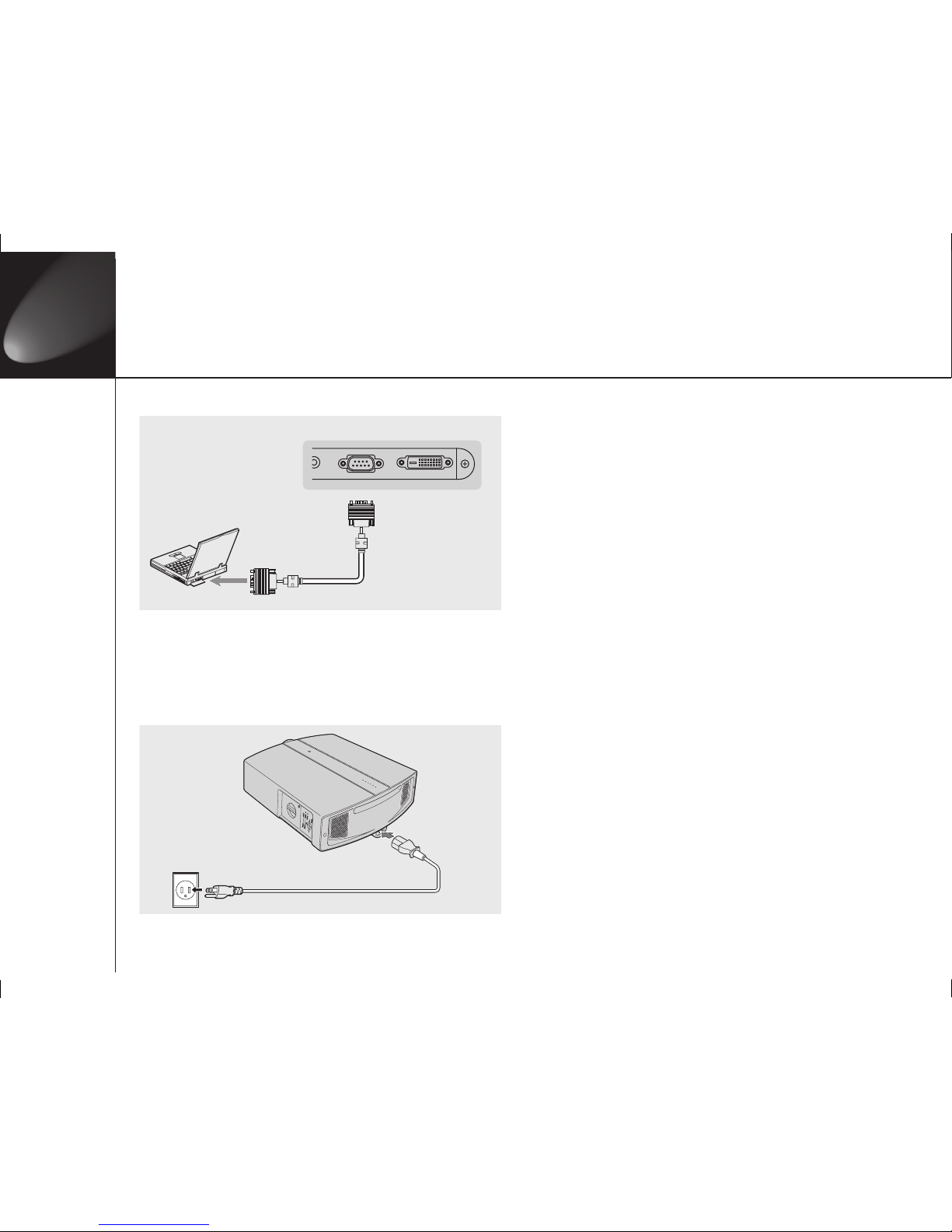

To connect to a computer or home automation system via RS232
DVI
R
VICE
Projector
RS-232C Connection Cable
(Cross Cable)
RS-232C
It is possible to control this unit by connecting a computer to the RS232C port at the rear
of this unit. Use a crossover cable for this purpose.
For details, please consult your authorized dealer.
To connect power
Before plugging in the power cable/cord, ensure that all devices have been connected.
Power Cable (supplied)
• Connect the supplied power cable to the power input terminal of this unit
• Connect the earth wire to the earth terminal available in the building, followed by
inserting the mains plug of the supplied power cable into the wall outlet
Precautions against fire and electric shock
• Since the power consumption of this unit is high, insert the power plug directly into a
wall outlet and not into a multiway adaptor.
• When not using devices, remove the power plug from the wall outlet.
• Do not use power cords for connection other than those supplied.
• Do not use a power voltage different from that which is indicated.
• Do not cut, tear or modify the power cords. Also, do not place a heavy object on, heat
or stretch the power cords as this may cause damage to the cords.
• Do not insert or pull out plugs with a wet hand.

Operating the
digital video
projector
9
Controls – front, top, and underside
A
B
F
B
CDE
G
H
G
A: Indicators
Please refer to
Indicators , page 12, for details.
B: Air Inlets
(2 in front and 1 at bottom surface)
The air inlets absorb air to cool the interior of the unit. Do not block or allow warm air to
blow into them. This may cause the unit to malfunction.
C: Power Zoom Lens
1.9x Normal power zoom lens
(model DILA1080MF1)
1.4x Short-throw power zoom lens
(model DILA1080MF1S)
Before projection, remove the lens cap.
D: Remote Sensor
When operating with the remote control, aim it towards the sensor. Also see
Digital video
projector operation
, page 13.
E: Lens Cap
Fit the cap on the lens when this unit is not in use.
F: Lens Shift Cover
Remove this cover when using the Lens Shift feature for shifting the projecting position in
the vertical direction.
G: Foot
It is set at the lowest position when shipped from the factory. This unit does not come with
a function to adjust the gradient.
H: Filter
Cleans air drawn in from the air inlet. Please clean this filter regularly; see
Cleaning and
replacing the filter
, page 24.
This chapter explains how to operate the DVP1080MF Digital Video Processor using the Faroudja remote
control.
Operating the projector

Operating the
digital video
projector
1 0
Controls – right side and rear
A
C
B
DVI
RS-232C
SCREEN TRIGGER SERVICE
DE F G
A: Control Panel Cover
Remove this cover when operating this unit without the remote control or when replacing
the lamp unit.
• Unlock the cover, followed by sliding it downwards to remove it.
Please refer to
Control panel , page 11, for details of the control panel.
Handling the Control Panel Cover
The gap between the body of the unit and the control panel cover is narrow. Be careful not
to stick your finger into the gap between the body of the unit and the control panel cover.
After attaching the control panel cover, check that the lock is fastened securely.
Lock
Release
B: Exhaust Vent
Warm air is expelled through this vent to keep the system cool. Do not block the exhaust
vents as this may cause the unit to overheat and fail.
C: AC Power Input Socket
This is the AC power input socket. Connect the supplied power cable to this socket.
D: Screen Trigger socket
This socket is used for controlling a motorised screen. An output at DC +12 V/100 mA
(max.) is produced when the power is on.
Consult a qualified technician for a connection with the screen.
E: Service Connector
This connector is intended for servicing purposes and should not normally be used.
F: RS232C Serial Port (D-sub 9 Pin)
The projector can be controlled by serial commands from a computer or home automation
control system connected to this port.
For details, please check with your authorized dealer.
G: DVI input (DVI-D 24 Pin)
This is the input socket for video signals. 1080/50p and 1080/60p signals are supported
and HDCP content protection capability is provided.

Operating the
digital video
projector
1 1
Control panel
TW ZOOM
+
-
FOCUS
MENU EXIT
OPERATE
ON
OPERATE
OFF
HIDE
RS232C Rx Tx
A
D E F G
B C
H
I
J
A: Rx/Tx Indicators
This indicator lights up during communication with a remote control system or computer
connected to the serial port.
Rx: Lights up when unit is receiving RS232C data.
Tx: Lights up when unit is sending RS232C data.
B: MENU button
Press this button to display the menu. Pressing this button when the menu is displayed
clears the menu.
C: EXIT button
Press this button to return to the previous hierarchical menu (for example, to return from
submenu to main menu). Pressing this button when the main menu is displayed clears the
menu.
D: ZOOM Tele/Wide buttons
Use these buttons to change the size of the projected image.
E: FOCUS +/- buttons
Use these buttons to adjust focus of the projected image.
F: Cursor buttons
Use these buttons when selecting and adjusting menu options.
G: ENTER button
Press this button to show the next hierarchical menu (for example, to enter a submenu
from the main menu). It is also used when ENTER is displayed against a selection item on
the menu screen.
H: OPERATE ON button
When this unit is in the standby mode, pressing this button for more than 1 second will
turn the unit on. The OPERATE indicator will illuminate to confirm this status.
I: OPERATE OFF button
When the unit is operating (projecting), pressing this button for more than 1 second
switches the unit to the cool down mode, which will automatically switch to the standby
mode after about 60 seconds.
Note: The OPERATE OFF button will not work within approximately 1 minute of the light
source being turned on. In this case, wait at least a minute before pressing this button.
J: HIDE button
Use this button to temporarily turn off the video image. Press again to resume.

Operating the
digital video
projector
1 2
Indicators
STANDBY
OPERATE
LAMP
TEMP
FAN
HIDE
A
B
C
D
E
F
A: STANDBY indicator
Light on: Unit is in standby mode.
Blinking: Unit is cooling down.
B: OPERATE indicator
Light on: Illuminated when unit is currently operating (projecting).
C: LAMP indicator
Light on indicates that:
• the lamp needs to be replaced soon or immediately;
• the lamp cover is removed;
• the lamp has failed and the unit is unable to project; or
• when the lamp fails during projection.
D: TEMP indicator
Light on: The internal temperature of the unit is abnormally high.
Blinking: The lamp needs to be replaced soon or immediately, or a failure has occurred in
the unit.
E: FAN indicator
Light on: The internal fan has unintentionally stopped running.
Blinking: The lamp has reached the end of its life and it is time to replace the lamp, or a
failure has occurred in this unit.
F: HIDE indicator
Light on: The video image has been temporarily cleared by pressing the HIDE button.
Blinking: A fault has occurred.

Operating the
digital video
projector
1 3
Remote control
Digital video projector
operation
The remote control operates both Meridian
DILA projectors and DVP digital video
processors.
• Press DVP or DILA to select the
product you want to control.
• Point the infra-red light at the top of
the remote control towards the product
you want to control.
The digital video processor has an infra-red
sensor on the front panel.
The projector has an infra-red sensor at
the front. You may be able to control the
projector by pointing the remote control at
the screen so the beam reflects back to the
projector.
To work reliably the angle of the beam
needs to be within ±30° of centre, and
the total distance needs to be less than 7
metres.
1 2 3
4 5 6
7 8 9
0
Bright.
Cont.
Light
DVP DILA
On
Off
Profile
Menu
Enter
DVI
Video
RGB
Colour
Tint Detail
YCrCb
S-Video
Store
Bypass
Hide Zoom Test
T
W
FocusPattern
Preset
Exit
Anamorphic
4:3
Letterbox
Select processor
Navigate menus
Select projector
Turn processor/projector
to standby.
Hold down or switch
projector to cool-down
mode
Display/hide menu
Select video input
Adjust image detail
using <or >
Adjust NTSC tint
using <or >
Adjust projector focus
Display test patterns
Zoom projector image
Adjust contrast
using <or >
Turn processor/projector on
Reset a selected menu item
to factory setting
Return from menu
Select menu item
Select aspect ratio
Adjust colour
using <or >
Display green grid signal
for focus adjustment
Hide/restore video image
Adjust brightness
using <or >
Illuminate backlight for 10
seconds
To replace the batteries
Before use, fit 3 AAA size batteries into the
remote control. If the remote control starts
to function erratically, replace the batteries.
• Gently press the circular recess near the
top of the battery cover on the back of
the remote control.
• Slide the cover down and off.
• Insert three penlight cells by pressing
the negative terminal of each battery
against the corresponding spring and
snapping into place.
Alkaline cells types AAA, UM04 or IECR03
are recommended.
The correct orientation of the batteries is
indicated in the battery compartment.
• Replace the battery compartment cover
and slide it upwards, engaging the
two tabs at the top of the cover with
the slots provided at the top of the
compartment.
• Push the cover up until it clicks shut.
When correctly engaged, the cover should
sit flush with the rear of the remote
control.

Operating the
digital video
projector
1 4
Basic operation
After installation, the projector will require initial set-up, adjustment, alignment and
configuration; see
Adjustments and settings using menus , page 15. Once this has been
done, the unit can be used simply by following these basic operational procedures.
1
2Indicators
TW ZOOM
+
-
FOCUS
MENU EXIT
OPERATE
ON
OPERATE
OFF
HIDE
RS232C Rx Tx
3
6
5
4
1: Remove the lens cap
We recommend keeping the lens cap in place when the unit is not in use.
2: Apply Mains Power
On the application of power, the STANDBY indicator on the unit illuminates.
3: Press the OPERATE ON button for 1 second or more
• You can also press the On button on the remote having previously pressed the DILA
button
• Your video processor may be capable of turning the projector on and off when required
via RS232 command. Consult your dealer for more information.
The OPERATE indicator on the projector lights up and the projected image slowly appears.
• Upon projection, the image may flicker for a few seconds. This is not a fault.
• When the light source is turned on, the lamp will slowly become brighter. It will take
more than a minute for the brightness to stabilize.
• When video sources employing copy-protection (HDCP) are in use, it may take a while
for the image to appear, due to the projector and its source ‘handshaking’
4: Adjusting zoom (image size) and focus
• These adjustments should normally be carried out as part of initial set-up. If the
message not available is displayed on-screen, these features have been locked out,
and you will need to go to the Options menu to unlock them.
To enlarge the screen size, press the ZOOM T button (button 8on the remote). To reduce
the screen size, press the ZOOM W button (button 0on the remote). Adjust the focus
setting with the FOCUS +/-buttons (2and 5on the remote).
5: Hiding the image temporarily
Press the HIDE button
• The displayed image will disappear. Press the HIDE button again to restore the image.
6: Turning off the power
Press the OPERATE OFF button on the panel, or the OFF button on the remote, for 1
second or more
The OPERATE indicator turns off, the STANDBY indicator starts blinking and the projector
switches to the cool down mode. The cool down mode will last for about 60 seconds to
allow the light source to cool off.
• The projector switches automatically into standby mode at the end of the cool down
mode.
• The OPERATE OFF button will not work until about a minute has passed after the light
source has been turned on. If necessary, wait for this to happen.
CAUTION: Do not pull out the plug when the Standby indicator is blinking. This may
shorten the lamp life and cause a malfunction.

Operating the
digital video
projector
1 5
Precautions during use
This unit makes use of a light source that reaches a high temperature during projection. Do
not allow projection under the following conditions; doing so may cause fire or malfunction
of the projector:
• Projection with the unit laid on its side.
• Projection with the unit installed at an unreasonable angle. Avoid using this unit at an
inclined angle. Doing so may cause unevenness in the colour or shorten the lamp life.
• Projection in a location that blocks the air inlets or exhaust vents.
• Projection without removing the lens cap.
Adjustments and settings using menus
The menus displayed on the screen are used to perform adjustment and setting for this
unit.
To display the main menu
• Press MENU on the control panel or remote control.
The main menu will be displayed with the Image Adjust menu initially highlighted:
To select a menu
• Press Aor Von the control panel or remote control to highlight the menu you want to
use.
• Press ENTER on the control panel or Enter on the remote control to select it:
Mask
Off5%2.5%
P icture S hift
F lip V
On Off
On
0
Off
F lip H
Menu Pos ition
Image Adjust
Options
Information
Setup

Operating the
digital video
projector
1 6
To change the setting of an adjustment item
• Press Aor Von the control panel or remote control to highlight the item you want to
adjust:
Image Adjust
Options
Information
Setup
Mas k
Off5%2.5%
Menu Pos ition
P icture S hift
F lip V
On Off
On
0
Off
F lip H
P icture S hift
F lip V
On Off
On
0
Off
F lip H
• Press <or >on the control panel or remote control to change the setting.
The effect of the adjustment will be seen on the image immediately.
To return to the previous menu
• Press EXIT on the control panel or Bypass/Exit on the remote control.
Pressing EXIT or Bypass/Exit also removes the menu or test pattern from the screen.
To display the test pattern
• Select Test pattern on the Image Adjust menu.
• Press ENTER on the control panel or Enter on the remote control.
There are 10 types of test patterns. Press ENTER or TEST to alter the test pattern to be
projected. Press EXIT to clear the menu screen. Press EXIT again to clear the test pattern.
Image Adjust menu
Permits image adjustment.
Option Description Setting values Default value
Gamma Switches the gradation characteristics
of the image. Your projector has been
individually calibrated with technology
by William Phelps. Please refer to
the William Phelps calibration sheet
included with your projector. This will
indicate to what settings Normal, A,
B, and Custom have been calibrated.
These settings are fixed and cannot be
changed.
Normal, A, B,
Custom
Normal
Color Temp. Adjusts the colour temperature of the
projected image.
D65, User1,
User2
D65
Red, Green,
Blue
Red, Green and Blue can be adjusted
when Color Temp. is set to User1
or User2.
-255 to 0 0
