Merit 710B User manual

BIKE USER’S GUIDE
FOR MODEL :
710B
720B
710B_720B_Rev.1.7.indd 1 8/28/06 3:31:08 PM

BEFORE
YOU BEGIN ASSEMBLYASSEMBLY
3
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY INTRODUCTION
CONGRATULATIONS and THANK YOU for your purchase of this Merit Fitness bike!
Whether your goal is to win races or simply enjoy a fuller, healthier lifestyle, an Merit Fitness bike can
help you attain it – adding club-quality performance to your at-home workouts, with the ergonomics
and innovative features you need to get stronger and healthier, faster. Because we're committed to
designing fitness equipment from the inside out, we use only the highest quality components. It's a
commitment we back with one of the strongest frame-to-brake warranty packages in the industry.
You want exercise equipment that offers the most comfort, the best reliability and the highest quality
in its class.
Merit Fitness delivers.
INTRODUCTION
TABLE OF CONTENTS
Important Precautions
Assembly
Before You Begin
Bike Operation
Conditioning Guidelines
Troubleshooting & Maintenance
Limited Warranty
CONTACT INFORMATION
4
5
15
16
20
26
30
Back Panel
710B_720B_Rev.1.7.indd 2-3 8/28/06 3:31:09 PM

BEFORE
YOU BEGIN
4
INTRODUCTION ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
IMPORTANT
PRECAUTIONS
BEFORE
YOU BEGIN ASSEMBLY
5
INTRODUCTION
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
SAVE THESE INSTRUCTIONS
Read all instructions before using this bike. When using an electrical product, basic precautions should
always be followed, including the following: Read all instructions before using this bike. It is the responsibility
of the owner to ensure that all users of this bike are adequately informed of all warnings and precautions. If
you have any questions after reading this manual, contact Customer Tech Support at the number listed on
the back panel of this manual.
IMPORTANT PRECAUTIONS
At NO time should pets or children under the age of 12 be closer to the bike than 10 feet.
At NO time should children under the age of 12 use the bike.
Children over the age of 12 should not use the bike without adult supervision.
It is essential that your bike is used only indoors, in a climate controlled room. If your bike has been exposed to
colder temperatures or high moisture climates, it is strongly recommended that the bike is warmed up to room
temperature before first time use. Failure to do so may cause premature electronic failure.
To reduce the risk of burns, fire, electrical shock or injury to persons:
• If you experience chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately and
consult your physician before continuing.
• Maintain a comfortable pace. Do not sprint above 80 rpms on this machine.
• To maintain balance, it is recommended to keep a grip on the handlebars while exercising, mounting or
dismounting the machine.
• Do not wear clothes that might catch on any part of the bike.
• Do not turn pedal arms by hand.
• Make sure handlebars are secure before each use.
• Do not insert or drop any object into any opening.
• Unplug bike before moving or cleaning it. To clean, wipe surfaces down with soap and slightly damp cloth
only; never use solvents. (See MAINTENANCE)
• This bike should not be used by persons weighing more than 275 pounds. Failure to comply will void the
warranty.
• This bike is intended for in-home use only. Do not use this bike in any commercial, rental, school or
institutional setting. Failure to comply will void the warranty.
• Do not use bike in garages, porches, pool rooms, bathrooms, car ports or outdoors. Failure to comply
may void the warranty.
• Use the bike only as described in this manual.
ASSEMBLY
IMPORTANT: READ THESE SAFETY INSTRUCTIONS BEFORE USE!
There are several areas during the assembly process of a bike that special attention must be paid. It is very
important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the
assembly instructions are not followed correctly, the bike could have frame parts that are not tightened and
will seem loose and may cause irritating noises. To prevent damage to the bike, the assembly instructions
must be reviewed and corrective actions should be taken.
UNPACKING
Unpack the product where you will be using it. Place the product on a level flat surface. It is recommended
that you place a protective covering on your floor. Note: It is recommended that you apply grease to the
threads of each bolt as you assemble the product, to prevent loosening and noise. Also, during each
assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before completely
tightening any ONE bolt.

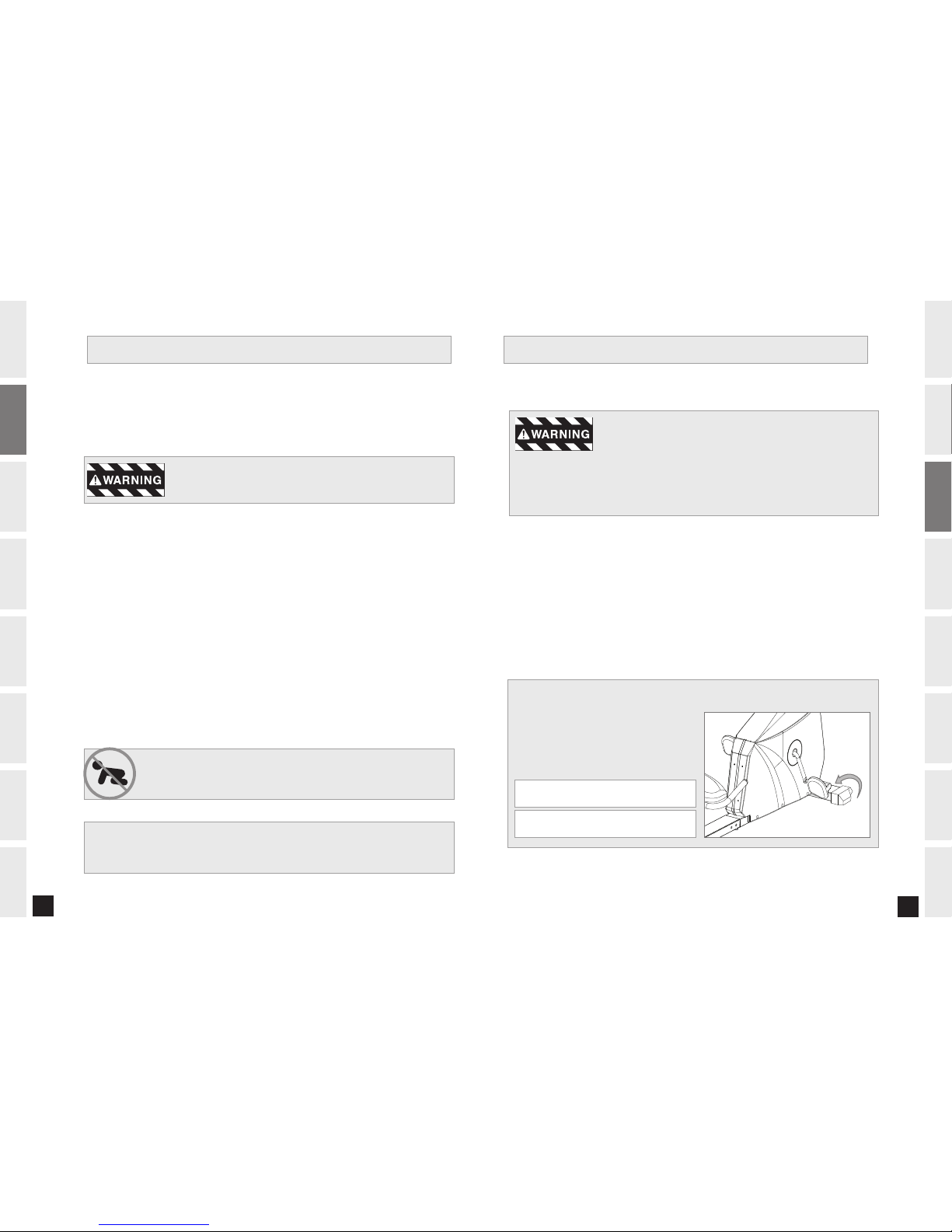

Before proceeding, find your bike’s serial number
located on the front stabilizer tube and enter it in the
space provided below. Also locate the model name
which is located on the console mast.
ENTER YOUR SERIAL NUMBER AND
MODEL NAME IN THE BOxES BELOW:
SERIAL NUMBER:
MODEL NAME:
* Refer to the SERIAL NUMBER and MODEL NAME when calling for service.
* Also enter this serial number on your Warranty Card.
IMPORTANT
PRECAUTIONS
710B_720B_Rev.1.7.indd 4-5 8/28/06 3:31:17 PM

BEFORE
YOU BEGIN
6
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
7
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
FRONT FOOT TUBE
BOLTS (A)
MAIN FRAME

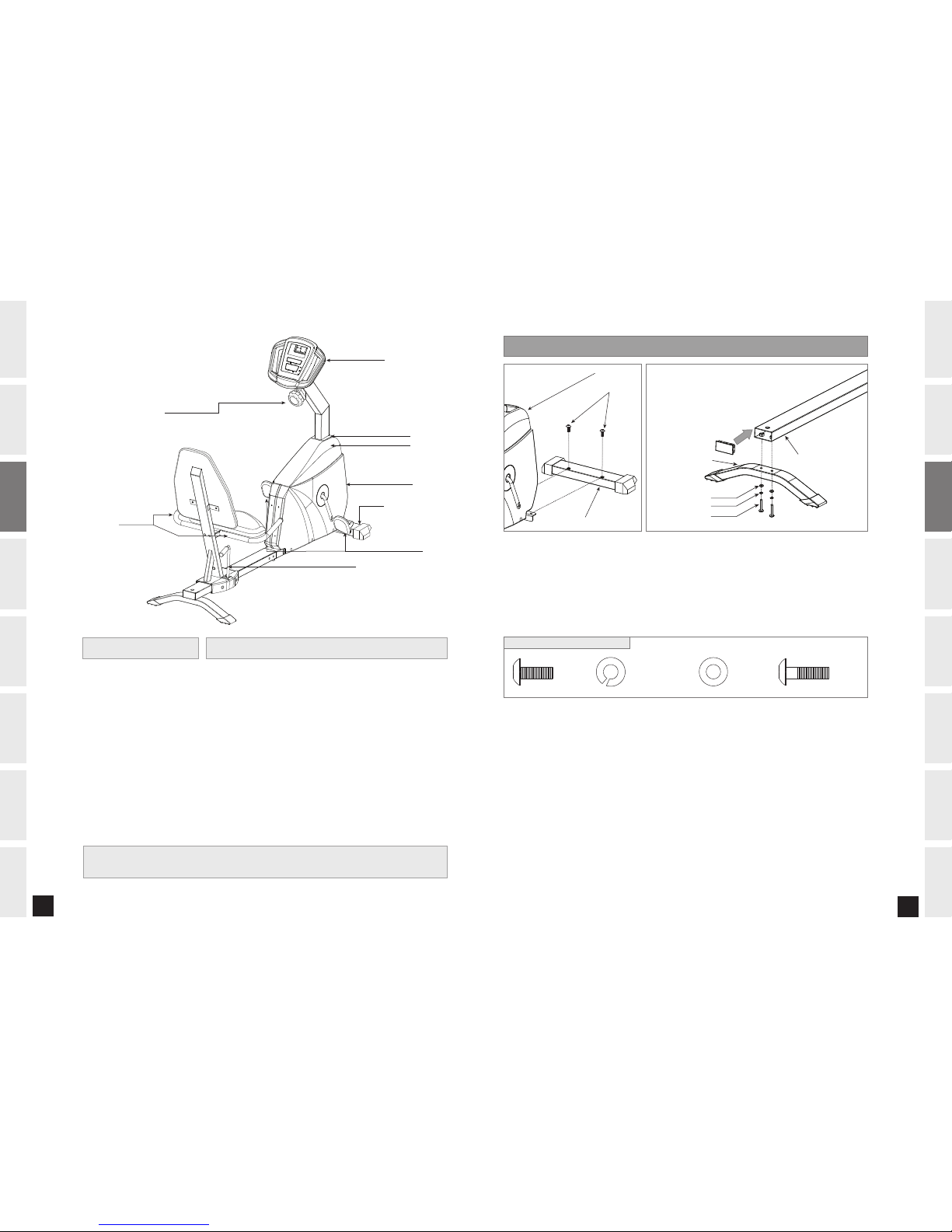

ASSEMBLY ST E P 1
A) Open HARDWARE BAG FOR STEP 1.
B) Attach the FRONT FOOT TUBE to the MAIN FRAME using 2 BOLTS (A).
C) Attach REAR STABILIZER to the SEAT SLIDE TUBE using 2 WASHERS (C), 2SPRING WASHERS (B) and 2 BOLTS (D).
D) Insert caps into the tube ends.
BOLT (A)
Qty: 2
SPRING WASHER (B)
Qty: 2
WASHER (C)
Qty: 2
BOLT (D)
Qty: 2
HARDWARE BAG FOR STEP 1 CONTENTS :
TOOLS INCLUDED PARTS INCLUDED
c 5mm Allen Wrench
c 13/15mm Flat Wrench
c Phillip Screwdriver
c 5mm T Wrench
c 6mm T Wrench
c 1 Console
c 1 Console Mast
c 1 Front Stabilizer Tube
c 2 Pedals
c 1 Top Shroud
c 1 Seat Slide Tube
c 1 Seat Back
c 1 Seat Base
c 4 Hardware Bags
c Manual Resistance Knob (710B Only)
c 1 Rear Stabilizer
c 1 Seat Support Tube
If you have questions or if there are any missing parts, contact Customer Tech Support.
Contact information is located on the back panel of this manual.
CONSOLE (710B SHOWN)
MAIN FRAME
SEAT ADJUSTMENT POSITION LEVER
FRONT STABILIZER TUBE
RESISTANCE KNOB (710B ONLY)
HANDLEBARS
PEDALS
TOP SHROUD
MAST BOOT
BOLTS (D)
WASHERS (C)
SPRING WASHERS (B)
REAR STABILIZER SEAT SLIDE TUBE
710B_720B_Rev.1.7.indd 6-7 8/28/06 3:31:40 PM

BEFORE
YOU BEGIN
8
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
9
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
ASSEMBLY ST E P 3ASSEMBLY ST E P 2
A) Open HARDWARE BAG FOR STEP 2.
B) Attach the SEAT BASE to the SEAT BASE SUPPORT using 3 BOLTS (D).
C) Attach the SEAT BASE ASSEMBLY to the REAR SEAT SUPPORT TUBE using 2 BOLTS (A),
2SPRING WASHERS (B) and 2 WASHERS (C).
D) Attach the SEAT BACK to the REAR SEAT SUPPORT TUBE using 3 BOLTS (D).
E) Insert caps into tube ends.
BOLT (A)
Qty: 2
SPRING WASHER (B)
Qty: 2
WASHER (C)
Qty: 2
BOLT (D)
Qty: 6
HARDWARE BAG FOR STEP 2 CONTENTS :
quantity: 2
25
<C> washer
<Z02> L Wrench
Quantity:1
quantity: 2
10.2
<B> springwasher
quantity: 2
<A> M10X1.5PX65Lbolt
10.2x <D> M8X1.25PX15Lbolt
quantity: 6
BOLTS (A)
SPRING WASHERS (B)
WASHERS (C)
BOLTS (D)
SEAT BASE
SEAT BASE SUPPORT
REAR SEAT SUPPORT TUBE
BOLTS (D)
BOLTS (A)
SPRING WASHER (B)
WASHER (C)
720B ONLY
BOLT (E)
SLIDE TUBE STOPPER (F)
BOLT (A)
Qty: 4
SPRING WASHER (B)
Qty: 4
WASHER (C)
Qty: 4
SLIDE TUBE STOPPER (F)
Qty: 1
BOLT (E)
Qty: 1
HARDWARE BAG FOR STEP 3 CONTENTS :
A) Open HARDWARE BAG FOR STEP 3.
B) Attach SLIDE TUBE STOPPER (F) to the SEAT SLIDE TUBE using 1 BOLT (E).
C) Slide the SEAT SUPPORT TUBE through the BASE FRAME.
(920B ONLY) Connect wires from MAST into BASE FRAME and connect to back of SEAT SUPPORT TUBE.
DO NOT PINCH WIRES.
D) Attach the BASE FRAME to the MAIN FRAME using 4 BOLTS (A),4 SPRING WASHERS (B) and
4 WASHERS (C).
710B_720B_Rev.1.7.indd 8-9 8/28/06 3:31:55 PM

BEFORE
YOU BEGIN
10
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
11
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
ASSEMBLY ST E P 4 ASSEMBLY ST E P 5
YOU’RE FINISHED!
NOTE: There is NO hardware bag for this step.
A) Attach CONSOLE to the CONSOLE MAST using pre-attached screws.
BOLT (A)
SPRING WASHER (B)
WASHER (C)
NUT (D)
BOLT (E)
WASHER (F)
BOLT (A)
Qty: 2
BOLT (E)
Qty: 2
SPRING WASHER (B)
Qty: 2
WASHER (F)
Qty: 2
WASHER (C)
Qty: 2
NUT (D)
Qty: 2
A) Open HARDWARE BAG FOR STEP 4.
F) Slide the TOP CAP through the MAST. Carefully pull console wires through the CONSOLE MAST. Attach the
CONSOLE WIRES to the pre-attached routing wire. Discard wire when finished.
G) Attach the CONSOLE MAST using 2 BOLTS (A), 2 SPRING WASHERS (B), 2 WASHERS (C), 2 NUTS (D), 2
BOLTS (E) and 2 WASHERS (F).
H) Snap the TOP CAP into place.
RESISTANCE
KNOB
TENSION WIRE RESISTANCE
KNOB BRACKET
TENSION
CABLE
TOP KEY HOLE
BOTTOM KEY HOLE
PRE-ATTACHED SCREWS
920B CONSOLE
A) Pull TENSION CABLE out from square hole in console mast.
B) Turn RESISTANCE KNOB to highest resistance setting. Place the TENSION WIRE into the
BOTTOM KEY HOLE on the RESISTANCE KNOB BRACKET.
C) While holding the RESISTANCE KNOB BRACKET, pull the RESISTANCE KNOB up to slide it
into the TOP KEY HOLE position on the RESISTANCE KNOB BRACKET.
D) Once the TENSION WIRE is in position, turn the RESISTANCE KNOB to the lowest
resistance setting.
E) Slide RESISTANCE KNOB & BRACKET into the CONSOLE MAST and attach using PRE-INSTALLED
BOLT & WASHER.
910B ONLY
RESISTANCE
KNOB
TENSION WIRE RESISTANCE
KNOB BRACKET
TENSION
CABLE
TOP KEY HOLE
BOTTOM KEY HOLE
PRE-ATTACHED SCREWS
720B CONSOLE
HARDWARE BAG FOR STEP 4 CONTENTS :
710B_720B_Rev.1.7.indd 10-11 8/28/06 3:32:16 PM

BEFORE
YOU BEGIN
12
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN
BEFORE
YOU BEGIN ASSEMBLY
13
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
BIKE
OPERATION ASSEMBLY
BEFORE YOU BEGIN
CONGRATULATIONS! on choosing your bike. You’ve taken an important step in developing and
sustaining an exercise program! Your bike is a tremendously effective tool for achieving your personal
fitness goals. Regular use of your bike can improve the quality of your life in so many ways.
HERE ARE JUST A FEW OF THE HEALTH BENEFITS OF EXERCISE:
• Weight Loss
• A Healthier Heart
• Improved Muscle Tone
• Increased Daily Energy Levels
The key to reaping these benefits is to develop an exercise habit. Your new
bike will help you eliminate obstacles that prevent you from exercising.
Inclement weather and darkness won't interfere with your workout when you
use your bike in the comfort of your home. This guide provides you with basic
information for using and enjoying your new machine.
LOCATION OF THE BIKE
Place the bike on a level surface. There should be 6 feet of clearance behind
the bike, 3 feet on each side and one foot in front for the power cord (See
diagram to the right). Do not place the bike in any area that will block any
vent or air openings. The bike should not be located in a garage, covered
patio, near water or outdoors.
3 feet
6 feet
3 feet
1 foot
POWER
Your bike is powered by a power supply (720B ONLY) or 2 AA Batteries (710B ONLY). The power must be
plugged into the power jack, which is located in the front of the 720B near the STABILIZER TUBE. Some bikes
also have an on/off switch located on the back of the console.
Do not operate the bike if the power cord or plug is damaged.
If the bike appears to not be working properly, do not use the bike.
MOVING
Your bike has a pair of transport wheels built into
the FRONT STABILIZER TUBE. To move, first remove
the power supply and firmly grasp the CONSOLE
MAST, carefully tilt and roll.
Our bikes are well built and heavy, weighing up to 200 lbs! Use care and
additional help if necessary when moving.
ADJUSTING THE SEAT
To adjust the seat turn the handle into its middle position making the handle feel loose. Then, slide the seat
to a position that puts you in a comfortable pedaling range (one that keeps a slight bend in your knee while
your legs are in the extended position). Lock the mechanism by rotating it clockwise or counter clockwise until
handle tightens.
NOTE: It is recommended that you do not sit on the seat while adjusting its position.
BIKE OPERATION
710B_720B_Rev.1.7.indd 12-13 8/28/06 3:32:26 PM

BEFORE
YOU BEGIN
14
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY BIKE
OPERATION
BEFORE
YOU BEGIN ASSEMBLY
15
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY BIKE
OPERATION ASSEMBLY
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) MONITOR DISPLAY: Speed, Time, Pulse, Distance.
B) START/STOP: Press to start/pause/end your workout.
C) RESET: Press to reset the bike.
D) BOOK RACK: Holds reading material
E) THUMB PULSE: Used to monitor you heart rate
Note: Thumb pulse may be inaccurate when used in low-light environments.

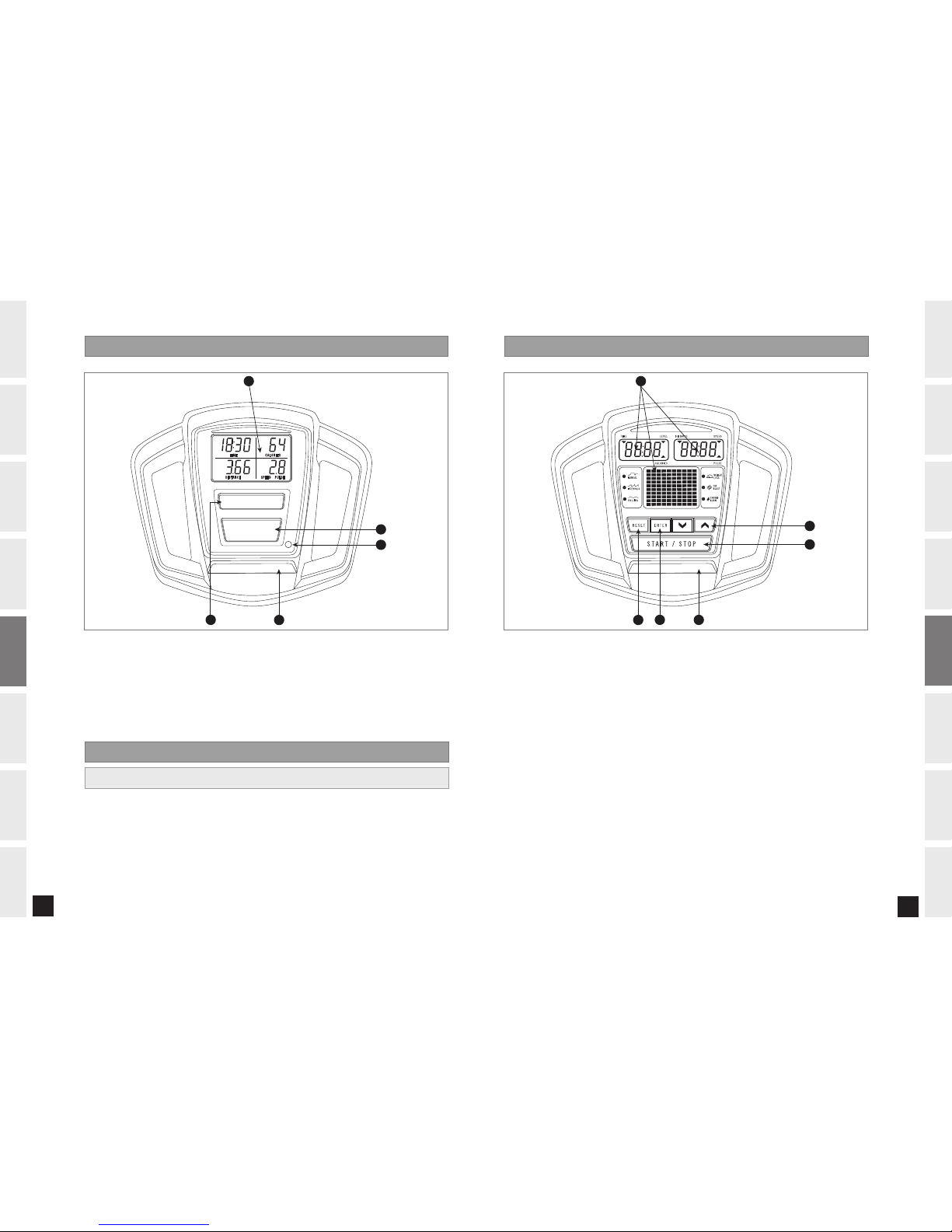

710B CONSOLE DISPLAY
B
E
CD
S T A R T / S T O P
RESET
A
710B CONSOLE OPERATION
1) Turn on Bike by pressing any key.
2) Press START button and begin exercising. The time will count up from 0:00.
3) The resistance level can be adjusted during the workout by using the RESISTANCE KNOB.
QUICK START
720B CONSOLE DISPLAY
A
B
C
D
E
F
Note: There is a thin protective sheet of clear plastic on the overlay of the console and should be removed.
A) MONITOR DISPLAYS: Speed, Time, Pulse, Distance, Level, Calories and Program Profiles.
B) START/STOP: Press to start/pause/end your workout.
C) ENTER: Used to set your program.
D) RESET: Press to reset.
E) UP/DOWN ARROW KEYS: Used to adjust resistance and select programs.
F) BOOK RACK: Holds reading material
710B_720B_Rev.1.7.indd 14-15 8/28/06 3:32:32 PM

BEFORE
YOU BEGIN
16
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
BIKE
OPERATION
BEFORE
YOU BEGIN ASSEMBLY
17
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
CONDITIONING
GUIDELINES ASSEMBLY
720B CONSOLE OPERATION
1) Turn on Bike by pressing any key.
2) Press START button and begin exercising.
3) Program will automatically default to MANUAL (P1), the time will count up from 0:00, and the resistance
will default to level 1.
4) The resistance level can be adjusted during the workout.
1) Select a program using the ARROW KEYS and press ENTER.
2) Set TIME using the ARROW KEYS and press ENTER or START.
QUICK START
SELECTING PROGRAMS
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
MANUAL
Allows you to adjust the resistance level to your preference, without a preset program.
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
INTERVALS
Improves your strength, speed and endurance by raising and lowering the resistance levels
through-out your workout to involve both your heart and muscles.
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
ROLLING
Creates the feeling of moving up and down hills by gradually increasing and decreasing
the resistance.
WEIGHT LOSS
Promotes weight loss by raising and lowering the resistance level, while keeping you in your fat
burning zone.
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
FAT BLAST
Keeps you in your fat burning zone.
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
CARDIO BURN
Program cues you to pedal forward and backwards for an exciting and challenging workout.and
tones muscles, and challenges the entire cardiovascular system.
PROGRAM PROFILES
MANUAL
INTERVALS
ROLLING
WEIGHT LOSS
GOLF COURSE
RACE
CUSTOM 1
CUSTOM 2
THR ZONE 1
THR ZONE 2
VALLEY
TOUR
REVERSE TRAIN
RANDOM
WORKOUT CALENDAR
HANDLEBARS (720B ONLY)
Place the palm of your hands directly on the grip pulse handlebars. Both hands must grip the bars for your heart
rate to register. It takes 5 consecutive heart beats (15-20 seconds) for your heart rate to register. When gripping
the pulse handlebars, do not grip tightly. You may experience an erratic readout if consistently holding the grip
pulse handlebars. Make sure to clean the pulse sensors to ensure proper contact can be maintained.
THUMB PULSE (710B ONLY)
How to Use:
1) Place thumb over Thumb Sensor.
2) The inspection window should be completely covered by your finger.
3) Wait for a few seconds, and your heart rate will show in the HEART RATE window.
WARNING: Do not press excessively hard on the sensor as this may cause damage.
HEART RATE
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN ExERCISE PROGRAM.
HOW OFTEN? (Frequency of Workouts)
The American Heart Association recommends that you exercise at least 3 to 4 days per week to maintain
cardiovascular fitness. If you have other goals such as weight or fat loss, you will achieve your goal faster with
more frequent exercise. Whether it’s 3 days or 6 days, remember that your ultimate goal should be to make
exercise a lifetime habit. Many people are successful staying with a fitness program if they set aside a specific
time of day to exercise. It doesn’t matter whether it’s in the morning before breakfast, during lunch hour or while
watching the evening news. What’s more important is that it’s a time that allows you to keep a schedule, and a
time when you won’t be interrupted. To be successful with your fitness program, you have to make it a priority in
your life. So decide on a time, pull out your day planner and pencil in your exercise times for the next month!
HOW LONG? (Duration of Workouts)
For aerobic exercise benefits, it’s recommended that you exercise from between 24 and 60 minutes per session.
But start slowly and gradually increase your exercise times. If you’ve been sedentary during the past year, it may
be a good idea to keep your exercise times to as little as five minutes initially. Your body will need time to adjust
to the new activity. If your goal is weight loss, a longer exercise session at lower intensities has been found to
be most effective. A workout time of 48 minutes or more is recommended for best weight loss results.
HOW HARD? (Intensity of Workouts)
How hard you workout is also determined by your goals. If you use your machine to prepare for a 5K workout,
you will probably work out at a higher intensity than if your goal is general fitness. Regardless of your long
term goals, always begin an exercise program at low intensity. Aerobic exercise does not have to be painful to
CONDITIONING GUIDELINES
710B_720B_Rev.1.7.indd 16-17 8/28/06 3:32:43 PM

BEFORE
YOU BEGIN
18
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
19
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY CONDITIONING
GUIDELINES ASSEMBLY
TARGET HEART RATE ZONE CHART
100%
75%
60%
BEATS PER MINUTE
20 25 30 35 40 45 50 55 60 65
AGE
TARGET ZONE
120 117 114 111 108 105 102 99 97 93
150 146 143 139 135 131 128 124 120 116
What is Target Heart Rate Zone?
Target Heart Rate Zone tells you
the number of times per minute
your heart needs to beat to
achieve a desired workout effect.
It is represented as a percentage
of the maximum number of times
your heart can beat per minute.
Target Zone will vary for each
individual, depending on age,
current level of conditioning,
and personal fitness goals. The
American Heart Association
recommends working-out at a
Target Heart Rate Zone of between
60% and 75% of your maximum
heart rate. A beginner will want to
workout in the 60% range while
a more experienced exerciser will
want to workout in the 70-75%
range. See chart for reference.
ExAMPLE:
For a 42-year-old user: Find age along the bottom of the chart (round to 40), follow age column up to
the target zone bar. Results: 60% of maximum Hear Rate = 108 Beats Per Minute, 75% of maximum
Heart Rate = 135 Beat Per Minute.
ALWAYS CONSULT YOUR PHYSICIAN BEFORE BEGINNING AN ExERCISE PROGRAM.
STRETCH FIRST
Before using your product, it is best to take a few minutes to do a few gentle stretching exercises. Stretching
prior to exercise will improve flexibility and reduce chances of exercise related injury. Ease into each of these
stretches with a slow gentle motion. Do not stretch to the point of pain. Make sure not to bounce while doing
these stretches.
1. STANDING CALF MUSCLE STRETCH
Stand near a wall with the toes of your left foot about 18" from the wall, and
the right foot about 12" behind the other foot. Lean forward, pushing against
the wall with your palms. Keep your heels flat and hold this position for a
count of 15 seconds. Make sure that you do not bounce while stretching.
Repeat on the other side.
2. STANDING QUADRICEP STRETCH
Using a wall to provide balance, grasp your left ankle
with your left hand and hold your foot against the back
of your thigh for 15 seconds. Repeat with your right
ankle and hand.
3. SITTING HAMSTRING & LOWER BACK MUSCLE STRETCH
Sit on the floor with your legs together and straight out in front of you. Do
not lock your knees. Extend your fingers towards your toes and hold for a
count of 15 seconds. Make sure that you do not bounce while stretching. Sit
upright again. Repeat one time.
STRETCHING
TIPS
be beneficial! There are two ways to measure your exercise intensity. The first is by monitoring your heart rate
(using the grip pulse handlebars or a wireless chest transmitter - may be sold separately), and the second is by
evaluating your perceived exertion level (this is simpler than it sounds!).
PERCEIVED ExERTION LEVEL
A simple way to gauge your exercise intensity is to evaluate your perceived exertion level. While exercising, if you
are too winded to maintain a conversation without gasping, you are working out too hard. A good rule of thumb
is to work to the point of exhilaration, not exhaustion. If you cannot catch your breath, it’s time to slow down.
Always be aware of these warning signs of overexertion.
710B_720B_Rev.1.7.indd 18-19 8/28/06 3:32:53 PM

BEFORE
YOU BEGIN
20
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
21
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY CONDITIONING
GUIDELINES ASSEMBLY
WARM UP
The first 2 to 5 minutes of a workout should be devoted to warming up. The warm-up will limber your
muscles and prepare them for more strenuous exercise. Make sure that you warm-up on your product at a
slow pace. The warm up should gradually bring your heart rate into your Target Heart Rate Zone.
COOL DOWN
Never stop exercising suddenly! A cool-down period of 3-5 minutes allows your heart to readjust to the
decreased demand. Make sure that your cool down period consists of a very slow pace to allow your heart
rate to lower. After the cool-down, repeat the stretching exercises listed above to loosen and relax your
muscles.
An important step in developing a long-term fitness program is to determine your goals. Is your primary
goal for exercising to lose weight? Improve muscle? Reduce stress? Prepare for the spring racing schedule?
Knowing what your goals are will help you develop a more successful exercise program. Below are some
common exercise goals:
• Weight Loss - lower intensity, longer duration workouts
• Improve Body Shape and Tone - interval workouts, alternate between hi and low intensities
• Increased Energy Level - more frequent daily workouts
• Improved Sports Performance - high intensity workouts
• Improved Cardiovascular Endurance - moderate intensity, longer duration workouts
If possible try to define your personal goals in precise, measurable terms, and then put your goals in writing.
The more specific you can be, the easier it will be to track your progress. If your goals are long term, divide
them up into monthly and weekly segments. Longer term goals can lose some of the immediate motivation
benefits. Short-term goals are easier to achieve. Your console provides you with several readouts that can
be used to record your progress. You can track Distance, Calories or Time.
THE IMPORTANCE OF A WARM-UP & COOL DOWN
ACHIEVING YOUR FITNESS GOALS
TIPS
TIPS
WEEKLY LOG SHEETS
WEEK # WEEKLY GOAL
W E E K LY T O T A L S :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
W E E K LY T O T A L S :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
W E E K LY T O T A L S :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
710B_720B_Rev.1.7.indd 20-21 8/28/06 3:33:09 PM

BEFORE
YOU BEGIN
22
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
CONDITIONING
GUIDELINES
ASSEMBLY
CONDITIONING
GUIDELINES
BEFORE
YOU BEGIN ASSEMBLY
23
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
TROUBLESHOOTING
& MAINTENANCE
MONTHLY LOG SHEETS
WEEK # WEEKLY GOAL
W E E K LY T O T A L S :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
W E E K LY T O T A L S :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
WEEK # WEEKLY GOAL
W E E K LY T O T A L S :
D AY
SUNDAY
MONDAY
TUESDAY
WEDNESDAY
THURSDAY
FRIDAY
SATURDAY
DATE DISTANCE CALORIES TIME COMMENTS
Your Merit Fitness bike is designed to be reliable and maintenance-free. However, if you do experience problems
with your bike, please reference the troubleshooting guide listed below.
PROBLEM: The console does not light up.
SOLUTION: Verify the following:
• The outlet the machine is plugged into is functional. Double check that the breaker has not tripped.
• The correct adapter is being used. Only use the adapter provided or authorized by Merit Fitness.
• The adapter is not pinched or damaged and is properly plugged into the outlet AND the machine.
• The power switch is turned to the ON position (may not apply to all models).
• Turn off the machine and unplug power cord. Remove the console and check that all connections to the console
are secure and not damaged or pinched.
PROBLEM: The console lights up but the Time/RPM’s do not count.
SOLUTION: Verify the following:
• Turn off machine and unplug power cord. Remove the console and check that all connections to the console are
secure and not damaged or pinched.
• If doing the above does not fix the problem, the speed sensor and/or magnet may have become dislodged or
damaged.
PROBLEM: The resistance levels seem to be incorrect, seeming too hard or too easy.
SOLUTION: Verify the following:
• The correct adapter is being used. Only use the adapter provided or authorized by Merit Fitness.
• Reset the console and allow the resistance to reset to the default position. Restart and retry the resistance levels.
PROBLEM: The bike makes a squeaking or chirping noise.
SOLUTION: Verify the following:
• The bike is on a level surface.
• Loosen all bolts attached during the assembly process, grease the threads, and tighten again.
TROUBLESHOOTING
710B_720B_Rev.1.7.indd 22-23 8/28/06 3:33:16 PM

BEFORE
YOU BEGIN
24
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
CONDITIONING
GUIDELINES
ASSEMBLY TROUBLESHOOTING
& MAINTENANCE
BEFORE
YOU BEGIN ASSEMBLYASSEMBLY
25
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY TROUBLESHOOTING
& MAINTENANCE
PROBLEM: There is no heart rate reading.
SOLUTION: Remove the console and verify that the heart rate cables are attached properly, making
sure that the cables are securely inserted into the console.
Check your exercise environment for sources of interference such as high power lines, large motors, etc.
YOU MAY ExPERIENCE AN ERRATIC READOUT UNDER THE FOLLOWING CONDITIONS:
• Gripping the heart rate handlebars too tight. Try to maintain moderate pressure while holding onto the
heart rate handlebars.
• Constant movement and vibration due to constantly holding the heart rate grips while exercising.
• When you are breathing heavily during a workout.
• When your hands are constricted by wearing a ring.
• When your hands are dry or cold. Try moistening your palms or rubbing them together to warm.
• Anyone with heavy arrhythmia.
• Anyone with arteriosclerosis or peripheral circulation disorder.
• Anyone whose skin on the measuring palms is especially thick.
• Press thumb pulse too hard may cause erratic reading. Use moderate pressue while checking pulse
NOTE: If you are having trouble getting an HR reading using your thumb, try using your index finger
NOTE: Outside interference sources such as computers, motors and fluorescent lights may cause the heart rate
reading to be erratic.
If the above troubleshooting section does not remedy the problem, discontinue use and turn the power off.
The following information may be asked of you when you call. Please have these items readily available:
• Model Name
• Serial Number
• Date of Purchase (receipt or credit card statement)
In order for Customer Tech Support to service your bike, they may need to ask detailed questions about the
symptoms that are occurring. Some troubleshooting questions that may be asked are:
• How long has this problem been occurring?
• Does this problem occur with every use? With every user?
• If you are hearing a noise, does it come from the front, back or inside? What kind of noise is it (thumping,
grinding, squeaking, chirping etc.)?
• If you are having a resistance problem what is occurring? Is the resistance always too hard or too easy?
Does the resistance respond when pushing the buttons on the console? Does the resistance constantly cycle
through the levels during the workout?
• Has the machine been maintained per the maintenance schedule?
• Does the problem occur when using the handlebars? Without using the handlebars?
Answering these and other questions will give the technicians the ability to send proper replacement parts and
the service necessary to get you and your Merit Fitness bike running again!
HEART RATE TROUBLESHOOTING
ARE THE SOUNDS MY BIKE MAKES NORMAL?
Our bikes are some of the quietest available because they use belt drives and friction free magnetic
resistance. We use the highest grade bearings and belts to minimize noise. However, because the resistance
system itself is so quiet, you will occasionally hear other slight mechanical noises. Unlike older, louder
technologies, there are no fans, friction belts, or alternator noises to mask these sounds on our bikes. These
mechanical noises, which may or may not be intermittent, are normal and are caused by the transfer of
significant amounts of energy to a rapidly spinning flywheel. All bearings, belts and other rotating parts will
generate some noise which will transmit through the casing and frame. It is also normal for these sounds
to change slightly during a workout and over time because of thermal expansion of the parts.
WHY IS THE BIKE I HAD DELIVERED LOUDER THAN THE ONE AT THE STORE?
All fitness products seem quieter in a large store showroom because there is generally more background
noise than in your home. Also, there will be less reverberation on a carpeted concrete floor than on a wood
overlay floor. Sometimes a heavy rubber mat will help reduce reverberation through the floor. If a fitness
product is placed close to a wall, there will be more reflected noise.
HOW LONG WILL THE DRIVE BELT LAST?
The computer modeling we have done indicated virtually thousands of maintenance free hours. Belts are
now commonly used in far more demanding applications such as motorcycle drives.
CAN I MOVE THE TRAINER EASILY ONCE IT IS ASSEMBLED?
Your bike has a pair of transport wheels built into the front legs. It is easy to move your bike by rolling it on
the front transport wheels. It is important that you place your bike in a comfortable and inviting room. Your
bike is designed to use minimal floor space. Many people will place their bikes facing the TV or a picture
window. If at all possible, avoid putting your bike in a unfinished basement. To make exercise a desirable
daily activity for you, the bike should be in a comfortable setting.
CAN I PEDAL BACKWARDS ON MY BIKE?
Your bike allows you to pedal both forward and backwards to exercise and strengthen a wider range of
muscles.
COMMON PRODUCT QUESTIONS
CALL CUSTOMER TECH SUPPORT AT THE NUMBER ON THE BACK PANEL.
WHEN YOU ARE NEAR THE EQUIPMENT
710B_720B_Rev.1.7.indd 24-25 8/28/06 3:33:17 PM

BEFORE
YOU BEGIN
26
INTRODUCTION IMPORTANT
PRECAUTIONS ASSEMBLY BEFORE
YOU BEGIN BIKE
OPERATION LIMITED
WARRANTY
CONDITIONING
GUIDELINES
ASSEMBLY
TROUBLESHOOTING
& MAINTENANCE
BEFORE
YOU BEGIN ASSEMBLYASSEMBLY
27
INTRODUCTION
IMPORTANT
PRECAUTIONS
BIKE
OPERATION
CONDITIONING
GUIDELINES
TROUBLESHOOTING
& MAINTENANCE
LIMITED
WARRANTY
LIMITED
WARRANTY
WHAT KIND OF ROUTINE MAINTENANCE IS REQUIRED?
We use sealed bearings throughout our bikes so lubrication is not needed. The most important maintenance
step is to simply wipe your perspiration off the trainer after each use.
HOW DO I CLEAN MY BIKE?
Clean with soap and water cleaners only. Never use solvents on plastic parts.
Cleanliness of your bike and its operating environment will keep maintenance problems and service
calls to a minimum. For this reason, Merit Fitness recommends that the following preventive
maintenance schedule be followed.
AFTER EACH USE (DAILY)
Turn off the bike by unplugging the power cord from the wall outlet
• Wipe down the bike with a damp cloth. Never use solvents, as they can cause damage to the
bike.
• Inspect the power cord. If the power cord is damaged, contact Merit Fitness.
• Make sure the power cord is not underneath the bike or in any other area where it can become
pinched or cut.
To remove power from the bike, the power cord must be disconnected from the
wall outlet.
WEEKLY
Clean underneath the bike, following these steps:
• Turn off the bike
• Move the bike to a remote location.
• Wipe or vacuum any dust particles or other objects that may have accumulated underneath the
bike.
• Return the bike to its previous position.
EVERY MONTH
• Inspect all assembly bolts and pedals on the machine for proper tightness.
• Clean any debris off of the pedal arm wheels and guide rails.
MAINTENANCE
WEIGHT CAPACITY = 275 lbs
FRAME • 3 YEARS (710B ) - 5 YEARS (720B )
Merit Fitness warrants the frame against
defects in workmanship and materials for 3
years (710B) or 5 years (720B).
BRAKE • 3 YEAR (710B ) - 5 YEARS (720B )
Merit Fitness warrants the brake against
defects in workmanship and materials for the
period of 3 years (710B) or 5 years (720B) of
the original owner.
ELECTRONICS & PARTS • 90 DAYS
Merit Fitness warrants the electronic
components and all original parts for a
period of 90 days from the date of original
purchase, so long as the device remains in
the possession of the original owner.
LABOR • 90 DAYS
Merit Fitness shall cover the labor cost for the
repair of the device for a period of 90 days
from the date of the original purchase, so long
as the device remains in the possession of the
original owner.
LIMITED HOME-USE WARRANTY
ExCLUSIONS AND LIMITATIONS
Who is covered:
• The original owner and is not transferable.
What IS covered:
• Repair or replacement of a defective motor, electronic component, or defective
part and is the sole remedy of the warranty.
What IS NOT covered:
• Normal wear and tear, improper assembly or maintenance, or installation of
parts or accessories not originally intended or compatible with the equipment
as sold.
• Damage or failure due to accident, abuse, corrosion, discoloration of paint
or plastic, neglect, theft, vandalism, fire, flood, wind, lightning, freezing, or
other natural disasters of any kind, power reduction, fluctuation or failure from
whatever cause, unusual atmospheric conditions, collision, introduction of
foreign objects into the covered unit, or modifications that are unauthorized or
not recommended by Merit Fitness.
• Incidental or consequential damages. Merit Fitness is not responsible or liable
for indirect, special or consequential damages, economic loss, loss of property, or
profits, loss of enjoyment or use, or other consequential damages of whatsoever
nature in connection with the purchase, use, repair or maintenance of the
product.
• Equipment used for commercial purposes or any use other than a single family
or Household, unless endorsed by Merit Fitness for coverage.
• Equipment owner or operated outside the US and Canada.
• Delivery, assembly, installation, setup for original or replacement units or labor
or other costs associated with removal or replacement of the covered unit.
• Any attempt to repair this equipment creates a risk of injury. Merit Fitness is not
responsible or liable for any damage, loss or liability arising from any personal
injury incurred during the course of, or as a result of any repair or attempted
repair of your fitness equipment by other than an authorized service technician.
All repairs attempted by you on your fitness equipment are undertaken AT YOUR
OWN RISK and Merit Fitness shall have no liability for any injury to the person or
property arising from such repairs.
SERVICE/RETURNS
• In-home service is available only within 150 miles of the nearest authorized
repair center.
• All returns must be pre-authorized by Merit Fitness.
• Merit Fitness’ obligation under this warranty is limited to replacing or repairing,
at Merit Fitness’ option, the product at one of its authorized service centers.
• A Merit Fitness authorized service center must receive all products for which
a warranty claim is made. These products must be received with all freight
and other transportation charges prepaid, accompanied by sufficient proof of
purchase.
• Parts and electronic components reconditioned to As New Condition by Merit
Fitness or its vendors may sometimes be supplied as warranty replacement parts
and constitute fulfillment of warranty terms.
• This warranty gives you specific legal rights, and your rights may vary from
state to state.
710B_720B_Rev.1.7.indd 26-27 8/28/06 3:33:20 PM

710B / 720B Rev. 1.7 | © 2006 Merit Fitness Products | Designed & Engineered in the U.S.A. | Made in China
1620 Landmark Dr,
Cottage Grove, WI 53527
Tel: 1.877.50.MERIT
If you have any questions or comments, you may contact one of our
trained customer technicians via phone, email or our website.
Customer Tech Support Hotline: 1-877-50-Merit
Email: [email protected]
Website: www.meritfitness.com
Customer Tech Support hours: Monday - Friday, 8 am - 5 pm CST (excluding holidays)
NOTE: Please read the TROUBLESHOOTING section before contacting Customer Tech Support.
DO NOT return the product to the store.
CUSTOMER TECH SUPPORT
710B_720B_Rev.1.7.indd 28 8/28/06 3:33:23 PM
