OWNER’S MANUAL
* This item is for consumer use only and it is not meant for commercial use.

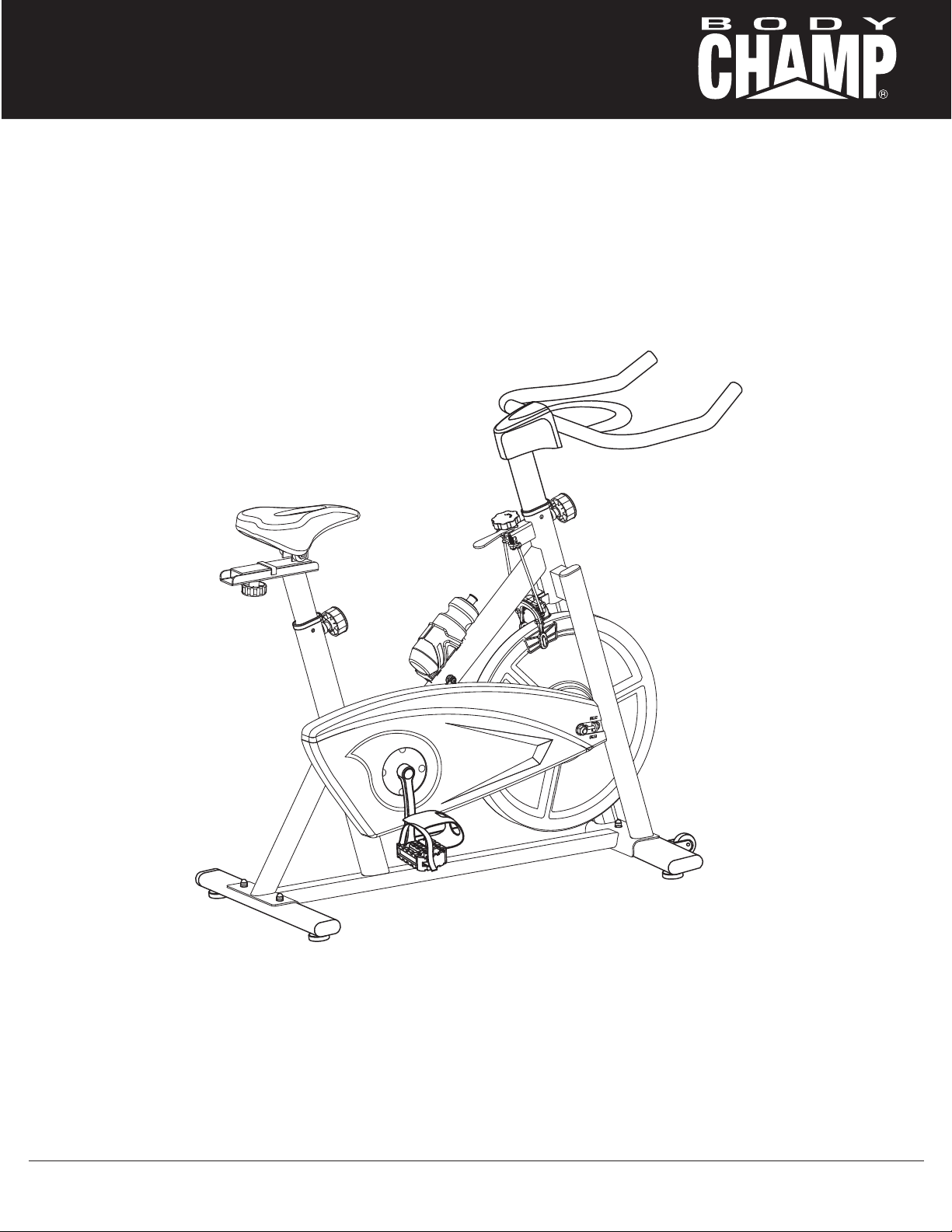

BF 718
Pro Cycle Trainer

This page intentionally left blank

General Information
Page 1
Warranty
Body Flex Sports warrants your product for
a period of 1 year for the frame and 90 days
on all parts if the item is used for the intended
purpose, properly maintained and not used
commercially. Any alterations or incorrect
assembly of the product will void this warranty.
Proof of purchase must be presented for any
warranty validation (no exceptions). This
warranty applies to the original purchaser only
and is not transferable.
This warranty does not cover abuse or defects
caused during use, storage or assembly.
During the warranty period, Body Flex Sports
reserves the right to:
a). provide replacement parts to the
purchaser in an effort to repair the item.
b). repair the product returned to our
warehouse (at the purchaser’s cost).
c). replace the product if neither of the two
previously mentioned actions effect repair.
This warranty does not cover normal wear and
tear on upholstery.
Questions
If you have any questions concerning the
assembly of your item or if any parts are
missing, please DO NOT RETURN THE
ITEM TO THE STORE OR CONTACT THE
RETAILER. Our dedicated customer service
staff can help you with any questions you may
have regarding the assembly of this unit and
can also mail you replacement parts.
Customer Support
Customer Support is open 9:00 a.m. to 5:00
p.m. (Pacific Time) Monday through Friday.
Please contact us by any of the following
means.
Body Flex Sports, Inc.
21717 Ferrero Parkway, Walnut, CA 91789
Telephone: (888) 266 - 6789
Fax: (909) 598 - 6707
Email: info@bodyflexsports.com
Safety
Before you undertake any exercise program,
please be sure to consult with your doctor.
Frequent strenuous exercise should be
approved by your doctor and proper use
of your product is essential. Please read
this manual carefully before commencing
the assembly of your product or starting to
exercise.
• Please keep all children away from this item
when in use. Do not allow children to climb or
play on them when they are not in use.
• Supervise teenagers while they use this unit.
• For your own safety, always ensure that there
is at least 3 feet of free space in all directions
around your product while you are exercising.
• Regularly check to see that all nuts, bolts and
fittings are securely tightened. Periodically
check all moving parts for obvious signs of
wear or damage.
• Clean only with a damp cloth, do not use
solvent cleaners. If you are in any doubt, do
not use your product; contact CUSTOMER
SUPPORT.
• Before use, always ensure that your product
is positioned on a solid, flat surface. If
necessary, use a rubber mat underneath to
reduce the possibility of slipping.
• Always wear appropriate clothing and
footwear such as training shoes when
exercising. Do not wear loose clothing that
could become caught in moving parts during
exercise.
• Do not use this unit if it is not functioning
properly or if it is not fully assembled.
• Do not use this unit for commercial purposes.
Storage and Use
Your product is intended for use in clean
dry conditions. You should avoid storage in
excessively cold or damp places as this may
lead to corrosion and other related problems.
Weight Limit
Your product is suitable for users weighing:
250 pounds or less.
• Before use, you must read and understand all
instructions & warnings stated in this Owner’s
Manual as well as posted on the equipment.
• It is the facility owner’s responsibility to properly
instruct users on the proper operation of the
equipment and to warn them of the potential
hazards.
• If at any time during exercise you feel faint, dizzy
or experience pain, stop and consult your
physician.
Assembling Tools
- Ruler with both metric and English measurements
- 2 x Adjustable Wrenches
- 1 x Philips (”Crosshead”) Screw Driver
BF 

Page 2

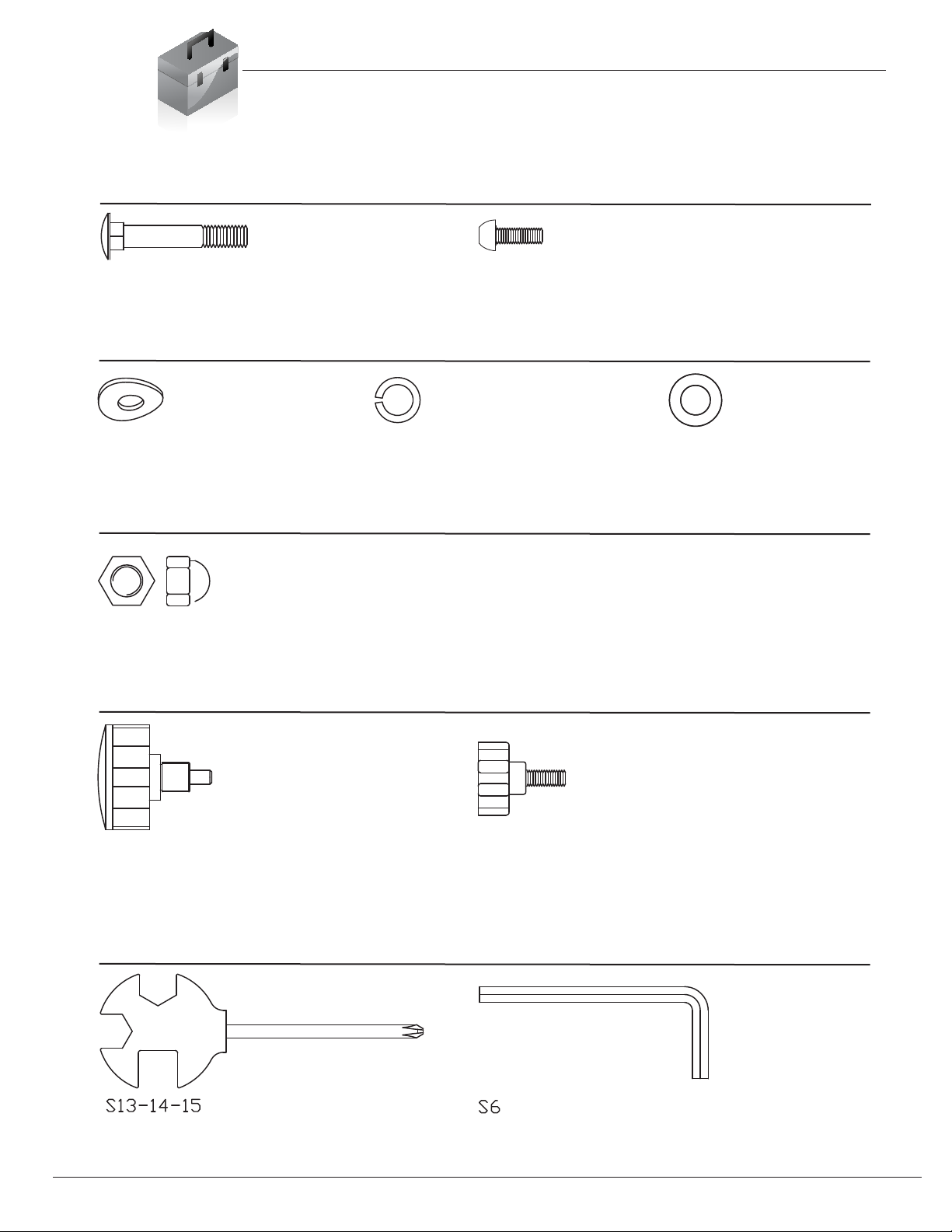

Hardware List
The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these
items. Please note some of this hardware is already pre-assembled on the machine. Do not be alarmed if you
see parts on this page that are not included in your hardware packet
#19. Nut (M8)
[4 Pieces]
Others
Tool
[1 Piece] [1 Piece]
#35. Knob Bolt (M8x15 mm)
[1 Piece]
Pre-assembled
#23. Spring Loaded Knob
[2 Pieces]
Pre-assembled
#14. Carriage Bolt (M8x45 mm)
[4 Pieces]
#33. Bolt (M8x15 mm)
[4 Pieces]
Washer
#32. Spring Washer (M8)
[4 Pieces]
#36. Washer (M8)
[1 Piece]
Pre-assembled
#20. Washer (M8)
[4 Pieces]
Nut
Bolt
BF 718

Page 3
Parts Listing
The following parts list describes all of the parts illustrated on the
exploded diagram on the following page. Please note, most of
these parts are already pre-assembled on your unit.
Parts# Description
01 Main Frame
02 Rear Stabilizer
03 Front Stabilizer
04 Seat Post
05 Horizontal Seat Bar
06 Center Post
07 Handle Bar
08 Seat
09L/09R Left Pedal/Right Pedal
10L/10R Left Crank/Right Crank
11 Shroud
12 End Cap for Stabilizer
13 Adjustable Bolt
14 Carriage Bolt (M8x45 mm)
15 Nut (M8)
16 Front Roller
17 Nylon Nut (M8)
18 Hex Bolt (M8x40 mm)
19 Nut (M8)
20 Washer (M8)
21 Oval Inner Plug (50x25 mm)
22 Sleeve
23 Spring Loaded Knob
24 Water Bottle
25 Water Bottle Holder
26 Screw (ST4.2x19 mm)
27 Friction Pad
28 Brack Base
29 Rectangular Inner Plug (40x20 mm)
30 Foam Grip
31 Round Inner Plug (φ25x1.5 mm)
32 Spring Washer (M8)
33 Bolt (M8x15 mm)
34 Handle Bar Cover
35 Knob Bolt (M8x15 mm)
36 Washer (M8)
37 Wheel
38 Bolt (M6x20 mm)
39 Spacer
40 Tension Control Knob
41 Emergency Brake
42 Spacer
43 Plate
44 Chain
BF 718

Page 4
The following diagram is provided to help you familiarize yourself with the parts and
hardware that will be used during the assembly process. Please note that not all of the
parts and hardware you see here will be used while you are assembling the machine
because some of these items are already pre-installed. Please continue to the next
page to begin the assembly process and use this page only as a reference guide for
parts and hardware.

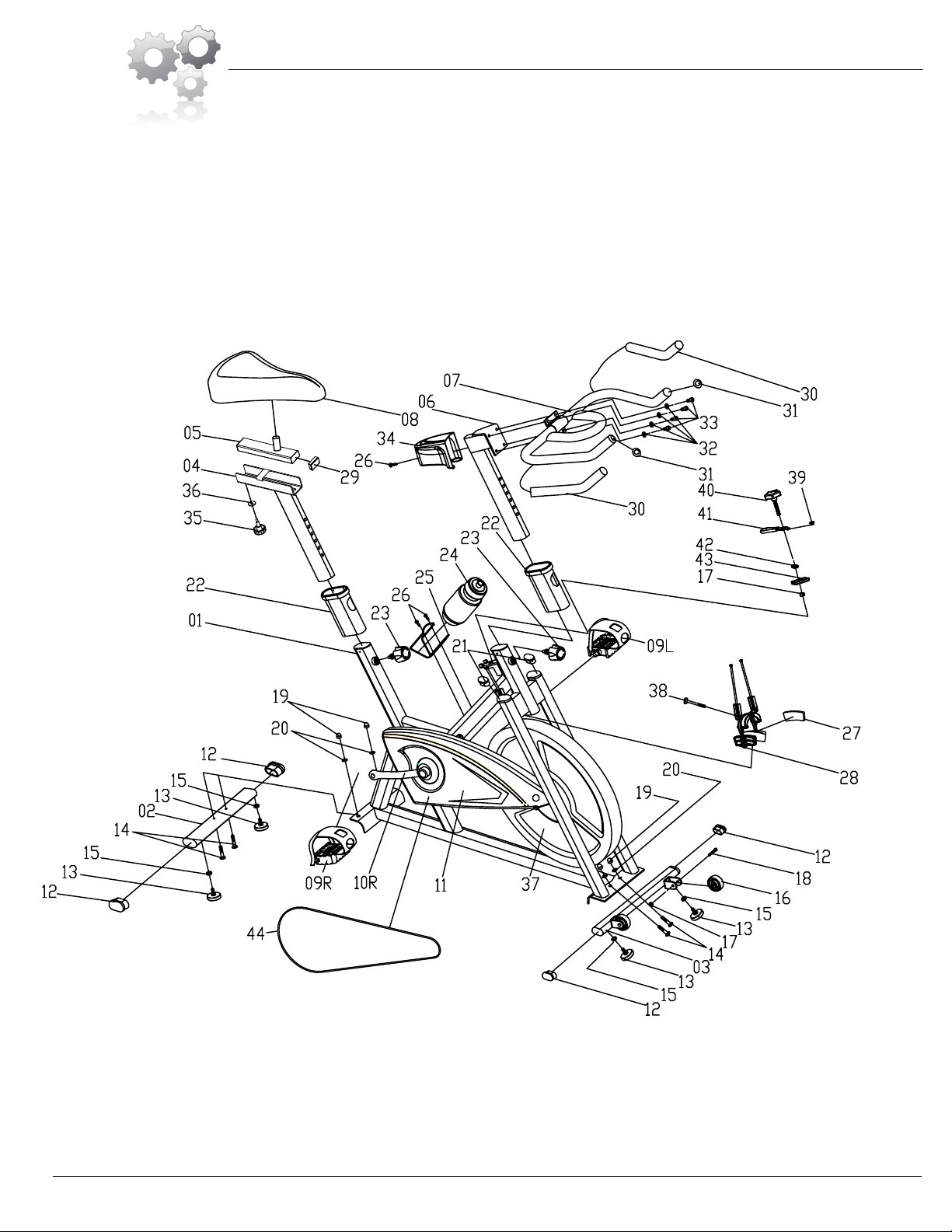

Exploded Diagram
BF 718

Page 5
A s s e m b l y S t e p 1 Hardware & Tool Required
#14. Carriage Bolt (M8x45 mm)
[4 Pieces]
Washer
Front & Rear Stabilizer Assembly
With the help of an assistant, attach the Front Stabilizer
(#03) to bracket at the front of Main Frame (#01). Insert two
Carriage Bolts (#14) through the Front Stabilizer (#03)
followed by the front Main Frame (#01). Secure them
together using two Washers (#20) and two Nuts (#19).
Now attach the Rear Stabilizer (#02) to the bracket at rear
of Main Frame (#01). Insert two Carriage Bolts (#14)
through the Rear Stabilizer (#02) followed by the rear
Main Frame (#01). Secure them together using two Washers
(#20) and two Nuts (#19).
USING THE ADJUSTABLE BOLTS
The Adjustable Bolts (#13) located on the bottom corners
are a security feature that allow you to adjust the height
of the bike in a case such as uneven floors. You should only
exercise on the bike if it is on an even plane to avoid serious
injury.
Slip one Nut (#15) on each Adjustable Bolt (#13) as shown
in the exploded diagram below. If necessary, turn the
Adjustable Bolt (#13) until the desired position is reached
so that the bike is on a flat plane.
#20. Washer (M8)
[4 Pieces]
Nut
#19. Nut (M8)
[4 Pieces]
Tool
[1 Piece]
Bolt
55
40
1 2 3 4
55
40 1 2 3 4
STEP3:
Assembly Instructions
BF 718

Page 6
Do not remove the Seat (#08) for any
reason after you have installed it.
Exercising on this unit without the Seat
(#08) can result in SERIOUS INJURY.
Ensure the seat is locked in place by
tightening the two knobs prior to use.
W A R N I N G
Spring Knob Operation
Turn Spring Loaded Knob (#23) counter
-clockwise three times.
Pull Spring Loaded Knob (#23) outward
and adjust Seat Post (#28) simultaneously.
Push Spring Loaded Knob (#23) back
inward until it clicks and then tighten it by
turning clockwise.
Hardware & Tool Required
A s s e m b l y S t e p 2
Seat Post Assembly
Slide the Horizontal Seat Bar (#05) onto the Seat Post (#04) with the
single point of the Seat (#08) pointing toward the front of the unit as
shown in the diagram. Secure by screwing the Knob Bolt (#35) through
one Washer (#36), the Seat Post (#04), then the Horizontal Seat Bar
(#05). This knob can be loosened to adjust the distance of the seat from
the handle bars. Please tighten the knob after making an adjustment,
but do not over tighten the knob. If the Seat Post (#04) is not already
pre-assembled, please insert the Seat Post (#04) into the mouth of the
post that is protruding from the top of the Main Frame (#01). Please
ensure that the hole on the Seat Post (#04) is facing the same side as
the Spring Loaded Knob (#23) so it can be aligned with the
corresponding hole on the Main Frame (#01).
To use the safety-featured Spring Loaded Knob (#23) , use one hand
to hold the Seat (#08) to prevent sudden slipping and the other hand to
loosen the knob by turning it counter-clockwise . Adjust the seat height
to your liking and then tighten the knob by turning it clockwise. Please
do not over-tighten.
Remove the Knob Bolt (#35) and Washer (#36) that are pre-installed
on the Horizontal Seat Bar (#05) and set them aside.
Washer
#36. Washer (M8)
[1 Piece]
Others
Tool
[1 Piece]
#23. Spring Loaded Knob
[1 Piece]
#35. Knob Bolt (M8x15 mm)
[1 Piece]
55
40
1 2 3 4
55
40 1 2 3 4
STEP3:
Assembly Instructions
BF 718

Page 7
A s s e m b l y S t e p 3 Hardware & Tool Required
#33. Bolt (M8x15 mm)
[4 Pieces]
Washer
#32. Spring Washer (M8)
[4 Pieces]
Tool
[1 Piece]
[1 Piece]
Bolt
Others
#23. Spring Loaded Knob
[1 Piece]
Spring Knob Operation
Turn Spring Loaded Knob (#23) counter
-clockwise three times.
Pull Spring Loaded Knob (#23) outward
and attach Center Post (#06) to the Main .
Push Spring Loaded Knob (#23) back
inward until it clicks and then tighten it by
turning clockwise.
Frame (#01) simultaneously
55
40
1 2 3 4
55
40 1 2 3 4
STEP3:
Assembly Instructions
BF 718
Attach the Handle Bar (#07) to the Center Post (#06) and
secure them together by inserting four Bolts (#33) through
four Spring Washers (#32) then through the holes on the
Handle Bar (#07) and the Center Post (#06).
Secure the Spring Loaded Knob (#23) to the front of the
Main Frame (#01) by turning the Spring Loaded Knob
(#23) clockwise.
Once the Handle Bar (#07) is properly secured to the
Center Post (#06), insert the Center Post (#06) into the
Main Frame (#01) with the Handle Bar (#07) facing outwards
as illustrated. Secure the Center Post (#06) to the Main
Frame (#01) using the Spring Loaded Knob (#23).
Handle Bar Assembly
Remove the Spring Loaded Knob (#23) that are pre-installed
on the front of the Main Frame (#01) as illustrated and set
them aside.

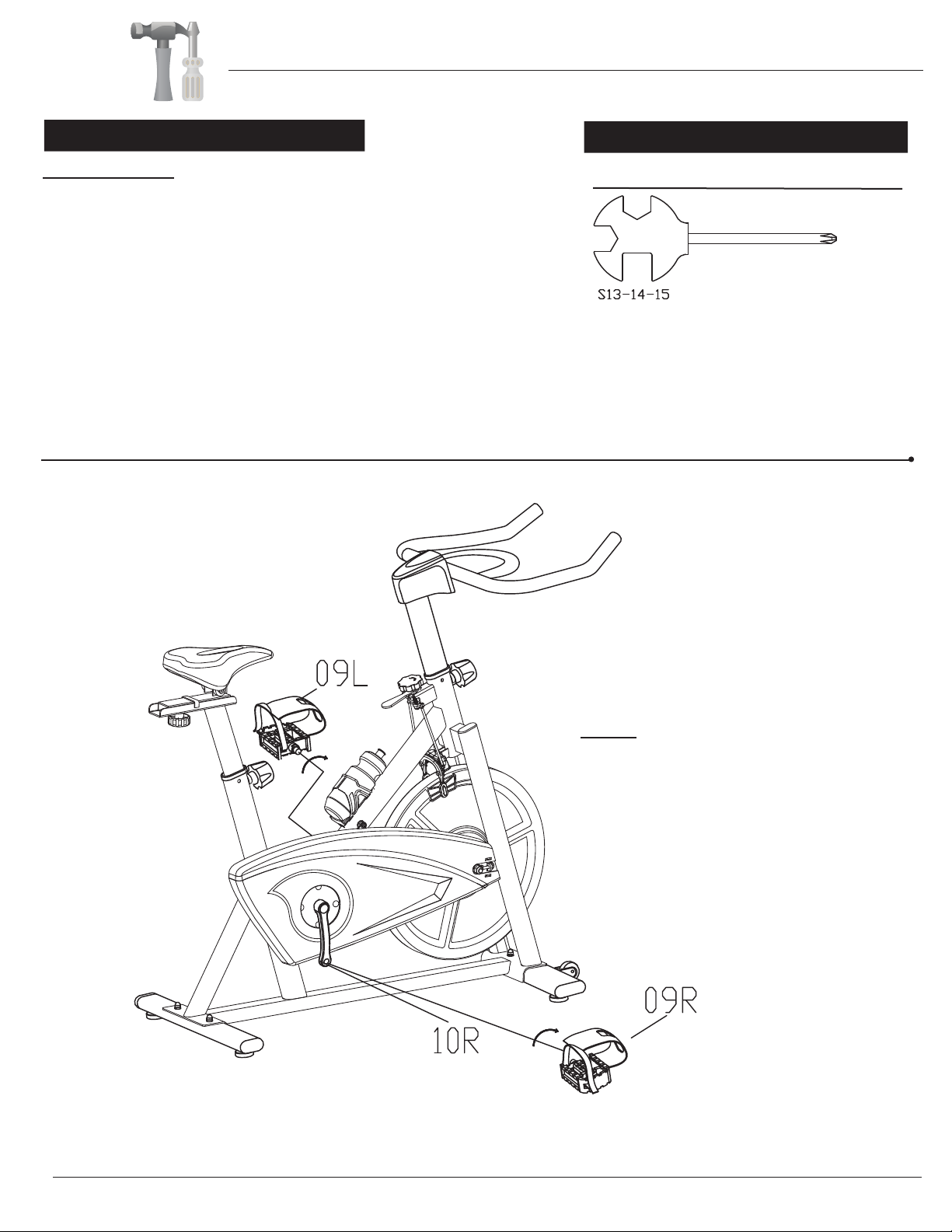

NOTE:
If labels designating the Left/Right Pedal
are not present, please check pedals
closely for embossed “L”/ “R” letter marks.
These will be “L” / “R” letters that
are raised
on the pedal material.
A s s e m b l y S t e p 4 Hardware & Tool Required
Tool
[1 Piece]
Pedal Assembly
Screw the Left Pedal (#09L) to the Left Crank
(#10L) by turning the bolt head on the Left Pedal
(#09L) COUNTER-CLOCKWISE.
Screw the Right Pedal (#09R) to the Right Crank
(#10R) by turning the bolt head on the Right Pedal
(#09R) CLOCKWISE.
The assembly process is now complete However,
for your own safety, please make sure to read this
entire manual which includes safety instructions and
warnings as well as any safety/warning labels located
on the product before use.
55
40
1 2 3 4
55
40
1 2 3 4
STEP3:
Assembly Instructions
Page 8BF 718

Assembly Instructions
R e v e r s i b l e M o v e m e n t
Forward pedaling emphasizes your quadricep muscles (front thighs), while backward pedaling emphasizes your hamstrings
(back thighs). The Pro Cycle Trainer allows you to make your workout less fatiguing, more fun, and more effective with forward
and backward movement functionality.
P e d a l & S p e e d S a f e t y
The Pro Cycle Trainer features an incredibly smooth flywheel for seamless workout movement. However, please note that the
flywheel and pedals can become safety hazards when extreme speed and momentum are used. We do not advise that you stand
and pedal on the bike simultaneously. If you prefer a workout session with greater speed and momentum, please remove the
straps of the Pedals (09L/R) to avoid your ankles and/or feet from getting caught by the momentum. If straps are removed, please
remember to place them back onto the Pedals (09L/R) after your workout session to avoid injury to yourself and those around you.
Always wait for the flywheel, crank, and pedals to come to a complete stop before you dismount the bike to avoid serious injury.
A.) Adjusting the Tension:
Increasing or decreasing the tension allows you to add variety to your workout sessions by adjusting
the resistance level of the bike.
To increase tension and increase resistance (requiring more strength to pedal), turn the Emergency
Brake (#41) & Tension Control Knob (#40) to the right.
To decrease tension and increase resistance (requiring less strength to pedla), turn the Emergency
Brake (#41) & Tension Control Knob (#40) to the left.
B.) Using the Emergency Brake Function:
The same knob that allows you to adjust the tension of the bike also doubles as the Emergency
Brake. Use this safety feature in any situation where you would need to get off the bike and/or
stop the bike’s flywheel.
To use the Emergency Brake function in any situation you would need it in, firmly press down
on the Emergency Brake (#41) & Tension Control Knob (#40).
B
A
Brake Uses Guide
Page 9BF 718

Page 10BF 718
Safety & Maintenance
• Make sure all nuts, bolts, and screws are tightened prior to use.
• Be sure that all adjustment locking devices and safety devices are properly engaged prior to use!
• Never over-tighten the above-mentioned devices and parts to avoid damage to the unit.
• Check for loose parts and components prior to use.
• Check to see if there are any tears or bends in the welding or metal prior to use.
• Extreme care must be taken to not allow your feet, fingers, hair, clothing, and/or any loose items to be
snagged into any portion of the bike when the flywheel is in motion. Failure to follow these instructions
could result in serious injury, including the loss of fingers.
• Always wait for the flywheel, pedals, and cranks (which can gain great momentum during riding) to
come to a complete stop before dismounting the bike to avoid serious injury.
• To avoid rust or corrosion to the flywheel caused by moisture and sweat, we advise wiping and drying
the flywheel and surrounding parts with a dry absorbent towel after each workout session.
• Do not use solvent cleaners. If you are in any doubt, do not use your cleansing product;
contact CUSTOMER SUPPORT.
• When bike is not in use, the resistance should be left loose, NOT tightened down against the flywheel.
You can do this with the easy-to-adjust tension knob. This will ensure longer life of the Friction Belt.
• You can maintain your bike by using certain products. However, be careful not to allow lubricants
to get onto the circumference of the flywheel where the Friction Belt rubs against. This will
prevent the friction mechanism from working properly. Please contact our CUSTOMER SUPPORT
if you have questions regarding the cleaning of your bike.
Additional Safety
Maintenance & Care

BF 718
Before use, you must read and understand all instructions & warning stated in this Owner's Manual as well as
posted on the equipment.
Warm-Up Instructions
Groin Stretch
1. Sit with your knees flexed
and soles of feet together.
2. Hold your ankles and bend
at your hips (keep your
back straight) as you press
your knees toward the
floor with your elbows.
Hamstring Stretch
1. Sit with your left leg extended and bend your right
leg at the knee as you place the sole of your right foot
against the inner thigh of your extended leg.
2. Flex the foot of your extended leg (toes pointed
toward ceiling) and gently bend forward from your
hips; keep your back straight.
3. Reach your hands on your extended leg as far as pos-
sible and then switch legs and repeat.
Trunk Twister
1. Sit with your leg extended and
bend your right knee as you cross
your right leg over your left leg.
Your right foot should be flat on the
floor alongside your left knee.
2. Place your left arm on the outside
of your right leg and pull against
that leg while twisting your trunk
as far as possible to the right. Place
your right hand on the floor behind
your buttocks. Reverse leg posi-
tions and repeat.
Hip Stretch
1. Lie on your back and raise your right leg as you clasp both hands
under the back of the knee. Keep your left leg straight.
2. Gently pull your right leg toward your trunk without raising your
upper body. Switch leg positions and repeat.
The following flexibility exercises are provided to you as a means to prevent injury while you are exercising. A
proper warm-up routine decreases the chance of injuring your muscles while you are exercising. Please take the
time to do these flexibility exercises before and after each time you exercise.
Quadriceps Stretch
1. Stand on your left leg and hold onto
a support with your left hand.
2. Flex your right leg behind you, grasp
your ankle or foot with your right
hand and pull your foot toward your
buttocks. Keep your back straight
and right knee pointed down. Repeat
on the other leg.
Page 11

Page 12BF 718
Trunk Flexion, Prone
1. Assume the depicted position on your hands and knees. Stretch your hands out in front of you and then slowly start to pull
them back in toward your body as you tuck your chin and arch your back upward.
2. Return to the starting position slowly.
Shoulder Stretch
1. Bring your right hand over
your right shoulder to the
upper back and bring your
left hand under your left
shoulder to the upper back.
2. Try to reach your finger-
tips. If you are not able to
reach your fingertips, use
a towel as an extension of
your hands and gently pull
one hand toward the other.
Reverse arm positions and
repeat.
Calf Stretch
1. Place both hands against
a wall to aid your balance.
Press the ball of your left foot
against the wall and keep the
heel of the same foot rested
on the floor (make sure your
left knee is bent).
2. Slowly start to straighten your
left knee and you will feel
the muscles in your left calf
stretch. Switch leg positions
and repeat.
Warm-Up Instructions

Proof of purchase
version: 10-10-2011
Model Number BF 718
BF 718

Body Flex Sports, Inc. • 21717 Ferrero Parkway, Walnut, CA 91789 • Telephone: (888) 266 - 6789 • Email: info@bodyexsports.com
