ASSEMBLY

There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly

instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the

treadmill could have parts that are not tightened and will seem loose and may cause irritating noises. To prevent damage to the

treadmill, the assembly instructions must be reviewed and corrective actions should be taken.

Before proceeding, find your treadmill’s serial number located near the on/off

power switch and power cord and enter it in the space provided below.

ENTER YOUR SERIAL NUMBER IN THE BOX BELOW:

» Refer to the SERIAL NUMBER and MODEL NAME when calling for service.

» Be sure to enter both the SERIAL NUMBER and MODEL NAME on your warranty card.

SERIAL NUMBER:

MODEL NAME: MERIT 735T TREADMILL

WARNING

3 ENGLISH

24 ESPAÑOL

735TSM-Eng-MSp-OM-rev1.4.indd 2-3 9/9/09 9:48 AM

4 5

TOOLS INCLUDED:

F5 mm Allen Wrench

F4 mm T-Wrench

PARTS INCLUDED:

F1 Safety Key

F2 Frame Extention Tubes

F1 Console Assembly

F2 Console Masts

F1 Water Bottle Holder

F2 Hand Grips

F1 Deck Lock Pin

F2 End Caps

F4 Hardware Bags

F1 Bottle of Silicone Lubricant

(for 2 applications)

If you have questions or if

there are any missing parts,

contact Customer Tech

Support. Contact information

is located on the back panel

of this manual.

DO NOT ATTEMPT TO LIFT THE TREADMILL! Do not move or lift treadmill

from packaging until specified to do so in the assembly instructions. You may

remove the plastic wrap from console masts.

WARNING

UNPACKING

Place the treadmill carton on a level flat surface. It is recommended that you place a

protective covering on your floor. Take CAUTION when handling and transporting this

unit. Never open box when it is on its side. Once the banding straps have been removed,

do not lift or transport this unit unless it is fully assembled and in the upright folded

position, with the lock latch secure. Unpack the unit where it will be used. Never grab

hold of any portion of the incline frame and attempt to lift or move the treadmill.

FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN INJURY!

WARNING

NEED HELP?

NOTE: During each assembly step, ensure that ALL nuts and bolts are in place and

partially threaded in before completely tightening any ONE bolt.

NOTE: A light application of grease may aid in the installation of hardware. Any grease,

such as lithium bike grease is recommended.

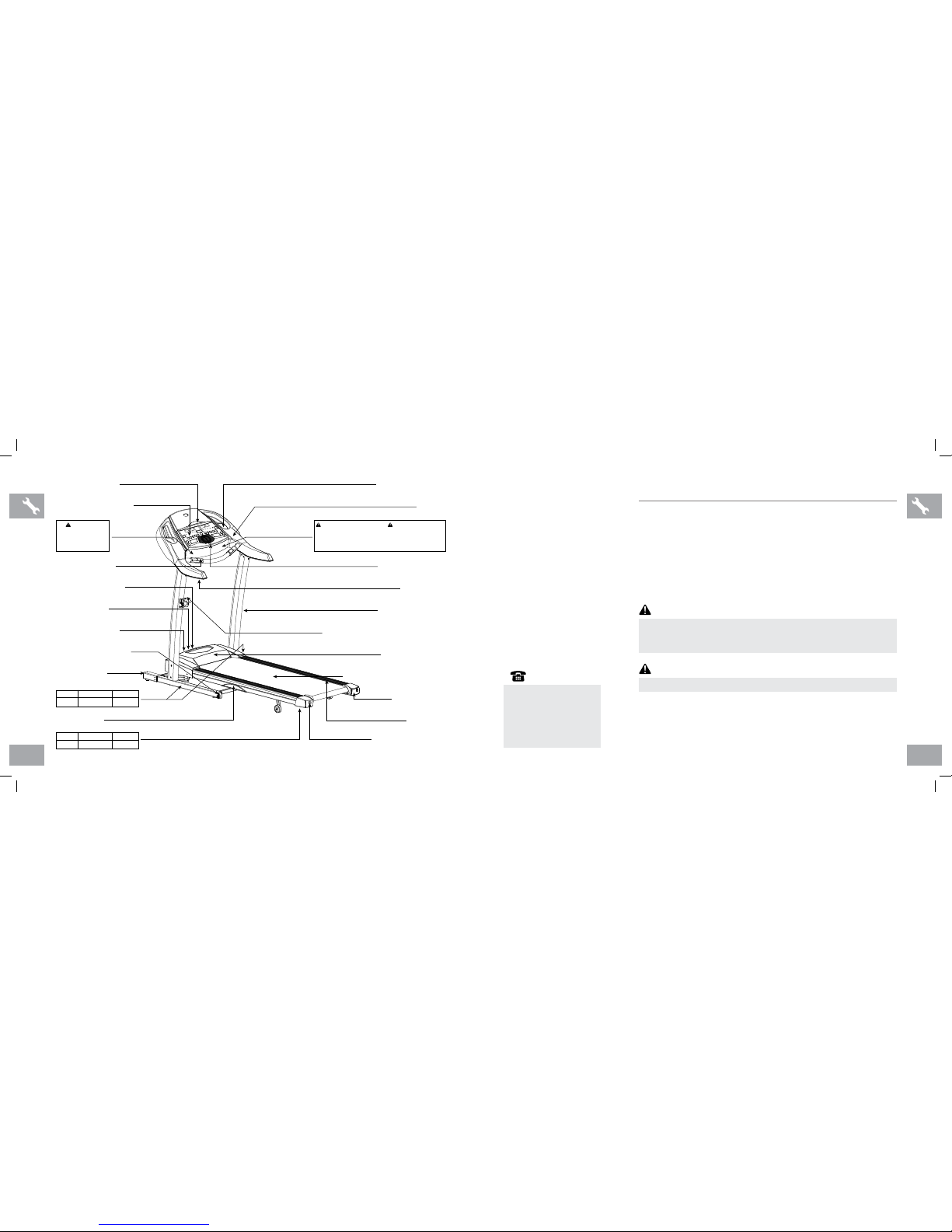

PRE ASSEMBLY

GRIP PULSE HANDRAILS

ON/OFF SWITCH

CIRCUIT BREAKER

TRANSPORT WHEEL

FRAME EXTENSION TUBE

CUSHIONING

POWER CORD

RE ADING RACK

TOUCH PAD PANEL

ATTACHSAFETY KEY CLIP TO CLOTHING BEFORE STARTING. TO

AVOID INJURY,STAND ON THE SIDE RAILS BEFORE STARTING

TREADMILL. READ AND FOLLOW ALL INSTRUCTIONS BEFORE

OPERATING. KEEP CHILDREN AWAYFROM THIS EQUIPMENT.

REMOVE SAFETY KEY WHEN NOT IN USE AND STORE OUT OF

REACH OF CHILDREN. CONSULTA PHYSICIAN BEFORE USING

THIS EQUIPMENT.STOP EXERCISING IF YOU FEEL PAIN, FAINT,

DIZZY OR SHORT OF BREATH.FOR CONSUMER USE ONLY.

WARNING

CAUTION AVERTISSEMENT PRECAUCIÓN

KEEP HANDS AND FEET

AWAYFROM THIS AREA.

GARDER LES MAINS ET LES

PIEDS LOIN DE CETTE REGION.

MANTENGA LAS MANOS Y LOS

PIES LEJOS DE ESTA AREA.

CAUTION AVERTISSEMENT PRECAUCIÓN

HOLD ONTO DECK WHEN

LATCH IS RELEASED.

GARDER LES MAINS ET LES PIEDS

LOIN DE CETTE RÉGION.

SUJETE LA PLATAFORMA

CUANDO VAYABAJANDO.

WATE R BOTTLE HOLDER

CONSOLE

SAFETY KEY PLACEMENT

RUNNING BELT / RUNNING DECK

SIDE R AIL

ROLLE R END CAP

CONSOLE MAST

HANDLEBARS

RE AR ROLLER

ADJUSTMENT BOLTS

MOTOR COVER

DECK LOCK PIN

SUJETE LA LLAVE DE SEGURIDAD A SU ROPAANTES DE COMENZAR.

PARA EVITARACCIDENTES PARESE EN LO RIELES ANTES DE

COMENZAR. LEA CUIDADOSAMENTE EL MANUAL DE USUARIO Y

CONSULTEA SU MEDICO ANTES DE COMENZAR. MANTENGA EL

PRODUCTO FUERA DEL ALCANZE DE LOS MENORES. QUITE LA LLAVE DE

SEGURIDAD CUANDO NO ESTE EN USO. CONSULTARCON UN MEDICO

ANTES DE USAR ESTE EQUIPO. SI SIENTE ALGUN DOLOR O FATIGAPARE

DE INMEDIATO. ESTE EQUIPO ES SÓLO PARAEL USO DEL CONSUMIDOR.

ATTACHERLA PINCE DE LA CLÉ DE SÉCURITÉ AUX VÊTEMENTS AVANT DE COMMENCER.

POUR ÉVITER TOUTES BLESSURES, SE TENIR SUR LES RIDELLES AVANTDE DÉMARRER

LE TAPIS ROULANT.AVANT USAGE, LIRE LE GUIDE D’UTILISATEUR. NE PAS LAISSER CET

ÉQUIPEMENT À LA PORTÉE DES ENFANTS.ENLEVER LA CLÉ DE SÉCURITÉ LORSQUE LE

TAPIS ROULANT N’EST PASUTILISÉ ET LA RANGER HORS DE LA PORTÉE DES ENFANTS.

CONSULTERUN MÉDECIN AVANT D’UTILISER CET ÉQUIPEMENT. ARRÊTER D’UTILISER

L’APPAREILEN CAS DE DOULEUR, D’ÉVANOUISSEMENT, DE VERTIGE OU

D’ESSOUFFLEMENT.POUR USAGE DOMESTIQUE UNIQUEMENT.

PRECAUCIÓN

AVERTISSEMENT

735TSM-Eng-MSp-OM-rev1.4.indd 4-5 9/9/09 9:48 AM

6 7

ASSEMBLY STEP 2

A Open hardware bag 2.

B Slide the left console mast

down onto the console mast

support tube. Bolt in place

using 2 bolts (b),2spring

washers (c), and 2 flat

washers (d) on the side. Then,

bolt in place using 2 bolts (b), 2

spring washers (c), and 2 arc

washers (e) on the front.

C Repeat on the other side.

On right console mast, the

console cable must be threaded

through the mast.

BOLT (B)

15 mm

Qty: 8

SPRING WASHER (C)

15 mm

Qty: 8

FLAT WASHER (D)

15 mm

Qty: 4

ARC WASHER (E)

17 mm

Qty: 4

HARDWARE BAG 2 CONTENTS :

RIGHT CON SOLE MAST

CONSOLE MAST

SUPPORT TUBE

BOLT (B)

SPRING WASHER (C)

FLAT WASH ER (D)

BOLT (B)

SPRING WASHER (C)

ARC WASHER (E)

CONSOLE CABLE

(THREAD THROUGH

TOP OF CONSOLE MAST)

NOTE: Do not completely tighten any

screws or bolts until step 4 is complete!

NOTE: Be careful not to pinch any wires

while assembling the masts.

ASSEMBLY STEP 1

A Open hardware bag 1.

B Slide the left frame extension tube onto

the console mast support tube. Bolt

in place using 2 screws (a) on the side.

C Repeat on the other side.

SCREW (A)

15 mm

Qty: 4

HARDWARE BAG 1 CONTENTS :

FRAME EXTENSION TUBE

CONSOLE MAST SUPPORT TUBE

SCREWS (A)

735TSM-Eng-MSp-OM-rev1.4.indd 6-7 9/9/09 9:48 AM

8 9

ASSEMBLY STEP 4

A Open hardware bag 4.

B Slide the console onto the hand grip posts.

C Attach the hand grip posts to the console

using 4 screws (g) and 4 arc washers (h)

from the below the console.

D Connect the console cables and carefully tuck

wires in mast to avoid damage. Note: do not pinch

console cable. Be sure the console cable prongs

are aligned and the ends are tightly seated into each

other.

E Attach console cable cover.

F Go back and completely tighten all bolts and screws

from steps 1-4.

SCREW (G)

10 mm

Qty: 4

ARC WASHER (H)

12 mm

Qty: 4

HARDWARE BAG 4 CONTENTS :

SCREWS (G)

ARC WASHERS (H)

CONSOLE

HAND GRIP POST

CONSOLE

UPRIG HT MAST

CONSOLE CABLE

COVER

NOTE: Be careful not to pinch any wires

while attaching the console.

ASSEMBLY STEP 3

BOLT (B)

15 mm

Qty: 6

SPRING WASHER (C)

15 mm

Qty: 4

FLAT WASH ER (D)

15 mm

Qty: 4

ARC WASHER (F)

18 mm

Qty: 2

HARDWARE BAG 3 CONTENTS :

CONSOLE CABLE

(THREAD THROUGH HOLE

IN RIGHT HAND GRIP)

BOLTS (B)

SPRING WASHERS (C)

FLAT WASHERS (D)

BOLTS (B)

ARC WASHERS (F)

CONSOLE MAST

HAND GRIP

A Open hardware bag 3.

B Insert left hand grip onto upright

console mast.

C Attach the left hand grip to the console

mast using 2 bolts (b), 2 spring

washers (c) and 2 flat washers (d)

from the inside and 1 bolt (b) and 1 arc

washer (f) from the front.

D Carefully thread the console cable through

the hole in the right hand grip.

E Attach the right hand grip as explained

above in steps b–c.

NOTE: Do not completely tighten any

screws or bolts until step 4 is complete!

NOTE: Be careful not to pinch any wires

while assembling the masts.

735TSM-Eng-MSp-OM-rev1.4.indd 8-9 9/9/09 9:48 AM

10 11

ASSEMBLY STEP 5

A Open hardware bag 5.

B Attach deck lock pin to the left

console mast using 2 screws (i).

C Insert cup holder into right console pocket.

D Connect power cord to a power outlet. The

ON/OFF switch is located next to the power

cord. Flip this switch to the ‘ON’ position. You

will hear a beep and the console will turn on.

E Before the first use, lubricate the treadmill

deck by following the instructions in the

MAINTENANCE section in the TREADMILL

GUIDE.

SCREW (I)

17 mm

Qty: 2

HARDWARE BAG 5 CONTENTS :

LEFT CONSOLE MAST

CUP HOLDER

CONSOLE

DECK LOCK PIN

SCREWS (I)

ASSEMBLY STEP 6

A Open hardware bag 6.

NOTE: lock latch must be securely engaged

before proceeding with assembly. (See page

folding instructions in TREADMILL GUIDE.)

B Attach the right end cap using 2 screws

(j). Repeat on the other side.

C Connect power cord to a power outlet. The

ON/OFF switch is located next to the power

cord. Flip this switch to the ‘ON’ position. You

will hear a beep and the console will turn on.

D Before the first use, lubricate the treadmill

deck by following the instructions in the

MAINTENANCE section in the TREADMILL

GUIDE.

SCREW (J)

15mm

Qty: 4

HARDWARE BAG 6 CONTENTS :

SCREWS (J) END CAP

YOU ARE FINISHED!

735TSM-Eng-MSp-OM-rev1.4.indd 10-11 9/9/09 9:48 AM

TREADMILL OPERATION

This section explains how to use your treadmill’s console and programming. The BASIC OPERATION section in the

TREADMILL GUIDE has instructions for the following:

• LOCATION OF THE TREADMILL

• USING THE SAFETY KEY

• FOLDING THE TREADMILL

• MOVING THE TREADMILL

• LEVELING THE TREADMILL

• TENSIONING THE RUNNING BELT

• CENTERING THE RUNNING BELT

• USING THE HEART RATE FUNCTION

735TSM-Eng-MSp-OM-rev1.4.indd 12-13 9/9/09 9:48 AM

14 15

CONSOLE OPERATION

Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.

A) MONITOR DISPLAY: Speed, time, pulse, distance, incline, and calories.

B) STOP: Press to pause/end your workout. Hold for 3 seconds to reset the treadmill.

C) START: Simply press to begin exercising or starts your program.

D) INCLINE ADjUST KEYS: Used to adjust incline in small increments (0.5% increments).

E) SPEED ADjUST KEYS: Used to adjust speed in small increments (0.1 MPH increments).

F) QUICK-ADjUST INCLINE KEYS: Used to reach desired incline more quickly.

G) QUICK-ADjUST SPEED KEYS: Used to reach desired speed more quickly.

H) SAFETY KEY POSITION: Enables treadmill when safety key is engaged.

I) PROGRAM SELECT KEY: Press key to select program.

j) TIME SELECT KEY: Press to set desired workout time.

K) FAN: Press to turn fan on / off.

L) WATER BOTTLE / CD / MP3 HOLDERS: Holds personal workout equipment.

M) CHANGE DISPLAYS KEY: Press to change display feedback during workout.

CHANGE DISPLAYS

START

QUICK START

2 %4 %6 %8 %10 %

INCLINE

2 MPH

4 MPH

6 MPH

8 MPH

10 MPH

SPEED

S T O P

HOLD TO RESET

ROLL ING

HILL S

PROGRAM

SELECT

WEIG HT

LOSS

FAT

BLA ST

CARD IO

BURN

ENDUR A N CE

CHAL LENGE

MAN U A L

MIN U T E S

TIME

SELECT

TIME CALORIES DISTANCE

INCLINE PULSE SPEED

AF IL J

BC H KD E

735TSM-Eng-MSp-OM-rev1.4.indd 14-15 9/9/09 9:48 AM

16 17

PROGRAMS

P1 MANUAL: Allows “on the fly” manual speed and incline changes.

P2 ROLLING HILLS: Creates the feel of walking or running over hills.

P3 WEIGHT LOSS: Keeps user in their optimal fat burning zone.

P4 FAT BLAST: Burn fat at an increased rate.

P5 CARDIO BURN: Burns calories and tones muscles.

P6 ENDURANCE CHALLENGE: Tones muscle and challenges cardiovascular system.

GETTING STARTED/SELECTING A PROGRAM

1) Check to make sure no objects are placed on the belt that will hinder the movement of the treadmill.

2) Plug in the power cord and turn the treadmill ON.

3) Stand on the side rails of the treadmill.

4) Attach the safety key clip to part of your clothing.

5) Insert the safety key into the safety keyhole in the console.

6) You have two options to start your workout

A) QUICK START UP

Simply press the START key

to begin working out. Or...

B) SELECT A PROGRAM

Press PROGRAM SELECT key to choose a program.

Press TIME SELECT key (use + / - keys for time

intervals not shown on quick time select option).

Press START.

MONITOR DISPLAY

• SPEED: Shown as MPH. Indicates how fast your walking or running surface is moving.

• TIME: Shown as minutes:seconds. View the time remaining or the time elapsed in your workout.

• PULSE: Shown as beats per minute. Used to monitor your heart rate (displayed when contact is made with the pulse grips).

• DISTANCE: Shown as miles. Indicates distance traveled during your workout.

• INCLINE: Shown as percent. Indicates the incline of your walking or running surface.

• CALORIES: Total calories burned during your workout.

QUICK KEY OPERATION

Once you have started your program you can use the QUICK

KEYS to quickly change your speed and incline level. Press the

number of your desired speed then press the START key. The

START key confirms that this is the speed you want and the

treadmill will adjust the speed or incline accordingly.

TO RESET CONSOLE

Hold STOP key for 3 seconds.

FINISHING YOUR WORKOUT

When your workout is complete, the monitor display will flash

and beep. Your workout information will stay displayed on the

console for 30 seconds and then reset.

CLEAR CURRENT SELECTION

To clear the current program selection or screen, hold the STOP

button for 4-5 seconds.

CHANGE VIEWING SCREENS

To have the display screen rotate continuously (incline and pulse,

time and calories), hold the CHANGE DISPLAYS button for 4-5

seconds.

735TSM-Eng-MSp-OM-rev1.4.indd 16-17 9/9/09 9:48 AM

18 19

LIMITED HOME-USE WARRANTY

735TSM-Eng-MSp-OM-rev1.4.indd 18-19 9/9/09 9:48 AM

20 21

WEIGHT CAPACITY = 275 lbs (125 kilograms).

FRAME • LIFETIME

Warrants the frame against defects in workmanship and materials for the lifetime of the original owner. (The frame is defined as the welded metal base of the

unit and does not included any parts that can be removed.)

MOTOR • 2 YEARS

Warrants the motor against defects in workmanship and materials for two years from the date of purchase, so long as the device remains in the possession

of the original owner.

ELECTRONICS & PARTS • 90 DAYS

Warrants the electronic components, finish and all original parts for a period of 90 days from the date of original purchase, so long as the device remains in

the possession of the original owner.

LABOR • 90 DAYS

Shall cover the labor cost for the repair of the device for a period of 90 days from the date of the original purchase, so long as the device remains in the

possession of the original owner.

MANUFACTURER’S DEFECT WARRANTY.

(After 90 days, all service will incur fees)

SEARS ROEBUCK DE MEXICO S.A. DE C.V.

CON DIRECCIÓN EN AV. PROLONGACIÓN VASCO DE QUIROGA NO. 3800

COL. ANTIGUA MINA DE TOTOLAPA, CUAJIMALPA DE MORELOS

MEXICO D.F. CP. 05109

We pledge to repair or replace any piece that is found to have a manufacturer’s

defect. The warranty does not cover problems caused by improper installation,

handling damage, storage, transport, accidental or intentional damage, or misuse

of the equipment.

Home-use exercise machine.

Shipping costs for parts and accessories or complete machines to our residence

will be on the buyer’s account.

Customer Service

Tel (5255) 5670 6418

Fax (5255) 5670 7136

Toll Free (01800) 288 2556

NAME OF DISTRIBUTOR

DATE OF PURCHASE

SALES NOTE NUMBER

735TSM-Eng-MSp-OM-rev1.4.indd 20-21 9/9/09 9:48 AM

22 23

735TSM-Eng-MSp-OM-rev1.4.indd 22-23 9/9/09 9:48 AM

24 25

ESPAÑOL ENSAMBLAJE

Durante el proceso de ensamblaje de la caminadora hay varias áreas a las que se les debe poner atención especial. Es muy

importante seguir las instrucciones de ensamblaje correctamente y asegurarse de que todas las piezas queden bien apretadas.

Si no se siguen correctamente las instrucciones de ensamblaje, algunas piezas de la estructura de la caminadora podrían quedar

sueltas y causar ruidos irritantes. Para evitar daños a la caminadora, es necesario repasar las instrucciones de ensamblaje y

hacer las correcciones necesarias.

Antes de seguir adelante busque el número de serie de su caminadora, que está colocada cerca del interruptor

de encendido y apagado y del cable de corriente, y escríbalo en el espacio disponible a continuación.

ESCRIBA EL NÚMERO DE SERIE EN LAS SIGUIENTES CASILLAS:

» Cuando llame para solicitar servicio haga referencia al NÚMERO DE SERIE y al NOMBRE DE MODELO.

» Asegúrese de escribir tanto el NÚMERO DE SERIE como el NOMBRE DE MODELO en su tarjeta de garantía.

NÚMERO DE SERIE:

MODELO:

CAMINADORA

MERIT 735T

ADVERTENCIA

735TSM-Eng-MSp-OM-rev1.4.indd 24-25 9/9/09 9:48 AM

26 27

HERRAMIENTAS

INCLUIDAS:

FLlave Allen de 5 mm

FLlave en T de 4 mm

PIEZAS INCLUIDAS:

F1 llave de seguridad

F2 tubos extensores del bastidor

F1 conjunto de consola

F2 postes de la consola

F1 portabotellas

F2 empuñaduras

F1 pasador de bloqueo

de la plataforma

F2 tapas del rodillo

F4 bolsas de tornillería

F1 botella de lubricante de silicona

(para 2 aplicaciones)

ES TANTE DE LECTURA CAVIDAD PARA BOTELL A

DE AGUA

EMPUÑADURAS CON

SENSOR DE PULSO

TUBO E XTENSOR

DEL BASTIDOR

ACOJINAMIENTO

CONSOLA

PANEL DE CONTROL TÁCTIL

EMPUÑADURAS

PASADOR DE BLOQUEO DE LA PLATAFORMA

INTERRUPTOR DE

ENCE ND IDO Y APAGADO

CORTACIRCUITOS

RUEDITA DE TRANSPORTE

CABLE DE CORR IE NTE

RANURA PARA LA LLAVE

DE SEGURIDAD

POSTE DE LA CONSOLA

CUBIERTA DEL MOTOR

PLATAFORMA/BANDA PAR A CORRER

RIEL L ATERAL

TAPA DEL RODILLO

PERNOS DE REGULAC IÓN

DEL RODILLO POSTERIOR
