Thank you for purchasing the Nautilus®Commercial Series T9.16 Treadmill. For more than 30 years
Nautilus has been producing the world’s finest fitness equipment used in health clubs and homes
around the globe. We hope this product exceeds your expectations and is a valuable tool for your
facility.
Please carefully read through this manual to familiarize yourself with the operation of your new
Nautilus®treadmill. Doing so will help to insure that your users get the most out of your treadmill,
enjoying safe and effective workouts in the many miles ahead.
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, WA 98683
nautilus.com
INTRODUCTION
b
Model T9.16

NAUTILUS®
1
TABLE OF CONTENTS
Important Safety Instructions> > > > > > 2
Specifications > > > > > > > > > > > > > > 6
Installation & Operation> > > > > > > > > 7
Power Plug Receptacles> > > > > > > 7
Turning On the Power > > > > > > > > 7
Understanding the Display
and Controls > > > > > > > > > > > > > 7
Emergency Stop Procedure /
Limited Access Control > > > > > > > 7
Magnetic Safety Stop > > > > > > > > 8
Getting Started > > > > > > > > > > > > > 8
Guidelines For Getting On
and Off the Treadmill > > > > > > > > > 8
Treadmill Display Definitions > > > > > > 9
Treadmill Key Functions > > > > > > > >11
Workout Program Overview > > > > > >13
Workout Program Keypad > > > > > >13
Quick Start Program > > > > > > > > >14
Manual Program > > > > > > > > > > >15
Fat Burner Program> > > > > > > > > 16
Calorie Burner Program > > > > > > >17
Intervals Program> > > > > > > > > > >18
HR Zone Trainer Program > > > > > >19
More Workouts > > > > > > > > > > > > >22
Nautilus®Fit Test Program > > > > > >22
Custom Intervals > > > > > > > > > > >26
Random Play Program > > > > > > > >27
HR Interval Program > > > > > > > > >28
Workout Program Options > > > > > > >30
Heart Rate Monitoring > > > > > > > > >32
Telemetry Heart Rate > > > > > > > > >32
Maintaining the Transmitter Belt> > >32
Contact Heart Rate > > > > > > > > > >33
Heart Rate Priority > > > > > > > > > > >34
Exercise & Fitness Guidelines > > > > >37
Steps to Getting Started > > > > > > >36
Components of Fitness > > > > > > > >37
Nutrition > > > > > > > > > > > > > > > >39
Monitoring Your Intensity> > > > > > >40
Console Codes > > > > > > > > > > > > >44
Customizing the T916 Treadmill > > >44
Machine Status Codes > > > > > > > >45
Diagnostic Codes > > > > > > > > > > >46
Maintenance > > > > > > > > > > > > > >48
Cleaning and Inspecting > > > > > > >49
Tensioning and Tracking
Walking Belt> > > > > > > > > > > > > >52
Moving and Storing> > > > > > > > > >50
Warranty Information > > > > > > > > > >52
Contacts > > > > > > > > > > > > > > > > >53
TABLE OF CONTENTS

NAUTILUS®SAFETY REQUIREMENTS
CHANGING THE GAME IN HEALTH AND FITNESS
®
2
GENERAL GUIDELINES FOR SAFE OPERATION
These guidelines are directed to you, as the
owner of the machine. You should insist
that all users follow the same guidelines.
You should make this manual available to
all users.
Do not begin an exercise program without
first consulting a physician.
If at any time during your workout you feel
chest pain, experience severe muscular
discomfort, feel faint, or are short of
breath, stop exercising immediately. If the
condition persists, you should consult your
medical doctor immediately.
Secure long hair and loose clothing before
use.
1. Obtain a complete physical examination from
your medical doctor and enlist a health/fitness
professional’s aid in developing an exercise
program suitable for your current health status.
2. When working out for the first time, use the
MANUAL exercise program at the lower levels
until you feel comfortable and capable of higher
workloads.
3. The intensity and duration of your exercise
program should always be subject to how you
feel. Never permit peer pressure to override your
personal judgment while exercising.
4. Overweight or severely de-conditioned individuals
should be particularly cautious when using the
machine for the first time. Even though such
individuals may not have histories of serious
physical problems, they may perceive the exercise
to be far less intense than it really is, resulting in
the possibility of overexertion or injury.
5. Although all equipment manufactured by Nautilus,
Inc. has been thoroughly inspected by the
manufacturing facility prior to shipment, proper
installation and regular maintenance are
required to ensure safety. Maintenance is the sole
responsibility of the owner.

NAUTILUS®
SAFETY REQUIREMENTS
3
Indicates a hazardous situation which, if not avoided, will result in death or serious
injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Before using this equipment, obey the following warnings:
To decrease the risk of burns, electric shock, or injury to persons, read and understand the complete
Owner’s Manual. Users do not have access to the Owner’s Manual. Your Institution is responsible for
instructing users on how to use the equipment correctly, in addition to making them know of any possible
dangers. Failure to follow these guidelines can produce a serious or possibly fatal electrical shock hazard
or other serious injury.
Read and understand all warnings on this machine.
• Keep children away from this machine. Monitor them closely when near the machine. Parts that
move and appear dangerous to adults can appear safe to children.
• Consult a physician before you start an exercise program. Stop exercising if you feel pain or
tightness in your chest, become short of breath, or feel faint. Contact your doctor before you use
the machine again. Use the values calculated or measured by the machine’s computer for reference
purposes only.
• Before each use, examine this machine for damage to power cord, power recpetical, loose parts or
signs of wear. Do not use if found in this condition. Contact Nautilus®Customer Service for repair
information.
• Maximum user weight limit: 400 lb. (181 kg). Do not use if you are over this weight.
• Do not wear loose clothing or jewelry. This machine contains moving parts.
• Set up and operate this machine on a solid, level, horizontal surface.
• Use caution when you step on and off the machine.
• Do not operate this machine outdoors or in moist or wet locations.
• Keep at least 19.5” (0.5 m) on each side of the machine and 48” (1.22 m) behind the machine clear.
This is the recommended safe distance for access and passage around and emergency dismounts
from the machine. Keep third parties out of this space when machine is in use.
• Do not over exert yourself during exercise. Operate the machine in the manner described in this
manual.
• Read, understand, and test the Emergency Stop Procedure before use.
• Keep the walking belt clean and dry.
• The machine shall only be used in areas where access and control of the equipment is regulated by
trained staff. The degree of regulation depends on the user’s ability to recognize and prevent danger
to third parties throughout the exercise movement.
• Do not stand on machine motor cover or front trim cover.
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS
WARNING
ATTENTION
DANGER
IMMEDIATE ACTION REQUIRED
CAUTION

NAUTILUS®SAFETY REQUIREMENTS
CHANGING THE GAME IN HEALTH AND FITNESS
®
4
When using electrical equipment, always follow these basic precautions:
• To decrease the risk of electrical shock, always unplug the power cord,
television external power supply (if applicable) and wait 5 minutes before
cleaning, maintaining or repairing this machine.
• Keep power cord away from heat source and hot surfaces.
• Never drop or insert objects into any opening of the machine.
• This machine must be connected to an appropriate, dedicated electrical circuit. Nothing else must
be connected to the circuit.
• Connect this machine to a properly grounded outlet; consult a licensed electrician for assistance.
• Do not operate where aerosol products are being used.
• Do not let liquids touch the electronic controller. If it does, the controller must be inspected and
tested for safety by an approved technician before it can be used again.
• Do not remove machine motor cover; dangerous voltages are present. Components are serviceable
only by approved service personnel.
• The electrical wiring for the facility in which the machine will be used must comply with applicable
local and provincial requirements.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
ATTENTION
DANGER
IMMEDIATE ACTION REQUIRED
CAUTION

NAUTILUS®
SAFETY REQUIREMENTS
5
IMPORTANT SAFETY INSTRUCTIONS
1
23
Locate and read all safety warnings before operation. Replace any warning label if it is damaged, illegible,
or missing. For replacement labels, call a Nautilus Representative using the contact information page at the
end of this manual.
Type Description
1 WARNING FAILURE TO FOLLOW THESE SAFEGUARDS MAY RESULT IN SERIOUS INJURY OR
HEALTH PROBLEMS.
Remove magnetic safety stop key when not in use and store out of reach of children.
CAUTION 1. To avoid injury, stand on the side rails before starting the machine.
2. Read and understand the Owner’s Manual and operation instructions before use.
2 WARNING If you have not been exercising regularly, consult a physician before starting an
exercise program. If you feel any unusual pain, shortness of breath or dizziness, STOP.
Consult a physician.
3 [WARNING] QUICK START - Press the Quick Start Key to begin in Manual Mode. Use the Speed and
Incline Keys to adjust as desired
PROGRAM INSTRUCTIONS - Press one of the Workout Program Keys. Enter Information
as prompted.
Maximum User Weight - 400 lbs. (181 kgs.)
4 Serial Number Located on the left side of the frame below the front trim cover.
Note: For future reference record this number in the serial number box on the Contacts
page of this manual.
4

NAUTILUS®SPECIFICATIONS
CHANGING THE GAME IN HEALTH AND FITNESS
®
6
SPECIFICATIONS
Dimensions 35” W x 88” L
89 W x 224 L cm
Walking Surface 22” x 63”
56 x 160 cm
Treadmill Weight 370 lb. | 168 kg
Shipping Weight 430 lb. | 196 kg
Maximum User Weight 400 lb. | 181 kg
Mechanical
Speed Range 0.5–12 mph
0.8–19.3 kph
Incline Range 0–15%
Drive Motor 4.8 hp AC with
Hyperdrive® system
Deck Suspension REACT® system
ROC™ System Yes
Electronics
Power Inlets 2: front and rear
(IEC60320 C20)
Display Type C51 custom backlit LCD
Power Requirements 100–120 V, 50/60 Hz, 16 A
Languages English, German,
French, Spanish, Italian,
Japanese, Dutch
Heart Rate Monitoring Contact sensors and
wireless telemetry
Regulatory Certification
CSA Certified for US and Canada (Product bears the c-CSA-us mark).
(Evaluated per ANSI/UL
1647-2004 and CAN/CSA C 22.2 No. 0 -M 91 and
CSA C
22.2 No. 68-92 )
Meets FCC-Part
15 , Class B.

NAUTILUS®
OPERATION
7
INSTALLATION & OPERATION
Treadmill Power Plug Receptacles
The Commercial Series T19.16 Treadmill has two power plug receptacles
allowing you to plug in the treadmill from the front or the rear of the machine.
The rear power cord receptacle, located underneath the right side of the side
rail, should be used if the treadmill is going to be placed in the center of the
room facing away from the wall. The front power cord receptacle, located on the
front side of the motor pan, can be used if the treadmill is placed facing a wall
or parallel to a wall. Unused receptacles must be covered, using the provided
covers.
Turning On the Power
After you have determined which end of the treadmill to plug in, the
treadmill can be turned on by moving the power switch located at the front
of the treadmill, to the ON position.
Understanding the Display and Controls

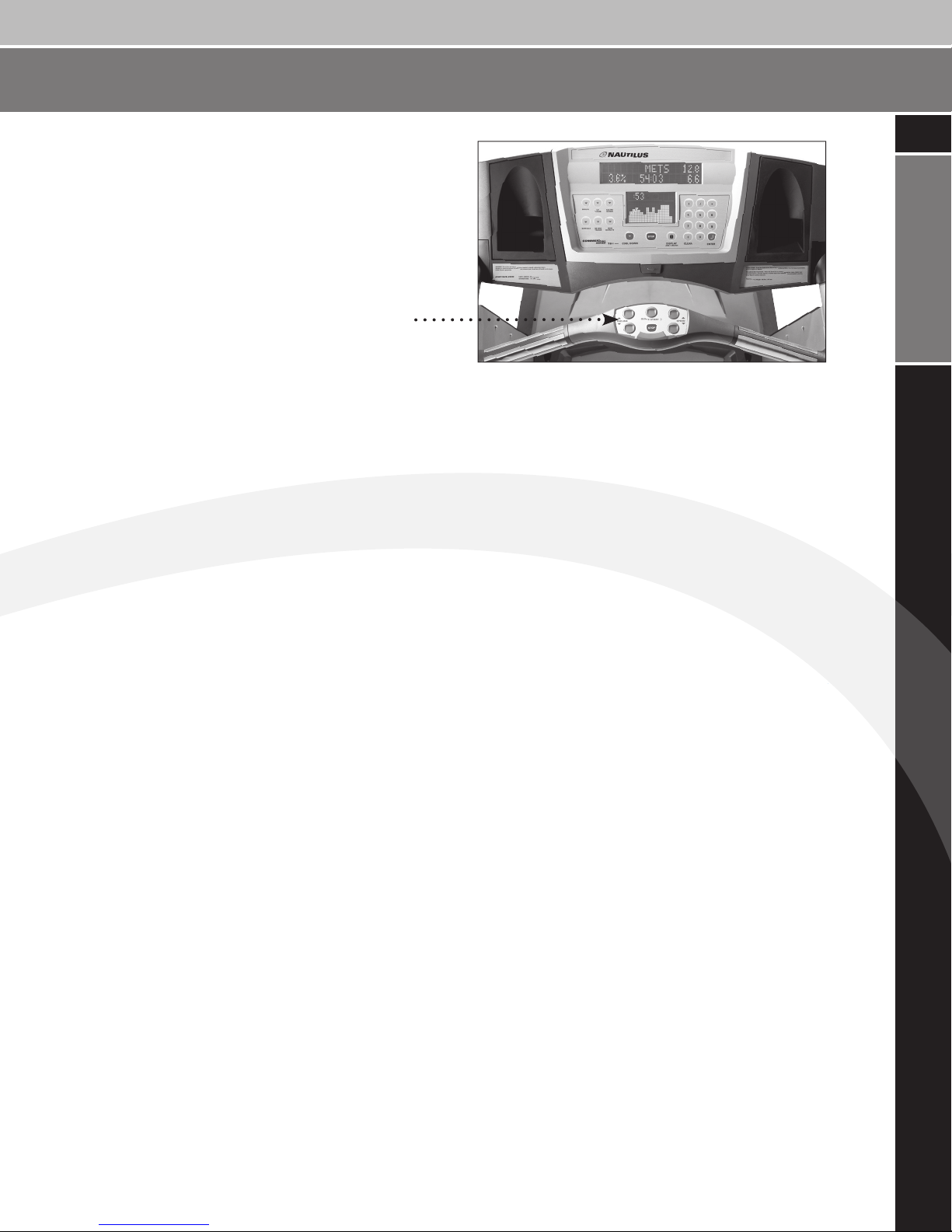

The treadmill display is a computerized panel used to operate the treadmill and
see all workout data and operational status. You should familiarize yourself with
the operation of the treadmill and the location of all keys before beginning use.
Emergency Stop Procedure / Limited Access Control
Limited-access control lets you restrict treadmill use to authorized personnel.
It also lets you stop the treadmill in an emergency. The magnetically-activated
control is located on the bottom of the display as shown. The limited-access
control is deactivated on machines shipped from the factory.
Power Switch
Attach power cord here if your
treadmill will be facing a wall
or will be parallel to a wall.
Attach power cord here
if your treadmill will
face away from the wall .
Emergency
Stop
Magnet

NAUTILUS®GETTING STARTED
CHANGING THE GAME IN HEALTH AND FITNESS
®
8
GETTING STARTED
Magnetic Safety Stop Activation
To activate the limited-access control and restrict access, place the magnetic
safety stop cord supplied with the treadmill in the designated area located
below the display.
The magnet will activate the control. If you remove the key, the treadmill belt
will stop and the controller will not respond to any key presses. Accumulated
values will remain on the display until you turn off the power, or press [Clear].
The console will display a message, REPLACE MAGNET when you remove the
magnetic key from its designated area. You must replace the key or deactivate
the control to start the walk belt.
Guidelines For Getting On and Off the Treadmill
Instruct each user in the following guidelines for getting on and off the
treadmill.
1. The walking belt should be moving at minimum speed before the user steps onto the
treadmill.
2. Stand next to the treadmill and place both hands on the front handrail.
3. Straddle the walking belt or step onto the side of the deck. Step onto the moving belt
and begin walking.
4. (Optional) To get the feel of the moving belt place the foot nearest the treadmill on
the walking belt and let it move backwards. Lift it and repeat
several times until comfortable with the treadmill speed.
5. When walking comfortably on the treadmill, let go of the
handrail.
6. While walking on the treadmill:
• Face forward. Avoid looking down at the walking belt.
• Maintain speed by keeping a consistent distance from the
handrail.
• Adjust the speed and incline as desired. Hold the handrail
as the speed and incline change.
7. Before stepping off the treadmill, place one hand on the
handrail, wait for the belt to stop, then step off.
Attach magnetic safety cord onto
clothing as shown.
