ME-RELI1-EA
Instruction manual
Repeater with connector for an external antenna
Instruction manual
This instruction manual informs you about the correct handling of the device. Always follow the
safety instructions carefully to avoid the possibility of physical injury to you or others, or damage
to the device or other property. Please keep this manual in a safe place for future reference.
Safety
The use of this device is not permitted in explosion hazard areas.
Installation and function
The device serves as signal amplifier in the merkurFunksystem (merkur wireless system).

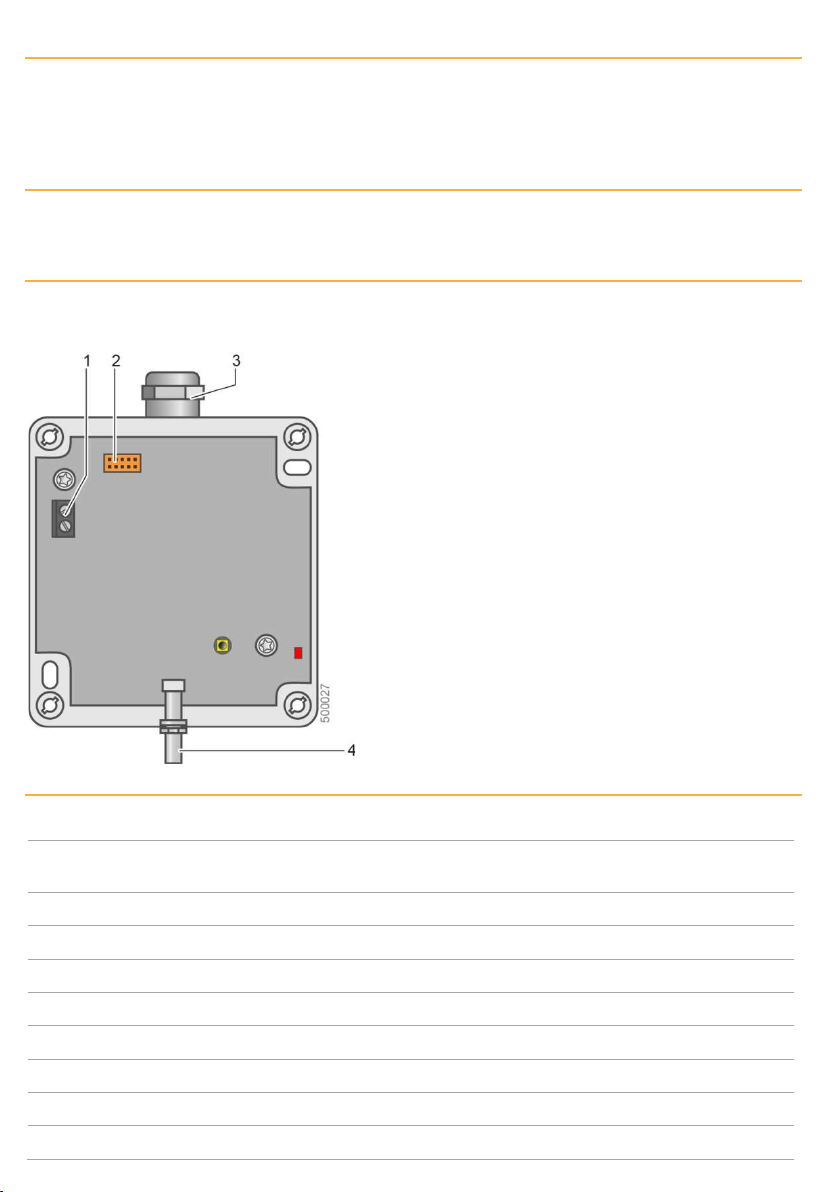

1 Connector for external power supply
2 USB configuration interface
3 Cable entry socket
4 Connector for external antenna
Technical data
Frequency Licence free ISM 433/434-MHz-Band adjustable
from 433.05 MHz - 434.79 MHz
Power of transmission Low power radio system < 10 mW
Distance free field up to 3'000 m
Distance building 2 – 5 floors
Power supply External: 4 – 24 VDC
Weight 108 g (excluding external power adapter)
Dimensions (H × B × T) 110 × 64 × 38 mm Antenna: 162 mm
Housing dimensions (H × B × T) 72 × 64 × 38 mm
Operating ambient temperature -20 °C – +55 °C
Protection class IP 54 EN 60529
Conformity
CE / RED / RoHS
Hereby, merkur Funksysteme AG declares that the repeater type ME-RELI1-.. is in
compliance with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
www.merkur-funksysteme.com
Opening the device
There is a risk of damage to device by electrostatic
discharge. Perform equipotential bonding before
opening the device.
1. Unlock the screws of the cover (1).
2. Loosen the screws on the circuit board (2).
3. Lift out the circuit board (3).
Installation
1. Open the device.
2. Screw the device to an even surface by using the mounting
holes.
Configuration
The device is configured by using the “merkur Configuration studio” software. The USB
configuration interface or the wireless connection can be used to communicate with the “merkur
Configuration studio” software.
Help with the system integration can be obtained from your service partner.
Disposal
Disused materials should be recycled. Please dispose the device according to your local
regulations.
Service and spare parts
Contact your service partner for service work, spare parts exchange and optional accessories.
