Metrica YEE SP01 User manual

YEE
DESIGNED BY METRICA
ASSEMBLY INSTRUCTIONS

THANK YOU FOR PURCHASING SP01,
WE HOPE YOU ENJOY YOUR FURNITURE FOR MANY YEARS TO COME.
THE SAFETY OF OUR PRODUCTS IS VERY IMPORTANT TO US,
AND WE ENCOURAGE YOU TO ALWAYS FOLLOW ASSEMBLY INSTRUCTIONS
AND SAFETY WARNINGS CAREFULLY.
PLEASE BE AWARE THAT SERIOUS OR FATAL CRUSHING INJURIES
CAN OCCUR FROM FURNITURE TIP-OVER.
TO PREVENT THIS PIECE FROM POTENTIALLY TIPPING OVER AND CAUSING
INJURY, WE STRONGLY RECOMMEND THAT IT SHOULD BE PERMANENTLY
FIXED TO THE WALL.
SPECIAL FIXING POINTS OR BRACKETS HAVE BEEN INCLUDED
AS PART OF THE DESIGN OF THIS PRODUCT.
PLEASE NOTE HOWEVER THAT HARDWARE IS NOT ALWAYS INCLUDED
BECAUSE DIFFERENT WALL MATERIALS REQUIRE DIFFERENT
TYPES OF FIXING HARDWARE.
IF YOU REQUIRE SPECIALISED ADVICE ON SUITABLE FIXING
HARDWARE PLEASE SEEK THE SERVICES OF A LOCAL TRADESPERSON
OR CONTACT THE SELLER OF THIS PRODUCT FOR MORE INFORMATION.
ENJOY
SPØ1DESIGN.COM

DISCLAIMER
THE ASSEMBLY INSTRUCTIONS ARE TO BE USED AS A GUIDE SHOWING THE
CONCEPT OF THE SYSTEM. IT WILL NOT BE EQUAL TO THE SYSTEM YOU
HAVE PURCHASED.
ENSURE THAT ALL STEPS ARE FOLLOWED IN THE CORRECT ORDER AND
THAT NO STEP IS LEFT OUT.
A MINIMUM OF TWO PEOPLE ARE REQUIRED FOR ASSEMBLY.
TO PREVENT ANY DAMAGE OF THE PRODUCT, DO NOT USE A BOX CUTTER,
KNIFE OR SHARP OBJECT TO OPEN THE BOXES.
DO NOT LIFT THE BENCH BY ITS TOP. IF YOU HAVE TO LIFT THE BENCH,
LIFT IT BY HOLDING ONTO THE METAL STRUCTURE.
DO NOT LIFT THE BENCH WITH BOXES ON TOP.
SPØ1DESIGN.COM

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 4

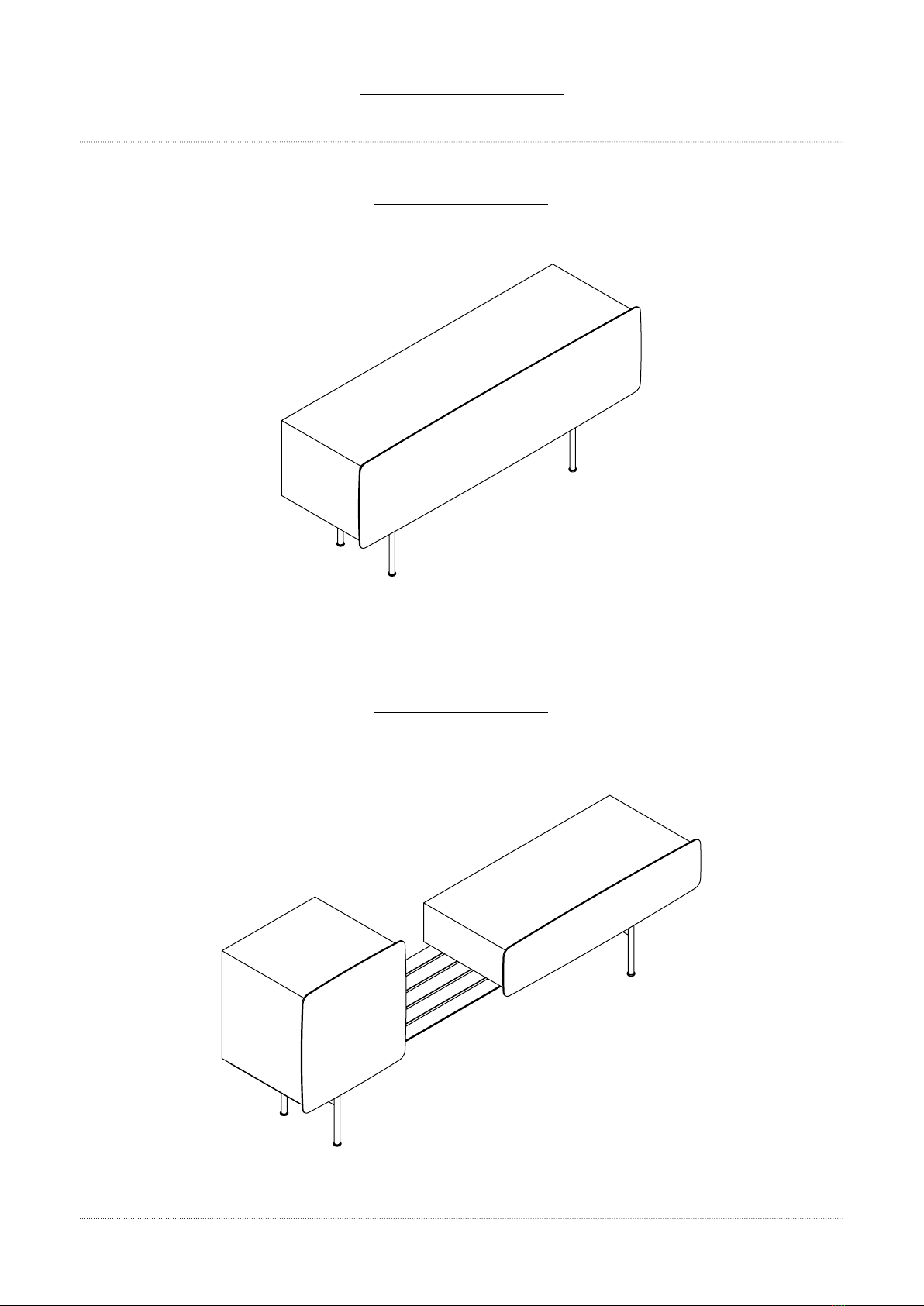

YEE STORAGE SYSTEM
EXAMPLE SETTING 1
SHORT METAL BASE 1000 + STORAGE ELEMENT 1560X420
EXAMPLE SETTING 2
MEDIUM METAL BASE + MEDIUM WOOD TOP + 560X560 STORAGE ELEMENT +
INTERNAL METAL SHELF FOR 560 CONTAINER + 1060X240 STORAGE ELEMENT

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 5
YEE STORAGE SYSTEM
EXAMPLE SETTING 1
PACKAGING
BENCH PARTS
BOX WITH METAL BASE AND HARDWARE
2/3 WALL BRACKETS,
SMALL SCREW DRIVER
BOX WITH 1560X420
STORAGE CONTAINER
2 PLASTIC COVER, 2 METAL COVER, 6 SCREWS,
2 HAND SCREWS (NOT REQUIRED FOR ASSEMBLY OF
COMPOSITIONS WITHOUT WOODEN TOP)

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 6
YEE STORAGE SYSTEM
EXAMPLE SETTING 1
REMOVE THE METAL STRUCTURE FROM ITS PACKAGING AND PLACE IT ONTO THE FLOOR.
BEFORE PLACING THE STORAGE CONTAINER ON TOP, MAKE SURE THAT THE ADJUSTABLE FEET ARE
LOOSENED. ADJUST THE FEET IN ORDER TO ALIGN THE STRUCTURE HORIZONTALLY.

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 7
YEE STORAGE SYSTEM
EXAMPLE SETTING 1

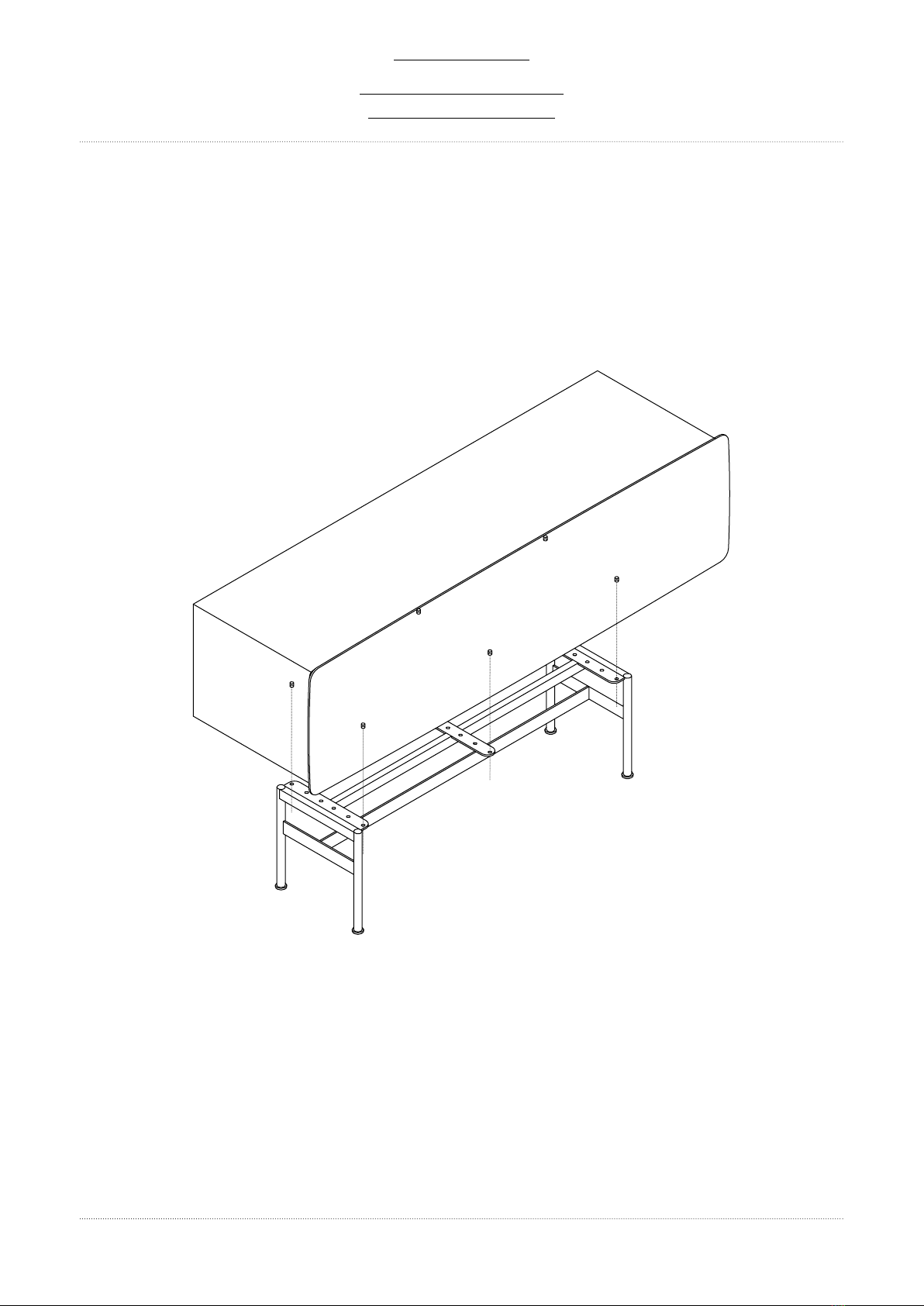

REMOVE THE STORAGE ELEMENT FROM ITS PACKAGING AND PLACE IT ON TOP OF THE METAL STRUCTURE.
ALIGN THE HOLES ON THE BOTTOM WITH THE HOLES OF THE METAL STRUCTURE.

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 8
IF YOU WISH TO FIX THE COMPOSITION TO THE WALL, TAKE OUT THE PROVIDED METAL BRACKETS FROM
THE PACKAGING. THE METAL BRACKET MUST BE FACING THE WALL.
FROM UNDERNEATH, PLACE THE METAL BRACKETS UNDERNEATH THE METAL STRUCTURE AND FIX
EVERYTHING WITH THE PROVIDED HARDWARE.
YEE STORAGE SYSTEM
EXAMPLE SETTING 1

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 9
POSITION THE BENCH AND FIX IT TO THE WALL USING PROVIDED METAL BRACKETS AND ADEQUATE
HARDWARE (NOT SUPPLIED).
YEE STORAGE SYSTEM
EXAMPLE SETTING 1

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 10
YEE STORAGE SYSTEM
EXAMPLE SETTING 1

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 11

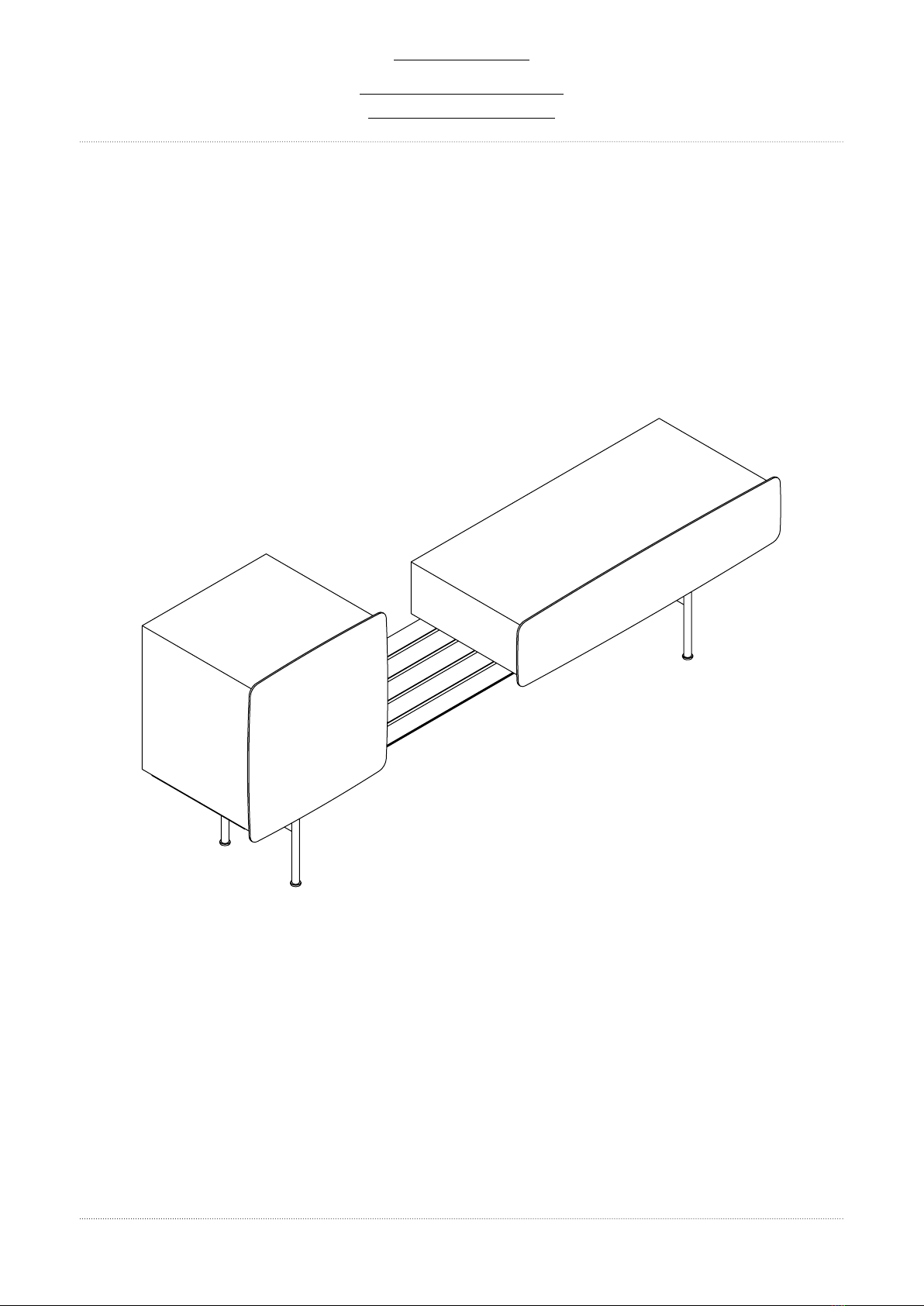

YEE STORAGE SYSTEM
EXAMPLE SETTING 2
PACKAGING
BENCH PARTS
BOX WITH WOODEN TOP BOX WITH METAL BASE AND HARDWARE
2/3 WALL BRACKETS18 SCREWS

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 12
PACKAGING
STORAGE CONTAINER AND METAL SHELF
BOX WITH 560X560
STORAGE CONTAINER
BOX WITH 1060X240
STORAGE CONTAINER
BOX WITH METAL
SHELF FOR 560X560
CONTAINER
1 PLASTIC COVER,
1 METAL COVER,
2 HAND SCREWS
1 PLASTIC COVER,
1 METAL COVER,
2 HAND SCREWS
4 SCREWS,
1 ALLEN KEY
YEE STORAGE SYSTEM
EXAMPLE SETTING 2

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 13
BENCH ASSEMBLY

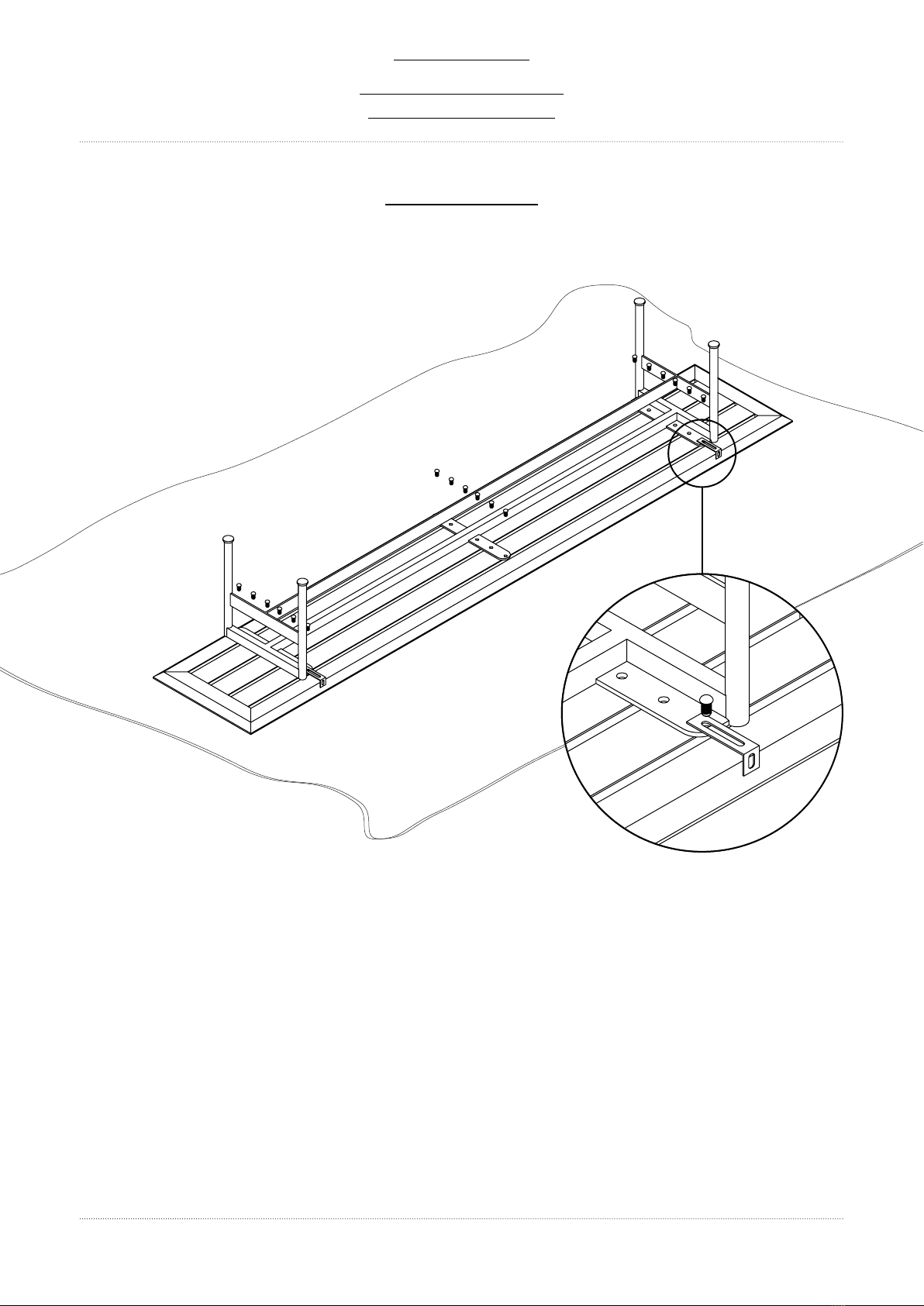

REMOVE THE WOODEN TOP FROM ITS PACKAGING AND PLACE IT ON A CLEAN AND SOFT SURFACE/
BLANKET WITH THE HOLES FACING UP. REMOVE THE METAL STRUCTURE FROM ITS PACKAGING AND
PLACE IT WITH THE ASSEMBLY BARS ONTO THE WOODEN TOP.
PLACE THE PROVIDED WALL BRACKETS ONTO THE METAL BARS, THEY SHOULD ALWAYS BE FACING
THE BACK OF THE BENCH; THE WALL BRACKETS MUST BE FIXED ONTO THE WALL TO PREVENT TIPPING.
DEPENDING ON THE SIZE OF THE BENCH YOU FIND 2 OR 3 METAL BRACKETS INCLUDED IN THE
PACKAGING.
FIX THE METAL STRUCTURE AND THE WALL BRACKETS ONTO THE WOODEN TOP USING THE PROVIDED
HARDWARE; THE WALL BRACKETS AND THE STRUCTURE SHARE THE SAME SCREW.
START SCREWING THE EXTERNAL SCREWS WITHOUT TIGHTENING TOO MUCH; MOVE FROM THE EXTERNAL
HOLES TO THE INTERNAL ONES. FINALLY TIGHTEN ALL SCREWS.
YEE STORAGE SYSTEM
EXAMPLE SETTING 2

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 14

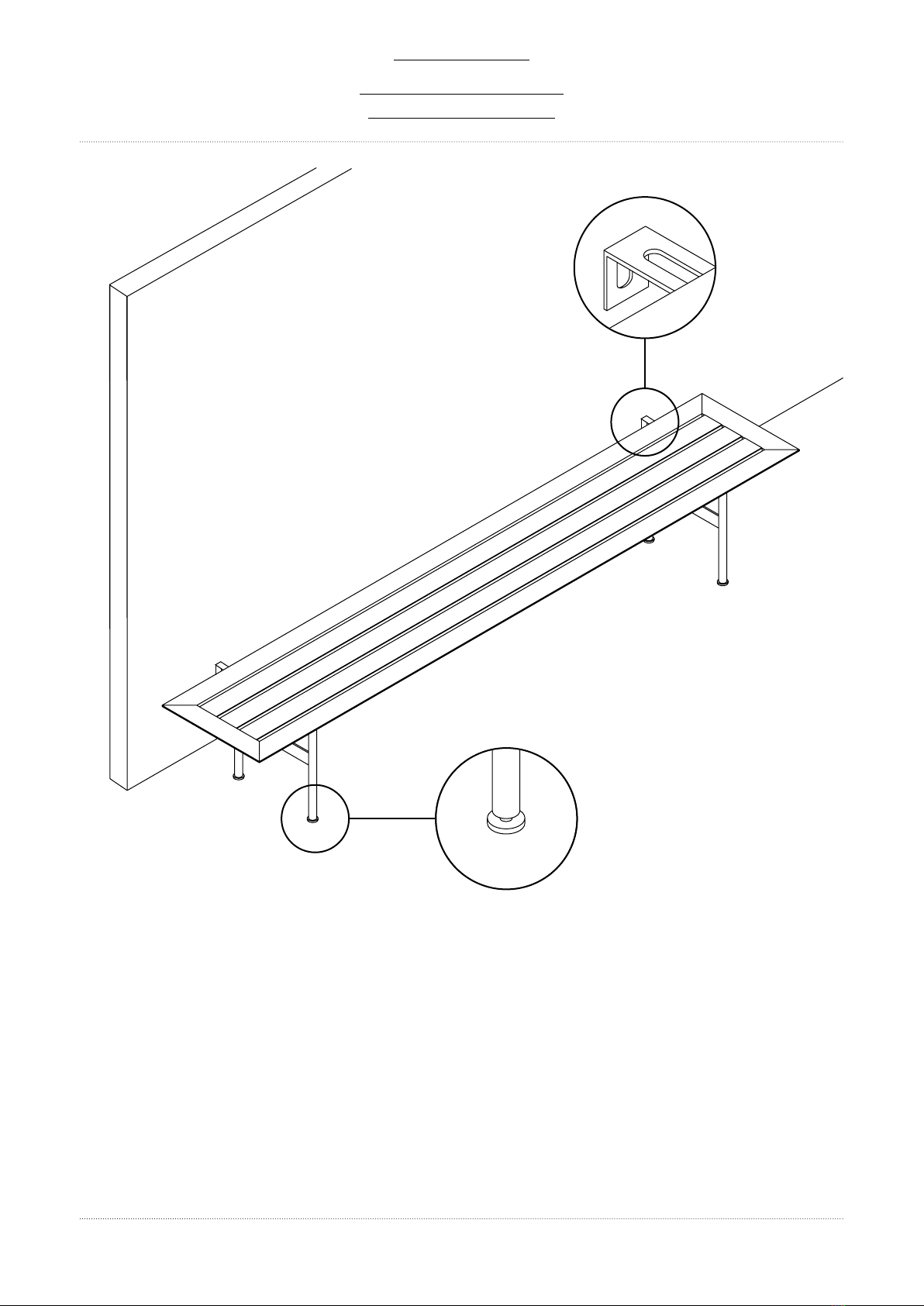

BEFORE PLACING THE ASSEMBLED BENCH INTO ITS POSITION, MAKE SURE THAT THE ADJUSTABLE FEET
ARE LOOSENED. ADJUST THE FEET IN ORDER TO ALIGN THE BENCH AND TOP HORIZONTALLY.
POSITION THE BENCH AND FIX IT TO THE WALL USING PROVIDED METAL BRACKETS AND ADEQUATE
HARDWARE (NOT SUPPLIED).
YEE STORAGE SYSTEM
EXAMPLE SETTING 2

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 15
IF YOU WISH TO HAVE AN INTERNAL METAL SHELF, PLEASE MAKE SURE TO ASSEMBLE THE SHELF
BEFORE ASSEMBLING THE STORAGE CONTAINER ONTO THE BENCH.
IT IS RECOMMENDED TO ASSEMBLE THE METAL SHELF UPSIDE DOWN, SINCE OTHERWISE THE METAL
SHEET COULD BEND OR FALL DOWN DURING ASSEMBLY. TAKE CARE NOT TO DAMAGE OR SCRATCH THE
TOP SURFACE OF THE STORAGE CONTAINER.
PLACE THE METAL SHELF INTO THE STORAGE BOX, MAKING SURE THAT ONE PERSON IS ALWAYS HOLDING
THE DOOR.
FIX THE METAL SHELF WITH THE HARDWARE PROVIDED.
YEE STORAGE SYSTEM
EXAMPLE SETTING 2

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 16

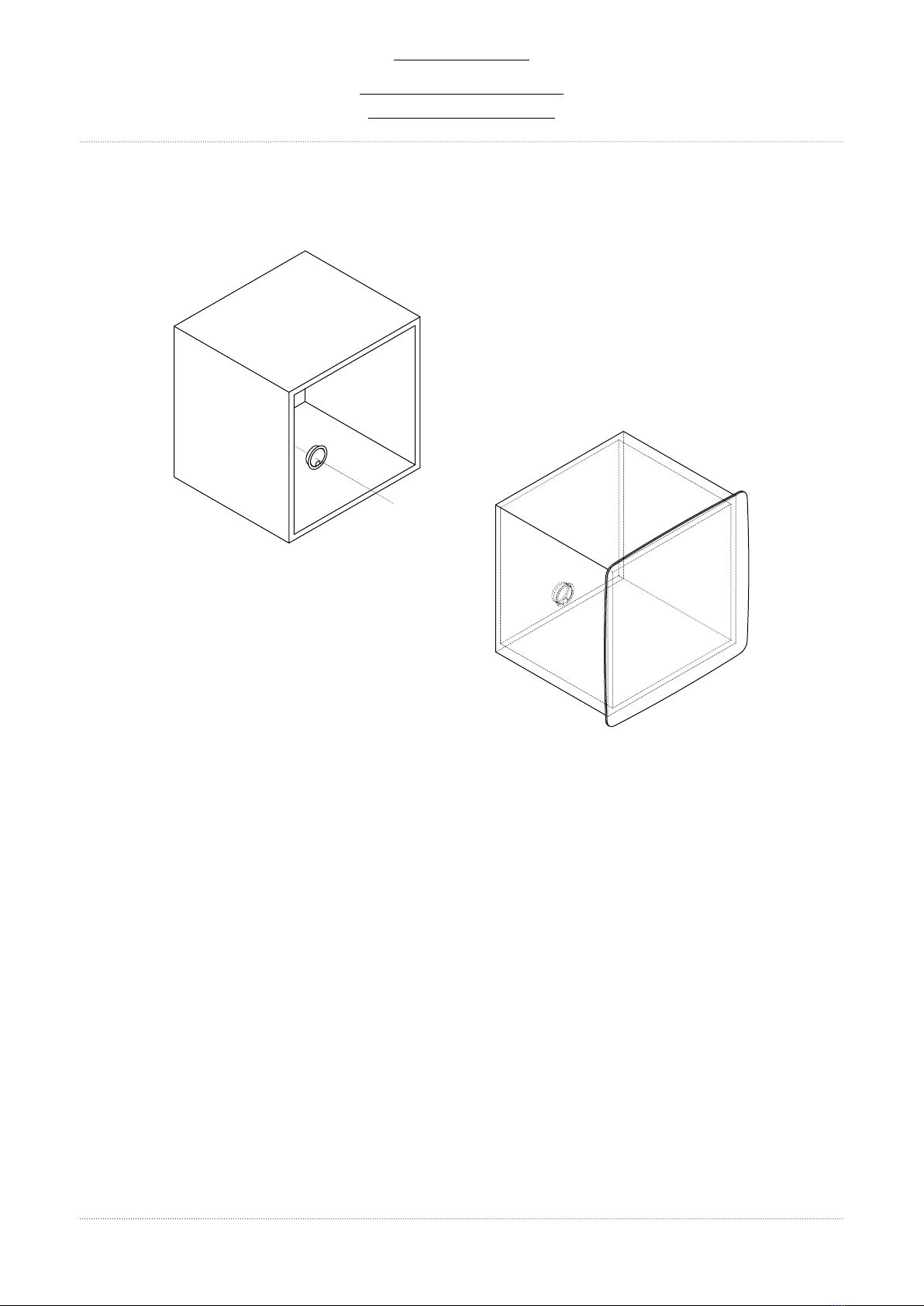

EVERY BOX COMES WITH ONE PLASTIC AND ONE METAL COVER FOR EACH CABLE MANAGEMENT HOLE.
FIX THE CABLE MANAGEMENT COVER EITHER IN- OR OUTSIDE THE BOX;
YOU CAN CHOOSE WHICH ONE YOU WANT INTERNALLY AND WHICH ONE EXTERNALLY DEPENDING
ON YOUR NEEDS.
YEE STORAGE SYSTEM
EXAMPLE SETTING 2

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 17

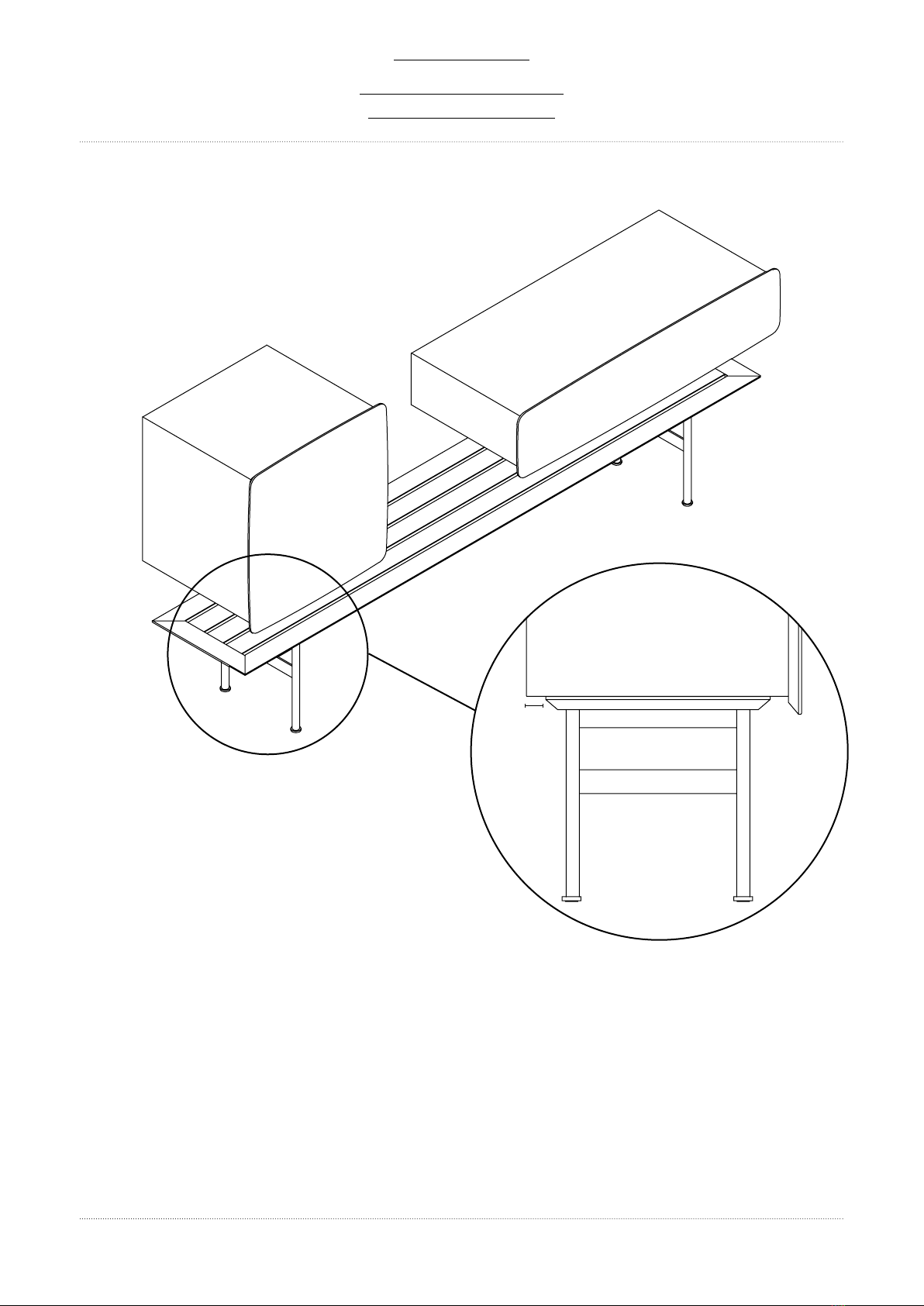

POSITION THE STORAGE CONTAINER ONTO THE BENCH MAKING SURE THAT THE ASSEMBLY HOLES ARE
FACING DOWN.
WITH A TAPE MEASURE, MAKE SURE THAT THE STORAGE BOX PULLS OUT 30MM FROM THE BENCH;
THIS HELPS TO FIND THE HOLES TO ASSEMBLE USING PROVIDED HAND SCREWS.
30MM
YEE STORAGE SYSTEM
EXAMPLE SETTING 2

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 18

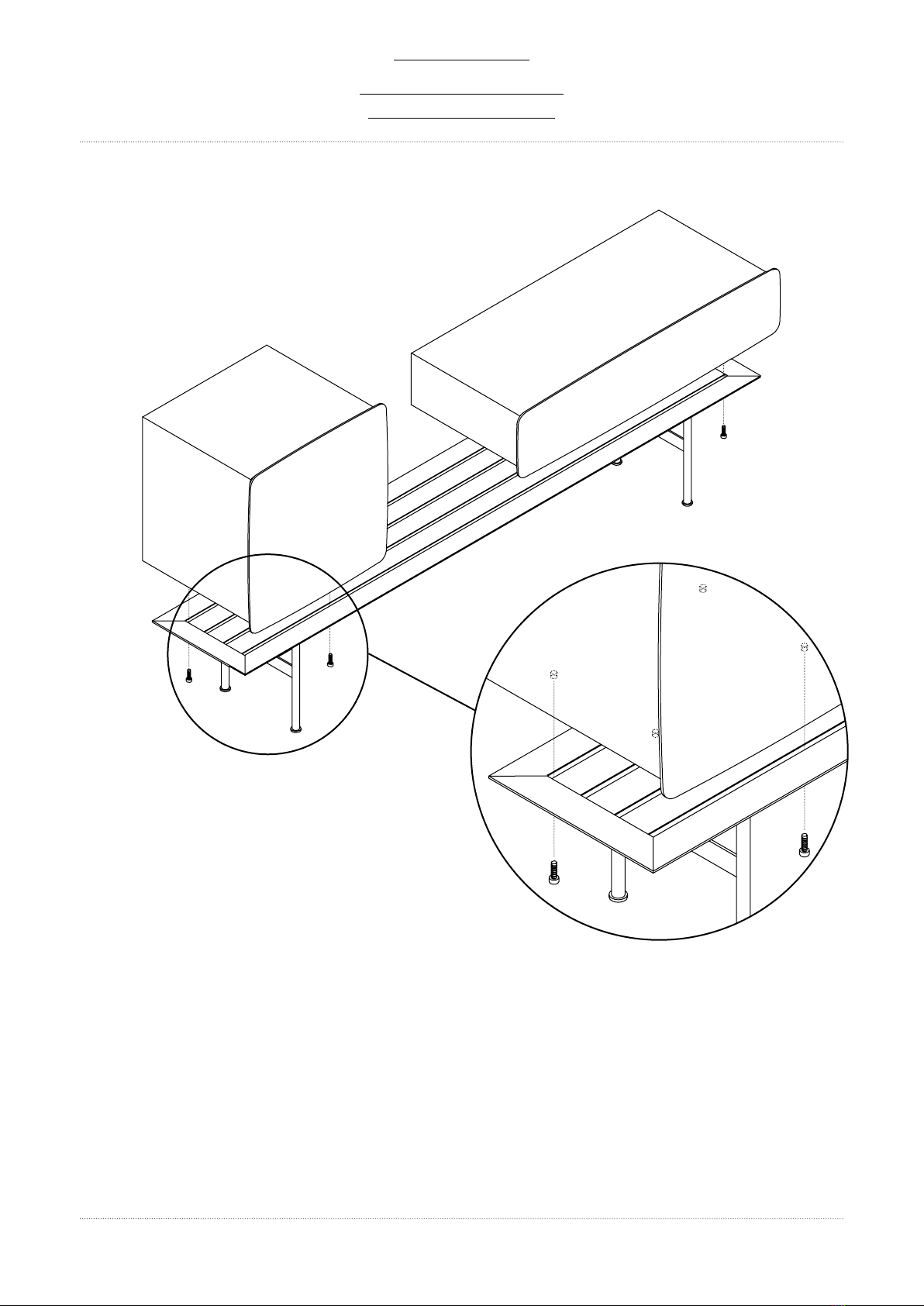

EVERY BENCH COMES WITH TWO HAND SCREWS WHICH SHALL ALWAYS BE FIXED IN A DIAGONAL
POSITION.
FIX THE STORAGE BOXES WITH THE PROVIDED HAND SCREWS.
YEE STORAGE SYSTEM
EXAMPLE SETTING 2

© Copyright 2019 SP01 Design.
All rights reserved.
SPØ1DESIGN.COM
p. 19
YEE STORAGE SYSTEM
EXAMPLE SETTING 2
