METVISA BMK Series User manual
1
2
INDEX
1.
Safety Information ................................................................................................ 3
1.1
General Instructions ........................................................................................................... 3
2.
Technical Specifications ..................................................................................... 4
2.1
Main Components .............................................................................................................. 4
2.2
Technical Data ................................................................................................................... 4
3.
Installation ............................................................................................................ 5
3.1
Device Layout .................................................................................................................. 5
4.
Device’s Use ......................................................................................................... 6
4.1
Utility .................................................................................................................................. 6
4.2
Commands ......................................................................................................................... 6
4.3
Operating Procedures ........................................................................................................ 6
5.
Cleaning and Maintenance .................................................................................. 9
5.1
Procedures for Cleaning and Products to be used ............................................................ 8
5.2
Maintenance and Behavior in case of Malfunctions ........................................................... 9
6.
Annex .................................................................................................................. 10
Wiring Diagram ................................................................................................................ 10
Exploded Drawing …………………………………............................................................. 11
Spare Parts List ……………………………………............................................................. 12
WARNING!
Features, photos and figures presented in this manual should be considered for information
purposes. BIMG BRASIL reserves the right to make modifications as may be necessary without
prior notice.
3
1. Safety Information
1.1 General Instructions
• There are care/precautions that should be observed when assembling, use, maintenance and
discontinue using this device;
• Before performing any operation (installation, use, maintenance and reuse after prolonged
interruption in the use of the device), read the manual;
• The device must be used by people trained and knowledgeable in use and safety requirements
described in this manual;
• This device is not intended for use by persons (including children) with physical, sensory or mental
capacities reduced, or people with lack of experience and knowledge, unless they have received
instructions regarding the use of the device or under the supervision of a person responsible for their
safety;
• It is recommended that children be supervised to ensure that they are not playing with the device;
• In case of alternation of staff to work with the device, the new operator must be instructed on the
rules and the operation of the device;
• The operator must use the appropriate PPE (personal protective equipment). For example: use cap
in hair preventing it from locking up in moving parts;
• The operator must always be alert to situations that can cause risks of accidents and avoid them.
For example: avoid working with loose sleeves uniforms, where they can lock in the moving parts,
causing accidents;
• After being held reading and clarified all doubts, this manual should be stored carefully in an easily
accessible place, known to all people who will operate the unit and placed the willingness of people to
carry out maintenance, for any queries. Whenever there is any doubt, be sure to consult the manual.
Do not operate in any way with any questions;
• Upon installation, it is essential to put this manual available for the professionals who will do the
same;
• Before you start cleaning and any maintenance, it is essential to disconnect the device from the
power network;
• Periodically check the condition of cables and electrical parts.
• Insert only specific products to what the device was made for, and never place your hands, fingers
or objects inside the Cup or on moving parts with the power on, it might cause an accident;
WARNING!
Do not make repairs yourself. Go to technical assistance authorized by the manufacturer.
Use only original parts in your device.
4
2. Technical Specifications
2.1 Main Components
To the device described in this manual, safety in use, cleaning, maintenance and maximum
hygiene are guaranteed by design and the special design of all parts, and also used stainless steel
and other suitable materials for the contact with food.
The device is designed with the following features:
• Cup, produced in stainless steel. It is a light material, durable and resistant from attack by corrosive
agents.
• Motor Protection, Monoblock, Long Shaft and Blades, are produced in stainless steel, which has
corrosion resistance besides other steels;
See below the main components of the Device:
2.2 Technical Data
Model
Nominal Measures
WidthxHeightxLength
(mm)
Net
Weight
(kg)
Voltage
(V)
Nominal
Current
(A)
Capacity
(L)
BMK110CC4
202x490x202
3,20
110
1,25
0,8
BMK220CC1
202x490x202
3,20
220
0,8
0,8
BMK220CC2
202x490x202
3,20
220
0,8
0,8
BMK220CC4
202x490x202
3,20
220
0,8
0,8
Note: To exploded drawing
with spare parts list, see
annexes.
5
WARNING!
Features such as model, serial No. and electrical device voltage are indicated on the data
label (figure below). Before installation check if device’s voltage is according to the
electrical outlet.
3. Installation
3.1 Device Layout
The connection to the Electrical Outlet and the arrangement for the operation must be
performed by a qualified professional. Check if the device voltage is according to the electrical outlet.
During installation, it is essential to indicate this manual for the professionals who will make
it.
The device must be positioned in wide support surface, well leveled, dry and stable, away
from sources of heat and water taps, and an average height of 80 cm.
6
WARNING!
The installation and the place where it will be set must comply with the rules of prevention
of risk and safety at work (Regulatory Standard NR-12).
The manufacturer is not responsible for possible direct or indirect damages caused by the
non-compliance of the said rules and other instructions in this manual.
4. Device’s Use
4.1 Utility
This device is intended for whipping milk shake, that is, it has the function of mixing and not
of grinding the ingredients.
4.2 Commands
This device has an On/Off Switch, located on device’s top.
See description of the button:
• On/Off Switch –used to turn on an off the device. In position "1" turn on, in position "0" turn off.
4.3 Operating Procedures
Before operating your device, perform a cleaning of components that have contact with food
(Cup, Blades, etc.), to do so make sure that the device is disconnected from the power outlet. Follow
the cleaning instructions in section 5 of this manual.
7
WARNING!
Never turn on the device with the Cup out of position, it might cause accidents.
• Operation: The device can be operated only after verify if the Cup is mounted on its support
and if the device’s voltage is according to the power network.
After verified this items, follow the device’s operating procedures:
• Connect the power cord to the electrical outlet;
•Remove the Cup from Support, lift it up, move it forward and bring it down. Use the Monobloc
Column to guide the Cup, avoiding contact with the Blades;
• On Cup, first add liquid ingredients, then pastes and for last the powdered food;
WARNING!
Never exceeds the Cup maximum level, which is 500 ml. Above this, there is risk of overflow.
This device cannot process less quantity than 150ml.
• Fit the Cup in the Support and press the On/Off Switch in position “1” (On);
•The average process time is 1 minute. It is not necessary to keep the device turned on for more
time;
• After finishes the process, turn the device off by pressing the On/Off Switch in position “0” (Off);
8
WARNING!
If the device cannot process the product or stops processing, reduce the quantity of food
before insert it on the Cup and check if the ingredients sequence was attended: first liquid
ingredients, then pastes and for last powdered food.
Exceeding the necessary food processing time (average 1 minute), can prejudice the speed and
performance of the motor and also the device’s life cycle.
WARNING!
Even existing a sensor on Cup Support (which does not let the device work if the Cup is not
properly mounted) it is recommended not to remove the Cup with the device turned on, also
never place fingers, hands or objects (as spoons and knifes) on Cup, it might cause an accident.
Any irregularity contact the nearest authorized service.
IMPORTANT
The operator must use the appropriate PPE (personal protective equipment). For example:
use cap in hair preventing it from locking up in moving parts and appropriate gloves to
guarantee hygiene when handling food, also protects the operator during the process.
5. Cleaning and Maintenance
5.1 Procedures for Cleaning and Products to be used
Your device was built with first class materials, so use it correctly and get great satisfaction.
Keep it always clean and well maintained, by doing this, your device will have longer life cycle.
You must do daily cleaning on the device for a good operation and durability.
WARNING!
Before performing maintenance or cleaning, ensure that the On/Off Switch is in position "0"
(off) and that the plug is disconnected from the mains.
Do not use water jet to clean the device.
IMPORTANT
This device is not intended to be fully immersed in water for cleaning.
Follow the instructions below to learn which parts can be immersed and which one needs
special care.
Demountable part (Cup only) should be removed from the device and washed with warm
water and mild detergent. Thoroughly clean the corners, eliminating waste from the food.
The device must be cleaned as many times as possible, to prevent dry food waste from
sticking on parts. To clean, dilute soap or mild detergent on warm water and apply with a soft cloth.
Use a cloth humidified with water, rinse and then dry all parts with a soft dry cloth.
9
Never use products or abrasive sponges for cleaning, it may scratch or damage the surface of
the pieces. Do not pour water into it for cleaning, it can cause electric shock or even burn the device.
WARNING!
Be careful while cleaning the Blades, they are sharpened. Handle carefully otherwise it
might cause an accident. Same warn for any other cutting part of the device.
Never operate the device if the Cup is not mounted on its support, it might cause an
accident.
IMPORTANT
The manufacturer is not responsible for possible direct or indirect damages caused by non-
compliance with rules and instructions in this manual.
WARNING!
It is extremely important that the products used in cleaning ensure maximum hygiene and
are nontoxic.
5.2 Maintenance and Behavior in Case of Malfunctions
The operator must be instructed to perform routine inspections, making small adjustments,
cleaning and watch evidence of malfunction that may occur. Examples: check strange noises; power
loss; device non-performance the result; among others. These actions are indispensable to ensure a
longer life of the device.
WARNING!
When maintenance is made (even if minor adjustments), always disconnect the device from
the power outlet.
It is recommended to perform preventive maintenance from 6 in 6 months, checking and
adjusting clearances, cleaning the internal parts, etc. By detecting broken or impaired functioning
parts, make the replacement, always using original parts.
The preventive maintenance eliminates the inconvenience of staying with device stopped
when most needed, reduces the cost of maintenance and reduce the risk of accidents.
WARNING!
Preventive maintenance requires skilled professional. Make sure the device is unplugged from
the power outlet.
Whenever you remove any safety item of the device (for example, during cleaning or
maintenance), reset in place and confirm that is performing its function properly.
To detect any malfunction or nonconformity, send your device to the nearest service. See list of
technical assistancesee on our website: www.metvisa.com.br
10
6. ANNEX
Wiring Diagram
11
Exploded Drawing
12
Spare Parts List
Position
Code
Description
Quantity
1
CJT861
Structure Base
01
2
CRC1122
Monobloc
01
3
SUD060
Bottom Motor Support
01
4
CRC1119
Sensor Drive Plate
01
5
SBT429
Sensor Lever Support
01
6
SBT430
Micro Switch Support
01
7
CHE018
Micro Switch
01
8
BCH029
Bottom Cushion
01
9
MTE094
Electric Motor 110 V
01
MTE095
Electric Motor 220 V
01
10
BCH028
Top Cushion
01
11
CRC1123
Motor Front Protection Plate
01
12
CRC1120
Cover
01
13
CHE064
On/Off Switch
01
14
COP065
Aluminum Cup
01
15
PEP010
Foot
04
16
BCH035
Round Cap
02
17
CJT401
Mixing Shaft
01
17.1
EIX115
Prolonged Axis
01
17.2
LMT018
Blade
02
17.3
SPD013
Blade Spacer Tube
01
17.4
POC001
Hat Screw-Nut
01
18
RBT001
Rivet
16
19
RBT002
Rivet
04
20
TCE021
Rubber Eyelet
01
21
CBE030
Electric Cable - Type 4
01
CBE023
Electric Cable - Type 1
01
CBE029
Electric Cable - Type 2
01
22
PRS332
Screw
05
23
POS020
Hex Nut
05
24
CBE075
Electric Cable Amendment
02
25
CBE097
Electric Cable Amendment
01
26
TCE004
Fit Terminal
01
13

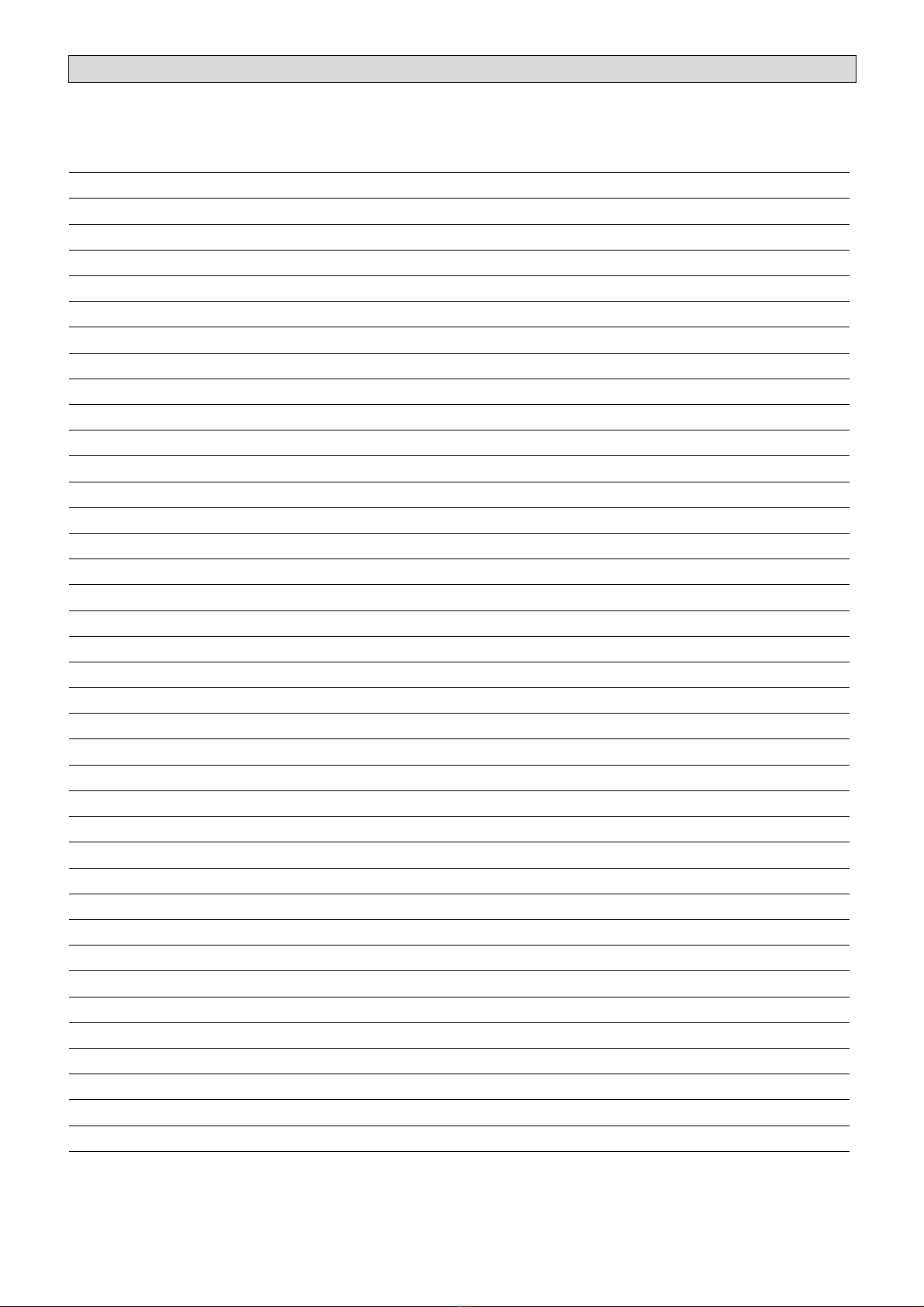

Anotações
14
Anotações
15
This manual suits for next models
4
Table of contents
