Meyer Path Pro2 Guide

PB
1
OWNER’S MANUAL
AND
USER’S GUIDE
Read the Path Pro2Owner’s Manual before operating or servicing a snow plow.
FOLLOW THESE INSTRUCTIONS EXPLICITLY.

2
3
Table of Contents
Subject .................................................................................................................................................................................Page
Safety .........................................................................................................................................................................................3-4
Registration Data Sheet ..........................................................................................................................................................5
Introduction ................................................................................................................................................................................5
Snow Plow Assembly........................................................................................................................................................ 6-22
Wiring Installation............................................................................................................................................................23-26
Attach Plow .............................................................................................................................................................................. 27
Remove Plow ........................................................................................................................................................................... 28
How To Plow............................................................................................................................................................................. 29
Pre-Season & Post-Season Maintenance .................................................................................................................30-31
Manual Lift Parts Lists .....................................................................................................................................................32-33
Electric Lift Parts List .......................................................................................................................................................34-35
Troubleshooting Guide........................................................................................................................................................ 36
Path Pro2Accessories ............................................................................................................................................................ 37
Warranty ..............................................................................................................................................................................38-40
Thank You
Thank you for buying the Path Pro2By Meyer.
As a new owner of hard-working, mechanical
equipment, we strongly urge you to spend quality
time with this owner’s manual. It’s easy to use and
full of time-saving tips that will enhance your
ownership experience. It includes suggestions
for faster installation, safe operation and more
productive plowing.
We also strongly urge you to register your new
Path Pro2at meyerproducts.com. Registering will
only take minutes and the benets of doing so
will last for years.When registered, you will receive
timely and accurate communication on operation
tips, maintenance, new products, and service
bulletins. And in the unlikely event you need
warranty work done, your local servicing dealer
will be able to process your claim faster.
Thanks again for your business. You can now look
forward to many years of reliable performance and
keeping your driveway safer and easier to use. If you
have any questions about your Path Pro2, contact us
at: www.meyerproducts.com.
Sincerely,
Customer Service
Path Pro2by Meyer
18513 Euclid Avenue
Cleveland, Ohio 44112
877-412-PLOW (7569)
2

2
3
SAFETY DEFINITIONS
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards.Obey all safety messagesthat follow
thissymbolto avoidpossible injury or death.
DANGER Indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING Indicatesa potentiallyhazardous
situation which, if not avoided, could result
in death or serious injury.
CAUTION Indicatesanpotentiallyhazardous
situation which, if not avoided, mayresult in
minor or moderate injury.
CAUTION used without the safety alert
symbol indicates a potentially hazardous
situation which, if not avoided, will result
in property damage.
1Never stand or ride on the plow assembly. Keep people and pets at least 25 feet away from the snow plow when in operation. Failure to comply
will result in death
or serious injury.
2Insert and lock locking pin securely before using. Not doing so will result in serious injury or death. It can also result in damage to the vehicle and/or plow.
3Always lower moldboard to the ground when snow plow is being serviced or when vehicle is not in use.
Failure to comply could result in death or serious
injury.
4The
Path Pro2 is for driveway plowing only and should be used on ½-ton and smaller vehicles. Use of this product on larger than ½-ton vehicles is prohibited and can result in
damage to the vehicle or plow. Failure to comply could result in death or serious injury.
5NEVER
use the Path Pro2 without rst CAREFULLY reading the Owner’s Manual. It is CRITICAL for your safety to ALWAYS obey EVERY warning in the manual and follow
EVERY instruction EXPLICITLY. Failure to comply could result in death or serious injury.
6The
Path Pro2 by Meyer should be used by drivers with a valid operator’s license. Keep all body parts inside the vehicle. Failure to comply could result in death or serious injury.
7To prevent accidental movement of the plow, always turn o the controller whenever the plow is not in use. Failure to comply
could result in death or serious injury.
8The Path Pro2
should NEVER be used for ANY other purpose other than plowing snow on a driveway, using the Path Pro2for other purposes could result in serious injury
or death.
9Inspect plow assembly and mounting components and fasteners for wear and damage before and
after each use.Worn or damaged components or fasteners could
allow the plow to drop unexpectedly. Failure to comply could result in death or serious injury.
10 Do not change plow position while traveling.You could suddenly lower the plow accidentally. Failure to comply
could result in death or serious injury.
11 ALWAYS wear a seat belt when plowing snow. Hidden obstructions can cause the vehicle to stop suddenly resulting in personal injury. Failure to comply
could
result in death or serious injury.
12 Do not mix dierent kinds of hydraulic uid. Some uids are not compatible and may cause performance problems and product damage Failure to comply
could
result in death or serious injury.
13 NEVER perform any repairs or maintenance with the plow controller turned on and the plow plugged into the vehicle harness and the plow attached to the vehicle.
Failure to comply could result in death or serious injury.
14
The vehicle must not be operated when overloaded. In all cases, the loaded vehicle weight, including the entire snow plow system, all aftermarket accessories, driver, passenger,
options, nominal uid levels, and cargo must not exceed the front/rear Gross AxleWeight Rating (GAWR), and total GrossVehicleWeight Rating (GVWR).These weights ratings
are specied on the safety compliance certication label on the driver’s side door opening.The use of rear ballast weight may be required to prevent exceeding the front GAWR.
Failure to comply could result in death or serious injury.
15 Read the Path Pro2Owner’s Manual before operating or servicing a snow plow. FOLLOW THESE INSTRUCTIONS EXPLICITLY. Failure to comply
could result in
death or serious injury.
16 SAFETY PRECAUTIONS should be used when Hydraulic Unit is in OPERATION and plow is in a
RAISED position. Lower plow to ground when vehicle is PARKED in case
of hydraulic failure. Failure to comply could result in death or serious injury.

4
5
SAFETY DEFINITIONS
This is the safety alert symbol. It is used
to alert you to potential personal injury
hazards.Obey all safety messagesthat follow
thissymbolto avoidpossible injury or death.
DANGER Indicates an imminently
hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING Indicatesa potentiallyhazardous
situation which, if not avoided, could result
in death or serious injury.
CAUTION Indicatesanpotentiallyhazardous
situation which, if not avoided, mayresult in
minor or moderate injury.
CAUTION used without the safety alert
symbol indicates a potentially hazardous
situation which, if not avoided, will result
in property damage.
17 Remove Plow Assembly before placing vehicle on hoist/lift. Failure to comply
could result in death or serious injury.
18 Do not exceed 10 mph transporting plow. Do not exceed 5 mph plowing snow. Know your road conditions at all times. Keep feet clear of moldboard at all times.
Failure to comply could result in death or serious injury.
19 SAFETY PRECAUTIONS should be used when Hydraulic Unit is SERVICED. Hydraulic uid under pressure can cause skin injection injury. If you are injured by hydraulic
uid, get medical attention immediately. Failure to comply could result in death or serious injury.
20 Vehicle exhaust contains lethal fumes. Breathing these fumes, even in low concentrations, can
cause death. Never operate vehicle in an enclosed area without venting the
exhaust to the outside. Failure to comply could result in death or serious injury.
21 Gasoline is highly ammable and gasoline vapor is explosive. Never smoke while working on vehicle. Keep all open ames away from gasoline tank and lines.
Wipe up any spilled gasoline immediately. Failure to comply could result in death or serious injury.
22 Flag obstructions that are under snow to prevent damage to product or property. Failureto comply may result in minor or moderate injury.
23 A ballast weight may be required to prevent front GAWR overloading. If required, ballast must be securely attached at least 24 inches behind the rear axle. Failure to
comply will result in property damage.
24
Batteries normally produce explosive gases which can cause personal injury.Therefore, do not allow ames, sparks or lit tobacco to come near the battery.When charging
or working near a battery, always cover your face and protect your eyes, and also provide ventilation. Batteries contain sulfuric acid which burns skin, eyes and clothing.
Failure to comply will result in property damage.
25 See your Path Pro2Authorized Distributor/Web site for specic vehicle application recommendations before installation. Failure to comply will result in property
damage.
26 Installation of a snow plow may aect your new vehicle warranty. For more information consult yourVehicle Owner’s Manual /Vehicle Dealer. Failure to comply will
result in property damage.
27 Warranty does not apply to a Path Pro2product which has been negligently or improperly assembled or installed. Failure to comply will result in property damage.
28 CAUTION: To avoid harm to vehicles electrical system always disconnect battery before beginning installation. DO NOT BURN holes or WELD vehicle frame.
This may cause frame failure. Failure to comply will result in property damage.
29
A driver’s rst responsibility is the safe operation of the vehicle and snow plow.The most important thing you can do to prevent a crash is to avoid distractions and pay
attention to the road.Wait until it is safe to operate mobile communication equipment such as cell phones, two way radios, etc. Failure to comply will result in property
damage.
30
Front end wheel alignment and headlight aim may require readjustment after installation of equipment, and is the responsibility of the equipment installer. Failure
to adjust front wheel alignment may cause premature uneven tire wear. If required, reset to chassis manufacture’s specications. Failure to comply will result in
property damage.

4
5
OwnerName___________________________________________________________________________________
Address______________________________________________________________________________________
City________________________________________________________________________________________
State/Province_________________________________________ Zip/PostalCode______________________________
Purchased From Company Name________________________________________________________________________
ContactName__________________________________________________________________________________
Address______________________________________________________________________________________
City________________________________________________________________________________________
State/Province________________________________________ Zip/PostalCode______________________________
PhoneNumber (_________)________________________________________________________________________
E-mail______________________________________________________________________________________
DatePurchased_________________________________________________________________________________
VehicleMake__________________________________ VehicleModel________________________________________
VehicleYear___________________________________ VehicleVIN__________________________________________
Controller PartNumber____________________________________________________________________________
MoldboardSerialnumber___________________________________________________________________________
ManufacturerofHitchMount__________________________________________________________________________
Registration Data Sheet
Register your snow plow at www.meyerproducts.com
Introduction
The Path Pro
2
has published this manual to help you get maximum
performance from your snow plow and familiarize you with the
features designed for eciency and safety; be sure you recognize and
understand them. Follow recommended operation and maintenance
instructions, so when the storm hits, your Path Pro
2
will be ready and
you will know how to plow like a pro. WARNING: Deployment of an
air bag while using a The Path Pro
2
will not be covered under
The Path Pro
2
's warranty.
In conjunction with FMVSS (Federal Motor Vehicle Safety Standards) and
OEM (Original Equipment Manufacturer) guidelines, the Path Pro
2
has
designed this plow pack.
We also strongly urge you to register your new Path Pro
2
at
meyerproducts.com. Registering will only take minutes and the
benets of doing so will last for years.When registered, you will
receive timely and accurate communication on operation tips,
maintenance, new products, and service bulletins. And in the
unlikely event you need warranty work done, your local servicing
dealer will be able to process your claim faster.
Vehicle requirements:Two or Four wheel drive SUV/Pick-up type
vehicle 1/2 ton or smaller including UtilityVehicles. Use on vehicles
greater than 1/2 ton is prohibited. Minimum 60 Amp alternator.
Minimum 70 Amp Battery (550CCA/Cold Cranking Amps). Must be
able to accept a front 2" category 3 receiver hitch. Front suspension
must be able to handle 250 lbs. of added weight of plow and hitch.
Stock vehicle with no suspension modications (lift kits) that have
modied the height of the vehicle.
Hitch Requirements: Category 3 2"x2" front receiver.
300lb.Tongue weight rating – 3000lb. pull rating
Under the continuing Path Pro2Improvement Plan,The Path Pro2reserves the right to
change design details and construction without prior notice and without incurring
any obligation.
23, 25, 26, 27 4, 6, 14
SAFETY PRECAUTIONS - See pages 2-3 for denitions

6
7
3/4 box
3/4 ratchet
7/16 box
7/16 ratchet
9/16 box
9/16 ratchet
15/16 box
15/16 ratchet
10" adjustable wrench
1/2" box
1/2" ratchet
Channel locks
Tools Needed for Assembly
You will need the tools listed to assemble your Path Pro2.
It should take less than one hour and will require two people for assembly.
PLOW ASSEMBLY
6

6
7
Manual Hardware
A- Pin 1" x 3"
B - 1/2-13 x 1-3/4"
C- Hinge Pin
D- Eyebolt 3/8-16 x 4"
E- Lynch Pin
F- Clevis Pin 3/8 x 3"
G - Clevis Pin 1/2 x 1-1/4"
H- Cotter Pin 1/4 x 2"
I - Hair Pin Cotter 1/8"
J- Locknut 3/8-16
K - Locknut 1/4-20
L- Finish Nut 3/8-16
M-1/2-13 x 1-1/4"
N- Locknut 1/2-13
O- 1/4-20 x 3/4"
P- 3/8-16 x 1"
Q - 1/4-20 x 2-1/2"
R- Locknut 5/8-11
S- 5/8-11 x 3-1/2"
T- 1/2-13 x 3-1/4"
Hardware Kits
Manual Plow Hardware Kit – Models 23120/23115/23110/23175
Electrical Plow Hardware Kit – Models 23220/23215/23210/23275
PLOW ASSEMBLY
7
Electric Hardware
A- Pin 1" x 3"
B- 1/2-13 x 1-3/4"
C- Hinge Pin
D- Eyebolt 3/8-16 x 4"
E- Lynch Pin
F- Pivot Pin 1/2 x 3"
G- Clevis Pin 1/2 x 1-1/4"
H- Hair Pin Cotter 1/8"
I- Cotter Pin 1/4 x 2"
J- Flatwasher 1/2"
K- 1/2-13 x 1-1/4"
L- Locknut 1/2-13
M- Locknut 3/8-16
N- Finish Nut 3/8-16
O- Locknut 1/4-20
P- 1/4-20 x 3/4"
Q- Locknut 5/8-11
R- 3/8-16 x 2-1/2"
S- 5/8-11 x 3-1/2"
T- 1/2-13 x 3-1/4"
A
BC
E
F G H
I
J
J
K
O
PQ
R
S
T
L
N
M
D
A
BC
D
E
FG
H
I
J
K
L
MN
OP
Q
R
S
T

8
9
PLOW ASSEMBLY
A – Left Moldboard
B– Right Moldboard
C, D, E – Cutting Edges
F – Trip Springs
G – Compression Springs
H– Spacer Plate
I– Swing Arm, Spacer Tubes,
Pivot Arm
J – Spring Arm Covers
K- Manual Latch
Manual Lift Plow Parts – Models 23120/23115/23110/23175
L – Lift Frame
M– Plow Markers
N– A-Frame
O– Manual Handle
P– Manual Latch
Q– Manual LatchWeldment
R– Pivot Bar
S– Hardware Kit
T– Manual Leaf Spring
8

8
9
AB
C D E
H
I
JJ
K
L
M
N
O
P
Q
R
S
T
FG
Manual Lift Plow – Models 23120/23115/23110/23175

10
11
A – Left Moldboard
B– Right Moldboard
C, D, E – Cutting Edges
F – Trip Springs
G – Compression Springs
H– Spacer Plate
I– Swing Arm, Spacer Tubes,
Pivot Arm
J – Spring Arm Covers
Electric Lift Plow Parts – Models 23220/23215/23210/23275
PLOW ASSEMBLY
L – Lift Frame
M– Plow Markers
N– A-Frame
R– Pivot Bar
Q – Lift Arm
S– Hardware Kit
T– Lift Chain
S– Hardware Kit
U– Linear Actuator
10

10
11
AB
CD E
F
G
H
I
JJ
L
M
N
T
RS
U
Electric Lift Plow – Models 23220/23215/23210/23275
Q

12
13
(Fig. 1) (Fig. 2)
1.
Sandwich spacer plate (H) between
left and right moldboard assembly
(A, B) using three 1/2-13 x 1-1/4"
and 1/2" locknut.Tighten fasteners
using a 3/4" box wrench and a
3/4" ratchet wrench.
2.
Use eight 1/2-13 x 1-3/4" to align
cutting edges (C,D,E) to left and right
moldboard assembly. Fasten using
1/2" locknuts.Tighten fasteners
using a 3/4" ratchet wrench.
3.
Align pivot bar (R) to left and right moldboard assembly using two ½ x
1-1-1/4" clevis pins. Lock clevis pins by inserting two 1/8" hair pin cotter.
12
Moldboard and Pivot Bar Assembly
Parts Needed: A, B, C, D, E, H, R. S
PLOW ASSEMBLY

12
13

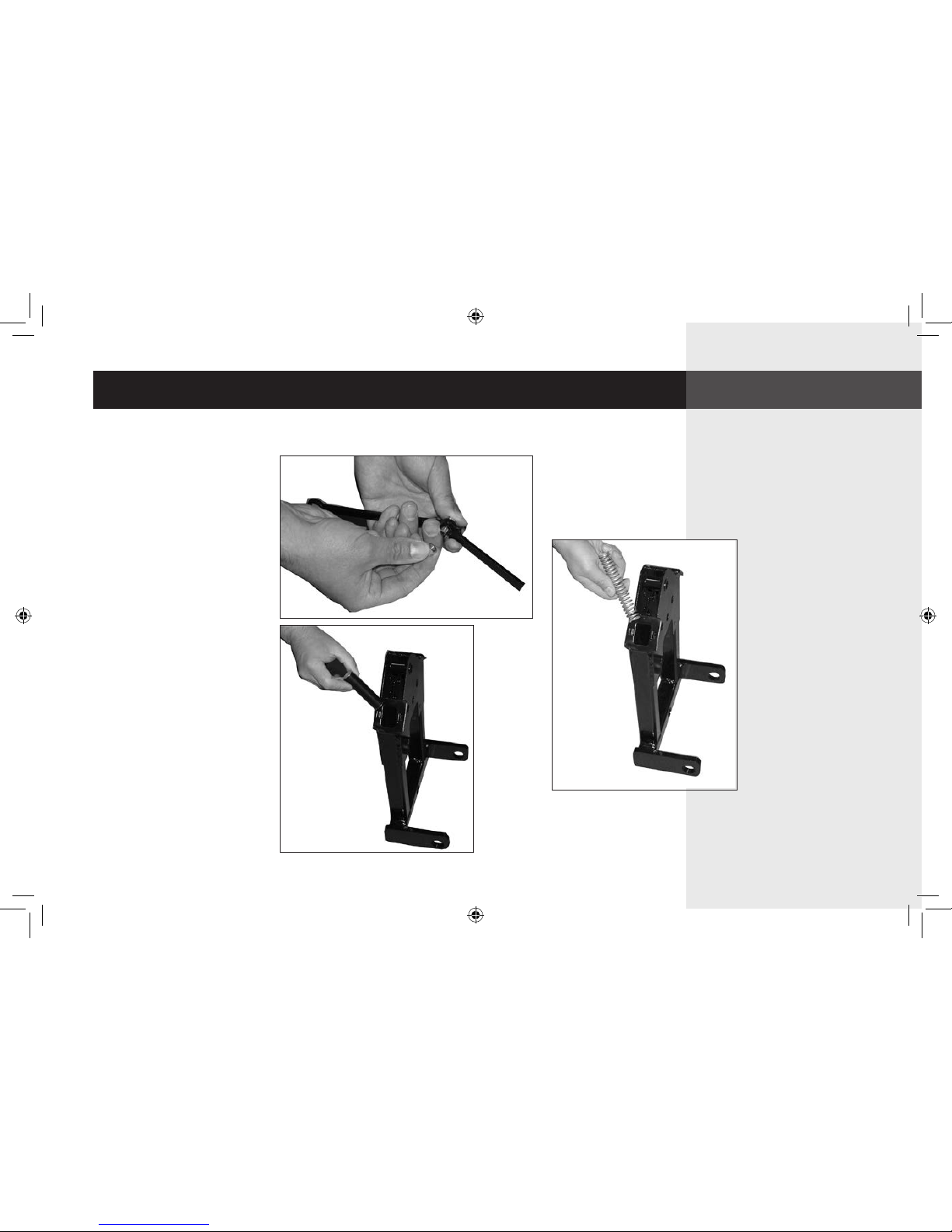

4.
Assemble both sets of Spring arms and
pivot arms (I) using 1/4-20 x 3/4"
and 1/4-20 Locknut. Snug fasteners
using a 7/16" box wrench and a 7/16"
ratchet wrench.
NOTE: The Pivot and Spring Arms
should be able to hinge.
5.
Drop the two spacer tubes (I) into
the A-frame (N) as shown.
6.
Drop the two compression
springs (G) into the A-frame
(N) so they end up on top
of the spacer tubes.
13
A-Frame Assembly
Parts needed: I, G, N, R, S
PLOW ASSEMBLY

14
15
PLOW ASSEMBLY A-Frame Assembly (cont.)

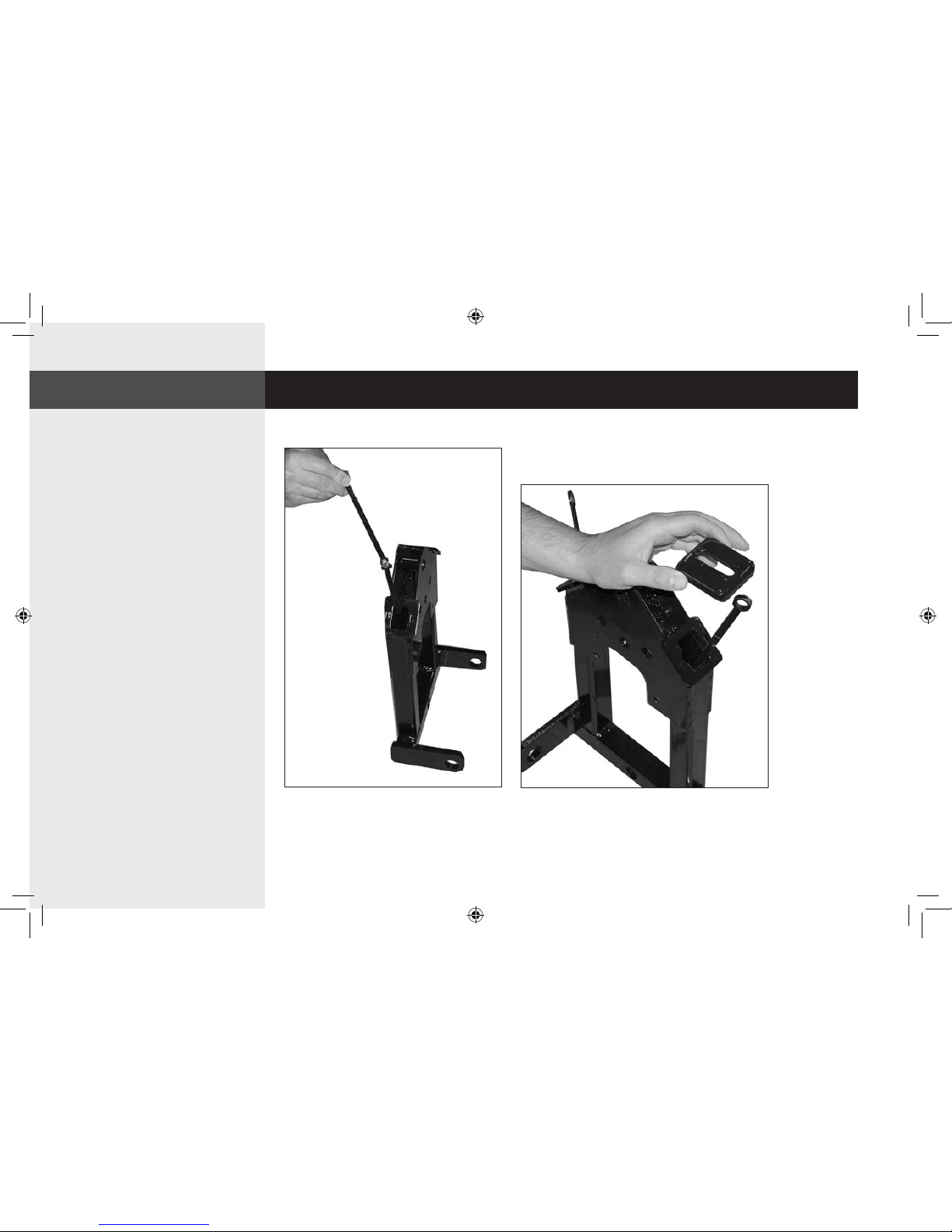

7.
Drop the two Pivot/Spring arm
assemblies created in step (4)
into the A-frame on top of the
compression springs as shown.
NOTE: Long spring arm
should face out.
8.
Snap the two spring arm covers (J) over A-frame (N) as shown.
14

14
15
A-Frame to Pivot Bar Assembly
Parts Needed: R, S
PLOW ASSEMBLY
9.
Attach the long Spring Arms (I)
to Pivot Bar (R) using two
3/8-16 x 1" and 3/8-16 Locknuts.
Snug fasteners using a 9/16"
box wrench and a 9/16"
ratchet wrench.
NOTE: The Pivot Bar and
Spring Arms should be
able to hinge.
10.
Align A-frame (N) to Pivot Bar (R)
and insert one 5/8-11 x 3-1/2"
and 5/" locknut. Snug fasteners
using a 15/16" box wrench and a
15/16" ratchet wrench.
NOTE: The Pivot Bar and
A-Frame should be able
to hinge.
11.
Insert one hinge pin thru A-frame (N) and Pivot Bar
(R) to lock the plow straight. This can be removed
for auto angling or installed for xing the plow
straight or to the left and right angle.
If you have the manual lift plow (Models 23120/23115/23110/23175) continue to Step 12;
for electric lift models (23220/23215/23210/23275) go to step 24.
15

16
17
PLOW ASSEMBLY Pivot Bar/Trip Spring/Moldboard Assembly/Plow Markers
Parts Needed: F, K, M, S
12.
Align manual latch (K) under
top plate of A-frame as shown.
Attach latch by inserting two
3/8-16 x 1" and 3/8" Locknuts.
Tighten fasteners using a 9/16"
box wrench and a 9/16"
ratchet wrench.
13.
Attach four trip springs to pivot bar as shown.
16

16
1717
Pivot Bar/Trip Spring/Moldboard Assembly/Plow Markers (cont.) PLOW ASSEMBLY
14.
Thread one 3/8-16 nish nut to
each eyebolt all the way to the
bottom. Attach eyebolts to each
trip spring and slide eyebolt into
the holes on the moldboard as
shown. Fasten eyebolt to
moldboard using 3/8-16 locknut.
15.
Use a crescent wrench or pliers
to hold the eyebolt in place and
tighten 3/8-16 Locknut using a
3/8”ratchet.Tighten until a piece
of paper can be placed in between
the spring coils.Then bring up the
3/8-16 nish nut to lock eyebolt.
Be sure the eyebolt is oriented
correctly to allow the trip spring
to hinge properly as shown.
16.
Attach plow markers (M) to
moldboard using four 5/16-18 x
1", 5/16' atwashers and 5/16-18
locknut.Tighten using a 1/2”box
wrench and 1/2" ratchet.

18
19
PLOW ASSEMBLY Manual Lift Assembly (Models 23120/23115/23110/23175)
Parts needed: L, O, P, Q, S, T
17.
Align lift frame (L) to A-Frame (N)
by inserting two 1 x 3" pins. Lock
pins using ¼ x 2" cotter pins and
bend cotter pins to lock into place.
18
18.
Attach manual latch (P) to manual latch
weldment (Q) using 1/4-20 x 2-1/2"
and 1/4-20 locknut.
19.
Snug fasteners using a 7/16" box wrench and a 7/16" ratchet wrench.
NOTE: The manual latch rung lock and manual latch weldment
should be able to hinge.

18
1919
Manual Lift Assembly (Models 23120/23115/23110/23175) (cont.) PLOW ASSEMBLY
20.
Attach manual leaf spring (T)
to manual latch weldment (Q)
using two 1/4-20 x 3/4", 1/4"
atwashers and 1/4-20 locknut.
Tighten using a 7/16" box
wrench and 7/16" ratchet.
21.
Insert 3/8 x 3" clevis pin into lift frame at rear
holes and insert one 1/8" cotter pin. Bend
one end of cotter pin to lock into place.

20
21
PLOW ASSEMBLY Manual Lift Assembly (Models 23100/23150)
22.
Bend back manual leaf spring (T)
and insert manual latch weld-
ment (Q) to lift frame (L).
Attach using one 1/2-13 x 3-1/4"
and 1/2-13 Locknut. Snug using
3/4" box wrench and 3/4" ratchet.
23.
Attach manual handle (O) to moldboard using two
1/4-20 x 3/4", 1/4" atwashers and 1/4-20 locknut.
Tighten using a 7/16" box wrench and 7/16" ratchet.
Handle can be reversed for user preference.
20
Manual Lift Assembly (Models 23120/23115/23110/23175) (cont.)
You are now ready to enjoy your new Path Pro2.
