MH E-Z Breathe II Boom Cannula™
The MH “E-Z Breathe II™Boom Cannula is manufactured to the highest standards in a
medical ISO and CE certified facility. The MH E-Z Breathe II™Boom Cannula is warranted
to be free of defects of materials and workmanship for a period of one year. This warranty is
limited to replacement of the defective part. This warranty specifically excludes consequential
damages including but not limited to those suffered as a result of improper use, application,
installation or failure to monitor oxygen delivery and blood oxygen saturation levels.

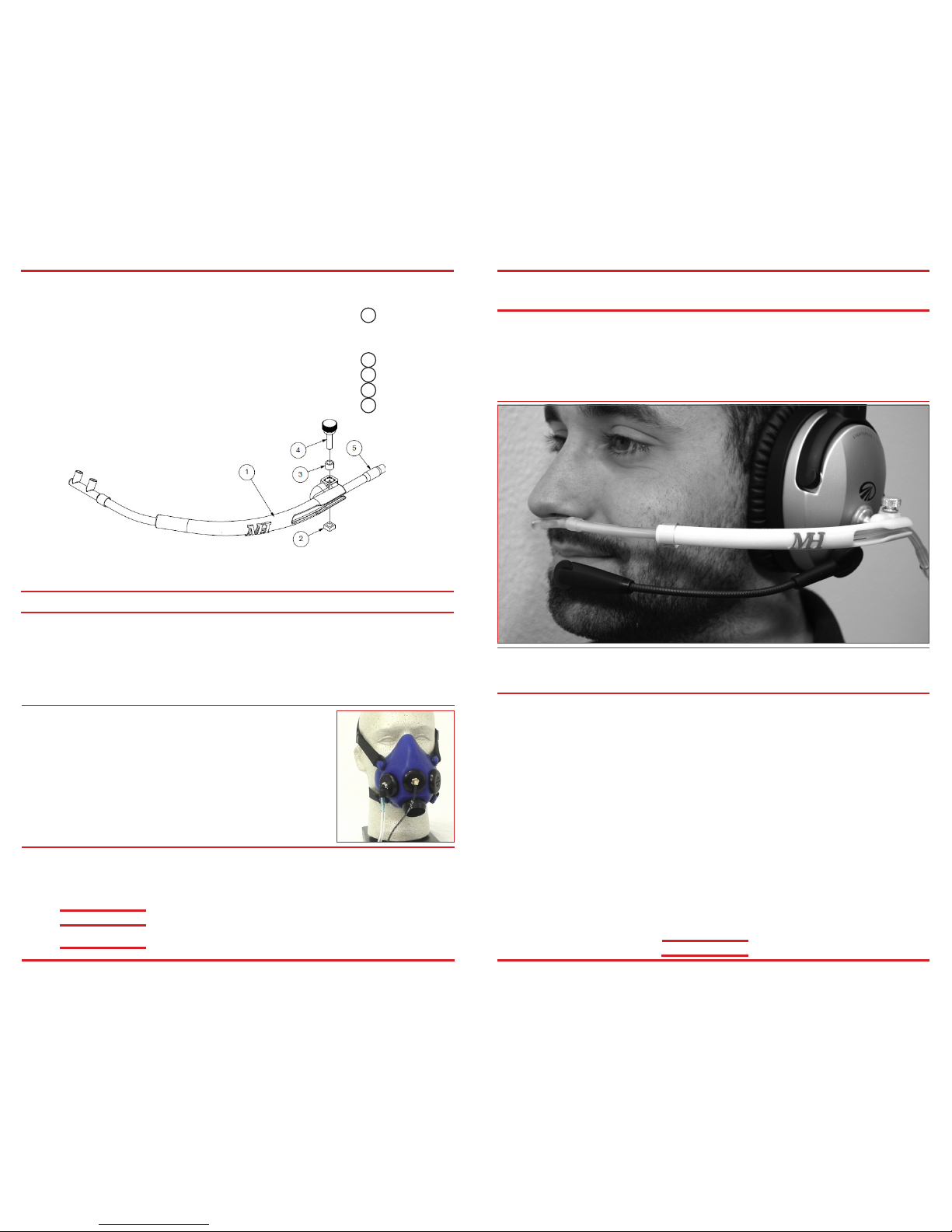

The MH E-Z Breathe II™ Boom Cannula kit is supplied with the following components:
- Qty-1 Instruction Sheet
- Qty-1 E-Z Breathe II Cannula Boom. (MH Item Number 00VEN-0071-00) 1
- Qty-1 MH Universal Ball Mount. (MH Item Number 00VEN-0072-01) Not Shown
- Qty-2 3M Super Adhesive Pads (MH Item Number 00VEN-0073-02) Not Shown
- Qty-1 Square Standoff (MH Item Number 09052-0802-04)
- Qty-1 Spacer (MH Item Number 09054-0803-09)
- Qty-1 Thumb Screw (MH Item Number 09120-0810-03)
- Qty-1 Replacement Cannula (MH Item Number 00VEN-0074-01)
Mountain High Equipment & Supply Company
2244 Airport Way
Suite 100
Redmond OR
97756
NOTE: The MH E-Z Breathe II™Boom Cannula is not to be used above
18,000 feet msl!
(Consult CFR14, FAR 23.1447 for more information).
•
To ensure safety and avoid hypoxia at high altitudes, verification of blood oxygen
percentage with a Pulse Oximeter is recommended.
•
Do not discard the nose pieces!
They are designed as re-useables. Simply wash in clean warm soapy water, rinse, dry
and re-use ... When not needed, rotate the arm up and out of the way, or loosen the
thumbscrew and carefully un-snap it from the mounting ball and store in a bag.
Rev 11/2013 5I000-1092-00
NOTE:
Additional E-Z Breathe II™components can be ordered from MH.
Call 800-468-8185 or E-mail [email protected]
LIMITED WARRANTY
The MH E-Z Breathe II™Boom Cannula is designed for comfort, ease of
use and serviceability. It adjusts easily and can be positioned to suit
almost everyone comfortably. The MH E-Z Breathe II™Boom Cannula
is compatible with all MH oxygen delivery systems and many devices
available by other manufacturers. Consult with MH before using as such.
Pilots who have purchased the MH E-Z Breathe II™Boom Cannula
and plan to fly Class A airspace (above 18,000 feet msl) have also
chosen the MH Alps Mic Face Mask. Utilizing a “noise reducing”
microphone that is built into the MH Alps Mask, both your commu-
nication and oxygen Class A requirements can be satisfied. Masks
are available in small, medium and large sizes. Call 800-468-8185
or E-mail [email protected] for additional information.
Aviation Oxygen Systems
MH
5
3
4
2
Telephone: [phone]
Toll-Free 1-800-468-8185
Fax: [phone]
E-Mail: [email protected]
Web: www.MHoxygen.com
NOTE: If used with a Constant-Flow Oxygen System, a Non-Conserving or Face Mask
setting must be used. The E-Z Breathe II™Cannula is not a conserving cannula.

NOTE: The purchaser and users must initially and continually satisfy themselves
that the installation on their particular equipment, and for their circumstances, is
air-worthy and provides an ongoing appropriate and secure oxygen delivery system
with adequate oxygen cylinder pressure prior to each flight. Oxygen masks should
be on board and ready for use in the case of failure of the cannula or it’s mounting.
In case of failure of the mounting system, the cannula can be held in place in the
mouth and oxygen delivered by mouth breathing.
INSTRUCTIONS
NOTE:
Take the time to read these instructions to get it right the first time!
The MH E-Z Breathe II™ Boom Cannula is supplied with uninstalled components.
Installing your E-Z Breathe II™ Boom Cannula is easy and should only take five
to ten minutes to do it properly. Once the mount has been correctly installed and
adjusted, the E-Z Breathe II™ Boom Cannula was designed to allow the user to
pivot the cannula out of the way or be removed by loosening the friction thumb
screw and carefully snapping the arm off the ball mount when not needed.
INSTRUCTIONS FOR MOUNTING YOUR BOOM CANNULA
•A good cleaning with isopropyl alcohol is critical to the long term durability of
the adhesive bond.
•Avoid temperatures below 50° F. when mounting the components.
•If a bond failure occurs, DO NOT use harsh solvents to remove the adhesive.
•Maximum bond strength occurs within 72 hours of application.
However with care, it can be used immediately.
•If Ball Mount needs to be repositioned, it will be necessary to replace the
adhesive pad.
• For more detailed installation notes, photos and tips, visit our website at:
www.MHoxygen.com
•FIRST (fig. 1)
Establish the optimum position on
the outside face of the ear cup at
a location with the minimum cur-
vature. Wipe the area clean with
the supplied alcohol wipe as well
as the flat area on the ball mount.
With a pencil, trace the outline of
the desired ball mounting position
on the ear cup.
(1)
(2)
(3)
(4)
(5)
• NEXT (fig.2)
Remove the adhesive protective covering
from one side of the adhesive pad. Place
the adhesive pad in the area marked
and press firmly to adhere the pad to the
headset.
• THEN (fig. 3)
Remove the other adhesive protective
covering from the adhesive pad.
• THEN (fig. 4)
Firmly press the ball mount onto the
adhesive pad.
•FINALLY (fig. 5)
Loosen the friction thumb screw, snap
the ball receiver end onto the ball and
adjust the thumb screw as needed.
Then adjust the nose piece and tubing
by sliding in or out so it fits comfort-
ably .... then gently push the arm up
and out of the way ..... it is now ready
to use when needed.
