Aeris F11 User manual
1
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
F11
OPERATING MANUAL
2
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
Visit the web site at www.DiveAERIS.com to nd specic Warranty information and register.
This Operating Manual is copyrighted, all rights are reserved. It may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any electronic
medium or machine readable form without prior consent in writing from AERIS/2002 Design.
F11 Operating Manual, Doc. No. 12-7285
© 2002 Design, 2013
San Leandro, CA USA 94577
AERIS, the AERIS logotype, F11, the F11 logo, Diver Replaceable Battery, Graphic Diver Interface, Set point, Control Console, and ACI (AERIS Computer Interface) are all
registered and unregistered trademarks, trade names, and service marks of AERIS. All rights are reserved.
U.S. Patents have been issued, or applied for, to protect the following design features: Data Sensing and Processing Device (U.S. Patent no. 4,882,678).
3
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
INITIAL ACTIVATION
AERIS Watch type dive gauges are placed in a Deep Sleep mode prior to being shipped from the factory. The intent is to extend
storage life of the Battery for up to 7 years, before the unit is initially placed in service.
In this mode, Date and Time are updated as they normally would be. However, they are not displayed. Upon waking the F11 up, the
correct Date and USA Pacific Time will be displayed and it will be ready to operate with full functions.
To wake the F11 up from Deep Sleep mode, simultaneously depress the upper/right (S) and lower/left (A) buttons for 2 seconds until
the display comes full ON displaying the MAIN TIME screen, then release them.
Once the F11 is brought out of the Deep Sleep mode, it can only be placed back in it by the factory.
FULL LCD
Components:
a. Mode (M) Button
b. Select (S) Button
c. Light (L) Button
d. Advance (A) Button
e. LED Warning Light
f. Icon - Surface Interval Time
g. Icon - Dual Time
h. Icon - Log Mode
i. Icon - Minutes or Seconds
j. Icon - Countdown Timer
k. Icon - Maximum Depth
l. Icon - Time Am/Pm
m. Icon - Depth
n. Icon - Daily Alarm set
o. Icon - Degrees (Temp)
p. Icon - Low Battery
q. Icon - Elapsed Dive Time
b
c
d
e
a
f
g
h
i
j
k
l
i
n
i
o
m
p
q
4
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
Welcome
to
AERIS
and
THANK YOU
for choosing the
F11
5
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
GENERAL
FEATURES & DISPLAYS
6
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
INTERACTIVE CONTROL CONSOLE
The Interactive Control Console consists of four Control Buttons that allow you to select mode options and access specific informa-
tion. They are also used to enter Settings, operate the Backlight, and access additional screens of information.
Throughout this manual they will be referred to as the M, S, L, and A buttons.
• Upper/Left - Mode (M) button
• Upper/Right - Select (S) button
• Lower/Right - Light (L) button
• Lower/Left - Advance (A) button
OPERATING MODE STRUCTURE
Unless it is operating in Free Dive mode, the F11 will display Watch Main Time (Fig. 1), like a standard Watch, until the mode is
changed.
The A button is used to access other Watch functions that include an Alternate display, Countdown Timer, Chronograph (stop
watch/run timer), Daily Alarm, and Time settings. The M button is used to access and return from the Free Surface Main screen.
The screens of the Main and sub modes will remain on display until a button is pressed to access another screen or mode, activate
a sequence, or for 2 minutes if no button is pressed. The Chronograph remains on display unless turned Off or another mode is
accessed.
When operating in Free Mode, the F11 will enter Dive Mode upon descent to the DSD (Dive Start Depth) previously set which can
be 2, 4, or 6 FT (feet) or 0.6, 1.2, or 1.8 M (meters) for 1 second.
See page 19 for Set DSD.
OPERATION AS A DIVING GAUGE
Entering Settings relating to diving activities is only available in Free Surface Mode which also allows access to a Countdown Timer
(separate from the Watch CDT), Log, and History Modes.
COMPUTER INTERFACE
Interface with a PC or Mac, to allow uploading settings and downloading data, is accomplished by connecting the F11 to a PC or
Mac USB port using the special AERIS USB interface cable.
The software program together with the USB driver required is on the AERIS Product CD, or it can be downloaded from the AERIS
web site. The program's Help serves as the user manual which can be printed for personal use.
The settings upload portion of the computer interface program can be used to set/change the Main Time, Date, Set Alarms group,
and Set Utilities group using the same interface system.
Information available for retrieval (download) from the F11 to the download portion of the program includes dive number, surface
interval time, start depth, end depth, maximum depth, elapsed dive time, start date, start time, lowest temperature under water,
sampling rate, dive profile, and set points.
The computer interface program also allows update of select versions of the F11's firmware (operating system software).
•
Refer to page 29 for more details relating to the computer interface system.
GRAPHIC MESSAGES
The segmented digits of the LCD are used to present various messages such as alarms, day of the week, modes, items being set;
and graphics such as On, Off, Set, Last, Log, Hist.
AUDIBLE ALARM
A LED warning light, located at the 6 o'clock position on the side of the housing, is synchronized with the Audible alarm. It will
flash as the Audible sounds, then turn off when the Audible shuts off. The Audible and LED will not be active if the Alarm is set OFF,
an Alarm group setting which completely disables it.
When alarms strike, the Backlight will come On if Off and remain On until you turn it Off by pressing/releasing the L button or it
turns Off automatically after 10 seconds.
Situation that will sound (2) 2 second beeps -
• RTI (Repeating Time Interval) alarm, if set On.
Situations that will sound 3 sets of (3) 1 second beeps -
• Watch Daily Alarm (surface only), if set On.
• Watch Countdown Timer reaches 0:00 (hr:min), if set On.
• Free Mode Countdown Timer reaches 0:00 (min:sec), if set On.
• SRT (Surface Recovery Time) alert, if set On.
• RDI (Repeating Depth Interval) alarm, if set On.
M
A
S
L
Watch Functions
Main Time
Alternate info
Countdown Timer
Daily Alarm
Set Time
Chronograph
Fig. 1 - MAIN TIME
7
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
Situation that will sound (1, 2, or 3) sets of (1 to 10) .125 second beeps -
• Depth Alarms DA 1 to DA 6, if set On.
BACKLIGHT
To turn the Backlight On, press and release the Light button (< 2 seconds). The Backlight will remain On for the Duration time set (a
Set Utilities selection) unless you turn it Off during that time.
• The Backlight will come On (even if set OFF) when alarms strike and remain On until turned Off or automatically after 10
seconds .
• Pressing and releasing the Light button (< 2 seconds) while the Backlight is On will turn it Off.
• Depressing the Light button for 2 seconds while the Backlight is On, will reset the timer and extend the On time to the full
Duration time set.
• If the Light button is depressed for > 60 seconds, the Backlight will be disabled and not turn On until the button is released then
pressed/released again.
• The Backlight will be disabled when there is a Low Battery condition, and be re enabled once the battery is replaced.
• Extensive use of the Backlight reduces Battery use life.
• Turning the Backlight Off when it is not being used will help extend Battery use life.
• The Backlight does not operate when the unit is connected to a PC or Mac.
AUTO GLO
When Auto Glo (a Set Utilities selection) is set On, Backlight operation on the surface in Watch and FREE modes is controlled as
it normally would be by the Light button and Duration time set.
Upon entry into Dive mode, the Backlight activates (turns On) automatically and remains On throughout the full dive until entry
into Surface mode when the Backlight operation reverts to normal.
POWER SUPPLY
The F11 utilizes (1) 3 volt CR2450 Lithium Battery.
Battery voltage is checked every 2 minutes during operation while on the surface.
• If voltage decreases to the Warning level (2.75 volts), the Battery icon will appear on the Watch Main Time and Free Surface
screens (Fig. 2a) as an indication that the Battery should be changed prior to commencing a series of dives.
• If voltage decreases to the Alarm level (2.50 volts), the Battery icon will flash and operation will automatically revert to Watch
Main Time and only operate in Watch modes until the Battery becomes completely depleted.
• Low Battery Warning/Alarm conditions are not displayed during Dive Modes.
• If a Low Battery condition was not displayed prior to starting a Dive, and a Low Battery condition occurs during the dive, there
will be sufficient Battery power to maintain operation for the remainder of that dive. Upon surfacing, the graphics CHNG >>
BATT will alternate (Fig. 3), then operation will automatically revert to and remain in Watch Main Time until the Battery becomes
completely depleted.
Fig. 2 - LOW BATTERY
WARNING
a
Fig. 3 - LOW BATTERY
ALARM
Each display represents unique pieces of information. It is imperative that you understand the
formats, ranges, and values of the information represented to avoid any possible misunder-
standing that could result in error.
Understand which Time displays are represented as Minutes: Seconds and which are
Hours:Minutes.
You must also understand the icons, symbols, and alpha/numeric messages presented.
The Informational Displays are described in detail as the various operating modes they
appear in are presented throughout this manual.
8
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
WATCH
MODE
9
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
WATCH TIME
Main Time is the default screen displayed while in Watch Mode. In addition to Time of Day and Date, Day of the Week will be
displayed which you can interchange with Dual Time which is an hour based differential that you can set.
You can choose to have
Watch Main Time displayed with Day of the Week or with Dual Time (such as when visiting a location in a different time zone).
Once Dual Time is set (by hour differential), it will automatically change when Watch Main Time is changed.
While viewing Watch Main Time you can access a sequence of selections including >>
ALT (additional data), Countdown Timer, Daily Alarm, Set Time, and Chronograph.
Button operations >>
• A (< 2 sec) - to step forward through the sequence.
• M (< 2 sec) - to step back through the sequence.
• M (2 sec, any time) - to revert to Watch Main Time.
• No button action (for 2 min) - revert to Watch Main Time.
• L - to activate the Backlight.
WATCH MAIN TIME, information includes (Fig. 4A or 4B):
> Day of the Week graphic (MON, TUE, etc.); or Dual Time (hr:min) with icon; whichever one is selected.
> Main Time (hr:min_sec) with AM (or PM) icon.
> Battery icon, during a Low Battery condition.
> Date as Month.Day (or Day.Month).
> Alarm (speaker) icon, if the Daily Alarm is set On.
• A (< 2 sec) - to access the ALT screen and step forward through the sequence described above.
• A (2 sec) - to access Log and History.
• M (2 sec) - to access FREE Surface Mode.
• M (< 2 sec) - to access the Chronograph and step back through the sequence.
• S (2 sec) - to interchange Day of the Week with Dual Time (if set On), selecting which one is to be displayed.
• S (< 2 sec) - to silence the Daily Alarm.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
WATCH ALT (Alternate), information includes (Fig. 5A or 5B):
> Dual Time (hr:min) or OFF with icon; or Day of the Week graphic (MON, TUE, etc.); whichever one is not on the Main.
> Temperature with °F (or °C).
• A (< 2 sec) - to step forward to CDT.
• M (< 2 sec) - to step back to Watch Main Time.
• Reverts to Main in 10 seconds if A or M is not pressed.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
WATCH CDT (Countdown Timer)
This selection provides access to a CDT for use in Watch mode.
Once set and started, it will continue to run in the background while on the surface in Watch Mode until it is turned Off or the time
counts down to 0:00 at which time the alarm will strike and it will revert to Off.
Upon accessing FREE mode or starting a dive, Watch CDT operation will be terminated and the time reset to the previous setting.
CDT Lead-in, information includes (Fig. 6):
> Graphics Go To and Cdt with icon.
• S (< 2 sec) - to access CDT Status.
• A (< 2 sec) - to step forward to Daily Alarm Lead-in.
• M (< 2 sec) - to step back to Watch ALT.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
CDT Status, information includes (Fig. 7A/B):
> Countdown Time (hr:min) as >>
0:00 if no time has been set, or it completed the countdown;
hr:min set if Off and ready to start;
hr:min remaining of On with a countdown in progress.
> Graphic Cdt.
> Graphic OFF (or ON) flashing (Fig. 7A).
Fig. 4A - MAIN TIME
(Day of Week selected)
Fig. 4B - MAIN TIME
(Dual Time selected)
Fig. 5A - WATCH ALT
(Day of Week on Main)
Fig. 5B - WATCH ALT
(Dual Time on Main)
Fig. 6 - CDT LEAD-IN
Fig. 7A - CDT STATUS
(upon access)
or
10
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
• A (< 2 sec) - to step forward through selections of OFF, ON, and SET (Fig. 7B).
• M (< 2 sec) - to step back through the selections.
• S (< 2 sec) - to save the selection.
>> If OFF or ON is selected, operation reverts to the CDT Lead-in screen.
>> If SET is selected, the Set CDT screen is displayed.
• S (2 sec) - to revert to CDT Lead-in, if no setting change.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Set CDT, information includes (Fig. 8):
> Timer setting (hr:min) with icon, with Hour digits flashing.
> Graphics Cdt and SEt.
• A (hold) - to scroll upward through Hour set points (8/sec) from 0: to 23: in increments of 1: (hr).
• A (< 2 sec) - to step upward through Hour set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Hour setting and flash the Minute digits.
• A (hold) - to scroll upward through Minute set points (8/sec) from :00 to :59 in increments of :01 (min).
• A (< 2 sec) - to step upward through Minute set points.
• M (< 2 sec) - to step back through set points one at a time.
• S (< 2 sec) - to save the CDT setting and revert to the CDT Status screen with SEt flashing, allowing ON or OFF to be selected
as previously described.
> ON will then start the countdown and revert to CDT Lead-in.
> OFF will save the setting and revert to CDT Lead-in.
The CDT will run in the background until it counts down to 0:00, or it is set OFF, or FREE Mode is accessed or a dive is started in
which case the countdown will terminate and revert to OFF.
When CDT reaches 0:00, the Audible will sound during which the alarm LED will flash and 0:00 with the CDT icon will flash on the
Watch Main.
DAILY ALARM
When set On, the Daily Alarm will -
> be synchronized with Watch Main Time.
> sound the Audible every day at the Time set, while operating in Watch Mode.
> not sound the Audible while operating in FREE Mode.
> run in the background until set Off.
Daily Alarm Lead-in, information includes (Fig. 9):
> Graphics Go To and dAY AL with alarm (speaker) icon.
• S (< 2 sec) - to access Daily Alarm Status.
• A (< 2 sec) - to step forward to Set Time Lead-in.
• M (< 2 sec) - to step back to CDT Lead-in.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Daily Alarm Status, information includes (Fig. 10):
> Graphic ALRM.
> Alarm Time (hr:min) with AM (or PM) icon if 12 Hour.
> Graphic ON (or OFF) flashing, with alarm icon.
• A (< 2 sec) - to step forward through the selections of OFF, ON, and SET.
• M (< 2 sec) - to step back through the selections.
• S (< 2 sec) - to save the selection, and -
> if OFF or ON is selected, revert to Daily Alarm Lead-in.
> if SET is selected, the Set screen is displayed.
• S (2 sec) - to revert to Daily Alarm Lead-in, if no setting change.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Set Daily Alarm, information includes (Fig. 11):
> Graphic ALRM.
> Alarm Time (hr:min) with icon, Hour digits flashing.
> Graphic SEt with alarm icon.
• A (hold) - to scroll upward through Hour set points (8/sec) from 0: to 23: in increments of 1: (hr).
• A (< 2 sec) - to step upward through Hour set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Hour setting and flash the Minute digits.
• A (hold) - to scroll upward through Minute set points (8/sec) from :00 to :59 in increments of :01 (min).
• A (< 2 sec) - to step upward through Minute set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Alarm setting and revert to the Daily Alarm Status screen with SEt flashing, allowing ON or OFF to be
selected as previously described.
Fig. 7B - CDT STATUS
(to access Set)
Fig. 8 - SET CDT
Fig. 9 - DAILY ALARM
LEAD-IN
Fig. 10 - DAILY ALARM
STATUS (set, ready)
Fig. 11 - SET DAILY
ALARM
or
11
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
SET TIME (& DATE)
Sequence >> Lead-in >> Date Format >> Hour Format >> Dual Time >> Time of Day >> Date.
set points remain as set until changed.
Set Time Lead-in, information includes (Fig. 12):
> Graphics Go To and SEt - t.
• S (< 2 sec) - to access Set Date Format.
• A (< 2 sec) - to step forward to Chrono Lead-in.
• M (< 2 sec) - to step back to Daily Alarm Lead-in.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Set Date Format, information includes (Fig. 13):
Date Format establishes the position that the Month (M) digits are displayed relative to the Day (D) digits, on the left or right.
> Graphic M - D (or D - M) flashing.
> Graphic SEt.
• A or M (< 2 sec) - to toggle between M - D and D - M.
• S (< 2 sec) - to save setting and access Set Hour Format.
• S (2 sec) - to step back to Set Time Lead-in.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Set Hour Format, information includes (Fig. 14):
Hour Format establishes number of hours displayed for Time of Day, 1 to 12 (AM and PM) or 1 to 24.
> Graphic 12HR (or 24HR) flashing.
> Graphic SEt.
• A or M (< 2 sec) - to toggle between 12HR and 24HR.
• S (< 2 sec) - to save setting and access Set Dual Time.
• S (2 sec) - to step back to Set Date Format.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Set Dual Time Differential, information includes (Fig. 15):
This feature allows you to set an Hour based numeric time Differential ranging from - 23 through 0 to + 23 (hours). It provides a
second (Dual) Time equal to Watch Main Time +/- the Hours selected.
> Graphic OFF, or the Hour Differential (+ or - sign with numeric digits) flashing.
> Graphics diFF Hr and SEt, with DUAL icon.
• A (hold) - to scroll upward through the set points (8/sec) from - 23 through 0 to + 23 in increments of 1 (hour).
• A (< 2 sec) - to step upward through set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the setting and access Set Time.
• S (2 sec) - to step back to Set Hour Format.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Set Time of Day, information includes (Fig. 16):
This setting changes Time of Day, which also changes Dual Time.
> Graphic SET.
> Time of Day (hr:min), Hour digits flashing, with AM (or PM) icon if 12 Hour Format, no icon if 24 Hour.
• A (hold) - to scroll upward through Hour set points (8/sec) from 12: AM to 11: PM, or 0: to 23: if 24 Hour Format, in
increments of 1: (hr).
• A (< 2 sec) - to step upward through Hour set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Hour setting and flash the Minute digits (Fig. 30).
• S (2 sec) - to step back to Set Dual Time Differential.
• A (hold) - to scroll upward through Minute set points (8/sec) from :00 to :59 in increments of :01 (min).
• A (< 2 sec) - to step upward through Minute set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Time setting and access Set Date.
• S (2 sec) - to step back to Set Hour.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
Set Date, information includes (Fig. 17):
Sequence is Year >> Month >> Day, regardless of Format set (position on the display).
> Graphic SET.
> Year digits, flashing.
> Month.Day (or Day.Month).
Fig. 15 - SET DUAL TIME
(Hour Differential)
Fig. 14 - SET HOUR
FORMAT
Fig. 13 - SET DATE
FORMAT
Fig. 16 - SET TIME
(hr:min)
Watch Time/Date
can also be set using
the Settings Upload
feature of the ACI PC
Interface software.
Prior to shipment from
the factory, any error
of the Main Time
is determined and
corrected.
Fig. 12 - SET TIME
LEAD-IN
Fig. 17 - SET DATE
(Year, Month, Day)
12
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
• A (hold) - to scroll upward through Year set points (8/sec) from 2013 to 2055, in increments of 1.
• A (< 2 sec) - to step upward through Year set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Year setting and flash the Month digits.
• S (2 sec) - to step back to Set Time of Day.
• A (hold) - to scroll upward through Month set points (8/sec) from 1 to 12 in increments of 1.
• A (< 2 sec) - to step upward through set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Month Set point and flash the Day digits.
• S (2 sec) - to step back to Set Year.
• A (hold) - to scroll upward through Day set points (8/sec) from 1 to 31 (max for that month) in increments of 1.
• A (< 2 sec) - to step upward through set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Date setting and revert to Set Time Lead-in.
• S (2 sec) - to step back to Set Month.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
CHRONOGRAPH (Stop Watch, Lap/Run Timer)
The Chrono is operational during all modes (Watch, Free Surface, and Dive). Once started, the Chrono remains on the display and
continues to run until S is pressed to revert to the Lead-in screen (if in Watch or FREE Surface mode) or to the Dive Main (if a dive
was started while the Chrono was running). It runs unseen in the background when not on display.
Chrono Lead-in, information includes (Fig. 18):
> Graphics Go To and CHro.
• S (< 2 sec) - to access Chrono Status.
• A (< 2 sec) - to step forward to Watch Main.
• M (< 2 sec) - to step back to Set Time Lead-in.
• M (2 sec), or 2 minutes of no button action, will revert to Watch Main Time.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
Chrono Status, information includes (Fig. 19A/B):
> Graphic CHRO with min & sec icons.
> Elapsed run time >> flashing as 0:00_00 if not yet started or after reset; or counting up to 199:59_99 (min:sec_ .01 sec) if
previously started.
After the first 4.99 seconds, the .01 digits display 2 dashes ( - - ).
> Graphic LAP1 (up to 9), once started, blank if not.
• S* (< 2 sec) - to start the Timer which begins counting up in increments of .01 sec.
• S* (< 2 sec) - to save that Lap's time and display the next Lap # (up to 9, then restart with 1) with the Timer continuing to count
up, displaying total run time.
• A (< 2 sec) - to stop the Timer and recall LAP1 (up to 9) flashing with it's time (Fig. 20).
Repeat to recall other Lap times.
• A (2 sec) - to reset total run time to 0:00_00.
• S* (2 sec) - to step back to the Chrono Lead-in.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
*Chrono operations are blocked when S is operated during a alarm strike.
------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------
If no dive is conducted within 2 hours after accessing Free Mode, operation will revert to Watch Main Time.
Operation will also revert from Free Surface Mode to Watch Main Time 2 hours after completion of a dive or
if M is pressed (for 2 seconds) while viewing Free Surface Main.
Fig. 19A - CHRONO
STATUS (just started)
Fig. 19B - CHRONO
STATUS (running)
Fig. 20 - CHRONO LAP
RECALL
Fig. 18 - CHRONO
LEAD-IN
13
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
SURFACE
MODE
14
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
SURFACE MODE
Surface Main is the default screen displayed while in FREE Mode. In addition to Surface Interval Time and Dive Number, a CDT
(Countdown Timer) is displayed (unless it is set Off) which you can start, stop, and reset.
Like Watch mode, you can access a sequence of selections including >>
ALTs (additional data), Countdown Timer, Set Alarms, Set Utilities, Serial Number, and Chronograph.
The CDT is separate from the one featured in Watch Mode.
The Chronograph is the same one as Watch Mode with it's operations carrying over between the two modes.
Button operations >>
• A (< 2 sec) - to step forward through the sequence of selections.
• M (< 2 sec) - to step back through selections.
• M (2 sec, any time) - to revert to Surface Main.
• No button action (2 min) - revert to Surface Main.
• L - to activate the Backlight.
Descent to the DSD (Dive Start Depth) set for 1 second will activate Dive Mode, which will be displayed in the background if the
Chrono is on display.
Setting the DSD (for 2, 4, or 6 FT; or 0.6, 1.2, or 1.8 M) is explained later in the Set Utilities section.
Upon ascent to 2 FT (0.6 M) for 1 second, the Dive Main will remain on display until the BDSI (Between Dive Surface Interval) time
set elapses then the Surface Main will be displayed.
Setting the BDSI (up to 1 minute) is explained later in the Set Utilities section.
When set On, the SRT (Surface Recovery Time) alarm will sound and flash a message when the Surface Interval after surfacing
reaches the time set.
Setting the SRT alarm (up to 30 minutes) is explained later in the Set Alarms section.
When 2 hours elapse after surfacing, operation will revert to Watch Mode. M (2 sec) will access or return from Watch Mode.
SURF MAIN, information includes (Fig. 21A/B):
> Graphic FREE, or CDT (min:sec) with icons.
> Surface Interval Time (hr:min_sec) with SURF and sec icons.
> Number of the last dive conducted that calendar day with DIVE icon. If no dive has been made yet that day, or if Dive # is
reset by A+S (2 sec), 0 will be displayed.
> Battery icon, if a Low Battery condition.
• A (< 2 sec) to access SURF ALT 1, and step forward through the sequence of selections.
• A (2 sec) to access Log/History.
• A + S (2 sec) to reset Dive # to 0.
• M (< 2 sec) to access Chrono Lead-in, and step back through the group sequence.
• M (2 sec) to access Watch Main.
• S (< 2 sec) to start*/stop CDT. *
When the CDT is set for Auto, it will reset and repeat the countdown when it reaches 0:00.
• S (2 sec) to reset the CDT to the time set.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
SURF ALT 1, information includes (Fig. 22):
> Graphic LAST, indicating data is from the last dive.
> Max Depth with MAX and FT (or M) icons.
Dashes if no previous dive conducted.
> Elapsed Dive Time (min:sec) with DIVE and min_sec icons.
Dashes if no previous dive conducted.
• A (< 2 sec) - to step forward to ALT 2.
• M (< 2 sec) - to step back to SURF MAIN.
• Reverts to Main in 10 seconds if A or M is not pressed.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
SURF ALT 2, information includes (Fig. 23):
> Day of Week graphic.
> Time of Day (hr:min_sec) with AM (or PM) icon if 12 Hour Format, no icon if 24 Hour.
> Temperature with °F (or °C).
• A (< 2 sec) - to step forward to CDT.
• M (< 2 sec) - to step back to ALT 1.
• Reverts to Main in 10 seconds if A or M is not pressed.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
Fig. 21A - SURF MAIN
(no dive yet, CDT Off)
Fig. 21B - SURF MAIN
(CDT running)
Fig. 22 - SURF ALT 1
Fig. 23 - SURF ALT 2
15
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
FREE CDT (COUNTDOWN TIMER)
The FREE Mode CDT (which is not the same one as the Watch CDT) counts down time values in minutes:seconds.
Unless it is set Off, it is displayed on the Surface Main and if a dive is started it will be displayed on the Dive Main.
When set for Auto, the countdown will keep repeating after counting down to 0:00 until stopped by S (< 2 sec).
CDT Lead-in, information includes (Fig. 24):
> Graphics Go To and Cdt with icon.
• S (< 2 sec) - to access CDT Setup.
• A (< 2 sec) - to step forward to Set Alarms Lead-in.
• M (< 2 sec) - to step back to SURF ALT 2.
• M (2 sec), or 2 minutes of no button action, will revert to SURF MAIN.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
CDT Setup, information includes (Fig. 25A/B/C):
> Countdown Time (min:sec) as >>
0:00 if no time has been set, or it completed the countdown; or -
min:sec set if Off (or Auto) and ready to start; or -
min:sec remaining if On (or Auto) with a countdown in progress.
> Graphic Cdt.
> Graphic OFF (or ON, or Auto) flashing (Fig. 25A).
• A (< 2 sec) - to step forward through selections of OFF, ON, AUTO (Fig. 25B), and SET (Fig. 25C).
• M (< 2 sec) - to step back through the selections.
• S (< 2 sec) - to save the selection.
>> If OFF, ON, or AUTO is selected, operation reverts to the Lead-in screen.
>> If SET is selected, the Set CDT screen is displayed.
• S (2 sec) - to revert to CDT Lead-in, if no setting change.
• M (2 sec), or 2 minutes of no button action, will revert to SURF MAIN.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
Set CDT, information includes (Fig. 26):
> Timer setting (min:sec) with icons, with Minute digits flashing.
> Graphics Cdt and SEt.
• A (hold) - to scroll upward through Minute set points (8/sec) from 0: to 59: in increments of 1: (min).
• A (< 2 sec) - to step upward through Minute set points.
• M (< 2 sec) - to step back through set points.
• S (< 2 sec) - to save the Minute setting and flash the Seconds digits.
• A (hold) - to scroll upward through Seconds set points (8/sec) from :00* to :59 in increments of :01 (sec).
*Starts at :30 (sec) minimum when Minutes are set for 0: (min).
• A (< 2 sec) - to step upward through Seconds set points.
• M (< 2 sec) - to step back through set points one at a time.
• S (< 2 sec) - to save the CDT setting and revert to the CDT Status screen with SEt flashing, allowing ON or OFF to be selected
as previously described.
• S (2 sec) - to revert to CDT Setup, if no setting change.
• M (2 sec), or 2 minutes of no button action, will revert to SURF MAIN.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------
Fig.24 - CDT LEAD-IN
Fig. 25A - CDT SETUP
(upon access)
or
Fig. 25C - CDT SETUP
(to access Set)
Fig. 26 - SET CDT
Fig. 25B - CDT SETUP
(upon access)
16
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
SURFACE SET MODES
To access: SURF MAIN >> ALT 1 >> ALT 2 >> CDT >> SET ALARMS >> SET UTILITIES.
• A (< 2 sec) to access and step through the sequence.
> Set points can also be changed using the AERIS Computer Interface program.
> Settings remain at the values saved until changed.
SET ALARMS
Sequence: Lead-in >> AUD >> SRT >> RTI >> RDI >> DA1 to DA6.
• A (< 2 sec), while viewing CDT Lead-in, to access Set Alarms Lead-in.
The Set Audible feature provides complete OFF control of the Audible and its associated LED warning light. When set OFF, no
beeps will be emitted and the light will not flash when an alarm condition occurs, which some divers prefer during select activities.
Icons and messages will still flash and the Backlight will still come On.
The SRT (Surface Recovery Time) Alarm provides an alert when a set 'recovery time' has elapsed after surfacing from a dive.
The RTI (Repeating Time Interval) Alarm repeats each time the Time Interval set is reached during operation in Dive Mode.
The RDI (Repeating Depth Interval) Alarm repeats each time the Depth Interval set is reached, except when the DA alarms strike. If a
series of descents, ascents, descents is made, the alarm will activate during each of the Descents.
The DA 1 to DA6 (Descending/Ascending) Depth Alarms are set and operate with no restrictions (such as sequence) while ascend-
ing as well as descending. Unless set Off, the audible sounds for the number of beeps set for that depth each time you reach (pass
through) the Depth set while descending and/or ascending.
At any time while entering settings -
• M (2 sec), or 2 minutes of no button action, will revert to SURF MAIN.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
Set Alarms Lead-in, information includes (Fig. 27):
> Graphics Go To SEt - A.
• S (< 2 sec) - to access Set Audible.
• A (< 2 sec) - to step forward to Set Utilities Lead-in.
• M (< 2 sec) - to step back to CDT Lead-in.
Set Audible Alarm, information includes (Fig. 28):
> Graphic AUD.
> Graphic ON (or OFF), flashing.
• A or M (< 2 sec) - to toggle between ON and OFF.
• S (2 sec) - to step back to Set Alarms Lead-in.
• S (< 2 sec) - to save the setting and access Set SRT Alarm.
Set SRT (Surface Recovery Time) Alarm, information includes (Fig. 29):
> Graphic SRT with min_sec icons.
> Time (min:sec).
> Graphic ON (or OFF), flashing.
• A (< 2 sec) - to step forward through the selections of OFF, ON, and SET.
• M (< 2 sec) - to step back through the selections.
• S (2 sec) - to step back to Set Audible.
• S (< 2 sec) - to save the setting.
> If OFF or ON is saved, operation will advance to Set RTI Alarm.
> If SET is saved, the Minute digits will flash.
• A (hold) - to scroll upward through the Minute set points at a rate of 8 per second from 0: to 30: in increments of 1 minute.
• A (< 2 sec) - to step upward through the Minute set points one at a time.
• M (< 2 sec) - to step back through the Minute set points one at a time.
• S (2 sec) - to step back to SEt flashing.
• S (< 2 sec) - to save the Minute setting and flash the Seconds digits.
• A (hold) - to scroll upward through the Second set points at a rate of 8 per second from :00* to :59 in increments of 1 second.
*Starts at :01 (sec) minimum when Minutes are set for 0: (min).
• A (< 2 sec) - to step upward through the Second set points one at a time.
• M (< 2 sec) - to step back through the Second set points one at a time.
• S (2 sec) - to step back to the Minutes digits flashing.
• S (< 2 sec) - to save the min:sec setting (digits solid) and flash the graphic SEt allowing ON or OFF to be selected/saved.
Fig. 27 - SET ALARMS
LEAD-IN
Fig. 28 - SET AUDIBLE
ALARM
Fig. 29 - SET SRT ALARM
17
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
Set RTI (Repeating Time Interval) Alarm, information includes (Fig. 30):
> Graphic RTI with min_sec icons.
> Time (min:sec).
> Graphic ON (or OFF), flashing.
• A (< 2 sec) - to step forward through the selections of OFF, ON, and SET.
• M (< 2 sec) - to step back through the selections.
• S (2 sec) - to step back to Set SRT.
• S (< 2 sec) - to save the setting.
> If OFF or ON is saved, operation will advance to Set RDI Alarm.
> If SET is saved, the Minute digits will flash.
• A (< 2 sec) - to step upward through the Minute set points from 0: to 9: one at a time.
• M (< 2 sec) - to step back through the Minute set points one at a time.
• S (2 sec) - to step back to SET flashing.
• S (< 2 sec) - to save the Minute setting and flash the Seconds digits.
• A (hold) - to scroll upward through the Second set points at a rate of 8 per second from :00* to :59 in increments of 1 second.
*Starts at :10 (sec) minimum when Minutes are set for 0: (min).
• A (< 2 sec) - to step upward through the Second set points one at a time.
• M (< 2 sec) - to step back through the Second set points one at a time.
• S (2 sec) - to step back to Minutes digits flashing.
• S (< 2 sec) - to save the min:sec setting (digits solid) and flash the graphic SEt allowing ON or OFF to be selected/saved.
Set RDI (Repeating Depth Interval) Alarm, information includes (Fig. 31):
> Graphic RDI.
> Depth interval with FT (or M) icon.
> Graphic ON (or OFF), flashing.
• A (< 2 sec) - to step forward through the selections of OFF, ON, and SET.
• M (< 2 sec) - to step back through the selections.
• S (2 sec) - to step back to Set RTI Alarm.
• S (< 2 sec) - to save the setting.
> If OFF or ON is saved, operation will advance to Set DA1 Alarm.
> If SET is saved, the Depth digits will flash.
• A (hold) - to scroll upward through the Depth set points at a rate of 8 per second from 10 to 100 FT (3 to 33 M) in increments
of 1 FT (1 M).
• A (< 2 sec) - to step upward through the set points one at a time.
• M (< 2 sec) - to step back through the set points one at a time.
• S (2 sec) - to step back to SET flashing.
• S (< 2 sec) - to save the setting (digits solid) and flash the graphic SEt allowing ON or OFF to be selected/saved.
Set DA1 Depth Alarm (DA2 to DA6 similar), information includes (Fig. 32):
> Graphic DA1.
> Depth with FT (or M) icon.
> Set point ON (or OFF), flashing.
• A (< 2 sec) - to step forward through the selections of OFF, ON, and SET.
• M (< 2 sec) - to step back through the selections.
• S (2 sec) - to step back to Set RDI Alarm.
• S (< 2 sec) - to save the setting.
> If OFF or ON is saved, operation will advance to Set DA2 Alarm.
> If SET is saved, the Depth digits will flash.
• A (hold) - to scroll upward through the Depth set points at a rate of 8 per second from 10 to 495 FT (3 to 150 M) in increments
of 1 FT (1 M).
• A (< 2 sec) - to step upward through the Depth set points one at a time.
• M (< 2 sec) - to step back through the Depth set points one at a time.
• S (2 sec) - to step back to SEt flashing.
• S (< 2 sec) - to save the Depth setting and display the Set DA1 Audible screen.
Fig. 32 - SET DA DEPTH
Fig. 31 - SET RDI ALARM
Fig. 30 - SET RTI ALARM
18
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
Set DA1 Audible Alarm (DA2 to DA6 similar), information includes (Fig. 33):
> Graphics DA1 and bEEP.
> Number of beeps (1 to 10), flashing upon access.
> Number of times the beeps are to repeat (1t to 3t, t = times).
• A (< 2 sec) - to step upward through the Beep set points from 1 to 10 one at a time.
• M (< 2 sec) - to step back through the Beep set points one at a time.
• S (2 sec) - to step back to Depth digits flashing.
• S (< 2 sec) - to save the Beep setting and flash the t (number of times) digit.
• A (< 2 sec) - to step upward through the t (times) set points from 1t to 3t one at a time.
• M (< 2 sec) - to step back through the t (times) set points one at a time.
• S (2 sec) - to step back to Beep digits flashing.
• S (< 2 sec) - to save the Audible setting (digits solid) and flash the graphic SEt allowing ON or OFF to be selected/saved..
------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------
SET UTILITIES
Sequence: Lead-in >> Units >> Wet Activ >> Water Type >> Backlight Duration >> Auto Glo >> Sampling Rate >> DSD >> BDSI.
• A (< 2 sec), while viewing Set Alarms Lead-in, to access Set Utilities Lead-in.
The Wet Activation feature allows you to disable activation of Dive Mode during activities when you only want to use the Watch
features and don't want diving information displayed or recorded.
The Water Type selection determines Depth calibration to accomodate activities in fresh or sea/salt water.
The Backlight Duration determines how long the Backlight will be On when activated by pressing the Light (L) button.
When Auto Glo is set On, the Backlight will activate automatically upon entry into Dive Mode and remain On until the BDSI time (up
to 1 min) elapses after surfacing. L button operation of the Backlight will be disabled during the dive, then enabled on the surface.
Sampling Rate determines the interval at which data is sampled and recorded for upload to the Computer Interface program. It
does not affect the rate at which data is measured for the display (which is at fixed 1 second rate).
The DSD (Dive Start Depth) feature allows you to select the Depth at which Dive Mode will be activated upon descent. Regardless
of the DSD set, every dive ends upon ascent above 2 FT (0.6 M) for the BDSI set.
The BDSI (Between Dive Surface Interval) feature allows you to select the time interval between surfacing and descending that
determines whether the descent is a new dive. Short intervals may be preferred for some activities and longer intervals for others,
thus a selection may be helpful.
At any time while entering settings -
• M (2 sec), or 2 minutes of no button action, will revert to SURF MAIN.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
Set Utilities Lead-in, information includes (Fig. 34):
> Graphics Go To SEt - U.
• S (< 2 sec) - to access Set Units.
• A (< 2 sec) - to step forward to ID-SN.
• M (< 2 sec) - to step back to Set Alarms Lead-in.
Set Units, information includes (Fig. 35):
> Graphic UNIT.
> FT icon and °F (or M and °C), flashing.
• A or M (< 2 sec) - to toggle between Imperial (FT, F) and Metric (M, C).
• S (2 sec) - to step back to Set Utilities Lead-in.
• S (< 2 sec) - to save the setting and access Set Wet Activation.
Fig. 34 - SET UTILITIES
Fig. 35 - SET UNITS
Fig. 33 - SET DA AUDIBLE
19
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
Set Wet Activation, information includes (Fig. 36):
> Graphics WET ACt.
> Graphic ON (or OFF), flashing.
• A or M (< 2 sec) - to toggle between ON and OFF.
• S (2 sec) - to step back to Set Units.
• S (< 2 sec) - to save the setting and access Set Water Type.
Set Water Type, information includes (Fig. 37):
> Graphics H2O tYPE.
> Graphic SEA (or FrSH), flashing.
• A or M (< 2 sec) - to toggle between SEA and FrSH.
• S (2 sec) - to step back to Set Wet Activation.
• S (< 2 sec) - to save the setting and access Set Backlight Duration.
Set Backlight Duration, information includes (Fig. 38):
> Graphics GLO and durA.
> Time (min:sec) flashing, with icons.
• A (< 2 sec) to step upward through set points of 0:05, 0:10, 0:30, 1:00 (min:sec) one at a time.
• M (< 2 sec) to step back through the set points one at a time.
• S (2 sec) - to step back to Set Water Type.
• S (< 2 sec) to save the setting and access Set Auto Glo.
Set Auto Glo, information includes (Fig. 39):
> Graphics AUTO GLO with DIVE icon.
> Graphic ON (or OFF), flashing.
• A or M (< 2 sec) - to toggle between ON and OFF.
• S (2 sec) - to step back to Set Backlight Duration.
• S (< 2 sec) - to save the setting and access Set Sampling Rate.
Set Sampling Rate, information includes (Fig. 40):
> Graphic SAMP.
> Time (sec), flashing, with icon.
• A (< 2 sec) to step upward through set points of 0.25, 0.50, 1.00, 2.00 (sec) one at a time.
• M (< 2 sec) to step back through the set points one at a time.
• S (2 sec) - to step back to Set Auto Glo.
• S (< 2 sec) to save the setting and access Set DSD.
Set DSD (Dive Start Depth), information includes (Fig. 41):
> Graphic DSD.
> Depth flashing, with FT (or M) icon.
• A (< 2 sec) to step upward through the set points of 2, 4, 6 FT (0.6, 1.2, 1.8 M) one at a time.
• M (< 2 sec) to step back through set points one at a time.
• S (2 sec) - to step back to Set Sampling Rate.
• S (< 2 sec) to save the setting and access Set BDSI.
Set BDSI (Between Dive Surface Interval), information includes (Fig. 42):
> Graphic BDSI with min & sec icons.
> Time (min:sec) flashing, with SURF icon.
• A (hold) to scroll upward through the set points 8 per second from 0:01 to 1:00 (min:sec) in increments of :01 (1 sec).
• A (< 2 sec) to step upward through the set points one at a time.
• M (< 2 sec) to step back through the set points one at a time.
• S (2 sec) - to step back to Set DSD.
• S (< 2 sec) to save the setting and revert to Set Utilities Lead-in.
------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------
Fig. 38 - SET BACKLIGHT
DURATION
Fig. 42 - SET BDSI
Fig. 37 - SET WATER
TYPE
Fig. 41 - SET DSD
Fig. 39 - SET AUTO GLO
Fig. 40 - SET SAMPLING
RATE
Fig. 36 - SET WET
ACTIVATION
20
F11 OPERATING MANUAL
© 2002 Design, 2013 Doc. No. 12-7285-r01 (5/3/13)
SERIAL NUMBER (SN)
• A (< 2 sec), while viewing Set Utilities Lead-in, - to access the Serial Number screen.
Information includes (Fig. 43):
> Graphic SN.
> Factory programmed Serial Number (up to 6 digits).
> Firmware (the unit's operating software) revision number (e.g., graphic r1A).
• A (< 2 sec) - to step forward to Chrono Lead-in.
• M (< 2 sec) - to step back to Set Utilities Lead-in
• M (2 sec), or 2 minutes of no button action, will revert to SURF MAIN.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
This information will be required if a unit is sent to AERIS for evaluation or service. Record it in the table
provided in the back of this manual, and retain the sales receipt.
CHRONOGRAPH
The Chrono in FREE Mode is the same one used in Watch Mode and it carries over between modes when it is in operation.
Refer to Watch Mode (page 12) for details and displays.
Chrono Lead-in, information includes (Fig. 44):
> Graphics Go To CHro.
• S (< 2 sec) - to access Chrono Status.
• A (< 2 sec) - to step forward to SURF MAIN.
• M (< 2 sec) - to step back to SN.
• M (2 sec), or 2 minutes of no button action, will revert to SURF MAIN.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------
LOG & HISTORY MODES
• A (2 sec), while Watch Main Time or FREE SURF Main is displayed, will access and step through Log and History modes.
Sequence: Main >> Day Log >> Full Log >> Day History >> Full History.
Day and Full Logs display information from the latest 99 dives.
The difference between the modes is that the information in Day Log is only retained until a dive is conducted on a new calendar
day, or the Dive # is reset to #1 (by A+S while viewing the SURF Main) at which time all data is deleted from the Day Log.
Full Log retains information until it is overwritten due to storage capacity.
After exceeding 99 dives, the most recent Dive will be recorded in the Full Log while deleting the oldest. It is highly unlikely that
this will affect the Day Log which will do the same if 99 is exceeded.
Dives are numbered 1 to 99. Numbering starts at #1 each new calendar day beginning after midnight, or when Reset (by A+S
while viewing the SURF Main).
In the event that a dive’s EDT exceeds 59:59 (min:sec), the data at the 59:59 interval will be recorded for the Log and History
upon surfacing of the unit.
History records information accumulated during the most recent day and adds that information to a full (all time) record.
Battery replacement will not to delete Log or History data.
At any time while in Log or History modes -
• M (2 sec) at any time while, or 2 minutes of no button action, will revert to the Watch Main or SURF MAIN screen.
• L (< 2 sec) - to toggle the Backlight On/Off.
Will be On for the duration time set.
• L (2 sec), while the Backlight is On, - to reset the timer to keep it On for the full duration time set.
Fig. 43 - SN
Fig. 44 - CHRONO
LEAD-IN
Table of contents
Other Aeris Diving Instrument manuals
Popular Diving Instrument manuals by other brands
IST
IST GP-3000 DATA+ user manual
Nanight
Nanight Sport Video user manual
Mirion Technologies
Mirion Technologies DMC-2000 manual
Nellis Engineering
Nellis Engineering Logic Genesis 2.0 owner's manual
Teleflex
Teleflex TFXIDD Operation manual
Underwater Kinetics

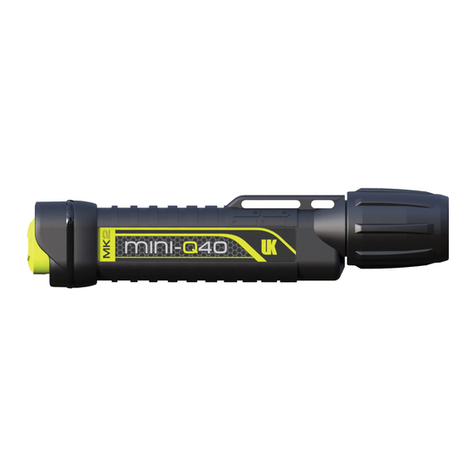

Underwater Kinetics MINI-Q40 MK2 quick start guide
