QDI P5I945P User manual

Notice
The information in this document is subject to
change in order to improve reliability, design, or
function without prior notice and does not repre-
sent a commitment on the part of this company.
In no event will we be liable for direct, indirect,
special, incidental, or consequential damages
arising out of the use or the possibility of such
damages.
All trademarks are the property of their respec-
tive owners.
If you need any further information, please visit
our web-site: “www.qdigrp.com”.
This item checklist is only available for retail
market. Completely check your package, If you
discover damaged or missing items, contact
your retailer.
Item Checklist
P5I945P(G)seriesmainboard
QDIUtilityCD
1HDribboncable
User’s manual
I/O shield
1FDD cable
USB cable(option)

Certificate of Compliance
The following products have been tested by us with the listed standards and found in
compliance with the council EMC directive 89/336/EEC. It is demonstrative for the
compliance with this EMC Directive.
Submittor: QDI Technology Limited
23Floor, Lincoln House, Taikoo Place 979
King’s Road, Quarry Bay, HONG KONG
Product: MotherBoard
M/N: P5I945P(G)
EN 55022/A1:2000 Limits and methods of measurements of radio
disturbance characteristics of information technology
equipment
EN 61000-3-2/A14:2000 Electromagnetic compatibility(EMC)
Part 3: Limits
Section 2: Limits for harmonic current emissions
(equipment input current<=16A per phase)
EN 61000-3-3/A1:2001 Electromagnetic compatibility(EMC)
Part 3: Limits
Section 3: Limits of voltage fluctuations and flicker in
low-voltage supply systems for equipment with
rated current<=16A
EN 55024/A1:2001 Information technology equipment-Immunity charac-
teristics limits and methods of measurement
Signature : Date : 2005.04.01
Printed Name : Wan changqing Position: General Manager
The statement is based on a single evaluation of one sample of above mentioned products. It does not imply
an assessment of the whole production and does not permit the use of the test lab.logo.

Declaration of conformity
Trade Name: QDI Computer ( U. S . A. ) Inc.
Model Name: P5I945P(G)
Responsible Party: QDI Computer ( U. S. A.) Inc.
Address: 41456 Christy Street
Fremont, CA 94538
Telephone: [phone]
Facsimile: [phone]
Equipment Classification: FCC Class B Subassembly
Type of Product: Mainboard
Manufacturer:QDI TECHNOLOGY (HK) Limited
Address: 23Floor, Lincoln House, Taikoo Place
979 King’s Road, Quarry Bay, HONG
KONG
Supplementary Information:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions : (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Tested to comply with FCC standards.
Signature : Date : 2005

CONTENTS
Chapter 1
Introduction ..................................................................... 1
Key Features .................................................................. 2
Chapter 2
InstallationInstructions.........................................................4
ExternalConnectors ............................................................5
PS/2Keyboard /MouseConnector ................................... 5
USB1,USB2;USB3,USB4;1394 Port(optional)andLAN
Connectors(optional) ....................................................... 5
Parallel Port , Serial Port Connectors and VGA port(Only for
P5I945G) ......................................................................... 5
Line-in jack, Mic-in jack and Speaker-out jack .................. 6
6-ChannelAudio(available on-6Amainboard) .................. 6
8-ChannelAudio(available on-8Amainboard) .................. 6
Dualchannel introduce........................................................7
ATX 12V Power Supply Connectors & Power Switch...... 9
HardDiskLEDConnector(HD_LED)............................... 9
Reset Switch ( RESET ) ................................................... 9
PowerLEDConnector(PWR_LED) ................................. 9
FanConnectors(CPU_FAN,SYS_FANandCHS_FAN
(optional)) ....................................................................... 10
DiagnosisLED......................................................................10
COM2(optional),USB5,USB6;USB7,USB8Connectors ... 11
Infrared Header ( IrDA )(optional)..................................... 11
AudioConnector(CD_IN ) ............................................... 12
SPDIFConnector.................................................................12
FrontIEEE1394Port(F_1394)(optional)...............................13
OnboardSATA(optional)......................................................13
AudioInterface(F_AUDIO) ............................................... 14
SPEAKER(optional)..............................................................15
JumperSettings ................................................................. 15
BIOS-ProtectionJumper(BIOS_WP)(optional).................. 16
ClearCMOS(CLR_CMOS)...................................................16

CONTENTS
Chapter 3
BIOSDescription................................................................17
AWARDBIOSDescription................................................19
Appendix
QDIUlitityCD......................................................................30
Using4-/6-ChannelAudio..................................................41
Selecting8-ChannelSetting...............................................46
Layout

Caution
Caution
Be sure to add some Silicone Grease between the CPU and the
heatsink to keep them fully contacted to meet the heat sink require-
ment.
Be sure to unplug the AC power supply before adding or
removing expansion cards, RAM or other system peripherals,
otherwise your mainboard and RAM might be seriously damaged.
Note:
This manual is suitable for P5I945P(G) series of mainboards. Each
mainboard is carefully designed for the PC user who wants different
features.
P5I945P: Intel 945P+ICH7
P5I945G: Intel 945G+ICH7
-6A: with 6 channel Audio
-8A: with 8 channel Audio
-L: with onboard 10/100M LAN
-K: with onboard 1000M LAN
-F: with IEEE 1394 port

Chapter 1
P5I945P(G)
1
Chapter 1
Introduction
P5I945P(G)series of mainboards utilizeIntel® 945P/945G+ ICH7 chipset,
providing a fully compatible, high performance and cost-effective ATX
platform. P5I945P(G) supports next generation graphics interface: PCI
Express x 16.The new integrated technologies, together withAC’97 audio
(6-channel) or High DefinitionAudio(8-channel), 4 SATA(option), 8 USB
2.0 ports andATA100/66, give customers an advanced, multimedia solu-
tion at reasonable price. It provides 533/800MHz host bus speed to sup-
port Intel LGA775 processors. Suspending to RAM(option), the optimal
implementationoftheAdvancedConfigurationandPowerInterface(ACPI)
specification, makes the PC’s power consumption drop to the lowest
possible level and enable quick wakeup.

Introduction
P5I945P(G)
2
Form factor
ATX form factor of 305mm x 244mm
Microprocessor
Supports Intel LGA775 processors
Supports Pentium 4 500,600 series;Pentium D 800,900 series;Celeron D 300 series
System memory
Supports dual channel DDRII 400/533/667MHz
Supports 256Mb/512Mb/1Gb technology up to 4GB
Provides four 240-pin DDRII interfaces
PCI Express x16 Graphics
PCI Express 1.0a specification compliant
Supports one PCI Express x16 port
PCI Express x1 Ports(optional)
PCI Express 1.0a specification compliant
Supports two PCI Express x1 ports
Onboard IDE
Supports three IDE interfaces
IDE1 supports two IDE devices
IDE2,IDE3 support IDE RAID function(option)
Onboard LAN(optional)
10/100(availableon-L mainboard)/1000(available on -K mainboard) Mbit/sec Ethernet
support
10/100(available on -L mainboard)/1000M(available on -K mainboard) LAN interface
built-in on board
USB 2.0
USB 2.0 compliant, operates at 480Mbps
Provides 8 USB 2.0 ports
Onboard I/O
One floppy port supporting up to one 3.5’’ floppy drives with 1.44M format
Two high speed 16550 compatible COMs with 16 byte send/receive FIFO (COM1 on
back panel,COM2 on header with optional cable(option))
OneparallelportsupportsSPP/EPP/ECPmode
Supports PS/2 mouse and PS/2 keyboard
Provides one IrDA connector(option)
All I/O ports can be enabled/disabled in the BIOS setup
Onboard Audio
Provides onboard Line-in Jack, Microphone-in Jack and Speaker-out Jack
6-channel Onboard Audio(available on -6A mainboard)
AC’97 2.3 Specification Compliant
ProvidesFront left&right, Rear left&right/Line-in Jack and Center&Woofer/Microphone-
in Jack,which can be specified by software
8-channel Onboard Audio(available on -8A mainboard)
High DefinitionAudio(HDA)Specification Compliant
Provides Center&subWoofer speaker out, Rear speaker out, Side speaker out, line in,
Front speaker out and Mic in

Chapter 1
P5I945P(G)
3
Onboard SATA(Optional)
Supportsfour SATAdevicesincludingSATAHDDand CDROM/DVDROMdevices
Supports 300Mbps transfer rate.
Advanced features
PCI2.3SpecificationCompliant
BIOS
Licensed advancedAWARD BIOS, supports flash ROM, plug and play ready
SupportsIDECDROM/USBbootup.
Green function
SupportsACPI (Advanced Configuration and Power Interface) and ODPM (OS
DirectedPowerManagement)
SupportsACPI power status: S0 (full-on), S1 (power on suspend), S3 (suspend to
RAM)(option), S4(suspend to Disk, depends on OS) and S5 (soft-off)
Main Expansion Slots and Connectors
Slot/Port (Quantity) Description
PCI(3) PCIslots
PCIE(2)(optional) PCI Express x1 ports
PCIEX(1) PCIExpress x16 port
IDE(3)(optional) IDEports
FLOPPY(1) Floppy Drive port
DDRII(4) DDRIIsockets
USB(8) USB connectors
LAN(1)(optional) LAN connector
COM(2)(optional) COMconnectors
PARALLEL(1) Parallelconnector
IrDA(1)(optional) IrDA connector
Audio(1) Audio connector
1394(2)(optional) IEEE1394ports
SATA(4)(optional) SerialATAconnectors

InstallationInstructions
P5I945P(G)
4
Chapter 2
Installation Instructions
This section covers External Connectors and Jumper Settings. Refer
to the mainboard layout chart for locations of all jumpers, external
connectors, slots and I/O ports. Furthermore, this section lists all
necessary connector pin assignments for your reference. The par-
ticular state of the jumpers, connectors and ports are illustrated in the
following figures. Before setting the jumpers or inserting these
connectors, please pay attention to the direction.

Chapter 2
P5I945P(G)
5
External Connectors
PS/2 Keyboard/Mouse Connector
PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size
keyboard, an adapter should be used to fit this connector. PS/2 mouse connector is for the
usage of PS/2 mouse.
USB1, USB2; USB3, USB4; 1394 Port(optional) and LAN Connectors
(optional)
Four USB ports are for connecting USB devices. The RJ-45 connector is for onboard
LAN.
Parallel Port , Serial Port Connector (COM1) and VGA Port(Only for
P5I945G)
Theparallel portconnector can beconnected to aparallel device suchas a printer.The serial
port COM1connector can be connected to a serial port device such as a serial port mouse.
The VGA connector is for output to a VGA-Compatible device(onlly for P5I945G).
Be sure to unplug the AC power supply before adding or removing
expansion cards or other system peripherals, otherwise your
mainboard and expansion cards might be seriously damaged.


Warning:
USB1
USB4
LAN(optional)
USB2
USB3
Parallel Port
COM1
PS/2 Mouse connector
PS/2 Keyboard connector
VGA Port(only for P5I945G)
1394 Port
(option)

InstallationInstructions
P5I945P(G)
6
Line-in jack, Microphone-in jack and Speaker-out jack
The Line-in jack can be connected to devices such as a cassette or minidisc player to
playback or record. The Microphone-in jack can be connected to a microphone for voice
input.The Speaker-out jack allows you to connect speakers or headphones for audio output
fromthe internal amplifier.
6-Channel Audio(available on -6A mainboard)
Thismainboard utilizesALC655chip providing6-channelAudio,whichconsists ofFront Left,
FrontRight, Rear Left, Rear Right, Center and Woofer foracomplete surround sound effect.
When 6-Channel audio is available, the front Left&Right jack can be connected to the Front
speskers, the Back Left&Right jack can be connected to the rear speakers and the
Center&Woofer jack can be connected to the center speaker and woofer.
Microphone function is offered by F_AUDIO Connector on the mainboard now.
Ifset2-ChannelAudiomodeon-6A or -6ALmainboard,youcanconnect twospeakerstothe
FrontLeft&Right jack, at the same time use the Rear Left&Right jack asLineinjack, and use
the Center&Woofer jack as Microphone in jack.
Speaker out
Line in
Microphone in
Front Left&Right
Rear Left&Right
Center&Woofer
8-Channel Audio(available on -8A mainboard)
This mainboard utilizes ALC880 chip providing 8-channelAudio, which consists of Line in,
Front speaker out,Mic in, Side speaker out, Rear speaker out, Center&SubWoofer speaker
out for a complete surround sound effect.
Center&SubWoofer
speaker out
Rear speaker out
Side speaker out
Line in
Front speaker out
Mic in

Chapter 2
P5I945P(G)
7
Dual channel introduce
CHA_DIMM1
CHA_DIMM2
CHB_DIMM1
CHB_DIMM2

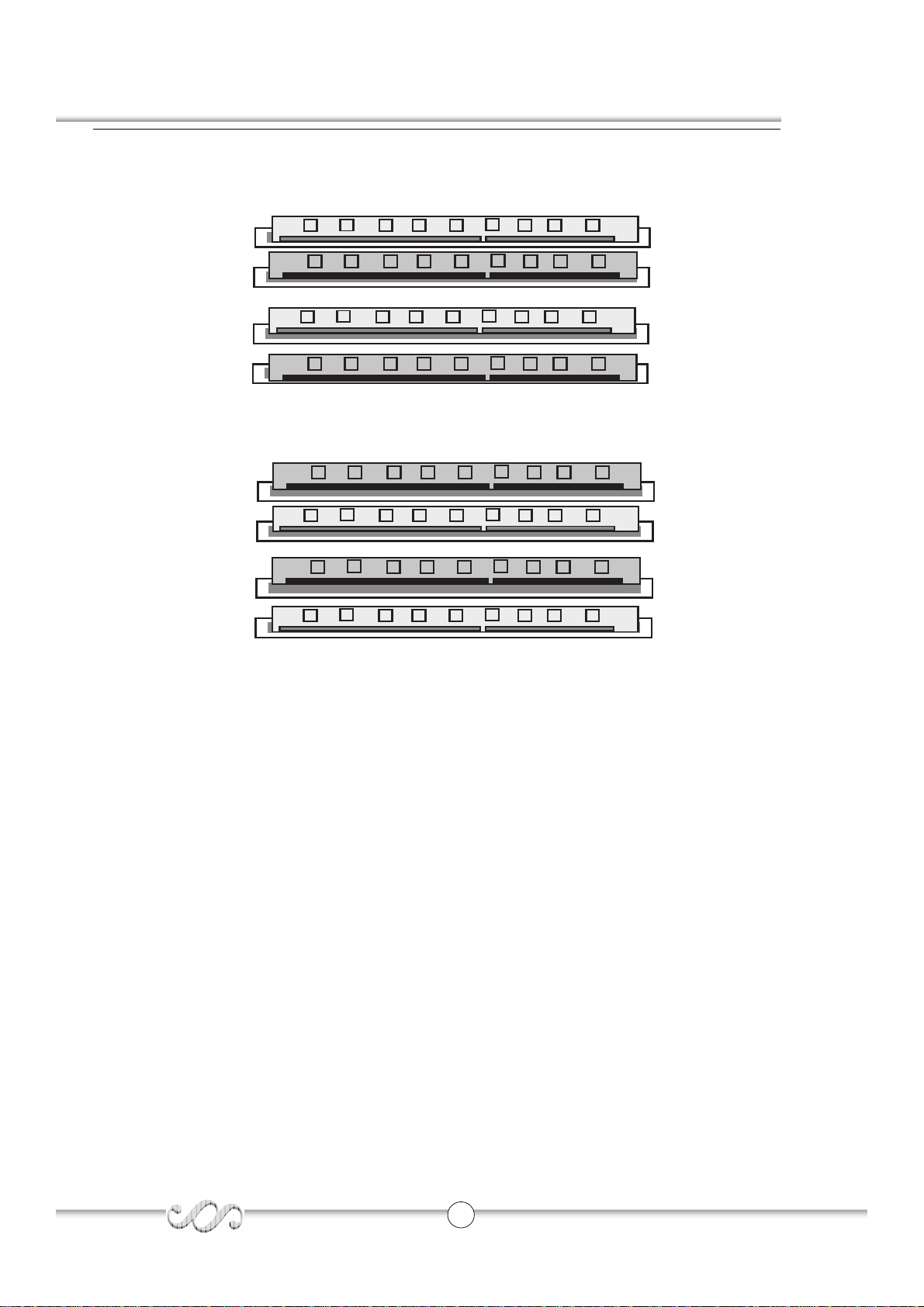

To using dual channel DDR, CHA_DIMM1/CHB_DIMM1 is a combination,
CHA_DIMM2/CHB_DIMM2 is the other combination.The following figure il-
lustrates the dual channel DDR installation:
1. two same memory
CHA_DIMM1
CHA_DIMM2
CHB_DIMM1
CHB_DIMM2
CHA_DIMM1
CHA_DIMM2
CHB_DIMM1
CHB_DIMM2

InstallationInstructions
P5I945P(G)
8
2. four same memory
CHA_DIMM1
CHA_DIMM2
CHB_DIMM1
CHB_DIMM2
CHA_DIMM1
CHA_DIMM2
CHB_DIMM1
CHB_DIMM2

Chapter 2
P5I945P(G)
9
Hard Disk LED Connector (HD_LED)
Theconnector connects tothe case’s IDE indicatorLED indicating theactivitystatus of IDE
hard disk. The connector has an orientation. If one way doesn’t work, try the other way.
Reset Switch (RESET)
The connector connects to the case’s reset switch. Press the switch once, the system
resets.
Power LED Connector (PWR_LED)
Whenthesystemisin S0 status, the LED is on. When the system is in S1 status, the LED
is blink; When the system is in S3(option), S4, S5 status, the LED is off. The connector has
anorientation.
ATX 12V Power Supply Connector & Power Switch (POWER Switch)
The power switch (POWER SW) should be connected to a momentary switch. When
powering up your system, first turn on the mechanical switch of the power supply (if one
is provided), then push once the power switch. When powering off the system, you
needn’t turn off the mechanical switch, just push once the power switch. P5I945P(G)
series mainboard only supportATX12V power.
Note: please pay attention to orientation and sequence of pins when using 20 pins ATX
power supply connector
POWERSW
ATXPowerSupplyConnector
1
-5V/NC
PWR OK
+5VDC
PS-ON
GND
+3.3VDC +12VDC
12V 12V
GND GND
+12V PowerSupplyConnector
GND 5VSB
GND
+3.3VDC GND GND
GND
+5VDC
+3.3VDC
+5VDC +5VDC +12VDC +3.3VDC
-12VDC GND +5VDC GND
HD LED
POWER
LED Power
SW
RESET
Reserved
POWERLED
HD LED
HDD LED(+)
HDD LED(-)
PWR LED(+)
PWR LED(-)
G N D
RESET
EMPTY
RESERVED
G N D
P O W E R
RESET
POWERSW

InstallationInstructions
P5I945P(G)
10
Fan Connectors (CPU_FAN, SYS_FAN and CHS_FAN(optional))
The fan speed of these three fans can be detected.
SYS_FAN
CPU_FAN +12V
SENSE
GND
+12V
GNDSENSE
CHS_FAN
(optional)
PWM
+12V
GND SENSE
DiagnosisLED
During the POST , the LED1~LED5 representing POST steps and detecting Hyper-
threading CPU will light up in turn.
please refer to the following table to learn the POST status:
LED1 LED2 LED3 LED4 LED5 status
blink off off off off CPU damaged , BIOS chip absent or damaged
on off off off off system detect CPU and initialize chipset
off on off off off system detect memory
off off on off off system initialize PCI
off off off on off system initialize clockgen
off off off off on system detect Video and invoke Video BIOS
on on on on on Hyper-Threading OK
off off off off off ready for loading OS
LED1
LED5
LED3 LED4
LED2

Chapter 2
P5I945P(G)
11
USB5 ,USB6; USB7, USB8; Serial Port Connector(COM2)(optional)
Besides USB1,2 or USB3,4 on the back panel, P5I945P(G) series of mainboards also have
two 10-pin headers on board which may connect to front panel USB cable( optional ) to
provide additional four USB ports. The serial port COM2 is not available on the back panel.
Therefore, we provide a 9-pin header.
Infrared Header (IrDA)(optional)
This connector supports wireless transmitting and receiving device.
USB7_8
USB5_6
COM2(optional) DCD
GND
SOUT-
RTS
RI
SIN
NC
DSR
CTS
DTR
1
+5V
USB0+
USB0-
GND
CUT NA
USB1-
USB1+
+5V
GND
1
+5V
USB0+
USB0-
GND
CUT NA
USB1-
USB1+
+5V
GND
IrDA
1
VCC
IRRX
GND
IRTX
CUT

InstallationInstructions
P5I945P(G)
12
Audio Connectors (CD_IN)
CD_IN is Sony standard CD audio connector, it can be connected to a CD-ROM drive
through a CD audio cable.
CD_IN
CD Right Channel
Common
CD Left Channel
SPDIF SPDIFout GND
1
GND SPDIF in
+3.3V
+5V
SPDIF Connector
The SPDIF output allow your digital audio input from digital audio devices.

Chapter 2
P5I945P(G)
13
Onboard SATA(optional)
The mainboard provides four Serial ATAconnectors, SATA is a storage interface that is
compliant with SATA 1.0 Specification. With speed of up to 300Mbps. you can connect
SerialATAcable to SerialATAhard disk.
Front IEEE 1394 port(F_1394)(optional)
Besidesone 1394 port ontheback panel, the mainboardalsohave one 10-pin headers on
boardto provide additional IEEE 1394 port.
F_1394
1TPA+
TPB+
Ground
TPA-
Ground
TPB-
12V(FUSE)
Ground
12V(FUSE)
SATA1/SATA2/SATA3/SATA4
RX-
TX-
GND
GND
GND
RX+
TX+

InstallationInstructions
P5I945P(G)
14
Audio Interface(F_AUDIO)
For the mainboard supportingALC655, The audio interface provides two kinds of audio
output choices: the FrontAudio and the RearAudio. Their priority level is as sequence.
When the FrontAudio is available, the RearAudio( in-case speakers ) will be cut off.An
onboard amplifier is provided for the earphone. When the FrontAudio is absent, Pin5 and
Pin6, Pin9 and Pin10 must be short connected.
For the mainboard supportingALC880, please use HDAfront audio panel for F_AUDIO
function.
F_AUDIO
(for AC’97)
2
4
6
8
10
1
3
5
7
9
F_AUDIO
(for HDA)
2
4
6
8
10
1
3
5
7
9
Pin
No. Symbol Pin
No. Symbol
1 AUD_MIC 2 AUD_GND
3 AUD_MIC_BIAS
4 AUD_VCC
5 AUD_FPOUT_R
6 AUD_RET_R
7 NC 8 (Cut away)
9 AUD_FPOUT_L
10 AUD_RET_L
Pin
No. Symbol Pin No. Symbol
1 F_MIC_ L 2 GND
3 F_MIC_R 4 PRESENCE#
5 HP_ R 6 SENSE1_RETURN
7 SENSE_SEND
8 (Cut away)
9 HP_L 10 SENSE2_RETURN
