Middle Atlantic Products PD-28-SP User manual

I-00659 Rev B

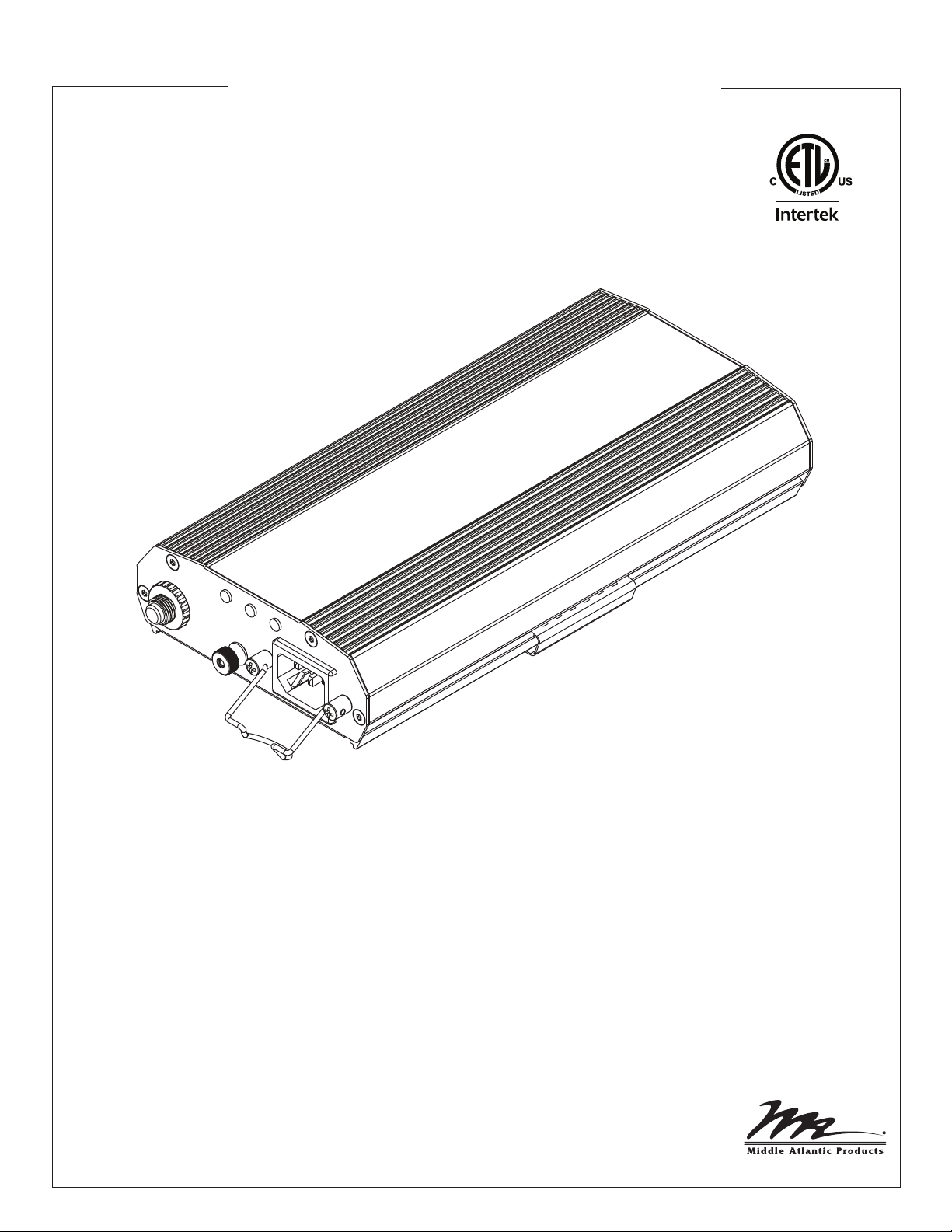

PD-28-SP
Compact Series Protection
Instruction Sheet
Thank you for purchasing the PD-28-SP. Please read these instructions thoroughly before
installing this product.
PRODUCT FEATURES
The PD-28-SP is a small-footprint SPD designed to be installed behind digital signage, video
monitors, and any location where you have space limitations. Cost effective yet high performance
series surge protection, EMI filtering, and basic diagnostics in a compact package. LEDs indicate
incoming voltage status (over voltage/under voltage), and surge protection status. An internal relay
disconnects the load equipment in the event of an over voltage/under voltage condition.

DANGER HAZARDOUS VOLTAGE/DANGER HAUTE
TENSION
The lightning flash with the arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated dangerous voltage within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
L'éclair avec le symbole de flèche dans un triangle
équilatéral est destiné à alerter l'utilisateur de la présence
d'une tension dangereuse non isolée dans l'enceinte du
produit qui peut être d'une ampleur suffisante pour constituer
un risque de choc électrique pour les personnes.
CAUTION/ATTENTION
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
Le point d'exclamation dans un triangle équilatéral est
destiné à alerter l'utilisateur de la présence d'importants
instructions d’opération et de maintenance (entretien) dans la
documentation accompagnant l'appareil.
REGULATORY COMPLIANCE
IMPORTANT SAFETY INSTRUCTIONS
The product meets the requirements of the following standards:
UL 1449, 3rd Ed.
UL 1283, 5th Ed.
CSA C22.2 No. 8, General instruction Nos. 1, 2 and 3 with TIL 516
CAN ICES-3(B)/NMB-3(B)
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
READ AND SAVE THESE INSTRUCTIONS!
CONSERVER CES INSTRUCTIONS!
CAUTION! Failure to read, understand and follow the following information
may result in serious personal injury, damage to the equipment or voiding of the
warranty.
ATTENTION! Échec à lire comprendre et suivre les informations suivantes peut
entraîner des blessures corporelles graves, des dommages matériels ou annuler la
garantie.
CAUTION! This equipment is not intended to be used in conjunction with life
support systems or life saving devices.
ATTENTION! Cet équipement n'est pas prévu pour être utilisé en conjonction avec
les systèmes de survie ou dispositifs de sauvetage.
CAUTION! Ensure this device is connected to a properly grounded AC power
source. Ensure the device is plugged into a source providing the required 120V.
Do not use a plug adapter that defeats the ground pin of the AC plug.
ATTENTION! Assurez-vous cet appareil est connecté à une source d'alimentation
A/C avec mise à la terre. Assurez-vous cet appareil est branché sur une source
d’alimentation fournissant les nécessaires 120V. Ne pas utiliser un adaptateur qui
contrecarre la broche de terre de la prise du cordon d’alimentation.
CAUTION! Route the power cord and other cables so that they are not likely to be
walked on, tripped over, or stressed. Pay particular attention to the condition of the
cords and cables at the plugs, and the point where they exit your unit.
ATTENTION! Acheminez les cordons d’alimentation et les autres câbles de
manière à ce qu’on ne puissepas les écraser ni trébucher sur ceux-ci. Portez
une attention particulière à la condition des cordons et des câbles et aux points
précis où ils sortent de votre dispositif de conditionnement de l’alimentation.
CAUTION! To reduce risk of shock, disconnect the device from the power source
before servicing any connected equipment.
ATTENTION! Pour réduire les risques d'électrocution, débranchez l'appareil de la
source d'alimentation avant l'entretien de tout équipement connecté.
CAUTION! Do not overload this device. Ensure the total load to this device does
not exceed that which is listed in the specifications section of this manual.
ATTENTION!Ne pas surcharger cette appareil. S'assurer que la charge totale à
cet appareil ne dépasse pas celle qui est répertoriée dans la section des
spécifictions de ce manuel.
CAUTION! There are no user-serviceable components within this device.
Removal of the cover from this device may present a shock hazard, and void the
warranty.
ATTENTION! Il n'ya pas de composants réparables par l'utilisateur au sein de cet
appareil. Retrait de la couverture de cet appareil peut présenter un danger
d'électrocution et annuler la garantie.
To be used indoors in a dry location only.
Pour être utilisé en intérieur dans un endroit sec seulement.
Do not operate with a damaged cord or plug.
Ne pas faire fonctionner avec un cordon ou une prise endommagée.
Clean only with dry cloth.
Nettoyer avec un chiffon sec seulement.
CAUTION! Do not install this device if there is not at least 30 feet
(10 meters) or more of wire between the electrical outlet and
the electrical service panel.
ATTENTION! Ne pas installer cet appareil s'il n'y a pas au moins
30 pieds (10 mètres) ou plus de fil entre la prise électrique et
le panneau de service électrique.
Page 2

1
2
3
4
5
6
7
8
Page 3
FEATURE SET
Total 120V - 8A - 60Hz
46
7
2
1
389
5
OVER VOLTAGE LED: Illuminates red when there is an over voltage condition.
Otherwise the LED is off.
- Over Voltage Threshold: Upper Limit Cutoff (135V) - Upper Limit Restore (126V)
NOTE: If limit exceeded, the internal relay will open to protect the unit.
INPUT VOLTAGE LED: Protected when illuminated green. If LED is not illuminated, the unit is not
receiving power.
UNDER VOLTAGE LED: Illuminates red when there is an under voltage condition.
Otherwise the LED is off.
- Under Voltage Threshold: Lower Limit Cutoff (100V) - Lower Limit Restore (105V)
NOTE: If limit exceeded, the internal relay will open to protect the unit.
POWER CORD SECUREMENT CLIP
POWER CORD INLET
GROUNDING/BONDING STUD
CIRCUIT BREAKER: Press if the circuit breaker trips.
HORIZONTAL OUTLET: 8 AMP/120 VOLT/60 Hz outlet.
9VERTICAL OUTLET: 8 AMP/120 VOLT/60 Hz outlet.
HARDWARE KIT
POWER CORD QTY
1
MOUNTING BRACKET QTY
1
FLATHEAD
MOUNTING SCREW QTY
2
BLOCK NUT QTY
2
DRYWALL ANCHOR QTY
2
DRYWALL SCREWS QTY
2
NOTE: If the 8 AMP limit is exceeded, the circuit breaker will trip.
Y
F
S
Y
F
S
Y
F
S
Y
F
S
Reset
PD-28-SP
120V - 8A - 60Hz
OV UV

Page 4
WARRANTY
Middle Atlantic Products, Inc. (the "Company") warrants the PD-28-SP to be free from defects in material or workmanship under normal use and
conditions for a period of (12) twelve years from date of shipment by the Company.
The Company's entire liability to the purchaser, and the purchaser's (or any other party's) sole and exclusive remedy, under this warranty shall be limited, at the Company's option, to
either (a) return of and refund of the price paid for, or (b) repair or replacement at the Company's factory of the products purchased, or any part or parts thereof, which the Company
has determined to be defective after inspection thereof at the Company's factory. This warranty does not cover damage due to acts of God,accident, misuse, abuse or negligence by
parties other than the Company, or any modification or alteration of the products. In addition, this warranty does not cover damage due to improper handling, assembly, installation or
maintenance.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL THE COMPANY BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION OR ANY
OTHER PECUNIARY LOSS) ARISING OUT OF THE USE OF THE PRODUCTS PURCHASED, EVEN IF THE COMPANY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH
DAMAGES. THE COMPANY'S LIABILITY TO THE PURCHASER (OR ANY OTHER PARTY) HEREUNDER, IF ANY, SHALL IN NO EVENT EXCEED THE PURCHASE PRICE OF
THE PRODUCTS PAID TO THE COMPANY.
Corporate Headquarters
Corporate Voice 973-839-1011 - Fax [phone] / International Voice [phone] - Fax [phone]
middleatlantic.com - [email protected]
Middle Atlantic Canada
Voice 613-836-2501 - Fax [phone] / middleatlantic.ca - [email protected]
Factory Distribution
USA: NJ - CA - IL Canada: ON - BC

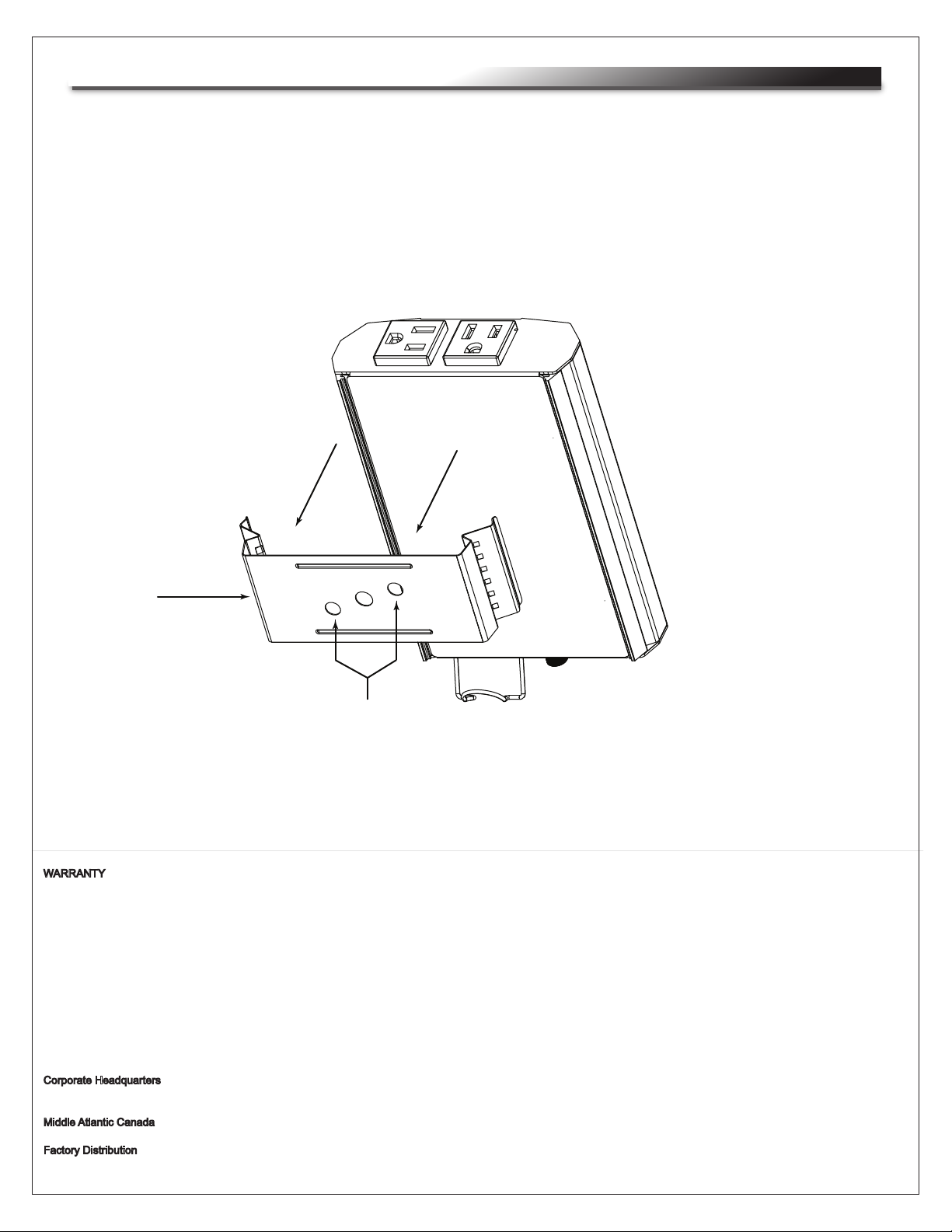

INSTALLATION
1) Install mounting clip into desired location using the outer two provided mounting holes.
2) Insert the PD-28-SP into the mounting clip.
MOUNTING
CLIP
MOUNTING
HOLES
