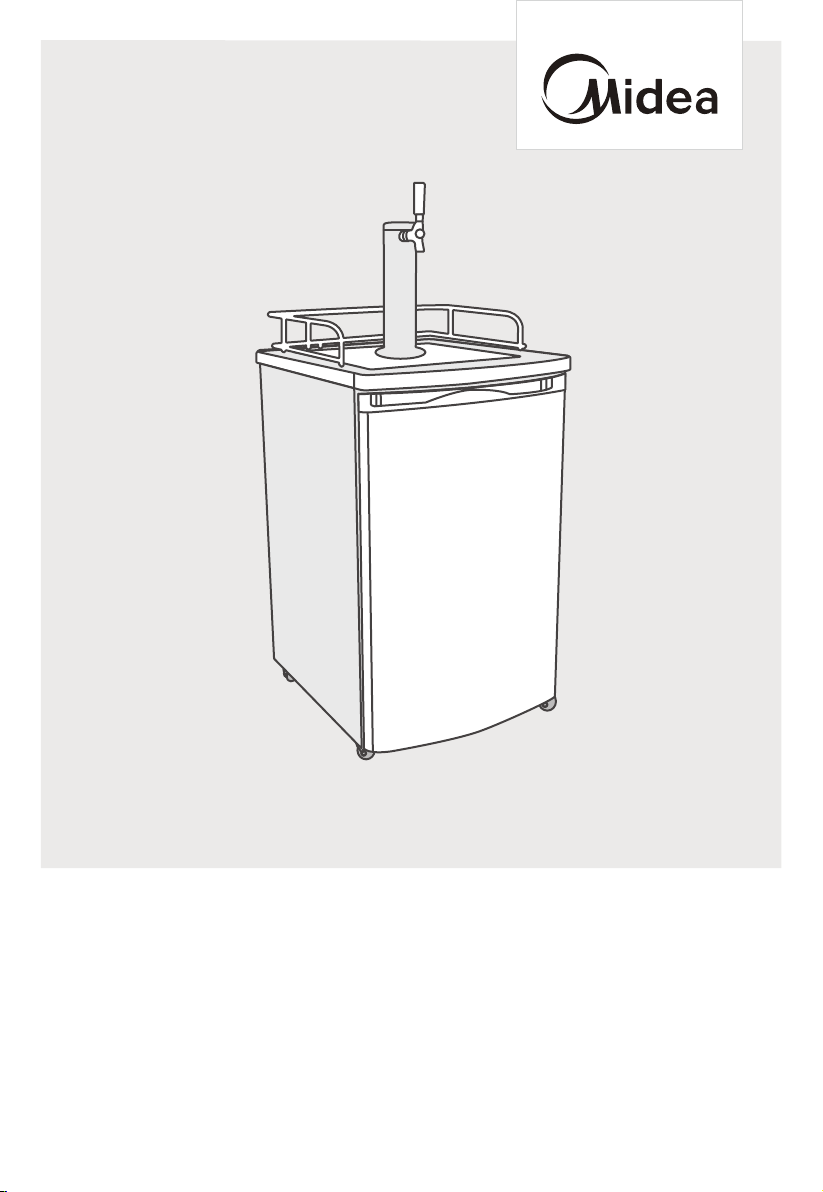

Midea MK049ASTC User manual

Beer Cooler
MK049ASTC
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement.
Consult with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.

LANGUAGES EN English
Free 3 months
extension of the
original limited warranty
period!*Simply text a
picture of your proof of
purchase to:
1-844-224-1614
*The warranty extension is for the three months
immediately following
the completion of the product’s original warranty
period. Individuals do not need to register the
product in order to get all the rights and remedies
of registered owners under the original limited
warranty.

01
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
functions that your new appliance offers in a safe way.
CONTENTS
THANK YOU LETTER ------------------------------------------- 01
SAFETY INSTRUCTIONS--------------------------------------- 02
SPECIFICATIONS ------------------------------------------------ 06
PRODUCT OVERVIEW ----------------------------------------- 07
PRODUCT INSTALLATION------------------------------------ 10
TEMPERATURE GAUGE---------------------------------------- 18
CLEANING AND MAINTENANCE---------------------------- 19
TROUBLESHOOTING ------------------------------------------- 20
TRADEMARKS, COPYRIGHTS
AND LEGAL STATEMENT ------------------------------------- 21
DISPOSAL AND RECYCLING --------------------------------- 22
DATA PROTECTION NOTICE -------------------------------- 23
WARRANTY ------------------------------------------------------- 24

02
SAFETY INSTRUCTIONS
Intended use
Before switching on the appliance for the first time read the following
safety hints!
Your safety and the safety of others is very important.We have provided many
important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
Explanation of symbols
Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely ammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of persons
due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if not
avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Read these operating instructions carefully and attentively before using/
commissioning the unit and keep them in the immediate vicinity of the installation
site or unit for later use!

03
WARNING Important safeguards
A person who has not read and understood all operating and safety
instructions is not qualified to operate this appliance. All users of this
appliance must read and understand this Instruction Manual before
operating or cleaning this appliance.
When using electrical appliances, basic safety precautions should
always be followed,including:
1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Keep out of reach of children.
5. Unsupervised young children and cognitively challenged individuals should
never operate this appliance.
6. Close supervision is necessary when any appliance is used by or near children.
7. To protect against electrical shock do not immerse cord, plug or any part of
this unit in water or other liquids.
8. Do not operate this appliance when parts are missing or broken.
9. Unplug from outlet when not in use, before removing parts and before
cleaning. Allow to cool before putting on or taking off any parts, and before
cleaning.
10.DO NOT operate any appliance with a damaged cord or plug, or after the
appliance malfunctions, or if the appliance has been damaged in any manner.
Return the appliance to the nearest repair shop for examination, repair or
adjustment.
11. The manufacturer does not recommend the use of accessory attachments
other than what is provided by the manufacturer. Use of attachments may
cause injuries.
12. DO NOT use the appliance for other than its intended use.
13. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
14. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
15. DO NOT put any parts of this appliance in dishwasher.
16. DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
17. NEVER leave unit unattended while in use or when plugged into an outlet.
18. Always attach plug to appliance rst, then plug cord in the wall outlet. To
disconnect, turn any control to “off,” then remove plug from wall outlet.

04
WARNING Additional important safeguards
Operating Safety Precautions
1. Before discarding your old appliance, remove the door from its hinges so that
children do not easily become trapped inside.
2. DO NOT roll this appliance with loaded beer kegs onto carpeted oor.
3. The appliance door must be closed during operation. DO NOT leave the door
open when children are near.
4. This appliance should not be recessed or built into an enclosed cabinet. It is
designed for freestanding assembly only.
5. Do not operate your appliance in the presence of explosive fumes.
6. Do not tamper with the controls.
Instructions for the Electrical Cord and Plug
1. ELECTRICAL SHOCK HAZARD: Failure to follow these instructions can result
in death, re, or electrical shock.
• Plug into a grounded 3 prong outlet.
• DO NOT remove ground prong.
• DO NOT use an adaptor.
• DO NOT use an extension cord.
2. This unit MUST be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for
the electric current. This unit is equipped with a cord having a grounding wire
with a grounding plug.
• The plug must be plugged into an outlet that is properly installed and grounded.
3. WARNING: Improper use of the grounding plug can result in a risk of
electric shock. If the plug does not t fully into the outlet, contact a qualied
electrician. Do not attempt to modify the plug in any way.
4. A short power supply cord is provided to reduce the risk of becoming
entangled or tripping over a long cord.
5. The manufacturer does not recommend using this machine in countries that do
not support 120 V AC even if a voltage adaptor, transformer, or converter is in
use.

05
CO2(Carbon Dioxide) Gas
1. CO2gas can be dangerous! CO2cylinders contain high-pressure compressed
gas,which can be hazardous if not handled properly. Make sure you read and
understand all the procedures for the CO2cylinders before installation.
2. Always connect the CO2cylinder to a regulator! Failure to do so may cause
an explosion resulting in possible death or injury when the cylinder valve is
opened.
3. Never connect the CO2cylinder directly to the beer keg.
4. Always follow the correct procedures when changing the CO2cylinder.
5. Never drop or throw a CO2cylinder.
6. Always keep CO2cylinders away from heat. Store extra cylinders in a cool
place (preferably 21°C/ 70°F). Fasten securely with a chain when storing in an
upright position.
7. ALWAYS ventilate and leave the area immediately if CO2leakage has occurred.
8. There are two safety devices in the pressure system in the form of a valve. One
safety feature is on the CO2bottle. The second is on the regulator.
9. Never attempt to rell CO2cylinder yourself.
10.IMPORTANT! If the refrigerator has been placed in a horizontal or tilted
position for any period of time, wait 8 hours before plugging in the unit.
SAVE THESE INSTRUCTIONS!
INTRODUCTION
Great for serving even the thirstiest crowd, this appliance keeps the beer
owing and the good times rolling. This unit adds a unique element to backyard
barbecues, garage hangouts, recreation rooms, or simply relaxing at home.
Proper Location
To ensure that your appliance works to the maximum efciency for which it was
designed, keep it in a location where there is proper air circulation and electrical
outlets. Choose a location where this appliance will be away from heat and will
not be exposed to direct sunlight.
• Indoor use only. It should not be used outdoors.
• Designed to be freestanding and should not be placed in a built-in or recessed
area.
• Unit includes a 5 lbs. CO2bottle.
• Capacity: 4.9 cu.ft.
• Unit dimensions: 20.1 x 24.8 x 33.5 in(51 x 63 x 85 cm)
• The following dimensions are recommended for clearances around the this
appliance:
Sides …………………… 3/4” (19 mm)
Back ……………………. 1” (25 mm)

06
SPECIFICATIONS
Product model MK049ASTC
Volume 4.9 cu.ft.(140 L)
Rated Voltage 115 V~
Rated Frequency 60 Hz
Rated Current 1.1 A
Rated Power 90 W
Refrigerant R600a
Amount 0.71 oz (20 g)
Unit Dimensions 20.1 x 24.8 x 33.5 in(51 x 63 x 85 cm)

07
PRODUCT OVERVIEW

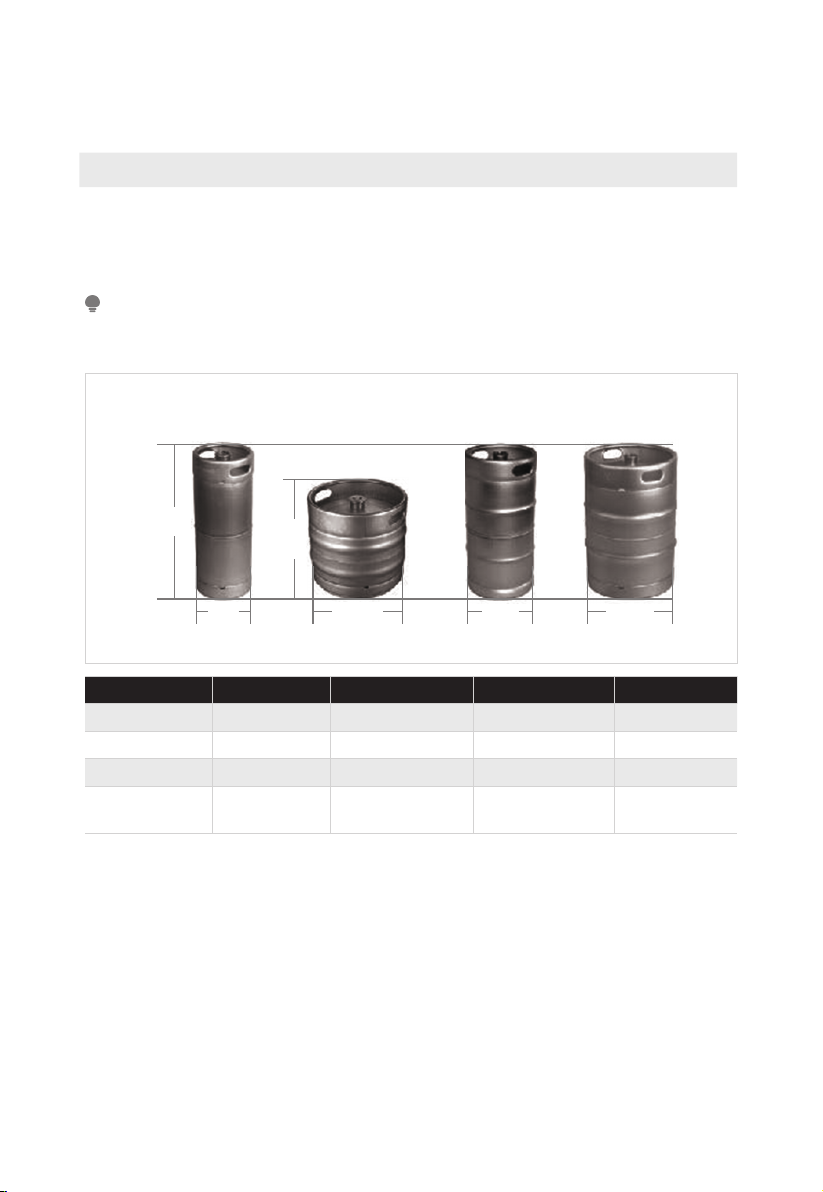

Compatible keg types
The appliance can hold one full-size Keg, or one Pony Keg, or two sixth barrel
Kegs.
DOES NOT t non-standard keg sizes.
NOTE
Keg Coupler only ts D-Sankey Keg Valves. Attaching the Keg Coupler will add height to the
Keg.
sixth barrel
23 3/8’’
59.4cm
9 1/4’’
23.5cm
16 1/8’’
41cm
11 1/8’’
28.3cm
23 3/8’’
59.4cm
23 3/8’’
59.4cm
16 1/8’’
41cm
13 7/8’’
35.5cm
quarter barrel
(pony keg)
slim quarter barrel
(tall keg)
1/2 barrel
(full size)
Kegs 1/6 Barrel 1/4 Barrel Short 1/4 Barrel Slim 1/2 Barrel
Gallons 5.23 7.75 7.75 15.50
Keg Capacity 1 1 1 1
12 oz.Beers 55 82 82 165
Weight(Full) 58 lbs
26.3kg
87lbs
39.5kg
87 lbs
39.5kg
161 lbs
73 kg
Read all instructions carefully before assembling this appliance.
IMPORTANT! Stand this appliance in an upright position for 8-10 hours beforeplugging
into an electrical outlet. This will allow the coolant in the refrigeration unit to stabilize
before turning on the power.
If still unsure whether your appliance has been properly assembled, it is recommended
that you contact customer service, or a qualied installer, such as a brewery or
wherever kegs are sold.

08
Washers / beer line adaptor parts
NOTE
Most washers are already attached to this appliance. Extra parts are included
in a plastic bag. Refer to the parts diagram and corresponding part numbers to
understand where each washer / extra parts belong.
Hose Clamps
(Part 4)
Body Seal Coupler
Washer (38 mm)
(Part 5)
Probe Seal Coupler
Washer (22 mm)
(Part 5)
Tap Tower
Washer (24 mm)
(Part 1)
Spigot Handle
Washer (15 mm)
(Part 2)
Inner Probe Seal
Coupler Washer
(23 mm)
(Part 5)
Tap Tower Spigot
Washer (13 mm)
(Part 3)
Top Coupler Washer
(20 mm)
(Part 5)
Washer (18 mm)
(Part 6)
(Exterior Cabinet)Washer
(Part 5)
Metal Washer
Qty. 2
(
Part 11
)
(Part 5)
Tap Tower Washer
(Part 1)
CO2Directional CO2Hole Plug
Regulator High Pressur
e

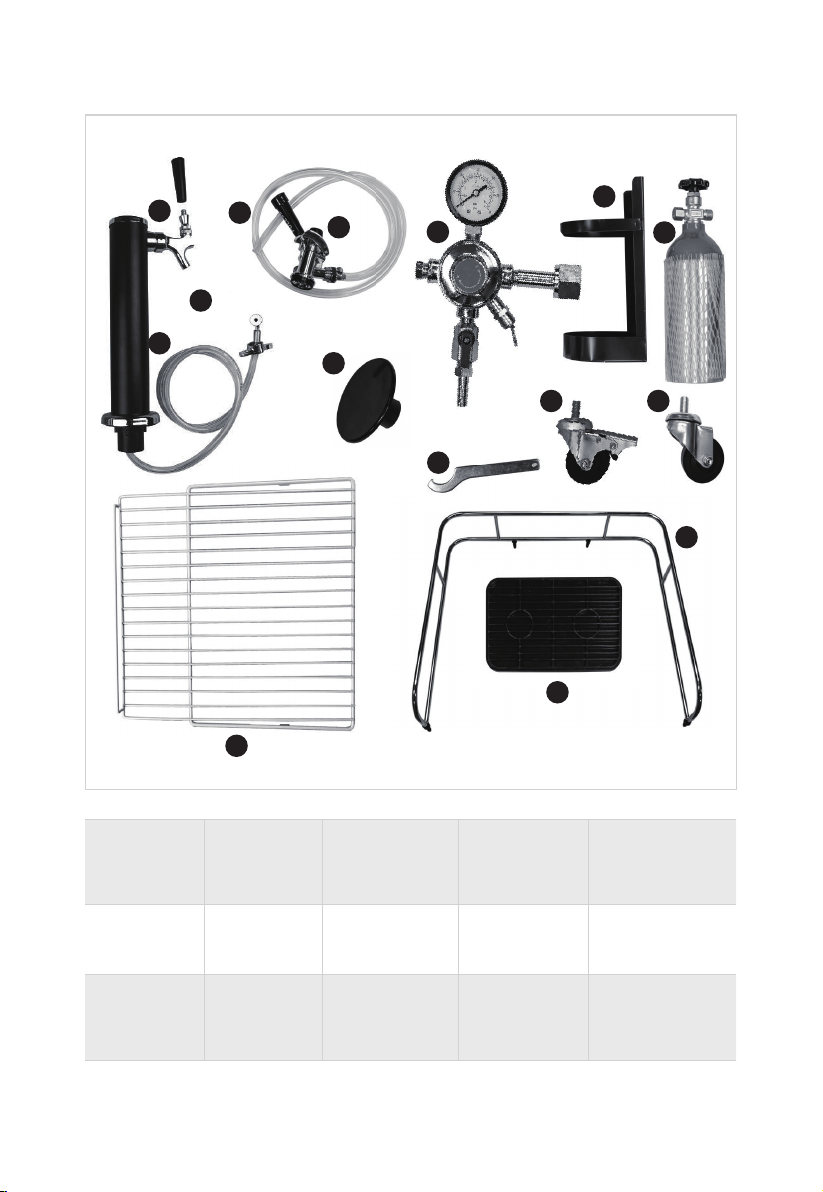

09
Partas
1
2
3
456
7
8
9
10
11 12
13
14
15
(1) Tap Tower
Qty. 1
(2) Spigot
Handle
Qty. 1
(3) Tap Tower
Spigot
Qty. 1
(4) CO2Line
Qty. 1
(5) Keg Coupler
(US Sankey
D-System)
Qty. 1
(6) Regulator
Qty. 1
(7) CO2Tank
Holder
Qty. 1
(8) CO2Tank
(unlled)
Qty. 1
(9) Top Cabinet
Plug
Qty. 1
(10) Tap Tower
Wrench
Qty. 1
(11) Front
Locking
Castors
Qty. 2
(12) Rear Non-
Locking
Castors
Qty. 2
(13) Wire Shelf
Qty. 2
(14) Guard Rail
Qty. 1
(15) Drip Tray
Qty. 1

10
PRODUCT INSTALLATION
Installing the castors
1. Empty the inside of the cabinet and lay the unit down on its side. To prevent
dents or scratches, we recommend placing a piece of cardboard or cloth
underneath the cabinet.
2. For the Front Castors, place Metal Washers over the Castor bolts, then insert
the Castors into the holes on the bottom corners of the cabinet. (The Rear
Castors do not require Metal Washers.) Tighten each Castor by turning each
metal bracket clockwise.
3. Once all four Castors have been tightened, stand the cabinet in the upright
position.

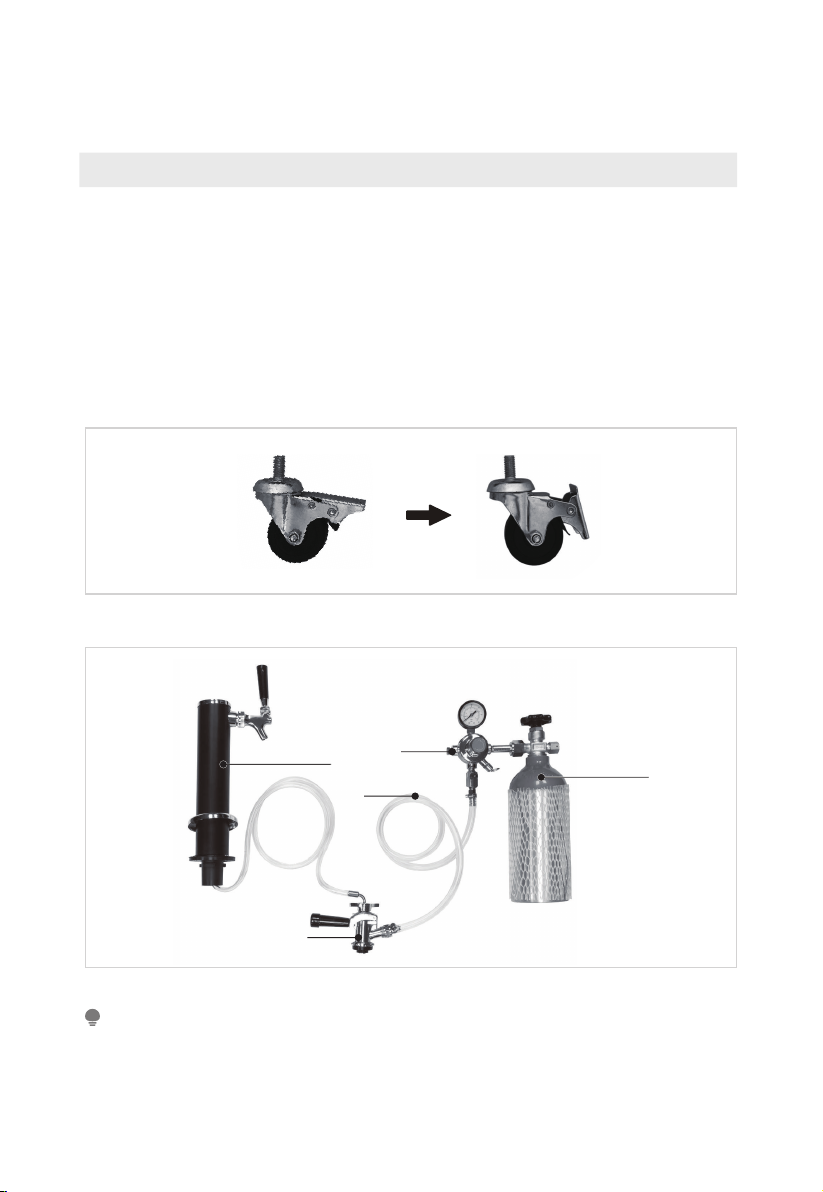

Locking the front castors
Unlocked Locked
Assembly overview
Tap Tower
CO2Line
Keg Coupler
CO2Tank
Regulator
NOTE
Each of the Front Castors include a locking mechanism to ensure the unit does
not roll on hard oors. The Front Castors should be fastened at the front end of the
unit, with the Non-Locking Rear Castors fastened on the rear end.

11
Tap tower installation
1. Remove all packing tape from the Tap Tower.
2. Guide the Tap Tower Washer up the tap tower
hose and let it sit on the top of the cabinet. Then
feed the tap tower hose through the hole in the
top of the cabinet.
3. Align the notches at the bottom of the tower with
the hole in the top of the cabinet, then insert and
twist the tower clockwise to lock it into place
(about a 1/4turn).
Tap Tower Washer
Tap Tower
Attaching coupler to tap tower
Remove the packing spring and Backow Stopper
from inside the Keg Coupler, then reinsert the
Backow Stopper into the Keg Coupler (rounded
side down). Insert (rounded
side down)
Remove & discard
Remove the black packing cap from the top of the
Coupler, then place the Top Coupler Washer ush
and centred on the top of the Keg Coupler.
After the Tap Tower has been placed on top the
cabinet and the hose line feeds through the bottom,
attach the wing nut to the Keg Coupler.

12
Attaching coupler to regulator
1. If not already inserted, insert the CO2
Directional Washer into the Keg Coupler. Then
screw the CO2Line onto the Keg Coupler.
2. Push the other end of the CO2Line through
the hole in the rear of the cabinet. Slide a
Hose Clamp onto the end of the CO2Line,
then attach the hose to the barb tting on the
bottom of the regulator. Secure the CO2Line
by tightening the Hose Clamp with a athead
screwdriver.
Hose
Clamp
Attaching regulator to CO2tank
IMPORTANT! When you purchase your rst keg of beer, you must also have your
CO2 Tank lled by a local supplier. CO2 Tanks can be lled at locations such as
welding supply shops, party stores, and wherever kegs are purchased.
1. Align and hook the 4 holes of the CO2Tank
Holder with the screws on the back of the unit.
2. Make sure the white nylon High Pressure
Washer (already installed) is attached to the
Regulator.

13
3. Use an adjustable wrench (not included) to
attach the Regulator to the CO2Tank.
4. Place the CO2Tank into the CO2Tank Holder.
Tap Tower
Hose
Keg
Coupler
Connects
to Keg
CO
2
Line
Interior Cabinet
Completed CO2tank installation
Below is an overview of how the interior and back panel of your appliance should
look at this point of assembly.
Keg
Coupler
Connects
to Keg
CO2
Line
Interior Cabinet
Tap Tower
Hose
Regulator
CO2Tank
CO2
Tank
Back Exterior
DANGER!
CO2can be dangerous! CO2cylinders contain high-pressured gas, which can be hazardous if
handled improperly. They must be handled with care.

14
Installing the guardrail / drip tray
1. Place the guardrail on top of the unit and align all pegs of the guardrail with
the holes on top of the unit.
2. Ecure the guardrail to the unit by pushing the pegs inside the corresponding
holes.
3. Place the drip tray at the base of the tap tower.
Assembly
Tap Tower
Handle
Drip Tray
Guardrail
Tap Tower
Tapping the beer keg
(SINGLE VALVE-TYPE KEG)
1. Make sure the black pull handle of the
Coupler is in the open (up) position, then
insert the Coupler into the locking neck of
the beer keg.
2. Turn the Coupler clockwise until it locks
securely into position.

15
3. Make sure the Tap Tower Is In The Closed
(Handle Pointing Straight Up) Position.
secure The Connection By Pulling The
Coupler Handle Out And Pushing Down
Until It Locks Into Position. The Pull Handle
Will “Click” When It Shifts Into The Final
Downward Position. This Will Open The
Beer And CO2Gas Valves. The Keg Is Now
Tapped.
Setting the regulator
The regulator connects the CO2tank to the CO2line, while measuring psi (pounds
per square inch) and the volume of CO2in the tank. Set the output pressure
gauge between 8-12 psi for a nice, frothy head.
Overview
Pressure Dial: Adjusts
the output pressure
(loosen set screw with Allen Wrench)
Output Pressure Gauge:
Measures psi of CO2
Tank to Keg (0-60 psi)
Connects to
CO2Tank
(shown in open position)
Connects to
CO2Line
Pressure Relief Valve
(PRV): Allows gas to
to obtain an accurate
pressure reading.
CO2
CO2

16
How to set regulator
1. Close the Shut Off Valve on the Regulator,
and open the CO2Tank valve completely by
turning it counterclockwise.
2. Slowly turn Pressure Dial all the way to the
negative ( - ), then pull the Pressure Relief
Valve (PRV) to ensure an accurate reading.
Then very slowly turn the Pressure Dial
clockwise until the desired pressure is shown
on the Output Pressure Gauge (8-12 psi is
recommended).
• Turning clockwise will increase the output
pressure (higher psi).
• Turning counter-clockwise will decrease the
output pressure (lower psi).
3. Once desired pressure is reached, tighten the
inner Locking Ring. Pull the PRV to assure the
correct setting. If necessary, readjust your
settings. Next, open the CO2Shut Off Valve
on the Regulator to allow gas to ow from
the Regulator to the Keg Coupler. You will
hear the keg pressurizing. The output needle
will drop momentarily until the pressure has
equalized. Then the needle will return to the
point you set it at.
4. Finally, we suggest you re-check the output
pressure on the Regulator, and if necessary
re-adjust starting at step #1 until the desired
pressure is reached.

17
How to operate
Follow the steps below to dispense beer from your appliance.
1. Make sure the unit is plugged into a properly grounded AC outlet.
2. Place the Drip Tray under the beer faucet to avoid messes from excess beer.
3. To dispense beer pull the Tap Handle towards you. Refer to the section on
Tapping the Beer Keg if the beer does not dispense.
4. When pouring, hold the glass steady at a 45° angle. When it is 2/3 full,
straighten the glass. Ideally, foam should have a tight creamy head and the
collar on an average glass should be 3/4” to 1” (2 to 2.5 cm) high.
5. Increase the pressure if the beer runs too slowly (see Setting the Regulator
section). Generally, 8-10 psi is recommended.
6. Cheers!
Convert to refrigerator
Follow these steps to easily convert this appliance into a refrigerator.
1. Remove all parts and hoses from the interior and exterior of the unit, including
all hoses, the CO2Tank and Tap.
2. To seal off the unit, insert the Top Cabinet Plug
into the opening on the top of the cabinet.
3. Then insert the CO2Hole Plug into the CO2Line
hole located in the upper left corner on the
back exterior of the cabinet.
4. Arrange the included Wire Racks in the cabinet
interior to t your refrigeration needs.

18
TEMPERATURE GAUGE
Control panel
The temperature gauge is located in the interior cabinet of the appliance in the
upper left-hand corner.
NOTE
Before purchasing a beer keg, allow the unit to cool for 48 hours.
