Leica CS20 User manual

Leica CS20 & GS07 Sensor
Quick Guide
Version 2.2
English

1 Important Information about your Instrument
Read and follow the User Manual on the accompanying data storage device
before using the product.
Keep for future reference!
•Remote control of product.
•Data communication with external appliances.
•Recording measurements.
•Computing with software.
•Carrying out measurement tasks using various GNSS measuring techniques.
•Recording GNSS and point related data.
•Measuring raw data and computing coordinates using carrier phase and
code signal from GNSS satellites (GNSS systems).
The CS20 instrument contains the following laser products:
Laser product Laser class
DISTO module Class 2
The classication is in accordance with IEC 60825-1 (2014-05).
☞
Intended use
Laser products
2 Important Information about your Instrument

CAUTION
Class 2 laser product
From a safety perspective, class 2 laser products are not inherently safe for the
eyes.
Precautions:
▶Avoid staring into the beam or viewing it through optical instruments.
▶Avoid pointing the beam at other people or at animals.
8577_002

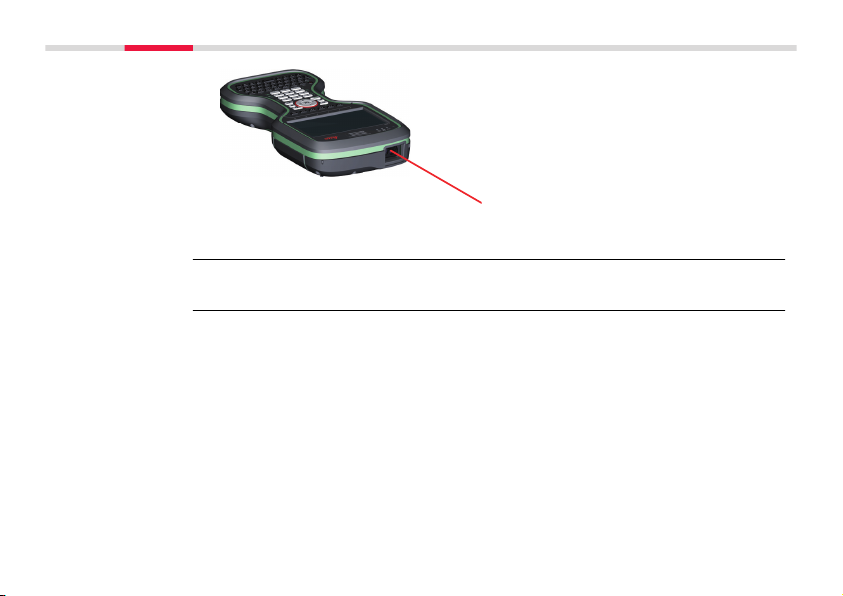

Labelling and
location of laser
aperture
3 Important Information about your Instrument

008468_001
a
Laser Radiation
Do not stare into the beam.
Class 2 Laser Product according to
IEC 60825-1 (2014 - 05)
Po £ 0.95 mW
l = 620 nm - 690 nm
a Laser beam
The following advice is only valid for power adapter or docking station.
☞
4 Important Information about your Instrument

WARNING
Electric shock due to use under wet and severe conditions
If unit becomes wet it may cause you to receive an electric shock.
Precautions:
▶If the product becomes humid, it must not be used!
▶Use the product only in dry environments, for example in buildings or
vehicles.
▶Protect the product against humidity.
The product must not be disposed with household waste.
For products without radio transmitter or receiver:
•FCC Part 15 (applicable in US)
Conformity to
national
regulations
5 Important Information about your Instrument

•Hereby, Leica Geosystems AG declares that the product/s
is/are in compliance with the essential requirements and
other relevant provisions of the applicable European Direct-
ives.
The full text of the EU declaration of conformity is available
at the following Internet address:
http://www.leica-geosystems.com/ce.
•FCC Part 15, 22 and 24 (applicable in US)
•Hereby, Leica Geosystems AG declares that the radio equipment type
CS20 is in compliance with Directive 2014/53/EU and other applicable
European Directives.
The full text of the EU declaration of conformity is available at the fol-
lowing Internet address: http://www.leica-geosystems.com/ce.
Class 1 equipment according to European Directive 2014/53/EU
(RED) can be placed on the market and be put into service without
restrictions in any EEA member state.
•The conformity for countries with other national regulations not covered
by the FCC part 15, 22 and 24 or European Directive 2014/53/EU has to
be approved prior to use and operation.
Conformity to
national
regulations
6 Important Information about your Instrument

Applicant name: Leica Geosystems Korea AG
Product name: Specic small output wireless device
Model name: CS20 LTE
KC number: R-R-rks-CS20LTE
Manufacture date: Marked separately
Manufacturer: LEICA GEOSYSTEMS/SWITZERLAND
•FCC Part 15 (applicable in US)
•Hereby, Leica Geosystems AG declares that the radio equipment type
CGR4 is in compliance with Directive 2014/53/EU and other applicable
European Directives.
The full text of the EU declaration of conformity is available at the fol-
lowing Internet address: http://www.leica-geosystems.com/ce.
•This Class 2 equipment may be operated in: AT, BE, BG, CA, CH, CY, CZ,
DE, DK, EE, ES, FI, FR, GB, GR, HU, IE, IS, IT, LT, LU, LV, MT, NL, NO, PL, PT,
RU, RO, SE, SI, SK, US.
Conformity to
national regula-
tions
Conformity to
national
regulations
7 Important Information about your Instrument

Class 2 equipment according to European Directive 2014/53/EU
(RED) for which following EEA Member States apply restrictions on
the placing on the market or on the putting into service or require
authorisation for use:
•France
•Italy
•Norway (if used in the geographical area within a radius of
20 km from the centre of Ny-Ålesund)
•The conformity for countries with other national regulations not covered
by the FCC part 15 or European Directive 2014/53/EU has to be approved
prior to use and operation.
8 Important Information about your Instrument

2 Instrument Components
008471_001
a
b
c
e
f
d
g
h
a DISTO with camera
b Screen
c Keyboard
d Connector cover
e Power socket
f SD card slot
g USB A host port
h LEMO port (USB and serial)
Upside of CS20
9 Instrument Components

8472_002
a
b
c
h
e
f
d
g
i
a Hand strap
b Thread for screwing on hand
strap or utility hook
c Expansion cover
d Digital camera with ash
e Stylus
f Battery compartment
g SIM card slot under the bat-
tery
h Socket for fastening clip of
the hand strap
i Tether for the stylus
Underside of CS20
10 Instrument Components

008473_001
a
b
c
e
f
d
g
h
i
j
k
l
m
n
o
p
q

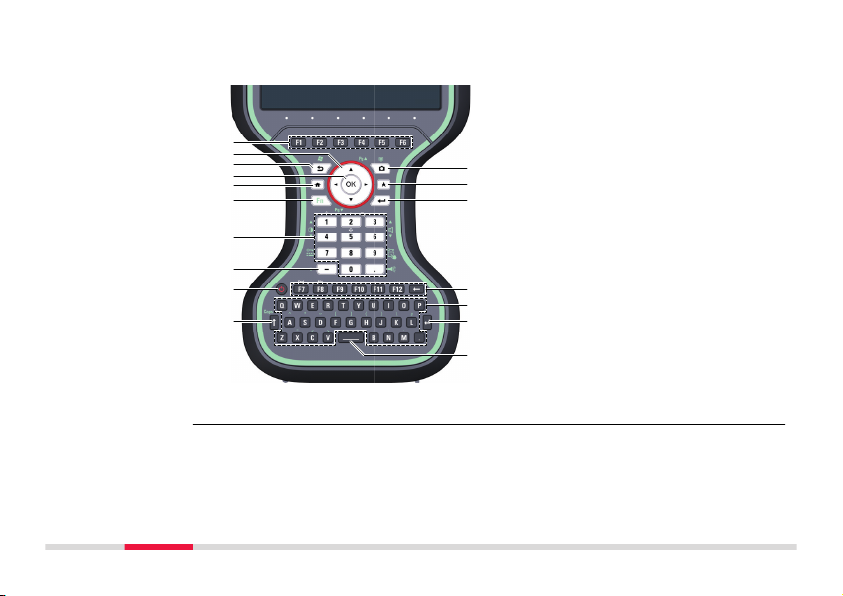

a Function keys F1 - F6
b Arrow keys
c ESC
d OK
e Home
fFn
g Numeric keys
h ± key
i ON/OFF
j CAPS Lock
k Cameras
l Favourites
m ENTER
n Function keys F7 - F12;
Backspace
o Alpha keys
p ENTER
q SPACE
Keyboard display
11 Instrument Components

0016301_001
a
b
c
d
e
a ON/OFF button
b LEDs
c LEMO port including USB
port
d Antenna Reference Plane
(ARP)
e Battery compartment
GS07 components
12 Instrument Components

3 Technical Data
Temperature
Type Operating temperature
[°C]
Storage temperature
[°C]
CS20 −30 to +60* −40 to +80
GEB331 −30 to +60 −40 to +70
GS07 −40 to +65 −40 to +80
* The operating temperature of the DISTO module is −10  C to +50  C. Outside of
these limits, the module will be switched off automatically and a warning mes-
sage will be displayed.
Protection against water, dust and sand
Protection
Instrument GS07: IP66 & IP68 (IEC 60529)
CS20: IP68 (IEC 60529)
☞CS20 is in compliance with IP68 only when
expansion cover, connector cover and battery
cover are closed.
Dust tight
Environmental
specications
13 Technical Data

Protection
Protected against continuous immersion in water
Tested for 2 hours in 1.40 m depth
GEB331 IP54 (IEC 60529)
Dust protected
Protection against splashing water from any direction
Humidity
Protection
Instrument Up to 95 %.
The effects of condensation are to be effectively counteracted
by periodically drying out the instrument.
GEB331 For indoor use only
14 Technical Data

4 Care and Transport
•Carry the product in its original container or carry the tripod with the
attached product upright, to protect it against shock and vibration.
•Periodically carry out test measurements and perform the eld adjustments
indicated in the User Manual, particularly after the product has been
dropped, stored for long periods or transported.
008590_001
Care and transport
DISTO window
15 Care and Transport

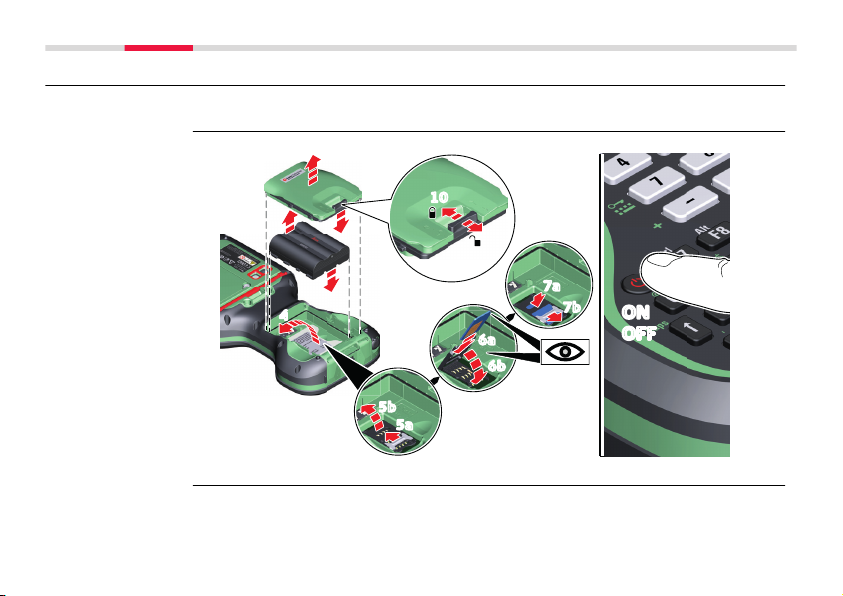

5 Operation
The battery must be charged before using it for the rst time.
ON
OFF
2
3
4
8
91
10
7b
7a
6a
6b
5b
5a
008593_001
☞
Turning the
instrument ON and
OFF
16 Operation

12
ON
OFF
004096_002
4
3
5
Turning on and off
the GS07
17 Operation

896293-2.2.0en
Original text (896293-2.2.0en)
Printed in Switzerland
© 2020 Leica Geosystems AG, Heerbrugg, Switzerland
www.leica-geosystems.com
