Midea SB 80-9373 User manual

Model: SB 80-9373
USER MANUAL
Dishwasher

ControlPanel..........................................................................3
DishwasherFeatures.................. ................................................ 3
WashCycleTable......................................................................4
Detergent............................ ................................................5
RinseAid.................. .......... ................................................5

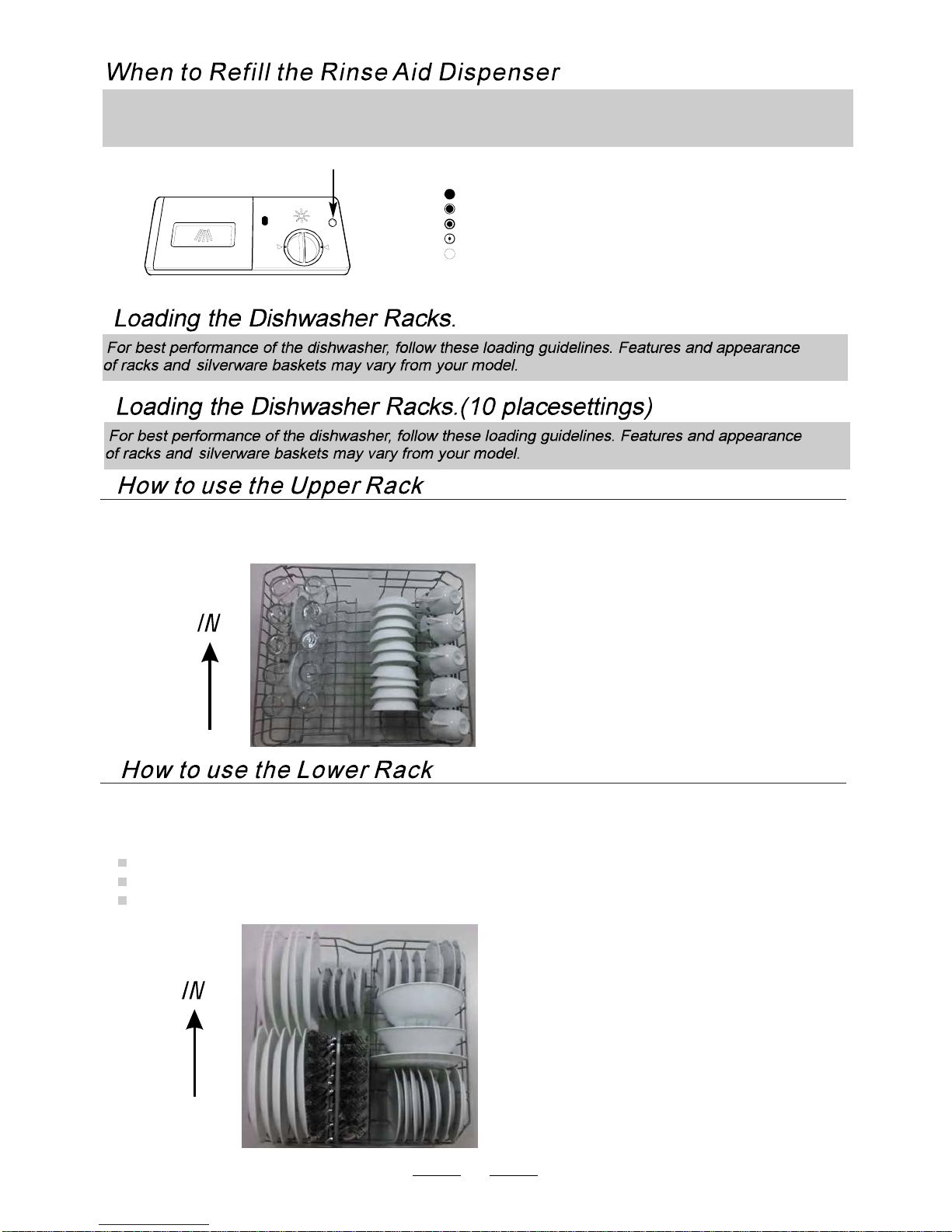

LoadingtheDishwasherRack .......... .................................6
SilverwareBasket......................................................................7
LoadingtheDishwasherRack........................................... 7
SilverwareBasket......................................................................8
FilteringSystem...................... .... ............................................8
TurningOntheAppliance.............. ..... ........................................... 9
CaringfortheDishwasher........ .. ....... ...........................................9,10
(10 placesettings)
........... ......
...................... 2..................................................
.............. 1....................................................
Beforecallingforservice.......... ....... ...........................................11,12

Error alarm
5washprograms
Stainless steel tub
Rinse aid Warning Indicator
Time delay feature
1
The manufacturer, following a policy of constant
development and up-dating of the product,may
make modifications without giving prior notice.
This allowsthestartof thewashcycle tobedelayed
The wash cyclecanbe delayed from 1 to 24 hours
To take advantage of lower electricity costs during non
peak hours or to have the dishes ready whenyou need
them
Fault code display would inform the user of abnormal
status of the machine.
Whentherinseaidreservoirrequiresrefilling,the
control panel display will indicate such.
The tub and door liner are constructed with quality
stainless steel what will never stain and improves
drying performance
You can choose adesired program according tothe
type of load including Heavy, Normal, Quick Wash,
ChinaCrystal,Rinse Only.
The dishwasher model contain all of the
quality standard features plusthe following specific features:
M24DB9373HSS,M24DB9373HBB,M24DB9373HWW,

This appliance must be grounded. In the event
of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a
path of least resistance of electric current. This
appliance is equipped with a cord having an
equipment-grounding conductor and a grounding
plug.The plug must be plugged into an appropriate
outlet that is installed and grounded in accordance
with all local codes and ordinances.
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service representative if you
are in doubt whether the appliance is
properly grounded. Do not modify the plug
provided with the appliance ;If it is not fit
for the outlet .have a proper outlet installed
by a qualified electrician.
2
Keep child away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic
items not so marked, check the manufactures
recommendations.
Useonlydetergentand rinse additivesdesigned
for an automatic dishwasher. Never use soap ,
laundry detergent, or hand washing detergent
inyour dishwasher. Keepthese productsout of
children.
During installation,the powersupply must not
be excessively or dangerously bent or flattened.
The door should not be left in the open position
sincethiscould present atrippinghazards.
Do not tamper with controls.
Do not operate your dishwasher unless all
enclosure panels are properly inplace. Open the
door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects of stand on the door
when it is open. The appliance could tip forward.
Whenloading items tobe washed:
1)Locate sharp items so that they are not likely to
damage the door seal;
2) Load sharp knives with the handles up toreduce
the risk ofcut-typeinjuries.
Whenusing your dishwasher, you shouldprevent
plastic item from contacting with heating element.
If the supply cord is damaged, it must be replaced
by themanufacturer or itsservice agent ora
similarly qualified person in order to avoida
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
The applianceis not intended for use by young
children or infirm persons without supervision.
Dishwasher detergents are strongly alkaline,they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes andkeep children away
from the dishwasher whenthedoor isopen.
Young children should be supervised to ensure that
they do not play with the appliance.
Check that the detergent receptable is empty after
completionofthewash cycle.

To get the best performance fromyour dishwasher, read all operating instructionsbeforeusing
it for the first time.
3
1
77 6
4
7
6

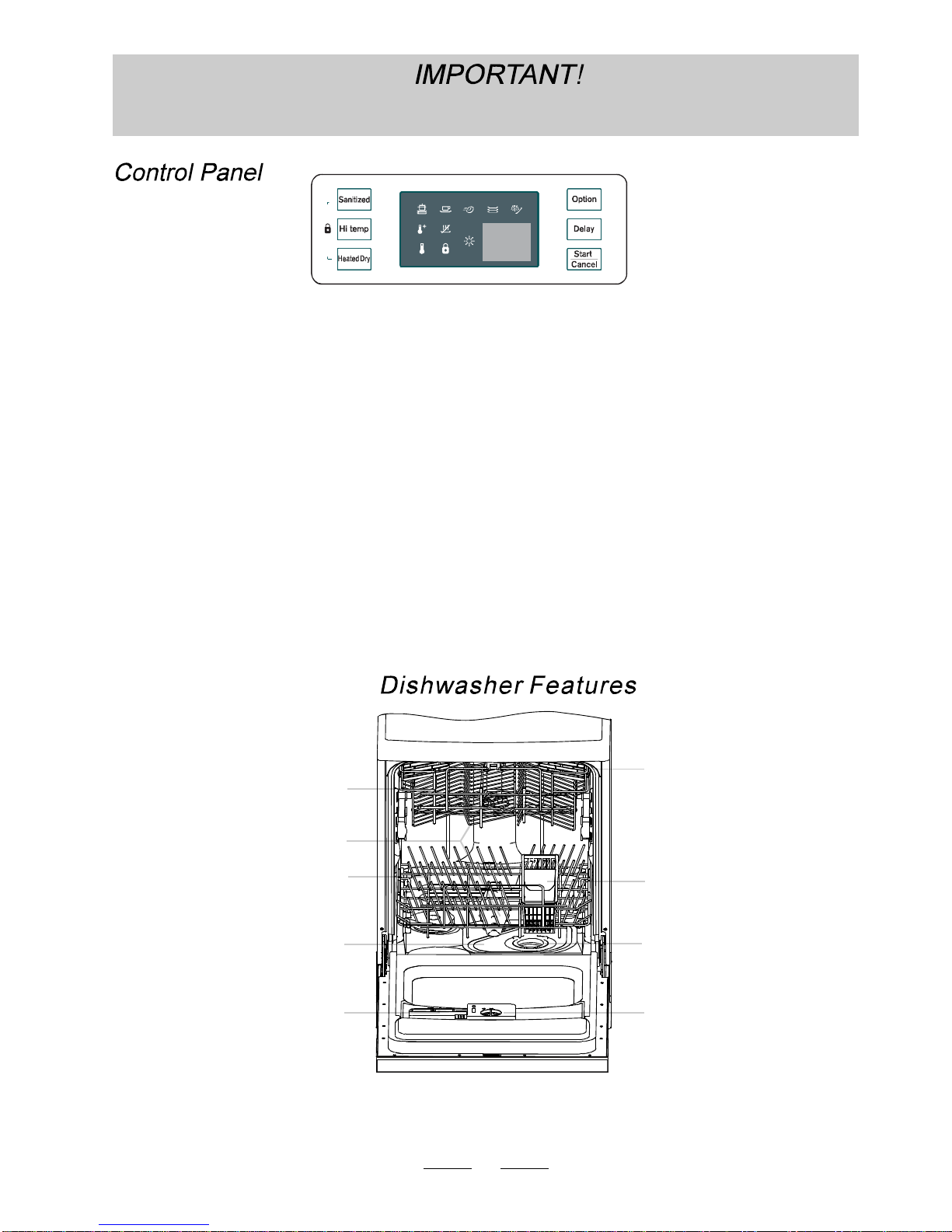

Display: To display delay time or error codes.
3
1
Rinse Aid Warning Light: Tocome on when the
dispenser needs to be refilled.
2
Option: Toselectwashingprogram
whenpress thebutton.
Delayed Start Button: Press this buttonto setthe
delayed hours for washing. You can delay the start
of washing up to 24 hours. One press on this
button delays thestart of washing by one hour.
5
Detergent Dispenser
6
Cup Shelf
7
Silverware Basket
8
Coarse Filter
9
Rinse Aid Dispenser
Lower Basket
3
Spray Arms
2
Upper Basket
1
Main Filter
4
1
2
3
4
5
6
7
8
9
on
Off
Front view
Prog.
SANITIZE
HI
TEMP
HE ATED DRY
Child Lock
1
3
2
4
5
6
789
5
START/CANCEL : To stop or reset the wash cycle, press
the START/CANCELbutton,thedishwasher willstop
washing.
When Sanitize isselected,the temperature
of the water will reach 70 C (158 F)max.
“”
°°
Note : it is possible that the 70 C (158 F) max may not
bereachedifthetemperatureoftheincominghotwater
does not meet the suggested temperatures.
°°
When the Hi Temp is selected, the temperature
of the water will reach 60 C (140 F) max,
“”
°°
When the Heated Dry option is selected,
the heater willwork during the dry processes.
“”
Press the SANITIZE and HEATED DRY buttons
for 3 seconds the
LOCK light will display on the LCD. No buttons
can be operated
when the dishwasher controls are locked.
To cancel the Child Lock option, press the
SANITIZE and
HEATED DRYbuttons for3 seconds, the LOCK
lightwillno longer
be shown on the LCDand the dishwasher
controls will be unlocked.
“”
8
9

4
The inlet water temperature is 120 F ,If not ,t he wash performance will reduce.
Quick
Heavy
Normal
For normally soiled loads, such as pots, plates,
glasses and lightly soiled pans. standard daily
cycle.
For lightly soiled loads,such asplates,glasses,
bowls andlightlysoiledpans.
For the heaviest soiled loads, such as pots, pans,
casserole dishes and dishes thathave beensitting
with dried food on them for a while.
Rinse Only
China
Crystal
(AHAM)
Pre-wash
Pre-wash
Pre-wash
Wash (48.9 )
Rinse
Rinse (52.1 )
Drying
℃
℃
Pre-wash
Wash (49.6 )
Rinse
Rinse (54.3 )
Drying
℃
℃
Pre-wash
Pre-wash
Wash (55 )
Rinse
Rinse (57.4 )
Drying
℃
℃
Pre-wash
Pre-wash
Pre-wash
Wash (63.7 )
Rinse
Rinse
Rinse (61.2 )
Drying
℃
℃
Longer inlet time.
Faucets are not opened, or water intake is restricted,or water pressure
is too low.
Malfunction of temperature sensor or of heating element.
Longer heating time,
but not reaching required temperature
130/140
80
25
90
24.3
13.8
17.3
13.8
7.3
130
0.884
0.616
0.527
0.578
0.1
This cycle is for lightly soiled china and crystal.
This cycle is for pre-rinsingdishes orglasses.
This is only a rinse that keeps food fromdrying
on your dishesandreduces odorbuildup in your
dishwasher until you are ready to washa full load.
Do not use detergent.

5

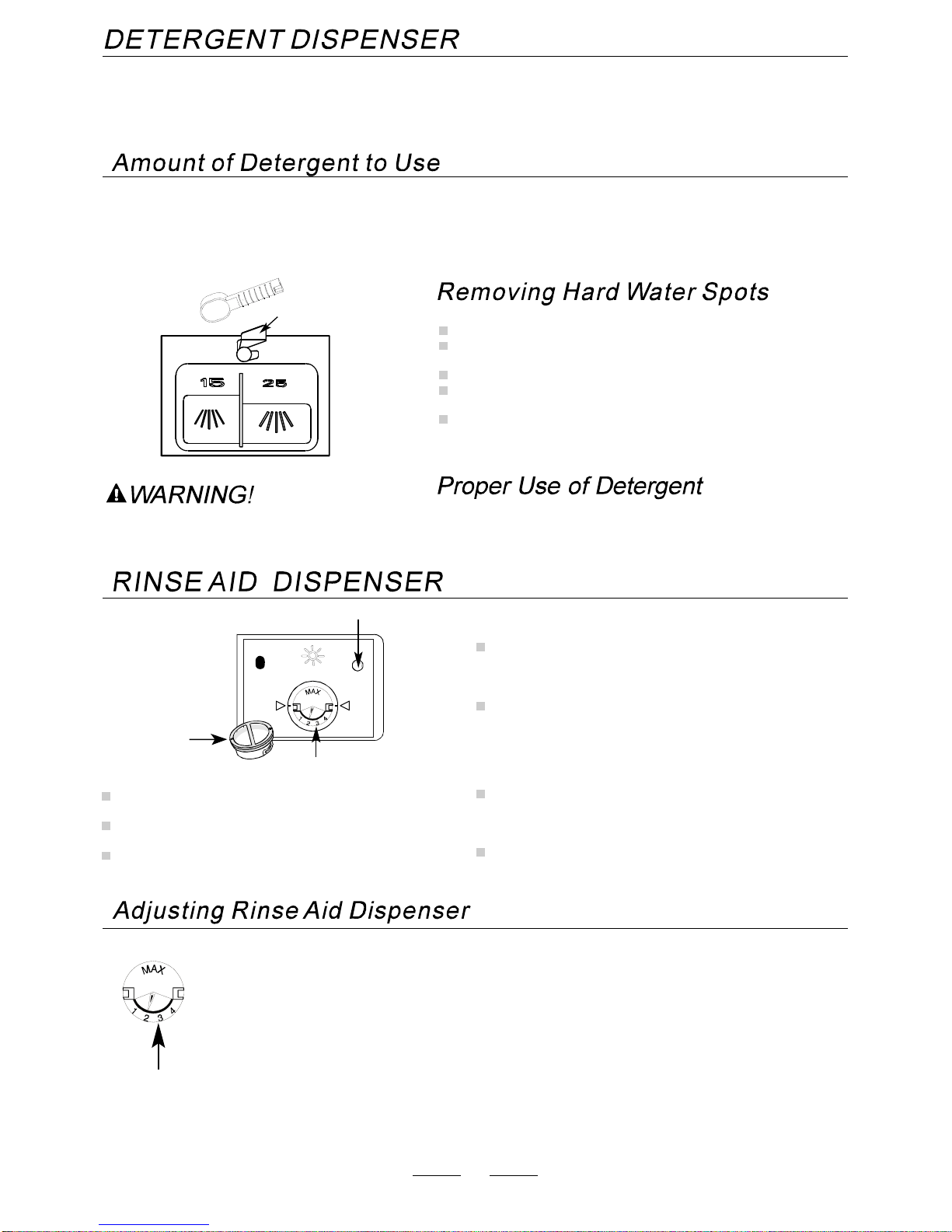

Dishwasher detergent is corrosive!
Take care to keep it out of reach of children.
IFTHEWATERISN'T TOOHARD,YOUMAYALSO PREVENT THEFORMATIONOFDEPOSITS BYADDING
DETERGENT.
The amount of detergent needed can vary due to differences in water hardness.To determine the waterhardness in
your area,contact yourlocal waterutility or areawatersoftening company. The harder thewater, the more detergent
you may need. Remember, you should adjust the amount of detergent you use by small amounts until you find the
correct amount.
Toremove hard water spots, try the following:
Run dishes through a normal wash program.
Removeallmetal dishware,such as cutlery, pans, etc.,
from the dishwasher.
Do notadddetergent.
Pour two cups of vinegar into a bowl and set the bowl face
up on the lower rackof the dishwasher.
Runthedishesthroughanormal wash program.
If this doesn't work, try the same process with 1 / 4 cup of
citric acid crystals instead of vinegar.
Useonly detergent specificallymade for use in dishwashers.
Keep yourdetergentfresh anddry.Don't put powder detergent
into thedispenser untilYou're readyto washdishes.
Therinse aid is releasedduring the final rinse to prevent
water from forming droplets on your dishes thatcanleave
spots and streaks. Italsoimproves drying by allowing
water to"sheet"off the dishes.
Your dishwasher is designed to use liquid rinse aids.
Therinse aid dispenser islocatedinside the door next to
thedetergent dispenser.To fill thedispenser,openthe
capandpour therinse aidinto thedispenser untilthe level
indicator turns completely black. The dispenser holds
about 100 ml of liquid rinse aid.
Be careful not tooverfill the dispenser, because this could
causeoversudsing.Wipeawayanyspillswithadampcloth.
Don't forget to replace the cap before you close the
dishwasherdoor.
If you havesoftwater, you may not need rinseaid for it may
cause a white film to develop on your dishes.
The dispenser must be refilled before the startof each wash cycle followingthe instructions providedin the" Wash
CycleTable".Your dishwasher u es than conventional dishwashers. Generally, onlyone
tablespoon of detergent is needed for a normal wash load.and, more heavily soiled items need more detergent.
Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.
s less detergent andrinse aid
To open the dispenser, turn the cap to the "open" (left)
arrow and lift it out.
Pour the rinse aid into thedispenser, being careful
not to overfill.
Replace thecapby inserting it aligned with "open"
arrow and turning it to theclosed (right) arrow.
Ameasuredamount of rinse aid isreleased during thefinalrinse.Aswith detergent,theamount
of rinse aid needed for your dishes depends on the hardness of thewater inyour area. Too much
rinseaidcanresult inlatherof foamingandcause cloudiness or steakson your dishes. Ifthe
waterinyourareaisverysoft,youmaynotneedrinseaid.Ifyoudo,youcandilutetherinseaid
withan equal amountof water.
The rinse aid dispenser has four settings.Always start with the dispenser set on " 2 ". If spots and
poordrying are problems, increase the amountofrinseaiddispensed by removing the dispenser
lid and rotating the dial to"3". If the dishes stillare not drying properly or are spotted,adjust the
dial to"4".. We suggest you to set on "2" .
Button
Indicator
Dispenser cap
Adjustable setting
Adjustable setting

6
If there is no rinse aid warning light in the control panel, you can judge the amount of rinse aid by the following means.
Theblack dot ontherinse aid dispenser indicatestheamountof rinse aidinthedispenser.Astherinse aiddiminishes,
the size of the black dot decreases. You should never let the rinse aid get below 1 / 4 full.
As the rinse aid diminishes, the size of the black dot on the rinse
aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1 / 4full -Should refill to eliminatespotting
Empty
Indicator
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and
saucers, aswellas plates, smallbowls and shallow pans(as long as they are not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
Theupper rack can be adjusted for height byputting wheels of different height into therails.
We recommend that you place large itemswhich are most difficult to clean intothe lower rack: pots,pans, lids,
serving dishes and bowls, as shown in the figure tothe right.
It is preferable to place serving dishesand lids onthe side of the racks in orderto avoidblockingthe rotation of the
top spray arm.
Pots, servingbowls, etc, must always be placedtopdown.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and panscanbe loaded.
5
1
Cups
2
Fruitbowl
3
4
Bread and butterplates
Glasses
1
32
5
Saucer
3
9
6
8
Bread and butter plates
Silverware basket
4
Dinner plates
Servingplate
6
6
4
4
5
8
7
Serving bowl
5
Saucer
7
5

7
12 place settings 8 place settings
SILVERWARE BASKET
Silverware should beplaced in the silverware basket with handles at thebottom: If the rack has side baskets,
the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed
in the horizontalposition at the front of the upper rack.
43
8
2
6
7
4
4
4
5
4
4
4
4
1
1
1
1
1
1
1
4
4
1
1
1
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
6
Do not let any item extend
through bottom.
WARNING!
Teaspoons
4
Soup spoons
2
Forks
1
Serving fork
8
Serving spoon
6
Knife
5
3Dessert spoons 7Gravy ladle
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and
saucers, as well as plates, small bowls and shallow pans(as long as they are not too dirty).
Position the dishesand cookware so that they do not get moved by the sprayof water.
The upper rack can be adjusted for height by putting wheels of different height into the rails.
How to use the Upper Rack
How to use the Lower Rack
We recommend that you place large itemswhich are most difficult to clean into the lower rack: pots, pans, lids,
serving dishes andbowls, as shownin the figure to the right.
It is preferableto place serving dishes and lids on the sideof the racksin order to avoid blocking the rotation of the
top spray arm.
Pots, serving bowls, etc, must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
5
1Cups
2Fruit bowl
3
4Bread and butter plates
Glasses
1
1
4
3
4
2
5
Saucer
3
9
6
8
Bread and butter plates
Silverware basket
4
Dinner plates
Serving plate
6
6
4
4
5
8
99
7Serving bowl
5
Saucer
7
32
1
4
4
5
5
6
6
7
899
12 place settings
12 place settings 8 place settings
8 place settings

When the washing cycle has finished, the buzzer of dishwasher will mooing 8 seconds , then stop. O
urn off theappliance usingthe ON/OFF button,.Wait a few minutes before unloading the dishwasher toavoid
handling the dishesandutensils while they are still hotandmore susceptible tobreakage.Theywill also drybetter.
pen the door,
t
A forgotten dish can be added any time before the detergent cup opens.
Openthedooralittletostopthewashing.
After the spray arms stop working,you can open the door
completely.
Add forgotten dishes.
Close the door, the dishwasher will work after ten second.
3
2
1
1. Make sure thatthe plug 0f the appliance is inserted into the wall socket;
2.Make sure that the water supply is turned on to full pressure;
3.Load the dish (see the section entitled loading the dishwasher ;
4.Pour the detergent (see the section entitled detergent and Rinse aid ;
5.Press the on/off button ,the on/off light will turn on;
6.Press the program button to select program ;
7.
“”）
“”）
Close the door,after10 seconds, the machine will work.
It is dangerous to open the door when washing, because the hot water may scald you.
themachinewill workingafter10 seconds.continue
If you open the door , the machine will pause. Whenyou close the door ,during a wash cycle
Acycle that is underway can only be modified ifithas only beenrunning for ashort
time. Otherwise, thedetergent mayhave alreadybeen released, andtheappliancemay
have already drained the wash water. If this is the case, the detergent dispenser must
be refilled (see the section entitled " Loading theDetergent " ).
Open the door a little to stop the washing. Press the programme button more than 3 seconds to cancel the running
programme. Then you can select otherprogrammes (see the section entitled" Startinga wash cycle.. . " ).
1
2
8
Silverware should be placed in the silverware basket with handlesat the bottom: If the rack has side baskets,
the spoon should be loaded individually into the appropriate slots, Especially long utensils should be placed
in the horizontal position at the front of the upper rack.
4
43
8
2
6
7
4
4
4
5
4
4
4
4
1
1
1
1
1
1
1
1
1
4
4
4
1
1
1
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
6
Do not let any item extend
throughbottom.
Teaspoons
4
Soup spoons
2
Forks
1
Serving fork
8
Serving spoon
6
Knife
5
3
Dessert spoons
7
Gravyladle
43
8
2
6
7
4
4
5
4
4
4
1
1
1
1
1
1
4
4
1
1
5
5
5
5
5
5
5
2
2
2
2
2
2
2
3
3
3
3
3
3
3
6
12 place settings 8 place settings

9
Coarse filter
Larger items, such as pieces of bone or glass, that could clog the drain are trapped
in the coarse filter. To remove an item caught in this filter, gently squeeze the tabs
on top of this filter and lift it out.
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub.
There are three componentsof the filtering system: the mainfilter, the coarsefilter, and the fine filter.
Fine filter
This filter holds soil and food residue in the sump area and prevents it from being
redeposited on the dishes during acycle.
Mainfilter
Food and soil particles trapped bythis filter are pulverized by aspecialjet on
the lower spray arm and washed down the drain.
If your dishwasher is left in an unheated place during the winter, ask a service technician to:
Cut off electrical power to the dishwasher. Remove
fuses or trip circuit breaker.
Turn off the water supply and disconnect the water
inlet pipe from the water valve.
Drain water from the inlet and water valve.pipe
(Useapantocatchthewater.)
Reconnect the water inlet to the
water valve. pipe
Remove the plastic sump cover in the
tub the bottom and use a sponge to
soak up water in rubber boot.
It is necessary to clean the spray arms regularly because hard water chemicals will clog the spray arm jets and
bearings. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing
themthoroughly.
Step Turnthe filterin anti-clockwisedirection,
then lift it up.
：
1
Step lift the Mainfilterup：
2
Step lift the Fine filter up：
3
2
13
If do it from step1 to step 3, the filter system will be removed; Reverse operate by placing the
main filter ,then screw up the fine filter to finish installation

10
Neveruse a spray cleaner to clean the door panel for it could damage the door lock and electrical components.
It is not allowed to use the abrasive agentor some paper towelbecause of the risk of scratching or leaving spots
on the stainless steel surface.
To clean the edge around the door,youshould use only a soft warm, damp rag.
To prevent penetration of water into the door lock and electrical components,
do not use a spray cleaner of any kind.
Also, never use abrasive cleaners or scouring padson the outer surfacesbecause
they will scratch the finish. Some papers towels can also scratch or leave marks
onthe surface.
After every wash, leave the door slightly ajar so that
moisture andodors are not trapped inside.
Tocleantheexteriorandrubberparts ofthedishwasher,
do not use solvents or abrasive cleaning products.
Rather,use only a cloth and warm soapy water.
To remove spotsor stains from the surface ofthe
interior, use a cloth dampened with water and a little
white vinegar, or a cleaning product made specifically
for dishwashers.
When yougoon holiday, itisrecommened that you
runawashcyclewiththedishwasheremptyandthen
leave thedoor of the appliance slightly ajar.
This will help the sealslastlonger and prevent odors
fromforming withintheappliance.
Iftheappliance mustbe moved, try to keep itin the
vertical position. If absolutely necessary, it can be
positioned on its back.
One of thefactorsthatcause odorsto form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
fromoccurring.
This dishwasher is designed for operation on an adequately wired individual 120VAC,60Hz.Use required fuse
16 amps. Fused electrical supply is required-copper wire only. Time delay fuse or circuit breaker recommended
and provide separate circuit servingonly this appliance. Outletshould be placed in adjacentcabinet.
Ensure that the voltage and the frequency values for the current in the home
correspond to those on the rating plate and that the electrical system issized tor the maximum
voltage on therating plate.

11
Before you call for service
Problem Possible Causes What To Do
Noise Some of the sounds you’ll Detergent cup opening.
hear are normal The motor starting during the drying period.
Water draining out of the tub immediately after you
start the dishwasher.
Utensils are not secure in the Make sure everything is secured in dishwasher.
rack or something small has
dropped into the rack
Motor hums
.
Detergent left in Dishes block the
Reposition the dishes.
dispenser cups Detergent cover
Water will not pump
Drain is clogged
out of the tub
Suds in the tub
Rinse agent was spilled Always wipe up rinse agent spills immediately.
Stained dishwasher parts Detergent with Some detergents contain colorant (pigment or dyes) that
Colorant was used will discolor the tub interior with extended use. Check the
detergent cup for signs of any discoloration. If cup is
discolored, change to detergent without any colorant.
Cascade, Cascade Completeand Electrasol Dishwashing
Detergents have been approved for use in our dishwashers.
Some tomato-based Use of theRINSE ONLY cycle after adding the dish to the
foods can stain load can decrease the level of staining.
Dishes and flatware Low inlet water temperature Make sure inlet water temperature is correct (see page 4).
not clean Water pressure is temporarily low
Turn on a faucet. Is water coming out more slowly than usual?
If so, wait until pressure is normal before using your dishwasher.
Air gap is clogged Clean the air gap.
Improper rack loading Make sure large dishware does not block the detergent
dispenserorthewasharms.
Troubleshooting Tips
Save time and money! Review the charts on the following pages.
You may not need to call for service.
Correct detergent was not used
Dishwasher has not been used on a regular basis.
If you do not use yourdishwasherfor long time,
please select and run the shortestwash program
once every week. This will help keep the seal
moist to avoidMotorhums.
Check if your kitchen sinkis draining well.If not,
pleaseaskplumber todeal with.
.
Use only the special dishwasher detergent to avoid
suds. If this occurs, open the dishwasher and let suds
evaporate. Add 1 gallon of cold water to the tub. Close
and latch the dishwasher, then Start the wash
cycle to drain out the water . Repeat if necessary.
Check coarse the filter
(see section titled )" Cleaning The Filter "
Check drain hose.

12
Problem Possible Causes What To Do
Spots and filming
UseJet-Dry rinse agent to remove spots and prevent new film buildup.
on glasses and
To remove stubborn spots and pre-existing film from glassware:
flatware
1 Remove all metal utensils from the dishwasher.
2 Do not add detergent.
3 Start the dishwasher and allow to run for 30 minutes. Dishwasher
will now be in the main wash.
4 Open the door and pour 2 cups (500 ml) of white vinegar into the
bottom of the dishwasher.
5 Close the door and allow to complete the cycle. If vinegar rinse does not
work: Repeat as above, Except use 1/4 cup (60 ml) of
citric acid crystals
instead of vinegar.
Cloudiness on Combination of soft water and This is called Etching and is permanent. To prevent this from happening,
glassware
too much detergent
Use less detergent if you have soft water. Wash glassware in the shortest
cycle that will get them clean.
Water temperature entering Lower the water heater temperature.
the dishwasher exceeds 150°F
Black or gray
Aluminum utensils have
Remove marks with a mild, abrasive cleaner.
marks on dishes
rubbed against dishes
Yellow or brown film Tea or coffee stains Remove the stain by hand, using a solution of 1/2 cup bleach and
on inside surfaces 3cupswarmwater.
CAUTION
Before cleaning interior wait at least 20 minutes after a cycle for the
temperature to cool down. Failure to do can result in scalding.
An overall yellow or brown film can
A special filter in the water supply line is the only way to correct
be caused by iron deposits in water this problem. Contact a water softener company.
White film on inside Hard water minerals To clean the interior, apply dishwasher detergent to a damp sponge.
surfaces Wear rubber gloves. Do not use any type of cleanser other than
dishwasher detergent because it may cause foaming or sudsing. Cascade
Cascade CompleteAnd Electrasol Automatic Dishwashing Detergents
have been approved for use in your dishwasher.
Dishes don t dry '
Low inlet water temperature
Make sure inlet water temperature is correct (see page 4 ).
Rinse agent dispenser is empty Check the rinse agent dispenser.
Dishwasher won t
' Fuse is blown, or the
Replace fuse or reset circuit breaker. Remove any other appliances
circuit breaker tripped from the circuit.
Steam Thisisnormal Steam comes through the vent during washing, drying and when
water is being pumped out.
Extremely hard water
Low inlet water temperature
Overloading the dishwasher
Improper loading
Old or damp powder detergent
Rinse agent dispenser empty
Too little detergent
Before you call for service
run

The installation of the pipes
and electrical equipments
should be done byprofessionals.
Electrical Shock Hazard
Disconnect electrical power
before
installing dishwasher.
Failureto do so can result in
death or electrical shock.
The installation position of dishwasher should benear the existing inlet and drainhoses and
powercord.
One side of thecabinetsinkshould be chosen tofacilitatethe connectionof drainhoses of
thedishwasher.

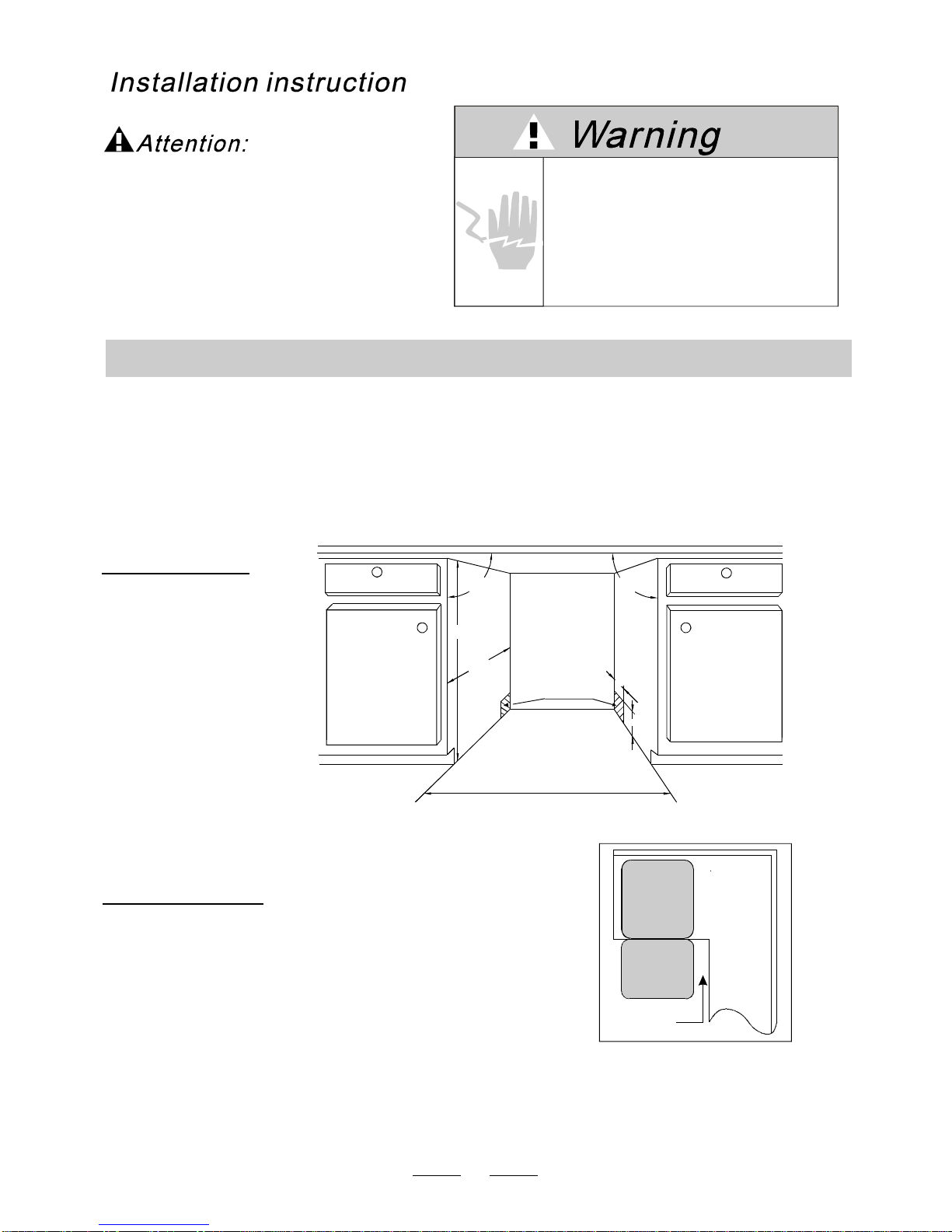

Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)
●
Minimum space when
the door is opened
【】Figure2
Cabinet dimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
Less than 5mm
between the top
ofdishwasherand
cabinet and the
outer door aligned
tocabinet.
90 °
90 °
600mm
825-860mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
13
