340950
INSTALLATION
INSTRUCTIONS
USER GUIDE
Warning notices: Before using this product,
please read this manual carefully and keep
it for future reference. The design and
specifications are subject to change without
prior notice for product improvement.
Consult with your dealer or manufacturer
for details.
MIDEA
Double Drawer
Dishwasher
Stainless Steel

4

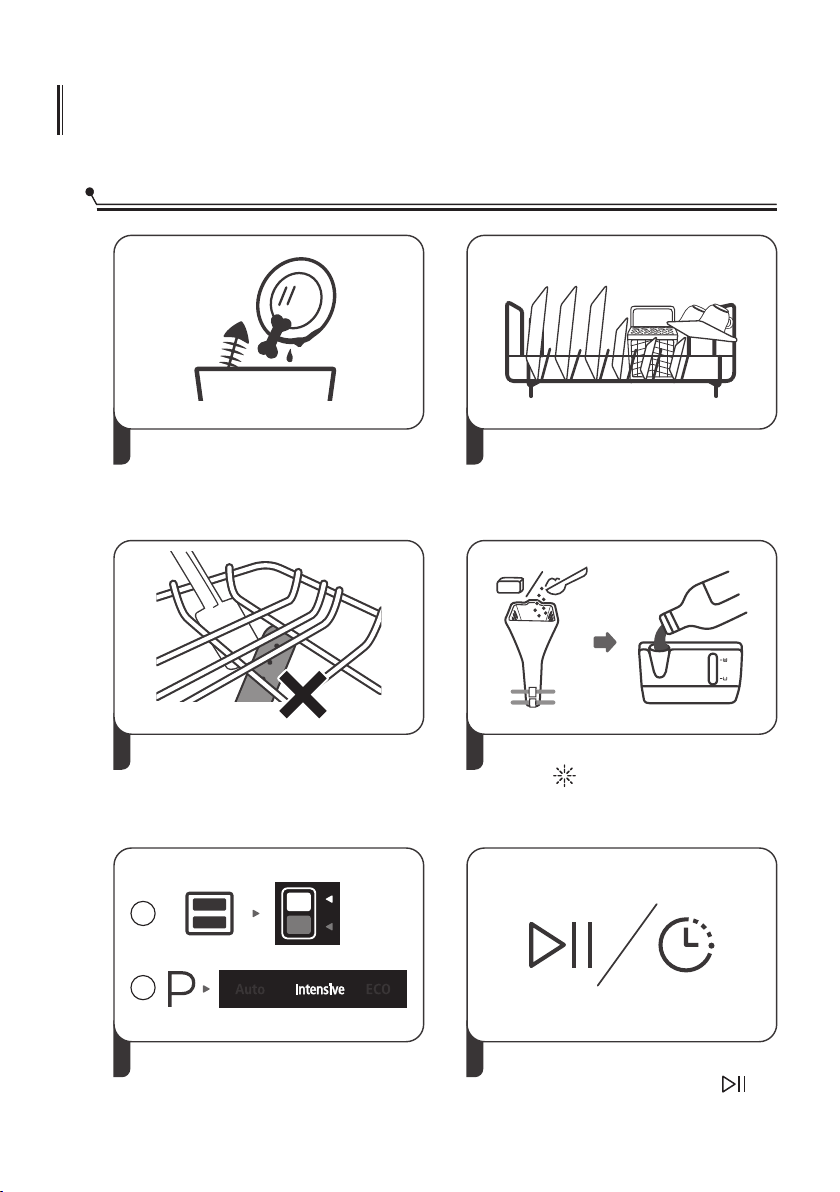

QUICK USER GUIDE
1Discard scraps
Scrape large food particles off and
remove any foreign objects.
2
3Check spray arm
Ensure there are no items blocking
the spray arm from rotating.
Add detergent and check rinse aid
If the “ ” indicator is lit, or the
rinse aid is below the minimum
capacity line, please refill.
65 Start wash or set Delay time
Close the drawer and press “ ”.
Starting A Wash
1
2
Load dishes carefully
For better washing result, place the
dishes properly avoiding any contact
or overlapping between them.
Set up the dishwasher function
Power the dishwasher on, then select
drawer, wash program and function.

NOTE:
Reviewing the section on TROUBLESHOOTING TIPS will help you solve some
common problems by yourself.
If you cannot solve the problems by yourself, please ask for help from a
professional technician.
The manufacturer, following a policy of constant development and updating of
the product, may make modifications without giving prior notice.
If lost or out-of-date, you can receive a new user manual from the manufacturer
or responsible vendor.
After The Wash
The drying fan may continue to run for a set time after that the washing cycle is over
or until the drawer is open.
For best drying result, we recommend to unloading the dishes when they have
cooled down.

SAFETY INFORMATION
5
CONTENTS
INSTALLATION INSTRUCTION
28
28
29
30
34
34
Product Dimensions
Before Installation
Installing Your Dishwasher
Electrical Requirements
Cold Water Connection
Connection Of The Drain Hose
35
PRODUCT DESCRIPTION
9
Product Overview
Control Panel
9
USING YOUR DISHWASHER
Basket Use Tips
Preparing And Loading Dishes
Adding Detergent
Adding Rinse Aid
19
19
16
OPERATING THE APPLIANCE
Wash Cycle Table
Select A Drawer
Starting A Cycle Wash
Changing The Program Once Started
Adding Items While A Wash Is In Progress
21
21
22
22
23
23
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
24
24
24
27
TROUBLESHOOTING TIPS
37
Error Codes
Product Specification
10
13
13
39
40

SAFETY INSTRUCTIONS
WARNING
READ ALL INSTRUCTIONS BEFORE USE
This appliance is intended to be used in household
and similar applications such as:
- staff kitchen areas in shops, offices and other
working environments;
- farm houses;
5
It is your responsibility to use caution when installing
maintaining, and operating your dishwasher.
Midea will not be liable for any damage resulting from
improper use.
This is the safety alert symbol. This symbol alerts you to
potential hazards that can result in property damage or
serious bodily harm, even death.
The safety alert symbol will be followed by either the
word “WARNING” or “CAUTION” then an important
safety message. These words mean:
,
Indicates the possibility of serious
bodily harm or death.
Indicates the possibility of injury or
damage to property.
WARNING
CAUTION
Basic Safety Precautions

6
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge providing they have been given supervision
or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children should not play with the appliance. Cleaning
and user maintenance should not be done by children
without supervision.(For EN60335-1)
This appliance is not intended for use by persons
(including children ) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction regarding the use of the appliance by a
person responsible for their safety. (For IEC60335-1 )
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Unplug before cleaning and performing maintenance
on the appliance.
Do not put downward force on either opened drawer
prior to the dishwasher being fully installed. It will be
unstable and may tip forward.

7
Do not use the dishwasher before it is fully installed
as per the Installation Instructions. It will be
unstable and be likely to tip forward.
Do not operate the dishwasher without all the
enclosures fixed in place.
The sharp edges of knives and utensils with sharp
points should not face upwards.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that the detergent receptacle is empty after
completion of the wash cycle.
The door should not be left open position since this
could present a tripping hazard.
When emptying the dishwasher, check that all the
detergent has been dissolved.
The inlet water hose supplied must be used. Do not
reuse a used or old hose.
The power cable must be safely routed. If it is ever
damaged, it must be replaced with a similar item by
a registered electrician.
An earthed 3 pin socket must be used. Consult a
registered electrician if there is doubt regarding the
earth connection.

8
Product Disposal
Midea supports the recycling of all suitable
materials to reduce waste and the negative
effects on the environment.
The packaging can be recycled.
If the product is to be disposed of, do this
responsibly at your local Council Waste Depot.
DISPOSAL: Do not dispose this product as
unsorted municipal waste. Collection of such
waste separatelyfor special treatment is
necessary.

PRODUCT DESCRIPTION
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:

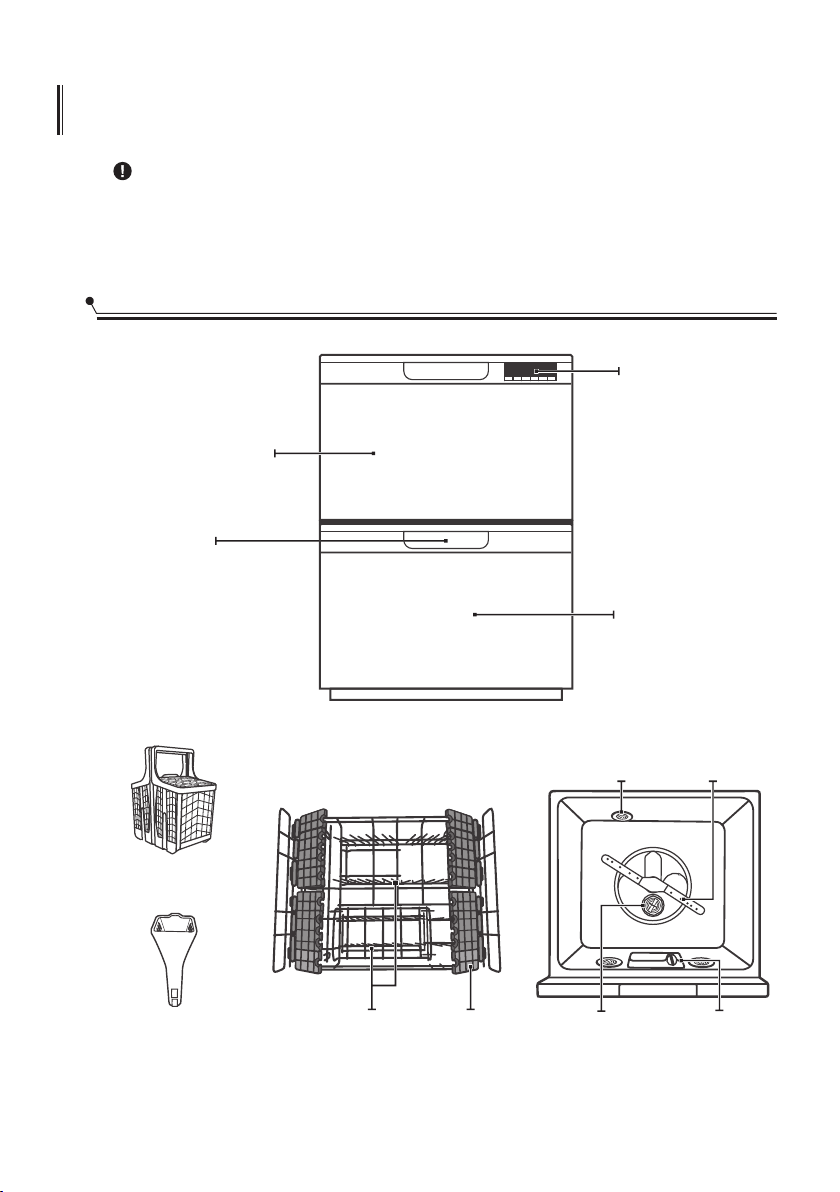

Product Overview
Handle
Upper drawer
Lower drawer
Control panel
Spray armDrying fan
DispenserFilter assembly
Tub
Cutlery basket
Detergent
chute
9
Cup rack
Basket
Adjustable racks

Control Panel
Operation (Button)
Power
1
2
Program
selector
3
Press this button to turn on your dishwasher, the screen will
light up.
Press this button to select the appropriate washing program, the
selected program indicator will light up.
Press the button to select a option, corresponding indicator
will be lit.
Press and hold the Option button for 3 seconds in standby
mode to run the Dry & Fresh option immediately.
4Option
selector
1 2 3 4 6 5 7
8 9 10 11
Press the button to increase the delay start time. Delay a
cycle for up to 24 hours in one-hour increments. After setting
the delay time, press the Start/Pause button to start.
5Delay time
This option allows you to lock the buttons on the control panel,
so children cannot accidently start the dishwasher by pressing
the buttons on the panel. Only the Power button and Drawer
selector button remains active.
To lock or unlock the buttons on the control panel, press and
hold the Option button+ Delay button for 3 seconds
simultaneously.
6Child lock
Press the button to select either upper drawer or lower drawer
loaded, the corresponding indicator will light up.
Drawer
selector
10

Display
8Washing
program
Screen Show the operating drawer, time reminding, delay time,
error code etc, Child lock indication.
9
11
Heavy
For heavily soiled loads, such as pots, plates, glasses and lightly
soiled pans.
Intensive
For heaviest soiled crockery, such as pots, pans, casserole
dishes and dishes that have been sitting with dried food on
them for some time.
ECO
For normally soiled loads, such as pots, plates, glasses and lightly
soiled pans, standard everyday cycle.
Auto
Auto sensing wash, lightly, or heavily soiled crockery, with or
with out dried-on food.
Super Fast
A shorter wash for lightly soiled loads that do not need drying.
Wash&Dry
For lightly soiled plates and pans that need a quick wash.
Delicate
For fragile items such as fine china and glassware.
To start the selected washing program or pause it when the
dishwasher is operating.
When the dishwasher is running, if you need to open the
drawer, please press the “Start/Pause” button first and wait a
few seconds, then open the door slowly.
7Start/Pause

Warning
Water Supply Failure
If the “ ” indicator is lit, it means that no water is
reaching the dishwasher.
11
Display
Rinse Aid
If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher rinse aid and requires refilling.
Washing progress
Main-wash
Rinse
Drying
12
Option
10
Delay Time
If the delay time is set, the corresponding indicator will be lit.
Extra Dry
For better drying result. (It can only be used with Intensive, ECO,
Heavy, Wash&Dry, Delicate.)
Dry&Fresh
End
Dry&Fresh
For removing bad odor and moisture even when dishes a
re left longer time in the baskets.
A) when selected this option will start to run at the end
of the washing cycle, its indicator will blink.
B) Press and hold the Option button for 3s, when
dishwasher is on, for let the option run immediately.

USING YOUR DISHWASHER
Before using your dishwasher :
1. Removing the larger residue off the wash items
2. Loading the basket
3. Loading the detergent
4. Filling the rinse aid dispenser
Removing the rear rack
There are many ways to adjust the loading pattern of the basket.
Basket Use Tips
The rear rack can be removed to create a flat surface for such things as pots and pans.
13
2
1
Rear rack
Front rack

Folding down the pins
The spacing between the pins can be increased by folding them down. This will help
the loading of large bowls and deep pot and pans.
The pins on the front rack can also be folded down to create a flat space.
Do not load the basket with the front rack removed. It is removable only to allow
access to the filters for servicing. The risk is too great because item could fall in the
open space and damage the rotating spray arm.
If returning the rear rack, be sure to firmly set it into it’s correct place.
14

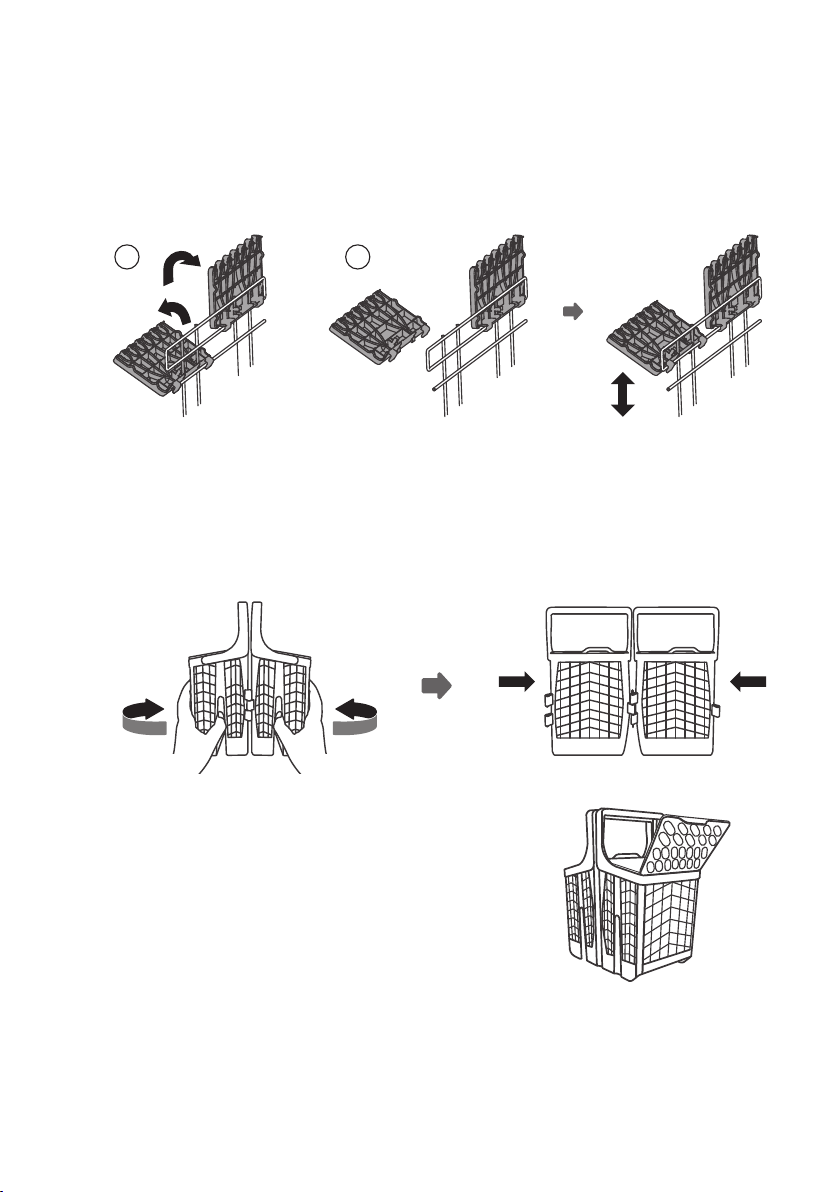

Using the cup racks
Cups and glasses and large utensils fit on the cup racks.
The fronts of the racks are designed to secure wine glasses.

15
1 2
Adjustable the cup racks
You can adjust these cup racks to different heights independently:
1. .
2. Remove the cup holder and install it on a iron wire of different height to adjust the
height of the cup holder.
Fold the cup racks if you need more space
Two positions cutlery basket
The cutlery basket is made in two halves.
The cutlery basket is composed by two foldable half.
Is possible to used it open or fold as in the drawing.
You can use the cutlery basket with the cover open.
Press Press
Pull Pull

Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
For washing the following cutlery/dishes
Are not suitable
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolor during washing
Glazed patterns may fade if machine washed frequently
Are of limited suitability
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
Place objects in the dishwasher in following way:
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded on a slant so that water can
run off.
All utensils are stacked securely and can not tip over.
Be sure that no wash items protrude through the basket base where they will likely
foul the spray arm.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
16

To avoid damage, glasses should not touch one another.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
through the basket.
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
CAUTION

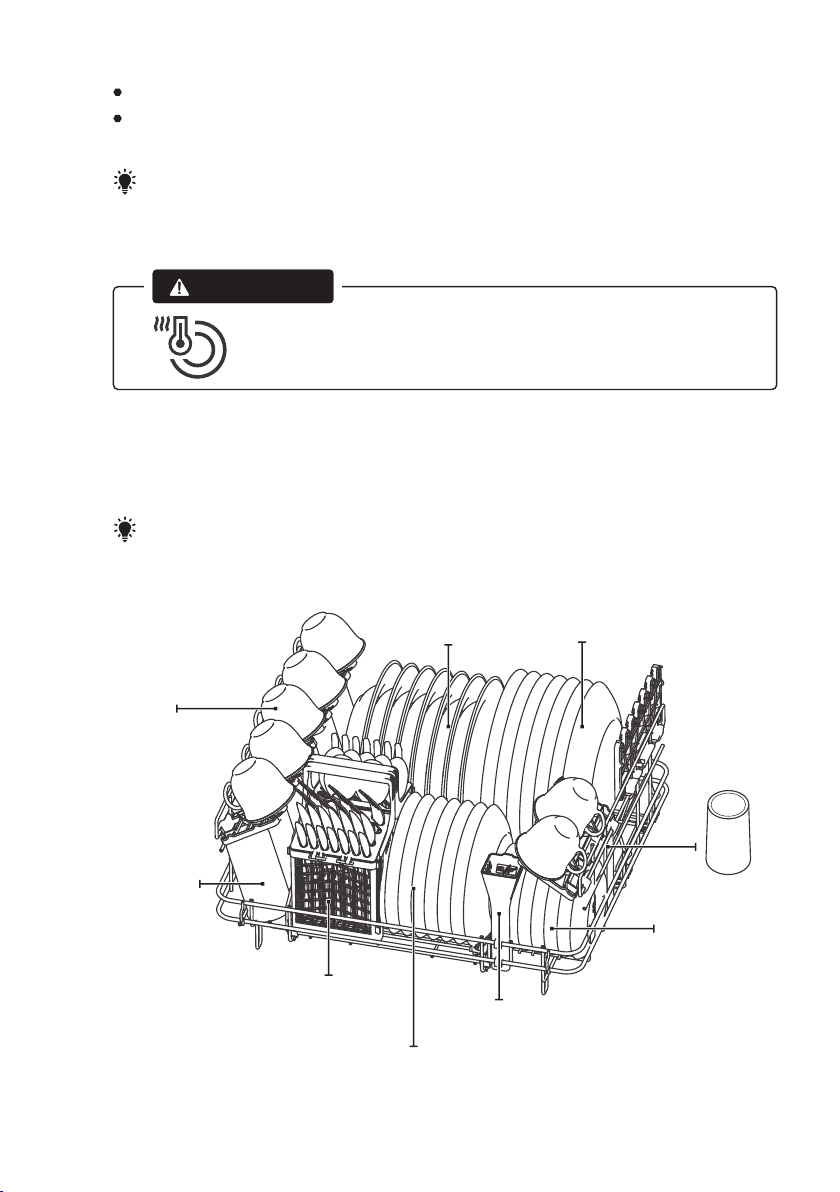

Loading the dishwasher
The loading pattern in the illustration is recommended for the design of basket.
It is the pattern used for the Standards Wash Test (AS/NZS 2007.1).
NOTE:
Cups and glasses face downwards.
Plates face the back of each other, as do side plates, soup plates and saucers.
17
Cups
Saucers
Glasses Glasses
Dessert dishes
Dinner platesSoup plates
Cutlery basket
Detergent chute

1 32 444 5
1
2
3
4
5
Soup spoons
Forks
Knives
Teaspoons
Dessert spoons
Item
Number
Loading the cutlery basket
You can place each knife, spoon, or fork separately into the spoon stands in the
basket’s covers to prevent chipping and discoloration.
The spoon stands as seen from above with the suggested placement of cutlery items.
Match the numbers in the diagram to the numbers in the list of cutlery items above.
WARNING
Always load sharp utensils with the
sharp point down!
Do not let any item extend through
the bottom.
5555555
4444444
2
2
2
2
2
22
3333333
11
1 1 11
1
Settings for Standards Wash Test AS/NZS 2007.1
Capacity: 7 Place settings per drawer
Wash Program: ECO
Detergent quantity: 24g
Rinse Aid setting: D3
18

50 mm
To shorten the drying time, the drawer
can be opened approx. 50 mm at the
end of the wash cycle.
This however is not compulsory.
The wash load will dry completely given
the drying time suggested in the table
on page 21.
Adding Detergent
The chemicals in Dishwasher Detergent are necessary to remove, dissolve and help
dispose of all the soils from the wash load.
Only specific Electric Dishwasher Detergent is capable of doing this.
WARNING
Dishwasher detergent is dangerous. Avoid skin and eye contact
Keep the dishwasher detergent out of reach of children.
Keep it sealed in a dry place.
19
Rinse Aid is added during the final rinse to assist the wash load drying and to prevent
spots and streaks on glassware.
For guaranteed excellent drying results, always use a branded Rinse Aid. No other
products are suitable.
Adding Rinse Aid
Filling the Rinse Aid Dispenser
Refill the dispenser when either the level is at the low level mark by the indicator
window, or when the display indicate the rinse aid symbol ( ) .
Add the recommended quantity of detergent to the detergent chute
on the basket.

20
21 Fill the dispenser slowly to avoid
spillage. Each dispenser will take
300ml from empty.
Undo the plug by turning it
anticlockwise.
Adjusting the rinse aid dispenser
3Close the plug by rotating it clockwise.
NOTE:
It is important to clean up any spills
rinse aid, as it will cause excessive
foaming in the wash cycle.
To achieve the best drying result, with the least amount of rinse aid being used, the
dispenser can be adjusted by the user.
There are 5 levels of adjustment, the factory setting is D3. This setting will provide
excellent drying results.
If the dishes are not drying properly or with cloudy stains, the setting of D4 or D5 will
be required.
If there are sticky whitish stains on your dishes or a bluish film on glassware or knife
blades, the dispenser can be set back to either D2 or D1 to reduce any unnecessary
waste of rinse aid, whilst maintaining excellent drying results.
Follow the steps below:
on the dishwasher by press the Power button.
2. Within 60 seconds after step 1, press the Start/Pause button more than 5 seconds,
the rinse aid indication blinks.
3. Press the Start/Pause button to select the proper set according to your using habits,
the sets will change in the following sequence: D1->D2->D3->D4->D5->D1.
4. Without any operations in 5 second, or exit the set mode through the power
button, the new setting is active.
1. Switch
