Midea MZTP30 User manual

EN
MZTP30
www.mideahk.com
Tabletop Dish
Sterilizer
Instruction
Manual
Model: MZTP30
Rated power: 210W
Rated voltage: 220V
Rated frequency: 50Hz
Rated capacity: 30L
All the contents of this manual
have been checked carefully. In
case of misprint or misunder-
standing, please contact Midea’s
Customer Service Center.
Note: It will be compiled into the
new version of the manual
without any notice if involve the
technical improvements.
烘乾
奶瓶
強力消毒
待機
電源
暖盤
快速消毒

Contents
Warning: To avoid accidents caused, please read this manual
carefully before use and installation this appliance. To ensure
follow the instructions to install and use correctly.
Safety
Warning
Product
Introduction
Instructions
for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
Prohibition /
Mandatory /Tips
Cleaning and
Maintenance
Installation Guide
Electrical Schematic
Diagram
Troubleshooting
Product specification
China RoHS
Name of Parts
Accessories List
Scope of Use
Disinfection Level
Operation Guide
Shelf placement
Tableware
recommendation
Precautions for Using
Tableware
Prohibited Items
01
03
03
04
04
04
05
05
05
05
06
06
07
08
09
10

Safety Warning
Note
indicates [prohibited] content
indicates [mandatory] content
Safety
Warning
Product
Introduction
Instructions
for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
• To avoid injury and/or property damage, the instruction manual recorded the safety
instruction to maintain user how to correct use the appliance.
• The icons and symbols are just the easy reference on the instruction manual, it is chance to
different at the physical products. Please ready the relevant labels carefully before use the
appliance.
•Please keep the instruction manual properly for reference.
•Please pay attention on the children and make sure the children cannot use the
appliance alone and don't treat it as a toy.
•It is prohibited to put food utensils with temperature resistance lower than 80°C in the
appliance do not put non-tableware such as dishcloths and towels in the appliance.
•Please stop use the appliance immediately if the power cord is damaged. Please
contact to Midea customer service for reserve the repair service.
•To prevent an electrical fire, ensure to remove all packing materials except of the bowl
basket from the appliance.
•In the first use, please operate the appliance without any tableware for remove grease
residue at the appliance. Please open the door after finish operation after 20 minutes,
and ventilate for 20 minutes.
•To avoid UV radiation or burns, please open the door after the appliance operate
finished after 20 minutes (include UV working in 10 minutes).
•If the UV lamp is damaged, please contact with Midea customer service center for repair
the UV lighting, to ensure the lighting totally same power and wavelength.
•If the light emitted by the UV lighting is visible directly without passing through any
transparent object (such as glass, etc.), stop using the UV lighting immediately and
contact with Midea customer service center for repair.
•Plastic, wood and other tableware with temperature resistance above 80°C should be
placed in the position of more than 10cm away from the air outlet;
•To avoid UV radiation, please close the door tightly before start work the appliance.
•Pay attention to high temperature and avoid scald when using the appliance;
•Install the appliance near with the power supply for the users easy to disconnect the
power supply during cleaning;
•It is recommended to wash the tableware and wipe the water before placing them in the
appliance;
•The grease on the tableware should be completely removed, or it will cause discoloration
on the tableware surface and odor in the cabinet;
•Tableware should be vertically inserted on the shelf in order, with appropriate space
between each other;
•To avoid tipping over and injury caused, do not allow children to pull the door when the
door is opened.
    

Safety Product
Warning Introduction
Product Introduction
Tips
Name of Parts
Accessories List
Instructions
for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
•For easy handle the product usage, please read the following instruction before use.
•The product image is for reference only, the physical product is prevail.
Outer Case
UV lighting
Tableware rack
Air outlet
Door
Water Box
Knife holder opening
Cutting board holder
Knife protector
Door control button
Chopstick holder
Door handle
Machine (1)
Chopstick holder (1) Screw (2) Expansion
sleeve (1)
Fixing plate (1)
Instruction Manual (1) Tableware rack (1)
Safety Product Instructions
Warning Introduction for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
• The draining function can only be used to drain a small volumn of residual
water; do not use for a large volumn of water when cleaning the cabinet in
order to prevent overflow after the water box is full.
•This appliance is not intended for use by children over eight years of age or
persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge. Unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their
safety, children should not use this appliance.
•This appliance is not designed for use by persons with reduced physical,
sensory or mental capabilities (including children), or lack relevant
knowledge or experience, unless they have been given supervision or
instruction concerning safe use of the appliance and understand the risks
involved. The cleaning and maintenance of this appliance must not be
performed by children without supervision.
•Keep the appliance and its cord out of reach of children, ensure that they do
not play with the appliance.

Instructions Cleaning and Installation Service
for Use Maintenance Instructions Guide

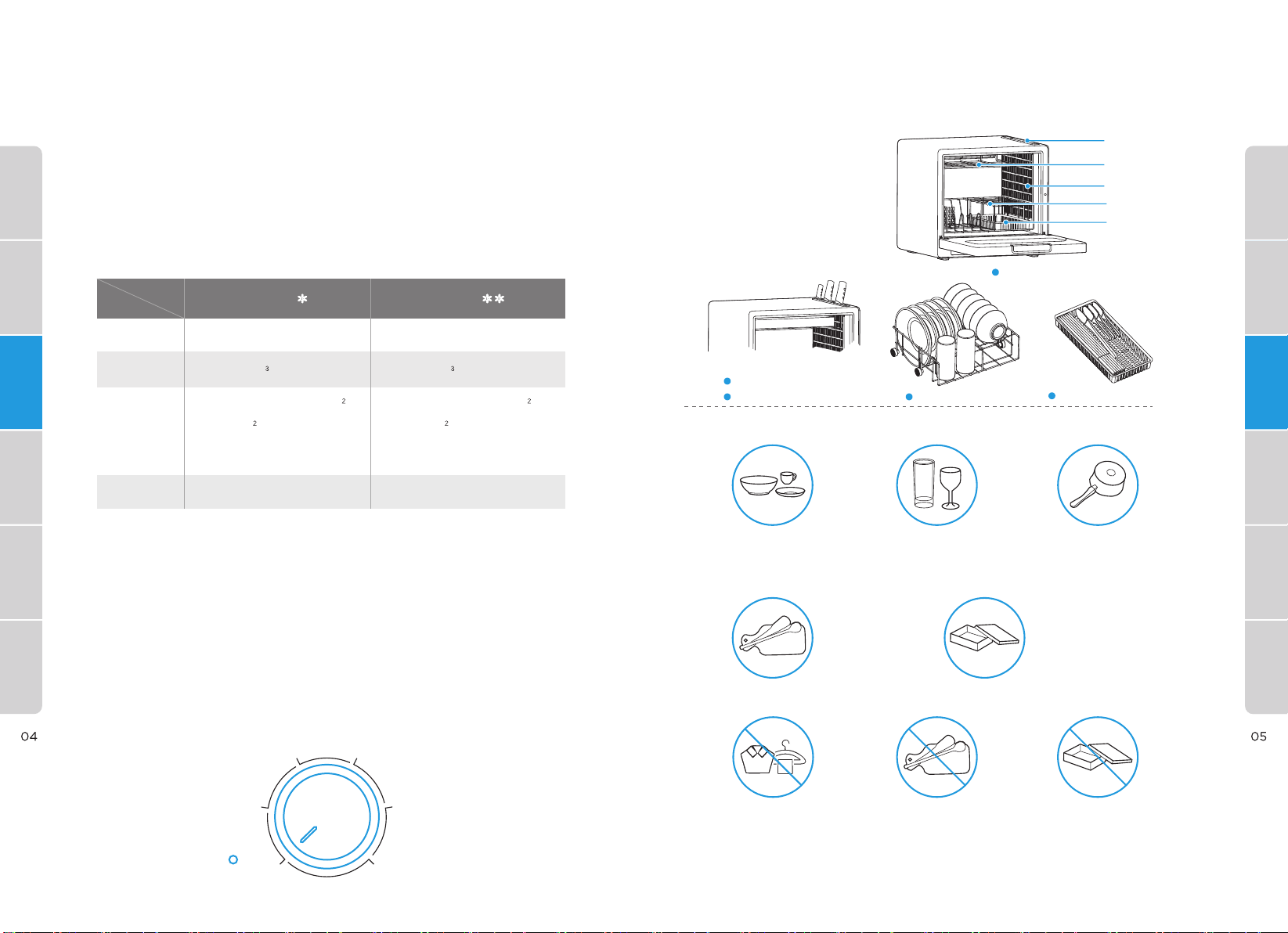

Instructions for Use
Disinfection Level Standard
Operation Guide
Scope of Use
•MZTP30 - 30L tabletop dish sterilizer is a life health appliance for sterilize and drying of
household tableware .
•Through hot air and UV light work together, efficient drying and sterilization with hot air
and UV light irradiation greatly enhance the sterilization and cleaning effect. The
disinfection effect reaches the two-star requirement of national standard, which can
effectively kill poliovirus and Escherichia coli.
•Guangzhou Customs District Technology Center Sate Key Testing Laboratory of Safety
and Applicability of Santtization Test Report :01012100001316
• Keep Warm: 24 minutes.
•Rapid: 48 minutes.
•Dry-heating: 72 minutes.
•Baby Care: 96 minutes.
•Intensive: 120 minutes.
Safety
Warning
Product
Introduction
Safety
Warning
Product
Introduction
Instructions
for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
Category
Star level One star Two star
High temperature
disinfection cabinet
Disinfection temperature in the cabinet ≥
100°C, disinfection time should be ≥
15min
Ozone concentration in the disinfection
cabinet ≥ 20mg/m , disinfection time
should be ≥ 30min
UV radiation illuminance ≥ 70uW/cm ,
Irradiation measurement ≥
40000uW.s/cm ,
Disinfection temperature ≥60°C,
Disinfection time ≥10min
Effectively kill E. coli
Disinfection temperature in the cabinet ≥
120°C, disinfection time should be ≥
15min
Ozone concentration in the disinfection
cabinet ≥ 40mg/m , disinfection time
should be ≥ 60min
UV radiation illuminance ≥ 70uW/cm ,
Irradiation measurement ≥
120000uW.s/cm ,
Disinfection temperature ≥60°C,
Disinfection time ≥20min
Or disinfection temperature ≥90°C,
Disinfection time ≥10min
Effectively kill poliovirus, E. coli
Ozone disinfection
cabinet
UV medium
temperature
disinfection cabinet
Disinfection effect
Rapid
Baby CareKeep Warm
Standby
Power
Intensive
Dry-heating
This appliance is mainly control by the switch button, it can be start work if rotate the switch
button to the working mode. Here is the operation time for reference:
Shelf placement
Recommended Tableware
Precautions for Using Tableware
Prohibited Items
• Non-heat resistant eating tableware
should be kept away from the air
outlet
Knife holder opening
Cutting board holder
Knife protector
Tableware rack
Chopstick holder
Placement of tableware rack Placement of chopstick holder
Placement of knife holder opening
Placement of cutting board holder
Ceramic tableware Glass tableware Stainless steel
tableware
Textile Plastic tableware
Wooden tableware
Wooden chopsticks and
wooden spoons with heat
resistance higher than 80°C
should be 10cm away from
the air outlet
Items that burn easily under
high temperatures (e.g.,
clothes, towels, etc.)
Wooden tableware
Items that are prone to
deformation, cracking, or fading
under high temperature (such as:
wood chopsticks and wooden
spoons with temperature
resistance lower than 80°C)
Items that easy to melt and
deform under high temperature
(such as plastic boxes and plastic
spoons with temperature
resistance lower than 80°C)
Plastic tableware
Plastic boxes and plastic
spoons with heat resistance
higher than 80°C should be
10cm away from the air outlet
Machine

Instructions Cleaning and Installation
for Use Maintenance Instructions
Safety
Warning
Product
Introduction
Service
Guide
Installation Instructions
Installation Guide
Cleaning and Maintenance
Cleaning and Maintenance
Preparation
Cleaning
• Pull out the power plug
Pull out the rubber
plug from the back
Ground/table
Tighten the fixing
plate
Secure against
the wall
Fixing plate
Wall
Expansion sleeve
Screw
• Wipe internal and external surfaces with soft cotton
cloth (or sponge) dipped in neutral cleaner;
• Do not use gasoline, polishing agent, detergent
powder or other toxic and corrosive cleaners;
• It is strictly prohibited to splash water on the inner
and outer box directly, so as to avoid electric shock
caused by poor circuit insulation.
• Pull out the water tray and clean the waste water
and dirt inside.
First take out all the accessories in the electrical appliance. Be carefully to check if the
applicance is damaged before installation. If there is damage, please contact with Midea
customer service center.
The appliance is heavy and should be placed on a horizontal surface with sufficient
supporting strength.
When placed on the table, the front of the appliance should be at least 150mm from the edge
of the table, both sides and back should be at least 50mm away from the wall.
Pull out the back rubber plug according to Figure ①, tighten the fixing plate in the back screw
hole with the accessory screw, and then drill mounting hole in the wall according to the
height shown in Figure ②with a 6mm diameter drill bit;
Fix the fixing plate on the wall hole according to the Figure ③with the attached fitting screw
and the expansion sleeve.
The appliance should be placed in the ventilated dry environment without corrosive gas,
away from high temperature and water mist vapor.
In order to prevent electric shock, it is necessary to use a grounded power outlet to ensure
that the appliance is well grounded.
Electrical Schematic Diagram
Door control
switch Timer
Indicator
Thermal fuse
Thermostat
Ballast
Heating element
UV lamp
Filter
plate Fan
Cleaning and Installation Service
Maintenance Instructions Guide
Safety
Warning
Product
Introduction
Instructions
for Use

Safety
Warning
Product
Introduction
Instructions
for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
Safety
Warning
Product
Introduction
Instructions
for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
Service Guide
Troubleshooting
• If the problem cannot be solved with the below methods, please contact
to Midea HK customer service center.
Fault Possible cause Solution
Note
The machine
does not work
• The power plug is not properly
inserted.
• The user socket is not powered
• Cabinet door is not closed
properly
• Too much tableware or water
• The cabinet is not clean
• Food residue left on tableware or
grease not cleaned
• Dish soap and grease are not
cleared and become yellow
under high temperature
• Reinsert the power plug
• Check the user line
• Close the cabinet door before
using
• Put the tableware according to
the rack design to drain the
water
• Clean the cabinet
• Clean the tableware before
putting into the disinfection
cabinet
• Clean the tableware before
putting into the disinfection
cabinet
The UV lamp
does not work
There are water
residue on the
tableware after
disinfection
Bad smell in the
cabinet
Tableware is
yellow and
discolored
MZTP30
Parameters
Model
Disinfection star level
(30±10)L
≤120min
≤80°C
(3.2±0.3)kg
(0.5±0.3)kg
(0.8±0.3)kg
253.7nm
6W
410x378x398mm
10 kg
Rated capacity
Maximum operation time
Operating temperature
Wavelength of UV light
Power of UV light
Net weight
Dimensions (W×H×D)
Rated load capacity of cutting board holder
Rated load capacity of tableware rack
Rated load capacity of chopsticks holder
220V~/50Hz
210W
Rated voltage and frequency
Rated power
≥1000h
UV lamp life-cycle

China RoHS
Description of Hazardous Substances for China RoHS
Component
name
Connecting wire
Rack assembly
Heater assembly
Liner assembly
Power cord
UV light
Electronic ballast
Package
Plastic parts
Hinge assembly
This form is prepared in accordance with SJ/T 11364.
O: indicates that the content of the hazardous substance in all homogeneous materials of the
part is below the limit specified in GB/T 26572.
X: indicates that the content of the hazardous substance in at least one homogeneous
material of the part exceeds the limit specified in GB/T 26572.
The parts contained in the above list are slightly different according to product models.
The environment friendly use period of this product is 15 years under normal use. It is
recommended to replace a new machine after using for a certain number of years.
Remark:
Door body
assembly
Lead
(Pb)
Mercury
(Hg)
Cadmium
(Cd)
Hexavalent
chromium
(Cr(VI)
Polybromina
ted biphenyl
(PBB)
Polybrominate
d diphenyl
ethers (PBDE)
Substances or elements controlled by China RoHS
Safety
Warning
Product
Introduction
Instructions
for Use
Cleaning and
Maintenance
Installation
Instructions
Service
Guide
