Midea MCM1834G1F User manual

MICROWAVE OVEN
MCM1834G1F
USER MANUAL
Warning notices: Before using this product, please read this manual carefully and keep it for future reference.
The design and specifications are subject to change without prior notice for product improvement. Consult
with your dealer or manufacturer for details.
The diagram above is just for reference. Please take the appearance of the actual product as the standard.

01
THANK YOU LETTER
Thank you for choosing Midea! Before using your new Midea product, please read
this manual thoroughly to ensure that you know how to operate the features and
CONTENTS
functions that your new appliance offers in a safe way.
THANK YOU LETTER
THANK YOU LETTER -------------------------------------------------- 01
SAFETY INSTRUCTIONS--------------------------------------------- 02
SPECIFICATION --------------------------------------------------------- 10
PRODUCT OVERVIEW--------------------------------------------------11
PRODUCT INSTALLATION ------------------------------------------- 13
OPERATION INSTRUCTIONS ---------------------------------------- 18
CLEANING AND MAINTENANCE-----------------------------------25
TROUBLE SHOOTING------------------------------------------------- 26
TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT ---27
DISPOSAL AND RECYCLING ----------------------------------------28
01
02
10
11
13
18
25
26
27
28

02

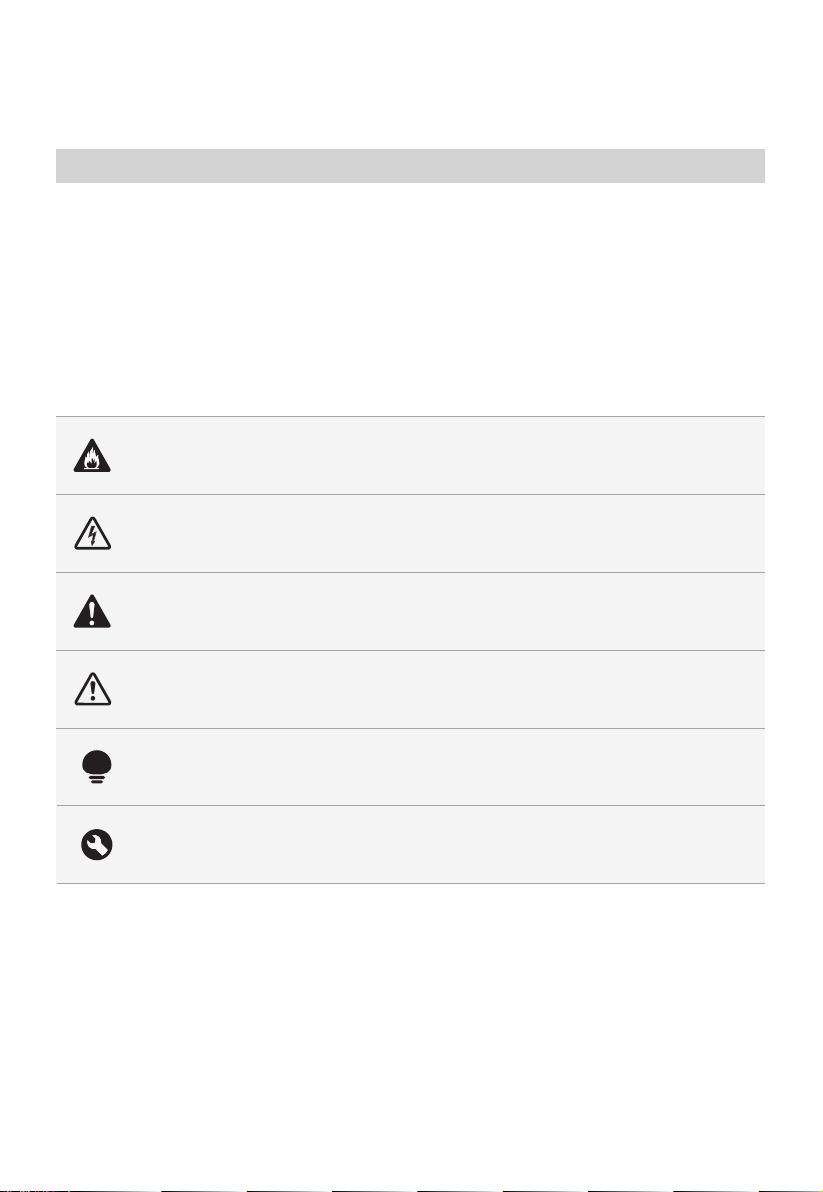

Danger
This symbol indicates that there are dangers to the life and health of
persons due to extremely flammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Warning
The signal word indicates a hazard with a medium level of risk which, if
not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which, if
not avoided, may result in minor or moderate injury.
Attention
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
This symbol indicates that a service technician should only operate and
maintain this appliance in accordance with the operating instructions.
Intended Use
SAFETY INSTRUCTIONS
Read these operating instructions carefully and attentively before using/commissioning the
unit and keep them intheimmediate vicinity of the installationsite or unit for later use!
The following safety guidelines are intended to prevent unforeseen risks or damage from
unsafe or incorrect operation of the appliance. Please check the packaging and appliance
on arrival to make sure everything is intact to ensure safe operation. If you find any
damage, please contact to Midea’s nominated commercial product suppliers. Please note
modifications or alterations to the appliance are not allowed for your safety concern.
Unintended use may cause hazards and loss of warranty claims.
Explanation of Symbols
SAFETY INSTRUCTIONS

03
Precautions To Avoid Possible Exposure To Excessive
Microwave Energy
a. Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or
tamper with the safety interlocks.
b. Do not place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
c. WARNING: If the door or door seals are damaged,
the oven must not be operated until it has been
repaired by a competent person.
Addendum
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect
the lifespan of the apparatus and lead to a dangerous
situation.

04
Important Safety Instructions
WARNING
To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
• If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
(For appliance with type Y attachment)
• Warning: Ensure that the appliance is switched off
before replacing the lamp to avoid the possibility of
electric shock.
• WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave
energy.
• WARNING: Liquids and other foods must not be
heated in sealed containers since they are liable to
explode.
• WARNING: Microwave heating of beverages can
result in delayed eruptive boiling, therefore care must
be taken when handling the container.

05
• WARNING : The contents of feeding bottles and
baby food jars shall be stirred or shaken and the
temperature checked before consumption, in order
to avoid burns.
• Only use utensils that are suitable for use in
microwave ovens.
• When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of
ignition.
• If smoke is observed, switch off or unplug the
appliance and keep the door closed in order to stifle
any flames.
• Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since they
may explode, even after microwave heating has ended.
• The oven should be cleaned regularly and any food
deposits should be removed.
• The appliance must not be cleaned with a water jet.
(for appliances intended to stand on the floor and
which are not at least IPX5)
• Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly
result in a hazardous situation.
• Only use the temperature probe recommended for
this oven.(for ovens provided with a facility to use a
temperature-sensing probe.)
• Read and follow the specific: "PRECAUTIONS
TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
• Metallic containers for food and beverages are not
allowed during microwave cooking.
READ CAREFULLY AND KEEP FOR
FUTURE
REFERENCE

06
To Reduce The Risk Of Injury To Persons Grounding
Installation
DANGER
Electric Shock Hazard Touching some of the internal
components can cause serious personal injury or
death. Do not disassemble this appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can result in electric
shock. Do not plug into an outlet until appliance is
properly installed and grounded.
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current.
This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must
be plugged into an outlet that is properly installed and
grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded.
If it is necessary to use an extension cord, use only a
3-wire extension cord.
• A short power-supply cord is provided to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.

07
• If a long cord set or extension cord is used:
- The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
- The extension cord must be a grounding-type
3-wire cord.
- The long cord should be arranged so that it will
not drape over the counter top or tabletop where
it can be pulled on by children or tripped over
unintentionally.

08
Utensils
CAUTION
Personal Injury Hazard
It is hazardous for anyone other than a competent
person to carry out any service or repair operation that
involves the removal of a cover which gives protection
against exposure to microwave energy.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test
the utensil in question following the procedure below.
Utensil Test:
• Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm,
do not use it for microwave cooking.
• Do not exceed 1 minute cooking time.

09
Materials you can use in microwave oven
Utensils Remarks
Browning dish
Follow manufacturer’s instructions. The bottom of browning
dish must be placed smoothly on the ceramic board.
Incorrect usage may cause the ceramic board to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do
not use cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm.
Most glass jars are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Follow manufacturer’s instructions. Do not close with metal
tie. Make slits to allow steam to escape.
Paper plates and cups Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment paper Use as a cover to prevent splattering or a wrap for
steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic
containers soften, as the food inside gets hot. "Boiling
bags" and tightly closed plastic bags should be slit, pierced
or vented as directed by package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal
handle May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed
utensils
Metal shields the food from microwave energy. Metal trim
may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and
may split or crack.

10
SPECIFICATION
MODEL MCM1834G1F
RATED VOLTAGE 240V~50Hz
RATED INPUT POWER(MICROWAVE): 3000W
RATED OUTPUT POWER(MICROWAVE): 1800 W
External Dimensions: 574x528x368mm
Net Weight: Approx. 32.3 kg

11
PRODUCT OVERVIEW
Control Panel and Features
(4)
(6)
(5)
(3)
(2)
(1)
(1) Power Buttons
(2) Time Entry Button
(3) Double Quantity Button
(4) Stop/Reset Button
(5) Start Button
(6) Number Keyboard

12
Setting Up Your Oven
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity. Your oven comes
with the following accessories:
User Manual 1
B
C
D
A

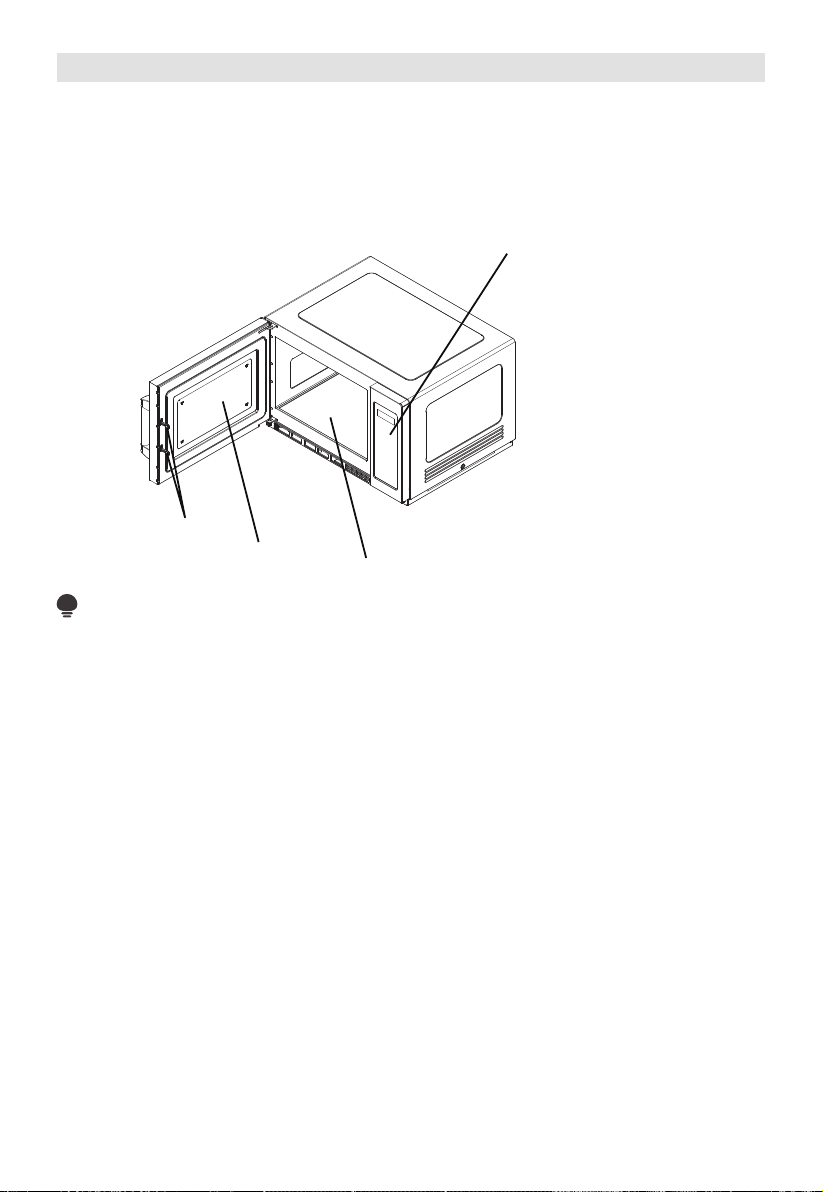

A) Control panel
B) Observation window
C) Safety interlock system
D) Ceramic board
NOTE:
1. Don’t press the ceramic board forcibly.
2. Take and put the utensils gently during the operation in order to avoid damage to the
ceramic board.
3. After using, don’t touch the ceramic board by hand in order to avoid high temperature
scald.

13
PRODUCT INSTALLATION
Countertop Installation
Remove all packing material and accessories. Examine the oven for any damage such as
dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.
Installation

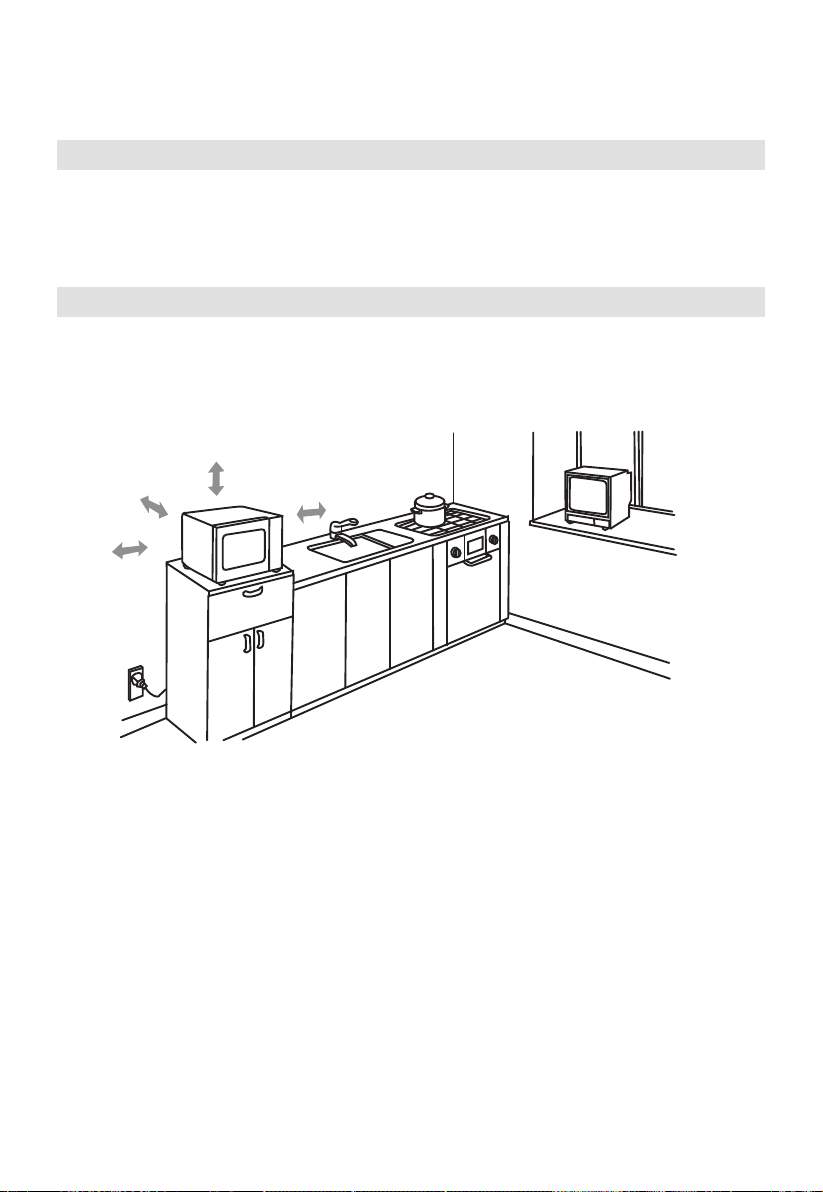

1. Select a level surface that provide enough open space for the intake and/or outlet
vents (Figure1).
30cm
OPEN
)
4.0 inch(10cm) 4.0 inch(10cm)
12 inch(
A 10-cm spacing should be kept between the appliance and right and back walls, and
a 30-cm spacing kept on the top. Never dismantle the appliance's feet, nor block the
air intake and exhaust opening. The left side must be open.
- Blocking the intake and/or outlet openings can damage the oven.
- Place the oven as far away from radios and TV as possible.
Operation of microwave oven may cause interference to your radio or TV
reception.
- Plug your oven into a standard household outlet. Be sure the voltage and the
frequency is the same as the voltage and the frequency on the rating label.
- Warning: The plug socket, electric appliances or the appliance which are liable
effected by heat and moisture should be kept away from any vents on the oven.
Fig 1

14

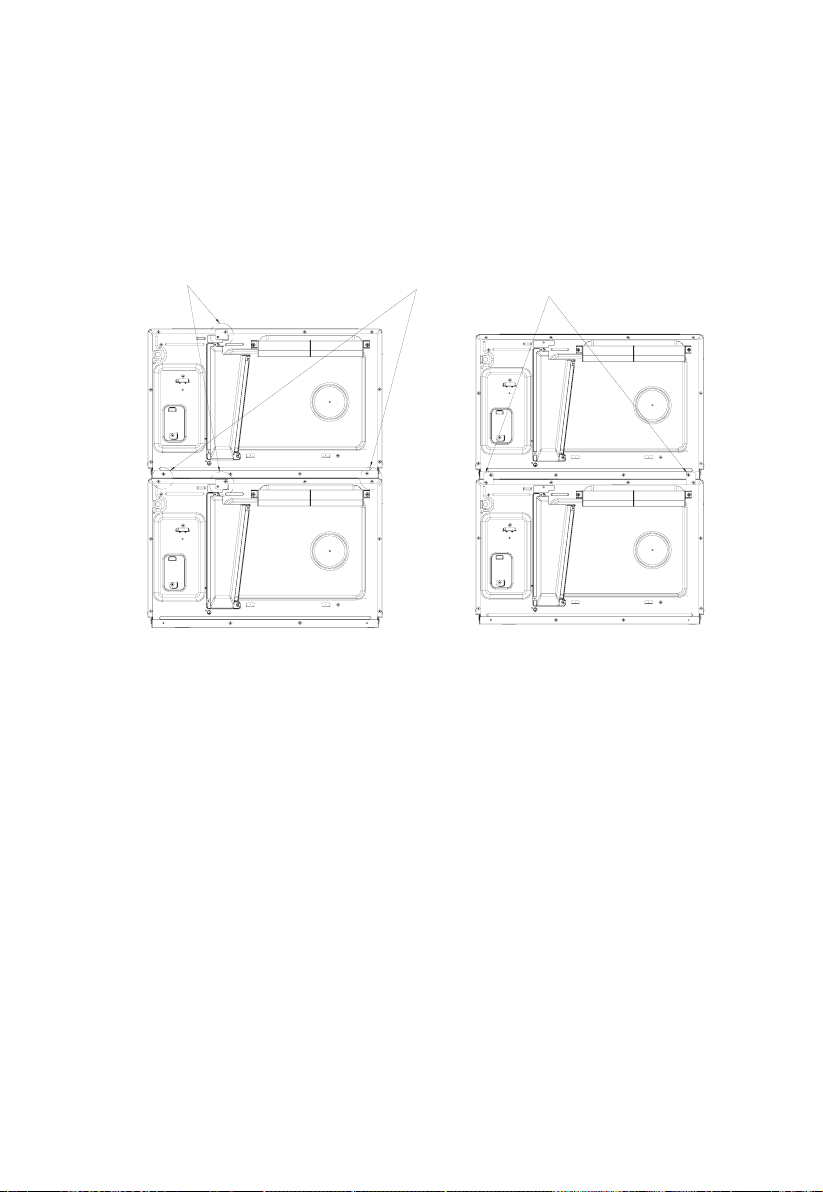

2. The appliance can be installed with a degree of overlap (Figure2). The maximum
overlap height is two layers.

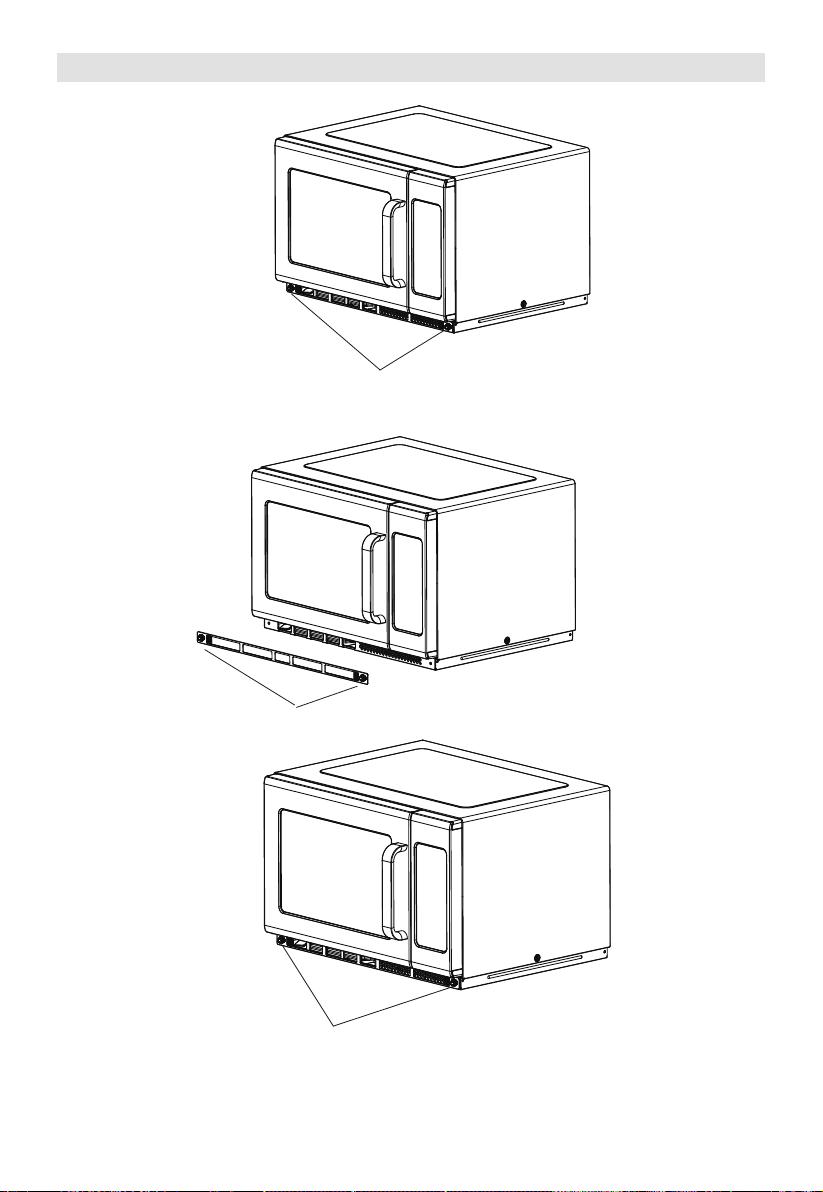

- Loosening screw,Taking off installation board, then replacing screw in its place
tightly.
-Taking off four screws as shown in the picture.
- Putting installation board to the following location then fixing screw just
taking off tightly.
C
AB
Fig 2

15
How To Remove And Install The Filter
To restall, align the base plate mounting holes,
Take off the filter.
clockwise the metal nails to tighten .
Turn the metal nails left to loosen them.

16
How To Remove And Install The Oil Blockage
WARNING
Before remove and install the oil blockage,be sure to unplug the appliance from the
power supply,and avoid high temperature scald.
thumb pressed here
2.status of remove
1.
3.taking oil blockage from the appliance.
hands with oil blockage, pressed on
the arrow shown, pushed back slamly,
then pulling down.
thumb pressed here
hands with oil blockage, pressed on
the arrow shown, pushed back slamly,
then pulling down.
The left hand grasp the microwave,
right thumb to press the arrow
directions and forced to push back.
And the left thumb hard pressed
upword at the same time, put the right
of oil blockage into the buckle of the
front plate.
From right to left, make the oil
blockage loaded.
When finish, check to ensure that the
oil blockage buckle completely go.
1.
2.
3.

17
Installation (supplement)
1. The switching operation of this microwave oven can cause voltage fluctuations
on the supply line. The operation of this oven under unfavorable voltage supply
conditions can have adverse effects. This device is intended for the connection to a
power supply system with a maximum permissible system impedance Zmax of 0.2
Ohms at the interface point of the user’s supply. The user has to ensure that this
device is connected only to a power supply system which fulfills the requirement
above. If necessary, the user can ask the public power supply company for the system
impedance at the interface point.
2. If there is no equipotential bonding conductor in the electric supply, an external
equipotential bonding conductor must be installed at the rear of the appliance (see
symbol). This terminal shall be in effective electrical contact with all fixed exposed
metal parts and shall allow the connection of a conductor having a nominal cross-
sectional area up to 10 mm2.

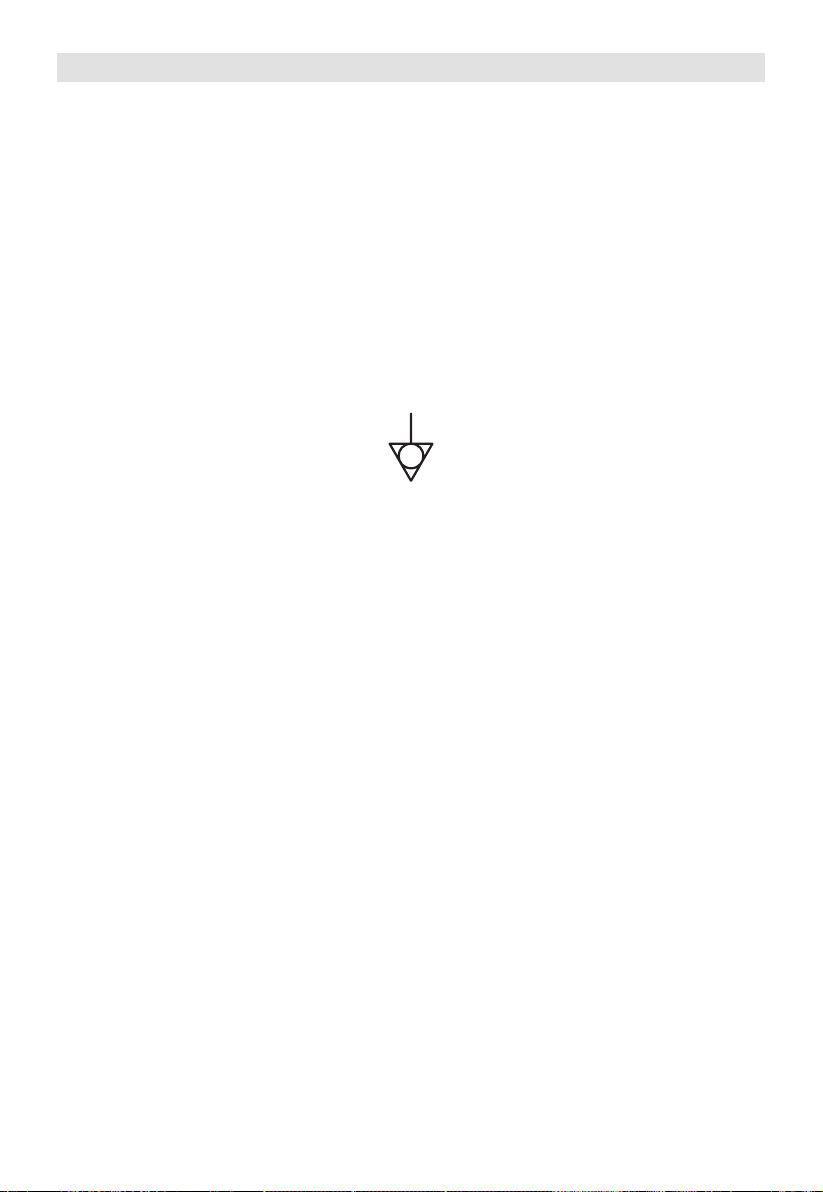

Symbol for the external connection of equipotential bonding conductors.

18
Appendix. A User Options
Items bolded below are the default values.
Option Setting Discription
1 EOC Tone
OP:10 3 seconds beep
OP:11 Continuous beep
OP:12 5 quick beeps,Repeating
2 Beeper Volume
OP:20 Beeper Off
OP:21 Low
OP:22 Medium
OP:23 High
3 Beeper On/Off OP:30 Keybeep Off
OP:31 Keybeep On
4 Keyboard Window
OP:40 15 seconds
OP:41 30 seconds
OP:42 60 seconds
OP:43 120 seconds
5 On the Fly OP:50 On-the-Fly Disable
OP:51 On-the-Fly Enabled
6 Door Reset OP:60 Door reset Disabled
OP:61 Door Reset Enabled
7 Max time OP:70 60 Minute Maximum Cook Time
OP:71 10 Minute Maximum Cook Time
8 Manual Programming OP:80 Manual Programming Disabled
OP:81 Manual Programming Enabled
9 Double Digit OP:90 Single Digit Mode-10 programs
OP:91 Doule Digit Mode-100 programs
OPERATION INSTRUCTIONS

19
Appendix. B Default Cook Times
The oven shall ship with the following Preset Cook Times unless otherwise noted in the
product Specification.
Button Display (Time) Power Cook Factor
1 0:10 100% 80%
2 0:20 100% 80%
3 0:30 100% 80%
4 0:45 100% 80%
5 1:00 100% 80%
6 1:30 100% 80%
7 2:00 100% 80%
8 2:30 100% 80%
9 3:00 100% 80%
0 3:30 100% 80%
